Long life plate microporous aerator with continuous aeration system Membrane Plate Bubble Diffuser for wastewater treatment
- Category: >>>
- Supplier: Yixing Holly Technology Co. Ltd.
Share on (1601199189409):
Product Overview
Description
EPDM plate fine bubble diffuser for sewage treatment is structured in the unique manner that makes the aeration system maintain
constant oxygenation transfer efficiency within the wide range of working air.The diffuser's support board is made of aluminum
alloy with a layor of membrane horizontally laid on the board.The membrane,once formed,will not suffer debonding .The diffuser can
be applied to either intermittent or continuous operation system.Therefore, Holly series plate-type diffuser is the preferred
choice for large-scaled and medium-scaled sewage treatment plants
constant oxygenation transfer efficiency within the wide range of working air.The diffuser's support board is made of aluminum
alloy with a layor of membrane horizontally laid on the board.The membrane,once formed,will not suffer debonding .The diffuser can
be applied to either intermittent or continuous operation system.Therefore, Holly series plate-type diffuser is the preferred
choice for large-scaled and medium-scaled sewage treatment plants
1.MOC: EPDM
Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm
perforations. Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
2.MOC: Silicon
Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
3. MOC:PTFE
The PTFE surface layer protects the EPDM substrate from chemical attack,while at the same time significantly reducing surface fouling on the membrane.we except to learn that PTFE-coated EPDM membranes outlast standard EPDM,thereby reducing the life cycle costs even further .It is used by major cities worldwide due to the anticipated life cycle cost benefits and reduced maintenance.
Model | HLBQ-650 |
Bubble Type | Fine Bubble |
Size | 675*215mm |
MOC | EPDM/Silicone/PTFE—ABS/Strengthened PP-GF |
Connector | 3/4''NPT male thread |
Membrane Thickness | 2mm |
Bubble Size | 1-2mm |
Design Flow | 6-14m3/h |
Flow Range | 1-16m3/h |
♦ Low resistance loss
♦ Highly Tear Resistant
♦ Anti-clogging, anti-backflow
♦ Ageing-resistant, anti-corrosion
♦ High efficiency, energy-saving
♦ Highly Tear Resistant
♦ Anti-clogging, anti-backflow
♦ Ageing-resistant, anti-corrosion
♦ High efficiency, energy-saving

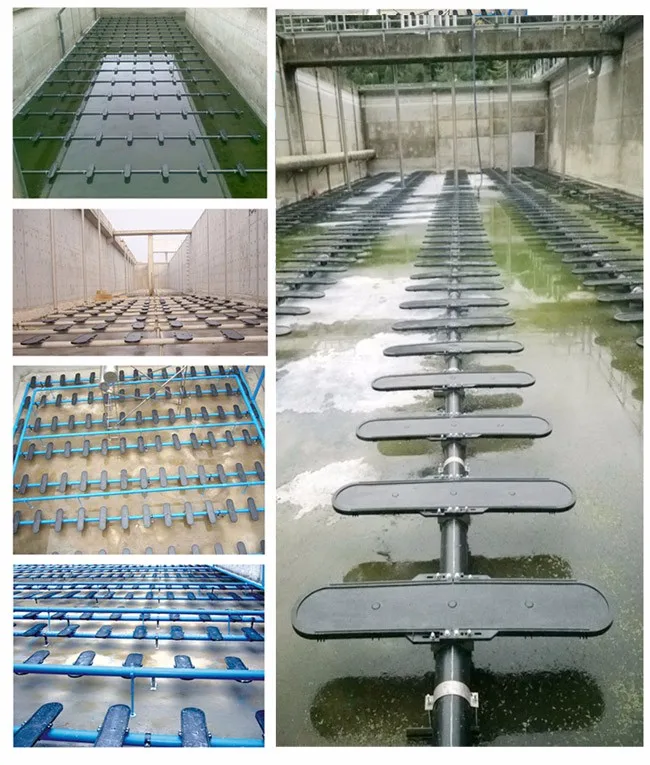

1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal waste water treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6.Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
2.Aeration of deep aeration basin
3.Aeration for excreta and animal waste water treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6.Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
