Good price new Oil field Well Drilling Use Exhaust Pipe High Energe Ignition Device
- Category: >>>
- Supplier: Puyang Star Petroleum Machinery Co. Ltd.
Share on (1601199229908):
Product Overview
Description
Product Description
Product Application:
Drilling Mud Ignition is an environmentally-friendly discharge torch that is exclusively produced by our company. It is suitable for ignition of long distances and air and toxic gas burning place that cannot be reached by humans.It is especially suitable for oil production(gas) overflow of gas or oil, natural gas, and drilling operation in station gathering pipelines, and long-distance ignition of natural gas separated by liquid-gas separators during killing operations eliminate the unsafe factors of manual ignition. Avoid explosions that may occur when natural gas is mixed with air and H2S-containing gases that can harm humans and equipment.
Horizontal Igniter for burn the gas from well drilling discharged pipelines(Type:SDKX)
Verrical Igniter for Burn the gas from liquid-gas separator.(Type:YPD)
Drilling Mud Ignition Technical Parameters | ||||||
Fuel Tank | 40L | Burner(Torch) Path: | DN200MM | |||
Burner Height: | About 2m | Burner Height: | 3m | |||
Pressure Regulator Valve Set Outlet Pressure | ≥0.5 Mpa | Electronic Ignitor Power: | DC | |||
Remote Control Distance | 30m | Electronic Ignitor Voltage: | 16kW | |||
Ignition Medium | Diesel | Electronic Ignitor Frequency: | 100-1000beats/Min | |||
Charging Voltage | ~220V,50HZ | |||||
Ambinent Temperature: | -30℃~40℃ | |||||
Ignition Frequency | ≤10 Times/Second | |||||
Main Configuration | ||||||
Combustion Cylinder | 1 | Fire Torch | 1 | |||
Ignition Rod | 1 | Fire Tube | 1 | |||
Control Box | 1Set | Windshield | 1 | |||
Fuel Injection Gun | 1 | Electrical Control Box | 1 | |||
Oil Pipeline | 1 | Ignition Device Body | 1(Including Torch,High-Energy Package) | |||
Gas Pipeline | 1 | Ignition Control Box | 1(There is a remote control,electronic control box key) | |||
High Voltage Cable | 30m | Cable Tray | 1 | |||
Gas Hose | 30m | Liquefied Gas Connection Pipeline | 1(with 2 tube clip) | |||
Remote Control | 1 | Pressure Reducing Valve | 1 | |||
Products Display

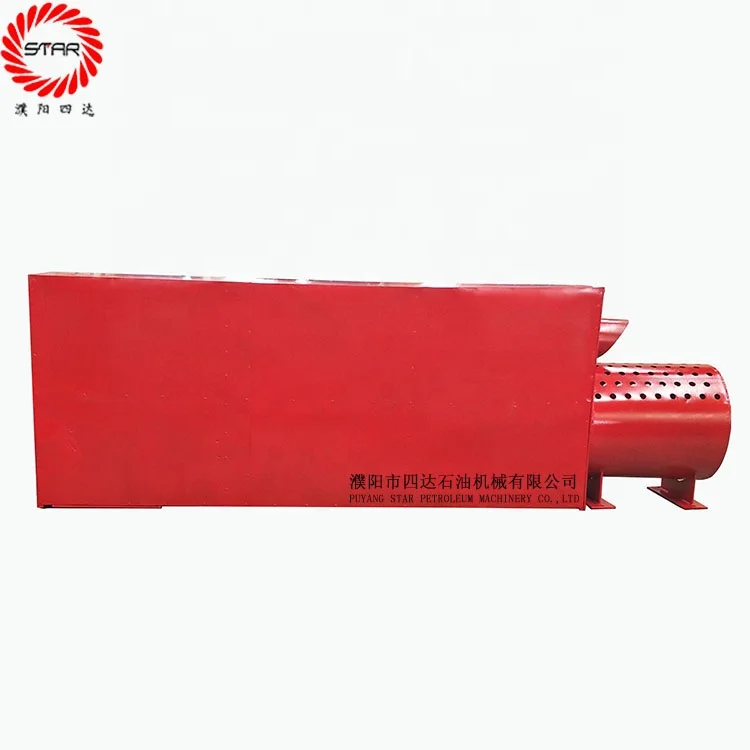

Drilling Mud Ignition System Display

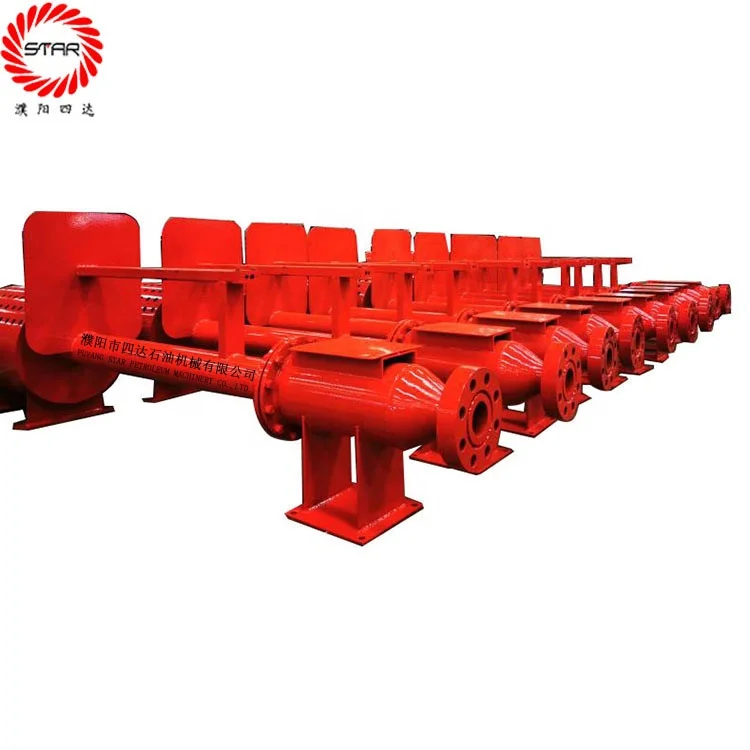

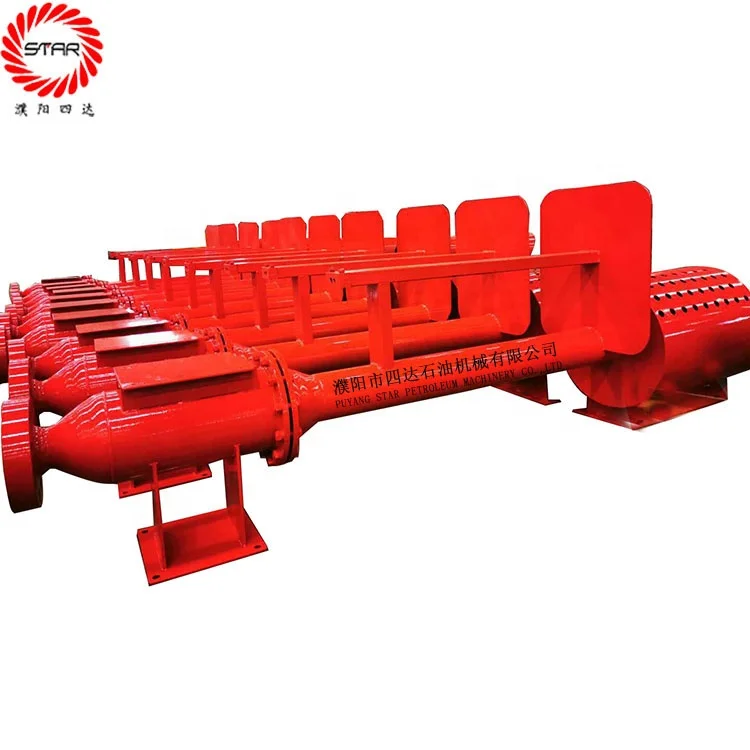

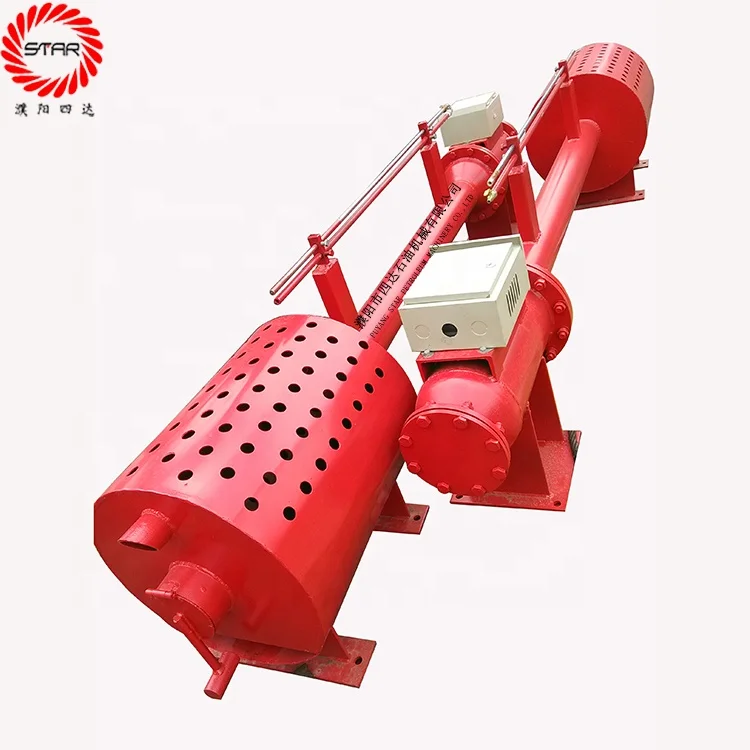

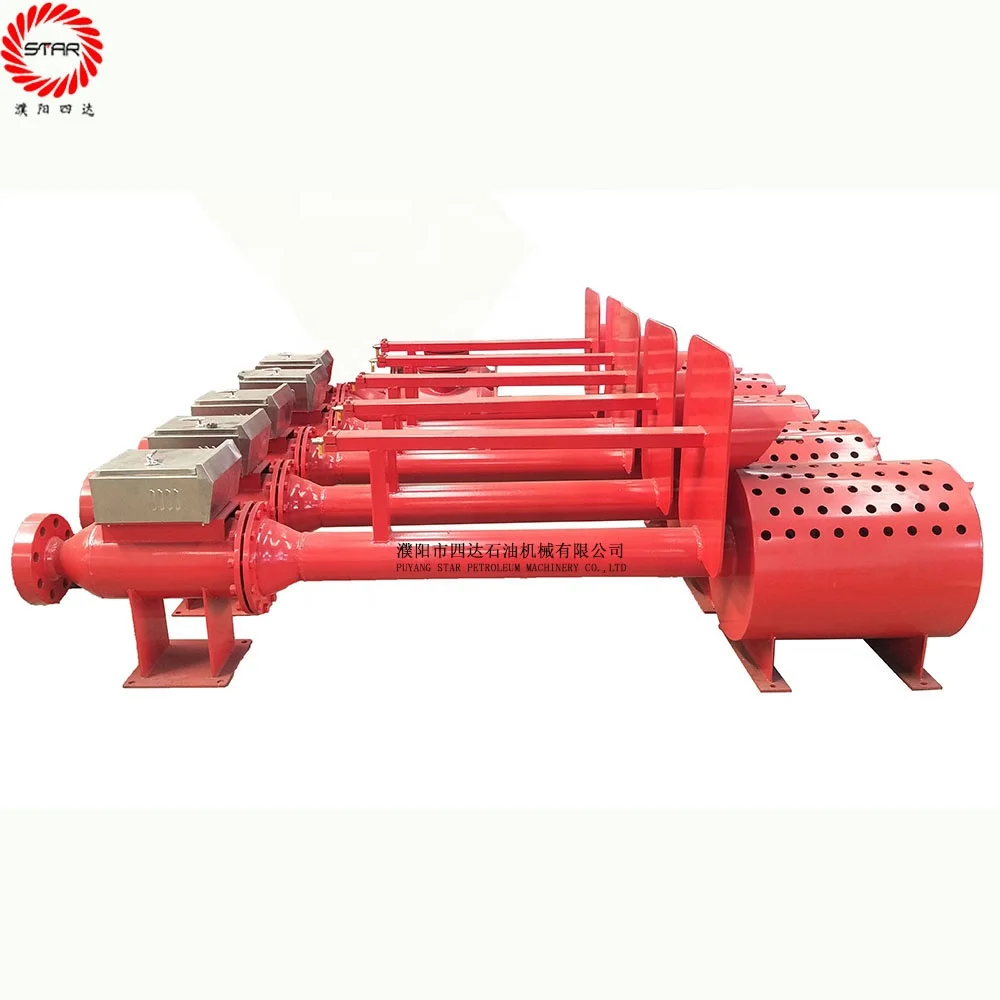

Horizontal Drilling Mud Ignition
FAQ
Problem | Reason | Solutions |
1.After the controller is turned on, Ignition device does not ignite | 1.Loss of battery 2.Output insurance blown 3.Cable and ignition cable broken 4.Possible ignition device is broken 5.Ignition conductive rod is damaged 6.High energy cable connector is not connected fastened | 1.After charging, use again 2.Replace the same type of insurance 3.Check the connection wire and ignition wire 4.Contact after-sales service or repair 5.Check whether it is broken or replaced. 6.Close the ignition controller, check, check it ,then tighten the connection. |
2.When the ignitor works, the front end of the conductive rod emits a sound of "pa,pa,pa...." | Ignition electric shock sound | Ignition electric shock sound |
3.Igniter sparks at each connection | The connector is not tightened | Tighten(note that porcelain cannot be used too much) |
4.Ignition controller output votage is too low | Maybe the voltage converter in the controller is faulty | Contact after-sale service or repair |
5.Ignition controller charging deficiency | Maybe the controller charging system is faulty | Contact after-sale service or repair |
Packing & Delivery
1.Domestic Packaging and Shipping:Without packaging or according to customer requirements;2.Oversea Packaging and Shipping；
2.Oversea Packaging and shipping: packaging with wood box.
2.Oversea Packaging and shipping: packaging with wood box.
Certifications
Our Company was established in 2007,Obtained a business license,ISO,API and so on.
Our Company
Workshop Show
Factory Show
Contact Us
Want to know more,please be free to contact Anita:
1.By Trademanager
2.By Following information
Remark:please supply more detail require specification ,that I can back the quotation to you soon.
Main Products:
Our company is mainly committed to the production of drilling equipment and solids control equipment
