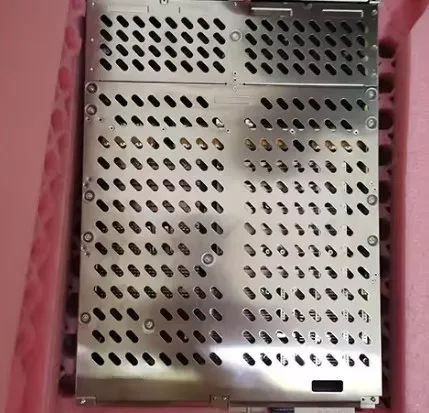

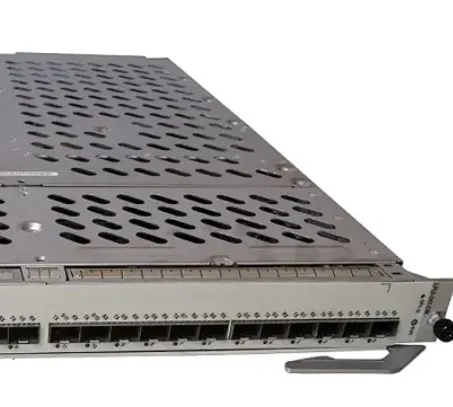

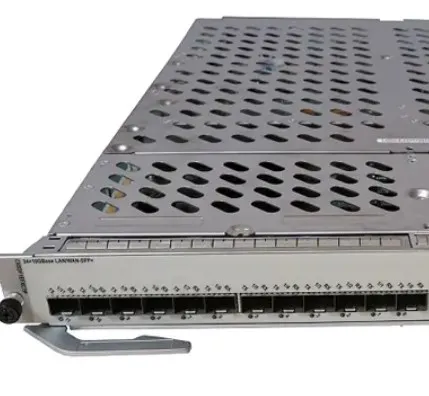

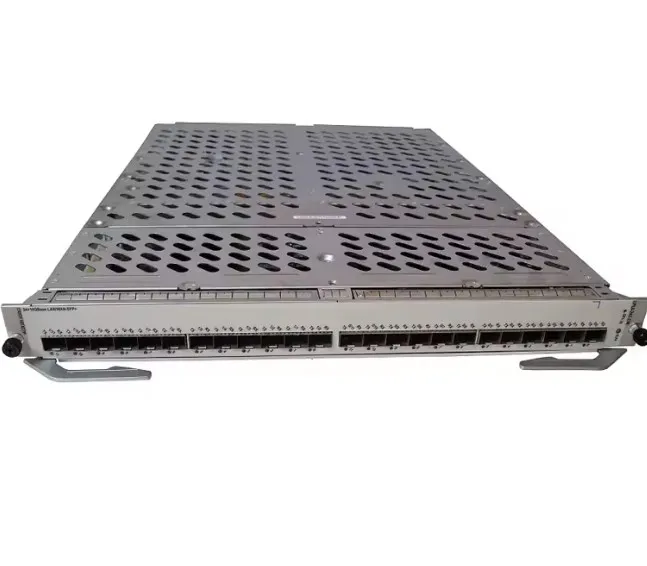

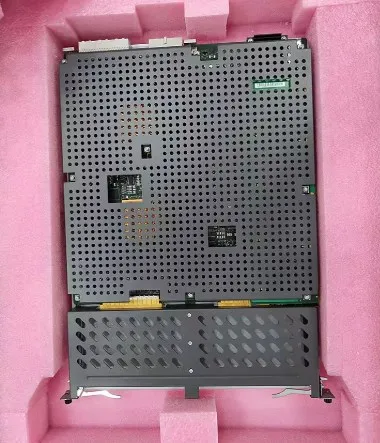

03058683 CR5DF1EFXC7P for NE40E enterprise routers 24 Port 10GBase LAN/WAN SFP Integrated Line Processing Unit CM epon onu
- Category: >>>
- Supplier: Beijing Ju Net An Technology Co. Ltd.
Share on (1601199257697):
Product Overview
Description
NE40E-X8 Full Service Framed Universal Service Enterprise Router ethernet ne40e-x8
Products Description
NE40E-X series of high-end full-service routers are designed based on a 2T hardware platform, providing the industry's largest capacity 2T routing line card, a mature wide-area SDN solution, high performance, low power consumption, evolvability, and original IP hard pipes The technology meets the low latency and high reliability requirements of key businesses and can be applied to enterprise WAN core nodes, large enterprise access nodes, campus interconnection and aggregation nodes, and various large IDC network egresses.
Product Paramenters
Item | NE40E-X16A | NE40E-X16 | NE40E-X8A | NE40E-X8 | NE40E-X3 | ||||
Number of Slots | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | 12 slots, including 2 SRUs (1:1 backup), 2 SFUs (3+1 backup), and 8 LPUs | 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs | 5 slots (for 3 LPUs and 2 MPUs) | ||||
Dimensions (W x D x H) | 442 mm x 650 mm x 1,778 mm (40U) | 442 mm x 650 mm x 1,420 mm (32U) | 442 mm x 650 mm x 934 mm (21U) | 442 mm x 650 mm x 620 mm (14 U) | 442 mm x 650 mm x 175 mm (DC, 4U) 442 mm x 650 mm x 220 mm (AC, 5U) | ||||
Power Consumption (in full configuration) | 9,040 W (480G) | 4,610W (120G) | 4,770W (480G) | 2,340W (120G) | 1,070W (AC) | ||||
7,970W (240G) | 4,100W (240G) | 920W (DC) | |||||||
Weight (in full configuration) | 356 kg (480G) | 246 kg (120G) | 186 kg (480G) | 119 kg (120G) | 42 kg (DC) | ||||
279 kg (240G) | 136 kg (240G) | 52 kg (AC) | |||||||
QoS | Long-term operating temperature: 0°C to 45°C | ||||||||
OAM | Short-term operating temperature: –5°C to +55°C | ||||||||
Multicast | Long-term operating humidity: 5% RH to 85% RH | ||||||||
Security | Short-term operating humidity: 0% RH to 100% RH | ||||||||
Value-added Services | Operating altitude: ≤ 3,000 meters | ||||||||
Ordering information
Item | Description |
NE40E-X16 Basic Configuration | NE40E-X16 Integrated Chassis Components (Including 8 DC Power) |
Main Processing Unit B4 | |
200 Gbit/s Switch Fabric Unit B (SFUI-200-B) | |
40 Gbit/s Switch Fabric Unit B | |
NE40E-X8 Basic Configuration | NE40E-X8 Integrated Chassis Components (Including 4 DC Power) |
Switch and Route Processing Unit A5 | |
200 Gbit/s Switch Fabric Unit C (SFUI-200-C) | |
40 Gbit/s Switch Fabric Unit C | |
NE40E-X3 Basic Configuration | Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power |
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power | |
Main Processing Unit D | |
Main Processing Unit D2 | |
10G Line Card | Flexible Card Line Processing Unit (LPUF-10,four slots) |
1-Port OC-192c/STM-64c POS-XFP Flexible Card (Occupies two slots) | |
1-Port OC-48c/STM-16c POS-SFP Flexible Card | |
8-Port 100/1,000 Base-X-SFP Flexible Card | |
2-Port OC-12c/STM-4c ATM-SFP Flexible Card | |
4-Port OC-3c/STM-1c ATM-SFP Flexible Card | |
2-Port OC-48c/STM-16c POS-SFP Flexible Card | |
4-Port OC-48c/STM-16c POS-SFP Flexible Card | |
4-Port OC-12c/STM-4c POS-SFP Flexible Card | |
8-Port OC-12c/STM-4c POS-SFP Flexible Card | |
4-Port OC-3c/STM-1c POS-SFP Flexible Card | |
8-Port OC-3c/STM-1c POS-SFP Flexible Card | |
2-Port Channelized OC-3c/STM-1c POS-SFP Flexible Card | |
4-Port Clear Channel E3/Channelized T3-SMB Flexible Card | |
24-Port Channelized E1/T1-DB100 Flexible Card | |
8-Port 100/1,000 Base-X-SFP Flexible Card A (P10-A, Supports 1588v2) | |
20G Line Card | Flexible Card Line Processing Unit (LPUF-21,2 sub-slots) A |
1-Port 10G Base WAN/LAN-XFP Flexible Card | |
12-Port 100/1,000 Base-SFP Flexible Card | |
12-Port 10/100/1,000 Base-RJ45 Flexible Card | |
1-Port 10G Base WAN/LAN-XFP Flexible Card A | |
12-Port 100/1,000 Base-SFP Flexible Card A | |
1-Port OC-192c/STM-64c POS-XFP Flexible Card | |
40-Port 100/1,000 Base-SFP Flexible Card (Occupies two sub-slots) | |
40-Port 10/100/1,000 Base-RJ45 Flexible Card (Occupies two sub-slots) | |
4-Port 10G Base WAN/LAN-XFP Flexible Card (Occupies two sub-slots) | |
2-Port 10G Base LAN/WAN-XFP+20-Port 100/1,000 Base-X-SFP Flexible Card (P20, Occupy two sub-slots) | |
1-Port 10G Base LAN/WAN-XFP Flexible Card B (P20-B) | |
12-Port 100/1,000 Base-X-SFP Flexible Card B (P20-B) | |
1-Port 10G Base LAN/WAN-XFP Flexible Card E (P20-E) | |
10-Port 1,000 Base-X-SFP Flexible Card E (P20-E) | |
40G Line Card | Flexible Card Line Processing Unit (LPUF-40,2 sub-slots) A |
2-Port 10G Base LAN/WAN-XFP Flexible Card (P40) | |
20-Port 100/1,000 Base-X-SFP Flexible Card (P40) | |
2-Port 10G Base LAN/WAN-XFP Flexible Card B (P40-B) | |
20-Port 100/1,000 Base-X-SFP Flexible Card B (P40-B) | |
2-Port 10G Base LAN/WAN-XFP Flexible Card A (P40-A, Supports 1588v2) | |
20-Port 100/1,000 Base-X-SFP Flexible Card A (P40-A, Supports 1588v2) | |
20-Port 10/100/1,000 Base-RJ45 Flexible Card (P40) | |
4-Port 10G Base LAN/WAN-XFP Flexible Card (P40, Occupies one sub-slot) | |
8-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41) | |
4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41) | |
48-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41) | |
2-Port 10G Base LAN/WAN-XFP+24-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41) | |
4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41) | |
40-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41) | |
2-Port 10G Base LAN/WAN-XFP+20-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41) | |
120G Line Card | Flexible Card Line Processing Unit (LPUF-120) |
6-Port 10G Base LAN/WAN-SFP+ Flexible Card A (P120-A) | |
1-Port 100G Base-CFP Flexible Card A (P120-A) | |
12-Port 10G Base LAN/WAN-SFP+ Flexible Card A (P120-A) | |
24-Port 100/1,000 Base-X-SFP Flexible Card A (P101-A) | |
5-Port 10G Base LAN/WAN-SFP+ Flexible Card A (P101-A) | |
1-Port 40G Base LAN-CFP Flexible Card A (P101-A) | |
5-Port 10G Base LAN/WAN-SFP+ Flexible Card E (P101-E) | |
24-Port 1,000 Base-X-SFP Flexible Card E (P51-E) | |
240G Line Card | Flexible Card Line Processing Unit (LPUF-240) |
1-Port 100G Base-CFP Flexible Card | |
12-Port 10G Base LAN/WAN-SFP+ Flexible Card | |
3-Port 40G Base-QSFP+ Flexible Card | |
480G Line Card | Flexible Card Line Processing Unit (LPUF-480) |
2-Port 100G Base-CFP2 Flexible Card A (P480-A) | |
24-Port 10G Base LAN/WAN-SFP+ Flexible Card A (P480-A) | |
1T Line Card | 8-Port 100G Base-CFP2 Integrated Line Processing Unit (LPUI-1T) |
Company Profile
Beijing ju net an technology co., ltd is an IT technology company dedicated to network system integration and network ommunication product sales. Over the years, the company has achieved a lot of successful experience in the IT industry. It has many customers such as telecommunications operators and large and medium-sized enterprises in the field of network equipment. The company has advanced technical equipment and facilities and strict quality control system to ensure the high quality of products and services..
Packaging and Shipping
* Trade terms: FOB,CIF,CFR,etc
* Price Terms:T/T,Western Union,Paypal,RMB
* Payment Terms: T/T in advance
* MOQ: 1 pc
* Lead time: Within 5-15working days after receipt payment.(According to configuration)
* Shipment: Express, Air, Sea
* Sample availability: Yes (not free)
* Package information: Standard carton package with the original package
* Price Terms:T/T,Western Union,Paypal,RMB
* Payment Terms: T/T in advance
* MOQ: 1 pc
* Lead time: Within 5-15working days after receipt payment.(According to configuration)
* Shipment: Express, Air, Sea
* Sample availability: Yes (not free)
* Package information: Standard carton package with the original package
