European Type D Ring Shackle Multi Size Stainless Steel Dee Shackles For Hardware Lifting Industrial Heavy Industry Applications
- Category: >>>
- Supplier: Wuxi Hengmao Metal Products Co. Ltd.Wuxi Ltd.
Share on (1601199265773):
Product Overview
Description

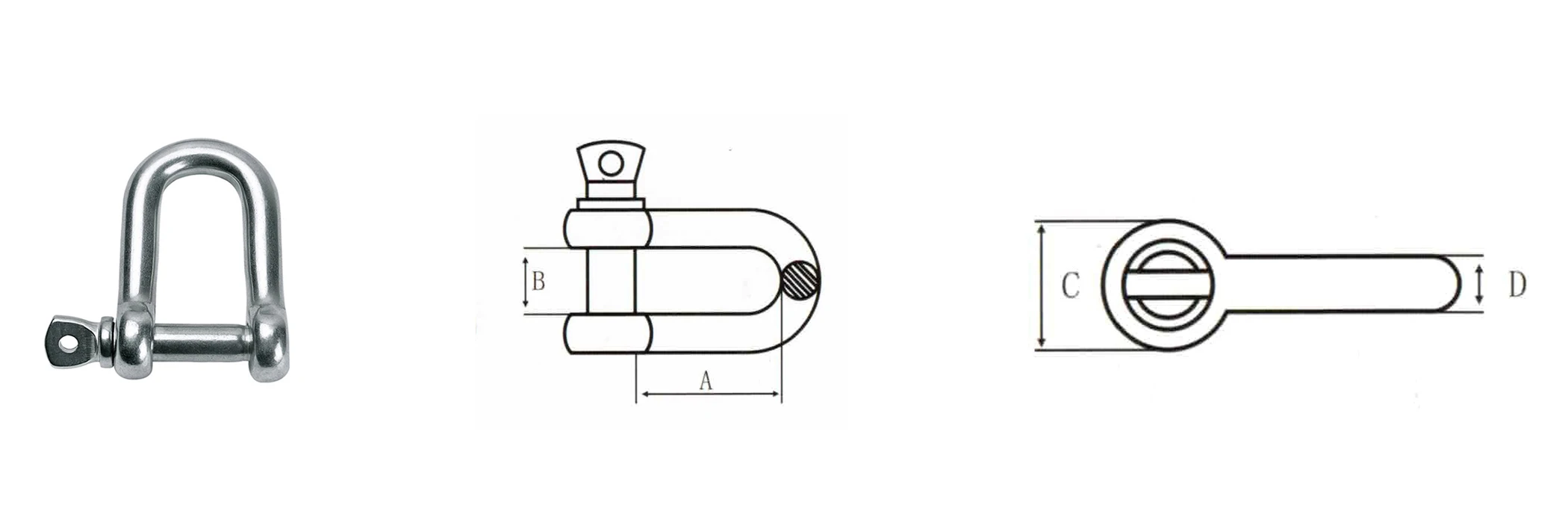

Product Specification
Part No. | Size | A（mm） | B（mm） | C（mm） | D（mm） |
HM919 | M4 | 16.0 | 8.2 | 8.6 | 3.9 |
M5 | 17.6 | 10.0 | 9.6 | 4.8 | |
M6 | 24.5 | 13.0 | 11.9 | 5.7 | |
M8 | 27.0 | 17.0 | 16.8 | 7.8 | |
M10 | 35.5 | 21.0 | 19.8 | 9.7 | |
M12 | 41.0 | 24.0 | 22.8 | 11.7 | |
M14 | 48.1 | 28.9 | 28.1 | 13.6 | |
M16 | 55.0 | 33.0 | 30.2 | 15.5 | |
M18 | 61.5 | 35.5 | 37.3 | 17.7 | |
M20 | 68.0 | 40.0 | 39.3 | 19.5 | |
M22 | 74.8 | 44.8 | 44.1 | 21.9 | |
M25 | 84.8 | 55.2 | 48.3 | 23.7 | |
M28 | 100.9 | 59.3 | 53.6 | 27.6 | |
M32 | 115.0 | 66.3 | 63.5 | 32.0 | |
M38 | 131.0 | 78.0 | 74.8 | 37.5 |

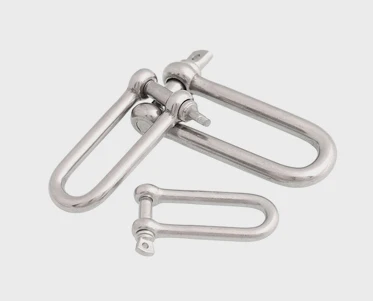

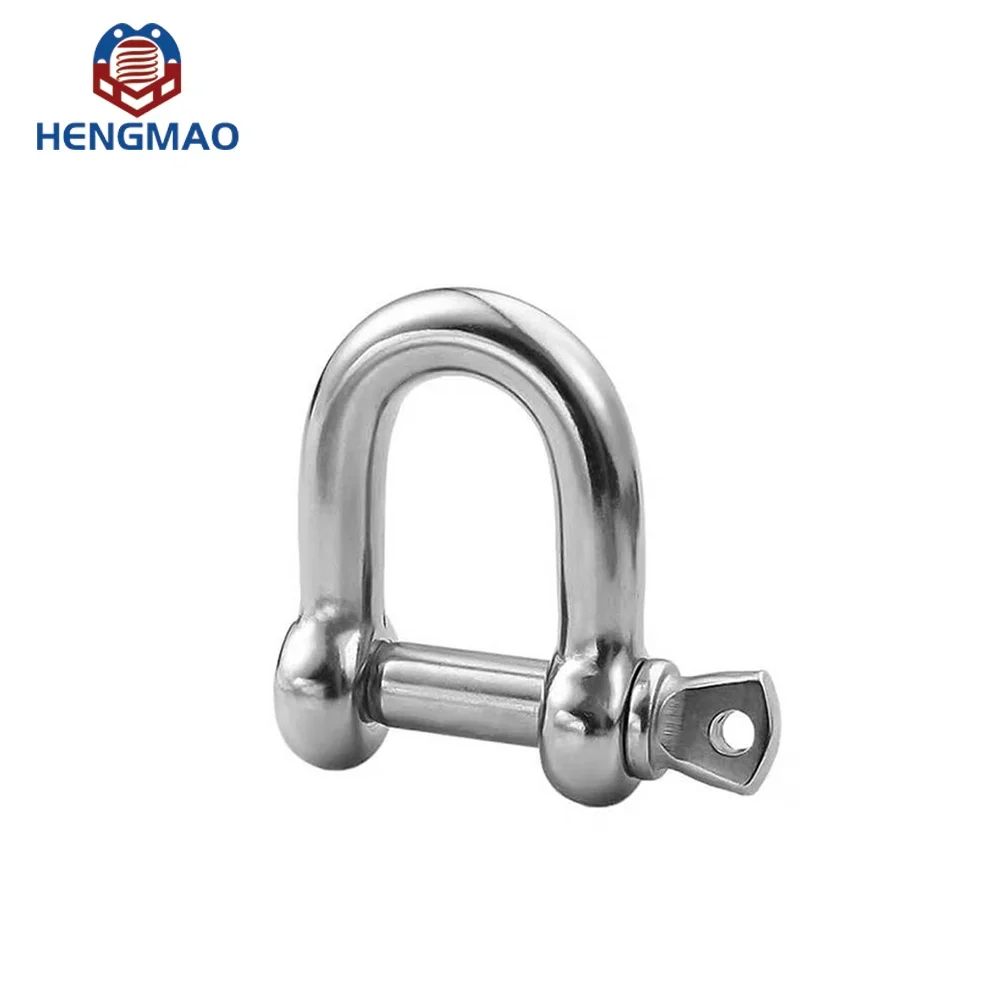

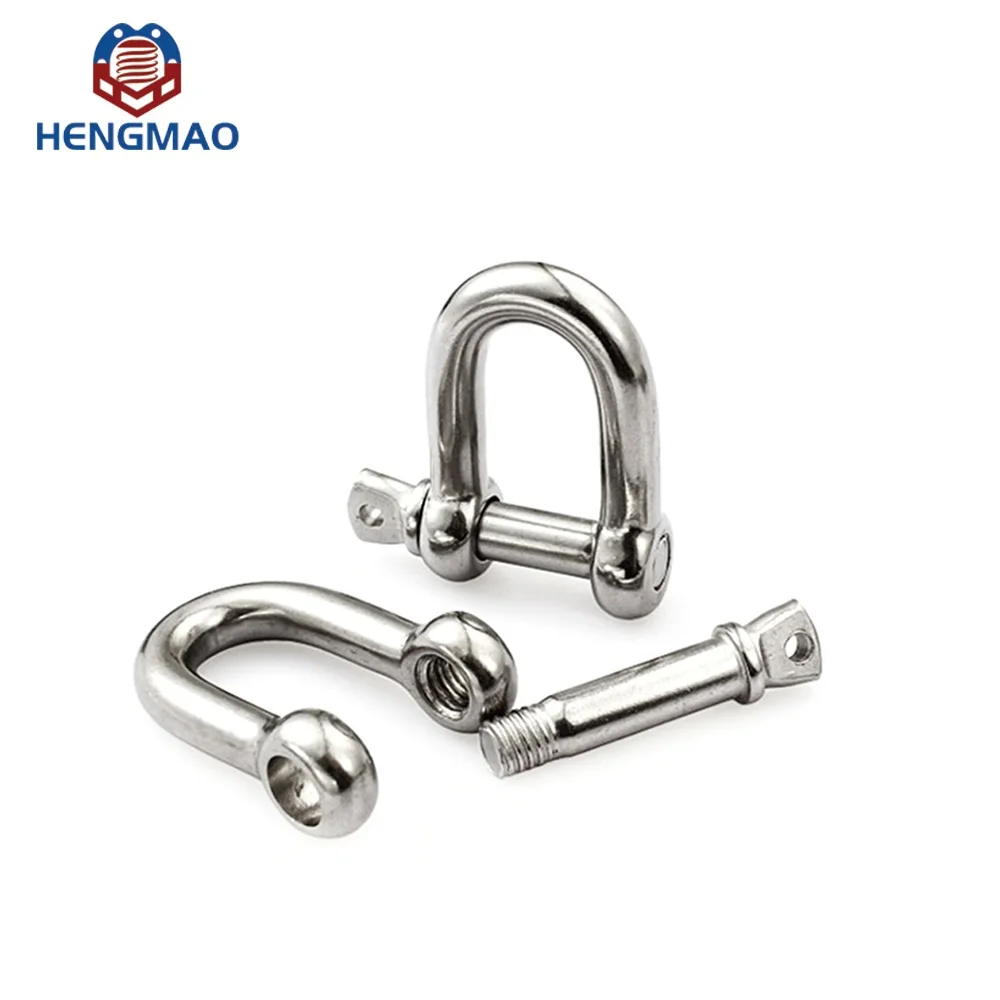

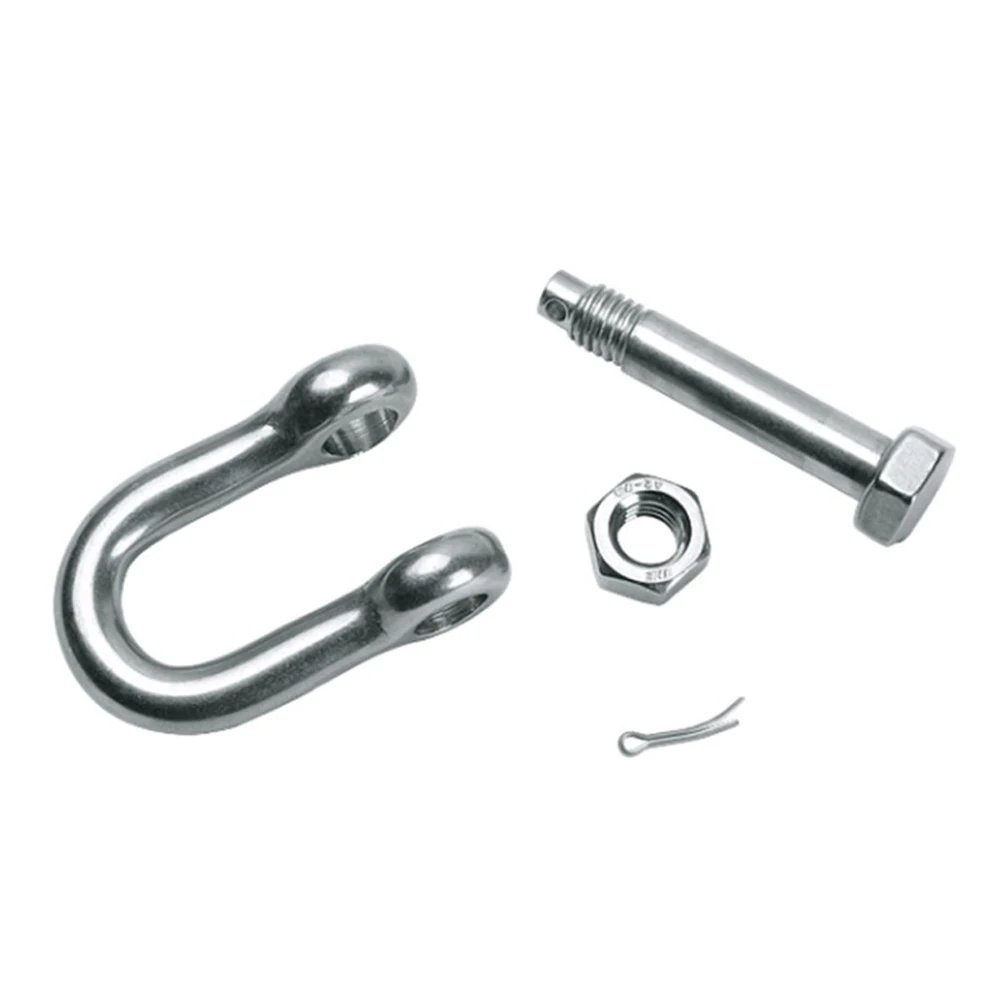

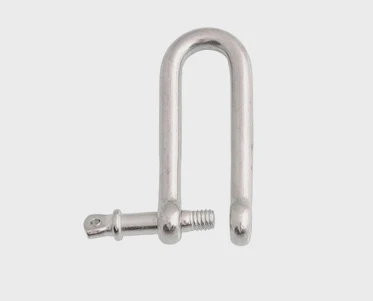

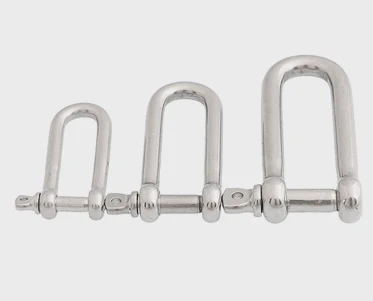

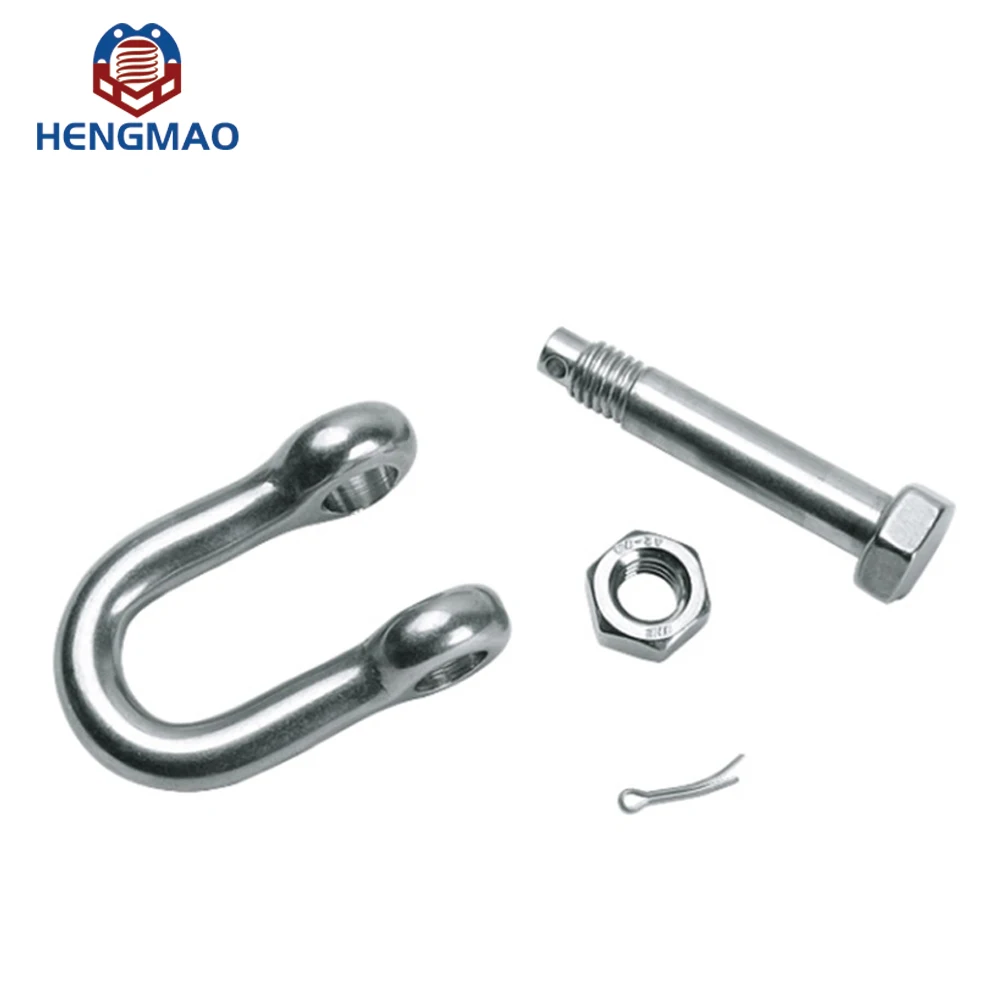

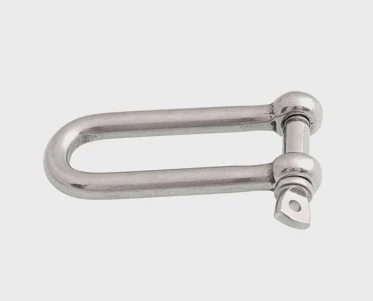

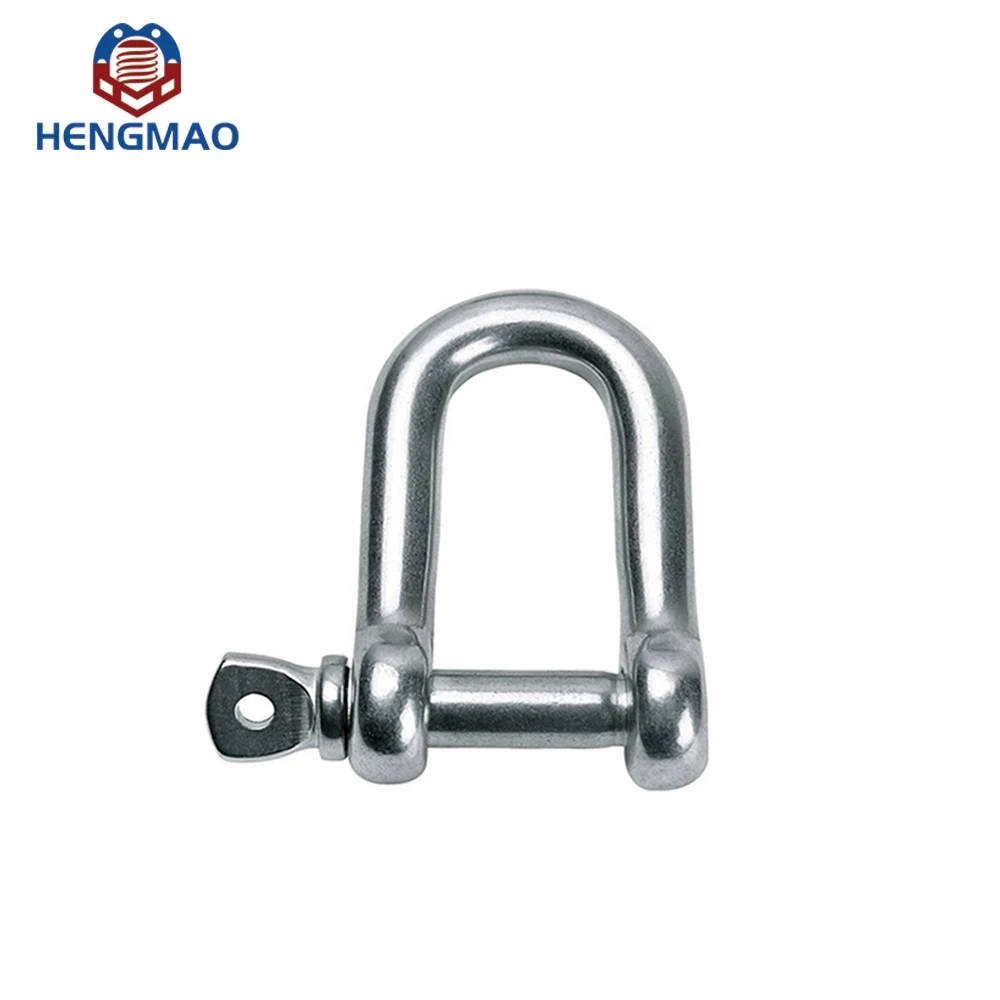

Product Display
Made of 304 stainless steel, higher hardness, moisture-resistant, acid and alkali resistant, anti-rust, glossy and bright surface,non toxic, environmentally friendly and harmless. Solid design, abrasion resistant, strong load-bearing.Work well in damp room and outdoor environment.
Apply to a variety of boat or household applications,coupling chain and wire rope for camping, hiking and other outdoor sports,could be also used in loading and unloading of goods, mining equipment, forestry machinery, land transportation, hoisting

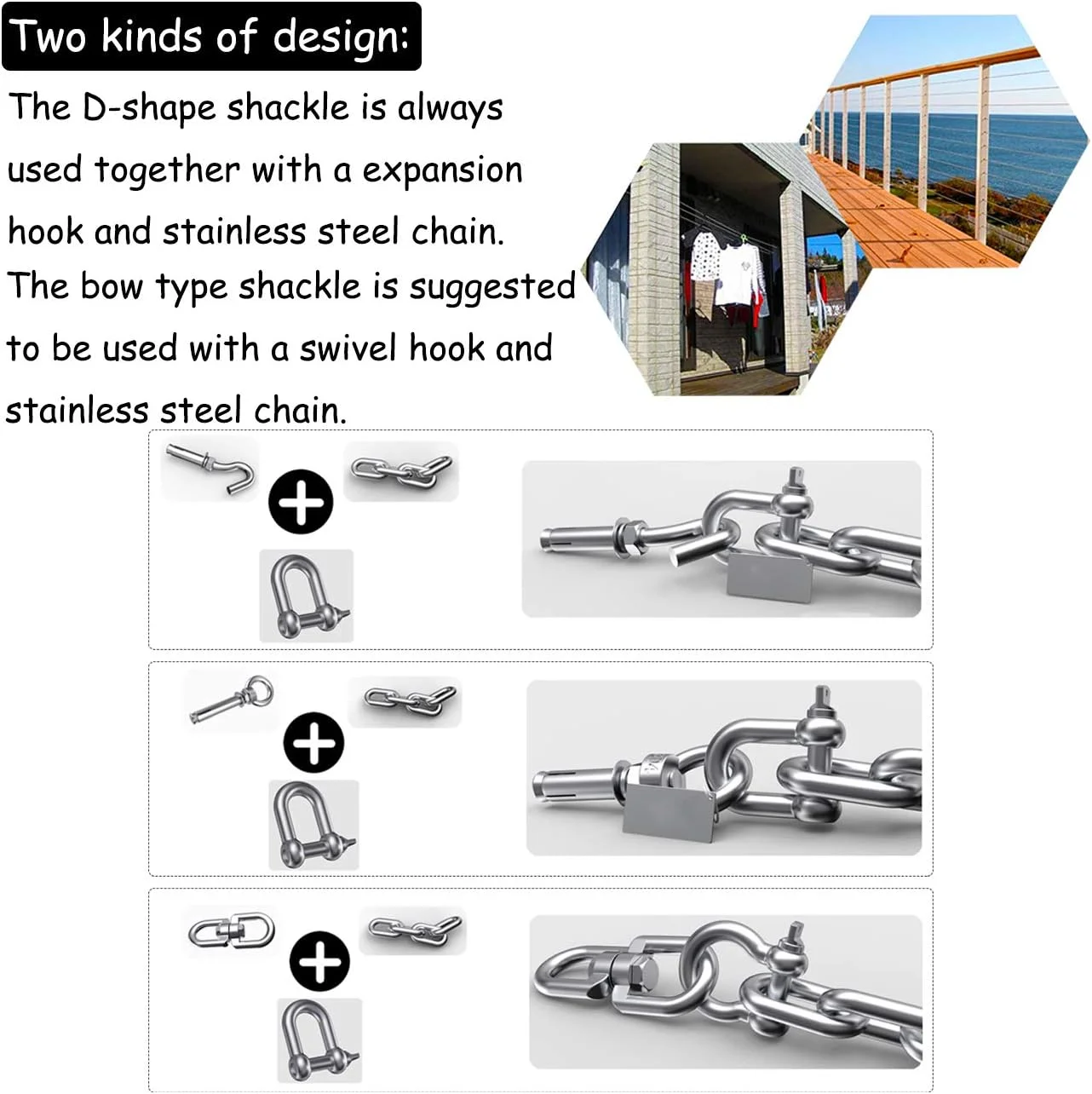

machinery and etc. The D-shape shackle is always used together with a expansion hook and stainless steel chain.How to Use
Recommend Products
Packing and Shipping
Company Profile
Wuxi Hengmao Metal Products Co.,Ltd. is established in 2018,and specializing in producing and exporting all kinds of fasteners. Our product range in standard fasteners GB, DIN, ANSI, JIS and non standard. Our products are made of all kinds of material as 304 stainless steel, 316 Stainless Steel, Carbon Steel, Alloy Steel, Solid Brass and Aluminum.The surface coating includes: Class 4 Mechanical Galvanised, Ruspert, Dacromet,Teflon, Hot Dipped Galvanised, Zinc Plating, Nickel Plating , Brass Plating and Chromium plating. The strength of the products are 4.8 grade, 6.8 grade, 8.8 grade, 10.9 grade and 12.9 grade.
Our products sell well all over the world. The high quality products and excellent service are well recognized by customers both at home and abroad. Our company has a team of experienced technicians that continues to improve the products to meet the increasing need of consumers .Our company always adheres to the operating principle of technology orientation and quality first and continues to improve its own capabilities and market competitiveness. It builds up the confidence of customers with first class products and perfect services.
Manufacturing Technique
Testing Equipment
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer but also do trading.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods stock available. And 15-20 days for mass production, it is according to specific item and quantity.
Q: What is your MOQ ?
A: For stock items, we do not have MOQ and we are accepting small order to support your trail order, marketing development.
Q: Do you provide samples ? Is it free or extra ?
A:Yes, we can provide free sample, but we are prefer to charge the freight cost if you do not have an international express account for transfer.
Q: What is your terms of payment ?
A: Payment less than USD3000, 100% T/T in advance.
Payment more than USD3000, 50% T/T in advance and balance before shippment.
Q: What is your price terms ?
A: EXW,FOB,CIF,CFR,FCA,DAP,DDP
We offer the photo, video or even Third Party to check.
A: We are manufacturer but also do trading.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods stock available. And 15-20 days for mass production, it is according to specific item and quantity.
Q: What is your MOQ ?
A: For stock items, we do not have MOQ and we are accepting small order to support your trail order, marketing development.
Q: Do you provide samples ? Is it free or extra ?
A:Yes, we can provide free sample, but we are prefer to charge the freight cost if you do not have an international express account for transfer.
Q: What is your terms of payment ?
A: Payment less than USD3000, 100% T/T in advance.
Payment more than USD3000, 50% T/T in advance and balance before shippment.
Q: What is your price terms ?
A: EXW,FOB,CIF,CFR,FCA,DAP,DDP
We offer the photo, video or even Third Party to check.
