Fully Automatic Customized 500kgh French Fried Potatoes Fries Production Line Potato Chips Making Machine
- Category: >>>
- Supplier: Henan Yumai Machinery Co. Ltd.Henan Ltd.
Share on (1601199387808):
Product Overview
Description
Product Description
Automatic Frozen French Fries production line is used to produce frozen french fries / potato chips from fresh potatoes, with capacity from 100-2000 kg/h for selection.
1 | We will provide One-Stop solution from A to Z, all can be customized from output capacity, voltage, french fries size or potato chips thickness | ||||||
2 | Machine layout drawing will be provided based on your factory size | ||||||
3 | Output capacity can be customized from 100kg/h to 2000kg/h | ||||||
4 | All machines are made of food grade 304 stainless steel | ||||||
5 | Schneider electrical components, Siemens motor | ||||||
6 | Electric / Gas / Diesel as heating source (equipped with RIELLO brand burner) | ||||||

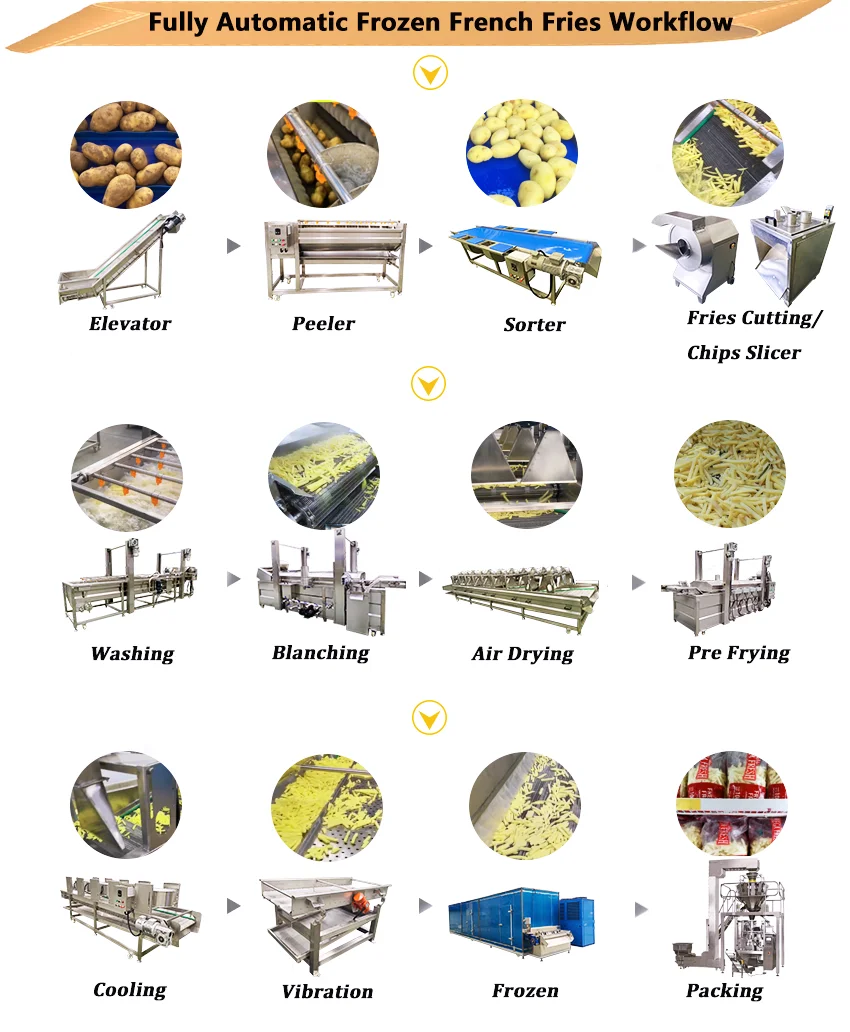

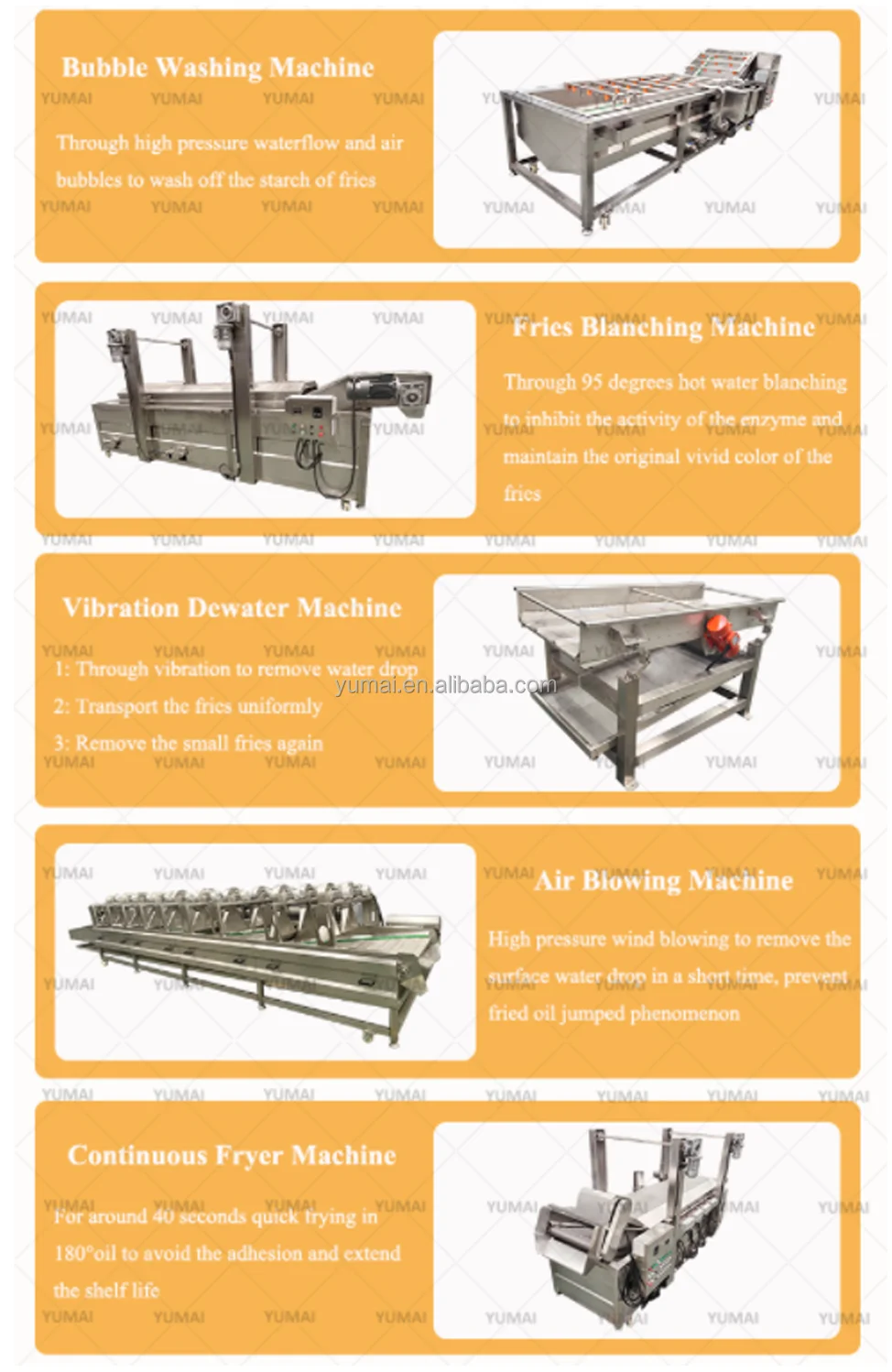

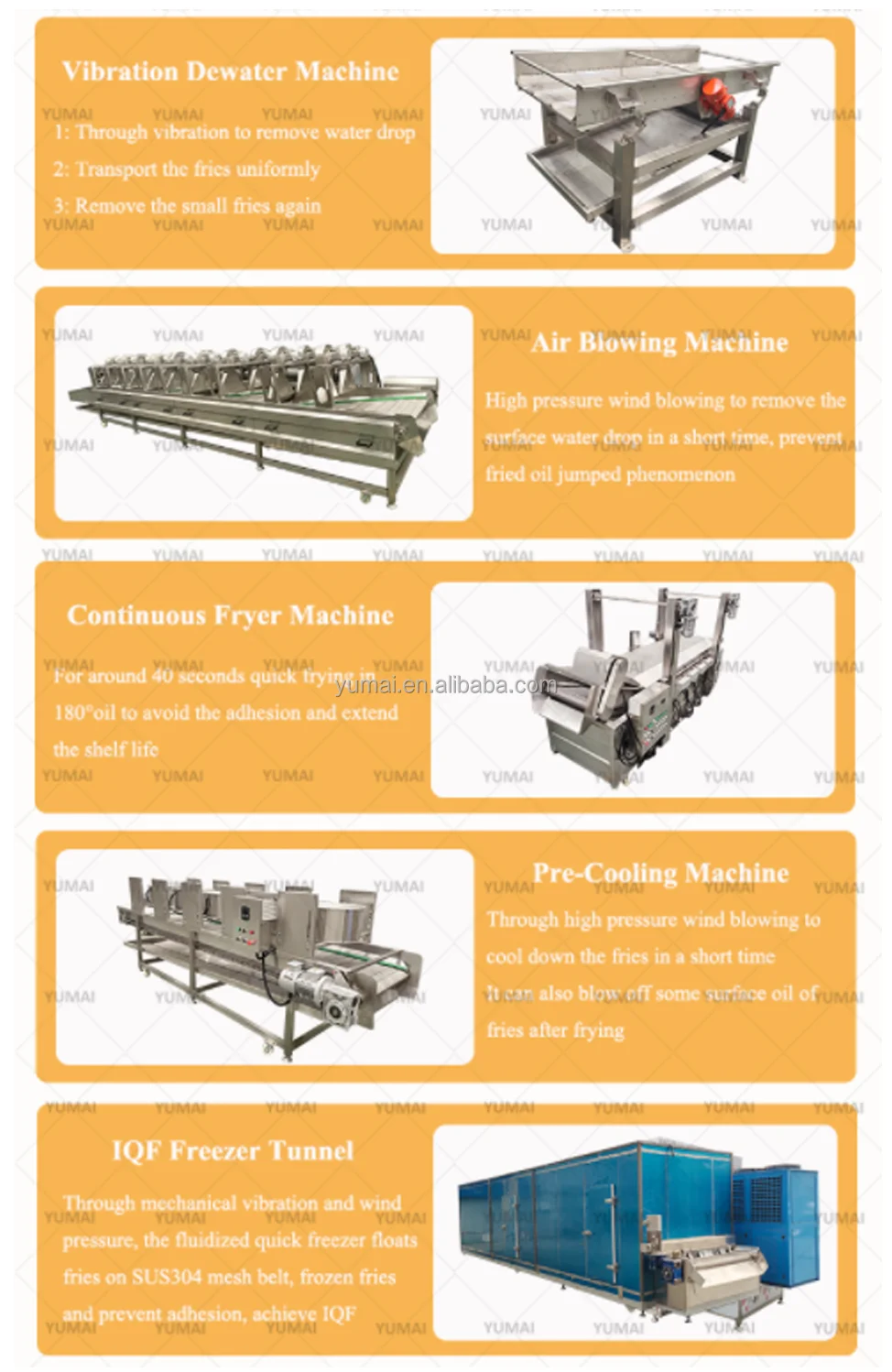

Fully Automatic Frozen French Fries Production Process: | ||||||||||

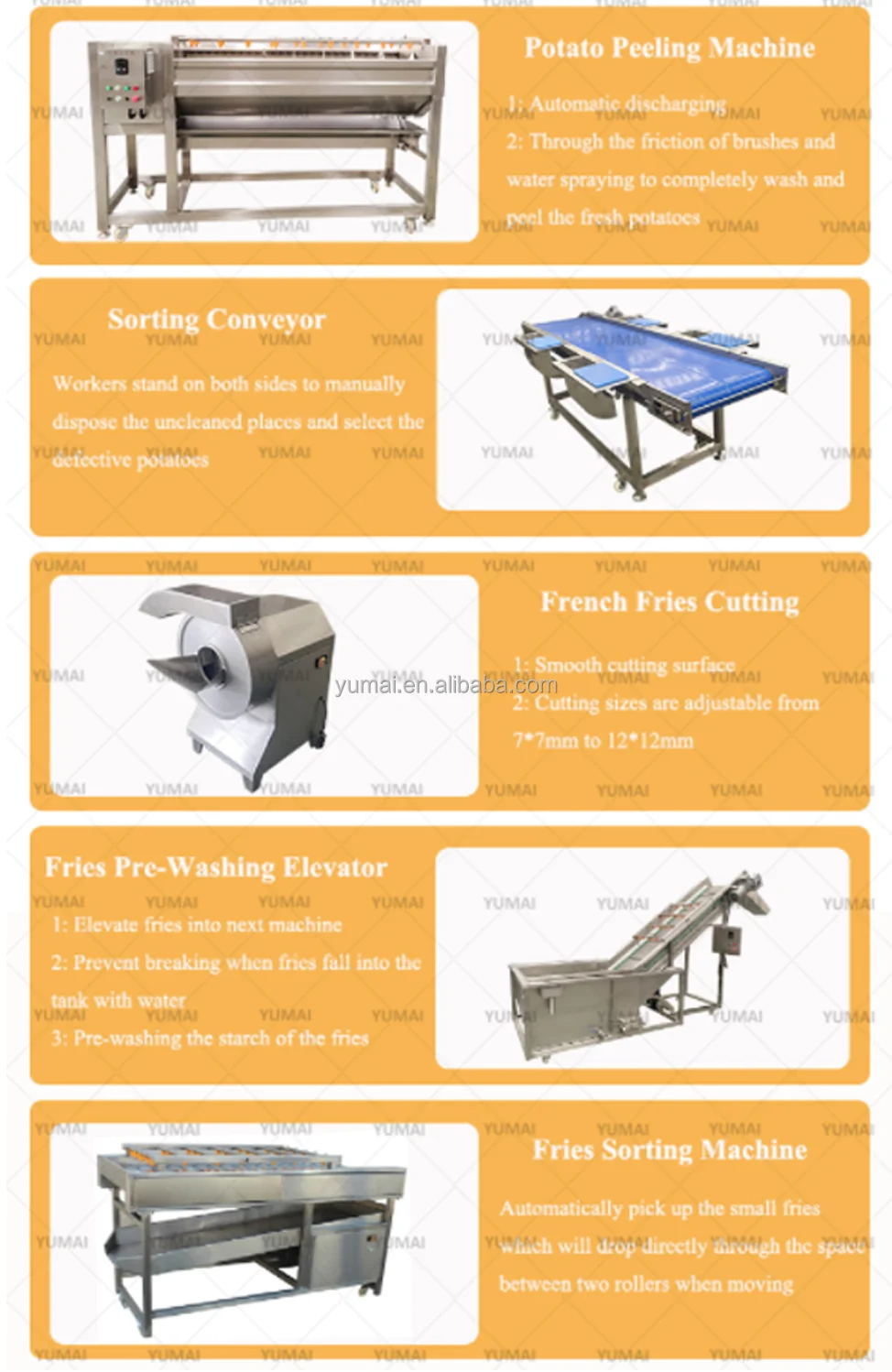

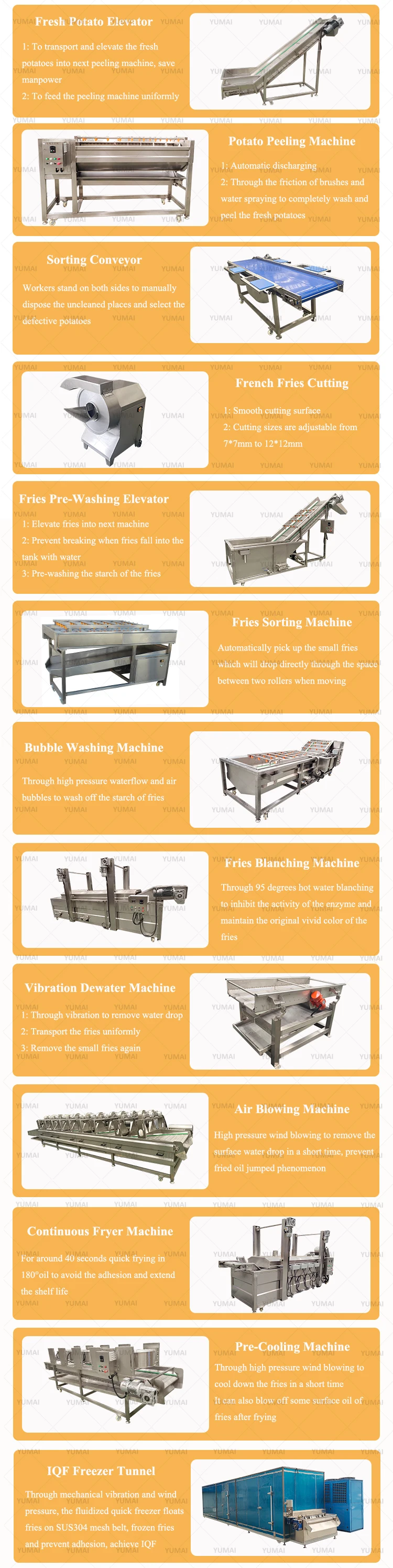

No. | Machine Name | Dimension | Power | Quantity | Material | |||||
1 | PU Belt Elevating Conveyor | 2400*700*1600mm | 0.75kw | 1set | SUS304 | |||||
2 | Potato Washing & Peeling Machine | 3400*1000*1400mm | 4.37kw | 1set | SUS304 | |||||
3 | Sorting Conveyor | 3000*700*900mm | 0.75kw | 1set | SUS304 | |||||
4 | French Fries Cutting Machine | 950*800*950mm | 1.5kw | 1set | SUS304 | |||||
5 | Water Tank Elevator | 2200*800*1600mm | 0.75kw | 1set | SUS304 | |||||
6 | Fries Sorting Machine | 2400*1000*1300mm | 2kw | 1set | SUS304 | |||||
7 | Bubble Washing Machine | 4000*1200*1400mm | 6kw | 1set | SUS304 | |||||
8 | Blanching Machine | 5000*1200*1400mm | 140kw | 1set | SUS304 | |||||
9 | Vibrating Dewatering Machine | 1800*1000*1300mm | 0.36kw | 1set | SUS304 | |||||
10 | Air Drying Machine | 4000*1000*1600mm | 7.5kw | 1set | SUS304 | |||||
11 | Mesh Belt Elevating Conveyor | 2000*800*1300mm | 0.75kw | 1set | SUS304 | |||||
12 | Continuous Frying Machine | 6000*1200*1400mm | 200kw | 1set | SUS304 | |||||
13 | Vibrating Deoiling Machine | 1800*1000*1300mm | 0.36kw | 1set | SUS304 | |||||
14 | Cooling Machine | 4000*1000*1600mm | 7.5kw | 1set | SUS304 | |||||
15 | Mesh Belt Elevating Conveyor | 2000*800*1300mm | 0.75kw | 1set | SUS304 | |||||
16 | IQF Freezer Tunnel | 11500*2200*2200mm | 90kw | 1set | SUS304 | |||||
17 | Elevating Conveyor | 3000*500*1400mm | 1.1kw | 1set | SUS304 | |||||
18 | Automatic Packing Machine | 5000*2000*3400mm | 6.7kw | 1set | SUS304 | |||||

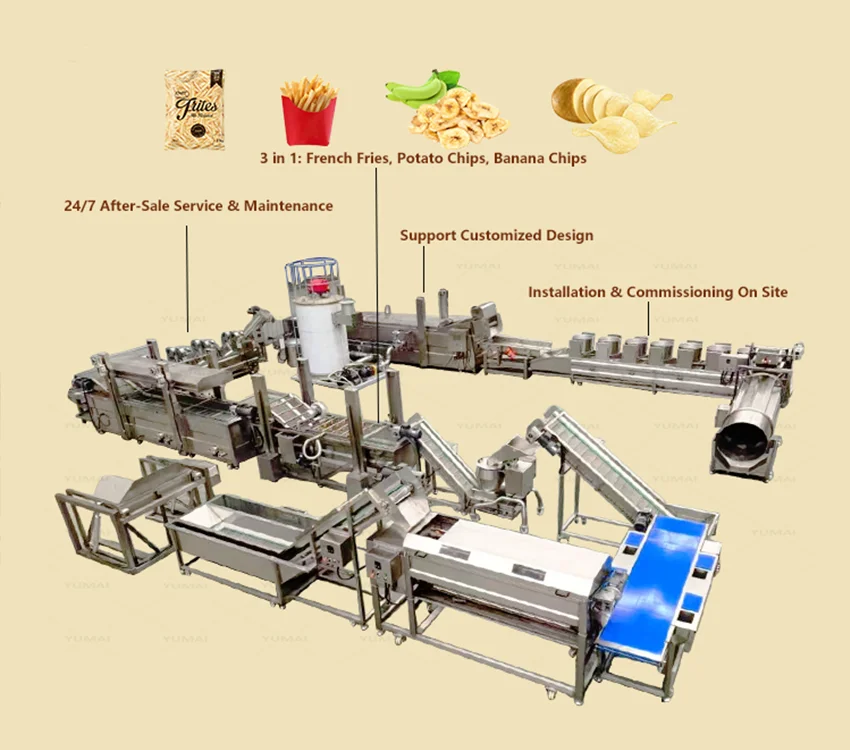

Fully-Automatic French Fries & Potato Chips Production Line (Finished capacity, Heating source, Production process all can custom made.) | ||||||||||
1.Clean
It is mainly divided into two parts: peeling and cleaning. The main equipment is automatic peeling and cleaning machine and air bubble cleaning machine. After peeling the potato, this step is to clean it again to meet the clean standard.
2.Cut/Slicing
It is mainly divided into two parts: peeling and cleaning. The main equipment is automatic peeling and cleaning machine and air bubble cleaning machine. After peeling the potato, this step is to clean it again to meet the clean standard.
2.Cut/Slicing
Cleaning the picked potatoes automatically entered the cutting machine and cut it. The ma-chine absorbs the advantages of similar products, it has the advantages of reasonable structure, high efficiency, energy -saving consumption, simple operation, etc. The material is uni-form, beautiful, and less consumed.
3.Select
Siege the fries after cutting and eliminate unqualified products
4. Rinse
Wash the surface starch on the fries
5. Blanching
After the rinsing, the fries entered the drifting stage and carried out color protection and sterilization
7. Air -drying
Dry the water remaining on the surface of the french fries on the surface of the hot flies, which can maintain the original shape of the fries to a greater extent.
8. Frying
Use oil and water to separate the fried fryer, with controllable temperature, maintain the original flavor
9. Air -drying
Dry the fried fried fries to avoid the taste and taste of residual oil residue affecting the fries.
10. Frozen
11.Package
Using automatic weighing packaging machines, fast speed and high efficiency.
3.Select
Siege the fries after cutting and eliminate unqualified products
4. Rinse
Wash the surface starch on the fries
5. Blanching
After the rinsing, the fries entered the drifting stage and carried out color protection and sterilization
7. Air -drying
Dry the water remaining on the surface of the french fries on the surface of the hot flies, which can maintain the original shape of the fries to a greater extent.
8. Frying
Use oil and water to separate the fried fryer, with controllable temperature, maintain the original flavor
9. Air -drying
Dry the fried fried fries to avoid the taste and taste of residual oil residue affecting the fries.
10. Frozen
11.Package
Using automatic weighing packaging machines, fast speed and high efficiency.

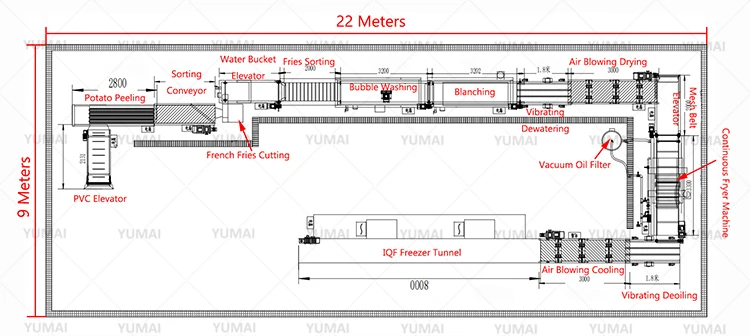

We will provide Machine Layout based on your factory
Details
Related Product
Company Profile
Henan Yumai Machinery Co.,Ltd is specialized in Fruit & Vegetable Processing Equipment, including featured products, like Fully Automatic and Semi Automatic Potato Chips / Frozen French Fries Production Line, Plantain / Banana Chips Processing Line, Frozen Vegetable Processing Line, Vegetable Cutting Washing Peeling Drying Line, Snack Food Frying Line, Nuts Processing Line etc.
We are a new modern enterprise with strong R&D Design and Customization capabilities and rich experience to provide you professional One-Stop Turn Key Project Solution.
Our machines were already exported to over 20 countries and regions, like US, Mexico, Chile, Peru, Ecuador, Australia, UK, France, Italy, Dubai, Turkey, Angola, Nigeria, Kenya, Thailand, Malaysia, Indonesia, Korea, etc. and related certification is always available.
Our goal is to provide you one stop turn-key project to allow you spread happiness with your ideal machinery. Sincerely welcome the clients all over the world to visit our company and work with us!
Do not hesitate to buy your specific machines today!
we will help you expand and start your business, make your dream a reality!!!
We are a new modern enterprise with strong R&D Design and Customization capabilities and rich experience to provide you professional One-Stop Turn Key Project Solution.
Our machines were already exported to over 20 countries and regions, like US, Mexico, Chile, Peru, Ecuador, Australia, UK, France, Italy, Dubai, Turkey, Angola, Nigeria, Kenya, Thailand, Malaysia, Indonesia, Korea, etc. and related certification is always available.
Our goal is to provide you one stop turn-key project to allow you spread happiness with your ideal machinery. Sincerely welcome the clients all over the world to visit our company and work with us!
Do not hesitate to buy your specific machines today!
we will help you expand and start your business, make your dream a reality!!!
Certifications
Customer Visit & Exhibition
FAQ
1: Are you a factory or trading company?
We are a factory located in Henan, and we equipped with SGS factory inspection report.
Warmly welcome to visit our factory if you have a travel plan.
2: How can I know your machine is suitable for my products?
We will provide videos for reference or show you online by video chatting.
If possible, you can also send us your material and we will test on our machine.
3: How can I trust you for the first time business?
You can check our full range of business licence and certificates.
And we suggest Alibaba Trade Assurance for all transactions to protect your money.
4: What can I do if I am not able to operate the machine when I receive it?
All our machines will be test and commissioned before delivery, when you receive it, we will provide user manual and videos to guide you how to install and use.
Besides, we have professional after-sales group to provide 7*24 hours online technical support and solve all problems.
5: How can I make sure the machine quality?
We offer 2 years warranty from shipping date,
If quality problem, we will provide free spare parts, but human error is not included.
Warmly welcome to visit our factory if you have a travel plan.
2: How can I know your machine is suitable for my products?
We will provide videos for reference or show you online by video chatting.
If possible, you can also send us your material and we will test on our machine.
3: How can I trust you for the first time business?
You can check our full range of business licence and certificates.
And we suggest Alibaba Trade Assurance for all transactions to protect your money.
4: What can I do if I am not able to operate the machine when I receive it?
All our machines will be test and commissioned before delivery, when you receive it, we will provide user manual and videos to guide you how to install and use.
Besides, we have professional after-sales group to provide 7*24 hours online technical support and solve all problems.
5: How can I make sure the machine quality?
We offer 2 years warranty from shipping date,
If quality problem, we will provide free spare parts, but human error is not included.
