PVC Window Sill Covers Interior
US $100.00
Aluminium Window Sills & Trims
- Category: >>>
- Supplier: Qingdao Princeton Trading Co. Ltd.Qingdao Ltd.
Share on (1601199420152):
Product Overview
Description
Product Description

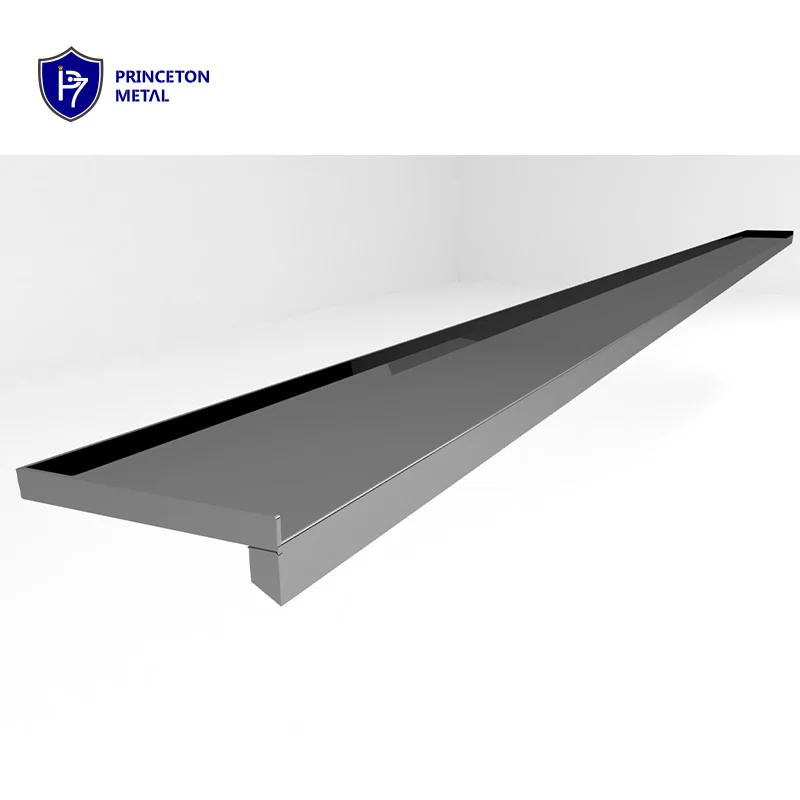

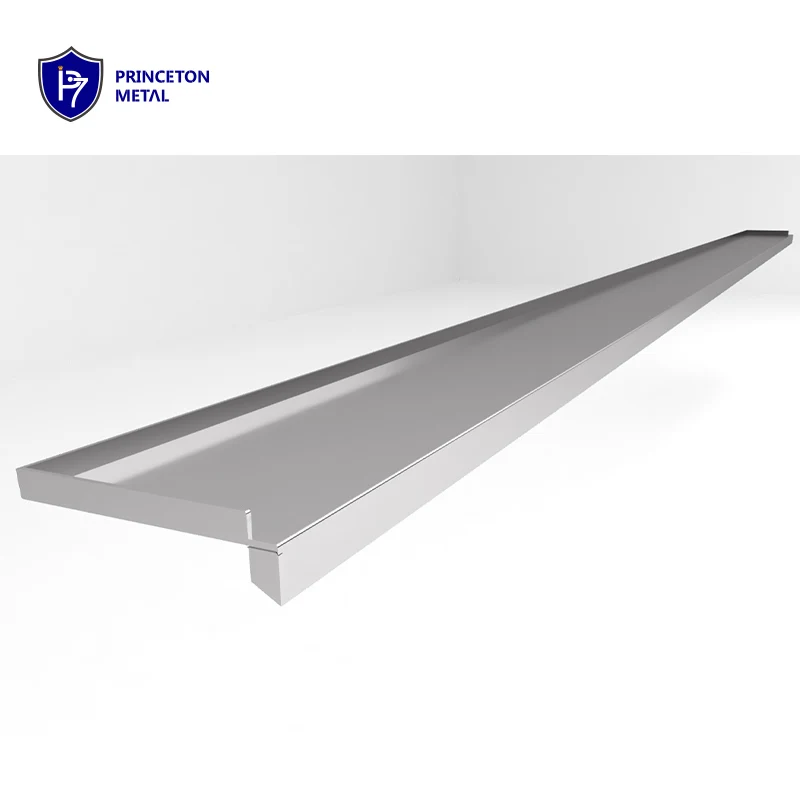

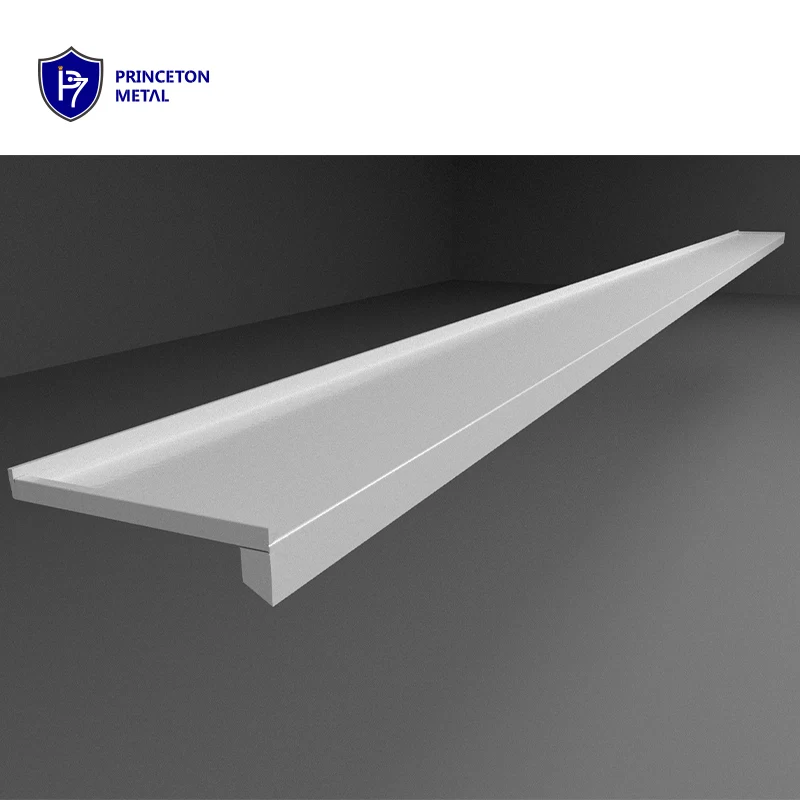

Aluminium Window Sills & Trims
A window sill is part of the wondow trim ,the decorative covering around the window's edg that protects where the window attaches
to the wall and prevents drafts and moisture from getting into the home.
to the wall and prevents drafts and moisture from getting into the home.
Specification
Product Name | Aluminum Window Sills & Trims |
Place of Origin | China |
Color | Black/White/Dark Grey-RAL7016 |
Main material | Aluminum |
Thickness | 2mm, 3mm |
Length | MAX 3m |
Application | Outdoor Window Sill |
Surface | powder coating |
Aluminum window sills advantages
*aluminum window sills will help protect the facade of your home from moisture and mold
*aluminum window sills improves your window's insulation ability while also protecting it
*Excellent weather protection for masonry and parapets in window and door areas.
*All the accessories you need for professional and easy installation.
*Aluminum window sills provide low maintenance and long lasting finish, unlike wood trim which can absorb water or become infested with termites.
*Aluminum trim is durable and stands up to the weather extremely well.
How to measure
This guide is only intended to be a rudimentary guide. You are responsible for providing correct measurements and the sills will be made to those measurements. No refund will be offered if the sills do not fit unless there is an error in manufacturing. If in doubt, consult your builder or designer.
Upstand (A)
The upstand is the part at the back and is supplied with screw holes for fixing to the packer underneath the window. The size of the upstand depends on the window design and the thickness of the packer under the window. We like to do ours at 15mm but others prefer them at 30mm and the choice is yours. Colour-matched screws are available on request at the time of ordering.
Projection (B)
This is the measurement from front to back of the cill. Our sills are designed to be screwed to the packer underneath the window. You need to measure from the packer to the front of the window opening then add whatever overhang you want beyond the opening. It is an aesthetic choice — the minimum is 20mm (which allows for the drip return) but you can have more overhang if you prefer. We usually specify ours at 25mm which we think looks fine in most window openings.
Front Downstand (C)
This is an aesthetic choice, but if you are not sure, 30-40mm usually looks fine. A 15mm drip-return will be added to the downstand.
Length (L)
To get the length (L) you need to measure the distance between the sides of the window opening. You then need to subtract 2 or 3 mm for tolerances and expansion. Measurements are always best taken after any plastering or rendering is done. If you are measuring before rendering, knock off enough for the depth of the render to ensure the cill will still fit. You also need to subtract 2 or 3 mm for tolerances and expansion.
Upstand (A)
The upstand is the part at the back and is supplied with screw holes for fixing to the packer underneath the window. The size of the upstand depends on the window design and the thickness of the packer under the window. We like to do ours at 15mm but others prefer them at 30mm and the choice is yours. Colour-matched screws are available on request at the time of ordering.
Projection (B)
This is the measurement from front to back of the cill. Our sills are designed to be screwed to the packer underneath the window. You need to measure from the packer to the front of the window opening then add whatever overhang you want beyond the opening. It is an aesthetic choice — the minimum is 20mm (which allows for the drip return) but you can have more overhang if you prefer. We usually specify ours at 25mm which we think looks fine in most window openings.
Front Downstand (C)
This is an aesthetic choice, but if you are not sure, 30-40mm usually looks fine. A 15mm drip-return will be added to the downstand.
Length (L)
To get the length (L) you need to measure the distance between the sides of the window opening. You then need to subtract 2 or 3 mm for tolerances and expansion. Measurements are always best taken after any plastering or rendering is done. If you are measuring before rendering, knock off enough for the depth of the render to ensure the cill will still fit. You also need to subtract 2 or 3 mm for tolerances and expansion.
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2022,sell to Oceania(50.00%),North America(40.00%),Domestic Market(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Aluminum Fence & Gate, Railing & Balustrade, Planter, Pergola, Aluminum Facades, Door & Windows, House Building Materials
4. why should you buy from us not from other suppliers?
* loacated in the biggest distributing center of north China - Linqu
* have about 60 workers for fence and gate
* powder coating, we are approved applicator
* technic team for new product design and project solution providing
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2022,sell to Oceania(50.00%),North America(40.00%),Domestic Market(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Aluminum Fence & Gate, Railing & Balustrade, Planter, Pergola, Aluminum Facades, Door & Windows, House Building Materials
4. why should you buy from us not from other suppliers?
* loacated in the biggest distributing center of north China - Linqu
* have about 60 workers for fence and gate
* powder coating, we are approved applicator
* technic team for new product design and project solution providing
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
