Bronze Brass Pitless Adapter 1inch in Submersible Well Pump valve Deep

Share on (1601199458364):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Brand
\t
AQUA-MIGEN
\t
Package Weight
\t
3 lb
\t
Adapter, Brass Pitless   Type
\t
Water Pump Parts & Accessories
Detailed Images

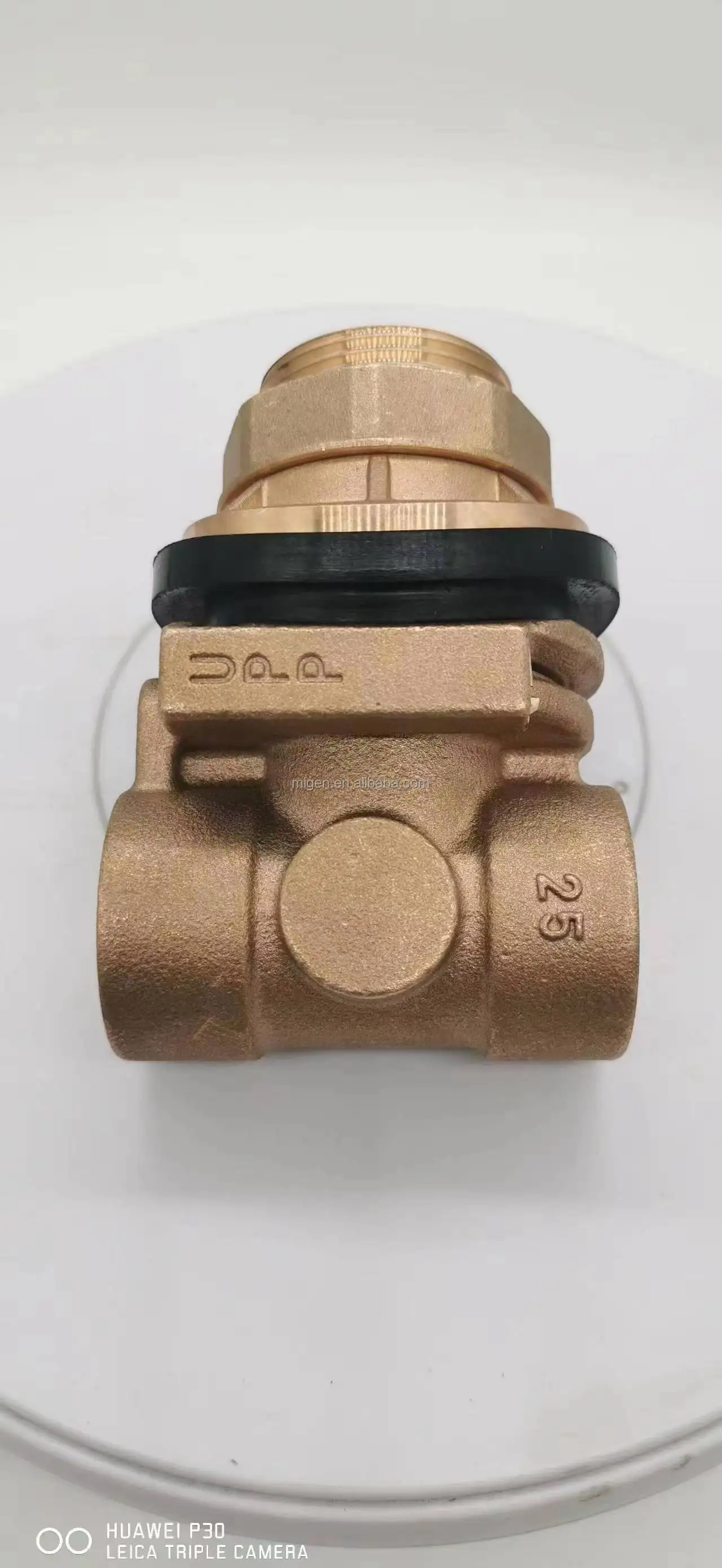

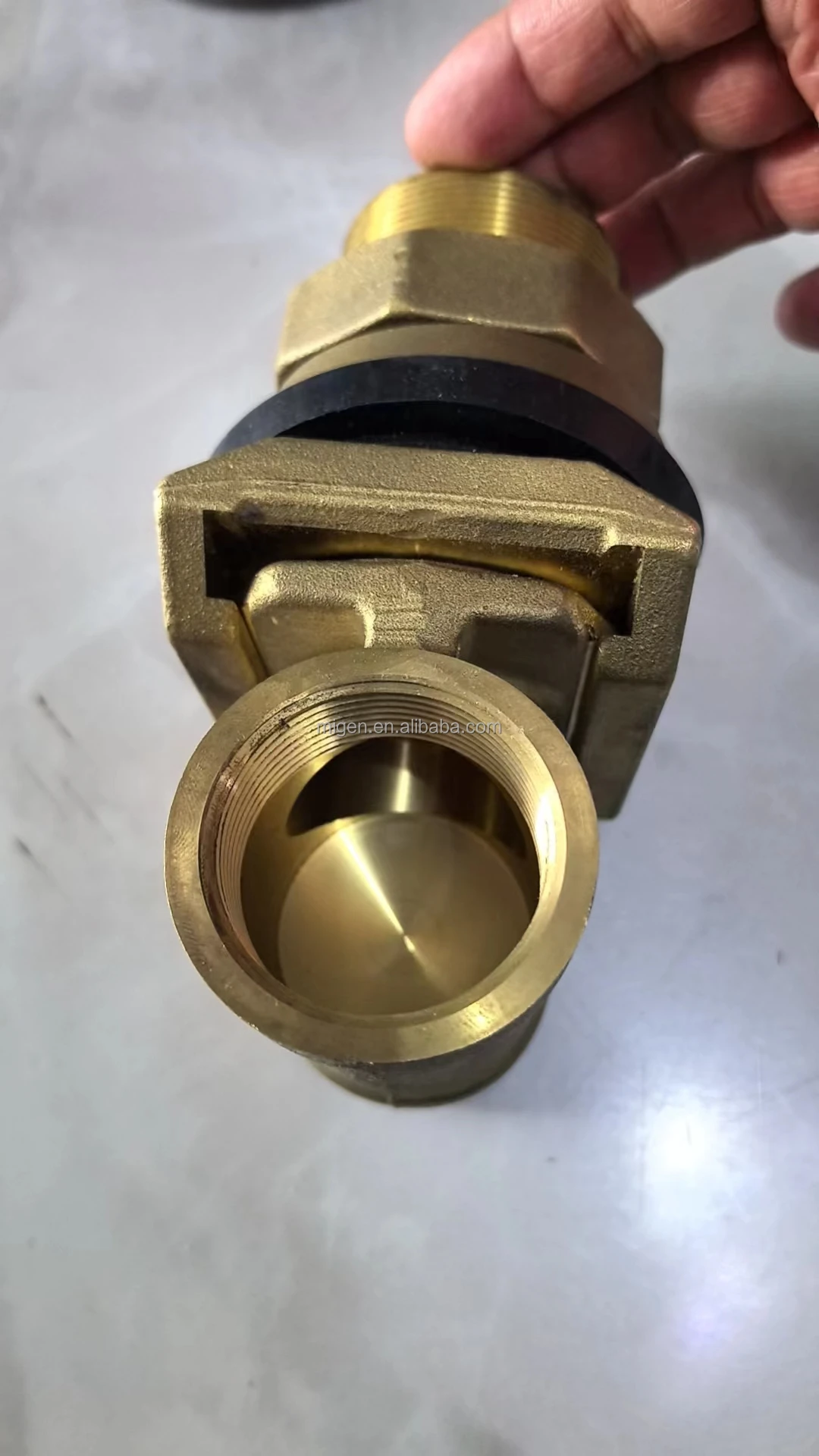

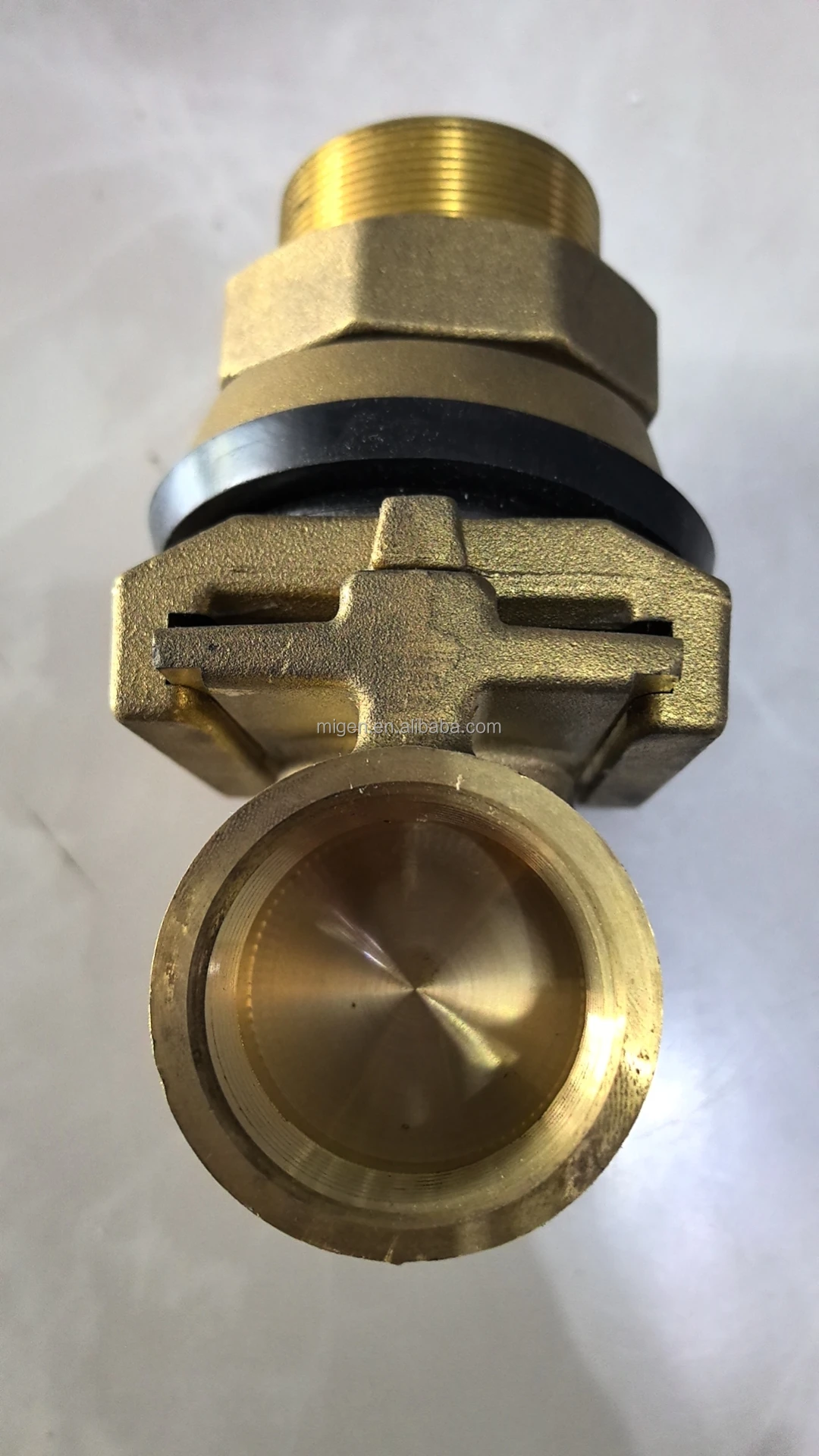

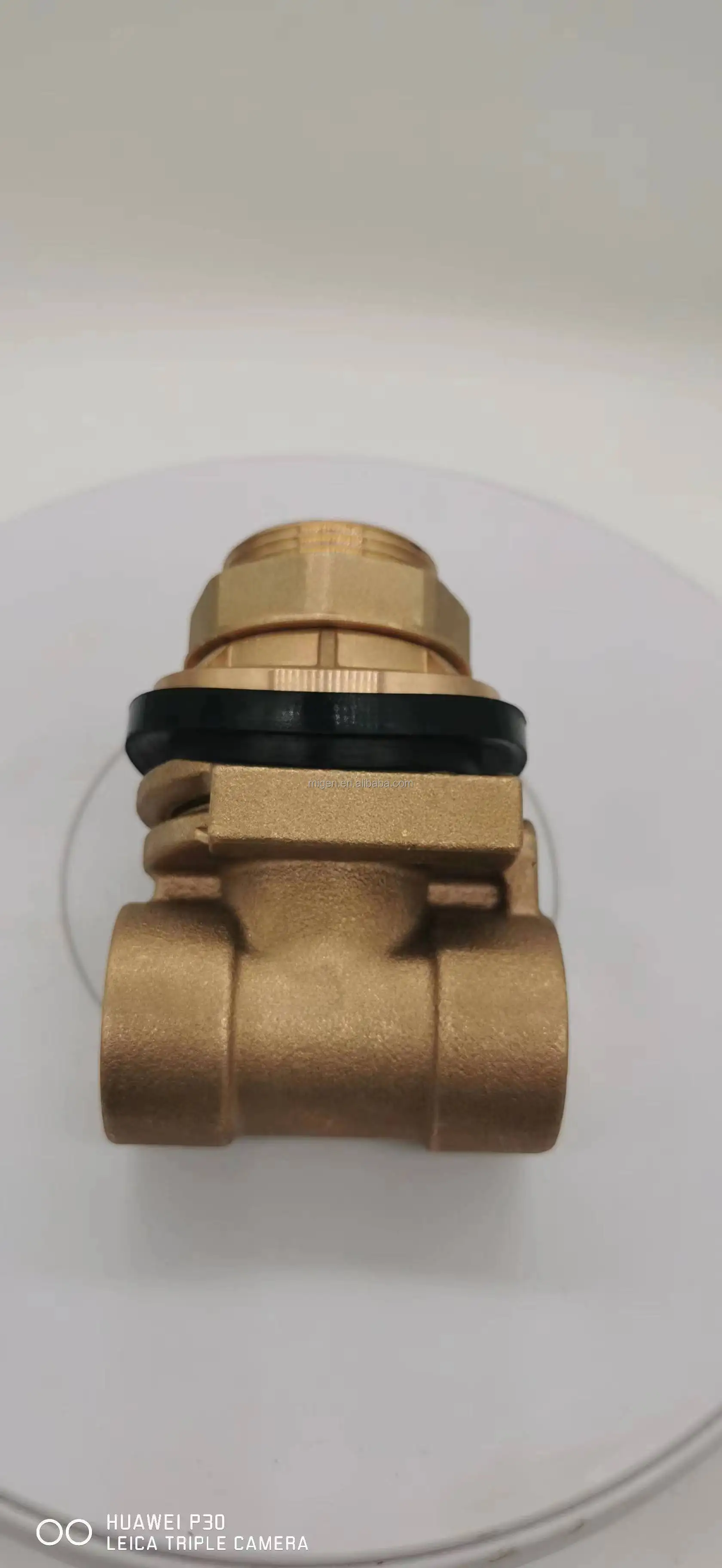

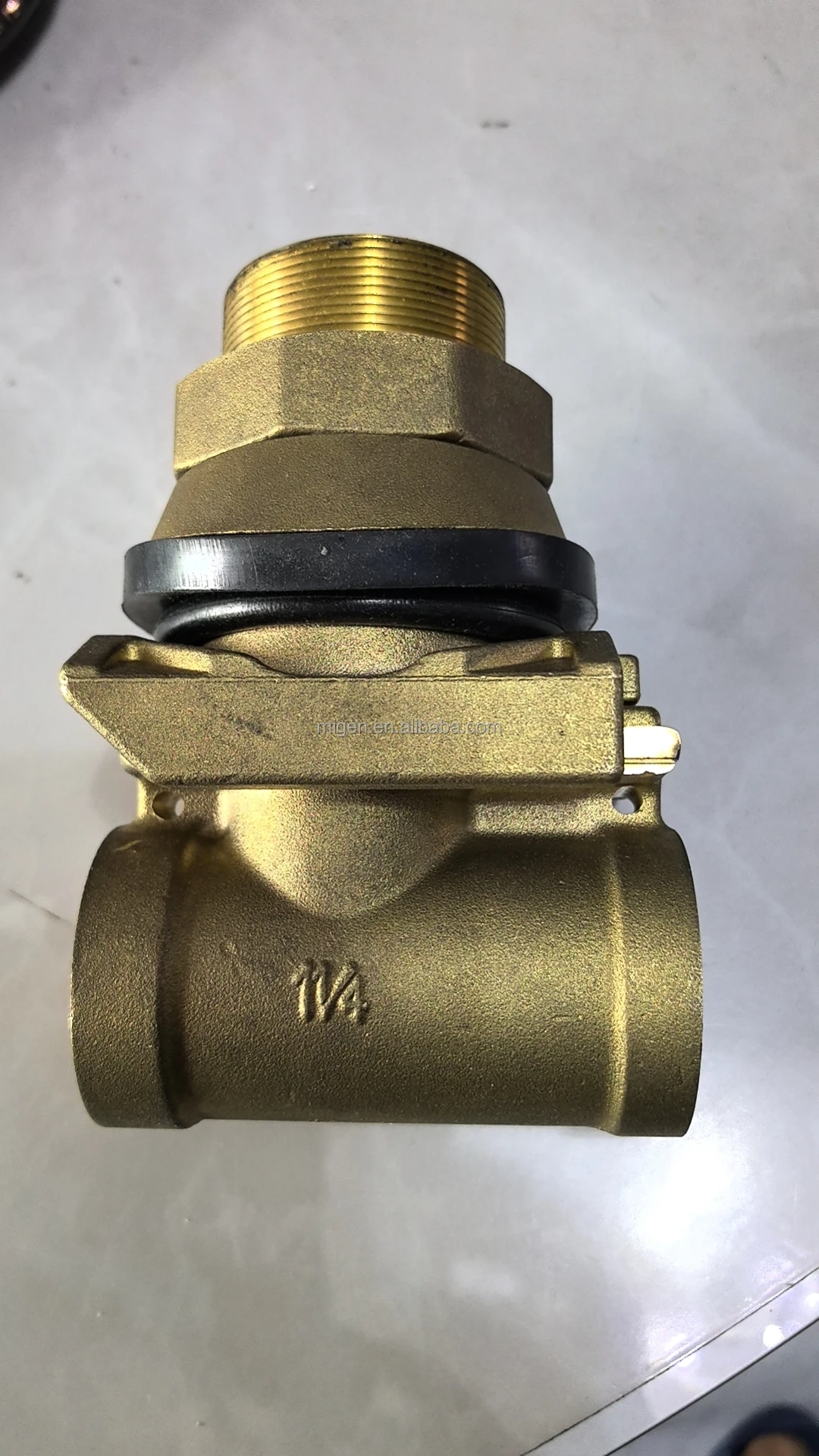

1-1/4 in. Brass Pitless Adapter Connect Submersible Well Pump Details

This DZR CW602n Brass Pitless Adapter 1" Lead Free , Water Source is used to connect submersible well pump discharge pipe to the horizontal pipe entering the house. The adapter comes in 2 pieces that slide together creating a water tight seal. This allows the pump to be removed from the well for service without digging the horizontal run of pipe. This pitless adapter has a brass body with Buna-N O-rings and gaskets and meets federal low lead regulations.


Used to connect submersible well pump discharge pipe to the horizontal pipe entering the house while allowing the pump to be serviced without having to dig up the ground between the well head and the house
Pitless adapter and horizontal run of pipe need to stay below frost line


1 in. FNPT x 1 in. FNPT
2 piece designs allows for the adapter to be permanently mounted to the well casing while still being able to remove the pump for service
Solid brass design meets federal low lead regulations
Fits 4-in to 8-in well casing
Buna-N O-rings for a tight seal

Production process

STEP 1


 -Preparing DZR CW602n Brass Pitless Adapter 1" Lead Free material


Material ( CW 602N  CW 617 57-3 BROZEN )


Step 2


making mold + being forged for DZR CW602n Brass Pitless Adapter 1" Lead Free

Step 3


Finishing + Goods Assembly with DZR CW602n Brass Pitless Adapter 1" Lead Free

Step 4


Packing +shipping abouDZR CW602n Brass Pitless Adapter 1" Lead Free

Our advantage
Packing & Delivery

Pitless adapter inner box

Pitless adapter middle box


Pitless adapter out box


         Express  way

                   Sea Freight

             Air Cargo

People Use
Our Company

AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.

Attention

1: if you have any question about DZR CW602n Brass Pitless Adapter 1" Lead Free ,pls send emal to us !

2: there are 5 stars in our goods quality
3:24 hours on line .
4:if you interesting in DZR CW602n Brass Pitless Adapter 1" Lead Free ,
pls leave you phone number ,ok ? so that we could call you at once .

5: usually have DZR CW602n Brass Pitless Adapter 1" Lead Free , Water Source  in stock
