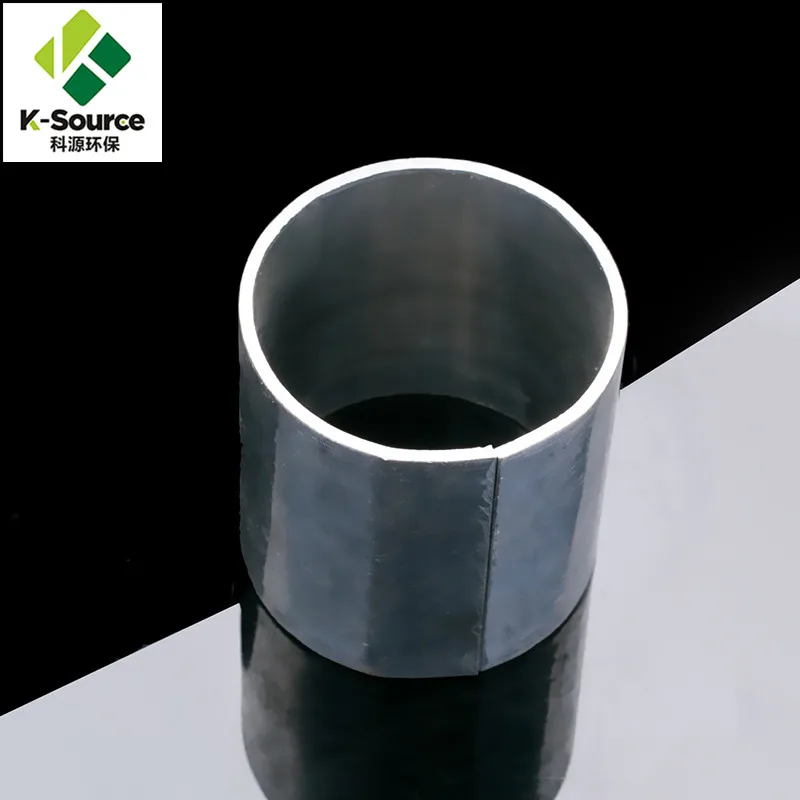

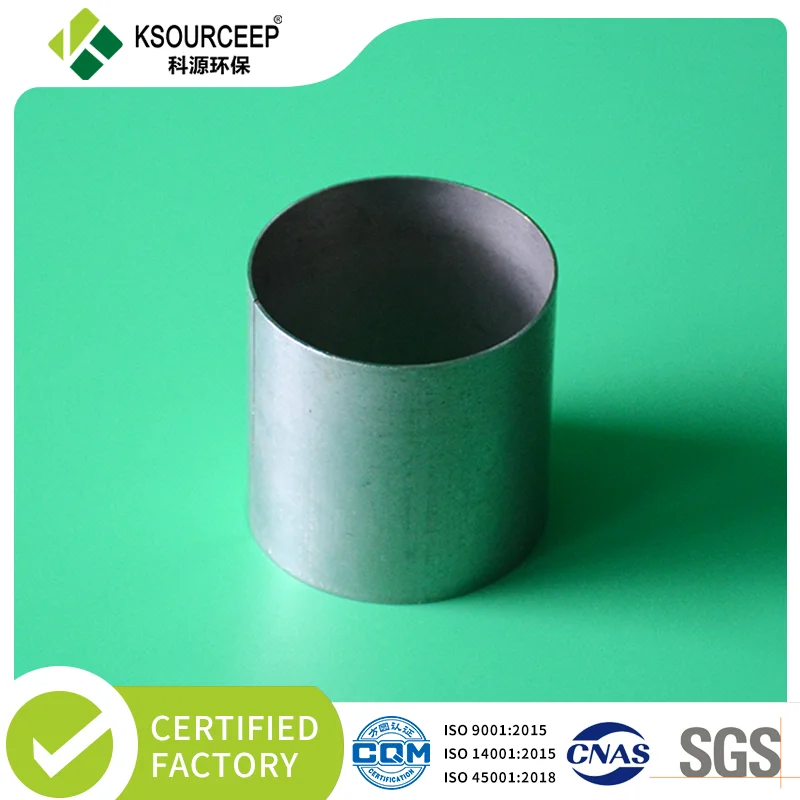

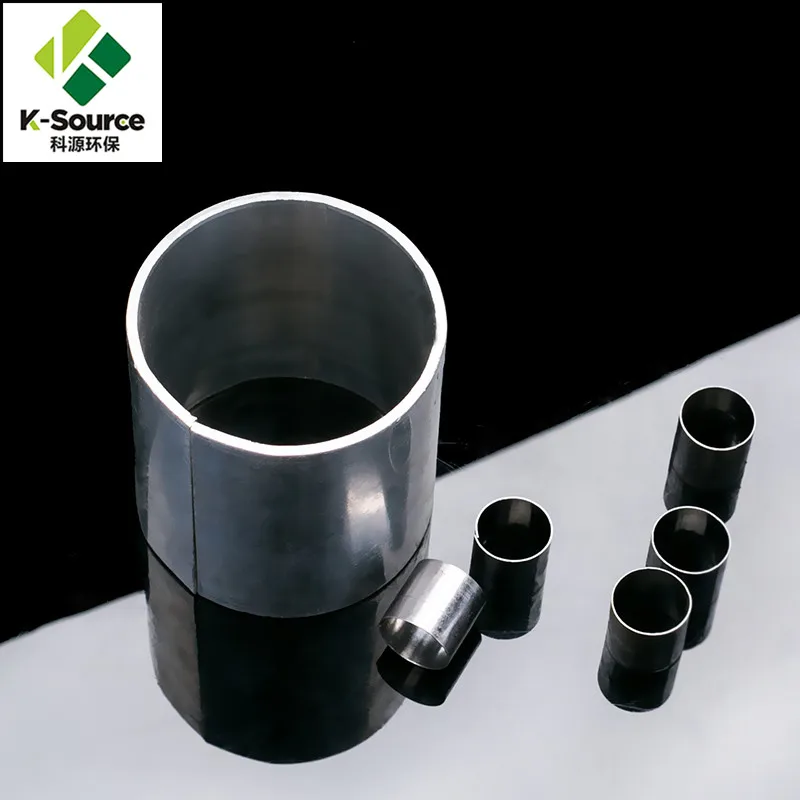

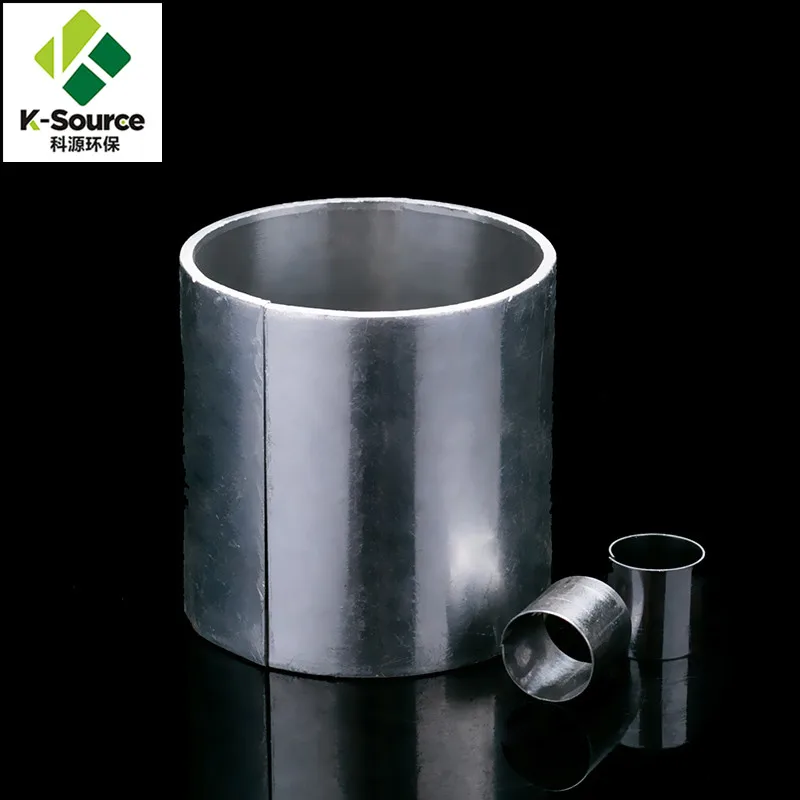

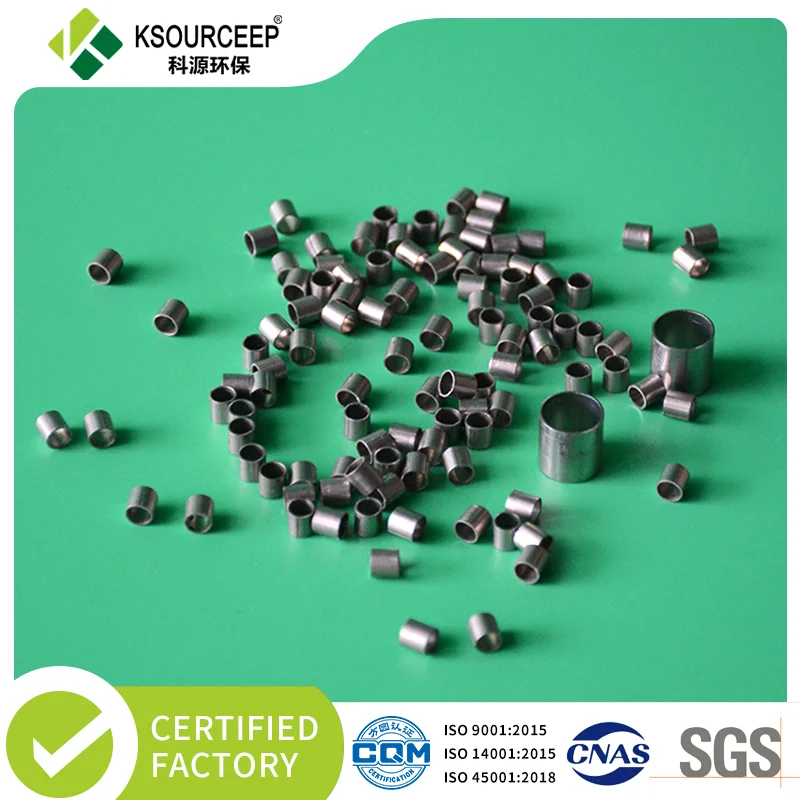

Heat Resistance Carbon Steel Stainless Steel Raschig Rings 25mm 50mm 89mm Metal Raschig Ring for Tower Packing
- Category: >>>
- Supplier: Pingxiang Ksource Chemical Packing Co. Ltd.
Share on (1601199515366):
Product Overview
Description
Product Description
Products description:
Metal raschig ring in 1914 by F. Raschig developed. It was one of the first was invented by a fixed geometry of the bulk packing. Its simple shape, height and diameter of the same size. metal raschig ring is widely used in many areas.
Metal raschig ring can be a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from.
Metal raschig rings is made of material like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Application :
It is widely used in petrochemical engineering, fertilizer, enviromental protection fields as one of the tower packings. Such as vapor washing tower, purification tower,etc.
Metal raschig ring in 1914 by F. Raschig developed. It was one of the first was invented by a fixed geometry of the bulk packing. Its simple shape, height and diameter of the same size. metal raschig ring is widely used in many areas.
Metal raschig ring can be a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from.
Metal raschig rings is made of material like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Application :
It is widely used in petrochemical engineering, fertilizer, enviromental protection fields as one of the tower packings. Such as vapor washing tower, purification tower,etc.
Size (Inch/mm) | Bulk density (304,kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) | Dry Packing Factor m-1 | ||
1/4” | 6*6*0.3 | 900 | 4000000 | 904 | 88.6 | 1307.4 | |
3/8” | 10*10*0.3 | 480 | 768000 | 482 | 93.8 | 583.8 | |
1/2” | 13*13*0.3 | 420 | 410000 | 415 | 4.8 | 489.2 | |
5/8” | 16*16*0.3 | 348 | 201000 | 344 | 95.5 | 393.2 | |
1” | 25*25*0.4 | 288 | 53500 | 212 | 96.2 | 229.8 | |
1” | 25*25*0.5 | 367 | 53500 | 216 | 95 | 237.2 | |
1” | 25*25*0.6 | 439 | 53500 | 219 | 94.2 | 244.1 | |
1.5” | 38*38*0.4 | 193 | 15000 | 143 | 97.2 | 148.4 | |
1.5” | 38*38*0.5 | 246 | 15180 | 145 | 96.7 | 151.7 | |
1.5” | 38*38*0.6 | 328 | 15000 | 146 | 95.9 | 154.6 | |
2” | 50*50*0.5 | 191 | 6500 | 106 | 97.5 | 115.2 | |
2” | 50*50*0.8 | 300 | 6500 | 108 | 96.4 | 120.9 | |
2” | 50*50*1.0 | 380 | 6500 | 109 | 95.4 | 125 | |
3” | 76*76*1.0 | 265 | 1920 | 69 | 97.4 | 79.6 | |
3.5” | 89*89*1.0 | 224 | 1220 | 61 | 97.1 | 66.2 | |

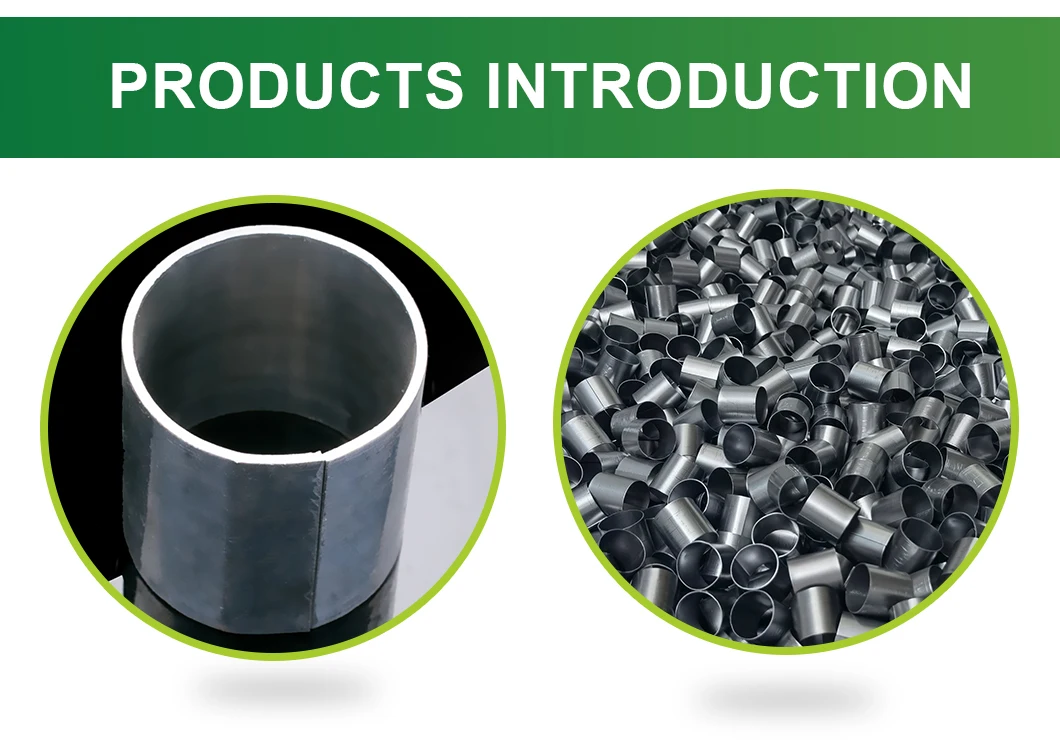

Detailed Images

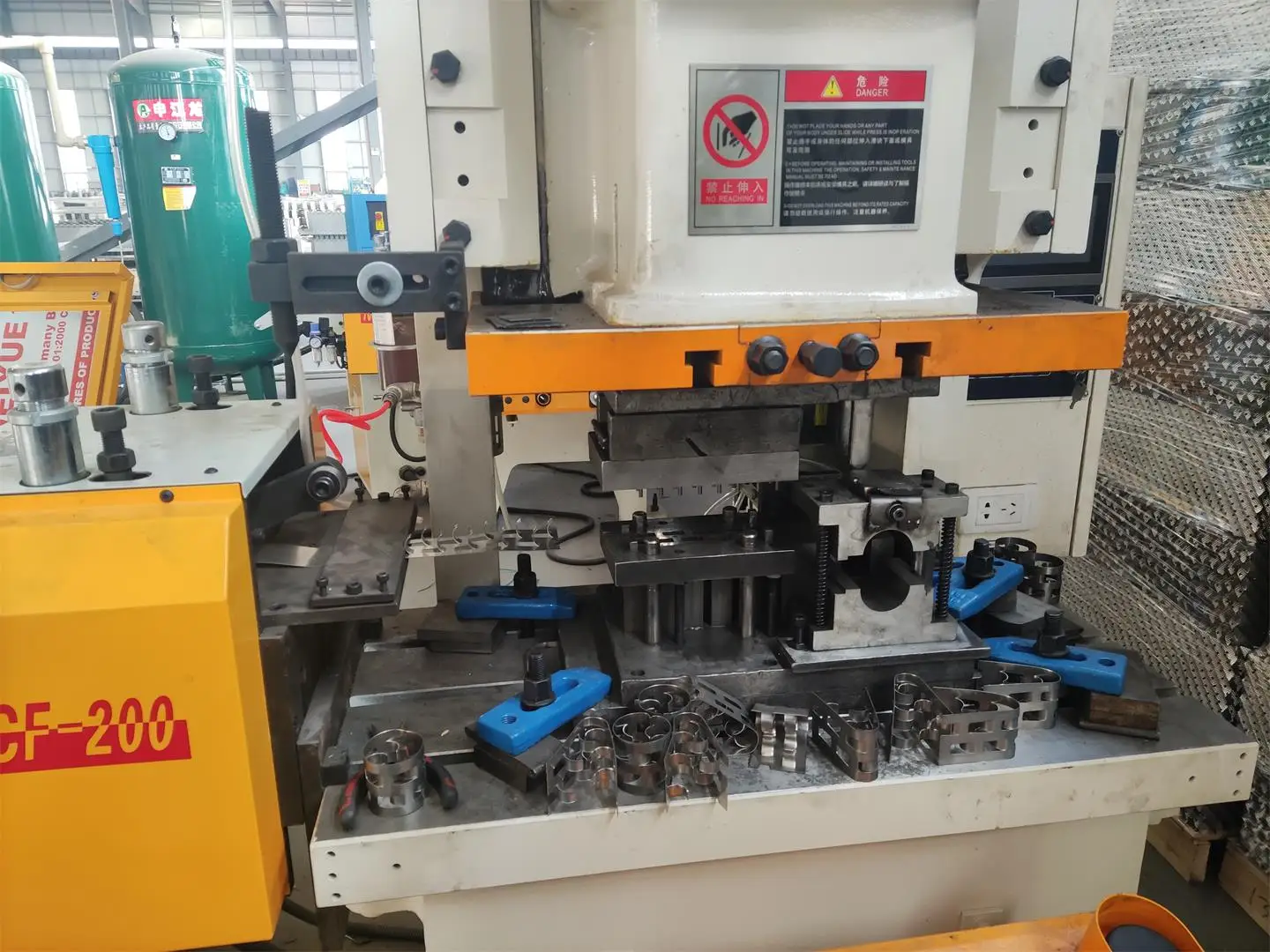

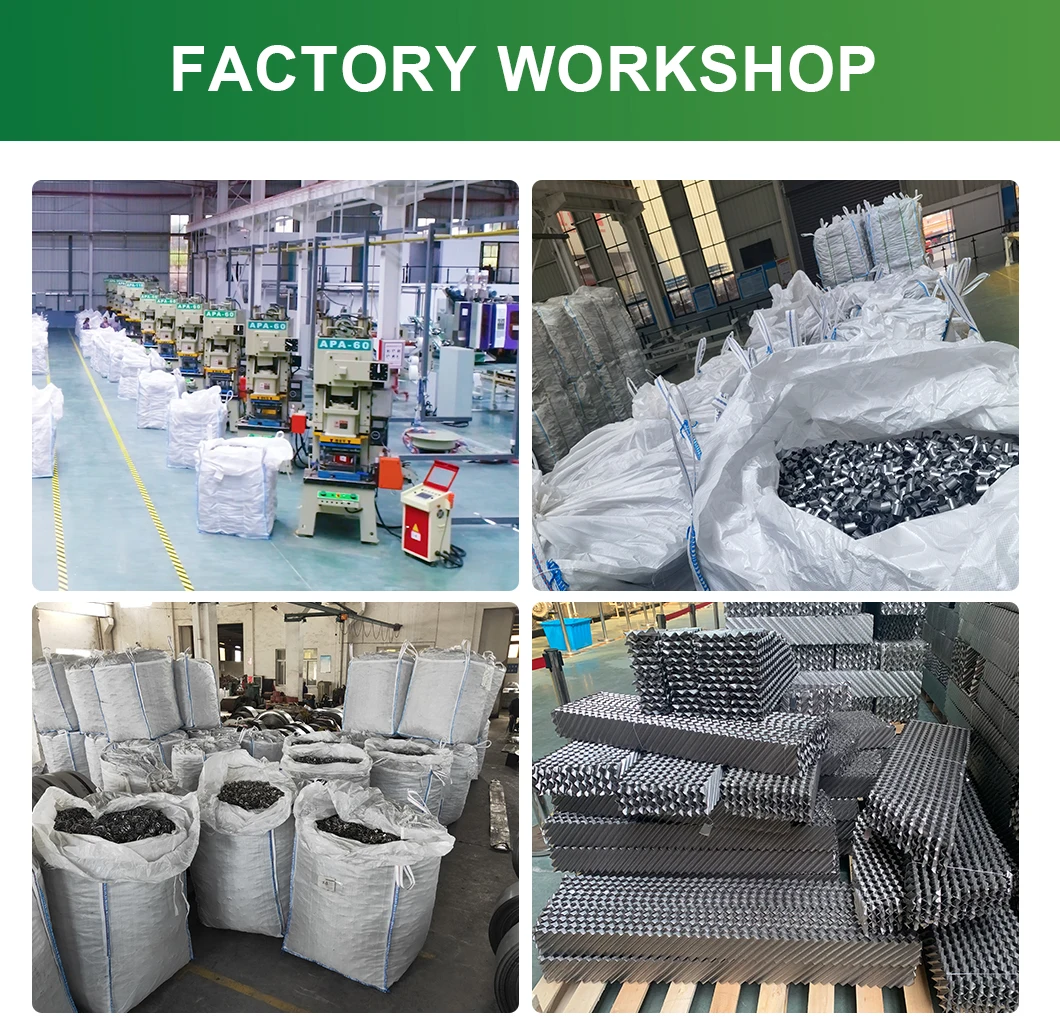

automatic punching machine
Related Products
$1000 - $ 1200 Cubic Meter
1 Cubic Meter (MOQ)
$1000 - $ 1200 Cubic Meter
1 Cubic Meter (MOQ)
$1000 - $ 1200 Cubic Meter
1 Cubic Meter (MOQ)
Certificate
Packing&Shipping
Package Type | Container Load Capacity | Delivery time | Quality Insurance | Payment Terms | ||||
20 GP | 40 GP | 40 HQ | ||||||
Ton bag | 20-24 m3 | 40 m3 | 48 m3 | Within 3-10 days | Chinese National Standard; Offer quality assurance as request. | T/T, L/C, Paypal, West Union | ||
Company Introduction
Pingxiang Ksource Chemical Packing Co., Ltd. is a large-scale production enterprise that mainly produces various chemical packings and packings. For more than 20 years, it has been mainly engaged in the production of Ceramic Ball, Random Packing, Activated Alumina, Honeycomb Ceramic, Structured Packing, Molecular Sieve. The company is located in the Industrial Ceramics Central Industrial Zone of Pingxiang City, Jiangxi Province, which is adjacent to Hunan Province. It is close to Zhejiang-Jiangxi Railway, National Highway 320, 319 and Shanghai-Kunming Expressway, and the transportation is very convenient.
Our Services & Strength
Our company has more than 20 senior technical and professional technical personnel, more than 200 ordinary employees, and a registered capital of 30 million yuan. With advanced production equipment and strong technical force, it mainly produces all kinds of environmental protection products for chemical tower packing. Ksource is committed to providing professional, reliable, complete and competitive products for petroleum, chemical, metallurgy, pharmaceutical, power plant, fertilizer and other industries, which are well received by users.
We always believe in "integrity-based, customer first" and adhere to the principle of "quality is life, innovation and professionalism". We always exceed customer expectations and provide customers with reasonable, scientific and efficient procurement solutions & Technical support They, we pursue perfect results and cooperation, so that our customers get the greatest satisfaction.
Ksource will satisfy all customers' needs with the best products, the most competitive prices and the most complete after-sales service. Warmly welcome new and old customers to go hand in hand and cooperate happily!
Ksource will satisfy all customers' needs with the best products, the most competitive prices and the most complete after-sales service. Warmly welcome new and old customers to go hand in hand and cooperate happily!
FAQ
Q:Are you trade company or manufacture?
A:We are manufacture with more than 20 years experience,and the price is the factory price.
Q:How to control the quality?
A:We have strict quality by QC team.
Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
Q: How to get the sample ?
A: Please contact us for send your samples.
Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment
A:We are manufacture with more than 20 years experience,and the price is the factory price.
Q:How to control the quality?
A:We have strict quality by QC team.
Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
Q: How to get the sample ?
A: Please contact us for send your samples.
Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment
Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment
A:Yes,size & shape could be made as customer requirment
