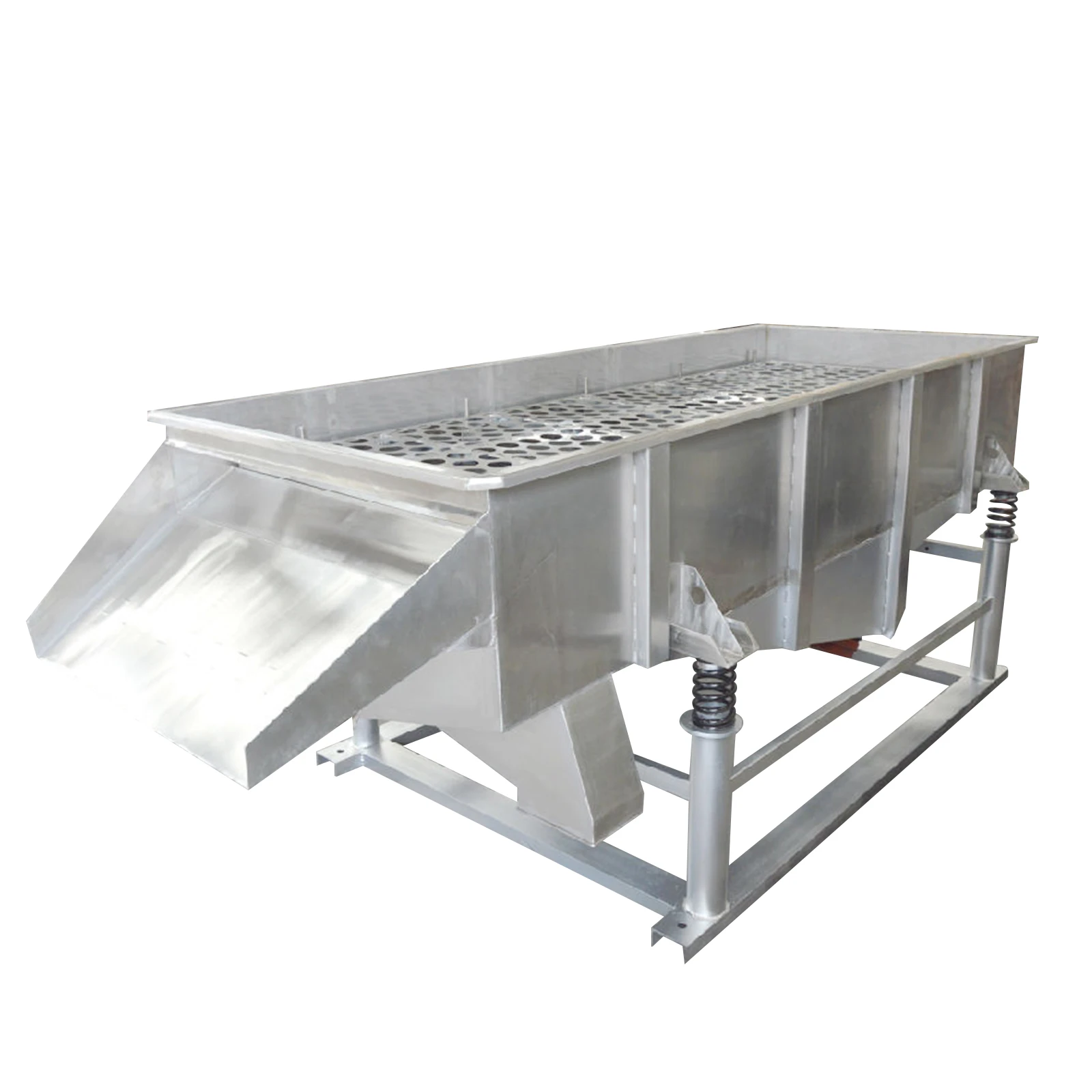

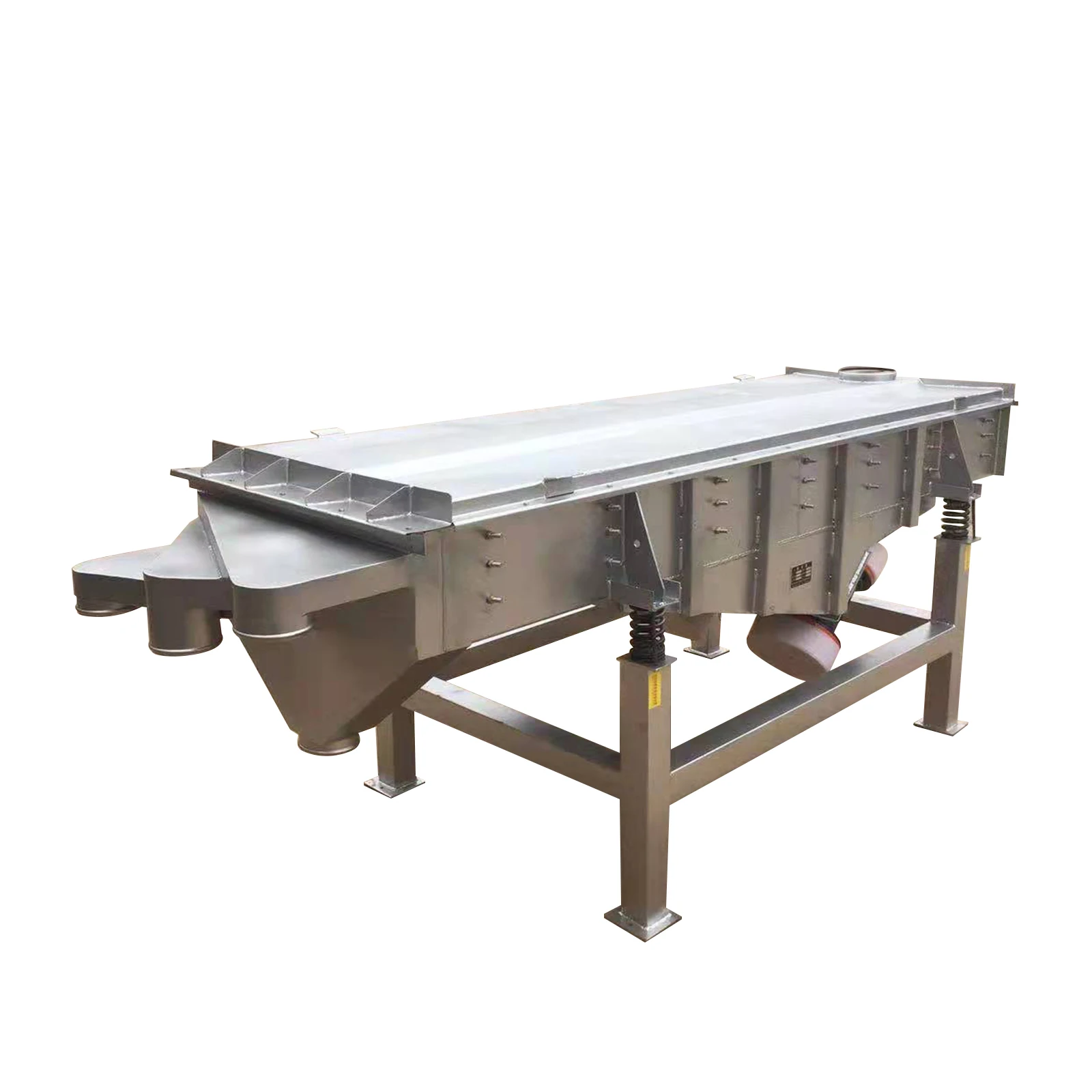

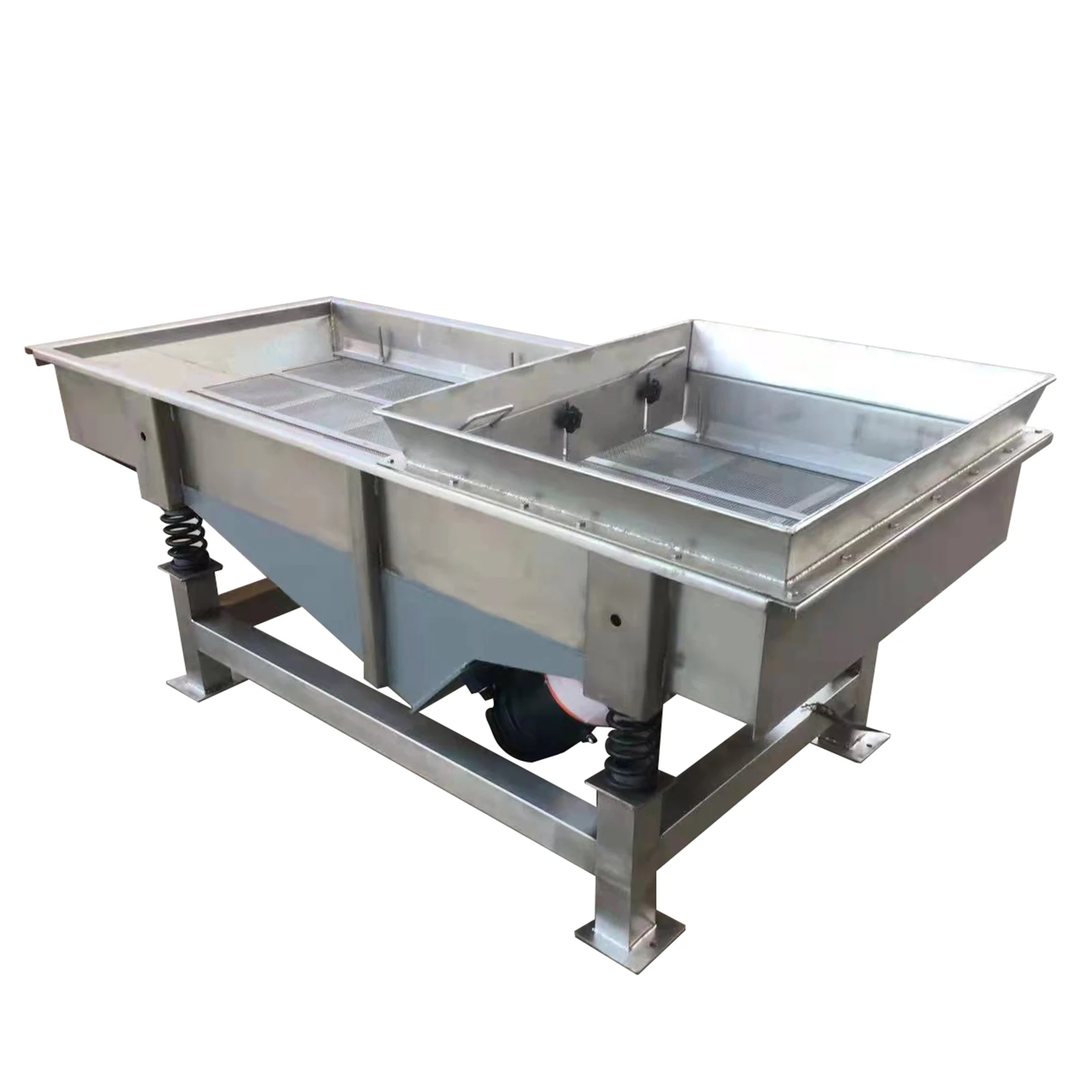

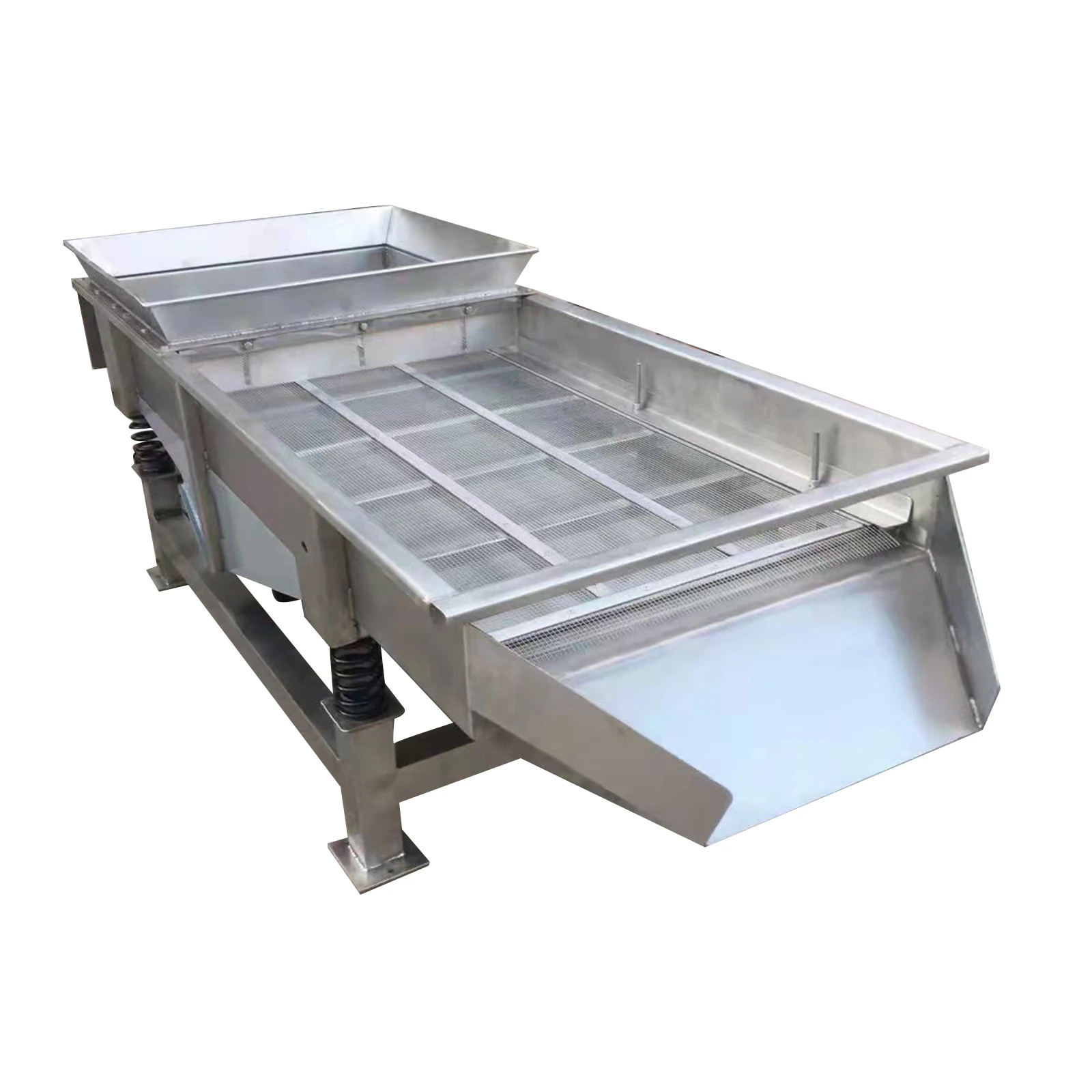

Vibrating linear Flour vibrating sifter sieved machine powder

Linear vibrating screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration,cleaning raw material,separation of iron from the material,etc.

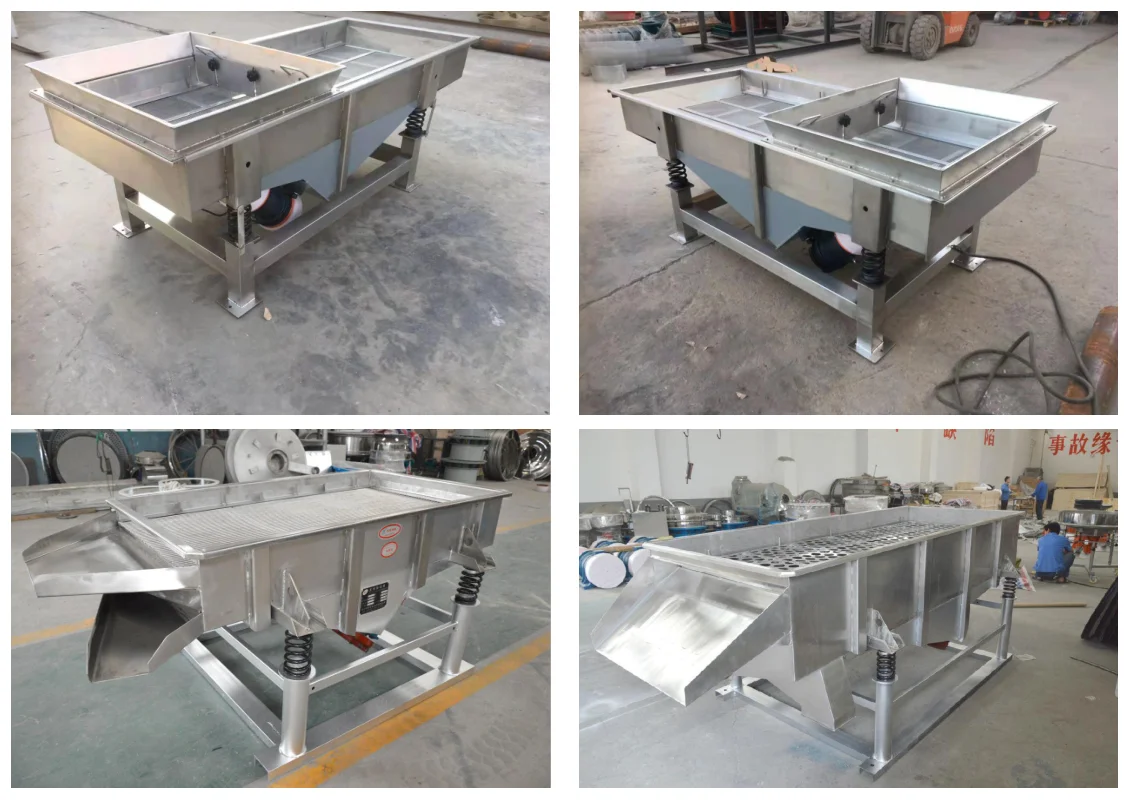

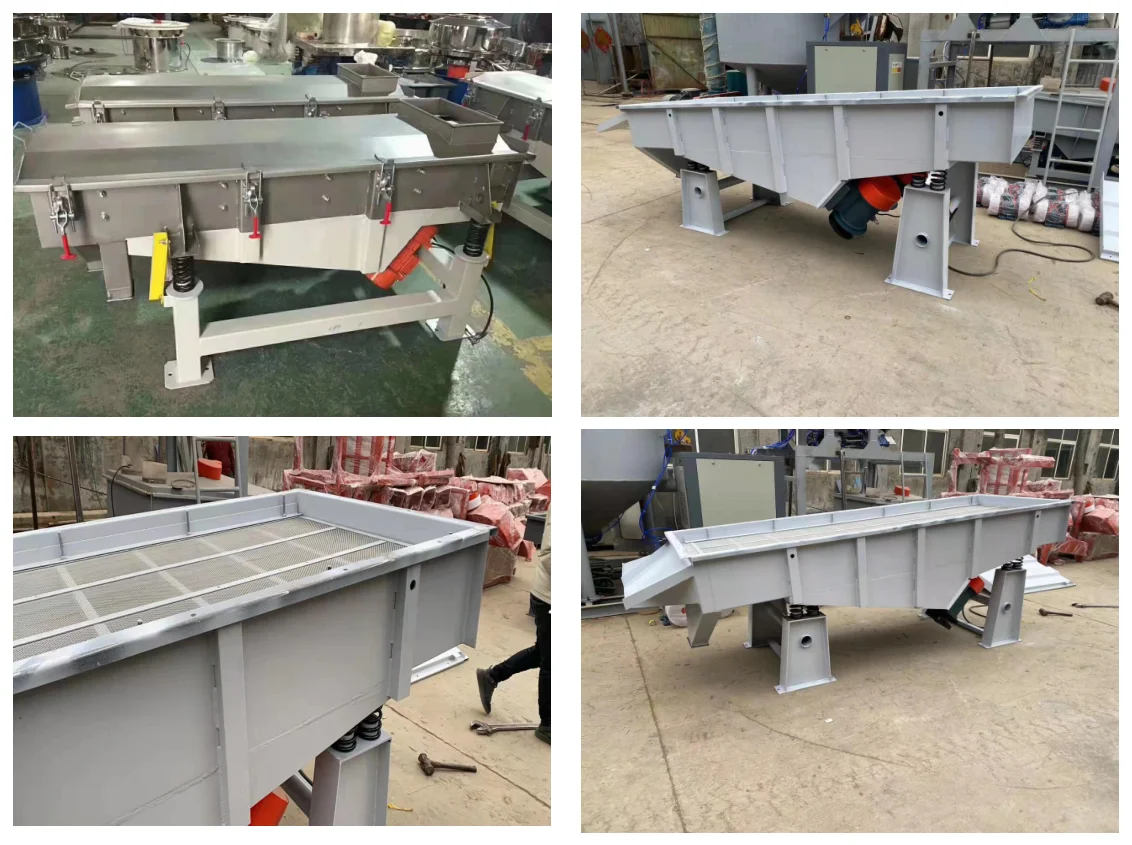

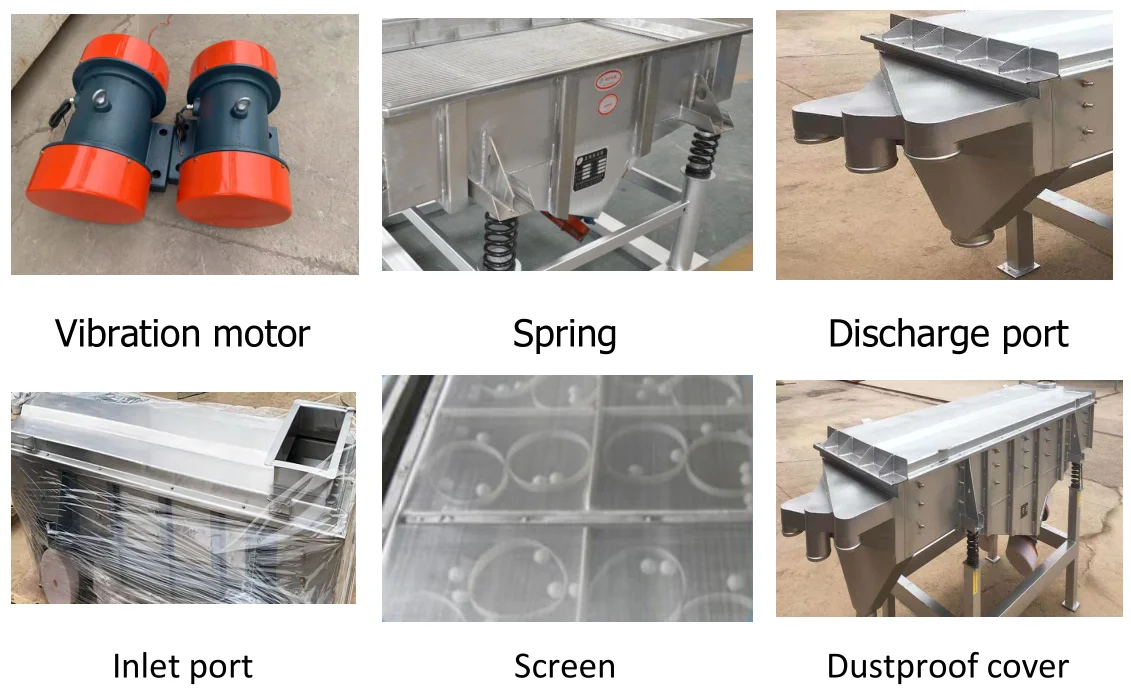

Details Images

Advantages:

    1.Easy to operate and maintain.

    2.Low consumption with high yield and low cost.

    3.Fully enclosed structure, automatic layout, more suitable for pipeline operations.

    4.Good sealing without dust flying.

    5.Can be used for single or multi layer.

    6.Material auto discharge, be able to continuous operation.

    7.Every part of the screen box used copper plate and section welded together.

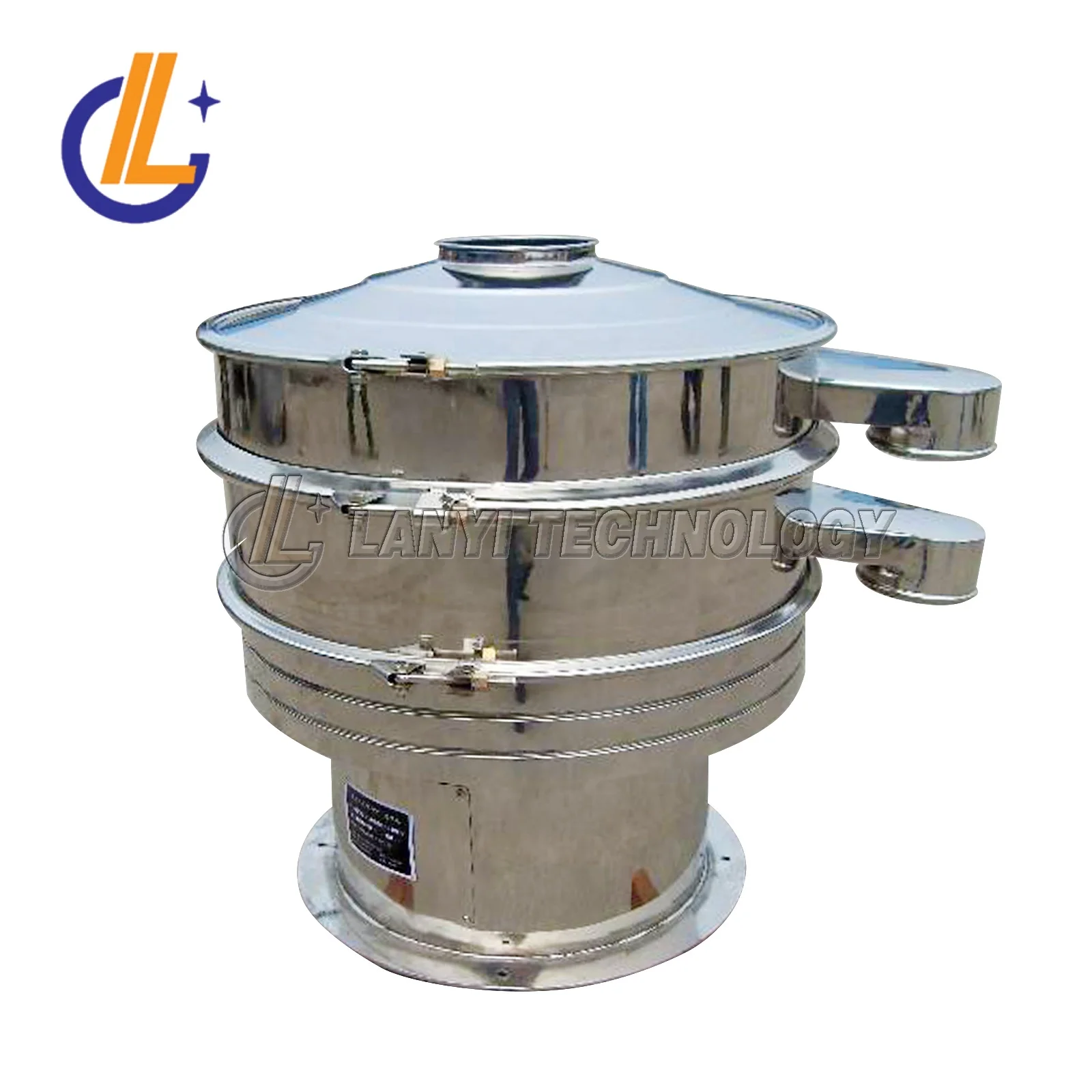

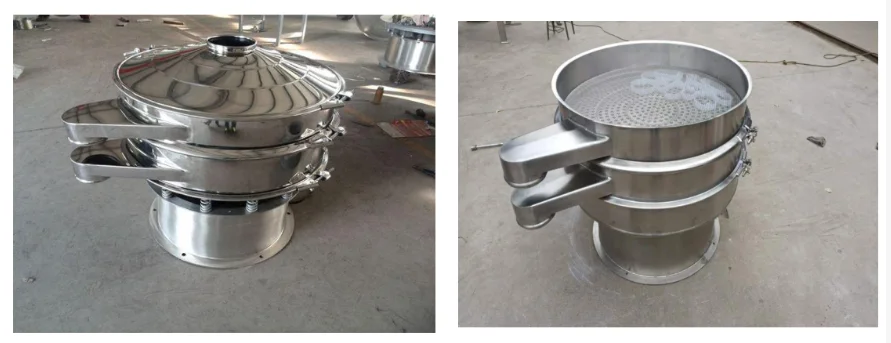

You may also like Rotary vibrating screen machine

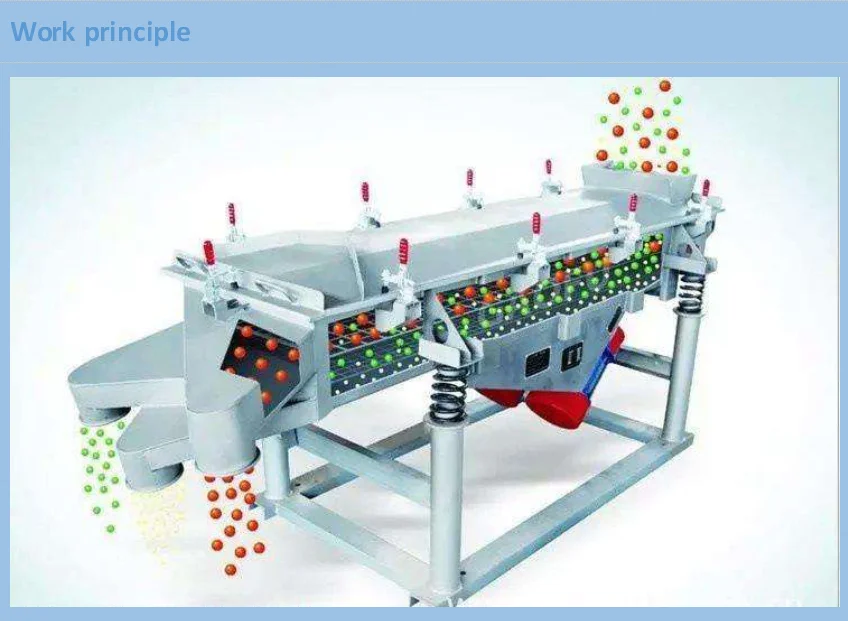

Linear sieve working principle:

When the linear screen is working, the synchronous rotation of the two motors causes the vibration exciter to generate a reverse excitation force, forcing the screen body to move the screen longitudinally, so that the material on the material is excited and periodically throws a range. Thereby completing the material screening operation.The linear vibrating screen is driven by a double-vibration motor. When the two vibrating motors are synchronously and reversely rotated, the exciting force generated by the eccentric block cancels each other in the lateral direction, and the combined excitation force in the longitudinal direction is transmitted to the entire screen. On the surface, therefore, the movement path of the sieve machine is a straight line. The direction of the exciting force has an inclination angle with respect to the screen surface. Under the combined action of the exciting force and the self-gravity of the material, the material is thrown up and jumped forward in a linear motion on the screen surface, thereby achieving the purpose of screening and classifying the material.

Relate productions

Mine sieve machine	Lab test sieve shacker	Rotary vibrating screen

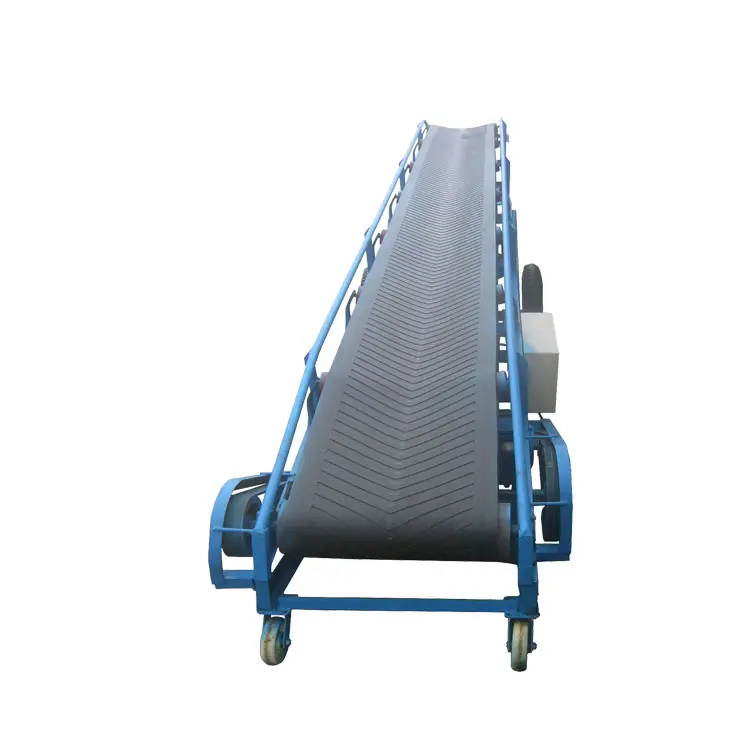

Fixed belt conveyor	PVC PU belt conveyor	Mobile belt conveyor

1: The production time is about 7working days.

2: the machine will be package by the export standard plywood box or by the container.

3: About the shipping, Our factory use the most professional forwarders and vessel company, to make sure customers goods to arrive at the destination port safely.

Certification

 Henan Lanyi Environmental Technology Co., Ltd.is a professional manufacturer integrating technology development ,design, manufacture, installation and after-sales service. Our company is mainly engaged in the processing and manufacturing of screening equipment, conveying equipment. The main products are including belt conveyor ,vibrating screen machine,screw conveyor ,bucket elevator and lift platform.Our products are widely used in chemical ,building materials,food,biological,pharmaceutical and other industries.

Q:What factors I need to get a quotation?

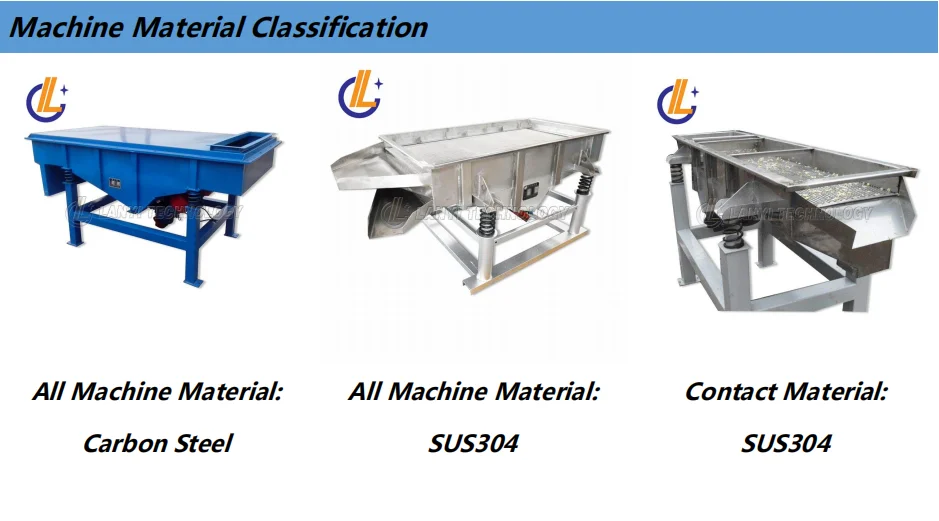

A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
