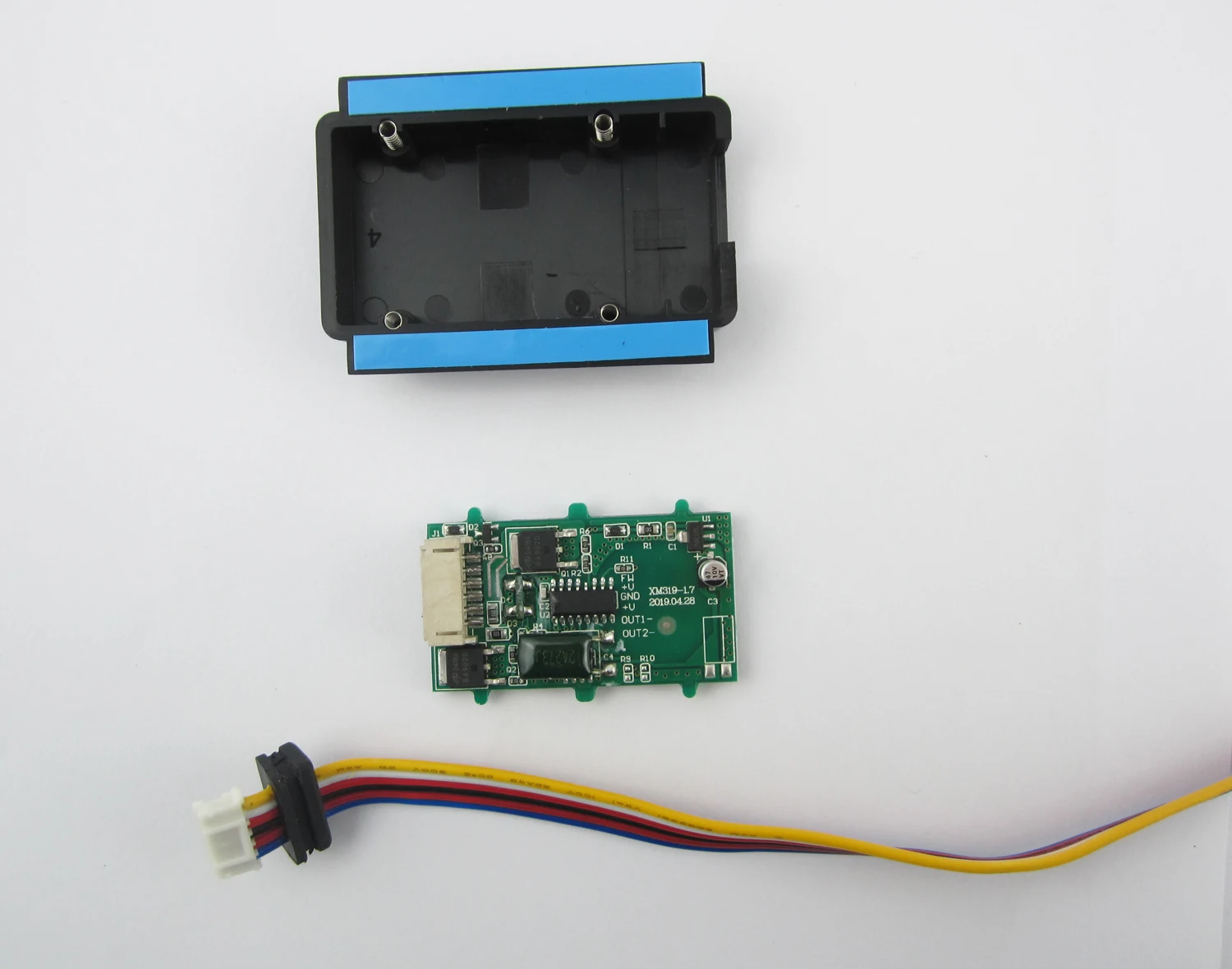

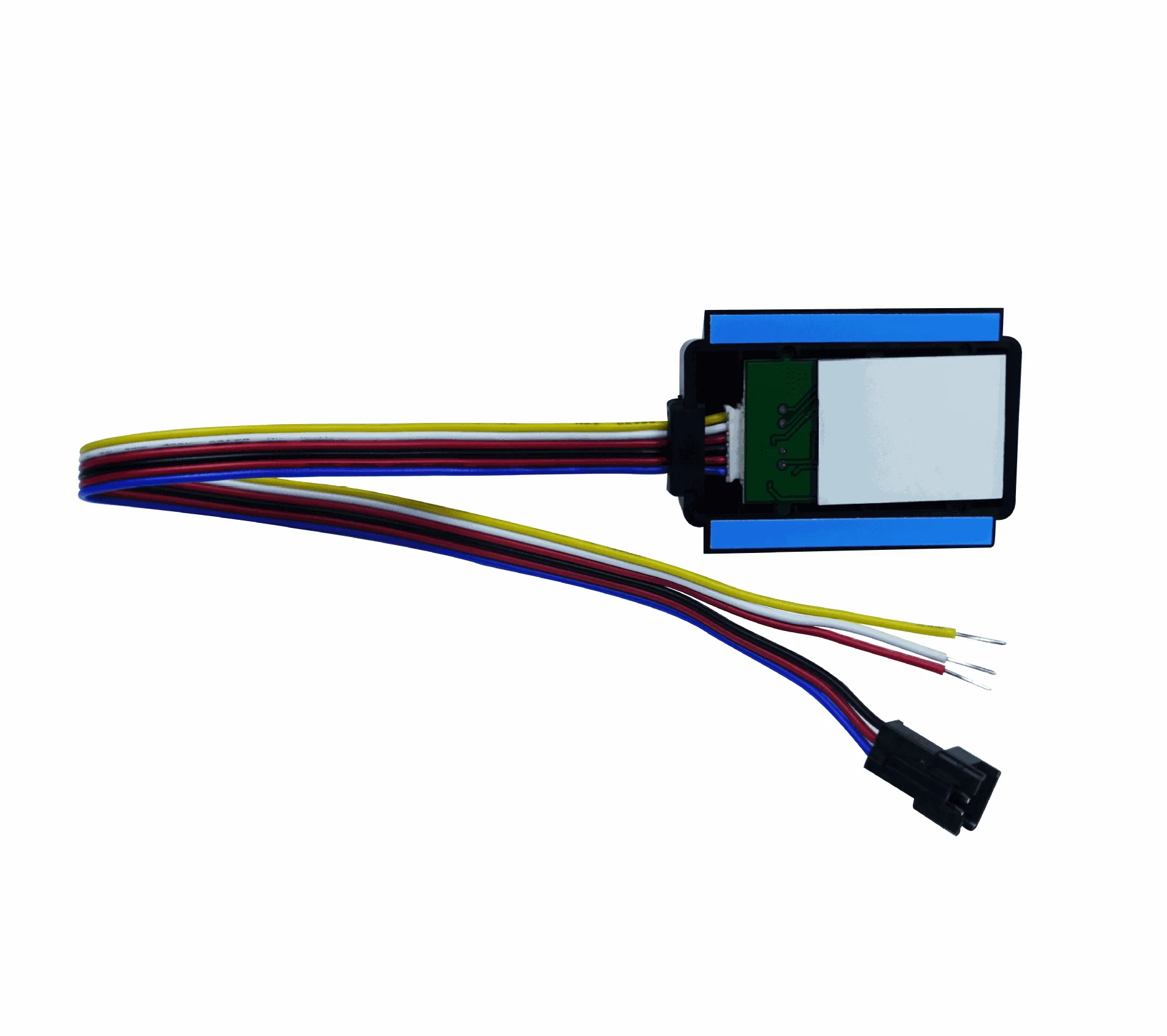

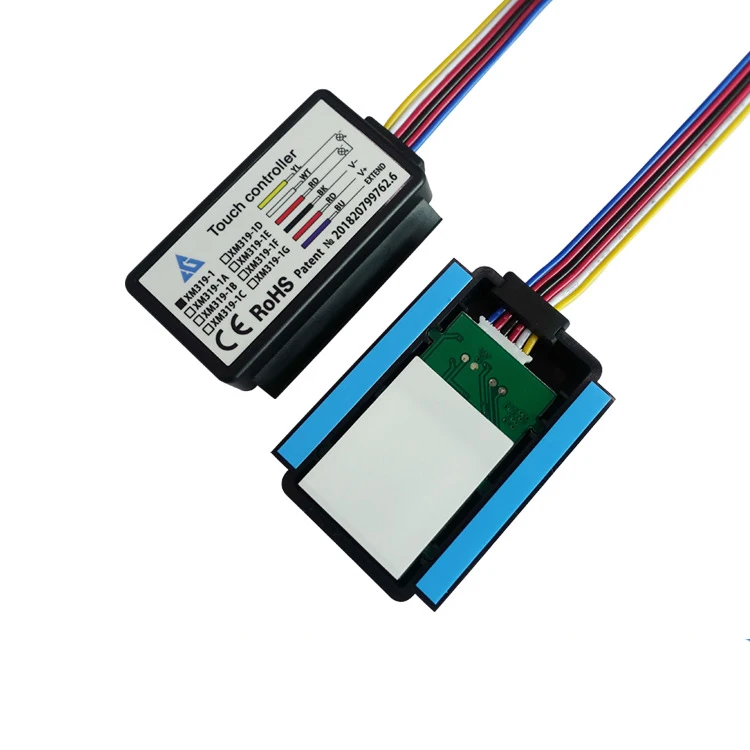

3 years warranty 12V 24V Touch switch for bathroom mirror light COB LED strip touch dimmer controller for mirror

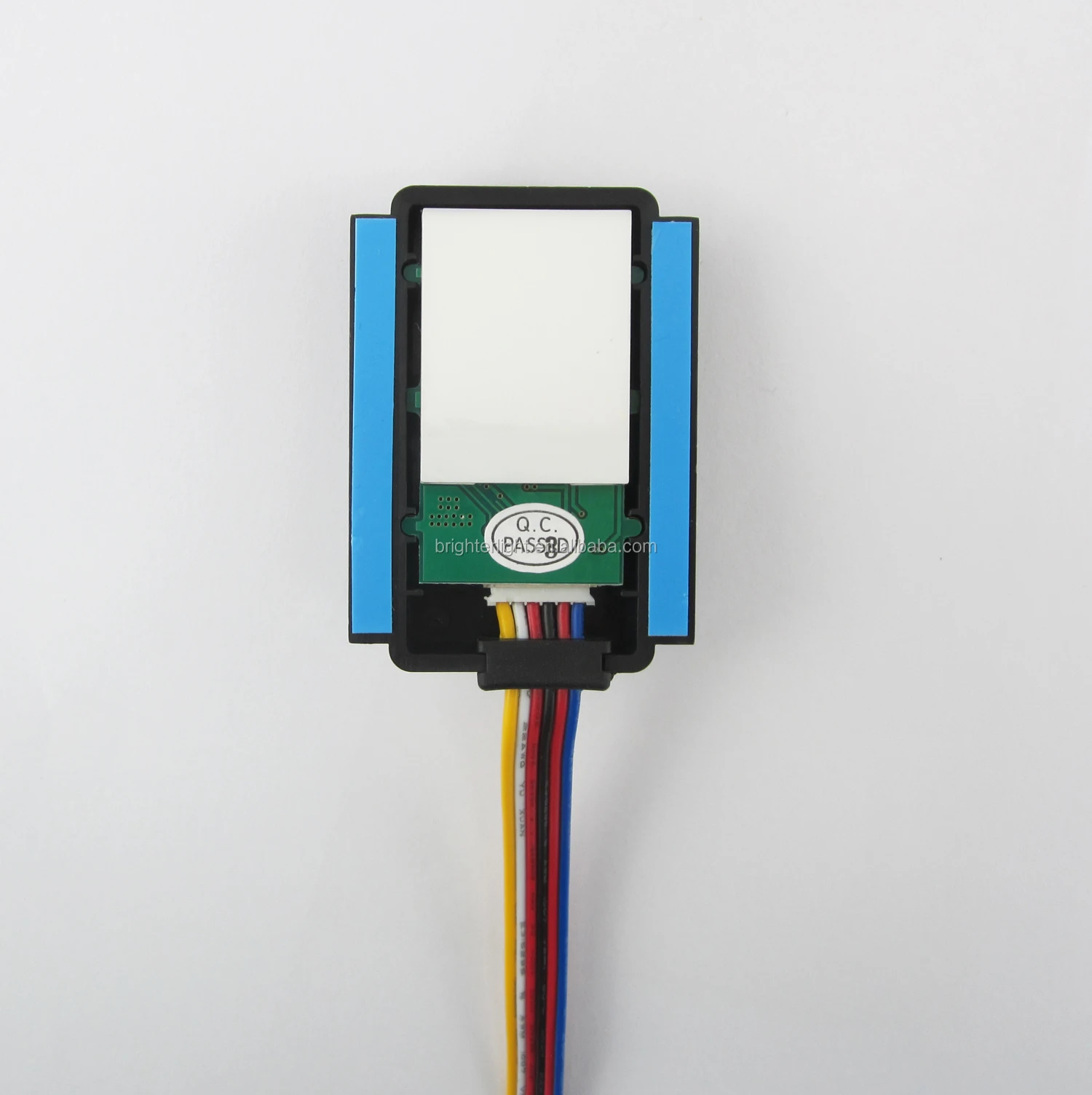

This Switch Is An insulated Touch Sensor Switch,It Is Suitable For The LED Which Has Protection Cover Such As Glass, Alec, Plastic, Pottery. No Need To Find Where The Switch Is In Darkness, Touch The Light Body, You Can Easily Switch On Or Off And Adjust The Brightness.

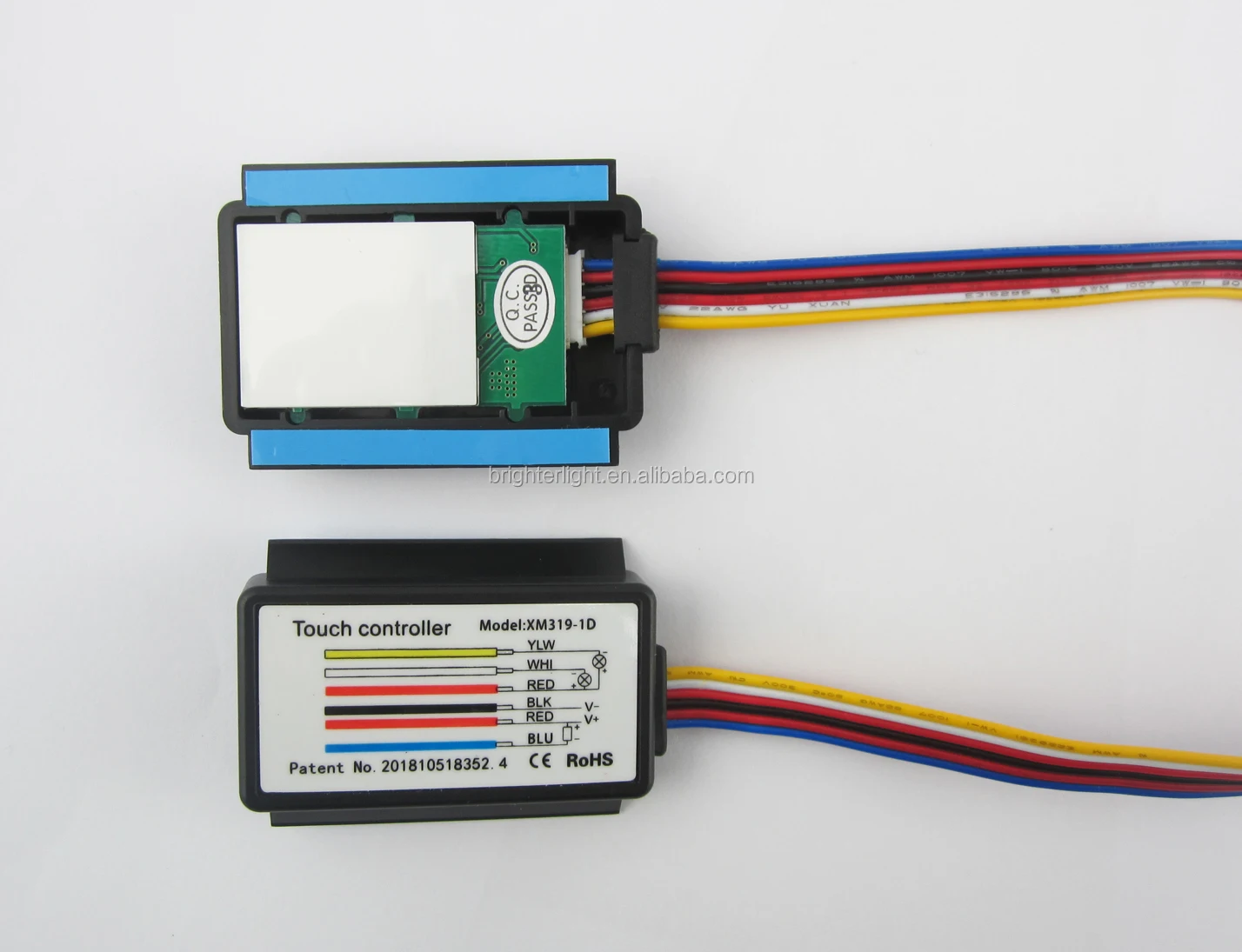

How To Connect:
1.The Red Line Is Connected With The Input Positive Wire.
2.The Black Line Connect To Negative Input Wire.
3.Then Red And Yellow Lines Connected Lamps.

Operation:
1.Under The Circumstance Of Insulation Protection,No Need To Touch The Metal Part Directly,Just Can Touch The Glass To Let The Switch Work,With The Characteristic Of Safety,No Mechanical Wear,Can'T See Any Switch Parts In Front Of The Mirror After Installation;

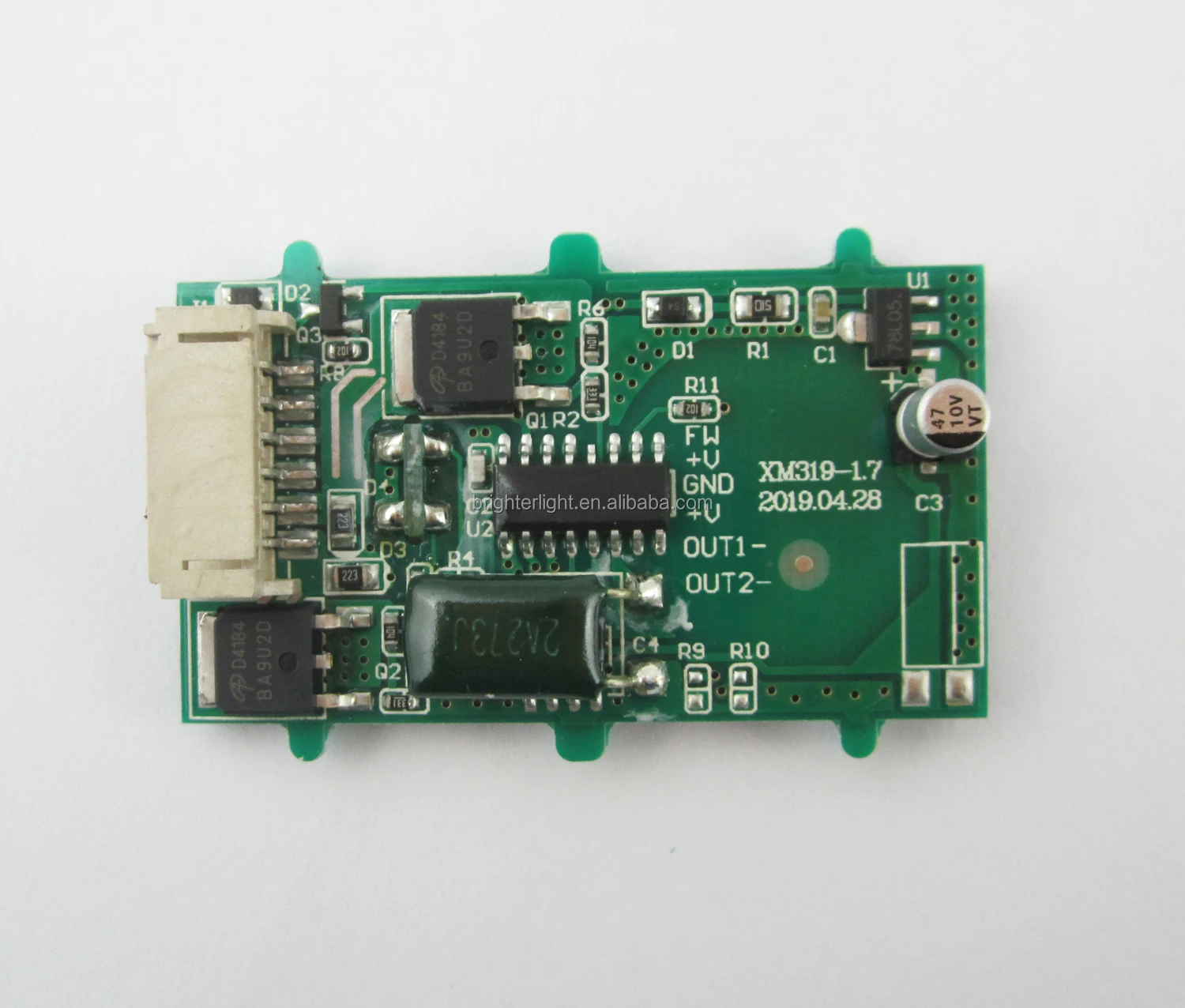

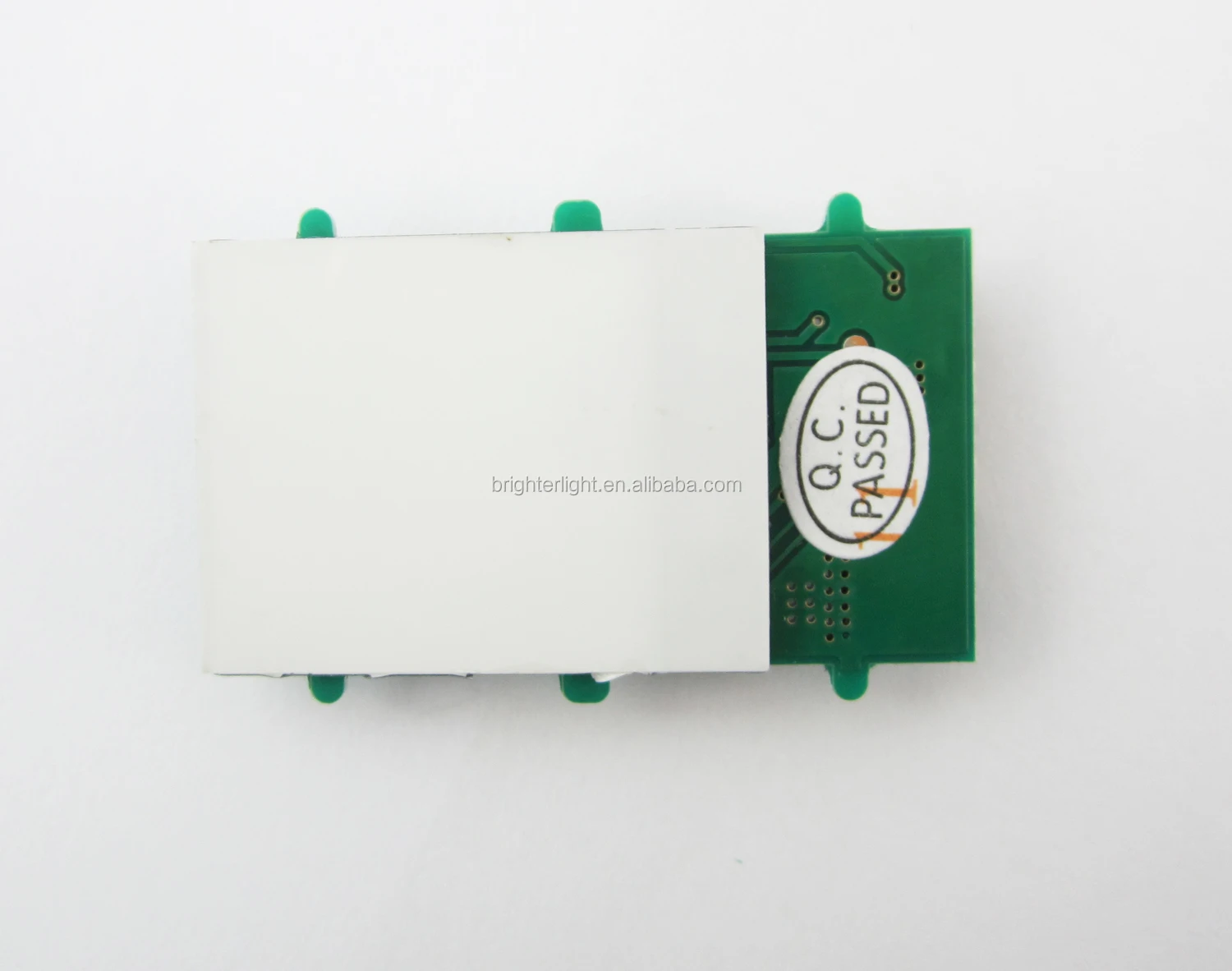

2.It Has Background Light For The Touch Switch Board,It'S Incorporated,When The Connector Power With The Switch,The Background Light Of The Switch Board Will Be On,And It'S Also Normally On.
3.Touch On Or Off Function: When The Body Touching Time Is Less Than 550 (Ms), It Control The Light On And Off.Touch First Time,Light On;Once Again, The Light Will Off.
4.Touch The Dimming Function: When The Body Touching Time Is More Than 550 (Ms), It Control The Light Brightness. Long Time Touch The Lighting Brightness Increase When Loosen It Will Stay On The Former Brightness Level. If Long Press For More Than 3 Seconds, The Light Brightness Is Maximum Brightness; Long Press Touch Again The Light Brightness Gradually Reduce And Stay On The Brightness Level Before Loosening, But If Long Press For More Than 3 Seconds, It Will Stay On The Minimun Brightness Level And Not Change ,Works In A Cycle.

Operating Voltage: DC12V To 24V
Load Power: Less Than Or Equal 36W

Ship by DHL,FedEx,TNT etc.
LCL sea shipment or Full container loading.
We provide shipment consolidation service.

We SHENZHEN Brighter Light Electronics Co., Ltd, was established in 2011, are dedicating to produce and provide high quality Electronic products.With years of continuous innovation and improvement,our products are range from PIR sensors,Microwave sensor and other types of sensor,remote control switches,touch switches and other Lighting spare parts,etc...

A: Free sample,but you pay for freight

A:Sample 1-3 days, mass production 1-2 weeks

A: 10-500pcs

A: DHL, TNT etc. Airline and sea shipping,provide shipment consolidation service

A: T/T,Paypal,Western Union,Money Gram

A: 5000pcs logo on color box and item

A: 1-2 years.

A: Free replacement within warranty.0.2% free parts available
