Power over Ethernet EU UK US AU POE Power injector/adaptor for CCTV IP carmer
- Category: >>>
- Supplier: Shenzhen Lianzhengda Technology Co. Ltd.
Share on (1601199524397):
Product Overview
Description
Product Description

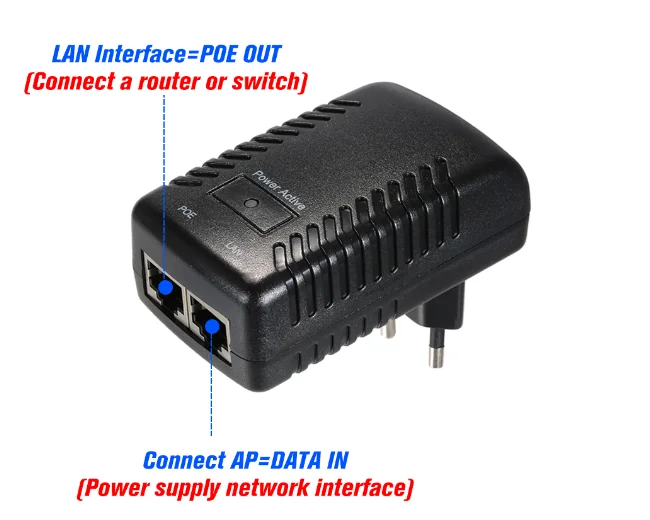

- PoE Injector in compact wall plug design,it likes a typical wall wart. Plugs directly into any EU style plug.
- Small footprint low profile design,reduce the amount of wiring and footprint that normally comes associated with other PoE Injectors.

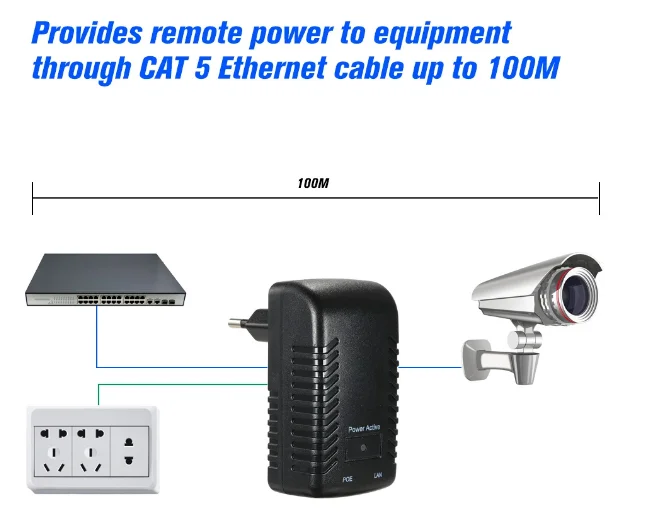

- 15 watts of power at 48V 802.3af - This will power any IP camera that accepts POE power. Most IP cameras require 15/25 watts or less with the exception of some PTZ's. In most circumstances, this will be more than enough power for your cameras.
- Power your IP cameras,IP phones or anything else that take 80.3af/at stand PoE power,even though this was designed for IP camera installations, you can still use it for a multitude of any other devices that take standard POE power.
- Economical price point with professional.
Technical Parameters
Ethernet power supply (POE) | |
POE characteristic | *IEEE802.3 af 15.4W ; Power(max):16W *IEEE802.3 at 25.5W; Power(max): 25W *one port support POE power supply |
Power supply way | *Spare Part to 4/5(+) ,7/8(-) *Data Part to 1/2(+) ,3/6(-) |
Port and Performance | |
Port | 2 Ethernet front-end ports |
Port parameters | *Electrical interface : RJ45 *Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level |
Transmission rate | 10/100mbps adaptive |
Protocol standard | *IEEE802.3 i 10 BASE-T; *IEEE802.3 u 100 BASE-TX; *IEEE802.3 x Flow Control; *IEEE802.3 af Power over Ethernet; |
Interface protection | Meet IEC61000-4-2( ESD) ±15KV(air), ±8KV(contact) requirements, and withstand 8/20us 24A(12A) energy. |
LED indicator | Each port : rate,link indicator |
Environment and Specification | |
Environment condition | *Operating Temperature :0~55℃; Storage Temperature : -20~70℃ *Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation |
Dimension | 83*43*29mm |
Weight | 0.075kg |
Safety standard | CE/LVD |
Warranty | 3 years |
Other Characteristic | |
Power support | AC220 0.5A/DC-48V (built-in) |
Power consumption | 2W |
Electromagnetic compatibility | *CE Class B *FCC Part 15 , Class B *VCCI Class B *C-Tick
|
Certification | CE, FCC ,ROHS |
