China MPH Chemical Magnetic Circulating Pump PVDF Fluoride Acid Transfer Pump Sulphuric Acid Pump

Product Overview

Description

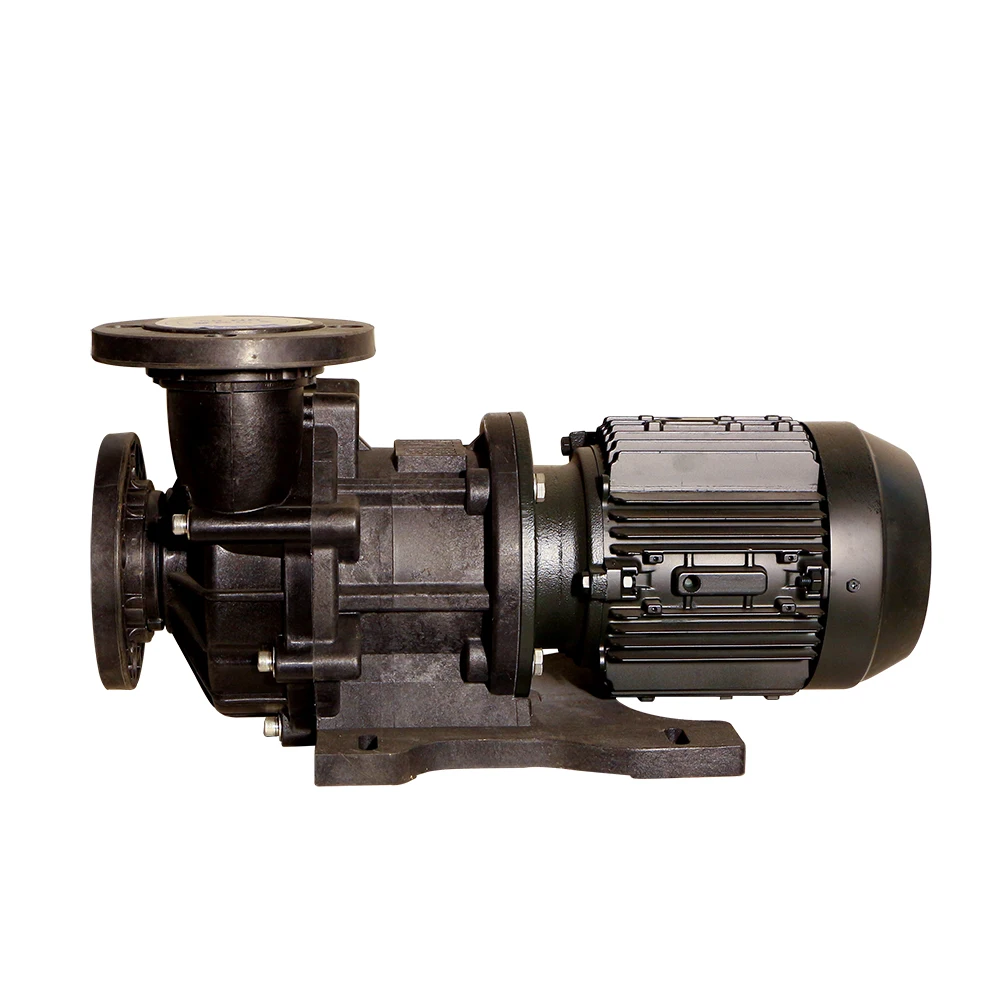

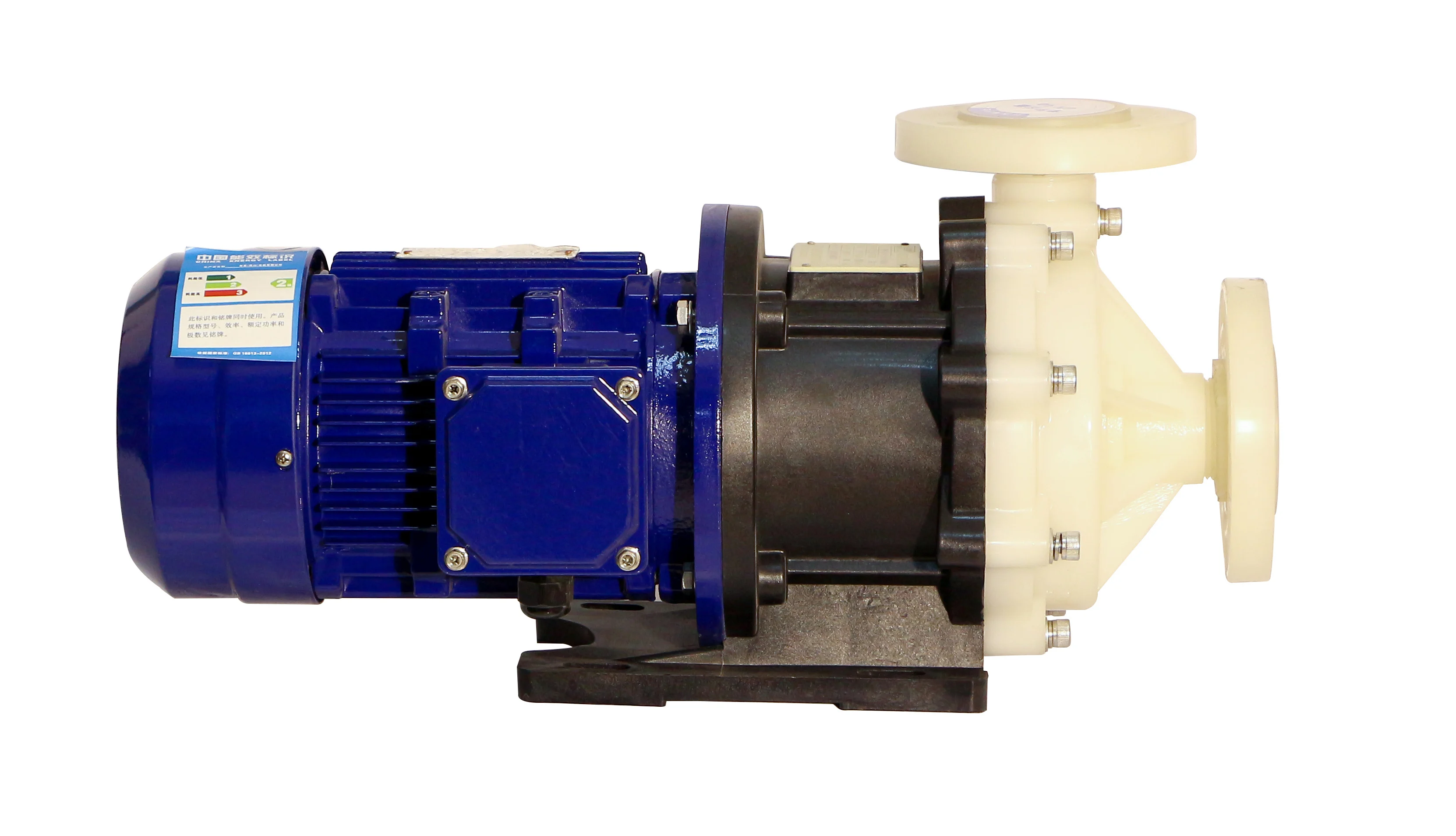

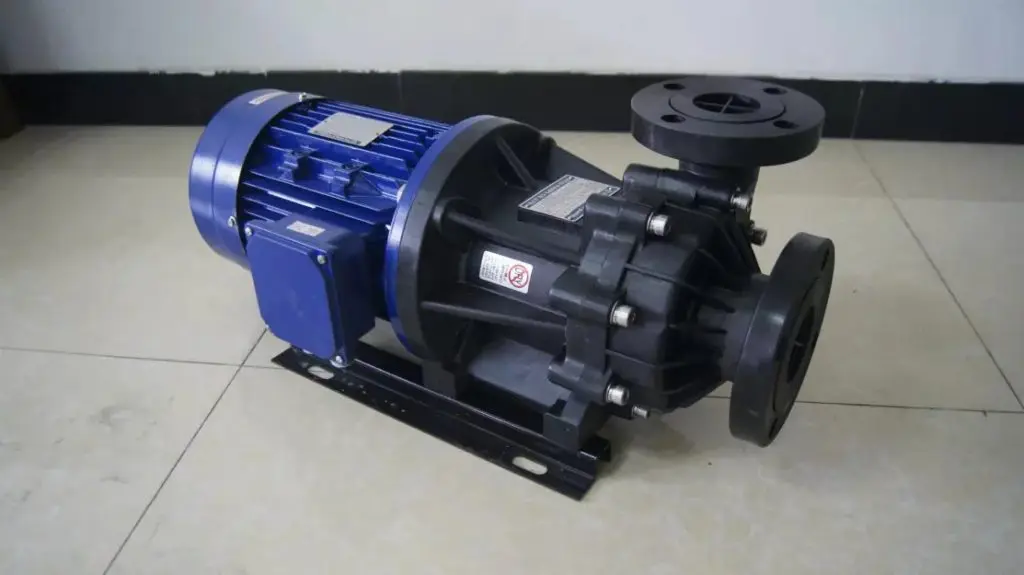

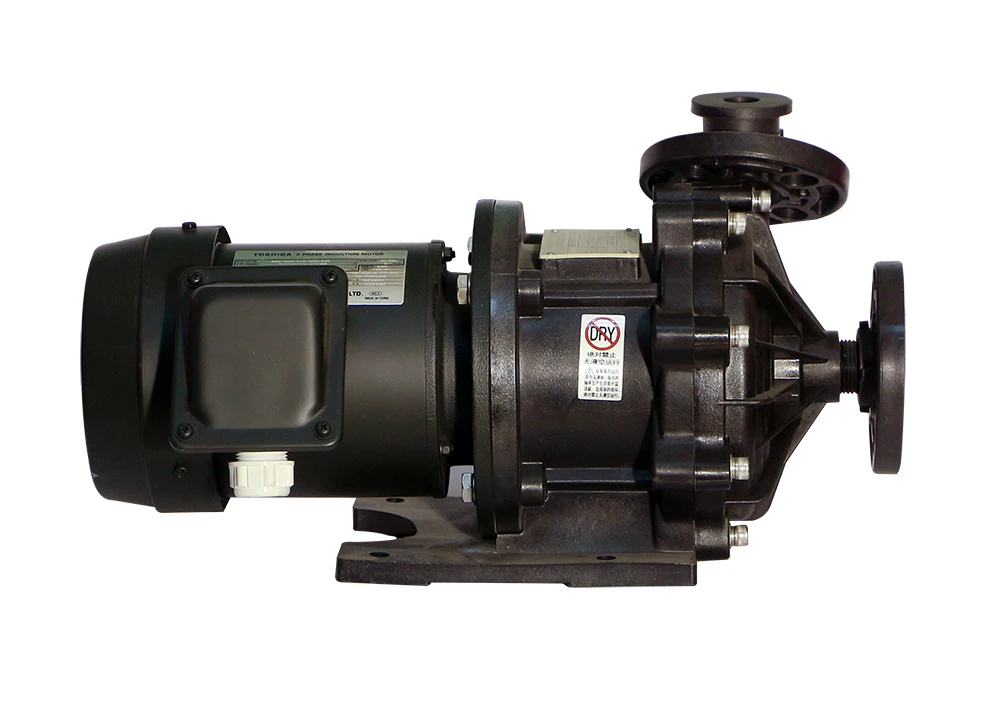

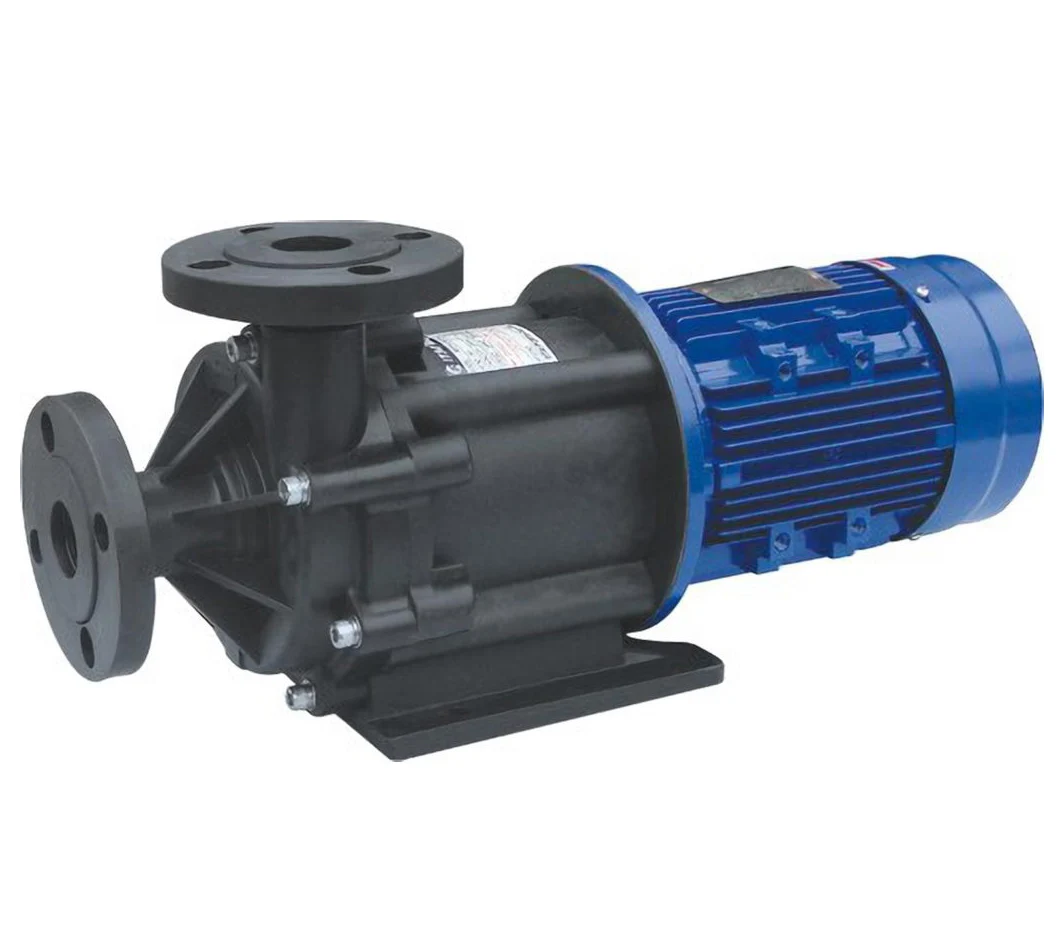

MPH(MDH)/MPH(MDH)-F Series  Acid and Alkali Chemical Liquid Magnetic Drive Circulating Pump



The MPH(MDH), MPH(MDH)-F adopts the brand-new probe tip contact system technology and the material resistant to idle running so that it’s better in idle running resistance and reliability. The motor power is 0.4kw-3.7kw, which can meet needs for medium-flow anti-corrosive pumps.



Application: The pump is able to transport different kinds of acid and alkali chemical liquids and electroplating chemical liquid.



Features:

Strong Corrosion Resistance

The MPH(MDH) pump’s casing, impeller and magnetic capsule are made of PP plastics while those of the MPH(MDH)-F made of fluoroplastics. The rest parts contacting the liquid are made of strong corrosion resistance material, such as carbon, ceramic and PTFE, thus being able to transport different kinds of acid and alkali chemical liquids.



Strong Durability

The The MPH(MDH) pump’s plastic part is reinforced with fiberglass while that of MPH(MDH)-F with carbon fiber. Besides, full consideration is taken into the shaft’s mechanical strength and safety, thus its durability is improved substantially.



Probe tip contact system and material resistant to idle running , thus free of idle running problem.



For a common magnetic drive pump, its internal parts may rub and heat due to frequent rotations, thus leading to melting finally. Such problems can be prevented by means of adopting probe tip contact system and material resistant to idle running. In case of idle running, only the impeller conical gasket contacts the front end of the pump shaft while the magnetic capsule never contacts the rear casing, thus friction will be reduced a lot and the material resistant to idle running will not be melted.



Specification Complete:













 Note: 1.The specific gravity limit listed above is the value on the maximum shaft power and liquid viscosity 1mPa.s(1cp)

             2.LIquid temperature range:0-80℃
