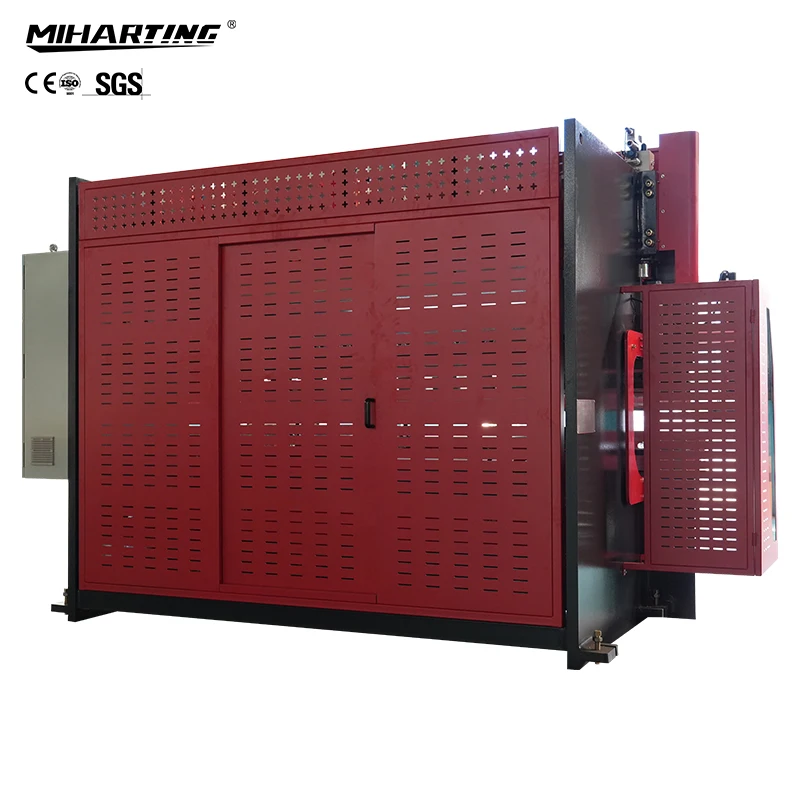

WE67K intelligent bending machine hydraulic type customized voltage
WE67K intelligent bending machine hydraulic type customized voltage
WE67K intelligent bending machine hydraulic type customized voltage
WE67K intelligent bending machine hydraulic type customized voltage
WE67K intelligent bending machine hydraulic type customized voltage

WE67K intelligent bending machine hydraulic type customized voltage

Share on (1601199543474):


Price:$20,000.00 - $28,900.00

Quantity:


Product Overview

Description

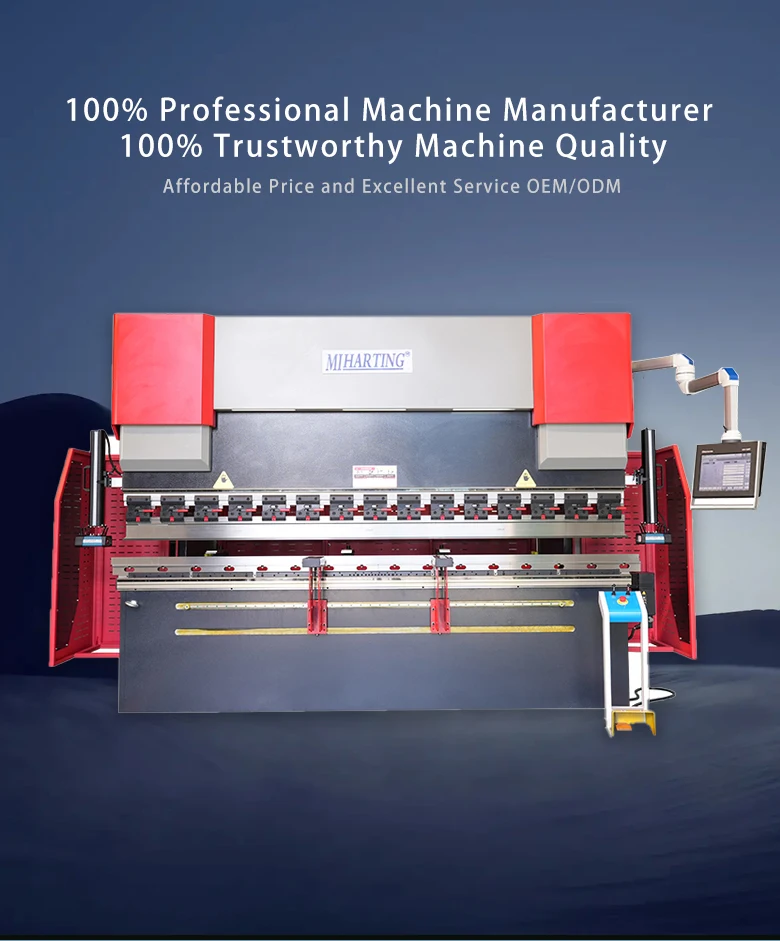

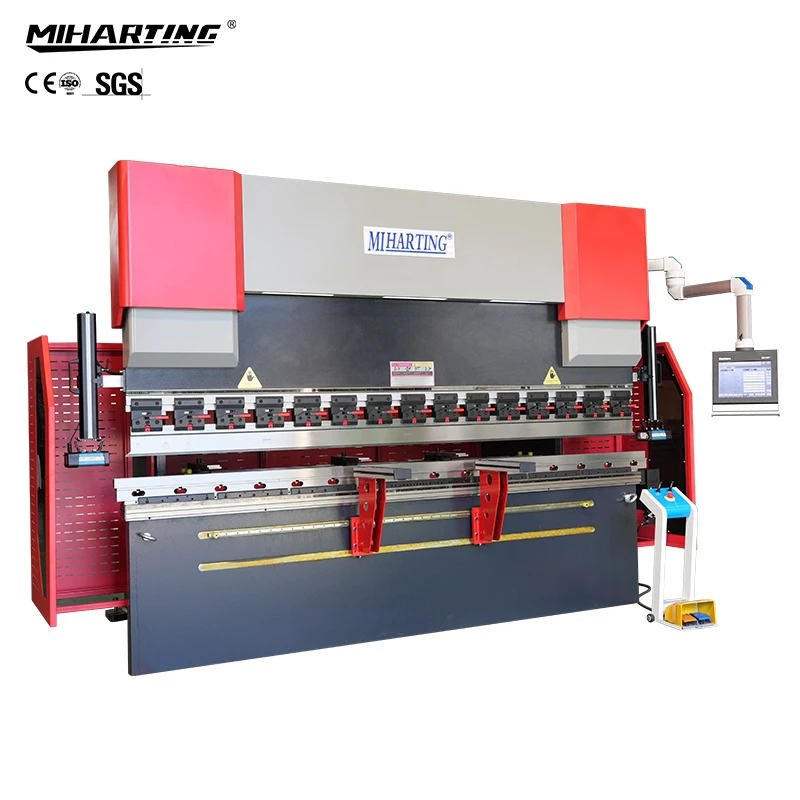

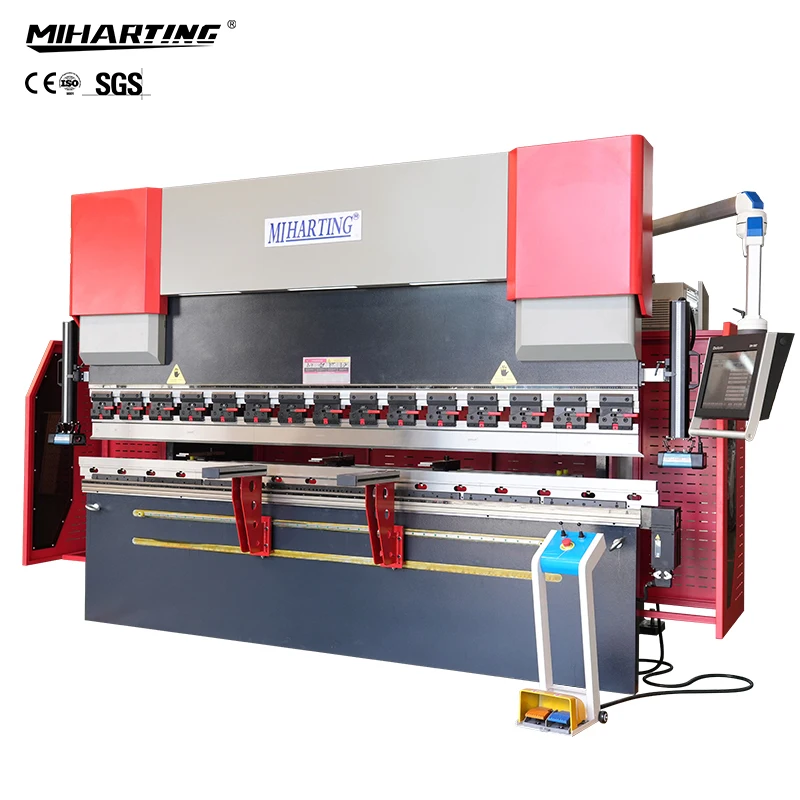

WE67K cnc sheet metal DA66T Hydraulic press brake for bending stainless steel plate

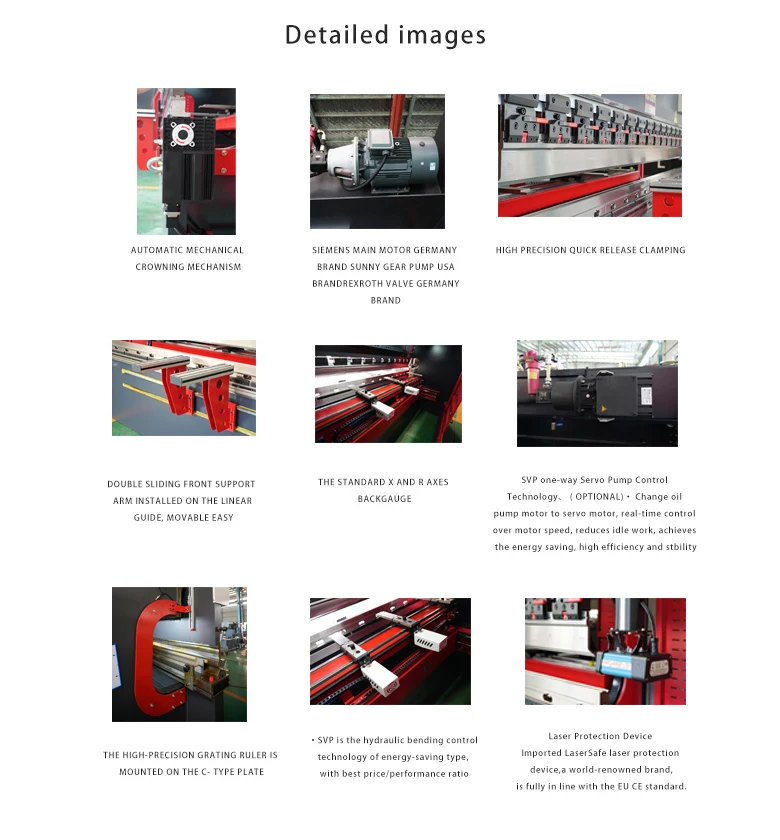

FEATURES
• OVERALL WELDED AND PROCESSED STRUCTURE, THE FRAME IS ANALYZED USING ANSYS FINITE ELEMENT ANALYSIS SOFTWARE TO ENSURE THE RELIABILIT OF THE MACHINE AND THE PRECISION OF THE MACHINE.
• ELECTRIC HYDRAULIC PROPORTIONAL SERVO SYNCHRONIZATION, ENSURING REPEATED ACCURACY.
• THE STANDARD 4+1 AXES, IMPORTED BALL SCREW AND LINEAR GUIDE RAIL ENSURE THE SPEED AND ACCURACY OF THE BACKGAUGE, AND MORE MULTI-AXES BACKGAUGE MECHANISM CAN BE USED ACCORDING TO CUSTOMER REQUIREMENTS.
• THE HYDRAULIC SYSTEM ADOPTS THE INTEGRATED CONTROL SYSTEM IMPORTED FROM GERMANY, WHICH REDUCES THE INSTALLATION OF PIPELINES, ENSURES THE STABILITY OF THE MACHINE, AND THE APPEARANCE IS SIMPLE AND BEAUTIFUL.
• C-TYPE PLATES ARE INSTALLED ON BOTH SIDES OF THE MACHINE FRAME, AND THE HIGH-PRECISION GRATING RULER IS MOUNTED ON THE C-TYPE PLATE SO AS TO AVOID THE INFLUENCE OF DEFORMATION OF THE FUSELAGE ON THE BENDING ACCURACY DURING BENDING.
• AUTOMATIC MECHANICAL CROWING MECHANISM ELIMINATE THE INFLUENCE OF SLIDER DEFORMATION ON WORKPIECE QUALITY. CNC CONTROLLER AUTOMATICALLY ADJUSTS THE COMPENSATION AMOUNT, AND THE OPERATION IS CONVENIENT AND ACCURATE.

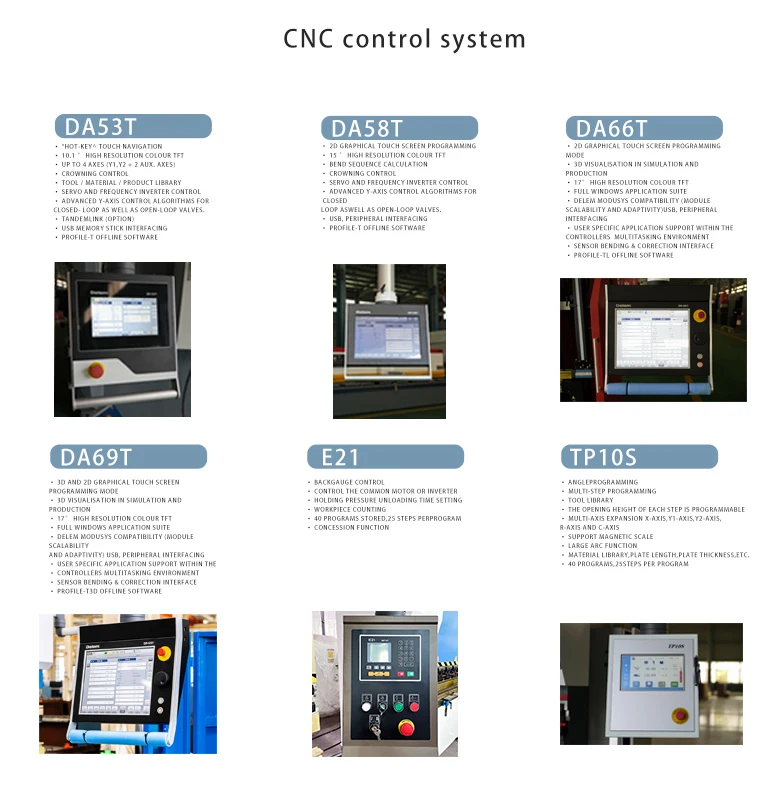

• SPECIAL CNC CONTROLLER NORMALLY USES HOLLAND DELEM, ITALY ESA, SWISS CYBELEC.

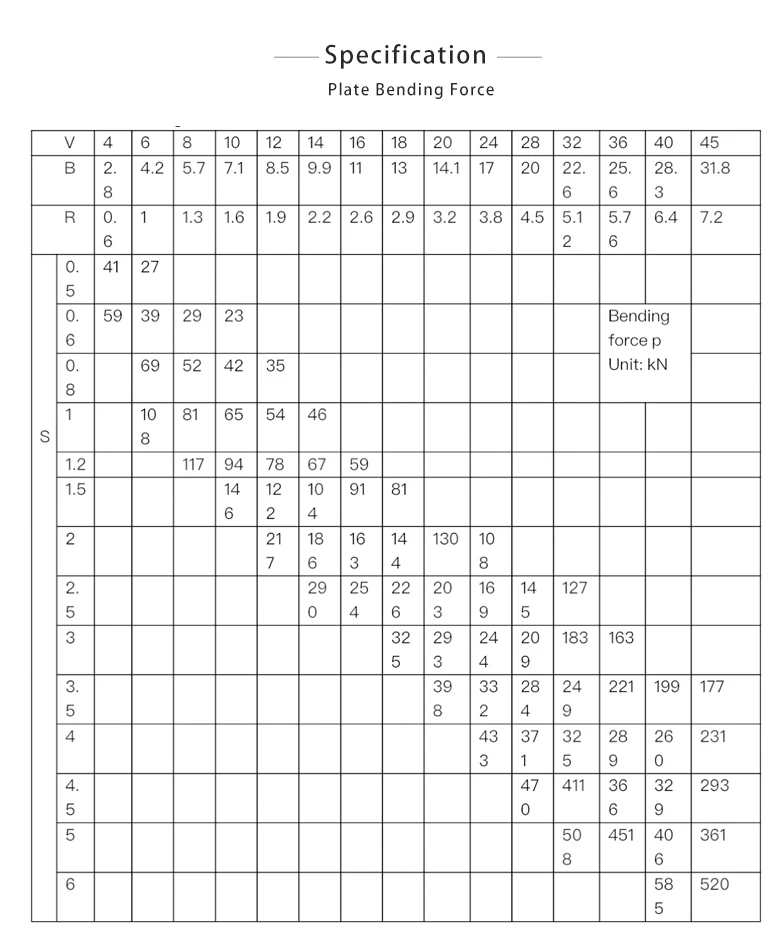

Specification


6325
10032
10040
12532
12540
16032
16040
20032
20040
Capacity ( KN )
630
1000
1000
1250
1250
1600
1600
2000
2000
Table Length (mm)
2500
3200
4000
3200
4000
3200
4000
3200
4000
Between Columns (mm)
2100
2600
3100
2600
3100
2600
3100
2600
3100
Daylight Opening (mm)
420
460
460
460
460
460
460
460
460
Ram Stroke (mm)
150
200
200
200
200
200
200
200
200
Throat Depth (mm)
320
400
400
400
400
400
400
400
400
Approach Speed (mm/s)
180
180
180
180
180
160
160
150
150
Working Speed (mm/s)
12
10
10
10
10
9
9
9
9
Return Speed (mm/s)
170
160
160
160
150
150
140
140
130
Main Motor Power (kw)
5.5
7.5
7.5
7.5
7.5
11
11
15
15
X axes stroke
(mm)
500
500
500
500
500
500
500
500
500
X axes speed (mm/s)
300
300
300
300
300
300
300
300
300
R axes stroke (mm)
200
200
200
200
200
200
200
200
200
R axes speed (mm/s)
60
60
60
60
60
60
60
60
60






Company Profile

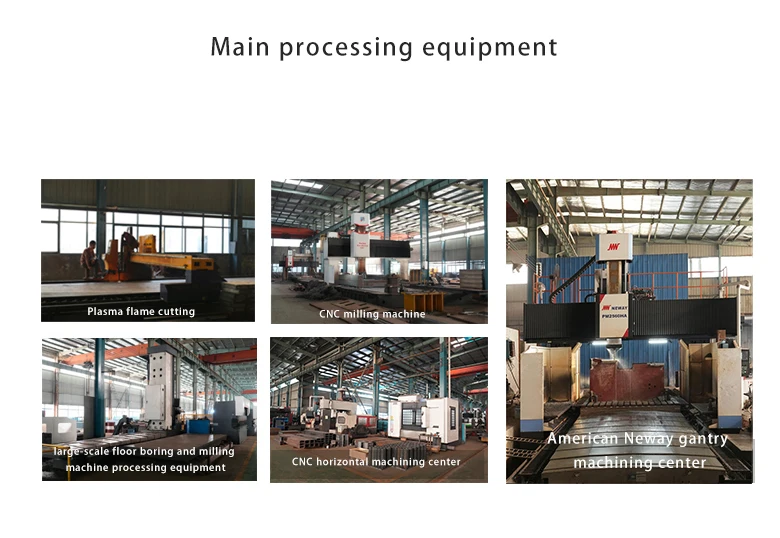

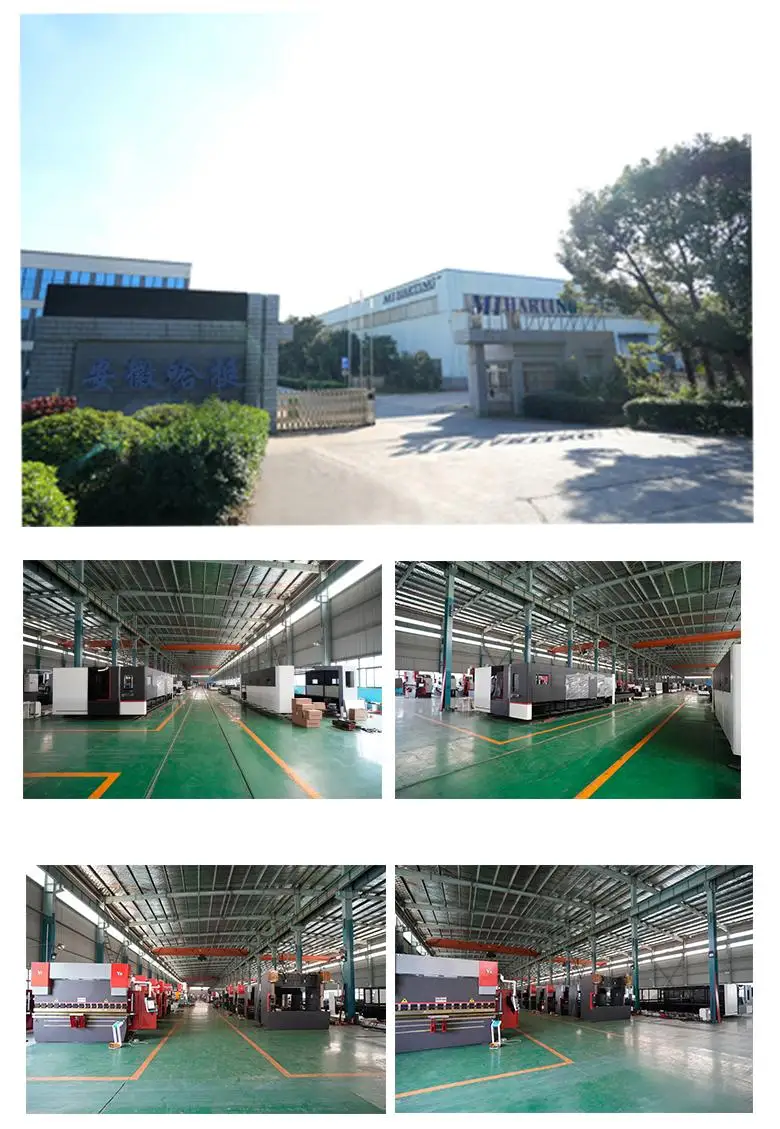

Anhui Harting Machinery Technology Co.,Ltd. is a professional manufacturer and exporter in China dedicated to the development, production and sales of high quality sheet metal processing equipment, founded in 2012.The company's factory is located in Bowang District, Ma'anshan, Anhui Province.The foreign trade center is located in Wuhu City, Anhui Province, with convenient transportation and superior location.Harting Machinery has three factories, the first factory produces forging machine tools, the second factory produces ventilation ducting equipment and the third factory produces bending machine tools, shearing machine blades and other machine tools. The total area of the factory is 60,000 square meters.Our company has more than 200 employees including engineering and technology developers, production workers and salesmen.In order to serve our customers well, the company is specially managed with ERP software. It systematically assigns responsibilities and manages the process from pre-sales, sales and after-sales aspects such as consultation, quotation, order placement, export, remote or door-to-door commissioning and installation.

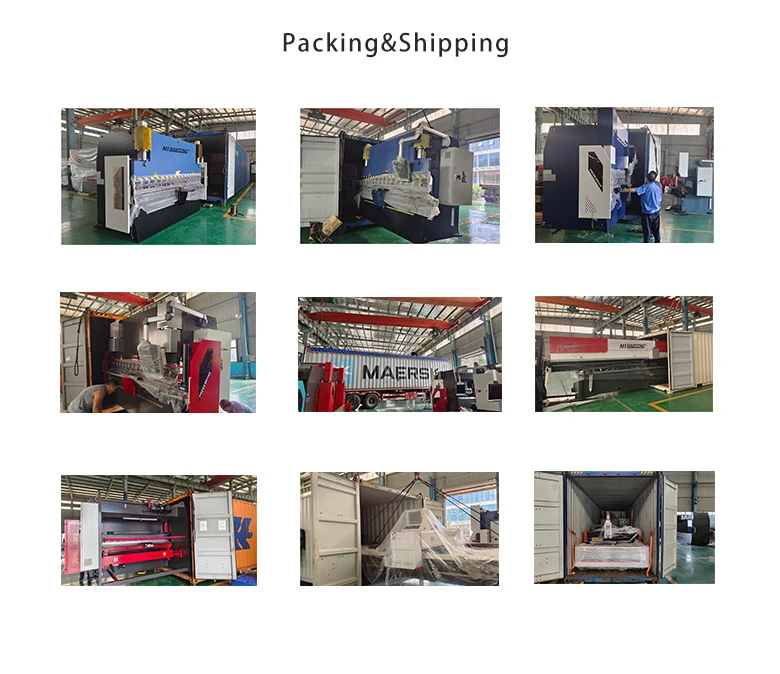

Product packaging




FAQ


1.Q: Who are we?
A: We are MIHARTING, a manufacturer and exporter specialize in the sheet metal processing equipment.
2.Q: How to choose a press brake machine?
A: Please tell us the following information in detail: - Material of plate: -Max thickness: -Max plate width:
3.Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.Q: What is the average lead time?
A: The lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. 5.Q: How can I pay?
A:You can pay by T/T, Western Union, Money Gram, Paypal; 30% deposit; pay off the 70% balance before shipment.
6.Q: How about your after-sale service?
A: In order to serve our customers well, the company is specially managed with ERP software.It systematically assigns responsibilities and manages the process from pre-sales, sales and after-sales aspects such as consultation, quotation, order placement, export, remote or door-to-door commissioning and installation.
