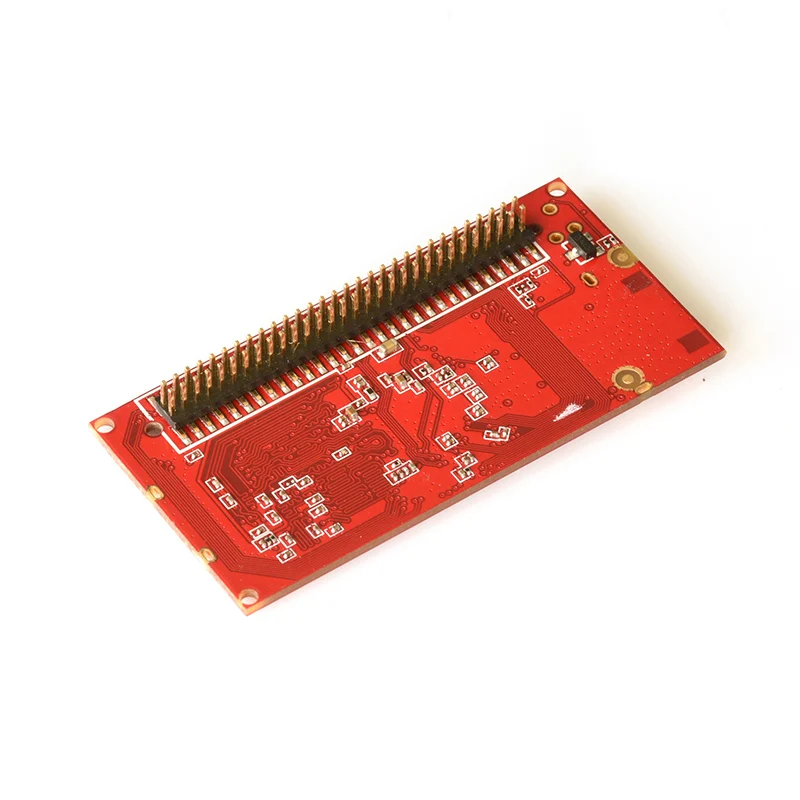

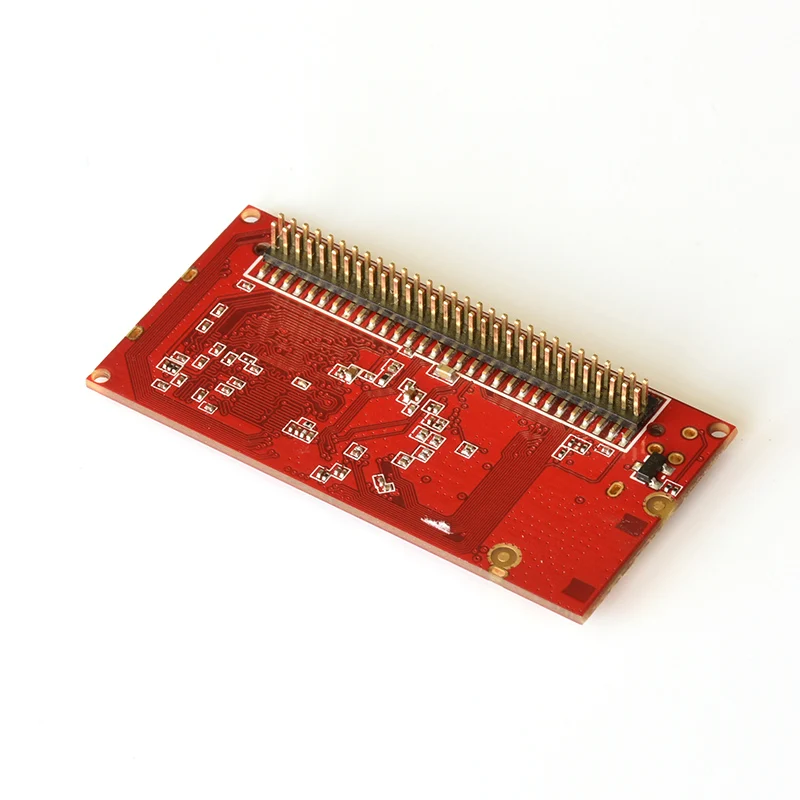

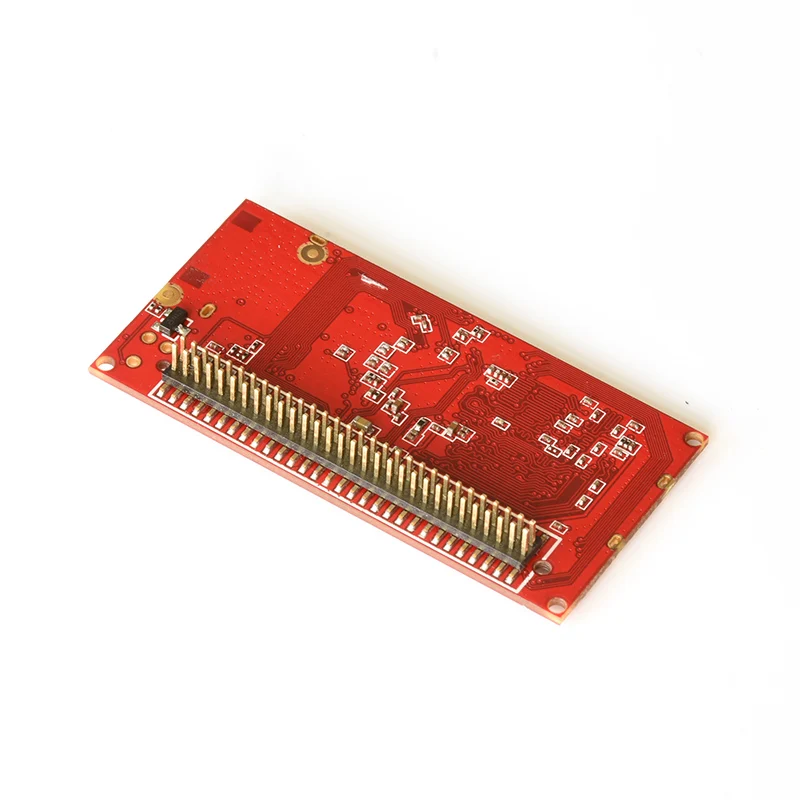

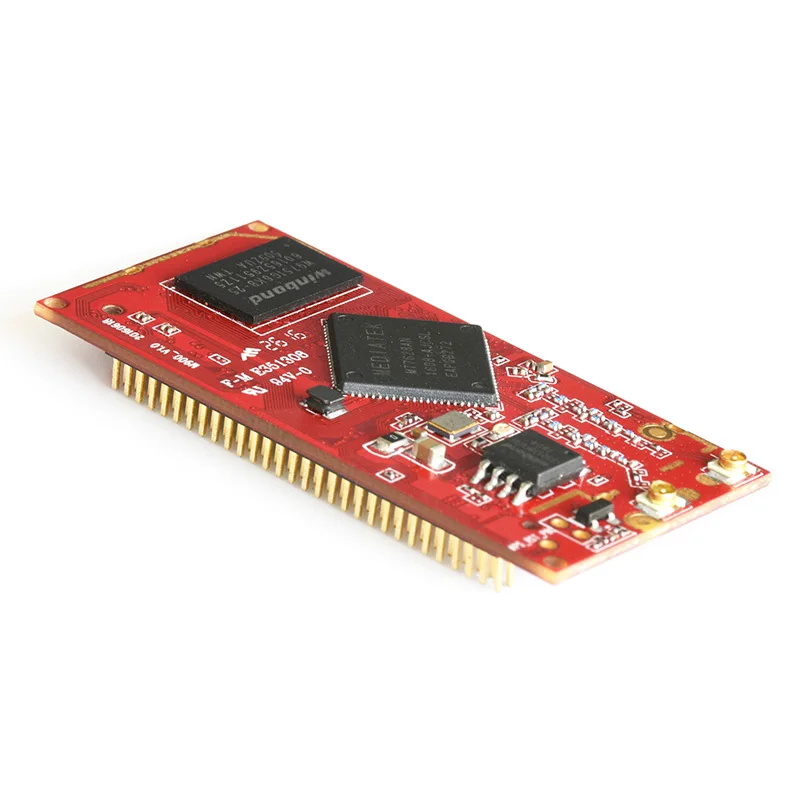

Gainstrong ODM MT7688AN wifi module dual band with High Speed UART for Advanced IoT Device Control
- Category: >>>
- Supplier: Shenzhen Gainstrong Technology Co. Ltd.
Share on (1601199545557):
Product Overview
Description
Specification
Oolite V3.3S Module Characteristics:
CPU: MT7688AN with 580/575 MHz MIPS 24KEc
RAM: 64MB DDR2 RAM (256MB optional)
Flash: 64MB SPI NOR Flash ROM(8/16/32/64M option)
Wireless speed: 150Mbps
GPIO:46(total), High-speed UART for console support
USB: Usb 2.0 master interface, support USB hub extension
Power supply voltage: 3.3V
Port: 1×port (IOT Device Mode)
1×PCIE interface
Antenna:1× IPeX external antenna.
20/40 MHz channel bandwidth
Supports Legacy 802.11b/g ,HT 802.11n and 802.11vmodes
Supports WEP64/128, TKIP, AES, WPA, WPA2, WAPI
Green AP/STA
— Intelligent Clock Scaling (exclusive)
— DDRII: ODT off, Self-refresh mode
iPA/iLNA and ePA/eLNA
Embedded PMU
RAM: 64MB DDR2 RAM (256MB optional)
Flash: 64MB SPI NOR Flash ROM(8/16/32/64M option)
Wireless speed: 150Mbps
GPIO:46(total), High-speed UART for console support
USB: Usb 2.0 master interface, support USB hub extension
Power supply voltage: 3.3V
Port: 1×port (IOT Device Mode)
1×PCIE interface
Antenna:1× IPeX external antenna.
20/40 MHz channel bandwidth
Supports Legacy 802.11b/g ,HT 802.11n and 802.11vmodes
Supports WEP64/128, TKIP, AES, WPA, WPA2, WAPI
Green AP/STA
— Intelligent Clock Scaling (exclusive)
— DDRII: ODT off, Self-refresh mode
iPA/iLNA and ePA/eLNA
Embedded PMU
Product Description

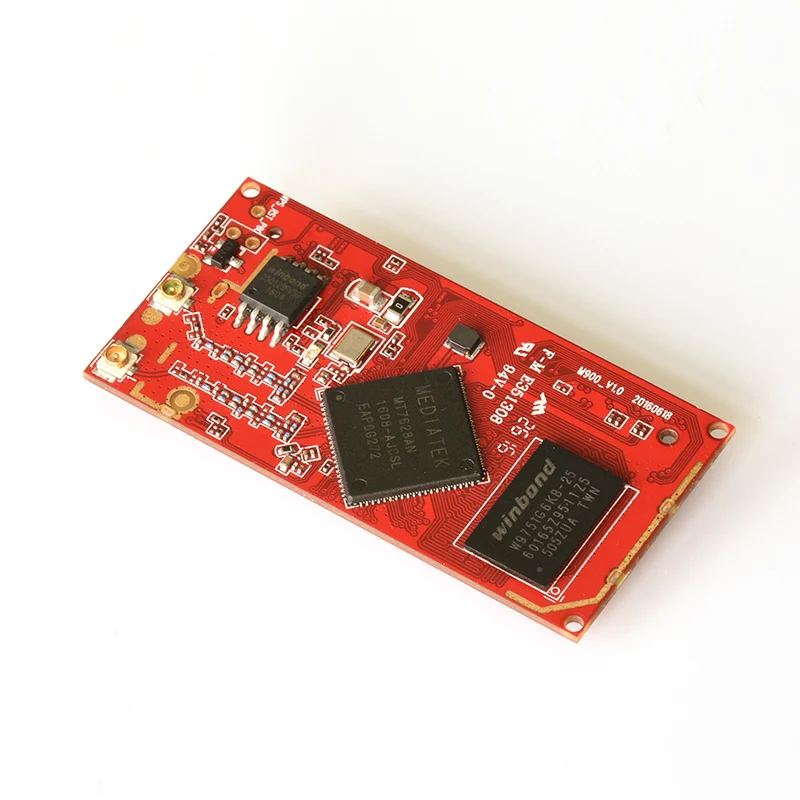

The Oolite V3.3S module use the MT7688AN chipset.The MT7688AN integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEc™ CPU, 1-port fast Ethernet PHY, USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs. The MT7688AN provides two operation modes – IoT gateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows the MT7688AN to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, the MT7688AN supports eMMC, SD-XC and USB 2.0. The MT7688AN can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIP application through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs. For IoT gateway, it can connect to
touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
Packing & Delivery
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Company Profile
Shenzhen Gainstrong Technology Ltd. is a professional manufacturer for Network communication products ,including wifi Routers,wifi modules, Industial wifi equipment,smart home devices...and so on .The company was established on 2009 ,Our factory located in Shajing town ,Bao An District ,Shenzhen, China ,We are focus on ODM and OEM service to the customer all over the world with professional R&D team . Factory equipped with sophisticated manufacturing machines ,include 1 High-speed SMT production lines and 2 product-assembly lines, about 40 staff, Production capacity for wifi modules can be 2000pcs per day.
With professional mind, we are trying to offer the customer the most competive price ,quick lead time for delivery, strict quality inspection and intimate customer servervice. To satisfy customer perfectly,we are managing the safety ability and the design which combines the sensibility and technique , as well as the advanced equipment.

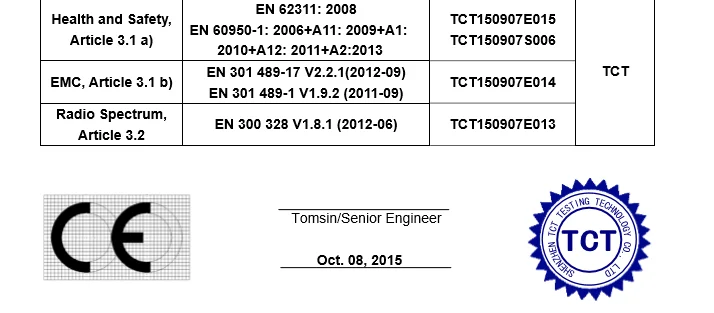

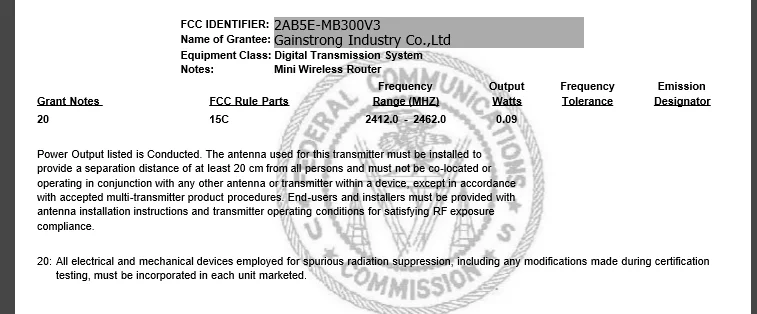

Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(20.00%),South America(20.00%),Western
Europe(15.00%),Eastern Europe(15.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Mid East(3.00%),Eastern Asia(2.00%),Oceania(2.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
4. why should you buy from us not from other suppliers?
We focus on Qualcomm and MTk wifi module and router also Lora products, We have a professional R&D team of over 30 people that can offer ODM and OEM service with technical support.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2011,sell to North America(20.00%),South America(20.00%),Western
Europe(15.00%),Eastern Europe(15.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Mid East(3.00%),Eastern Asia(2.00%),Oceania(2.00%),Southern Europe(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Other Communication & Networking Product, Energy storage battery; Solar inverters; Energy storage system; Home Energy Storage Systems.
3.what can you buy from us?
Other Communication & Networking Product, Energy storage battery; Solar inverters; Energy storage system; Home Energy Storage Systems.
4. why should you buy from us not from other suppliers?
We focus on Qualcomm and MTk wifi module and router also Lora products, We have a professional R&D team of over 30 people that can offer ODM and OEM service with technical support.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
