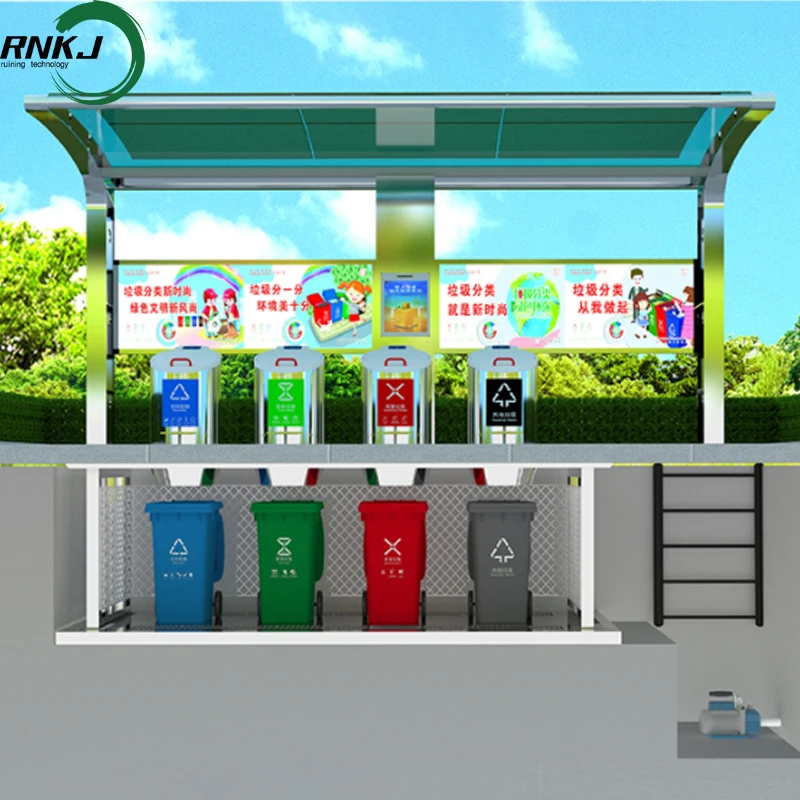

RNKJ brand customised waste trash bins and recycle collector Underground Collect Garbage Container

Share on (1601199565287):


Price:$6,600.00 - $7,600.00

Quantity:


Product Overview

Description







Product Overview

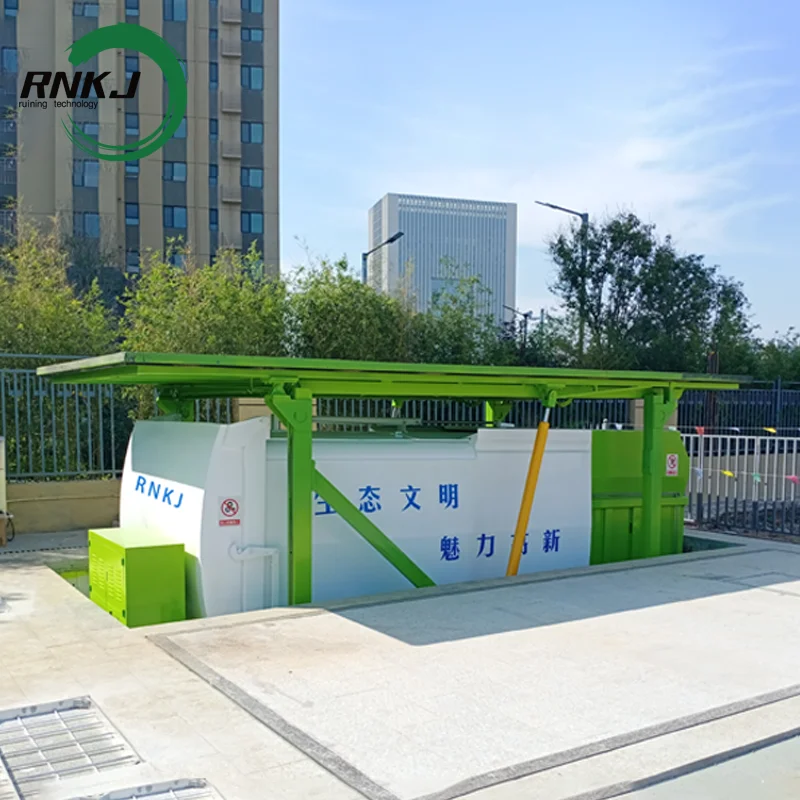

Intelligent Underground Garbage Sorting and Collection System

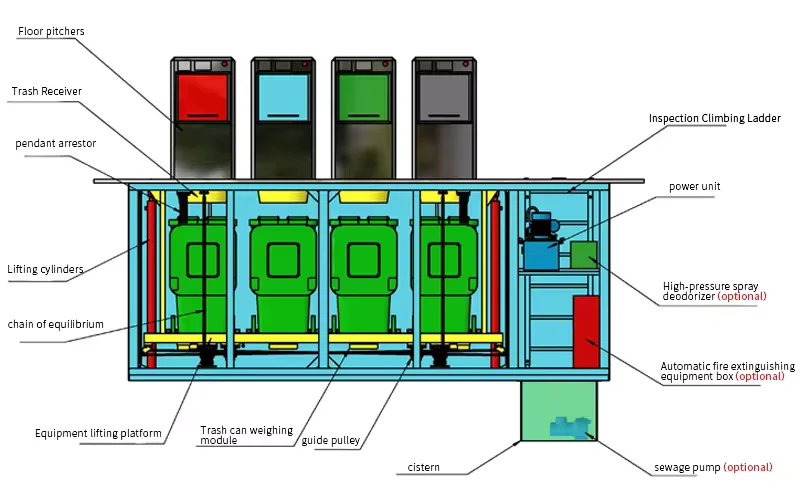

The structure of intelligent landscape buried garbage classification collection station includes classification publicity kiosks,garbage feeding devices, lifting devices, power systems, sewage systems, deodorization systems, pit foundations, etc.
Its advantage is that all garbage cans fall into the ground, good concealability , effectively reduce visual pollution, followed by convenient garbage dumping, less odor, and so on. The garbage volume can be selected according to customer needs 1100L/660L/240L garbage can, which can be used in a variety of layouts such as 1 barrel, 2 barrels, 4 barrels or 6 barrels.
You will receive our full range of personalized customized services, including to site design, packaging, equipment matching, customized procedures, etc,
When you purchase equipment from RNKJ. May wish you to start from a small transaction, experience the products and services from us.
Individually Tailored Solutions


FEATURES AT A GLANCE


Support Customization
Use: Semi-wet, wet and solid waste.
Capacity: 6~20 m3.(4.5-25 t)
Lifting platform technology
Compatible with hook arm trucks
Liquid proof construction
Intelligent SMART technology

Individually Tailored Solutions core of RNKJ





Our Advantages
New Design
The system adopts the internationally advanced fully enclosed floor layout with a beautiful appearance. It’s convenient and efficient for users to dump wastes.

Muitiple Choices
Multiple choices of feeding port are available, such as hoppers, flipping buckets and dumping ports for large wastes, which are both suitable for manual and vehicles.

Good Performance
The system is lifted steadily with four-cylinder lifting and has good waterproof performance with high strength thick steel sheet as outer frame. Less infrastructure investment and no extra installation and commissioning is required.

Standardization
The garbage compactor is applicable for most standard hook arm garbage trucks in the world.

Muitiple Functions
The system is equipped with automatic fire fighting, deodorization, ventilation and automatic clean facilities. Spray effecitvely reduces odor and disinfects, whose time and frenquency can be set up. High pressure water gun can rinse the surface of the tank and floor.

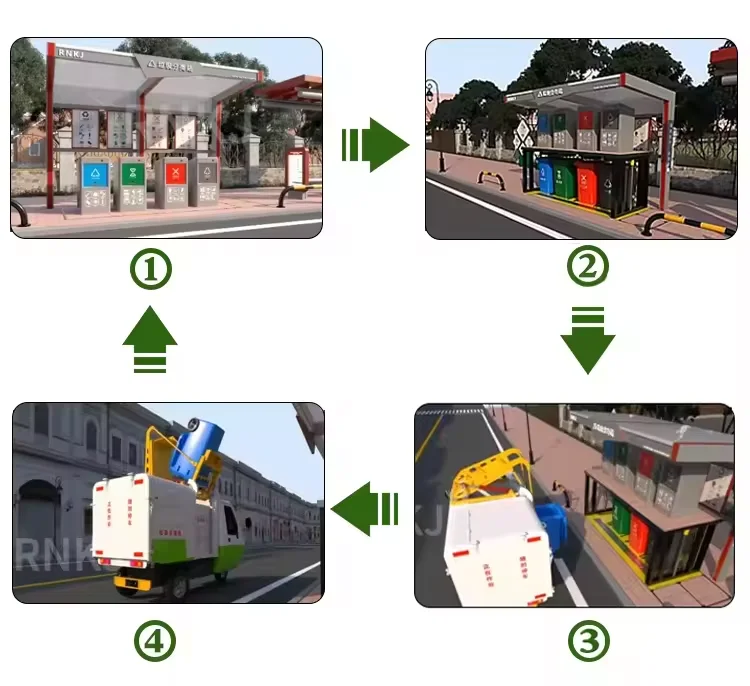

work process
Collection System Underground collection box lifting
Full alarm loading Garbage truck loading and transport


Model
ZFDM-2404
ZFDM-2406
ZFDM-6604
Size of Kiosk (mm)
4200×1600×2630
5580×1600×2630
6400×2300×3000
Size of Pit (mm)
4130×1280×2280
5510×1280×2280
6220×1920×2680
Number of Feeding Ports
4
6
4
Capacity (L)
960L (4 × 240L)
1440L (6 × 240L)
2640L (4 × 660L)
Weight (KG)
2980KG
3450KG
4950KG
Lift Height (mm)
1320
1320
1700
Lift Time (S)
20
20
20
Motor Power
1.5KW
1.5KW
2.2KW
Opening Mode
sensor
sensor
sensor
Sewage Pump Power
1.1KW
1.1KW
1.1KW
Lift Weight
2.8T
3.5T
5.5T


Features
1.Activate the hydraulic system when the trash can is full
2. Lift the platform smoothly until the bottom of the trash can is flush with the ground.
3.Manually hauling out full trash cans and unloading trash directly into trash collection trucks
4.Place empty cans in their original trash can locations

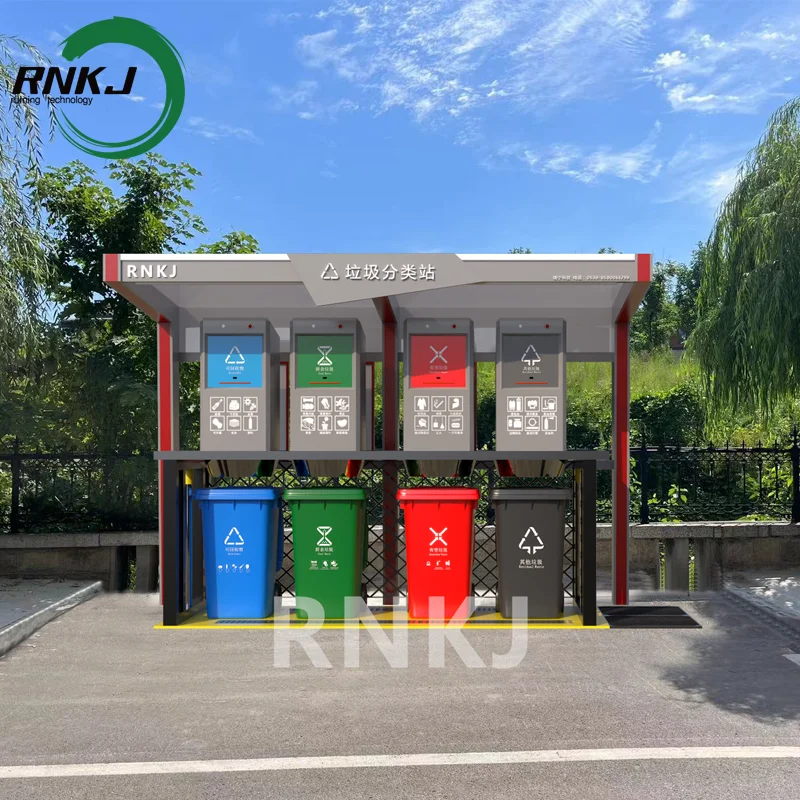

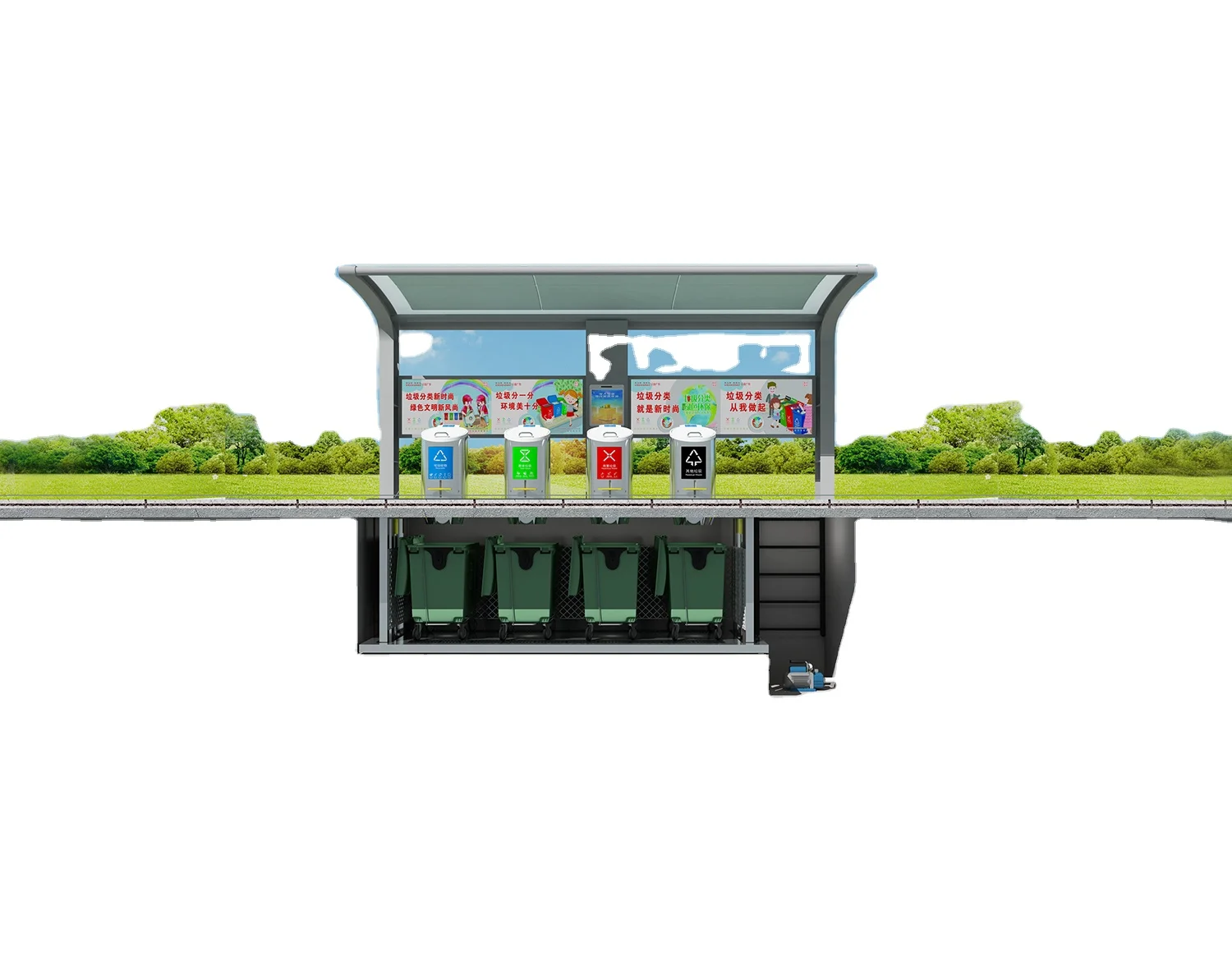

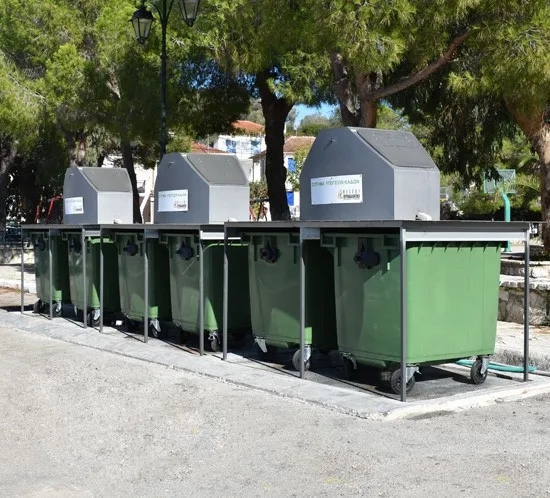

Underground Garbage system with 4 boxes
Underground Garbage system with 4 boxes
Underground Garbage system with 4 boxes

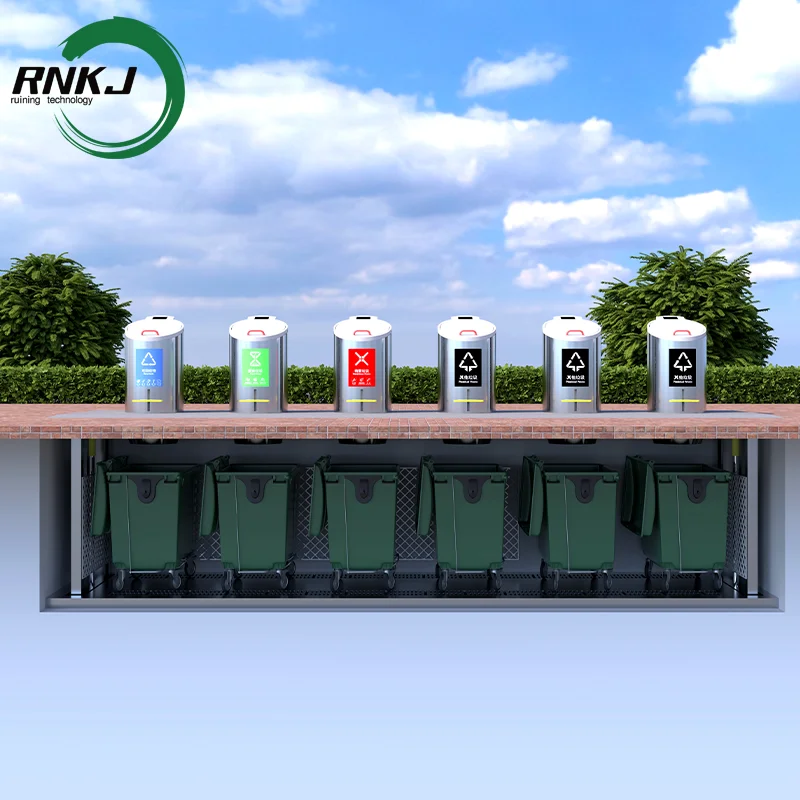

Underground Garbage system with 6 boxes
Underground Garbage system with 6 boxes
Underground Garbage system with 6 boxes

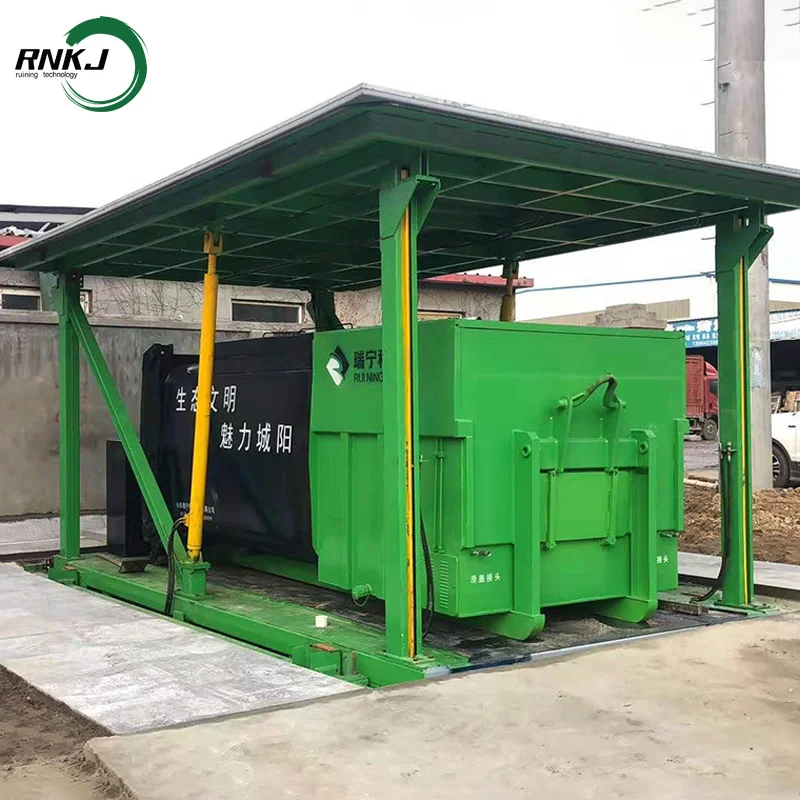

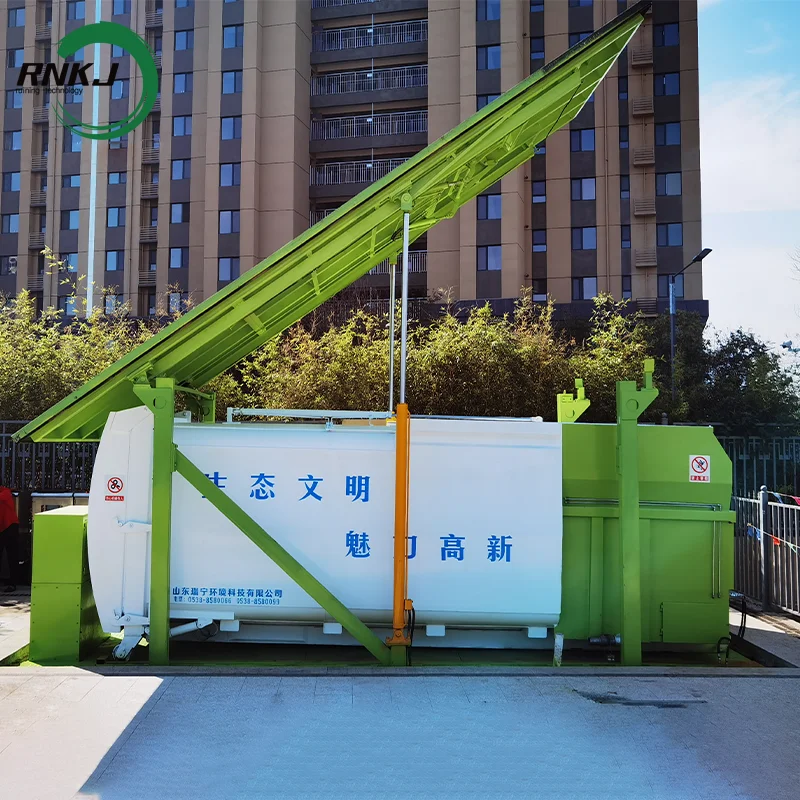

Successful Project


Project in Thailand
Project in Britain
Project in Russia


Project in Shanghai China
Project in Malaysia
Project in Japan


SIMILAR PRODUCTS








Our Services


Pre-sales Service
Processing inquiry in time.
Work as your technical assistant.
Feasibility analysis.
Technical drawings and customization.
Factory visit for reference.
After-sales Service
Delivery in time.
Instructions on installation and use.
Track the conditions of equipment regularly.
Spare parts in stock.




FAQ


Are you a manufacturer or trader?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market.
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days. It depends on the order quantity.
Do you provide OEM/ODM service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
How can we ensure quality?
The final inspection is always carried out before shipment. How to install the equipment after purchasing? We will provide a professional installation video to illustrate. A manual is available as well.
Do you offer a guarantee?
Yes, we guarantee our product for one year. After-sales service support and technical support are both provided.
What is your MOQ?
1set.
