All Black 530W 540W 555W Hybrid Bifacial Solar Panel for Home Use N Type Half Cell Topcon Technology PERC
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1601199656142):
Product Overview
Description
Specification
ELECTRICAL CHARACTERISTICS | ||||||||||
Model / QWBDT144- | 560W | 565W | 570W | 575W | 580W | |||||
Testing Condition : STC Maximum Power ( Pmax / W ) | 560 | 565 | 570 | 575 | 580 | |||||
Operating Voltage ( Vmpp / V ) | 41.95 | 42.14 | 42.29 | 42.44 | 42.59 | |||||
Operating Current ( Impp / A ) | 13.35 | 13.41 | 13.48 | 13.55 | 13.62 | |||||
Open-circuit Voltage ( Voc / V ) | 50.67 | 50.87 | 51.07 | 51.27 | 51.47 | |||||
Short-circuit Current ( Isc / A ) | 14.13 | 14.19 | 14.25 | 14.31 | 14.37 | |||||
Module Efficiency ( % ) | 21 . 68 | 21.87 | 22.07 | 22.26 | 22.45 | |||||
MECHANICAL CHARACTERISTICS | ||||||||||

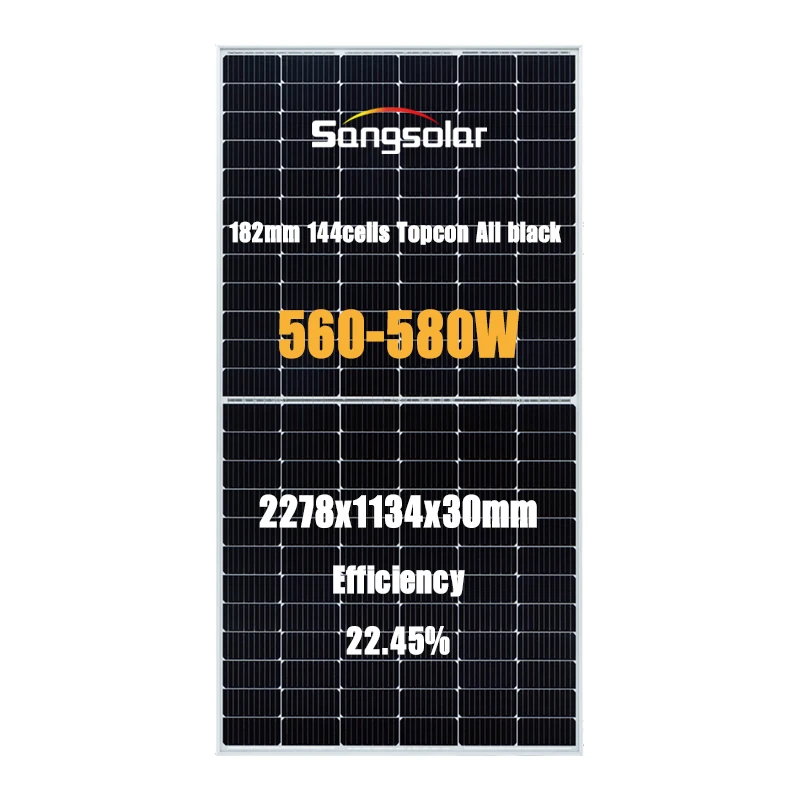

Solar Cell | Mono-crystalline Silicon 182*91mm | |||||||||
No of Cell | 144(6*24) | |||||||||
ModuleDimensions | 2278*1134*30mm(89.69*4.65*1.18 Inches) | |||||||||
Weight | 32.3kg | |||||||||
Front glass | 2.0mm AR Coating Semi-tempered tempered Glass | |||||||||
Back glass | 2. 0mm White Grid Glass | |||||||||
Frame | Anodized Aluminium Alloy | |||||||||
Junction box | IP68, 3 Bypass Diodes | |||||||||
Output Cables | 4mm²,300mm(+)/300mm(-)or Customized Length | |||||||||
Connectors | MC4 | |||||||||
