EMG device for pelvic floor rehabilitation body pain relief using mirror therapy electrical Biofeedback stimulator

Product Overview

Description

EMG device for pelvic floor rehabilitation body pain relief using mirror therapy electrical Biofeedback stimulator

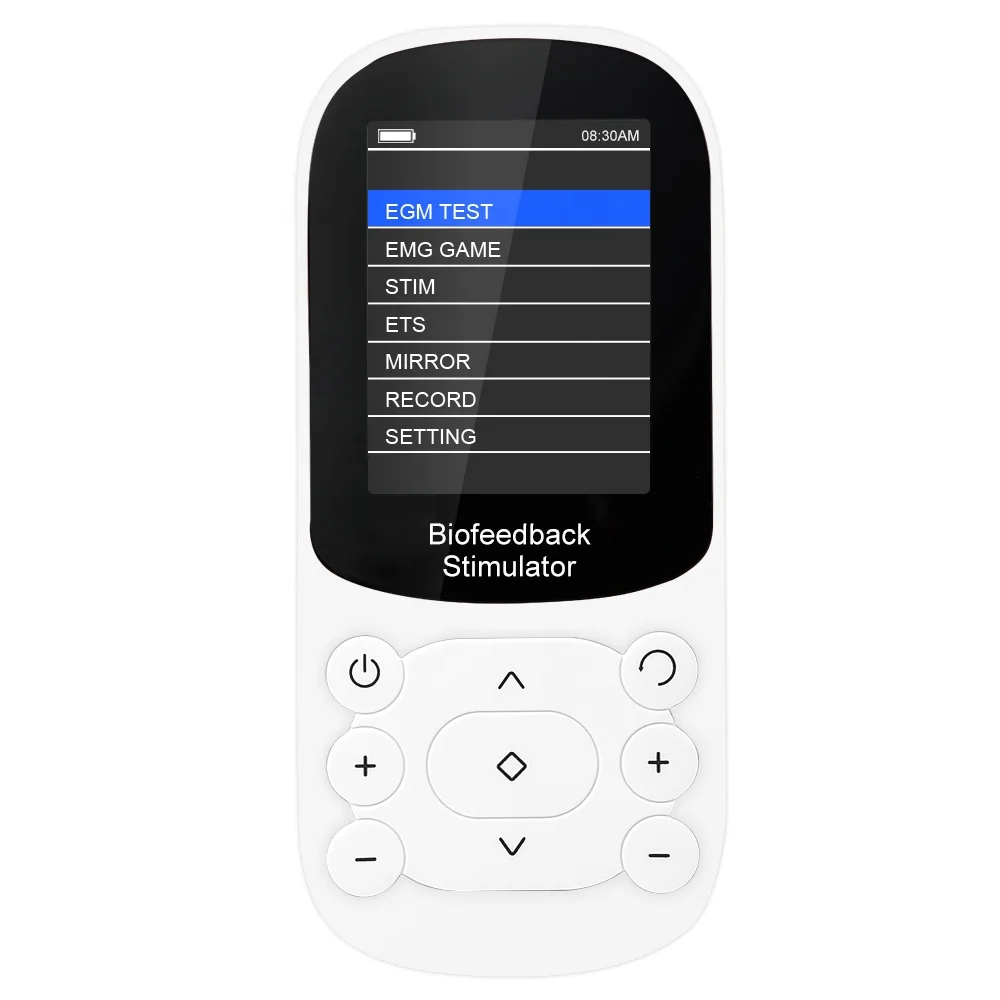

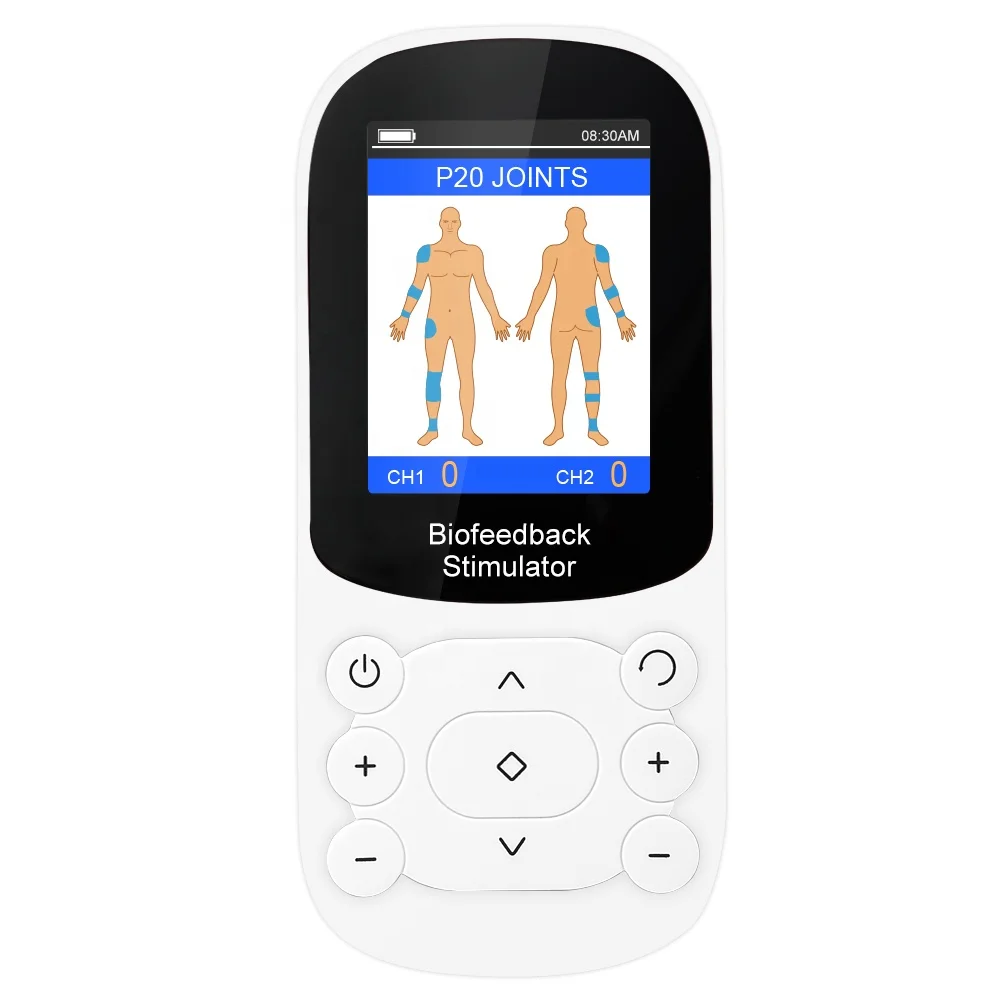

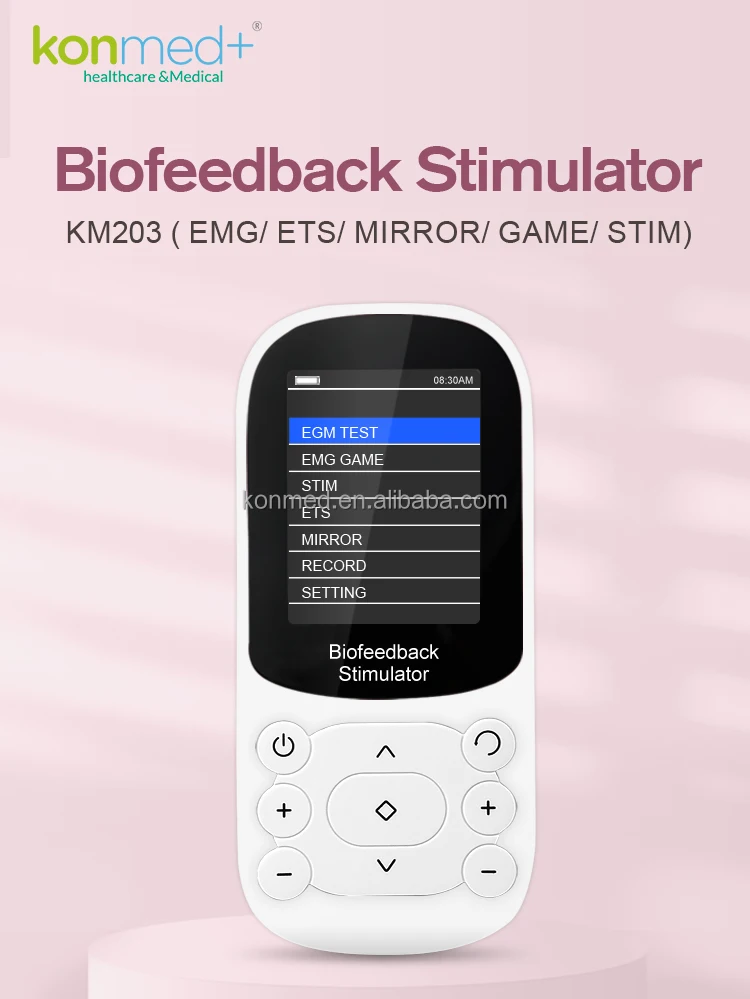

KONMED Biofeedback Stimulator KM203 (EMG/ETS/MIRROR/GAME/STIM)

The KONMED Biofeedback Stimulator KM203 is an all-encompassing device designed for home or clinical settings, offering comprehensive solutions for pelvic floor rehabilitation, pain relief, Relieve discomfort in all parts of the body and neuromuscular rehabilitation through the combined use of biofeedback and electrical stimulation.





Designed for Physiotherapist in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).

EMG: Standard pelvic floor assessment and rapid body surface electromyography assessment.

ETS: ETS stands for EMG triggered by Stimulation. ETS is a very powerful technique for muscular rehabilitation, especially useful for Incontinence and Stroke rehabilitation.

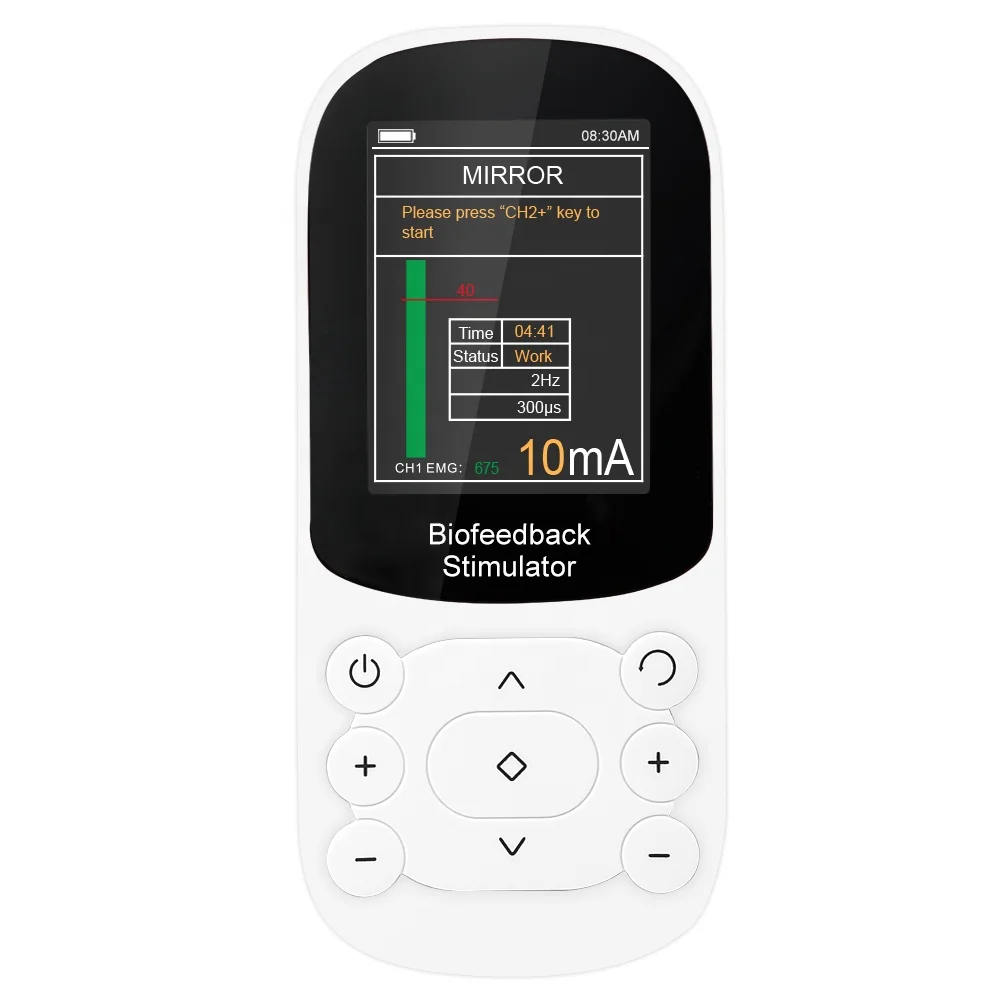

Mirror: Using mirror therapy, the movement of the non-paralysed side of the limb is copied to the paralysed side.

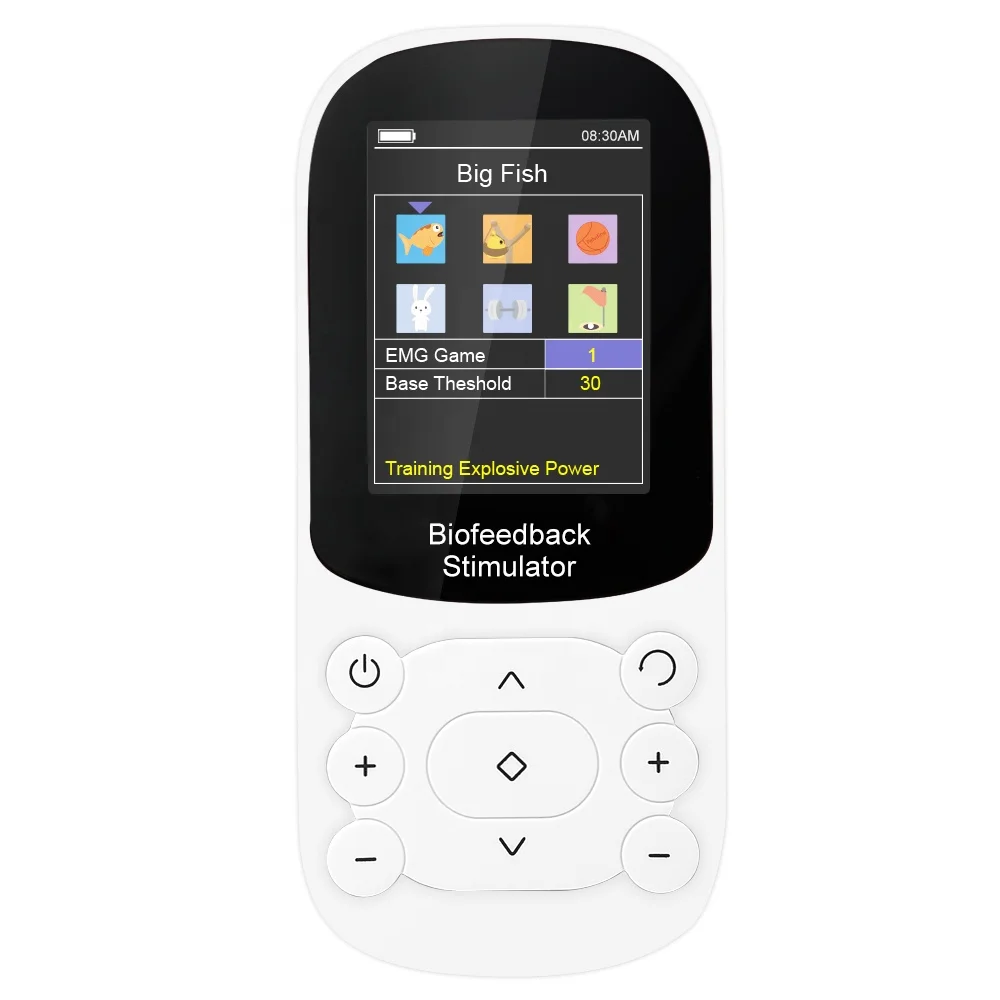

GAME: Biofeedback game training, vivid and intuitive muscle contraction through game visual feedback.

STIM: Pre-set programs for pelvic floor rehabilitation, pain relief, Relieve discomfort in all parts of the body and neuromuscular rehabilitation.





What the KM203 be used for:

Pelvic floor rehabilitation: The KM203 effectively addresses a range of conditions including pelvic pain reduction, treatment of stress, urge (OAB), mixed urinary incontinence, as well as faecal incontinence.

Pain relief and Relieve discomfort in all parts of the body: KM203 meets a wide range of physical discomfort needs, such as Pain relief common allergies, bloating, diarrhea, constipation and cough.  In addition, it is also suitable for gynecology, hypertension, hypotonia, swallowing training.

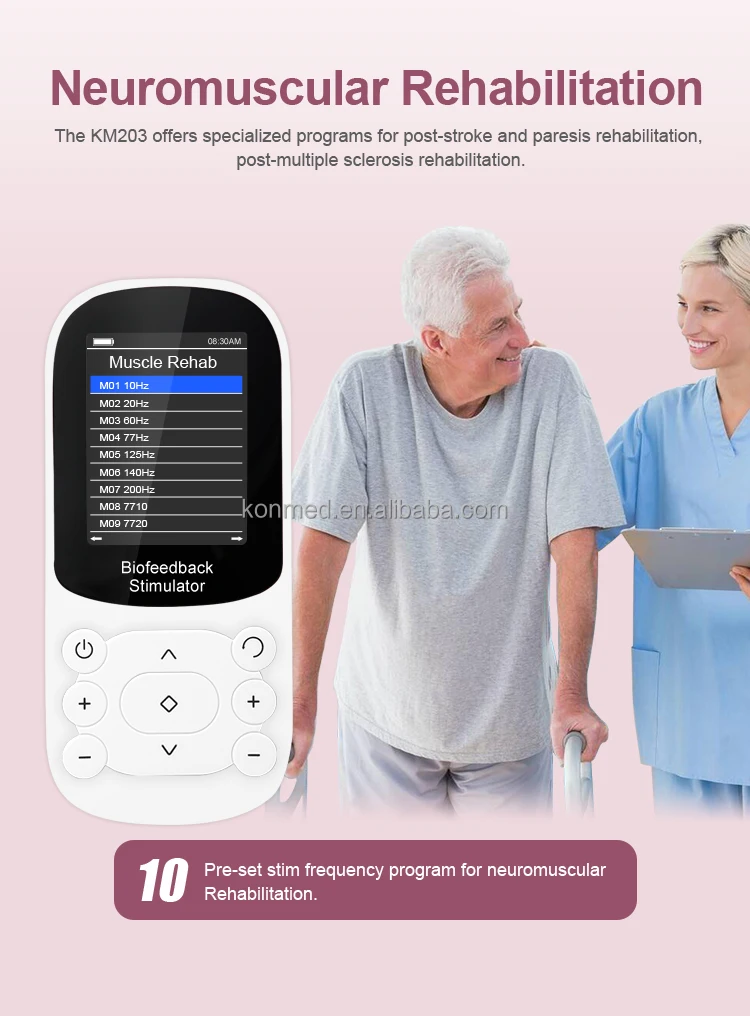

Neuromuscular Rehabilitation: The KM203 offers specialized programs for post-stroke and paresis rehabilitation, post-multiple sclerosis rehabilitation, as well as reducing pain.





Programs:

—2 EMG TEST programs /1 ETS and 1 mirror therapy programs/ 6 EMG Games.

—11 Pre-set stim programs for Pelvic floor rehabilitation.

—23 Pre-set stim programs for Pain relief and Relieve discomfort in all parts of the body.

—10 Pre-set stim frequency program for neuromuscular Rehabilitation.

—3 Custom mode programs.





Features:

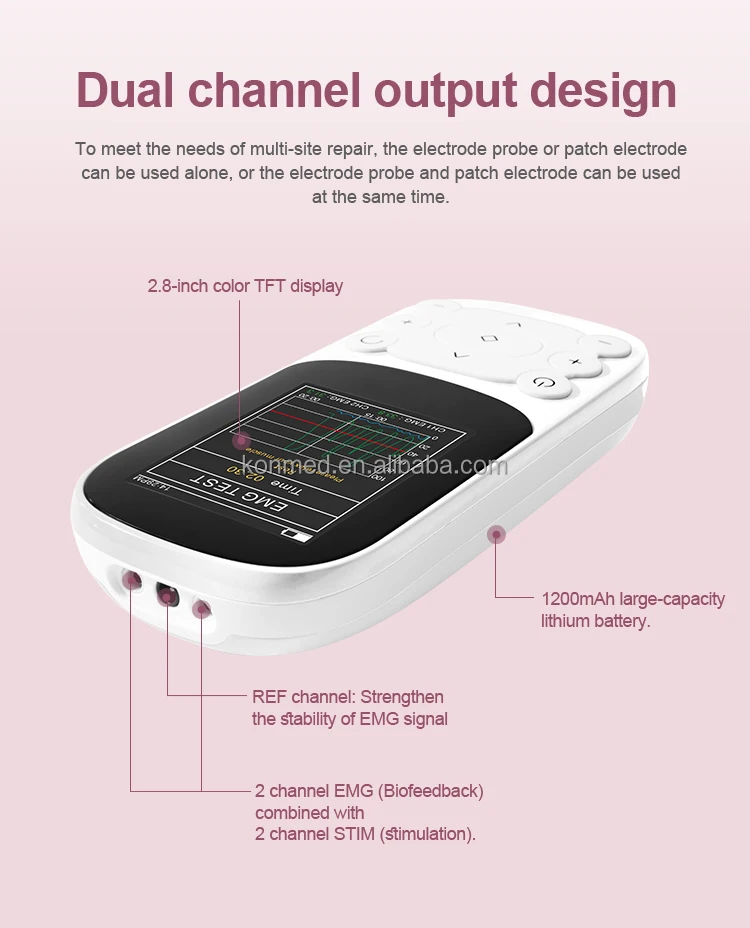

—2 channel EMG (Biofeedback) combined with 2 channel STIM (stimulation).

—2 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.

—90 levels of electrical stimulation intensity regulation.

—The combination of visual feedback and voice broadcasting promotes the reconstruction of neural function.

—System parameters and training parameters can be set freely.

—2.8-inch color TFT display and 1200mAh large-capacity lithium battery.

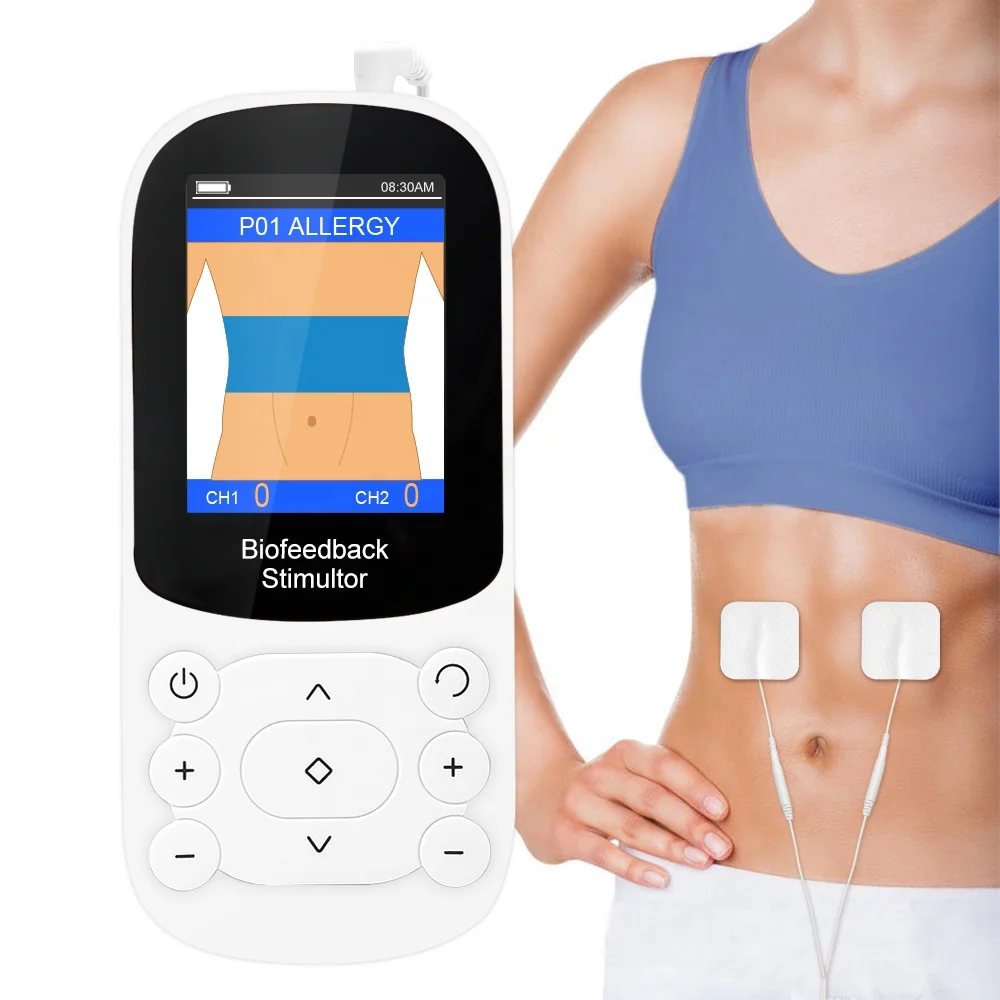

—A wide selection of vaginal probes, rectal probes and electrode patches are available.

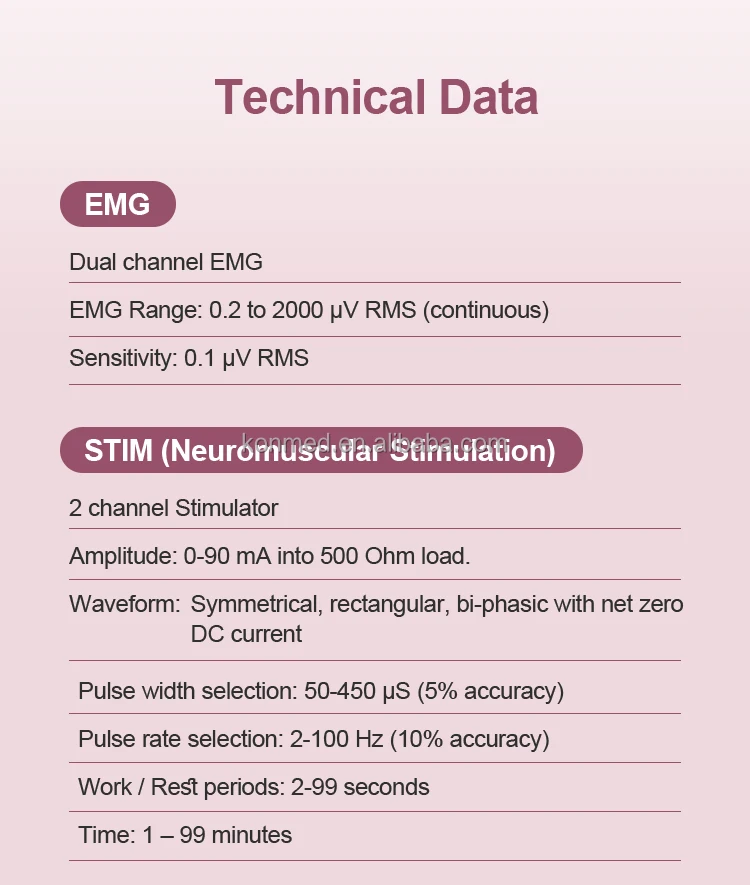

TECHNICAL DATA

EMG

Dual channel EMG

EMG Range: 0.2 to 2000 μV RMS (continuous)

Sensitivity: 0.1 μV RMS



STIM (Neuromuscular Stimulation)

2 channel Stimulator

Amplitude: 0-90 mA into 500 Ohm load.

Waveform: Symmetrical, rectangular, bi-phasic with net zero DC current

Pulse width selection: 50-450 μS (5% accuracy)

Pulse rate selection: 2-100 Hz (10% accuracy)

Work / Rest periods: 2-99 seconds

Time: 1 – 99 minutes





Product packaging list:

1 Main device;

2 white electrode wires;

1 black REF wire;

1 USB charging cable;

3 pairs of electrode pads;

1 vaginal probe;

1 User manual
