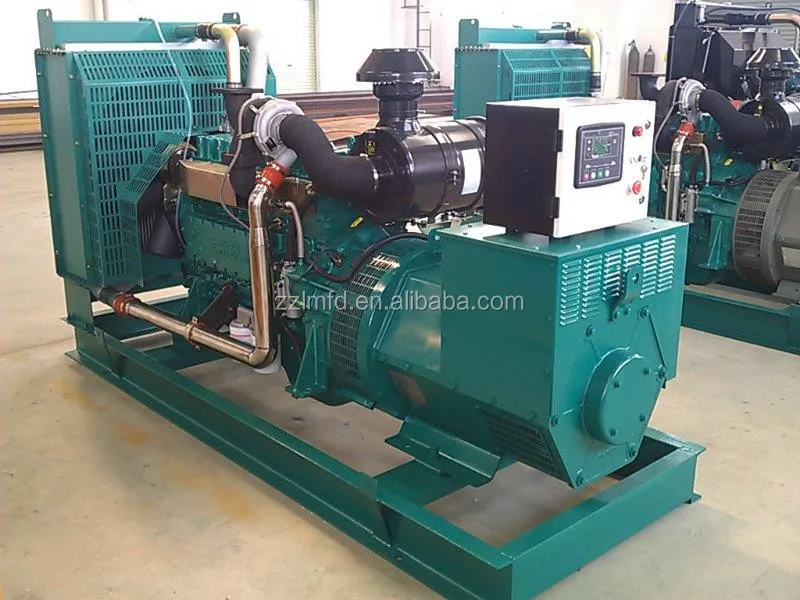

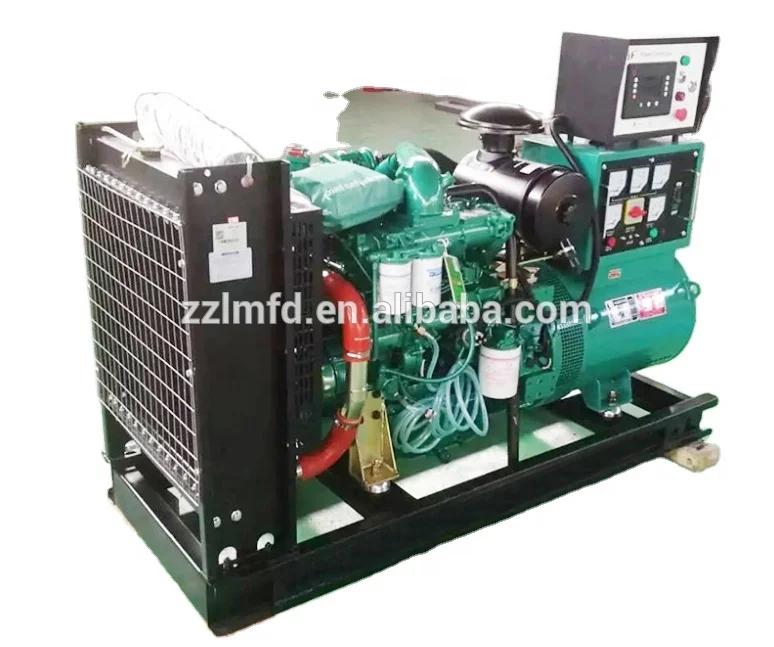

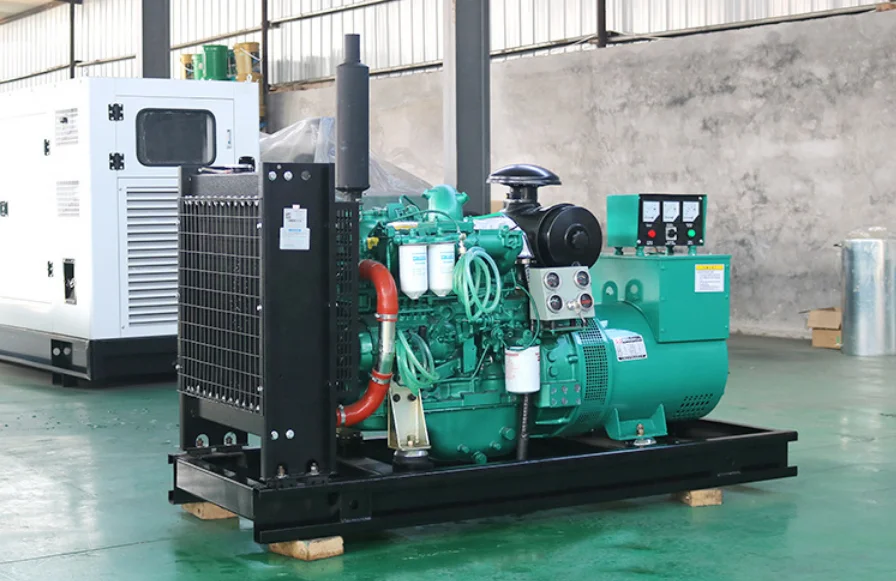

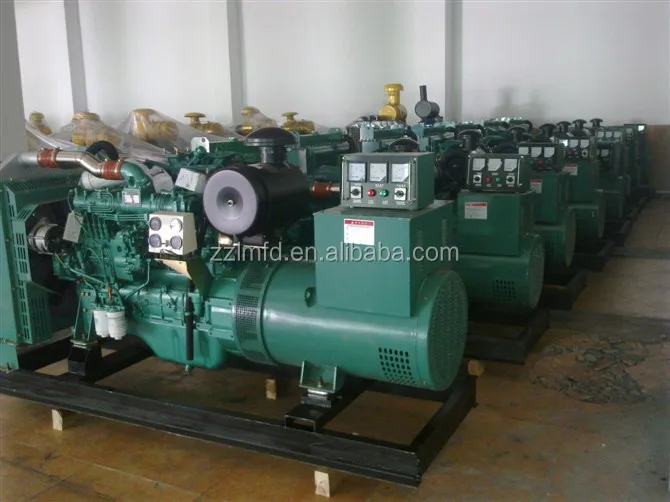

Prime 125kva diesel generator price Generators standby power supply for factories, hospitals and hotels for use

250KW DIESEL GENERATOR

Generator model: LMGF-100

Steady state voltage regulation(%): ≤±0.5

Output powder:100kw/125kva

Voltage fluctuation rate(%):≤0.5

Powder factor: COSΦ=0.8 in three phase

Transient voltage regulation(%):-15~+20

Output voltage: 110/220v/230v/400v/415v

Voltage steady state time(s):≤0.5

Output current:180Amp

Steady state frequency adjustment rate(%):0~5 adjustable

Rated frequency:60Hz/50Hz

Frequency fluctuation rate(%):≤0.5

Rated speed: 1800rpm/1500rpm

Transient frequency modulation rate(%):≤±10

Fuel brand: ( standard) 0# light diesel oil( room temperature)

Frequency recovery time(s): :≤5

Fuel consumption:205g/kw.h

Gross size

1850*630*1200mm

Gross weight

750kg

Diesel Engine Technical Parameters

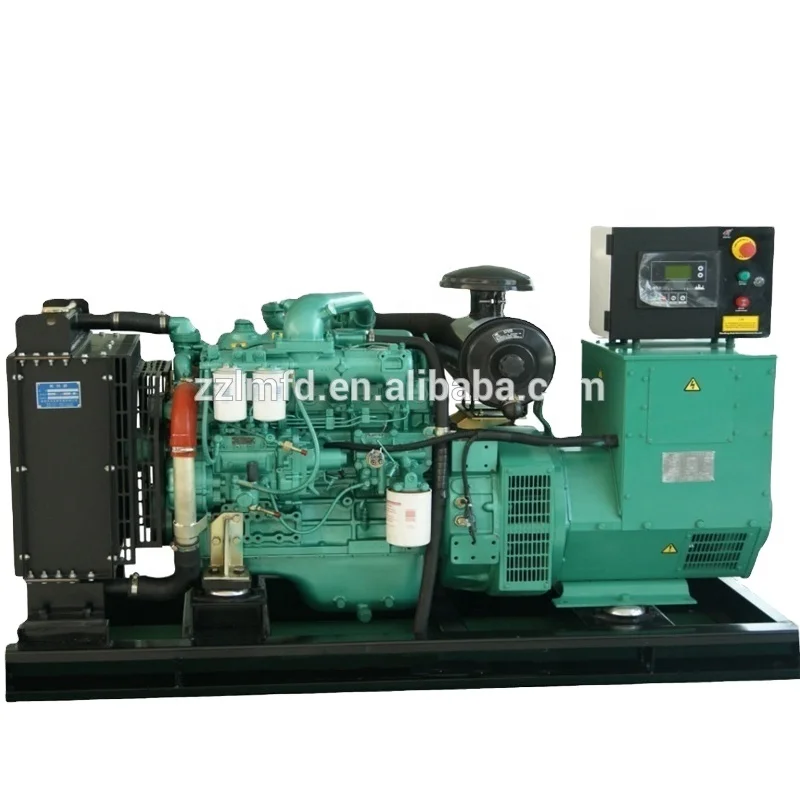

Brand/origin: With Yuchai Engine

Cooling mode: closed cooling water circulation

Engine type:YC4A180L-D20

Oil supply: direct injection

Rated power:100kw

Speed adjustment: Electronic

Standby power:110KW

Qty of cylinders/cylinder structure: 4 cylinder on line

Air inlet: turbo Charged

Bore by stroke:108*132mm

Overload capacity: 110%

Engine oil capacity:18 L

Discharge :4.84 L

Compression ratio: 16.8:1

Rated speed:1800rpm/1500rpm

Startup mode: DC 24V electric start

Brushless synchronous Alternator

Brand:  RAYMING

Insulation class: H

Model:RMY100GF

Connection mode: three phase four wire, Y type

Rated powder:100kw/125kva

Adjust way: AVR( automatic voltage regulator)

Output frequency: 60Hz/50Hz

Output factor: COS Φ=0.8

Rated speed:

1800rpm/1500rpm

Battery

2*105A

Control panel

Model

Smartgen/Deepsea/ComAp
