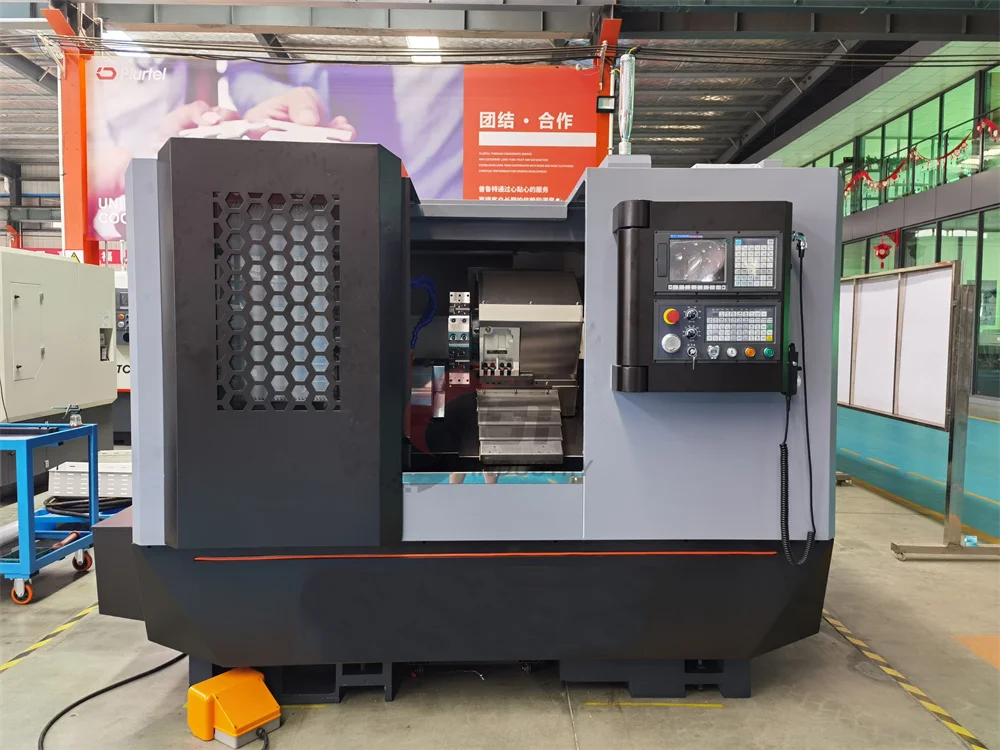

China Slant Bed CNC Lathe Machine Taiwan Quality CNC Lathe Machine Price TCK66 Siemens Mitsubishi System Smart Cnc Lathe
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1601199729060):
Product Overview
Description
Main performance characteristics：
The main performance characteristics：
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
The main performance characteristics：
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Optional Accessories:
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret

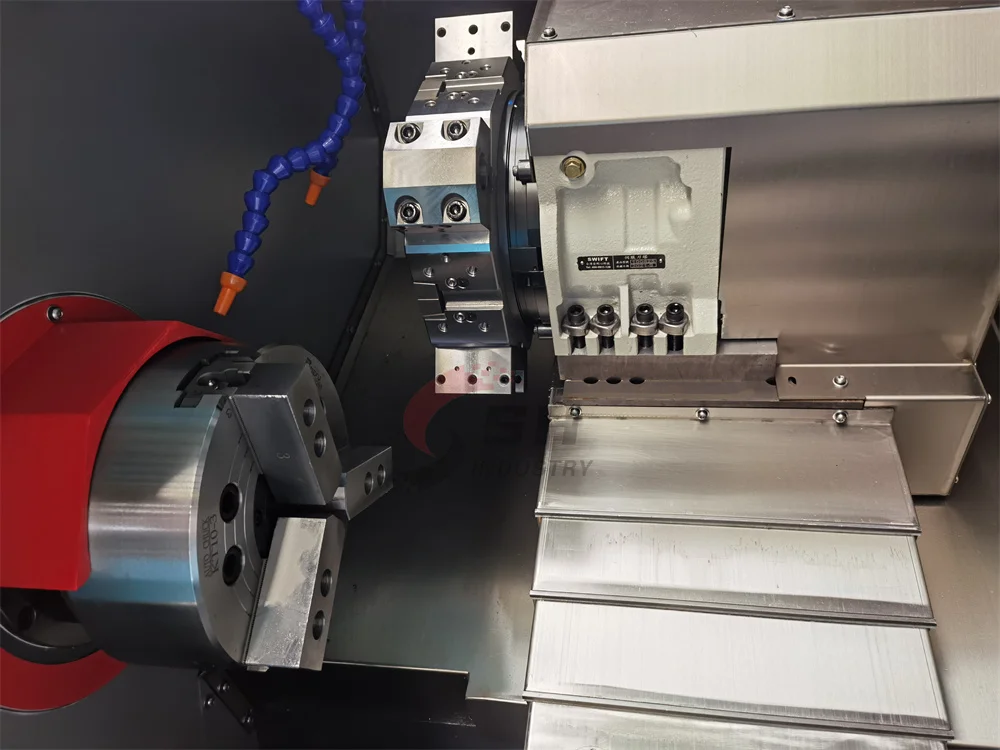

Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
Product main technical parameters:
SPECIFICATIONS | Units | TCK56A | TCK66A |
Swing over bed | mm | 560 | 660 |
Swing over cross slide | mm | 300 | 400 |
Distance between centers | mm | 500/1000 | 700 |
Spindle bore | mm | 65 | 85 |
Bar capacity | mm | 50 | 75 |
Spindle nose type | - | A2-6 | A2-8 |
Spindle speed steps | - | Stepless | Stepless |
Spindle speed range | rpm | 3500 | 0-2800 |

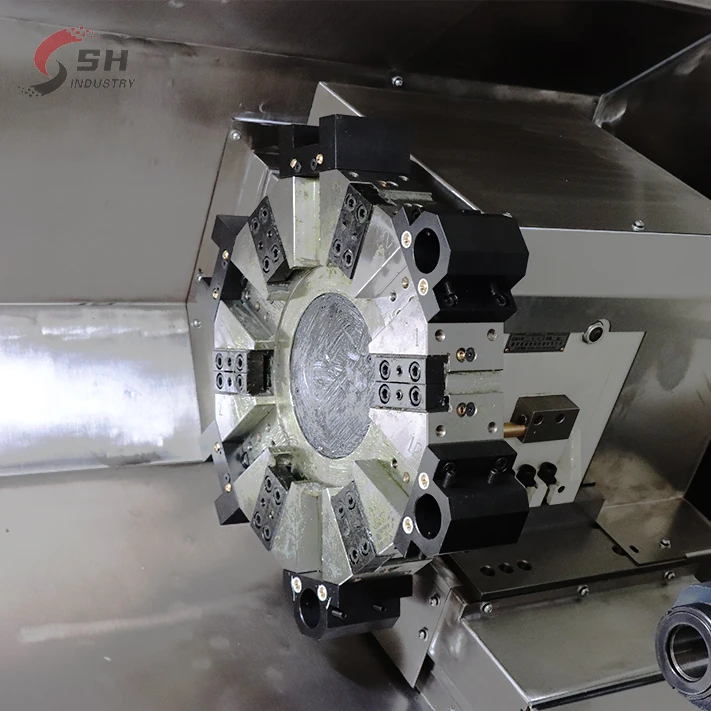

Turret/tool post | - | 8station Hydraulic turret | 8 station Hydraulic turret |
Tool size | mm | 25 x 25 | 25 x 25 |
X axis travel | mm | 200 | 270 |
Z axis travel | mm | 550/1050 | 800 |
X axis rapid traverse | mm/min | 18000 | 18000 |
Z axis rapid traverse | mm/min | 18000 | 18000 |
Main spindle motor | kw | 11 | 11 |

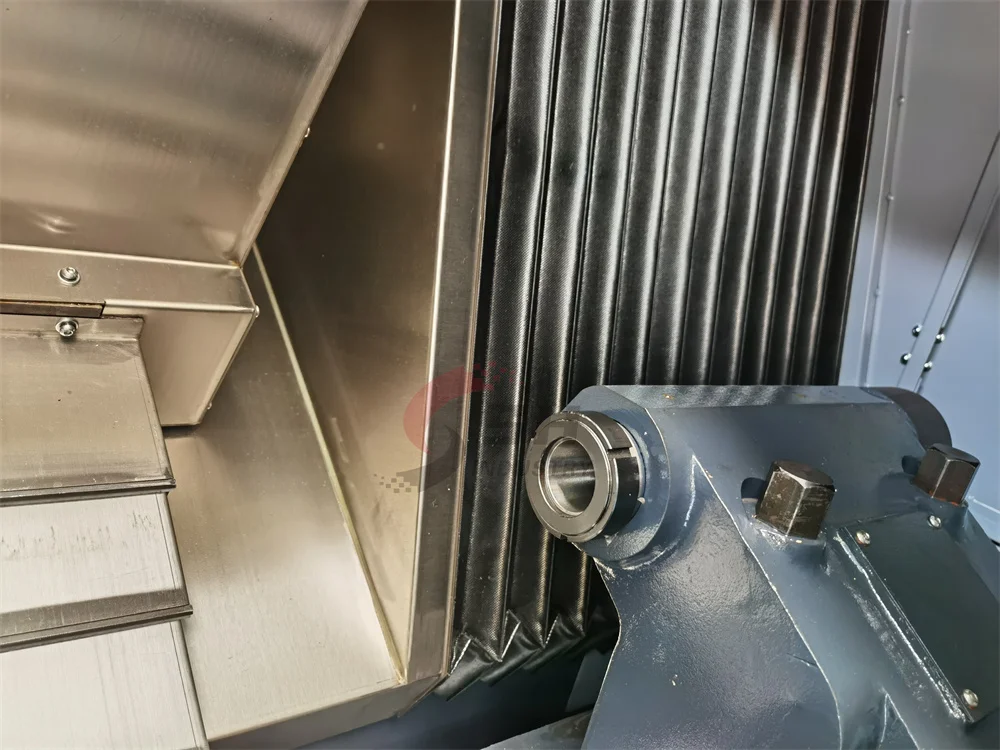

Tailstock quill diameter | mm | 75 | 100 |
Tailstock quill taper | - | MT5 | MT5 |
Tailstock quill travel | mm | 450 | 700 |
Guide rail type | - | Slant bed linear rail | Slant bed linear rail |
Machine weight | kg | 4000 | 5000 |
Overall dimension | mm | 2800x1900x1900 | 3700x2000x2100 |
Product Description
Company Profile
Certifications
Customer visiting
Exhibition
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to South Asia(70.00%),Eastern Asia(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,CNC Milling Machine,Surface Grinding,Lathe,Radial Drilling Machine
4. why should you buy from us not from other suppliers?
The Strength Of The Company's Production In Mainland China Has Three Sub-Production Plants
From Product Casting,Processing To The Assembly, The Entire Production Process Has Full Control, Enough To Ensure The Quality Of The Product.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2017,sell to South Asia(70.00%),Eastern Asia(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,CNC Milling Machine,Surface Grinding,Lathe,Radial Drilling Machine
4. why should you buy from us not from other suppliers?
The Strength Of The Company's Production In Mainland China Has Three Sub-Production Plants
From Product Casting,Processing To The Assembly, The Entire Production Process Has Full Control, Enough To Ensure The Quality Of The Product.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Russian
