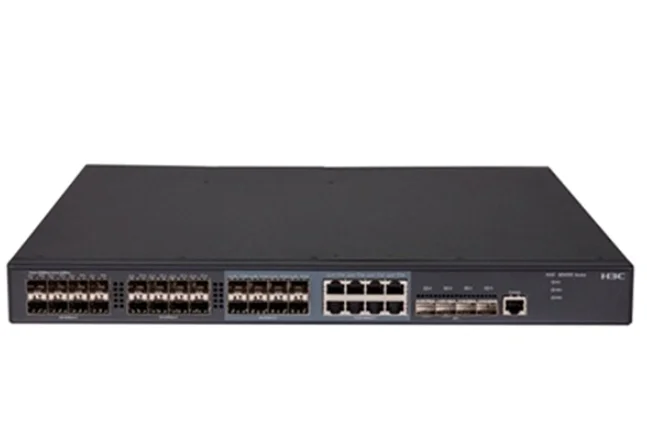

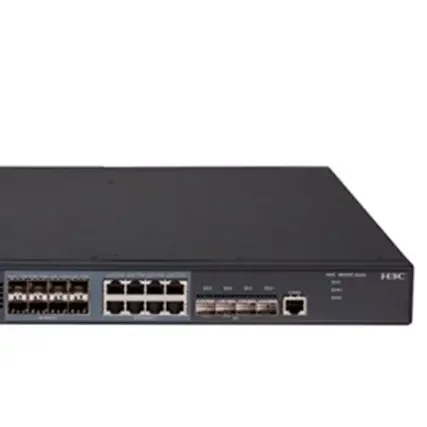

MS4320V2 28F H3C 24 port all optical port 4 10 Gigabit network management layer 2 switch security monitoring
MS4320V2-28F H3C 24-port all-optical port + 4 10 Gigabit network management layer 2 switch security monitoring
MS4320V2-28F H3C 24-port all-optical port + 4 10 Gigabit network management layer 2 switch security monitoring

MS4320V2 28F H3C 24 port all optical port 4 10 Gigabit network management layer 2 switch security monitoring

Share on (1601199772103):


Price:

Quantity:


Product Overview

Description


MS4320V2-28F H3C 24-port all-optical port + 4 10 Gigabit network management layer 2 switch security monitoring










Specifications







































Main parameters
Product typeGigabit ethernet switches, enterprise-class switches
Application hierarchySecond floor
Transfer rate10/100/1000Mbps
Interchange modeStore-forward
Backplane bandwidth336Gbps
Packet forwarding rate66Mpps/108Mpps
MAC Address Table9K















Port parameters
Number of ports36 pcs
Port description24 100/1000Base-X SFP ports
8 10/100/1000BASE-T Combo ports
4 1000Base-X SFP ports































Features
Network protocolsSupport STP/RSTP/MSTP/PVST
Support
Smart Link Support RRPP
VLANSupport
for port-based VLANs Support for MAC-based VLANs
Protocol-based VLANs
Support QinQ, Flexible QinQ
Support for VLAN Mapping
Support for Voice VLANs
Support for Guest VLAN
Support for Super VLANs
support PVLANs
QOS
Supports limiting the rate at which ports receive messages
and the rate at
which messages are
sent Support for message redirection Support for
CAR (Committed Access Rate) Support for 8 output queues per port Support for port queue scheduling (SP, WRR, SP+WRR). Supports 802.1p and DSCP priority re-marking of messages
Multicast managementSupport IGMP Snooping/MLD Snooping (MS4320V2 subgace support)
Support multicast VLAN (MS4320V2 subgace support)
Network managementSupport XModem/FTP/TFTP
loading and upgrading Support command line
interface (CLI), Telnet, Console port configuration
Support SNMPv1/v2/v3, WEB network management support RMON alarms, events, history
Support iMC intelligent management center
Support system logs, hierarchical alarms , debug
information output
support NTP
support Ping,
Tracert support VCT
cable detection function support DLDP one-way link detection protocol support Loopback-detection port loopback detection
support power supply, fan, temperature alarm
Support for BFD
Security managementSupports hierarchical user
management and password protection Support 802.1X authentication/centralized MAC
address authentication Support Guest
VLAN

Support
RADIUS authentication
Support SSH 2.0 Support port isolation Support port security Support MAC address learning limit
Supports IP
source address protection
SupportSupport ARP intrusion
detection support IP+MAC+port multigroup binding Support EAD























Other parameters
Product size440×360×43.6mm
Environmental standardsWorking temperature: 0 °c-45 °c
Working humidity: 5%-95%, non-condensing
Other parametersIP routing: Support IPv4 static routing, RIPv1/v2, support IPv6 static routing, RIPng, OSPFV1/V2/V3
link aggregation: support
GE port aggregation, support static aggregation, support dynamic aggregation, support cross-device aggregation Port features: Support IEEE802.3x traffic control (full duplex), support for storm suppression based on port rate percentage, support based on PPS/ BPS Storm
Suppression Virtualization:
IRF2 IRF2: Support IRF2 intelligent elastic architecture, support stacking through standard Ethernet interfaces,
support local stacking and remote stacking, support distributed device management, distributed link aggregation Multimedia services: support multimedia services such as VOD, support for latency-sensitive voice services such as VoIP, and support multicast audio and video service functions
Flow control: support 802.3x flow control and
half-duplex back pressure flow control SDN/Openflow: support OpenFlow 1.3 standard (MS4320V2 sub-series), support multi-controller (EQUAL mode, active-standby mode) (MS4320V2 sub-series), support multi-table pipeline (MS4320V2 sub-series), support Group table(MS4320V2 sub-series)
ACL: Support L2 (Layer 2)-L4 (Layer 4) packet filtering function, providing stream classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port, protocol type, VLAN; support time range (Time Range) ACL, support port, VLAN, global issuance ACL, support bidirectional ACL
DHCP: Support DHCP Client, support DHCP Snooping, support DHCP Relay, support DHCP Snooping option82, support DHCP Server, support DHCP auto-config (zero configuration)
OAM: support 802.1ag, support 802.3ah
Mirroring: Support port mirroring, support remote
port mirroring RSPAN, support
stream mirroring Port lightning protection: support 6KV port lightning protection Green energy
saving:
support EEE (802.3az), port automatic Power down function, port timing down function (Schedule job) Fan: modular Supports embedded monitoring management components
Other featuresNo power
