Micet 200L home made brewery craft beer brewery copper brewery equipment For Sale
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1601199775137):
Product Overview
Description
Micet 200L home made brewery craft beer brewery copper brewery equipment For Sale
By optimizing the saccharification process, the biological activity and conversion effect of various enzymes were maximized, so as to improve the yield and quality of beer. Reduce energy consumption: Adopt advanced heat transfer technology and energy-saving design to reduce energy consumption in the saccharification process
Product Advantages
1. Mash tank is equipped with a clamped level gauge for easy observation. All the lauter tun use milled sieve plates, which have higher filtration accuracy and better effect.

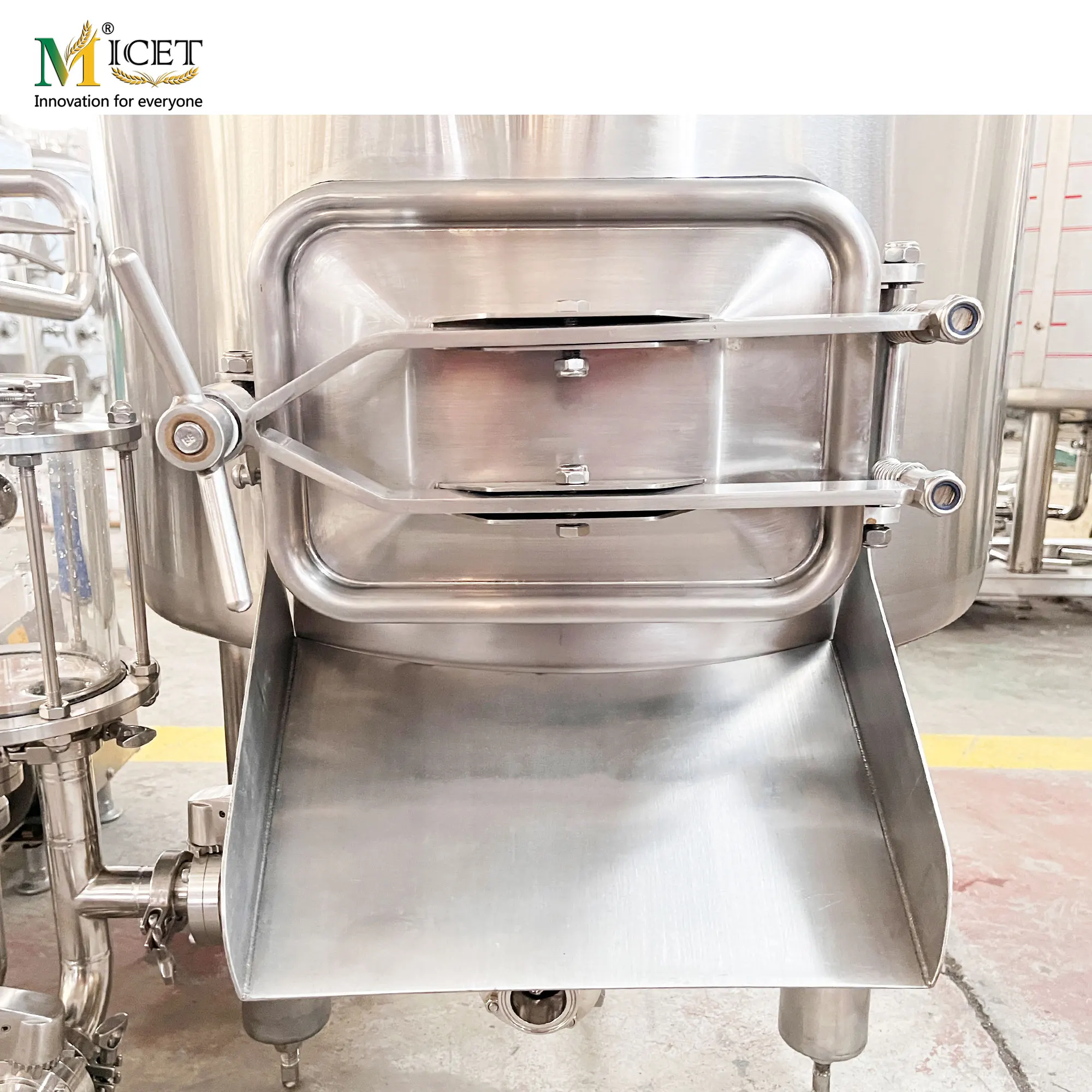

2. The grains outdoor of lauter tun is equipped with a dustpan, the drain outlet is separated from the discharge outlet, which is convenient for customers to discharge directly.
3. According to the customer’s brewing process, the mash system can not only meet the feeding in the boiling kettle but also meet the feeding in the lauter tun.
4. Our mash system can realize both natural filtration and pumping filtration. The lauter tun stirring motor is equipped with a frequency converter, which can realize the step-less speed regulation. The rake motor can also be designed up and down to lift the rake.
5. To avoid too much water vapor in the mashing area, the kettle is equipped with an indoor exhaust device or outdoor exhaust device depending on customer needs.
6. Equipping with a special inline hop filter to make the wort clearer before fermenting.
7. The pump motor uses ABB or JLEM American brand, long service life, and has low sound.
8. The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
9. The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
10. The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.

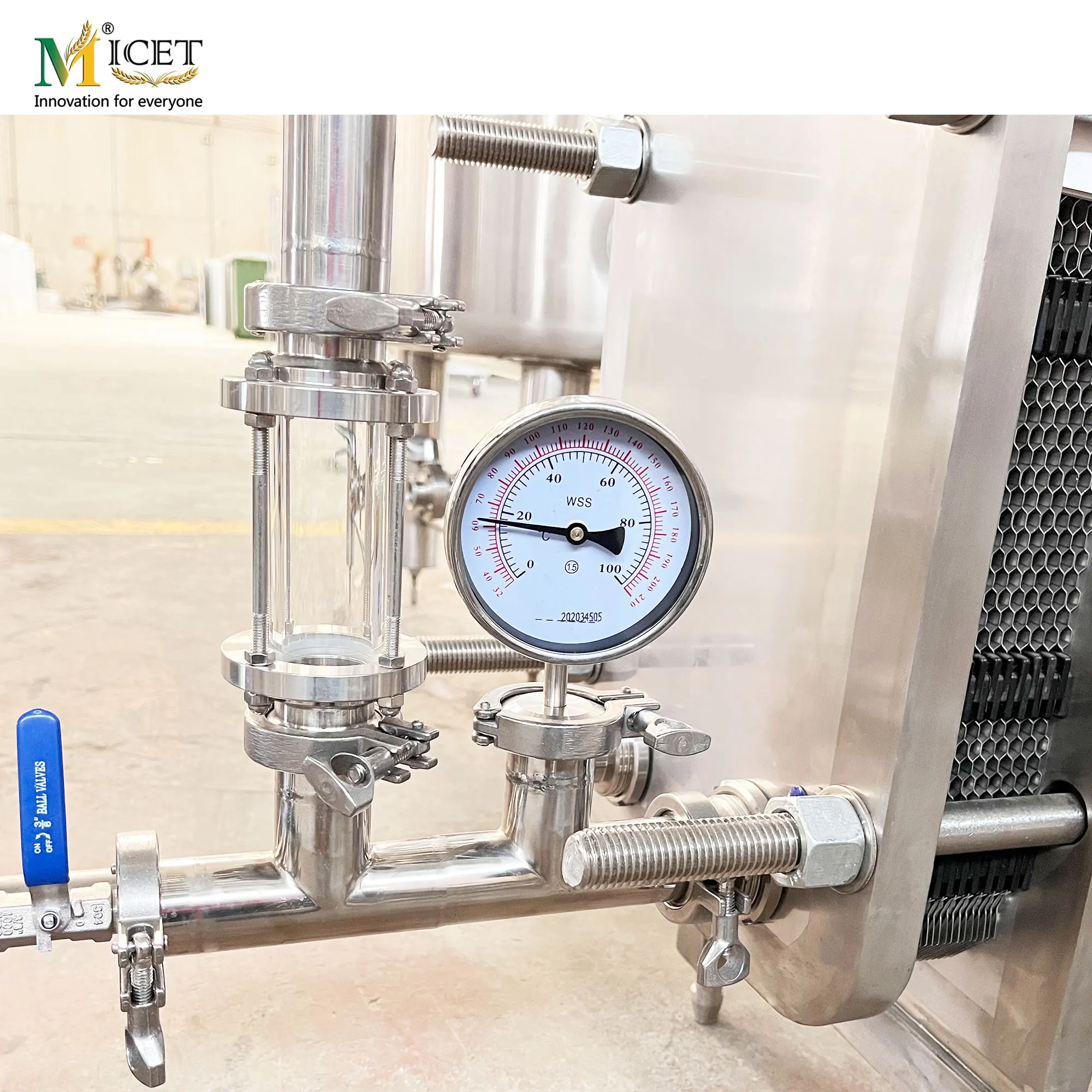

11. Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
12. Equipping with sparge arm and double CIP cleaning loop on top of the tank.
13. Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
14. The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
15. The working platform adopts water leakage and a non-slip design.
16. Brewhouse manways always use full glass manway.
Product Parameters
Output/ Brew | 200L | 800L | 1000L | 1500L | 2000L | 2500L | 3000L | 5000L | |||||||
Brew/Week | 2~6 | ||||||||||||||
Output/Week | 4~12 HL | 16~48HL | 20~60 HL | 30~90HL | 40~120HL | 150~300HL | 180~360HL | 240~360HL | |||||||
Area Request | >45㎡ | >60㎡ | >70㎡ | >90㎡ | >120㎡ | >140㎡ | >150㎡ | >180㎡ | |||||||
Brew master | 1 | 1 | 1~2 | 1~2 | 2~3 | 2~3 | 3~5 | 3~5 | |||||||
Material | Interior Shell: SUS304 TH=3mm; Exterior Shell:SUS304 TH=2mm /red copper | ||||||||||||||
Heating | Electric/Steam/Direct fire for optional | ||||||||||||||
Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz | ||||||||||||||
Our Service
1. Micet provides a turnkey solution from project consulting, benefit analysis, space layout design, 3D rendering, production site, equipment design, manufacturing, installation, commissioning, training, and other one-stop services.
2. Micet provides installation and debugging service at a service fee (100usd) per day.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
Company Profile
Micet always adheres to the spirit of craftsmanship (quality), elite culture (talent), and innovation consciousness (research and development) as the competitiveness of enterprise development. We focus on high-end product lines and insist on craftsman spirit, perform strict quality control and process testing in production to ensure that customers have good expectations for equipment and on-time delivery.
Certification
Our factory adopts 5S management, professional and strict inspection and testing process, each order will have an inspection record from materials checking, production progress, finished product to delivery and packing,.etc. Each system will have 4 times inspections, including materials come in, production process, testing, finished product inspection before shipping, our goal is to mostly control the quality to reduce the client's trouble even good after-sale!
Customized design
We can not only design the brewhouse as per the client's brewing requirement and beer types but also provide the CAD & 3D design drawing, including P&ID process, vessel drawing, piping connection, and brewery layout.
Quality assurance
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation! Our polishing is overall mirror polishing without any welds left.
One-stop purchase
Insist on high-end products line, adopts high Standard design and global brand components, etc., Our welding is all full welding by water, uniform dimpled jackets to ensure no leaking and long life, all welds undergo welds passivation!
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
