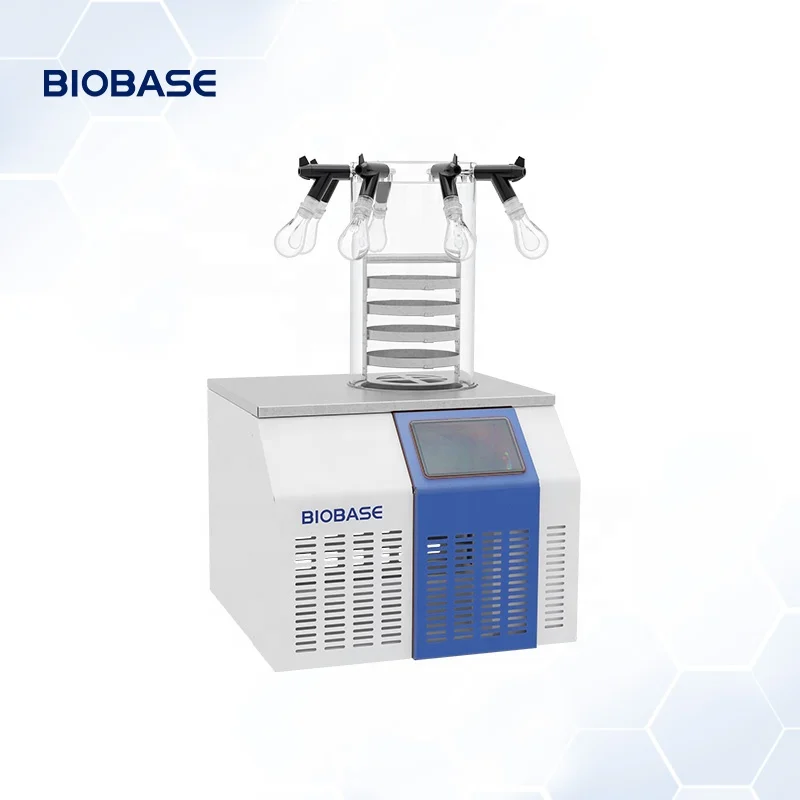

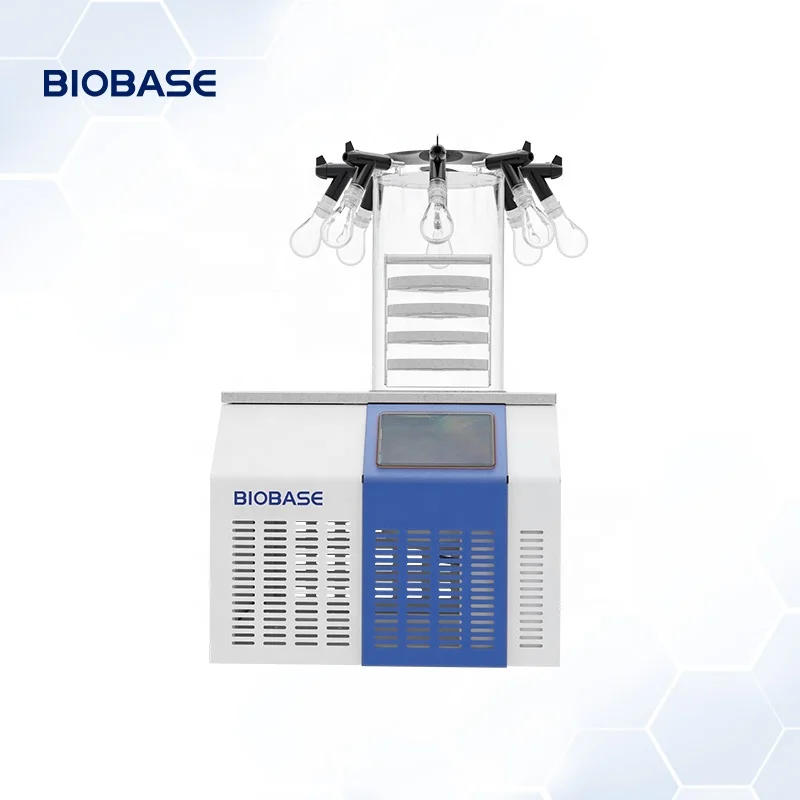

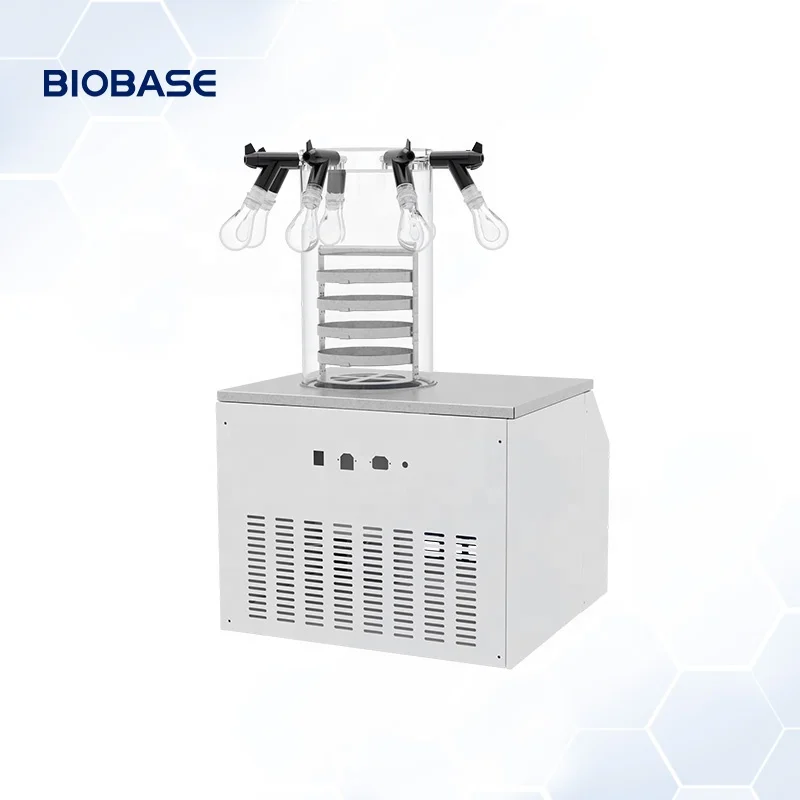

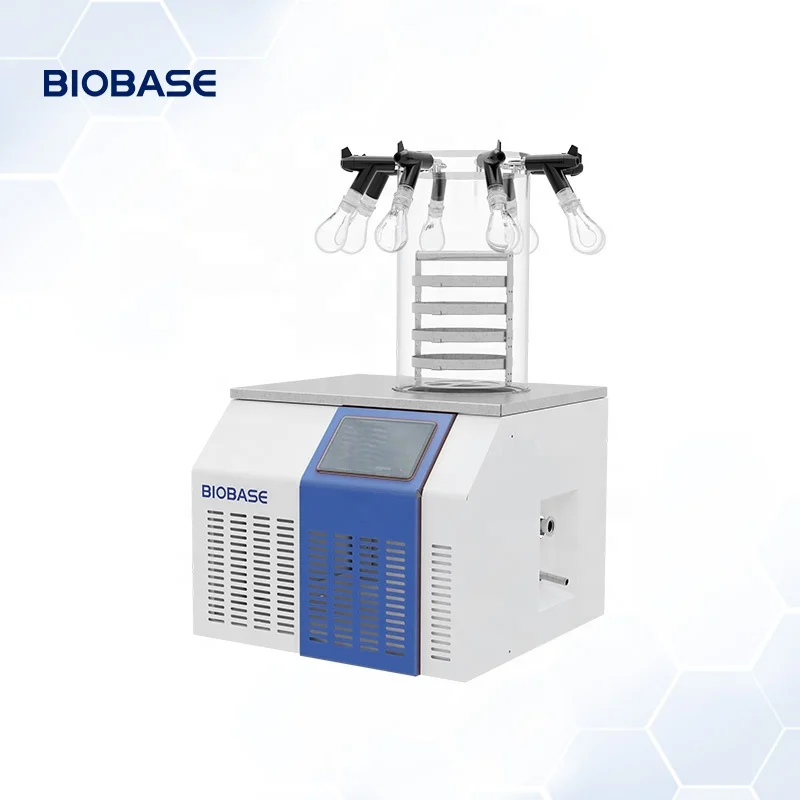

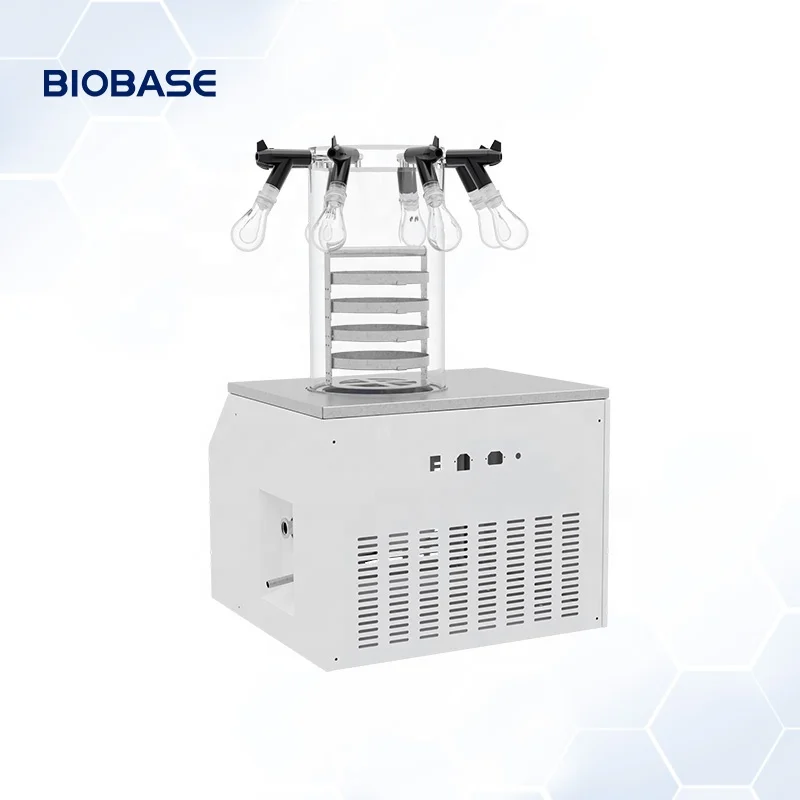

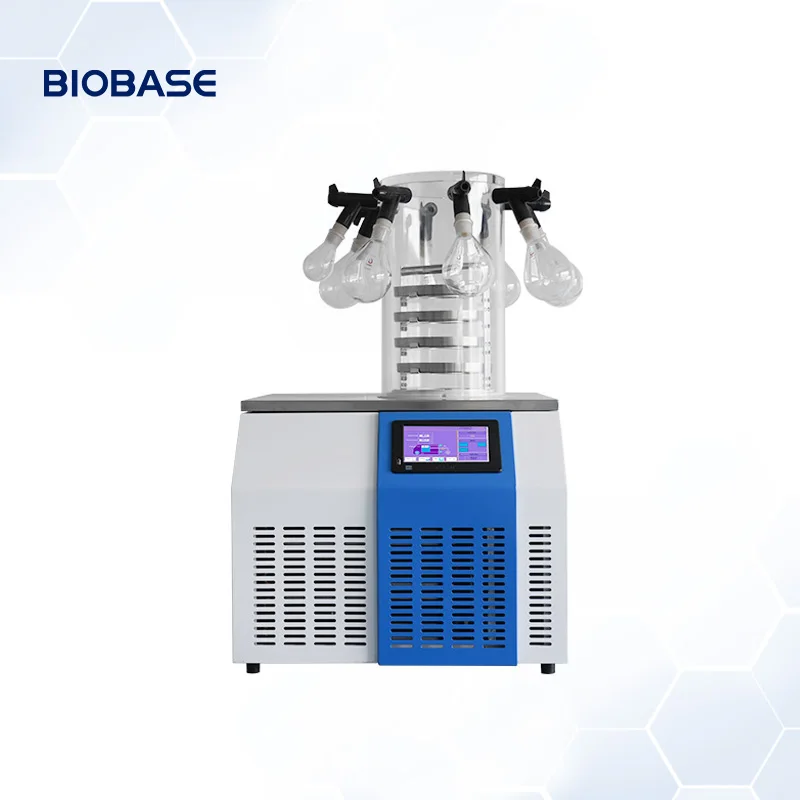

BIOBASE CHINA Freeze Dryer BK FD10P Factory Direct Supply high efficiency, low noise, long life Freeze Dryer for lab
- Category: >>>
- Supplier: Biobase Biotech Co. Ltd.
Share on (1601199803862):
Product Overview
Description
Product Description
Freeze Dryer BK-FD10S BK-FD10P BK-FD10T BK-FD10PT
Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in, food, chemical, biological products and other fields.
Product parameter
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12㎡ | 0.08㎡ | |||||||
Tray | 4 pcs | 3pcs | |||||||
Height Between Trays | 50mm | / | |||||||
Cold Trap Temperature | ≤-60℃(No load)(-80℃optional) | ||||||||
Cold Trap Capacity | 6L | ||||||||
Cold Trap Size (Diameter*H) | Φ219*140mm | ||||||||
Vacuum Degree | ≤5 Pa | ||||||||
Water Capture Capacity | 3-4L/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 36h | ||||||||
Loading Capacity/Shelf (Liquid) | 1.2L | 0.9L | |||||||
Total Loading Capacity (Liquid) | 2.4L | 1.6L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*420mm | Φ260*465mm | |||||||
Total Qty. Of VialΦ22 | / | / | 147 | 147 | |||||
Total Qty. Of VialΦ16 | / | / | 297 | 297 | |||||
Total Qty. Of VialΦ12 | / | / | 492 | 492 | |||||
Refrigerant | -60℃: R600a, R23 -80℃: R404a、R23 | ||||||||
Cooling System | Standard: Air cooling Optional: Water cooling | ||||||||
Power Supply | Standard: 220V 50Hz Optional: 220V 60Hz | ||||||||
Power Consumption | 1300W | ||||||||
Standard Accessory | Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models) Conical-mouth flask100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask (for BK-FD10P/PT) | ||||||||
External Size (W*D*H), mm | 640*610*550 | ||||||||
Package Size(W*D*H),mm | Main Body | 695*680*710 | |||||||
Accessory | 565*680*510 | ||||||||
Gross Weight | 105 | 110 | 115 | 116 | |||||
BIOBASE Exhibition
Packaging & Shipping
Company Profile and Introduction
BIOBASE is a new high-tech enterprise whose business covers biomedical, e-commerce, intelligent manufacturing, scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.With more than 3,000 employees, 20+ workshops, covering a total area of 932,900 m². We have established overseas companies in USA, Dubai, India, Singapore, Kazakhstan, Myanmar and other countries.

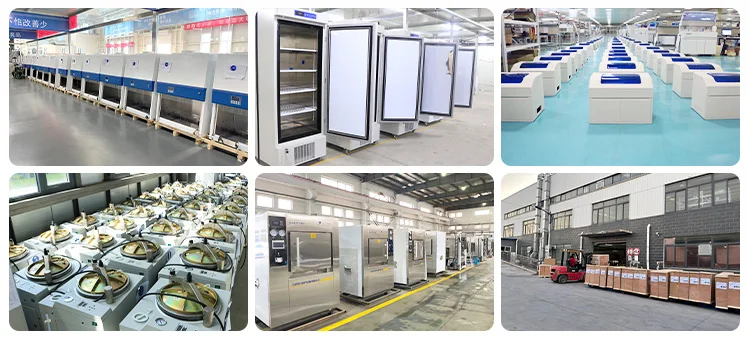

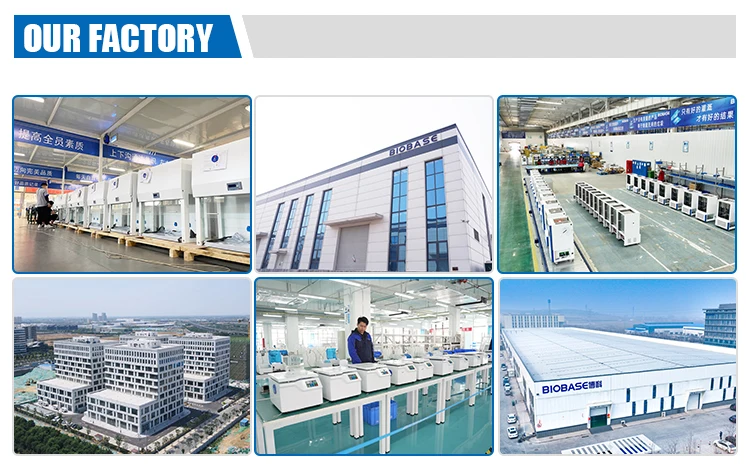

Factory
