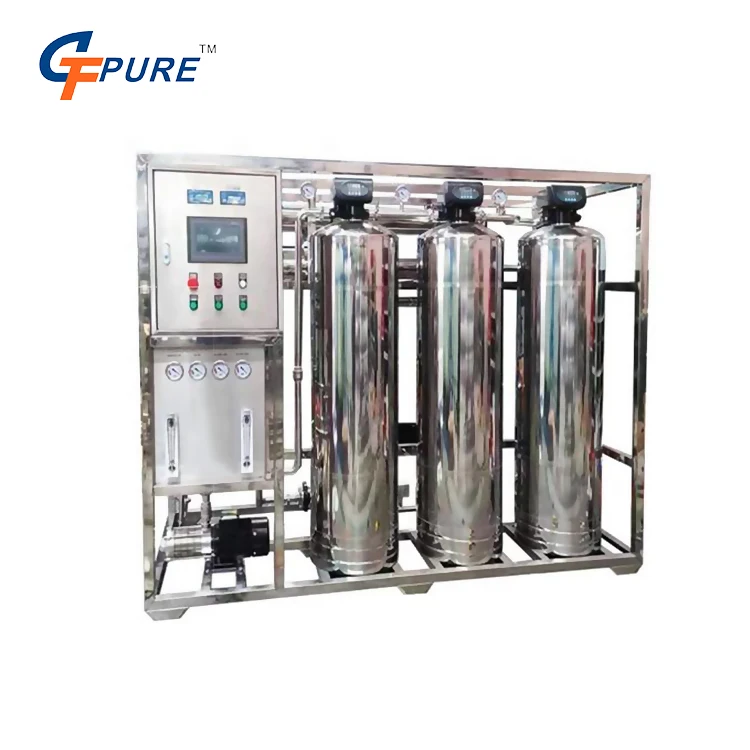

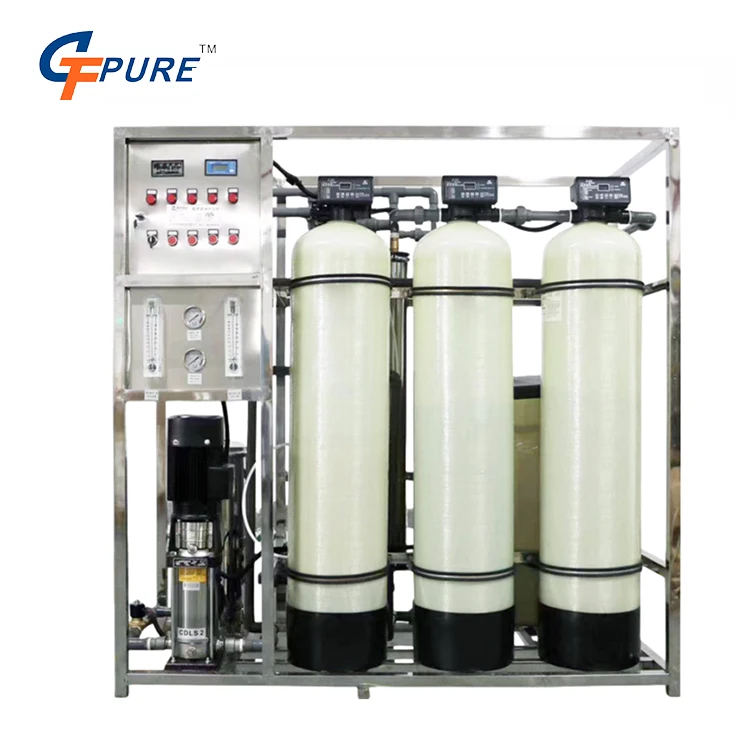

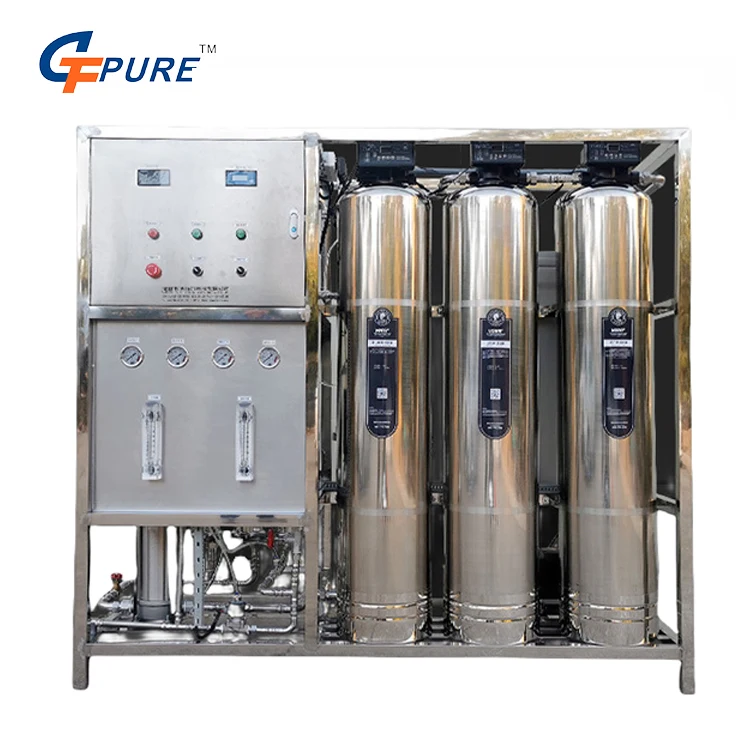

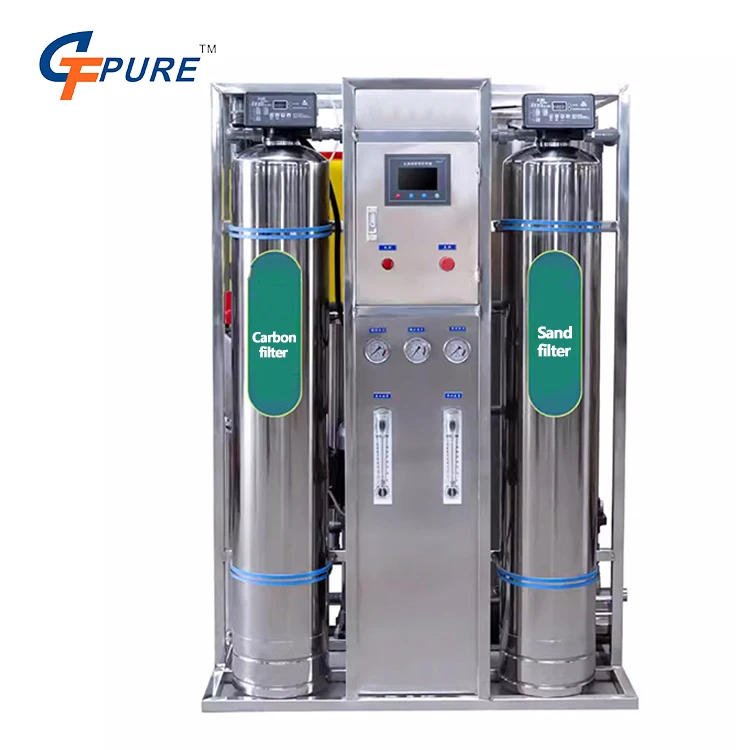

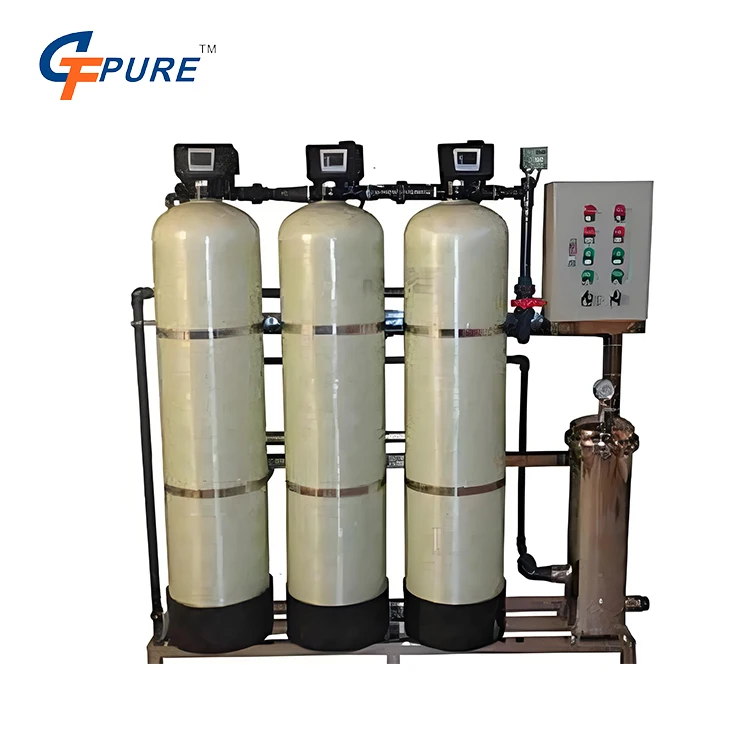

RP EDI ultrapure water equipment reverse osmosis water filter system pure water making machine
- Category: >>>
- Supplier: Guangdong Nuopu Environmental Protection Technology Co. Ltd.
Share on (1601199829703):
Product Overview
Description
Products Description
Products Description

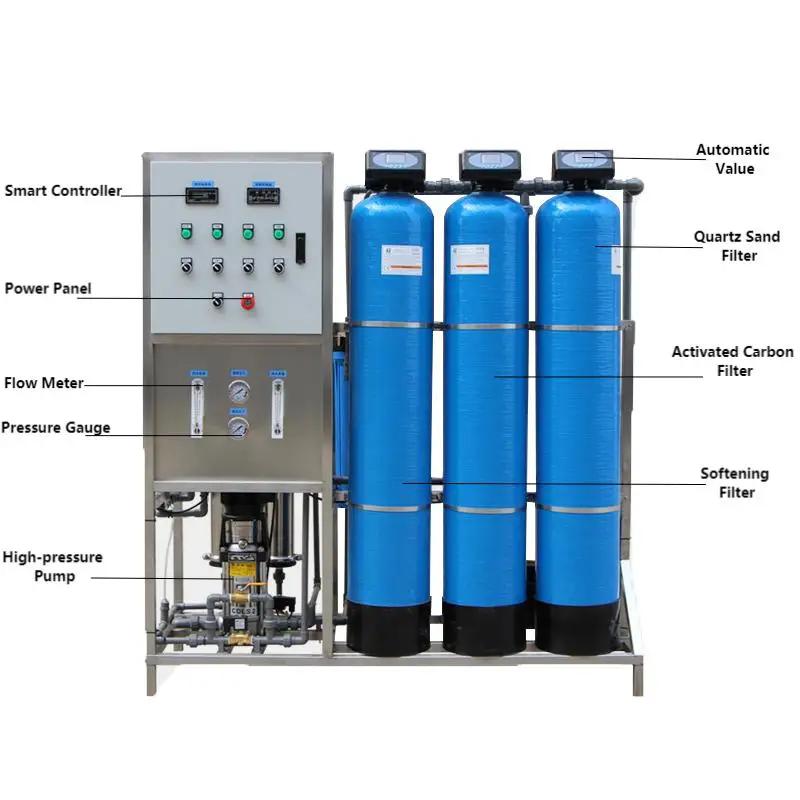

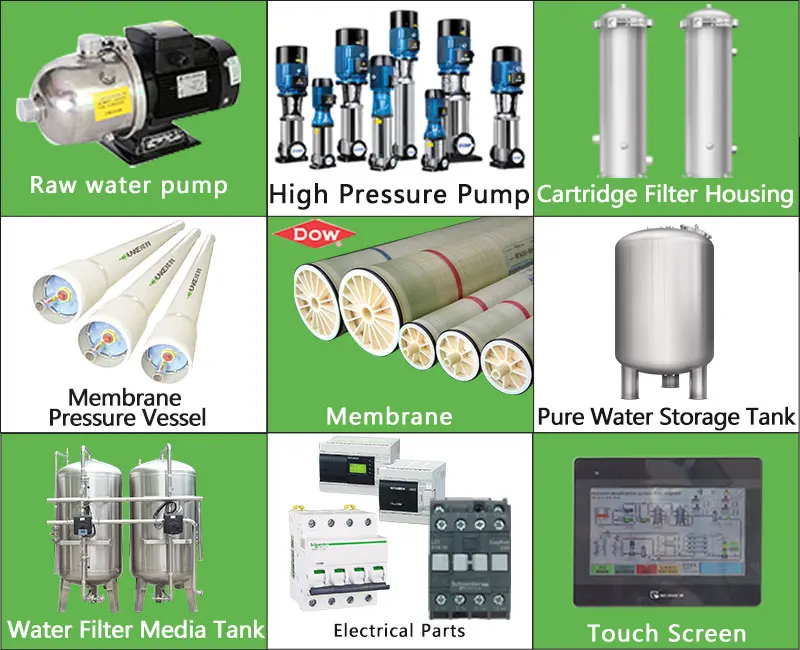

Ⅰ.Quartz sand/manganese sand filter
Ⅱ. Activated Carbon filter
Ⅲ. Softener and PP Filter
Ⅳ. Dosing system if need.
Ⅴ.Pumps;
Ⅵ.RO membrane (Optional)
Ⅶ.Membrane Vessel(SS and FRP)
Ⅷ.PLC control/Relay control
Ⅸ.Optional UV sterlilizer&Ozone
Ⅱ. Activated Carbon filter
Ⅲ. Softener and PP Filter
Ⅳ. Dosing system if need.
Ⅴ.Pumps;
Ⅵ.RO membrane (Optional)
Ⅶ.Membrane Vessel(SS and FRP)
Ⅷ.PLC control/Relay control
Ⅸ.Optional UV sterlilizer&Ozone
Reverse osmosis system (RO) is a kind of water treatment machinery that uses semi permeable membrane to remove salt under the action of pressure difference. It is opposite to natural osmosis, so it is called reverse osmosis, also known as reverse osmosis. According to the different osmotic pressure of various materials, reverse osmosis machine can be used to achieve the purpose of
separation, extraction, purification and concentration. Reverse osmosis can remove more than 97% of the dissolved salts and more than 99% of the colloids, microorganisms, micro materials and organic matters in water. It is characterized by low energy consumption, no pollution, simple process, high effluent quality, and easy operation and maintenance.
separation, extraction, purification and concentration. Reverse osmosis can remove more than 97% of the dissolved salts and more than 99% of the colloids, microorganisms, micro materials and organic matters in water. It is characterized by low energy consumption, no pollution, simple process, high effluent quality, and easy operation and maintenance.
Features
1. Can run and produce water continuously, highly automatic.
2. No need chemical to regeneration,easy operation and maintainance.
3. RO reverse osmosis system uses first-line membrane.
4. Automatic switch on when lack of water,and switch off when no water or full of water.
5. RO membrane auto wash and reduce the pollution speed.
6. Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7. Production water condutivity meter monitors water quality online contionuosly.
2. No need chemical to regeneration,easy operation and maintainance.
3. RO reverse osmosis system uses first-line membrane.
4. Automatic switch on when lack of water,and switch off when no water or full of water.
5. RO membrane auto wash and reduce the pollution speed.
6. Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7. Production water condutivity meter monitors water quality online contionuosly.

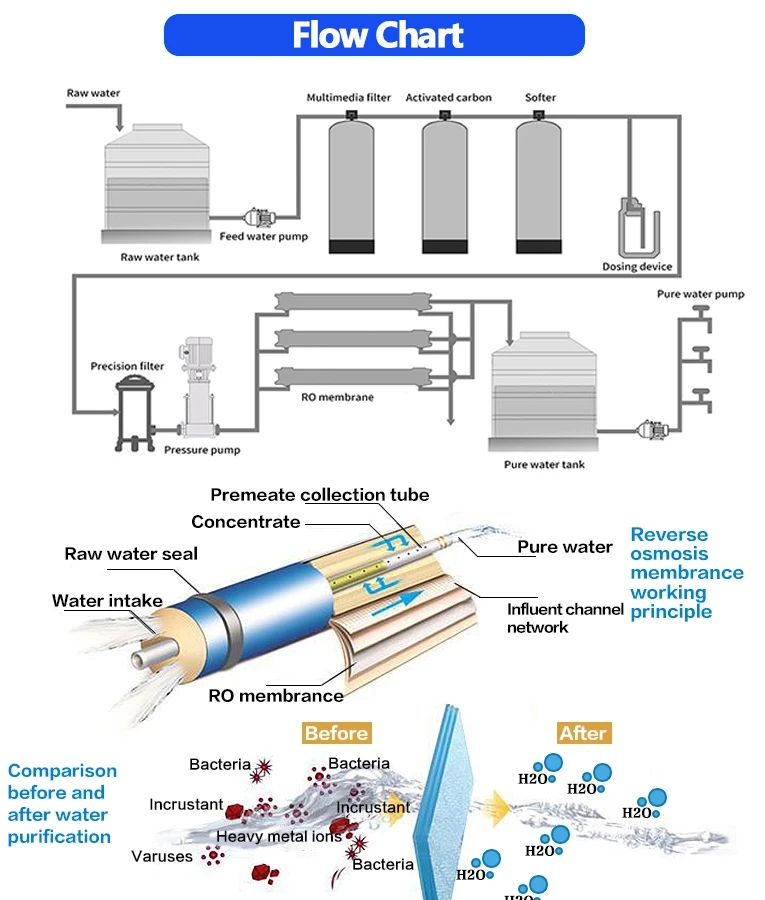

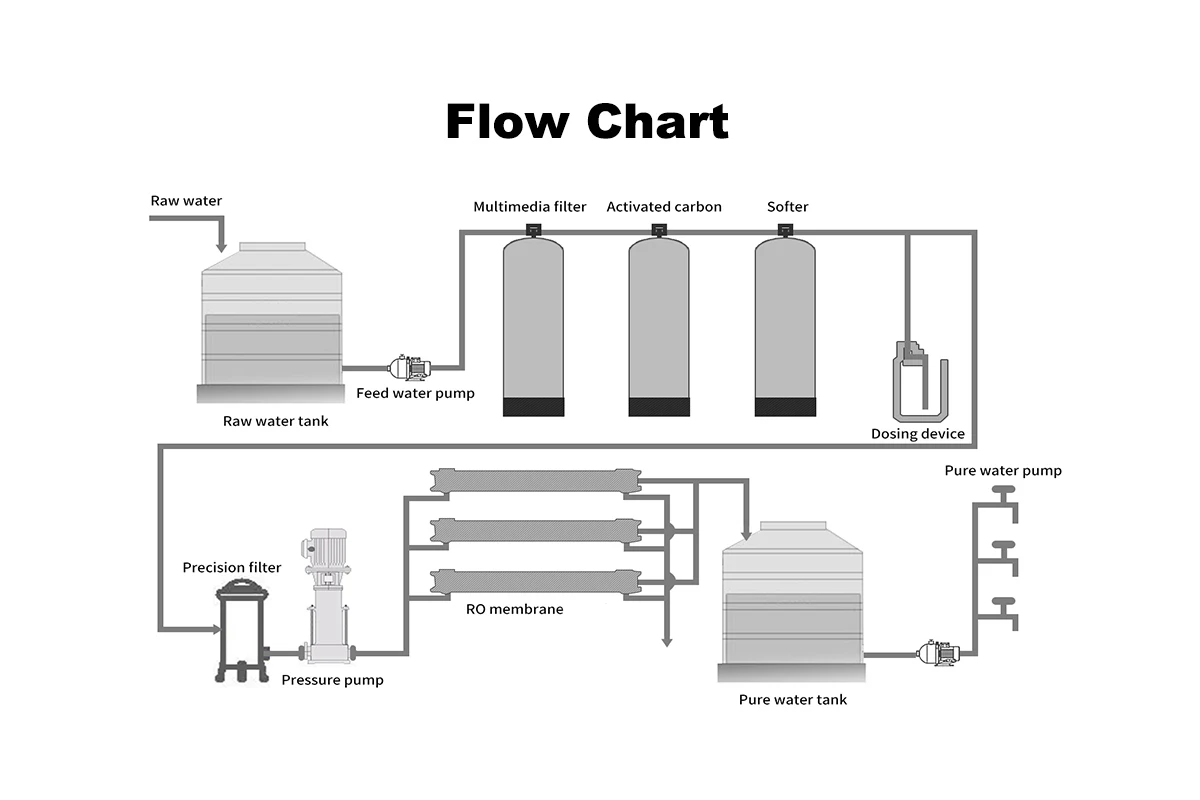

Reverse Osmosis Sytem Processing:
Raw water pump → Quartz sand filter → Activated carbon filter→ Resin softener → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter.
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on.
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on.
4. Water Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to reverse osmosis system (at least 2.0 Mpa).
7. RO system-- main part of pure water treatment machinery plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8. UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis system.
9. Ozone sterilizer -- Use ozone Kill bacteria not killed by UV.
10. Finished water tank -- For pure water storage.
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter.
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on.
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on.
4. Water Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to reverse osmosis system (at least 2.0 Mpa).
7. RO system-- main part of pure water treatment machinery plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8. UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis system.
9. Ozone sterilizer -- Use ozone Kill bacteria not killed by UV.
10. Finished water tank -- For pure water storage.

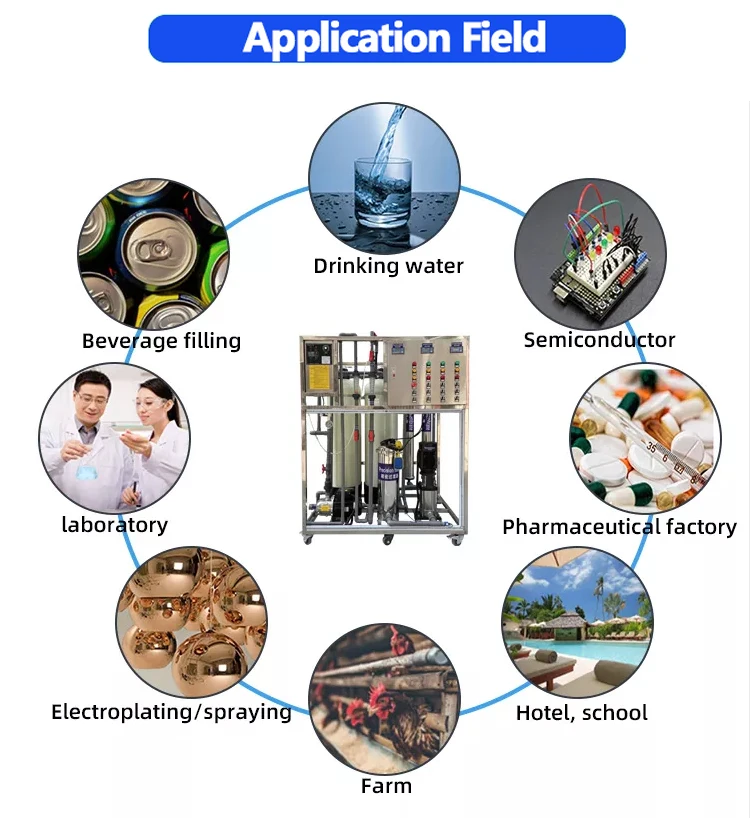

1. The beverage industry is to produce pure water, distilled water, natural water, mineral water, liquor, liquor blending water,beer saccharifying feed water and draft beer.
2. Water for pharmaceutical industry: water for pharmaceutical and preparation process, medical hemodialysis, biochemical analysis, infusion, etc.
3. Make the softened water and desalting pure water for heating power boiler, thermal power boiler, medium and low pressure boiler feed water of factories and mining enterprises.
4. Pure water treatment machinery for petrochemical industry, such as chemical reaction cooling, chemical agents, chemical fertilizer and fine chemicals, cosmetics manufacturing process.
2. Water for pharmaceutical industry: water for pharmaceutical and preparation process, medical hemodialysis, biochemical analysis, infusion, etc.
3. Make the softened water and desalting pure water for heating power boiler, thermal power boiler, medium and low pressure boiler feed water of factories and mining enterprises.
4. Pure water treatment machinery for petrochemical industry, such as chemical reaction cooling, chemical agents, chemical fertilizer and fine chemicals, cosmetics manufacturing process.
Specification & Paramater
Water treatment machinery parameter:
Inlet water pressure:0.2-0.4 Mpa
PH range: 6 ~ 8.5
Water temperature: 25℃
Ion removal rate: ≥ 99%
Bacterial virus removal rate: ≥ 99%
Recovery: ≥ 60%
PH range: 6 ~ 8.5
Water temperature: 25℃
Ion removal rate: ≥ 99%
Bacterial virus removal rate: ≥ 99%
Recovery: ≥ 60%
Product Model | Capacity | Membrane Quantity | Inlet Pipe | Motor |
RP-250LPH | 1500 GPD | 4040*1 | 3/4" | 1.0HP |
RP-500LPH | 3000 GPD | 4040*2 | 3/4" | 1.0HP |
RP-1000LPH | 6000 GPD | 4040*4 | 1" | 2.0HP |
RP-2000LPH | 12000 GPD | 4040*8 | 1-1/2" | 3.0HP |
RP-3000LPH | 18000 GPD | 4040*12 | 1-1/2" | 4.0HP |
Exhibition
Company Profile
Certifications
Packing and transportation

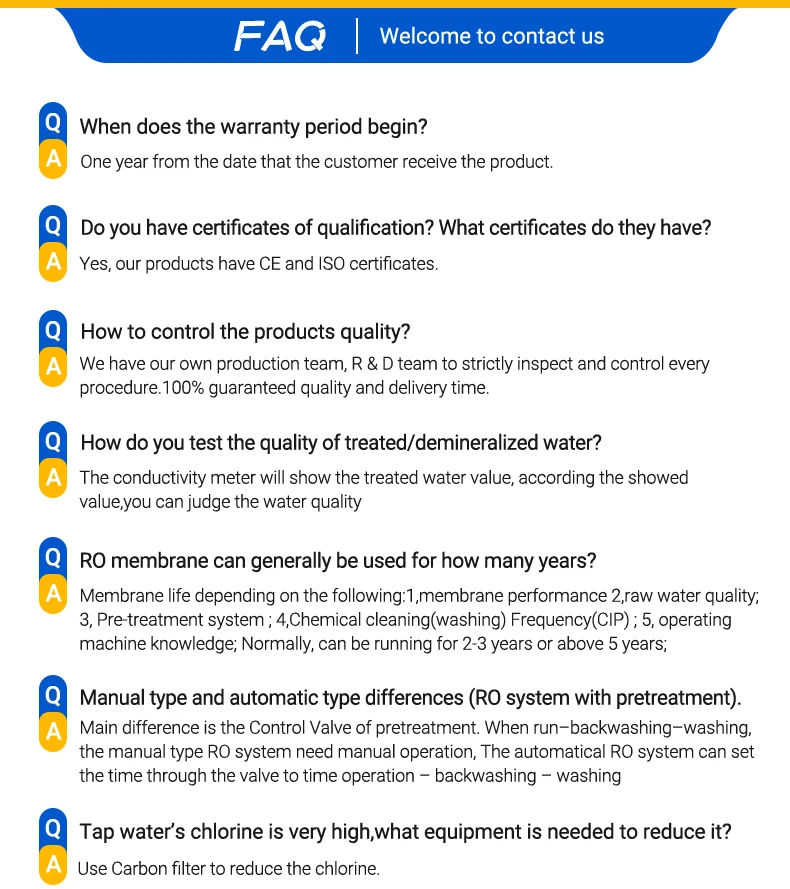

FAQ
