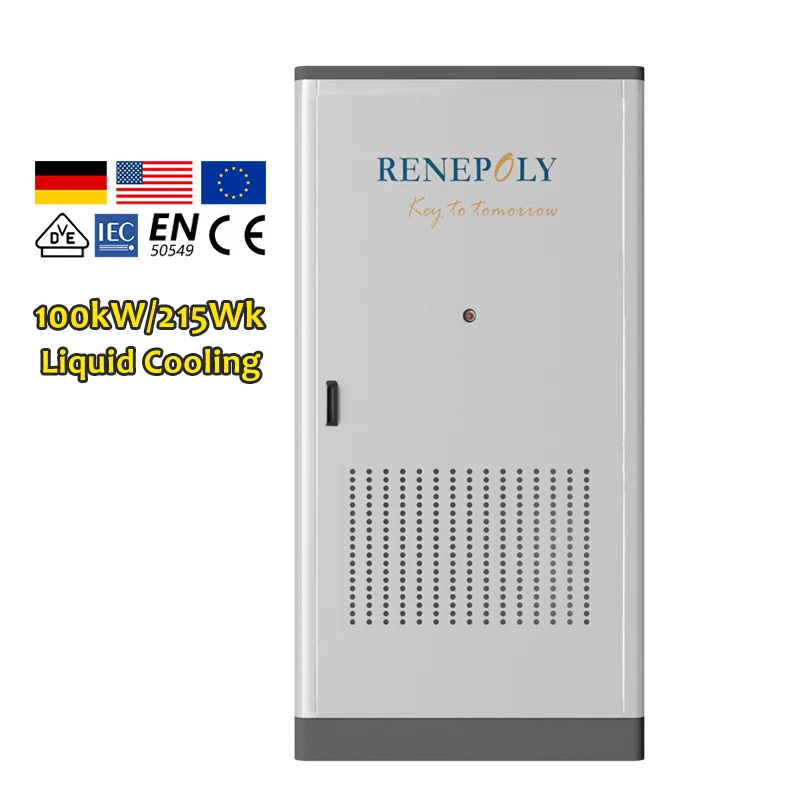

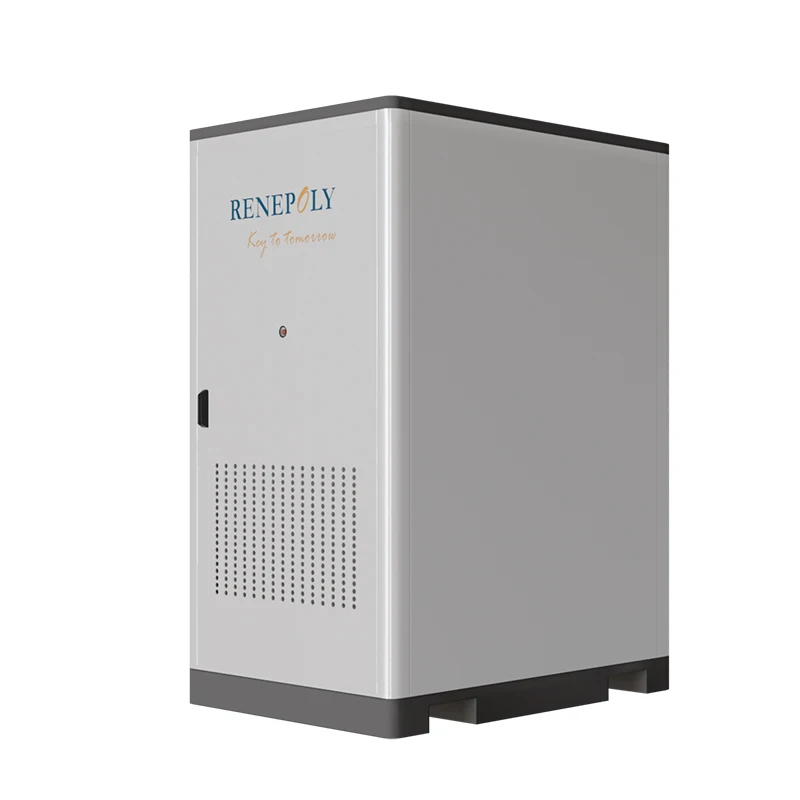

Solar BESS Cabinet PCS 100kW 215kWh Commercial Battery Energy Storage System Factory Backup Power Lifepo4 Battery Storage
- Category: >>>
- Supplier: Guangzhou Renepoly Energy Technology Co. Ltd.Guangzhou Ltd.
Share on (1601199896786):
Product Overview
Description
Product Description

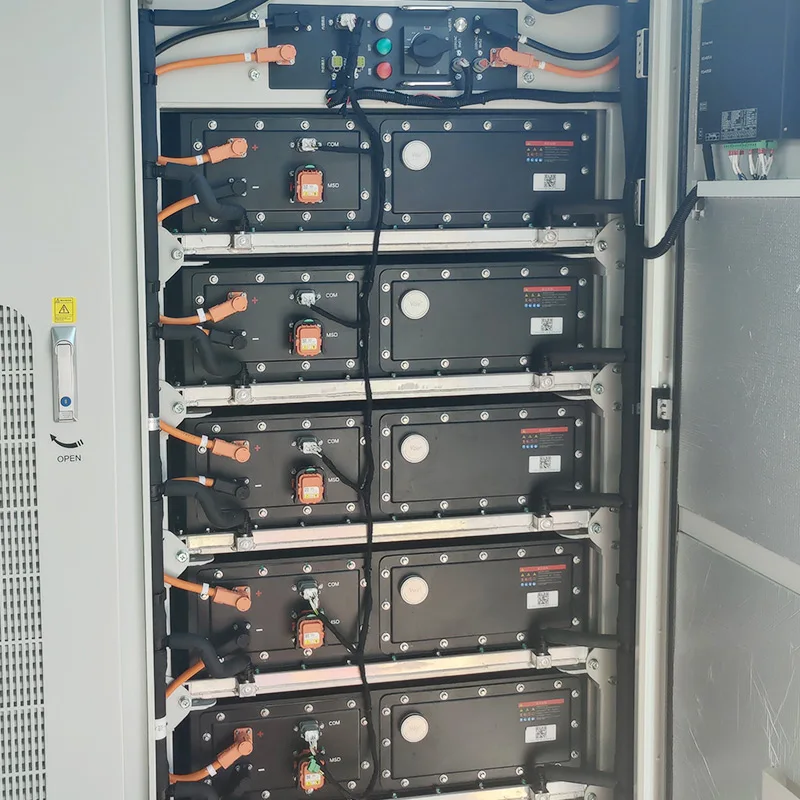

The BESS product of Renepoly Energy are characterized by standardized design, modular integration, and flexible capacity configuration. The product has high energy density, occupation of small area and multi-level protection function. The BESS product adopts the industry mainstream brand lithium iron phosphate battery and self-developed power conversion system, and adopts the design of micro-module split outdoor cabinet. Each BESS module has an independent air conditioning system, fire alarm system, electrical and control system, automatic fire extinguishing system and reserved water fire fighting system. The BESS has the advantages of simple construction, rapid deployment, flexible configuration, fire isolation, etc. The design of the system can maximize the economy and safety of the BESS, and reduce the loss of accidents.

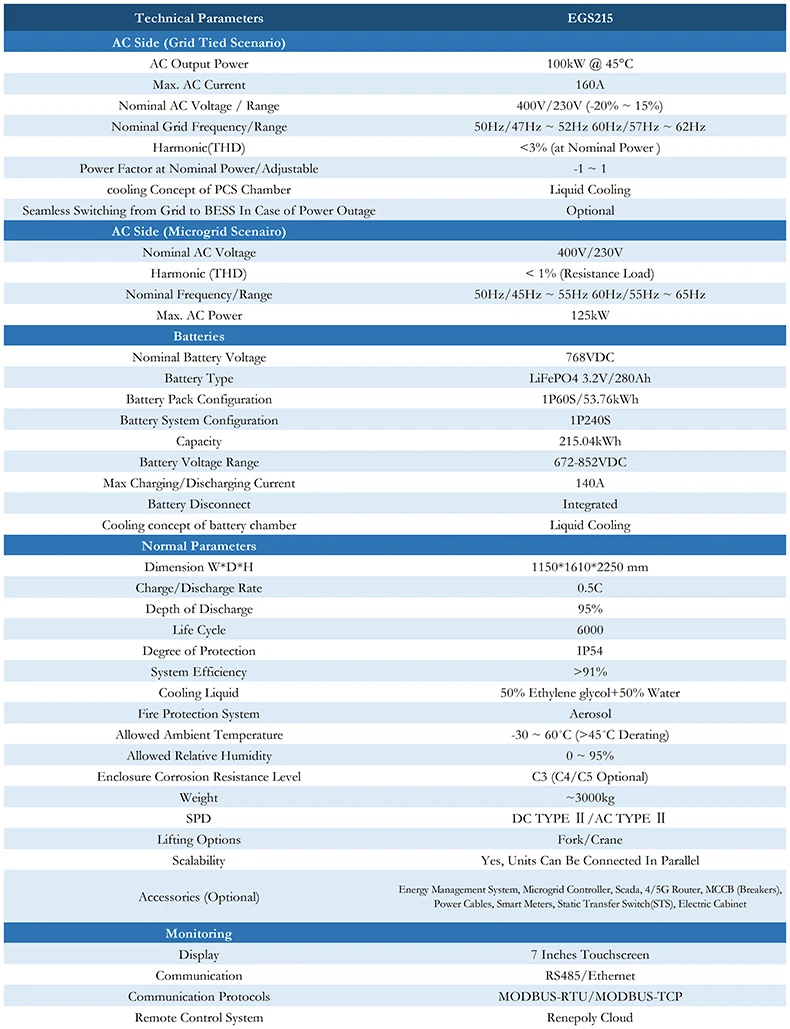

Specification for EGS215K-T100
| System Type | ES215K-T100 |
| Battery Data | |
| Cell type | LFP 280Ah |
| Battery capacity | 215kWH |
| Cooling concept of battery chamber | Liquid Cooling |
| AC Data | |
| Nominal AC power | 100kW |
| Max. AC power | 110kW |
| AC rated voltage | 400Vac |
| Connection method | Three-phase Three-wire |
| AC voltage range | 340~400V |
| Power factor | >0.99 |
| Adjustable power factor | 1 leading ~ 1 lagging |
| Nominal grid frequency | 50/60Hz |
| Grid frequency range | 45~55Hz/55~65Hz |
| Max.THD | < 3 % (at nominal power) |
| DC component | < 0.5 % (at nominal power) |
| Cooling concept of PCS chamber | Temperature controlled forced air cooling |
| Isolation | N/A |
| Communication Data | |
| Communication interfaces | RS485/Ethernet |
| Communication protocols | MODBUS-RTU/MODBUS-TCP/IEC61850 |
| General Data | |
| System efficiency | ≥90% |
| Charge/Discharge rate | 0.5C |
| Depth of discharge | 95% |
| Life cycles | 6000 |
| Degree of protection | IP55 |
| Operating temperature range | -40~50°C |
| Relative humidity | 0 ~ 95 % (non-condensing) |
| Max. working altitude | 2000m |
| Dimensions (W * H * D) | 1360 * 1368 * 2092 mm |
| Weight (with battery) | 3600kg |
| Fire fighting system | Combustible gas/smoke/temperature detection + Fully submerged gas extinguishing (perfluorohexanone) + Water Extinguishing (reserved) |

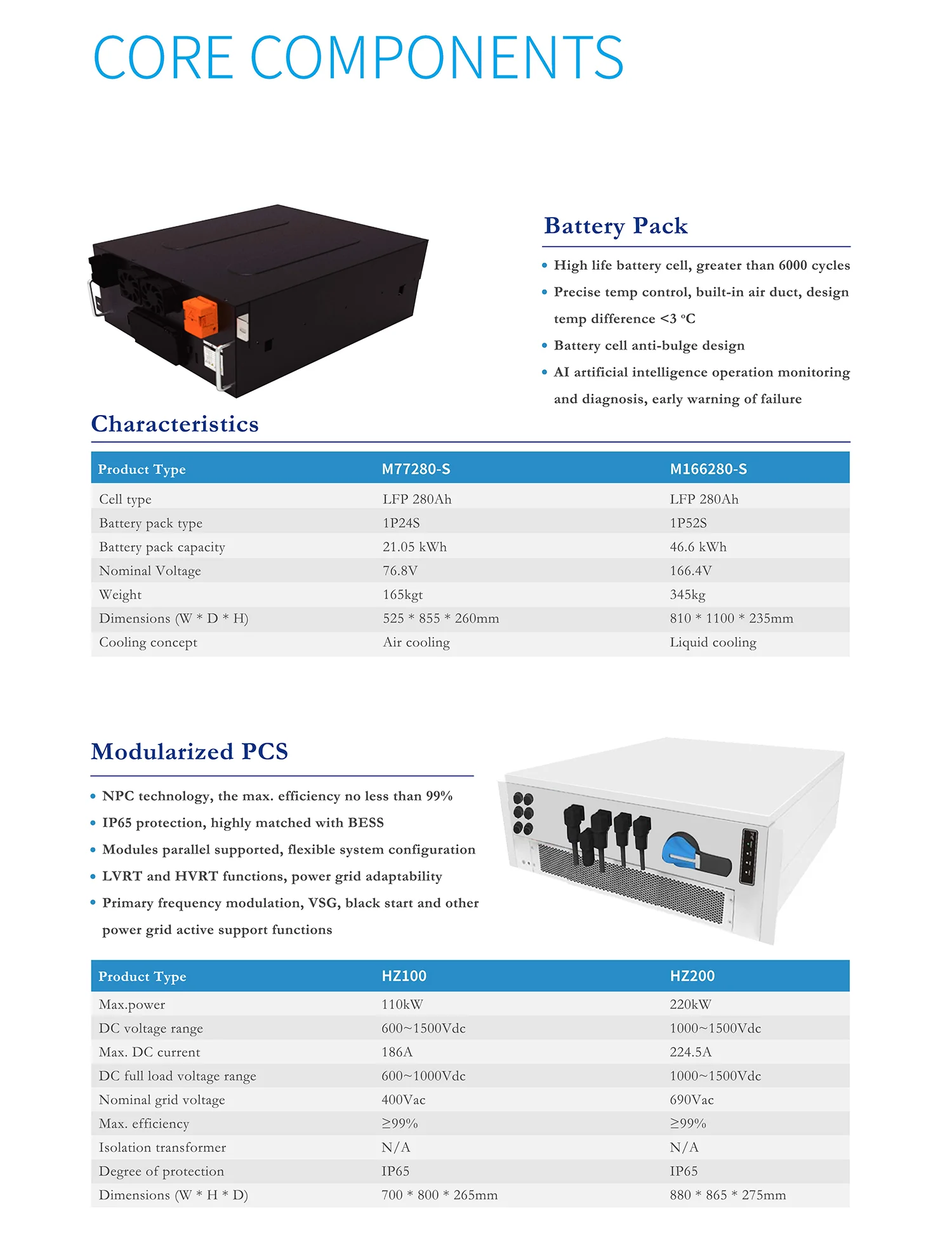

Product Chractistics
Packaging & Shipping
Packaging
The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Shipping
By sea,The overseas shipping time is around 14-35 days, which varies with the countries.
Our Services
- Product customerization design
- OEM and ODM
- Hybrid system architechture design
- Technical consultancy of battery system and microgrid system
Company Information
Renepoly Energy is a renewable energy innovation technology company focusing on providing smart distributed energy solutions. Guangzhou Ruinaituo Energy Technology Co., LTD. (Renepoly Energy) was founded in Guangzhou, China in 2016. Since its inception, the company has been committed to the research and development of distributed new energy systems and the expansion of practical application scenarios.
The company consists of a group of industry experts, doctors and senior engineers, and relies on the professional skills and management system of Tianjin University, KTH Royal Institute of Technology, Sweden, European Institute of Innovation and Technology and other internationally renowned institutions. The team has more than 10 years of experience in the development and design of smart microgrid systems (distributed photovoltaic systems, small wind power systems, modular electrochemical energy storage systems, small and medium-size diesel/gasoline generators and energy m -anagement systems).
After years of development, the company's main business includes investment, construction, design, research and development, sales, integration, technical consulting and management consulting services of distributed power generation systems. Relying on the professional service network, the company has rich experience in project technology and business operation in the renewable energy sector, especially in the field of smart microgrid. Renepoly Energy will rapidly and efficiently develop economically feasible renewable energy distribution systems to promote sustainable energy development in communities and regions in an efficient manner.
FAQ
Q: How long does it take to receive the goods?
A: The goods will be ready in 7-30 days, depending on the quantitty of the goods. The overseas shipping time is around 14-35 days, which varies with the countries. Consult with our online agent for the details.
Q: How is the package of the goods?
A: The goods will be packed by the standard packing materials following the international standards and upon the requirements of the custom.
Q: The goods and brand can be customerized?
A: Yes. we are Original Equipment Manufacturer, Orignal Brand Manufacturer and Original Design Manufacturer.
Q: Where is your company?
A: The plant is located in Dongguan, Guangdong, China, and the international sales centers is in Guangzhou,China.
Q: Do you have customerization service for the big solar/battery system?
A: Yes. Please consult with our online agent for the details.
Q: What is included in the price for the integrated system?
A: Engineering design and materials cost are included in the price. The price of onsite installation supervision, testing and commissioning will be quoted upon request.
