Single Output DC Converter to 5V 12V 24V 48V 72V 3000W Rated Power with LED Display for Industrial Applications
- Category: >>>
- Supplier: Yueqing Leyu Electric Automation Co. Ltd.
Share on (1601199940451):
Product Overview
Description
Product Description
Specification
SPECIFICATION | ||||||||||||||||||

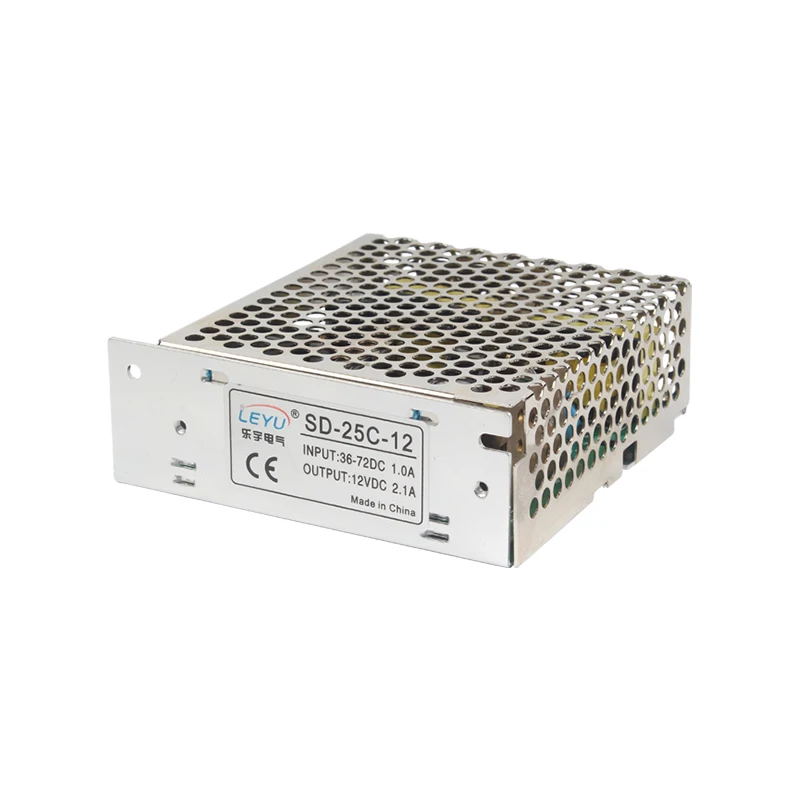

Model | SD-25A-5 | SD-25B-5 | SD-25C-5 | SD-25A-12 | SD-25B-12 | SD-25C-12 | SD-25A-24 | SD-25B-24 | SD-25C-24 | |||||||||
DC Voltage | 5V | 12V | 24V | |||||||||||||||
Rated Current | 5A | 2.1A | 1.1A | |||||||||||||||
Current Range | 0 ~ 5A | 0 ~ 2.1A | 0 ~ 1.1A | |||||||||||||||
Rated Power | 25W | 25.2W | 26.4W | |||||||||||||||
Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | |||||||||||||||
Voltage Adj. Range | 4.75~5.5VDC | 11-16VDC | 23-30VDC | |||||||||||||||
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | |||||||||||||||
Line Regulation | ±0.5% | ±0.3% | ±0.2% | |||||||||||||||
Load Regulation | ±0.5% | ±0.3% | ±0.2% | |||||||||||||||
Setup, Rise, Hold Up Time | 2.5s, 50ms, ------ at full load | |||||||||||||||||
Voltage Range | A: 9.2 ~18VDC B:19 ~ 36VDC C:36~72VDC | |||||||||||||||||
Efficiency | 71% | 72% | 74% | 72% | 75% | 78% | 75% | 78% | 81% | |||||||||
DC Current | A:3.2A/12V | B:1.6A/24V | C:0.8A/48V | |||||||||||||||
Over Load | 105 ~ 150% rated output power | |||||||||||||||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||||||
Over Voltage | 5.75 ~ 6.75V/10% load | 16.8 ~ 20V/10% load | 31.5 ~ 37.5V/10% load | |||||||||||||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||||||||||
Working Temp. | -10 ~ +60℃ (Refer to “Derating Curve”) | |||||||||||||||||
Working Humidity | 20 ~ 90% RH non-condensing | |||||||||||||||||
Storage Temp., Humidity | -20 ~ +85℃, 10 ~ 95% RH | |||||||||||||||||
Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | |||||||||||||||||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||||||||||
Safety Standards | Design refer to LVD | |||||||||||||||||
EMC Emission | Compliance to EN55022 (CISPR22) Class B | |||||||||||||||||
EMC Immunity | Compliance to EN61000-4-2, 3, 4, 6, 8, EN55024, heavy industry level, criteria A | |||||||||||||||||
Dimension | 99*97*36mm (L*W*H) | |||||||||||||||||
Weight | 0.38kg | |||||||||||||||||
Packing | 45pcs/17.8kg/0.9CUFT | |||||||||||||||||
NOTE | ||||||||||||||||||
