MICET 1500l stainless steel conical fermenters craft beer fermentation tank temperature control double jacketed unitank for sale
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1601199975147):
Product Overview
Description

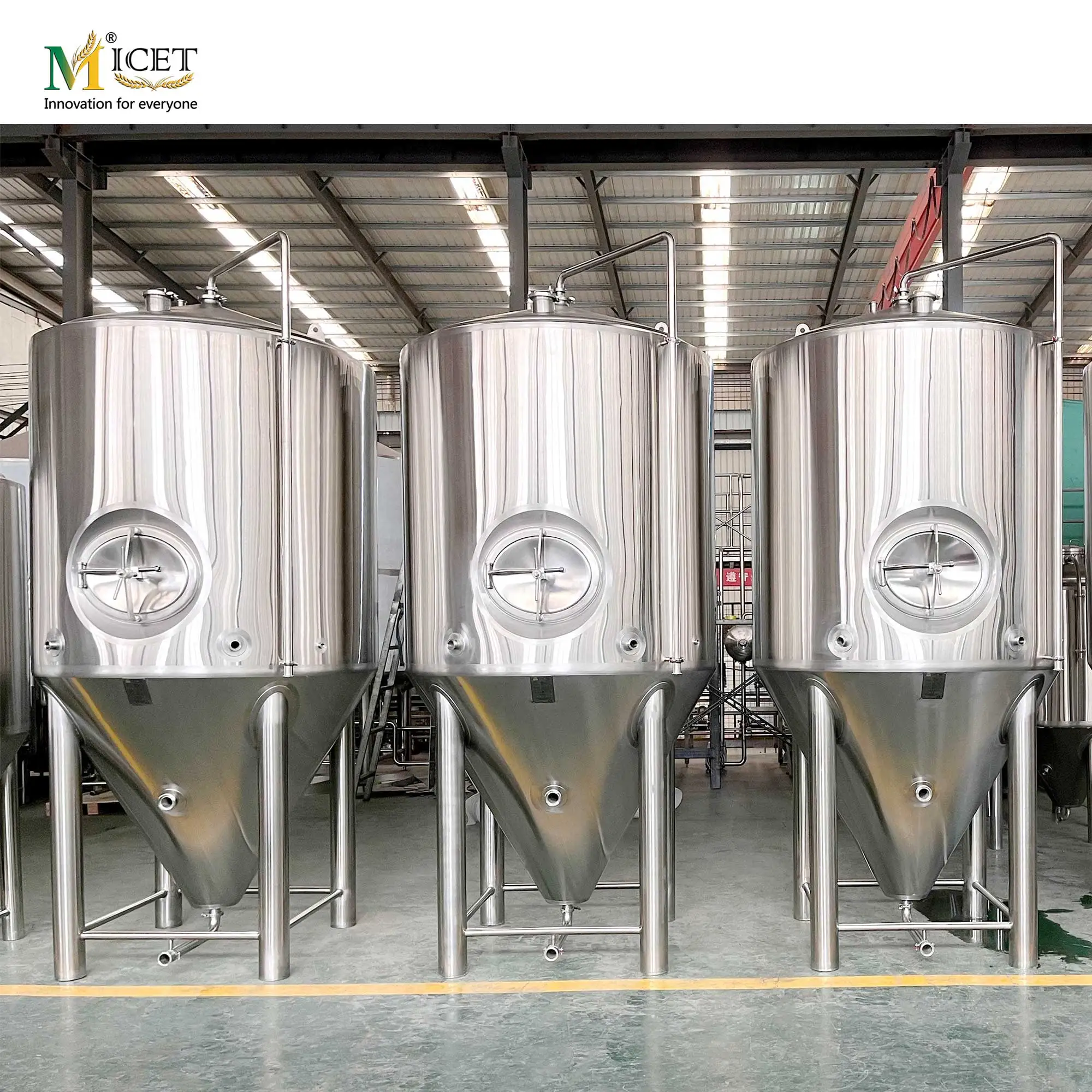

MICET 1500l stainless steel conical fermenters craft beer fermentation tank temperature control double jacketed unitank for sale
Fermentation is one of the key parts of brewing. Even in the humblest home-based brewery, the fermentation tank is an essential part.
It doesn’t matter whether they are made of synthetical material or stainless steel, with pressure or without, cylindrical, conical or oval: Micet Group has the right container for every purpose.
We have fermenters ranging in sizes from 50L – 300HL and and manufactured to suit your brewing needs.
It doesn’t matter whether they are made of synthetical material or stainless steel, with pressure or without, cylindrical, conical or oval: Micet Group has the right container for every purpose.
We have fermenters ranging in sizes from 50L – 300HL and and manufactured to suit your brewing needs.
Effective volume | 500L | 1000L | 1500L | 2000L | 2500L | 3000L | 4000L | 5000L | |||||||
Total volume | 625L | 1250L | 1875L | 2500L | 3125L | 3750L | 5000L | 6250L | |||||||
Size | 960*2050mm | 1160*2500mm | 1260*2800mm | 1460*3050mm | 1700*3350mm | 1750*3450mm | 1800*3550mm | 1900*4250mm | |||||||
Material | SUS304/SUS316 | ||||||||||||||
Control system | PLC Siemens or PID Schneider/ABB brand | ||||||||||||||
Cooling area | 1.3㎡ | 2.6㎡ | 3㎡ | 4㎡ | 4.4㎡ | 4.7㎡ | 6.3㎡ | 8.0㎡ | |||||||
Work pressure | inner jacket 0.4MPa; cooling jacket 0.5Mpa | ||||||||||||||
Design pressure | inner jacket 0.2MPa; cooling jacket 0.3Mpa | ||||||||||||||
Product advantages
1.The fermentation tank is equipped with lifting ears for convenient hoisting equipment in place.

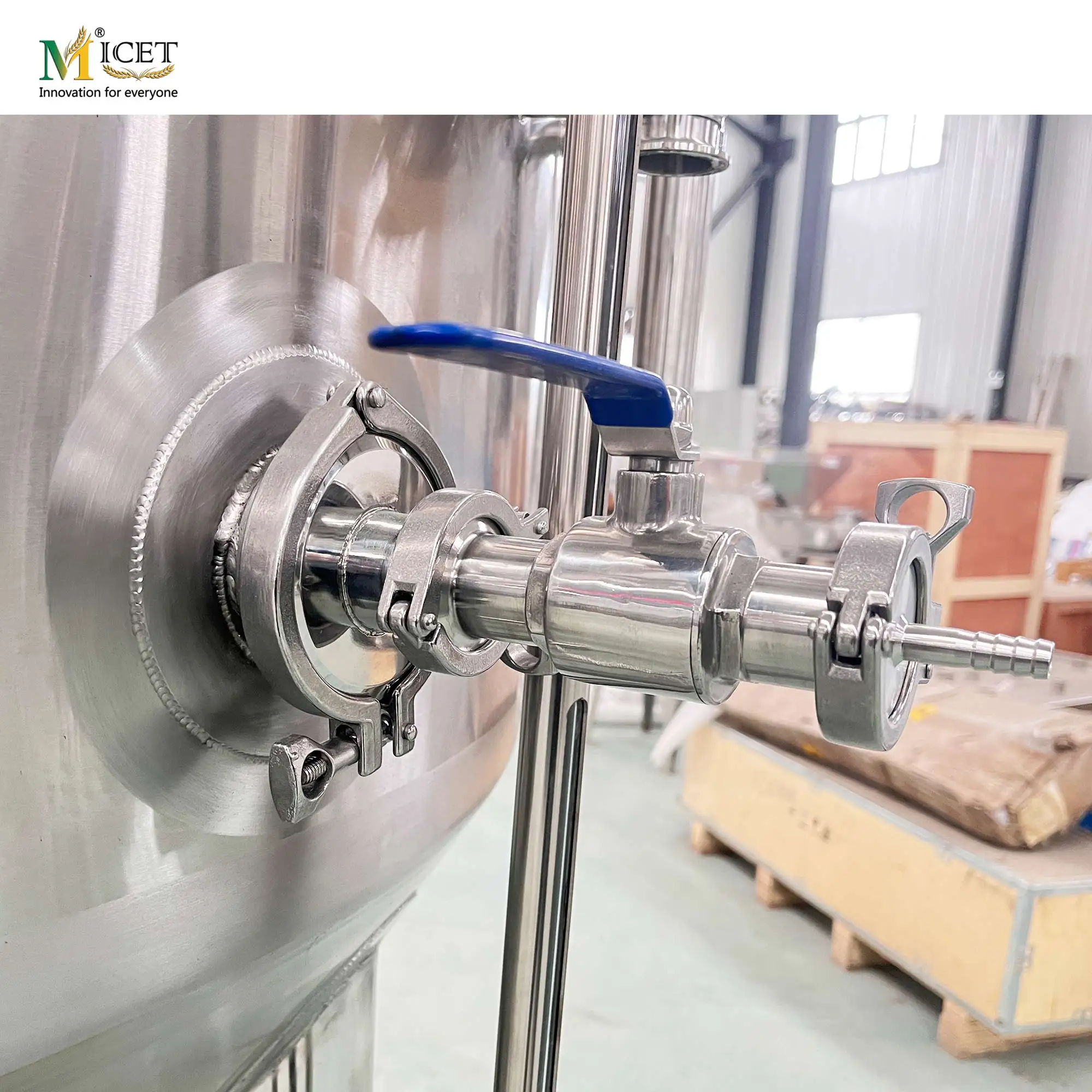

2.With rotating racking arm for beer delivery, which is convenient and flexible to deliver beer.
3.All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
4.Strict quality control and process inspection & testing system, which all the testing record will show on our data late with the tanks shipping, with checking the list and serial numbers to track.
5.Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and 48hours of water testing before packing.
6.Polished/Brushed/Mirror finish/Pickling passivation is optional

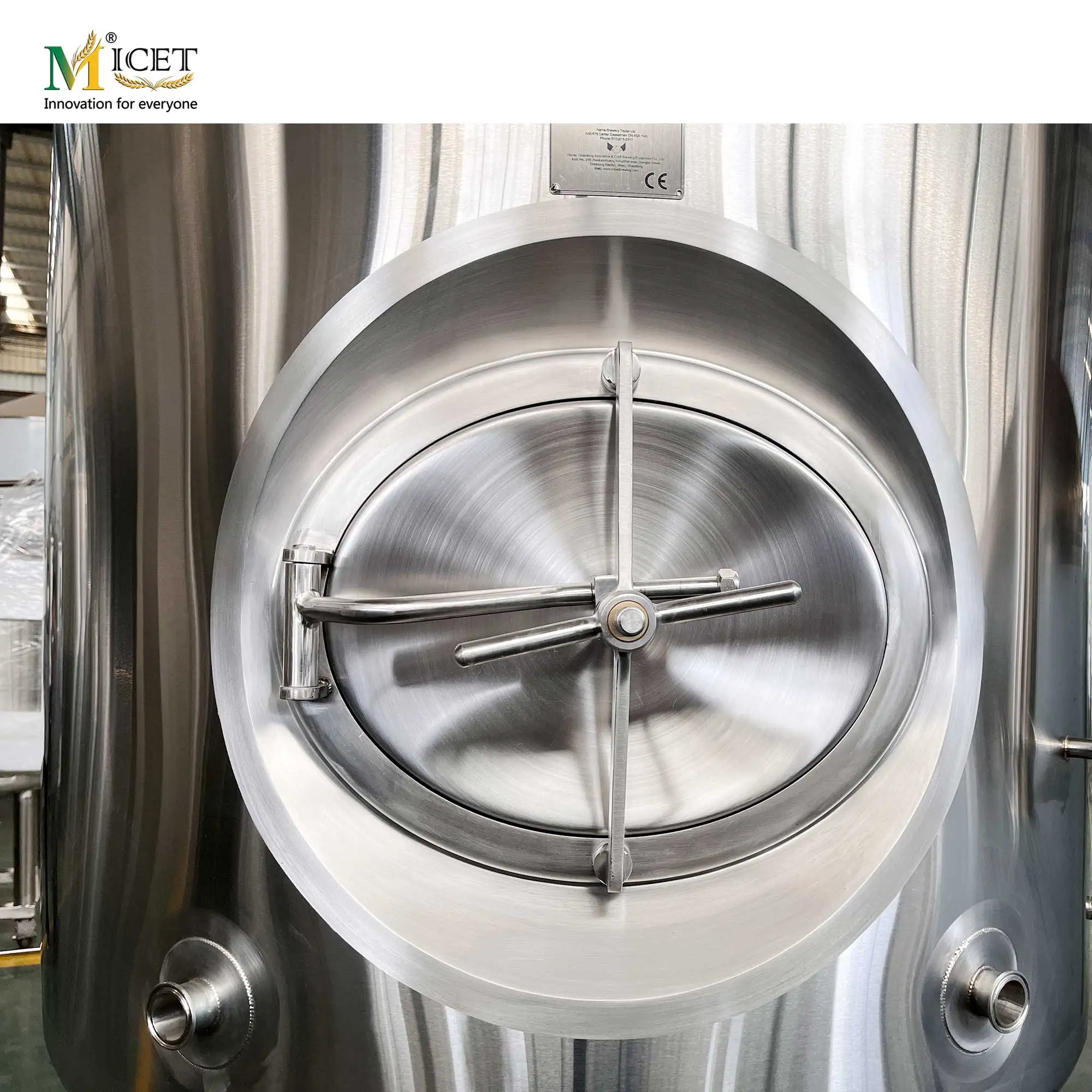

7.Shadowless manway or top manhole according to the customer’s fermentation process and brewing types.
8.Bigger headspace, the cover headspace volume is calculated separately and extra.
9.Specially designed dimpled cooling jackets outside to ensure heating and cooling efficiency 60-degree cone angle for convenient for yeast excretion.
10.Equipping with special ladder for easy operation
2.With rotating racking arm for beer delivery, which is convenient and flexible to deliver beer.
3.All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
4.Strict quality control and process inspection & testing system, which all the testing record will show on our data late with the tanks shipping, with checking the list and serial numbers to track.
5.Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and 48hours of water testing before packing.
6.Polished/Brushed/Mirror finish/Pickling passivation is optional
7.Shadowless manway or top manhole according to the customer’s fermentation process and brewing types.
8.Bigger headspace, the cover headspace volume is calculated separately and extra.
9.Specially designed dimpled cooling jackets outside to ensure heating and cooling efficiency 60-degree cone angle for convenient for yeast excretion.
10.Equipping with special ladder for easy operation
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a wholeprocess piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
our service
1. Micet provides a turnkey solution from project consulting, benefit analysis, space layout design, 3D rendering, production site, equipment design, manufacturing, installation, commissioning, training, and other one-stop services.
2. Micet provides installation and debugging service at a service fee (100usd) per day.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control,finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How long is the delivery time?
1. The manufacturing time is 30 working days and will be enforced as soon as receiving the deposit.
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control,finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How long is the delivery time?
1. The manufacturing time is 30 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
