YNTO specifically designed cooling systems in data center server rooms full flow ball valve Quick couplings
- Category: >>>
- Supplier: Guangdong Yuantong Industrial Technology Co. Ltd.
Share on (1601200030437):
Product Overview
Description
Product Showcase
Company Introduction
YNTO after more than a decade of development, has continuously attracted high-level talent and adhered to independent technological research and development. The company has obtained more than ten utility and invention patents, and has passed ISO9001, ISO14001, and ISO45001 management system certifications as well as CE certification. It is recognized as a national high-tech enterprise. Yuanton is dedicated to manufacturing fluid control valves for high-temperature, high-pressure,low-temperature, wear-resistant, and corrosion-resistant applications. Our customers include leading manufacturers both domestically and internationally. The company attracts international brand partners from various industries with its excellent quality and outstanding service. Yuanton Industrial is your trustworthy partner.

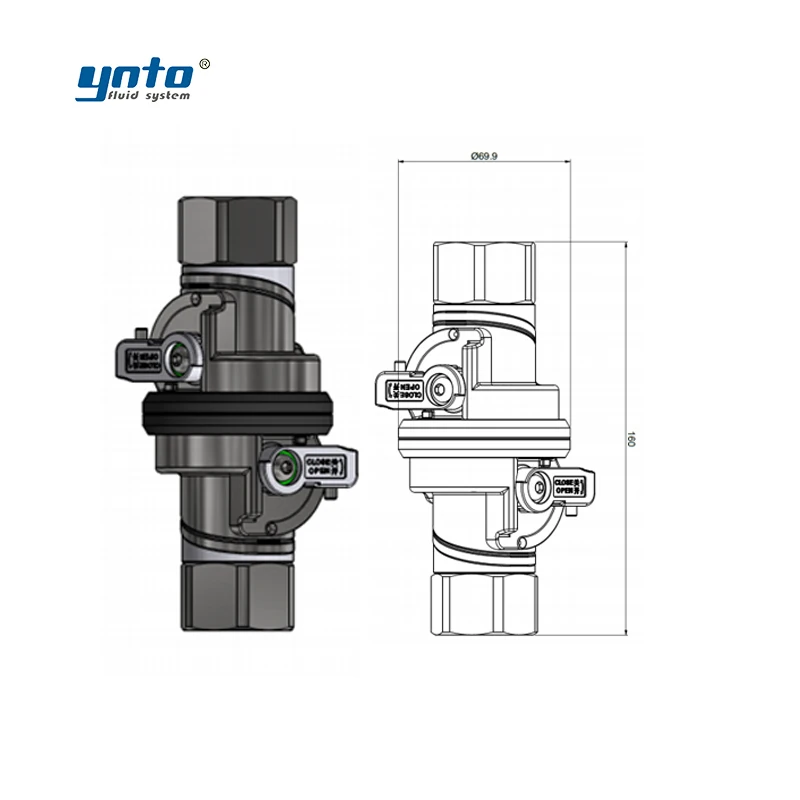

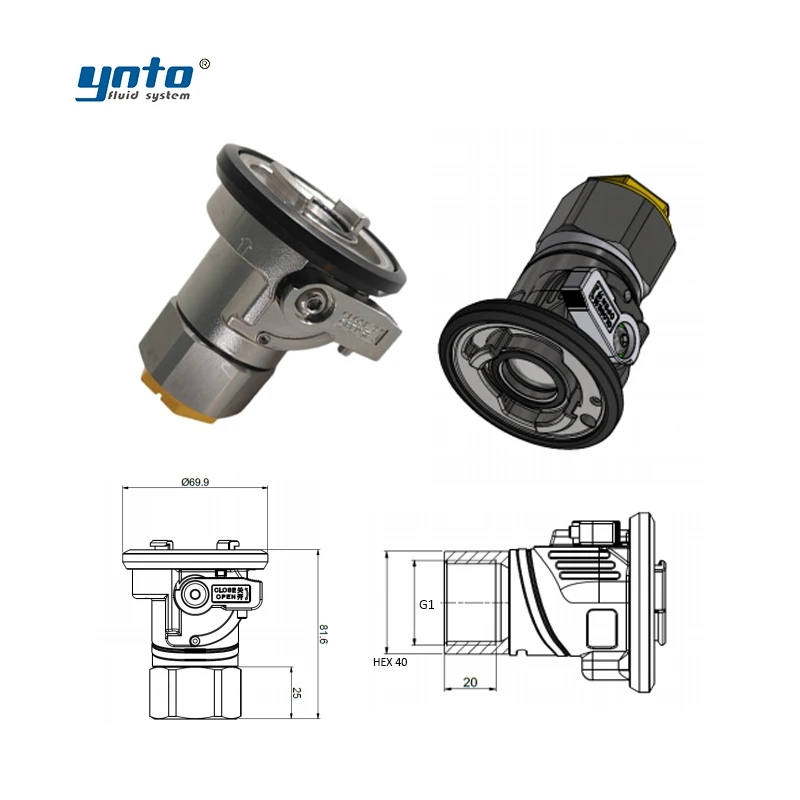

Product Specifications | ||
Product Number | SFC20-1SFG092N | |
Nominal Diameter DN | 20 mm | |
Joint Type | Threading | |
Maximum Working Pressure when Disconnected | 16 bar | |
Maximum Working Pressure when Connected | 16 bar | |
Minimum Burst Pressure when Disconnected | 64 bar | |
Minimum Burst Pressure when Connected | 64 bar | |
Temperature Range | -40℃~+120℃ | |
Connection Method | G 1" Internal Thread | |
Sealing Material | EPDM | |
Hex Size | 40 mm | |
Recommended Installation Torque | 40 N.m | |
Product Weight | 750 grams | |
Body Material | 304 SS | |
Produet Introduetion
Introduction:

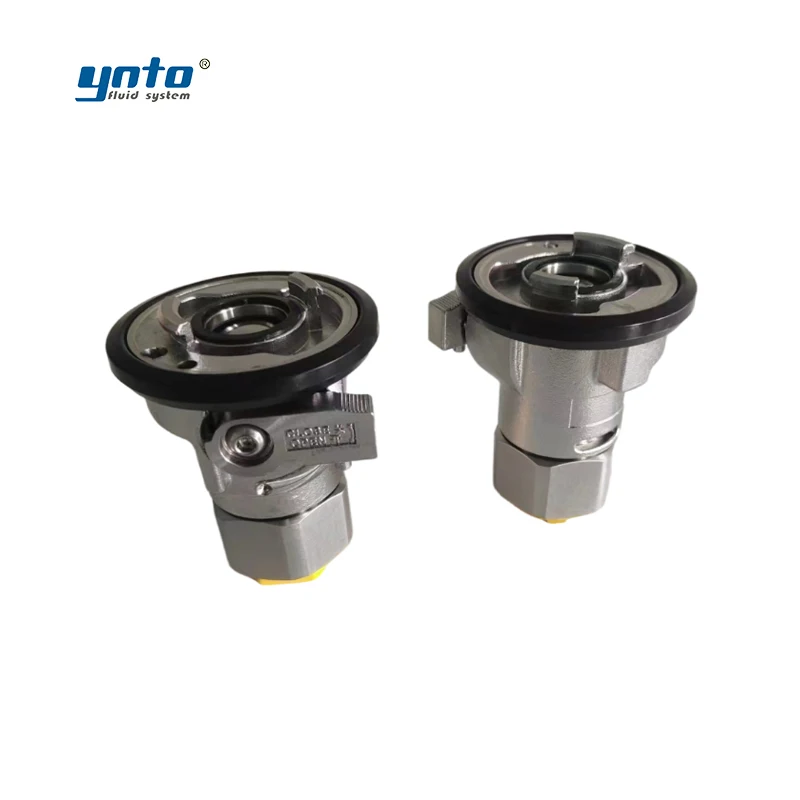

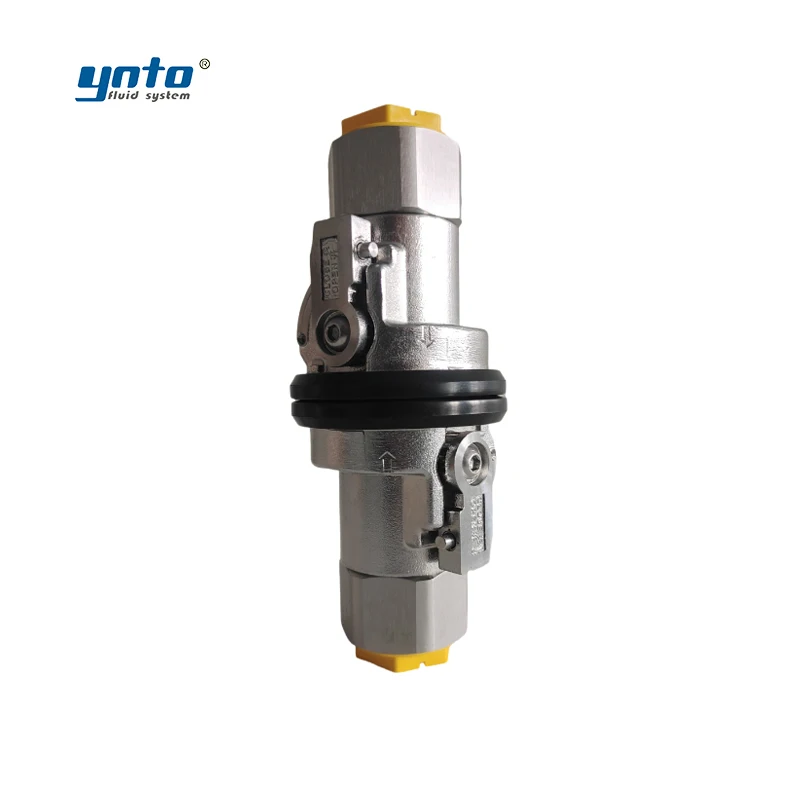

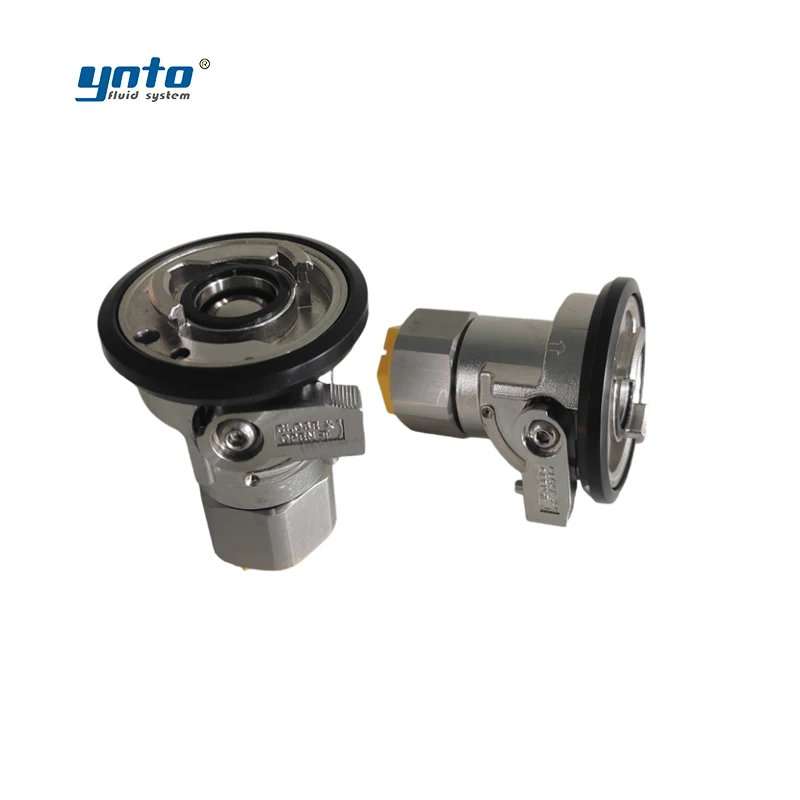

The SFC series couplings are full-flow ball valve quick couplings, ensuring maximum flow and minimum pressureloss when fiully open. The symmetrical design eliminates the distinction between two couplings, facilitating assembland installation. The end component connected to the pipeline can rotate 360 degrees during operation, preventingthe twisting of the pipeline and afiecting the flow. oreover, the system pipeline can be disconnected and closedwithout the use of tools, making it convenient and quick.

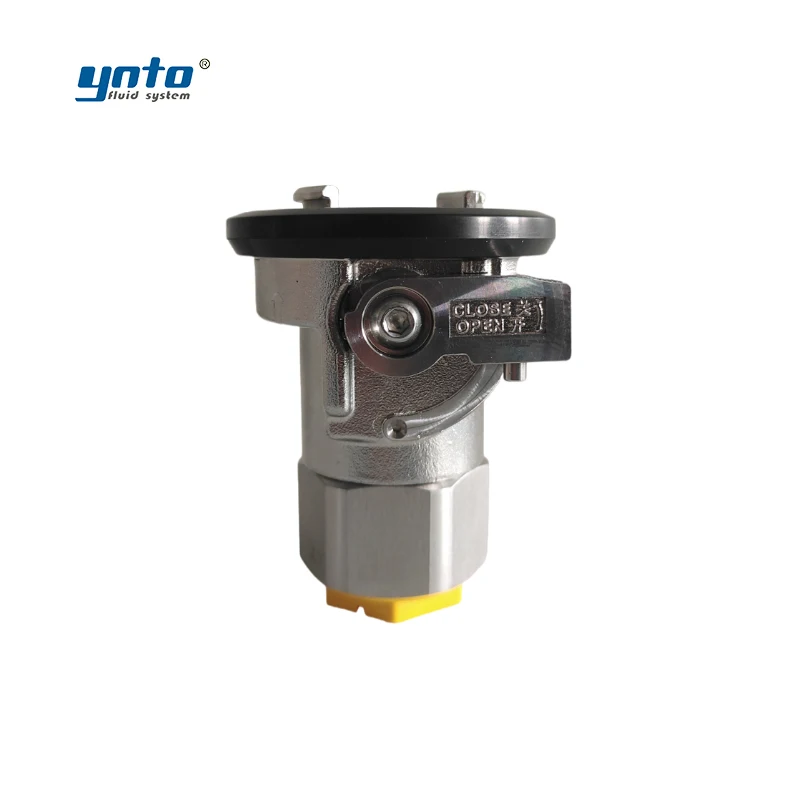

The SFC series couplings ensure the safety of pipeline connection. In the disconnected state, the ball valve can onlbe opened by pressing the handle button, preventing accidental operation. During the complete rotation process ofthe two end couplings, the ball valve cannot be opened. It is only after the complete rotation and positioning that theball valve can be opened, ensuring a leak-free connection of the pipeline. Once connected, the end couplings canonly be separated by fully closing the ball valves on both ends.
1.Quick and convenient - Adopting a wire-wrapped connection method, it can rotate 360 degrees to prevent hose twisting.
2.Double sealing configuration - After the two joints are combined, there is no leakage, and it can be sealed inboth directions to ensure sealing safety and reliability.
4.Symmetrical design -Easy for assembly and installation.
5.Safety and reliability - Interlocking connection, the valve can only be opened after the connection is complete. the joint can only be disconnected after the valve is completely closed.
1.Mainly used for liquid cooling and cooling systems in supercomputers, 5G base stations, radar equipmentwind power conversion cabinets, and high-performance servers ;
The SFC series couplings are full-flow ball valve quick couplings, ensuring maximum flow and minimum pressureloss when fiully open. The symmetrical design eliminates the distinction between two couplings, facilitating assembland installation. The end component connected to the pipeline can rotate 360 degrees during operation, preventingthe twisting of the pipeline and afiecting the flow. oreover, the system pipeline can be disconnected and closedwithout the use of tools, making it convenient and quick.
The SFC series couplings ensure the safety of pipeline connection. In the disconnected state, the ball valve can onlbe opened by pressing the handle button, preventing accidental operation. During the complete rotation process ofthe two end couplings, the ball valve cannot be opened. It is only after the complete rotation and positioning that theball valve can be opened, ensuring a leak-free connection of the pipeline. Once connected, the end couplings canonly be separated by fully closing the ball valves on both ends.
Product Features:
1.Quick and convenient - Adopting a wire-wrapped connection method, it can rotate 360 degrees to prevent hose twisting.
2.Double sealing configuration - After the two joints are combined, there is no leakage, and it can be sealed inboth directions to ensure sealing safety and reliability.
3.Strong wear resistance and corrosion resistance - The shell material is stainless steel. with high hardness andstrong corroslon resistance.
4.Symmetrical design -Easy for assembly and installation.
5.Safety and reliability - Interlocking connection, the valve can only be opened after the connection is complete. the joint can only be disconnected after the valve is completely closed.
Application：
1.Mainly used for liquid cooling and cooling systems in supercomputers, 5G base stations, radar equipmentwind power conversion cabinets, and high-performance servers ;
2.Applied to connect high-flow pipelines, facilitating quick connection and disconnection;
Store Hot Sale
Why Choose Us?
Certifications
Product packaging
Exhibition
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
