Product Overview
Description

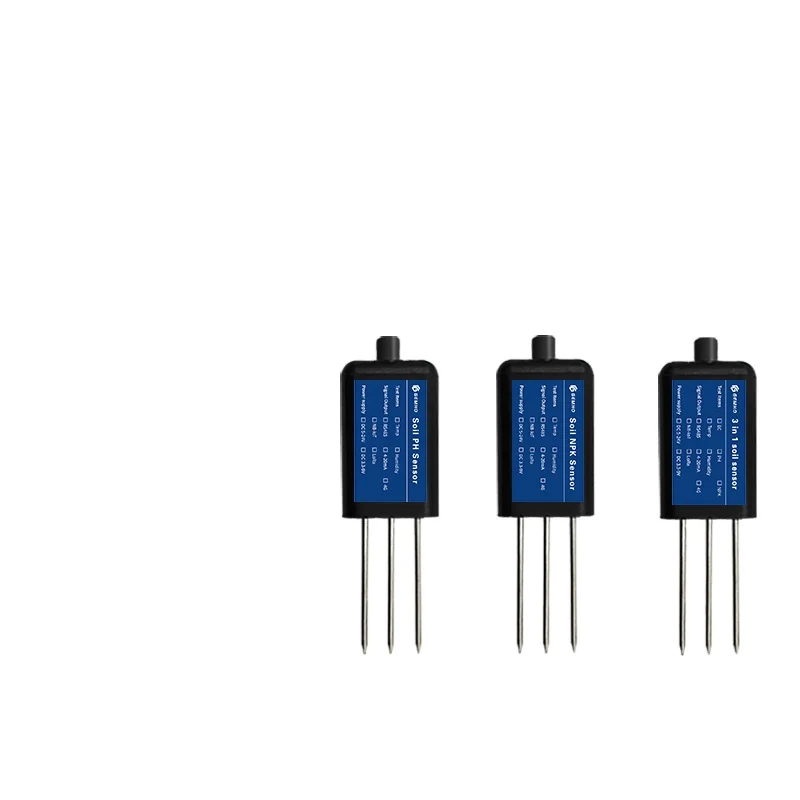

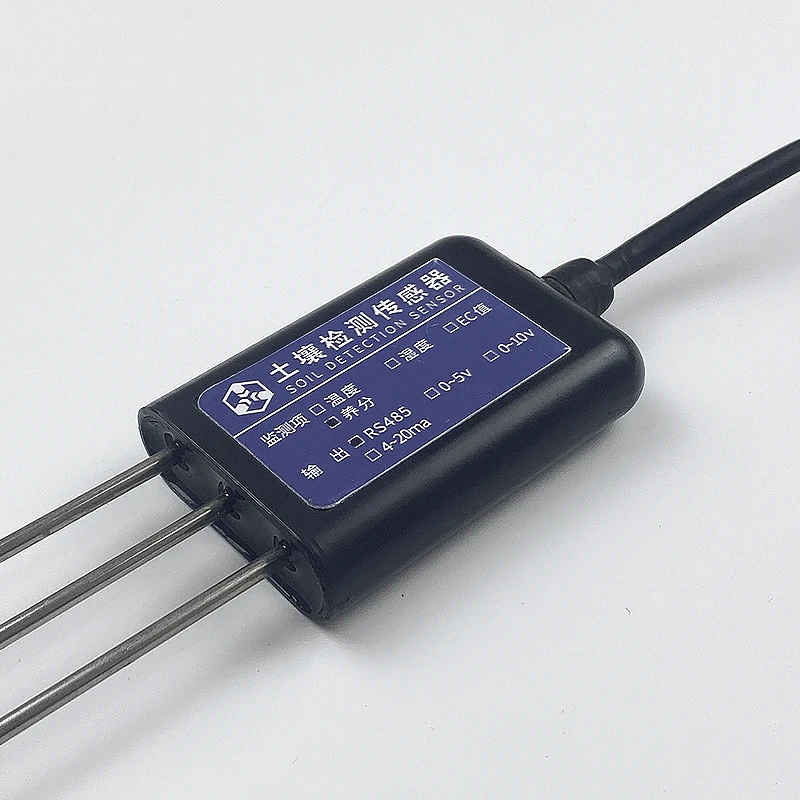

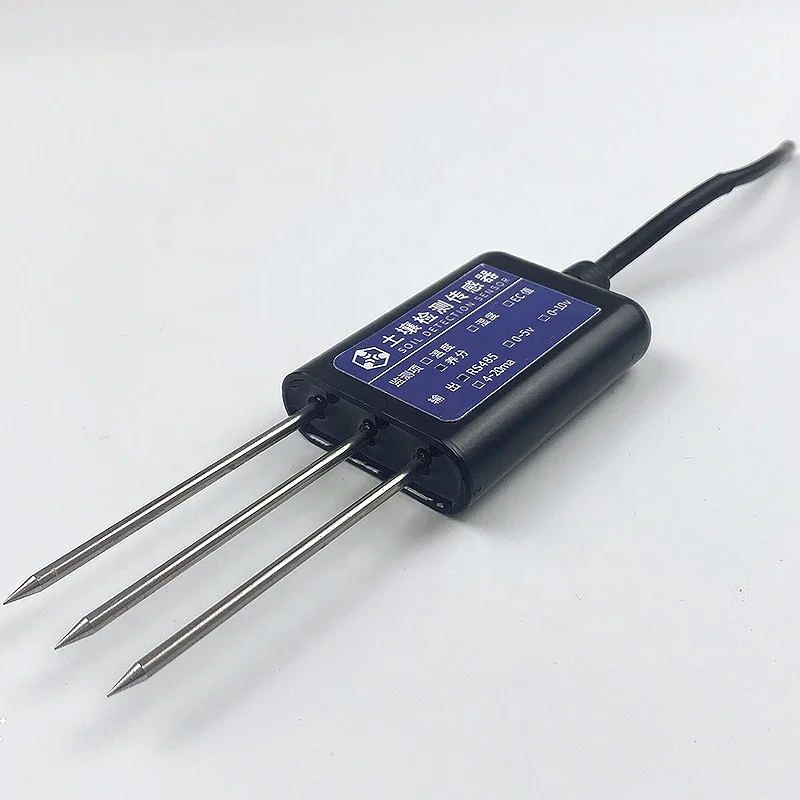

Agricultural Intelligent Soil Temperature Sensor Low Energy Triple Probe Soil NPK Conductivity PH Transmitter
Product Description
The main performance characteristics:
Soil sensor 3pins is a new integrated sensor. The value of nitrogen, phosphorus and potassium content in the soil where the equipment is located can be obtained through the acquisition equipment.
1.2 .Product description
The sensor adopts FDR frequency domain reflection principle. Based on the principle of electromagnetic pulse and the propagation frequency of electromagnetic wave in the medium, the apparent dielectric constant of soil is measured, so as to obtain the content of
soil EC.
1.3 Sensor characteristics
Low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference ability, excellent repeatability and stability.
1.4 Applicable scenarios
The product can be widely used in environmental monitoring, meteorological monitoring, intelligent agriculture, orchard nursery, flowers and soil research. Compared with the traditional Internet of things sensors, it has the advantages of high precision and easy installation.
1.5 Precautions for use
the sensor is made of waterproof, dustproof and impact resistant materials, but the precision instrument needs to be used and maintained carefully to avoid impact and use in harsh environments such as corrosive liquid or gas.
the aging time before use shall not be less than 48 hours. the air inlet of the sensor shall not be blocked or polluted.
electrolyte leakage will cause damage. Do not disassemble the sensor at will.do not use if the shell is damaged or deformed.the sensor shall avoid contact with organic solvents (including silicone rubber and other adhesives), coatings, chemicals and fuel oils.
Product main technical specifications:
Product name | Soil integrated sensor 3 in 1 |
Power supply | DC3.3-9V/DC5-24V |
Accuracy | 0.1℃ ±3%RH ±5% ±2%F.s 0.01PH |
Measuring range | Temperature: -40 ℃ ~ 80 ℃ Humidity : 0 ~ 100% ( non-condensing ) PH : 0-14PH NPK : 0-1999mg/kg Conductivity: 0-2000us/cm |
Response time | ≤10s |
precision | Temperature: ± 0.5 ℃ Humidity: ±3% (when measuring frozen ice soil, the moisture value will be low and inaccurate) PH : 0.01PH NPK : ±2%Fs Conductivity : ±3% in the range of 0-1000us/cm; ±5% in the range of 1000-2000us/cm |
Resolution | Temperature : 0.1 ℃ _ Humidity: ± 1 % (when measuring frozen ice soil, the moisture value will be low and inaccurate) NPK : ±2%Fs Conductivity : 1 us/cm |

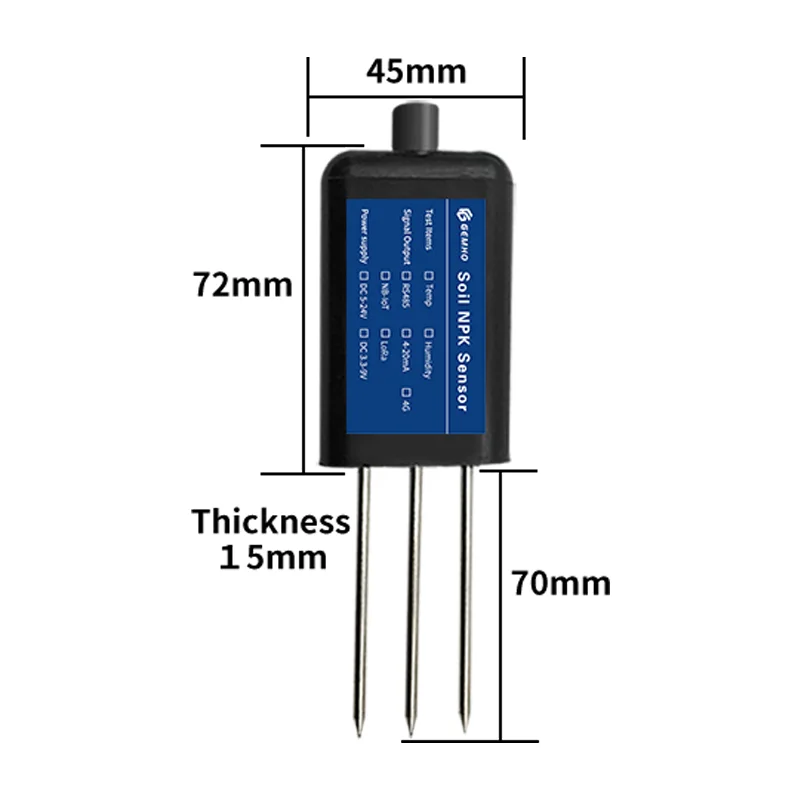

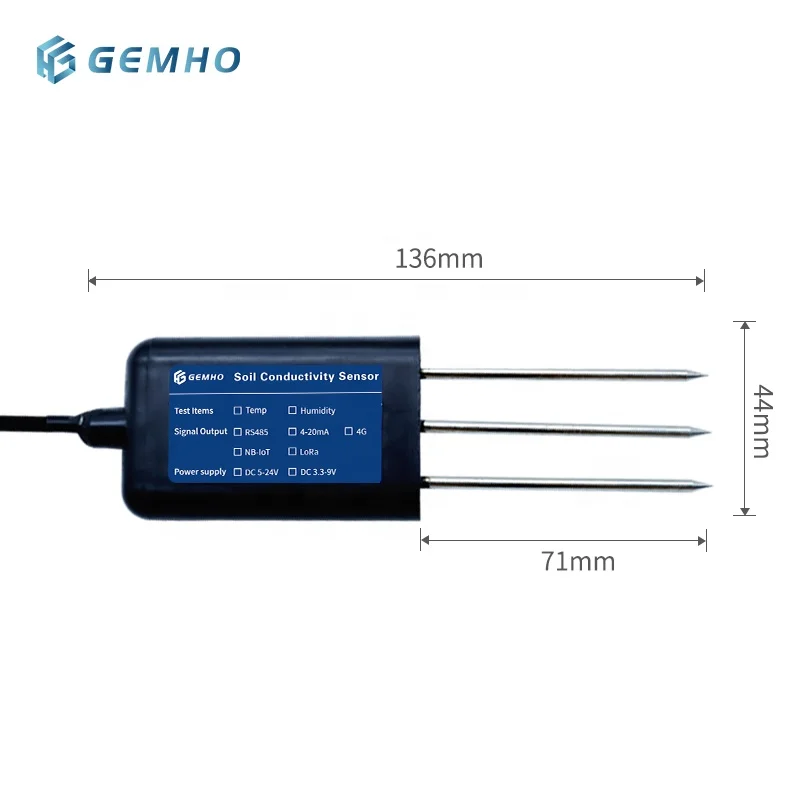

Size | Length (72+70) mm width 45mm thickness 15mm |
Operating temperature | -40℃~85℃ |
Working humidity | 15%RH~90%RH (relative humidity), non-condensing |
Product Description

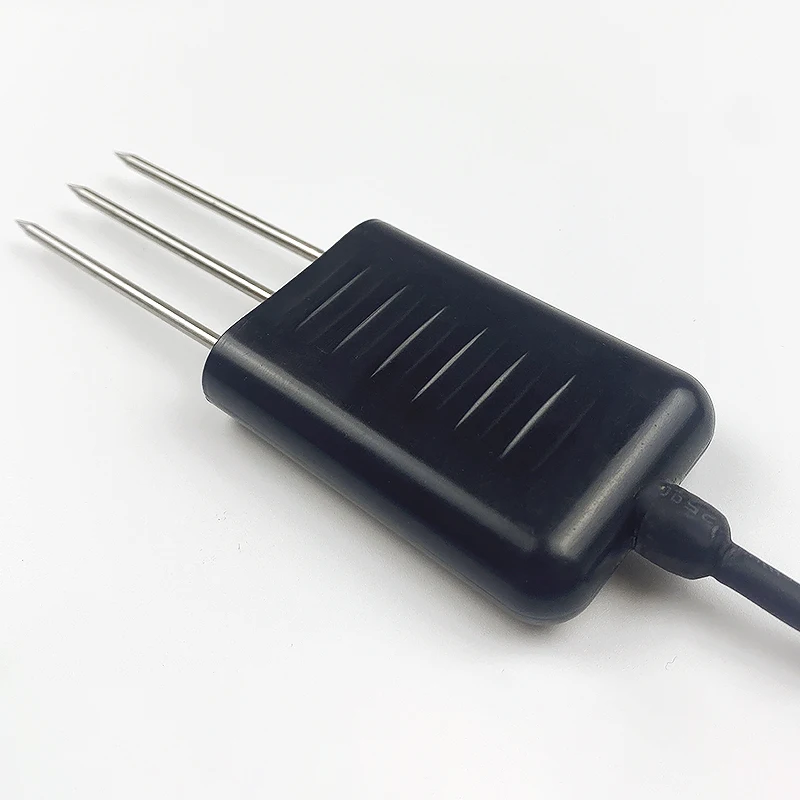

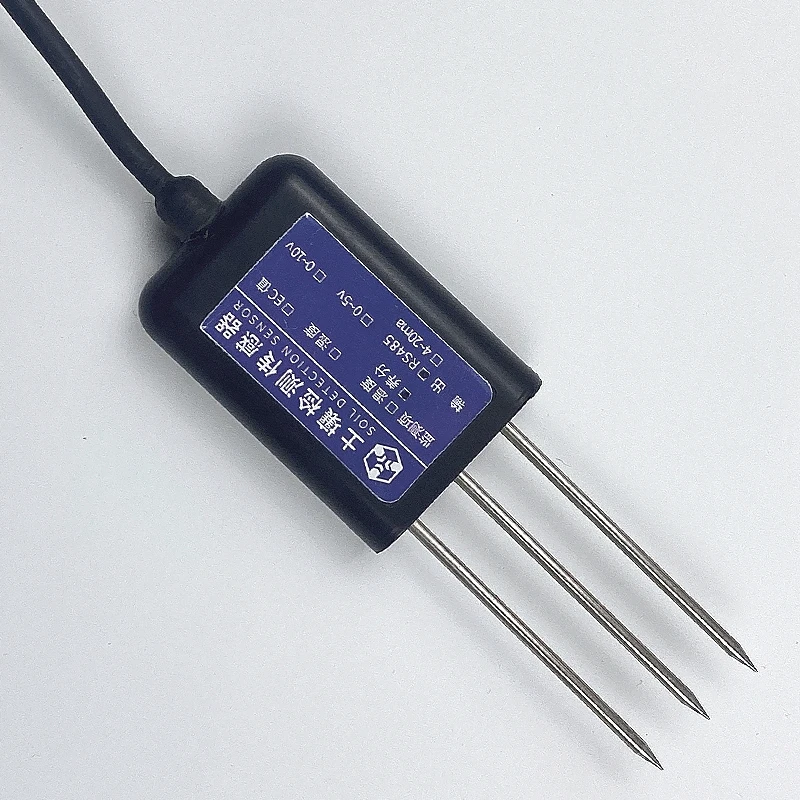

Detailed Images
The user provides the soil sensor 3 in 1 with a DC power supply with an input of 5 to 24v, either using the 220VAC to DC power supply provided by Crystal Hopper, or using a 12V solar panel and battery power supply to meet the needs of different occasions.
Product Advantages
Convenient Measurement
Insert or bury this sensor into the soil can measure all data details
Insert or bury this sensor into the soil can measure all data details
High Accuracy
High Accuracy, fast testing, can reach within 2% accuracy, increase the stability
High Accuracy, fast testing, can reach within 2% accuracy, increase the stability
Low Measurement Cost
Compared with traditional laboratory measurement, this producr has low cost, few steps, no re-agent, and no limited monitoring
times
Compared with traditional laboratory measurement, this producr has low cost, few steps, no re-agent, and no limited monitoring
times
Related Products
Our Service
Pre-sale service
The expert design team can help you solve the sensors and consulting work needed by the production line, and help you save investment and reduce enerey consumption.
The expert design team can help you solve the sensors and consulting work needed by the production line, and help you save investment and reduce enerey consumption.
Process services
The task you entrusted to GEMHO , our professional management team in accordance with the national high standards of quality, do every detail.
The task you entrusted to GEMHO , our professional management team in accordance with the national high standards of quality, do every detail.

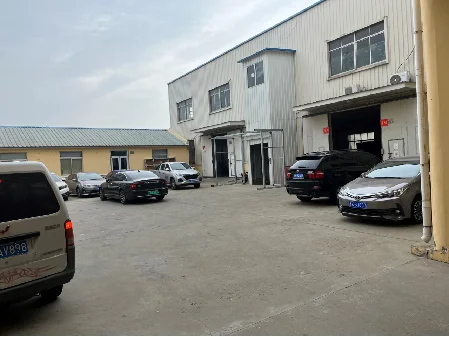

Company Introduction
Gemho is a supplier of customised IoT sensors and system solutions.
Weihai GEMHO Digital Mine Technology Co., Ltd is a nationally recognized high-tech enterprise and technology enterprise.
GEMHO started in 2004, opening a new chapter in the application of information and digitalisation in Chinese mines. Now the company's R&D and production team is based on the core of digital mining, and is deeply rooted in the field of IoT sensors.
Based on the industrial IoT platform and terminal control equipment, we have built a complete sensor product supply system.
We provide sensor devices and solutions for environmental monitoring such as air, water and soil, plant and agricultural parameters monitoring and smart cities.
Focusing on the development of hardware and software for IoT, we are committed to building an IoT cloud ecology.
Weihai GEMHO Digital Mine Technology Co., Ltd is a nationally recognized high-tech enterprise and technology enterprise.
The company's research and development products won the first prize of China Rock Mechanics and Engineering Society Science and Technology Award.
We have owned more than 60 independent intellectual property rights, participated in national "863 Program" and provincial and municipal scientific and technological development plans and other scientific research projects, and won national,provincial, and municipal scientific and technological progress awards and a number of internationally leading scientific and technological achievements.
Certifications
The GEMHO policy is to provide its customers with the highest quality products and services, that meet applicable requirements and to make continual improvements in the effectiveness of the Quality Management System to support our objectives and growth of the organization.
ISO 9001:2015 CERTIFIED SYSTEM
Weihai Gemho Digital Mine Technology Co., Ltd. Quality Management System is ISO 9001:2015 certified. The International Standards Organization (ISO) 9001:2015 certification is established on evidence of absolute corporate commitment to quality in management responsibility, design control, inspection and testing, delivery, internal quality audit procedures, training and servicing. With ISO 9001:2015 certification, Weihai Gemho Digital Mine Technology Co., Ltd. guarantees to customers that a quality control management system is in place and being strictly followed.
CNEX
In China, all products that are to be used in hazardous areas must be certified to the Chinese National Ex-standards (GB standards) according to Chinese laws and regulations.
Current Chinese Ex-Standards
Chinese Ex-standards are mandatory standards. They are identical or equivalent to IEC/EN standards.
MA
Mining Products Safety Approval and Certification Center (MA Center), specializing professional research institution of mining equipment safety and a key technological support body for workplace safety in China, also makes continuous contributions to safety technological research, regulatory and standard development, industrialization of technological achievements, extension of advanced technologies, and provides support and services for mining safety production, mining products production and manufacturing and mining safety regulation and supervision in China.
Weihai Gemho Digital Mine Technology Co., Ltd. Quality Management System is ISO 9001:2015 certified. The International Standards Organization (ISO) 9001:2015 certification is established on evidence of absolute corporate commitment to quality in management responsibility, design control, inspection and testing, delivery, internal quality audit procedures, training and servicing. With ISO 9001:2015 certification, Weihai Gemho Digital Mine Technology Co., Ltd. guarantees to customers that a quality control management system is in place and being strictly followed.
CNEX
In China, all products that are to be used in hazardous areas must be certified to the Chinese National Ex-standards (GB standards) according to Chinese laws and regulations.
Current Chinese Ex-Standards
Chinese Ex-standards are mandatory standards. They are identical or equivalent to IEC/EN standards.
MA
Mining Products Safety Approval and Certification Center (MA Center), specializing professional research institution of mining equipment safety and a key technological support body for workplace safety in China, also makes continuous contributions to safety technological research, regulatory and standard development, industrialization of technological achievements, extension of advanced technologies, and provides support and services for mining safety production, mining products production and manufacturing and mining safety regulation and supervision in China.
Our sensors distribute worldwide to about 20 countries where there are IOT industry.And where there are our sensors, there are good reputation and terminal user satisfaction.
Packing&Shipping
Express: door to door include import duty. DHL/UPS/Fedex etc.
Sea/Air: depends on location per buyers' requests.
Sea/Air: depends on location per buyers' requests.
The Nearest Port: Qingdao Port.
Delivery time: 5-10days after payment.

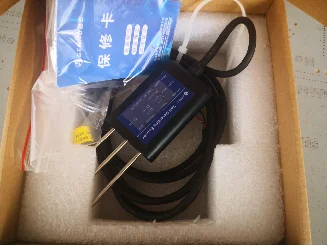

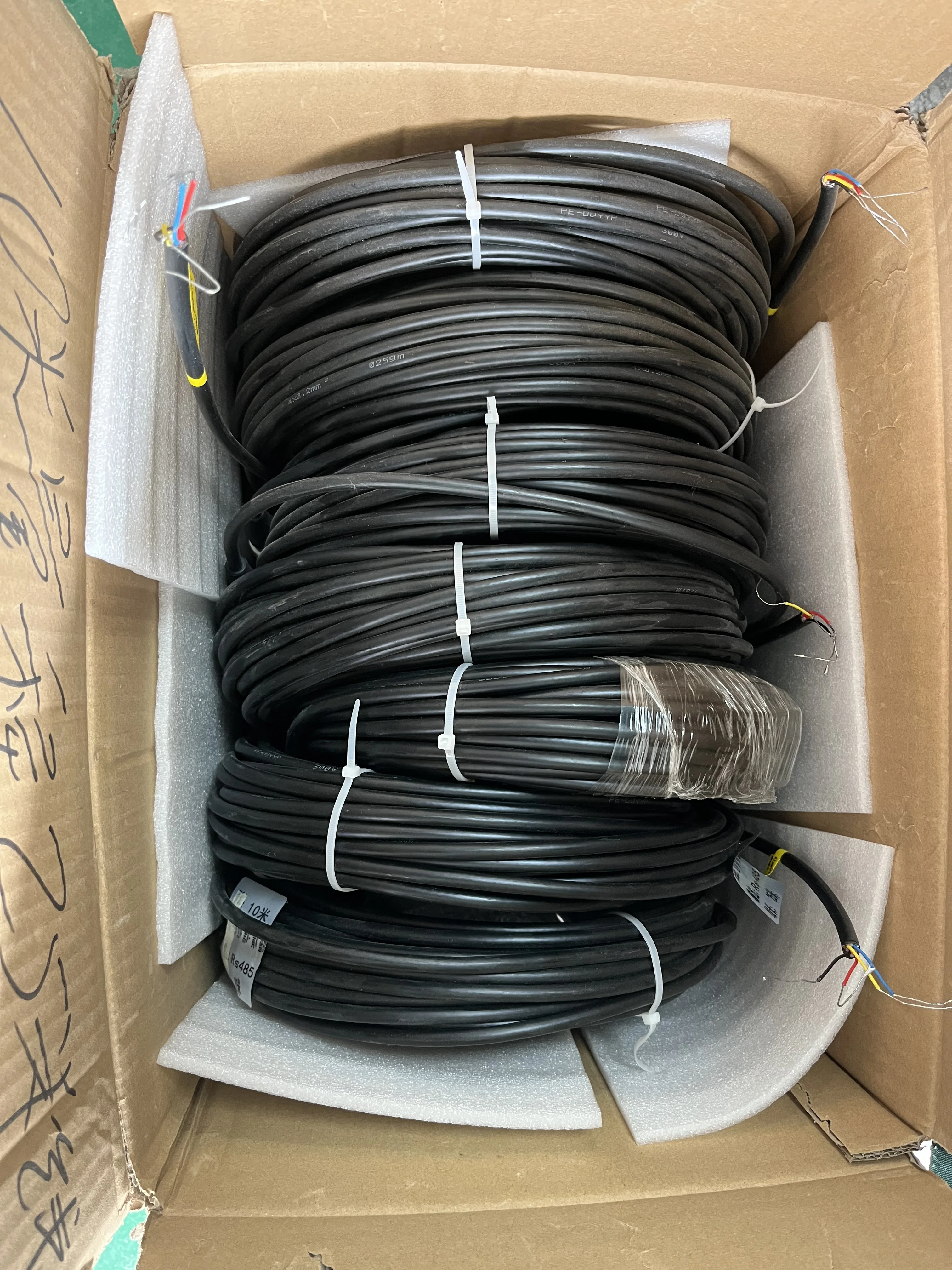

Packing: 2pcs sensor in a small box, 50pcs small box in a big box.
