semi automatic hot filling plastic bottle machine/juice bottle making machine
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (1601200087540):
Product Overview
Description
Product Description

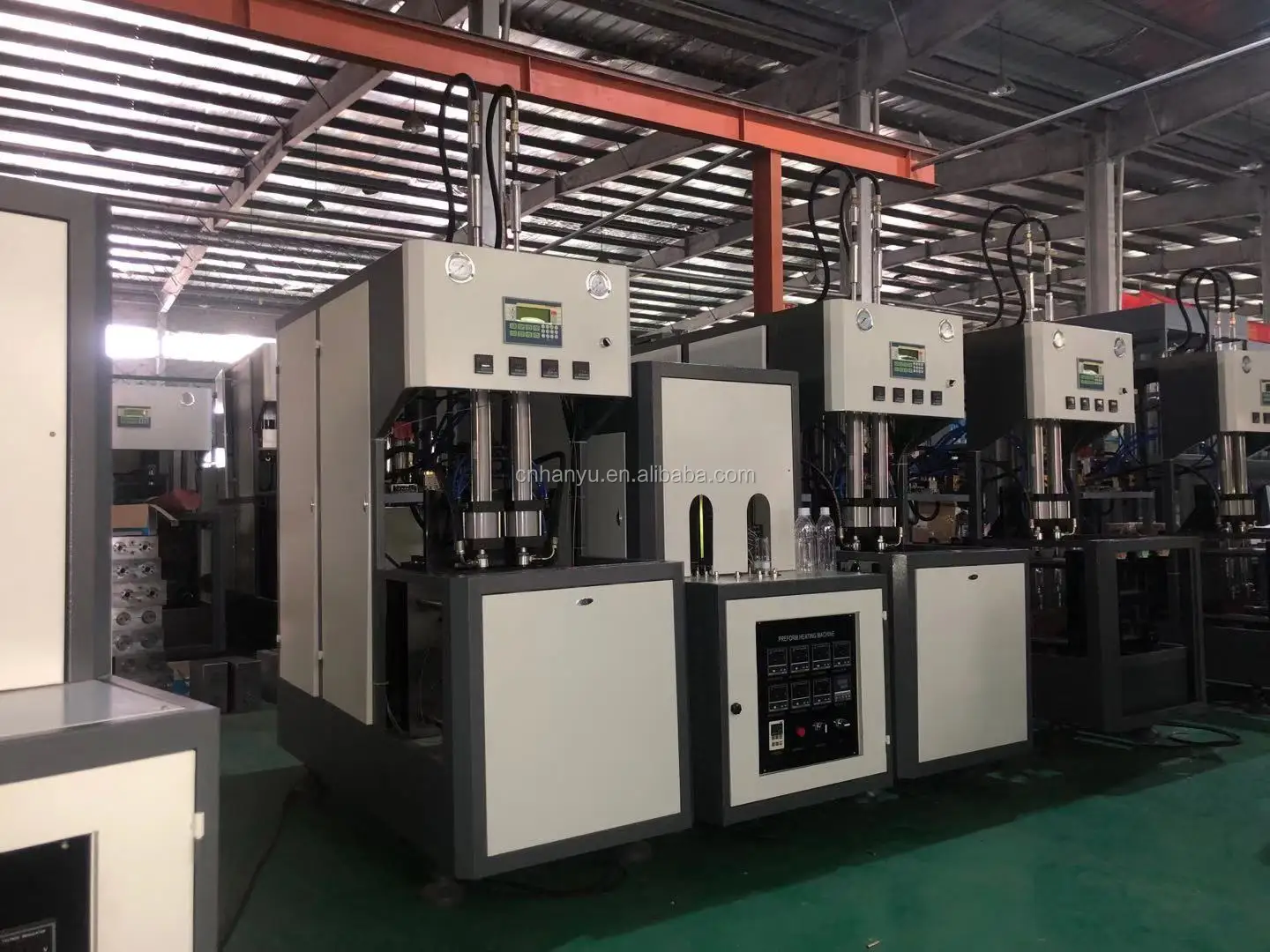

HY-H type heat-resistant semi-automatic bottle blowing machine suitable for blowing various shapes of PET bottles, the volume from 50 ml to 2000 ml, the bottle temperature above 90 ℃, some products can be installed up to 95 ℃ tea, fruit juice , milk, syrup, oral solution such as drinks, health care products. Compared with their peers, blowing a high product temperature, the product stored for a long time investment, and high efficiency, well received by customers love.
● use of dual-axis crank mode-locking, mode-locked solid, fast running speed, using far-infrared rotary oven, heating evenly.

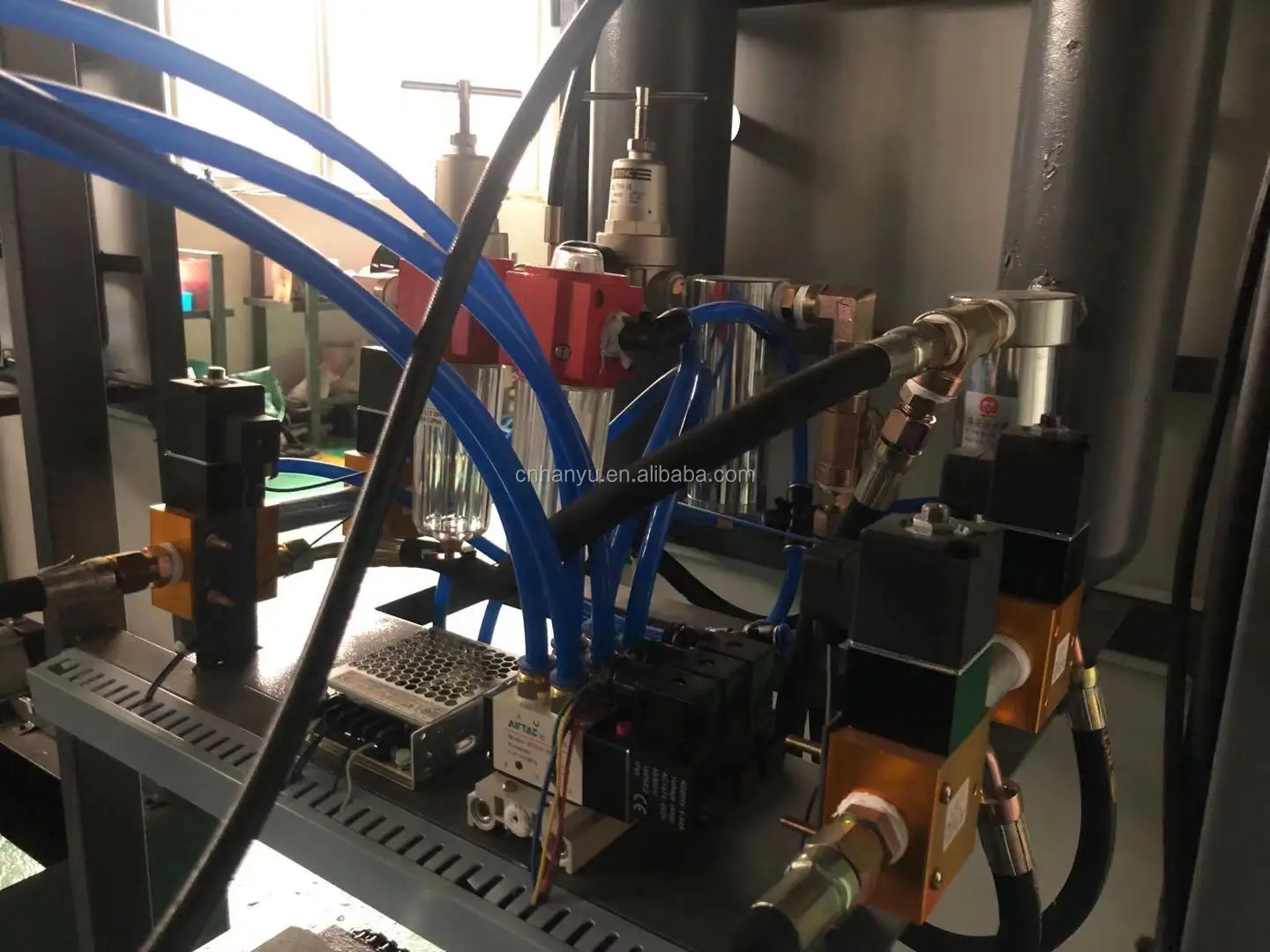

● pneumatic system is divided into two parts, movements and inflatable in order to meet the action, blowing the different air pressure requirements, and can provide a stable high pressure to blow a large volume of special-shaped bottles.
● This machine is equipped with silencer and the parts refueling device.
● This machine is divided into two kinds of touch-point moving and semi-automatic type.
● This machine small size, less investment, easy to operate security
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 1600*600*1610mm*2 |
Bottle volume (max) | ml | 1500 | |
Bottle volume (min) | ml | 50 | |
Bottle Neck Diameter (max) | mm | 38 | |
Bottle Neck Diameter (min) | mm | 15 | |
Body Diameter (max) | mm | 110 | |
Body Height( max) | mm | 340 | |
Number of Cavities | mold | 2 | |
Production output | pcs/h | 700-900BPH | |
Clamping force | T | 5.7(56KN) | |
Mold thickness | mm | 200(max) | |
Mold width | mm | 360x390 | |
Space between Tie-bars | mm | 120-220 | |
Diameter of Tie-bars | mm | 63 | |
Scope of Tie-bars | mm | 405 | |
Mold stroke | mm | 170 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Blowing pressure | Mpa | 2.0-3.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Pre-heater | Dimension | mm | 1760*650*1380mm |
Weight | kg | 260 | |
Voltage/Power | V/KW | 380V/14KW | |
Lamp | PCS | 28 | |
Working power | Kw | 8kw |

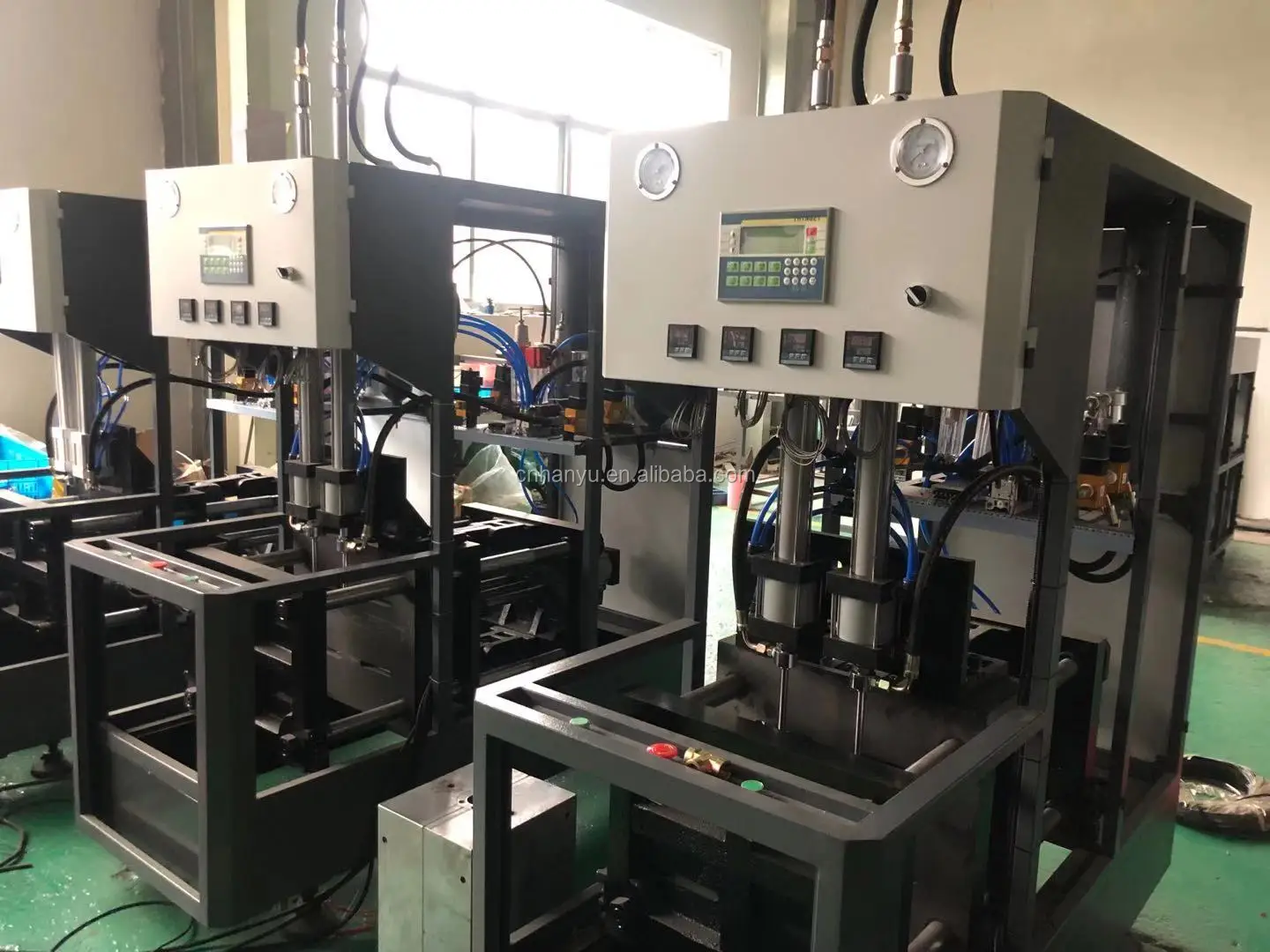

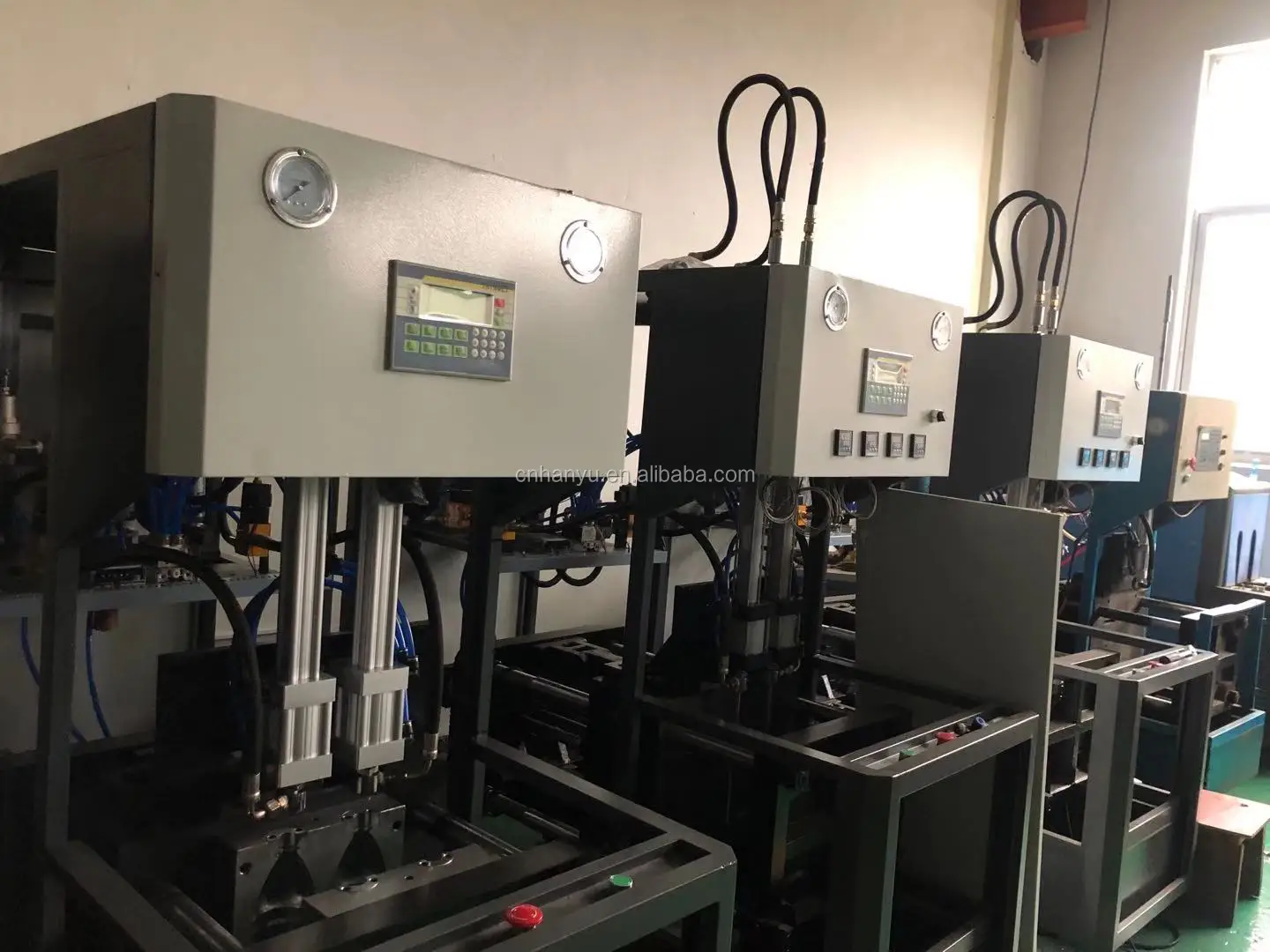

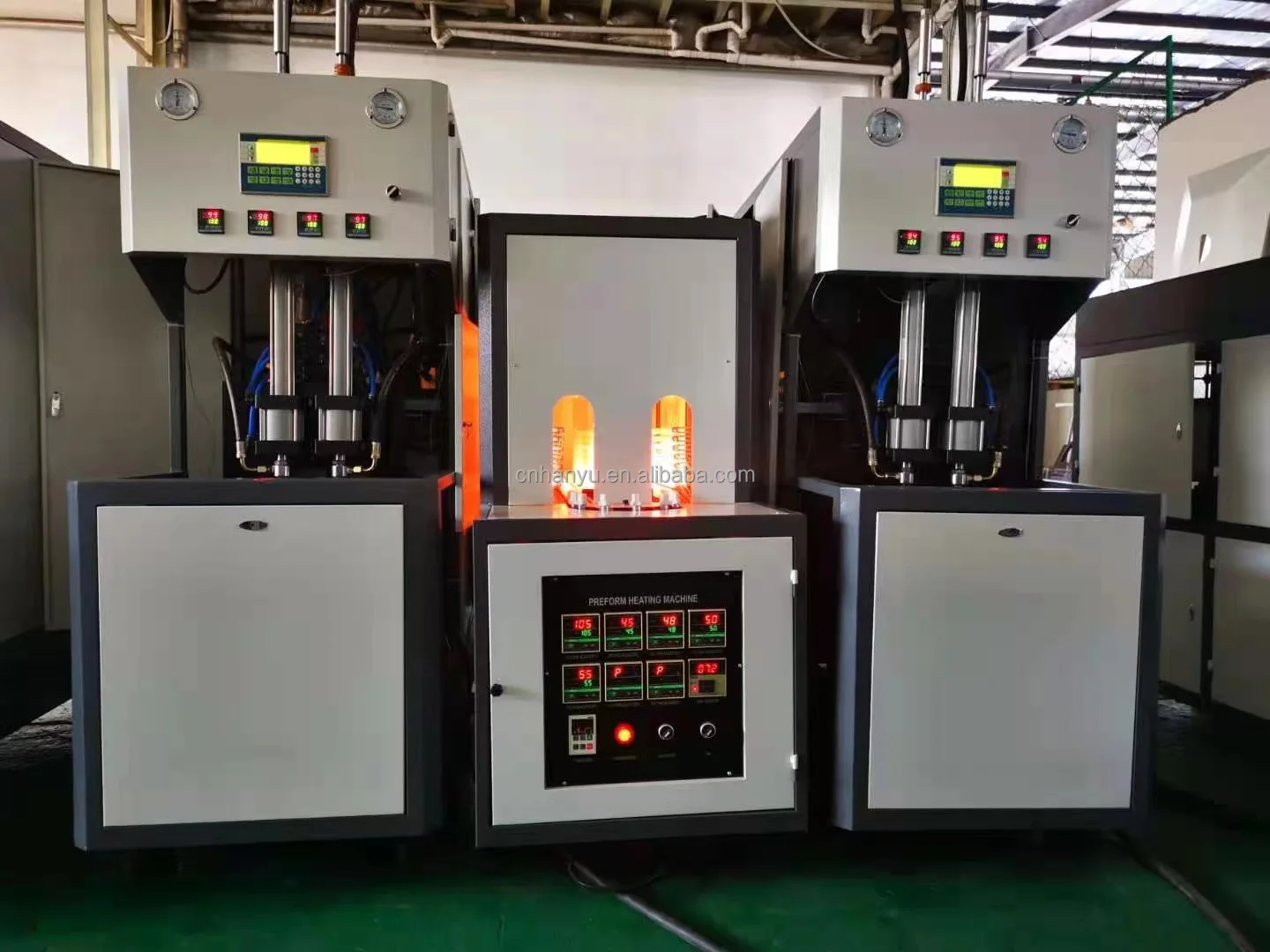

Detailed Images

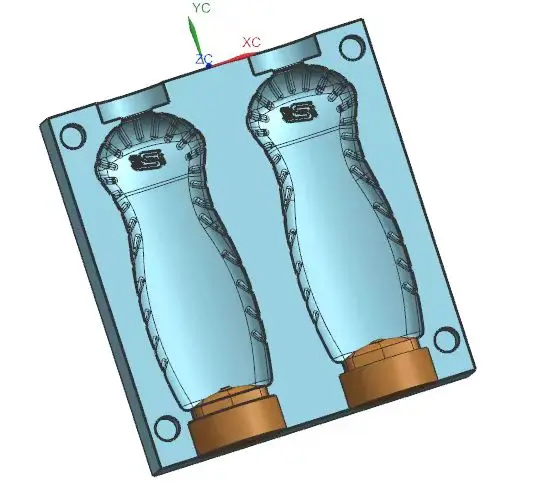

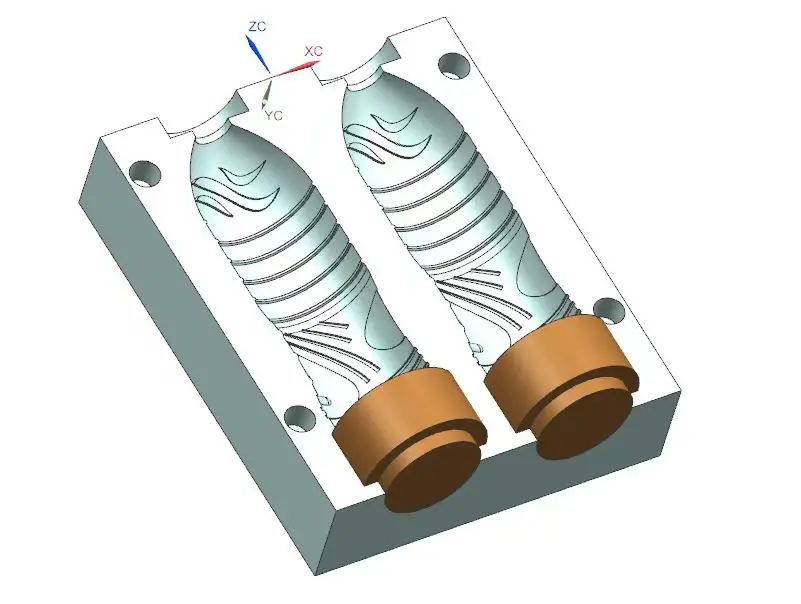

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould

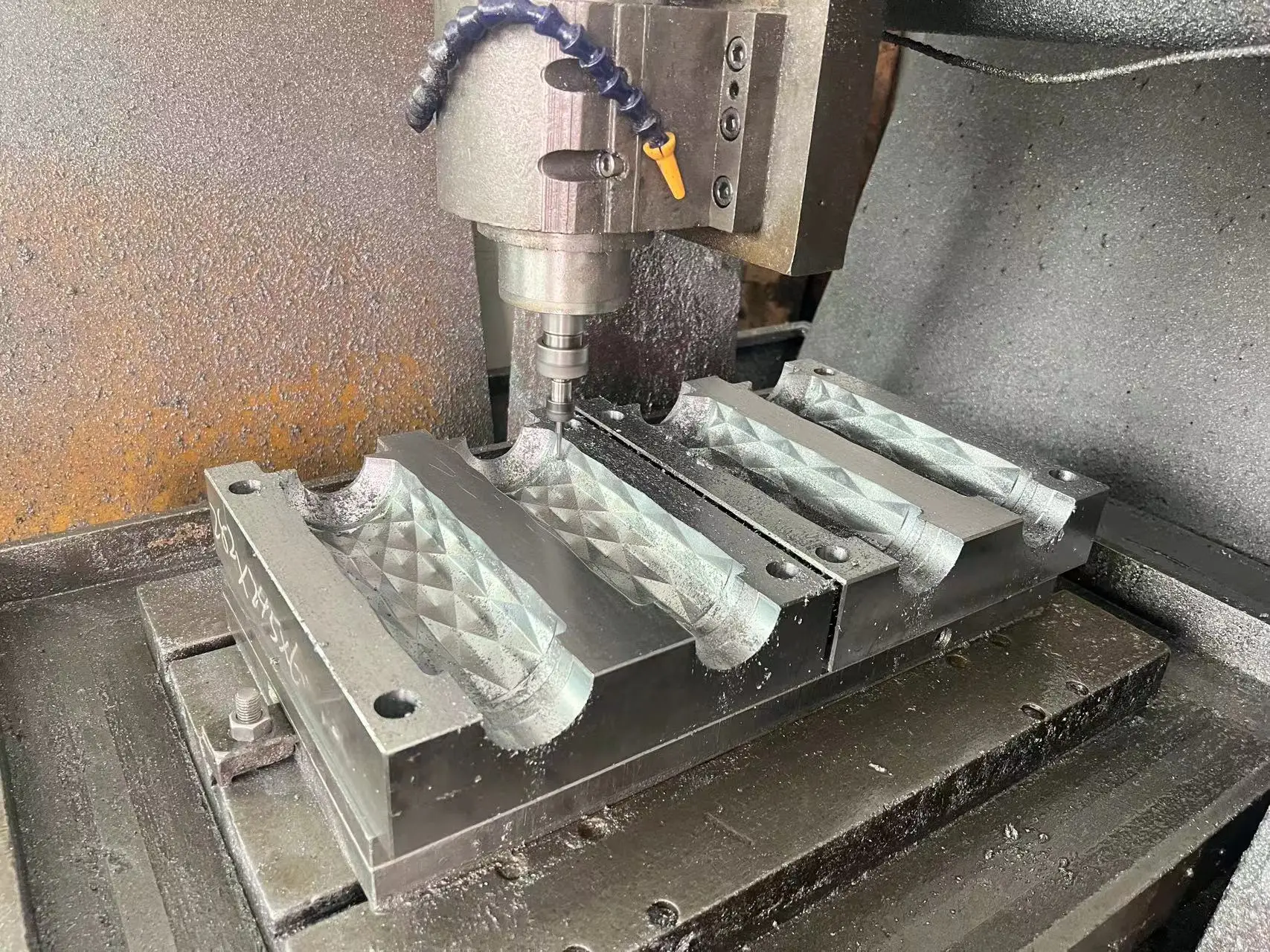

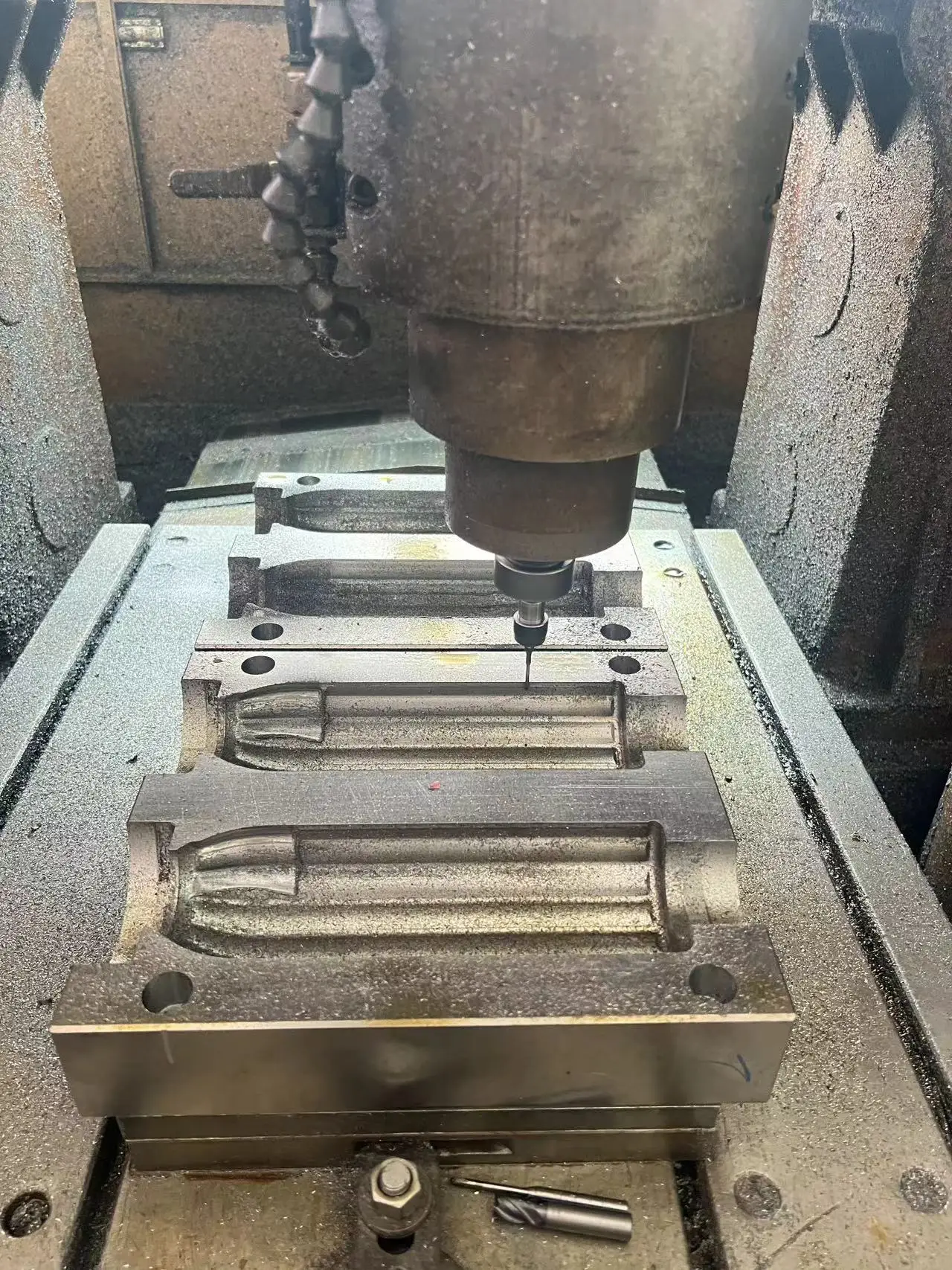

All moulds are designed by CAD/CAM.
333
FAQ
Q1: Where is your factory located? How can I visit there?
Yes warmly welcome to visit us ，we are in Taizhou City, Zhejiang Province, China.
Q2: How long is the warranty ?
A2: All of products have one years warranty.
Q3: How can I install my machine when it arrives?
A3: We will provide detailed installation videos for semi-automatic machine and provide 24-hour online support.
and if you need we will send our engineer to your side as soon as you get all your machines to testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days for fully-auto machine，15days for semi-automatic machine
Q5: Where is the Shipping departure port?
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7. What products does your company offer by yourself?
Q7. What products does your company offer by yourself?
A7: We are specialized in PET Blow Molding Machine, PET Blow Mold, Injection Machine, PET Preform Mold,Cap mold.
Q8: How about the quality of machine?
Q8: How about the quality of machine?
A8: We have been producing bottle blowing machines since 1996 with extensive experience and
undergo repeated testing and inspection before shipment
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Factory
Zhejiang Hanyu Automation Technology Co., Ltd
Zhejiang Hanyu Automation Technology Co., Ltd is a professional manufacturer of blow molding machines, Our team have been involved in blow molding machine and mould industry since 1996 Machine manufacturing. integrating development and production together. Our main products include P E T full- automatic blow molding machine, semi-automatic blow molding machine, B O P P blow molding machine, hot-filling bottle blow molding machine, 5 gallon blow molding machine, preform mold, cap mold, bottle mold, plastic mold, injection machine and other related products. Hanyu Machinery has perfect manufacturing equipment and manufacturing system, with a high-quality, professional , persistent team.we can provide all technology to the customers from design to successful install.
