YOULI AT63 Hygienic food grade stainless steel 3A/SMS/DIN 304 316 Sanitary pneumatic tri Clamped Butterfly Valve
- Category: >>>
- Supplier: Wenzhou Youli Machinery Co. Ltd.
Share on (1601200100307):
Product Overview
Description
Product Description
Body material | SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc. |
Full port | 1/2"-12"(DN15-DN300),Φ19-Φ219 |
Working pressure | PN16,1.6Mpa,16Bar |
Medium temperature | - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C) |
Sterilization temperature | 150°C(max.20min) |
Connection type | Weld,Thread,Socket,Clamped,Flanged,Wafer |
Connection Standard | BSPT,Optional(NPT, BSP, BSPP) |
Welding connection | DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc |
Sealing | PTFE,RPTFE,PPL ETC |
Surface treatment | Ra0.4-0.8μm |
Inside surface treatment | Ra0.4-0.8μm |

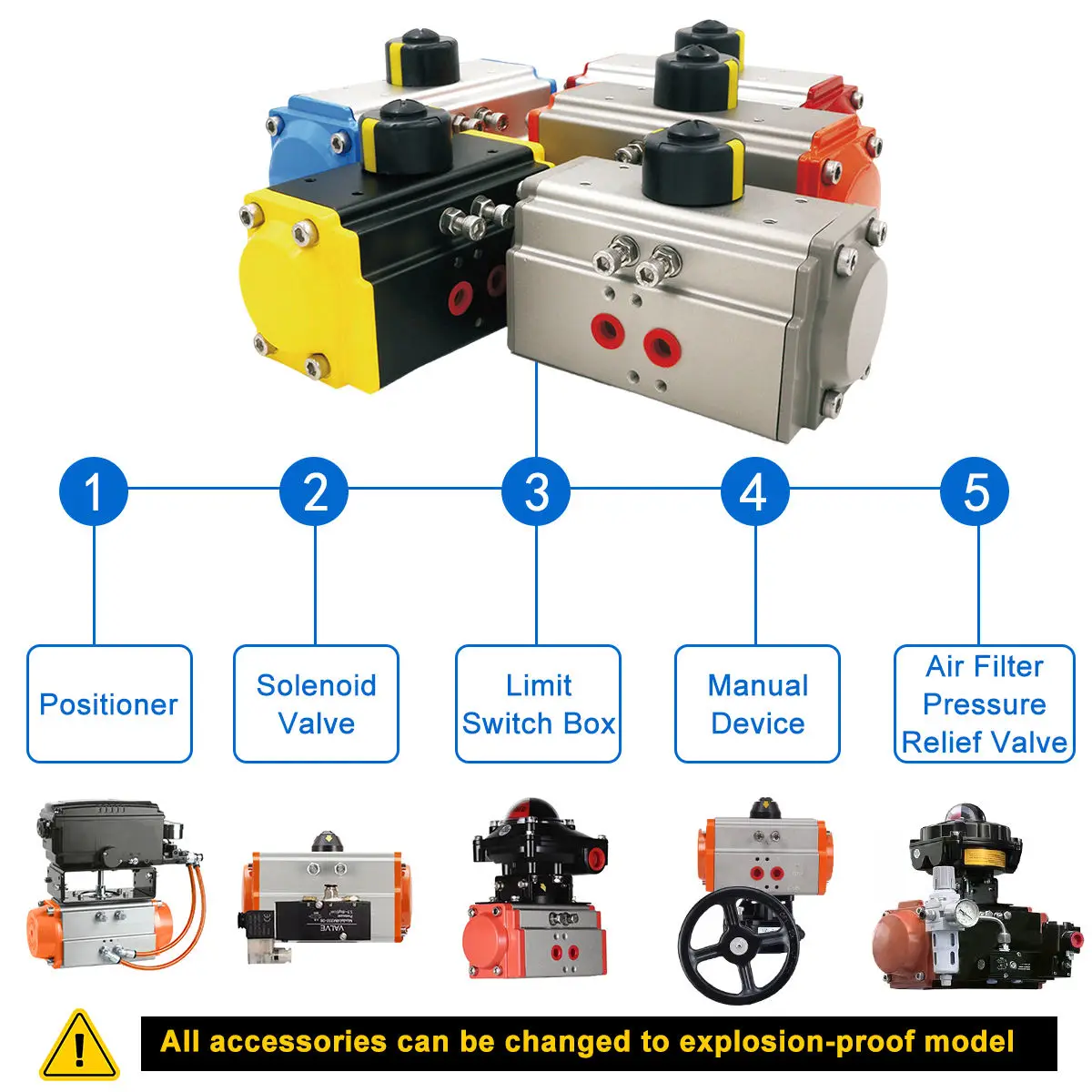

Pneumatic actuator | Double acting,option(Spring return ) |
Solenoid valve | Option(DC24V,AC220V) |
Filter | Option |
Handwheel | Option |
Limit switch | Optionn(APL210,APL410 explosion-proof,APL510 explosion-proof) |
Positioner | Option(TY-1000,4-20ma Signal feedback) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for beverage, fruit juice, wine, milk,drink,bio pharmaceutical etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |

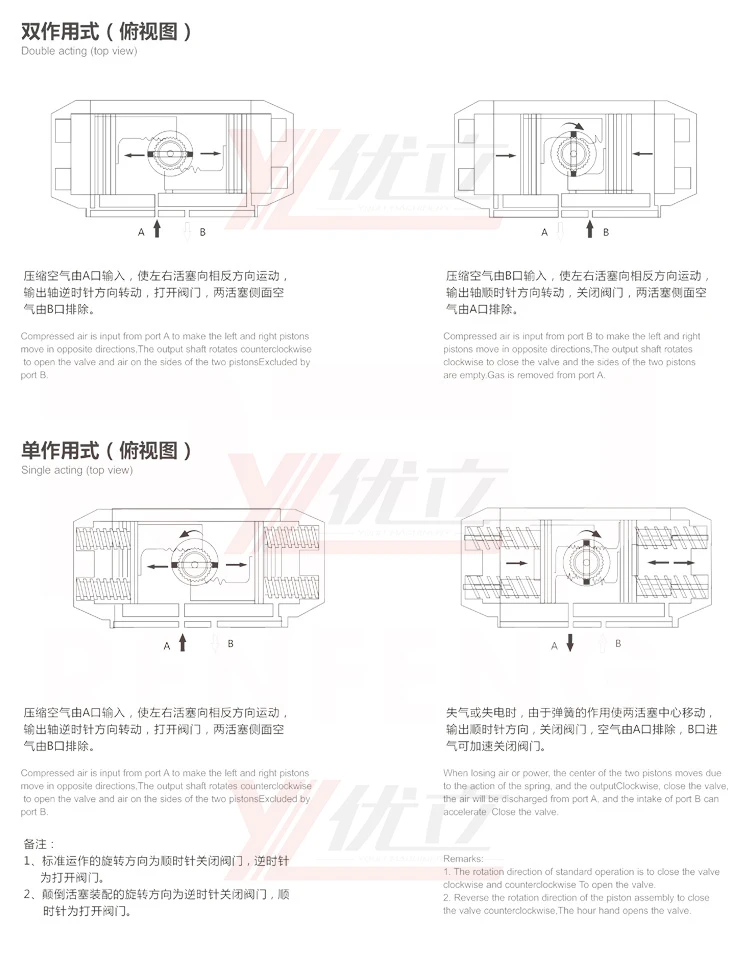

Operating Principle.
A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc

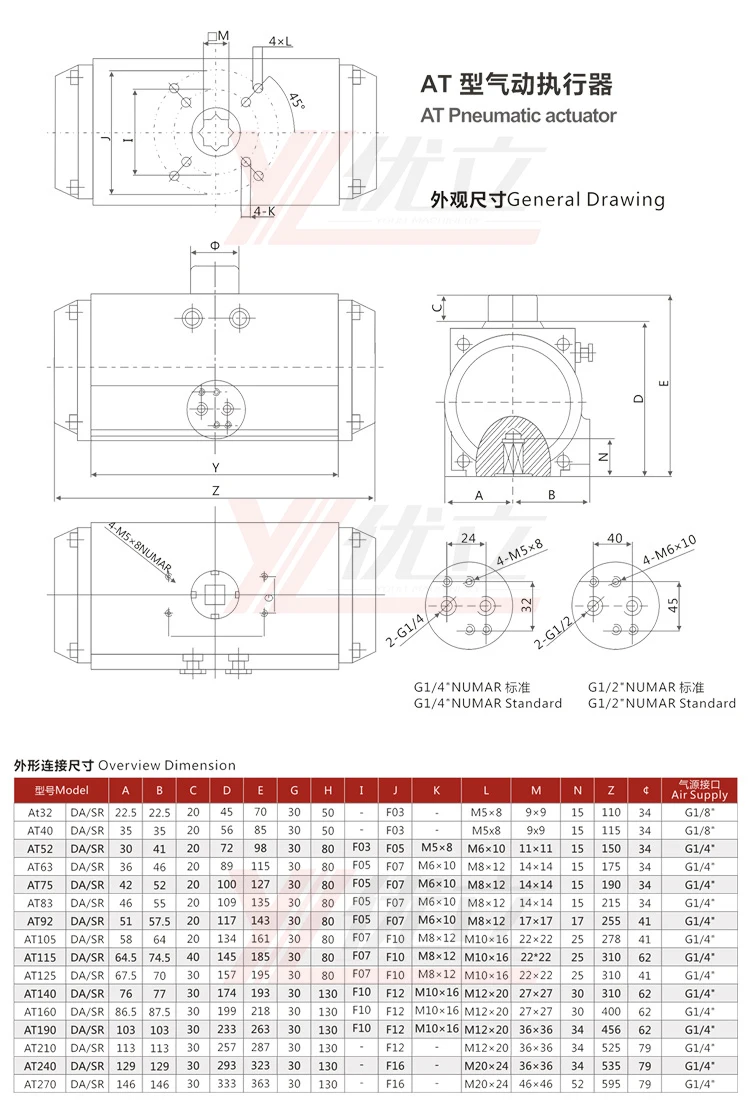

Product Paramenters
Related Products

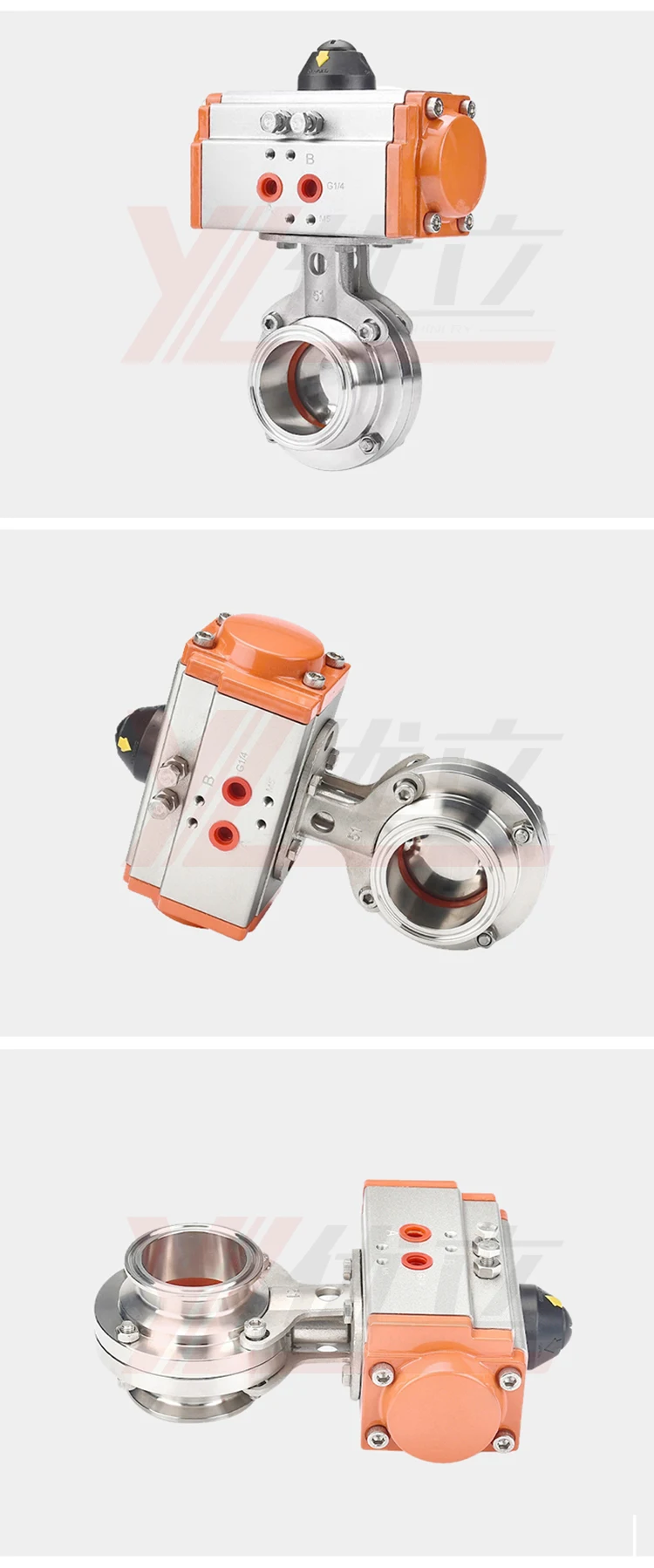

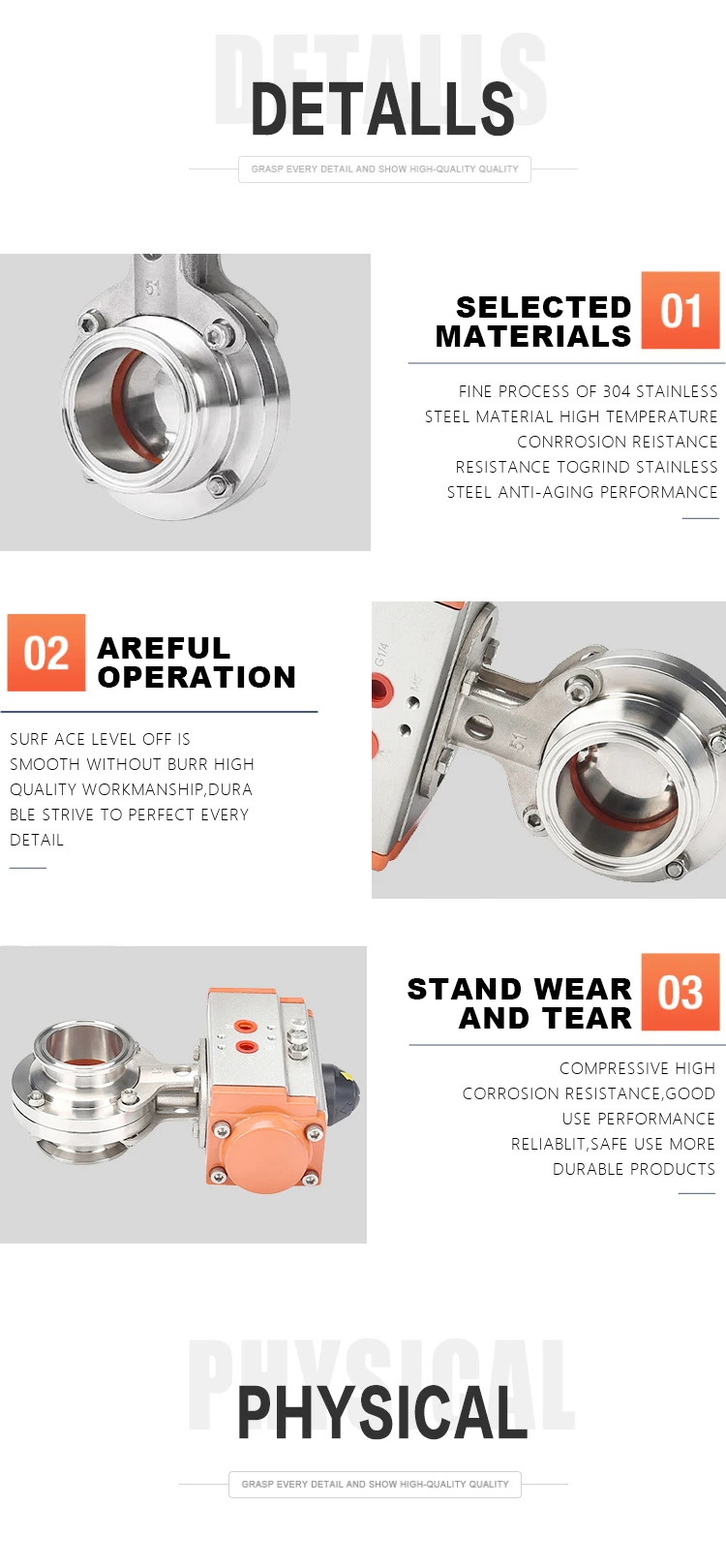

Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
