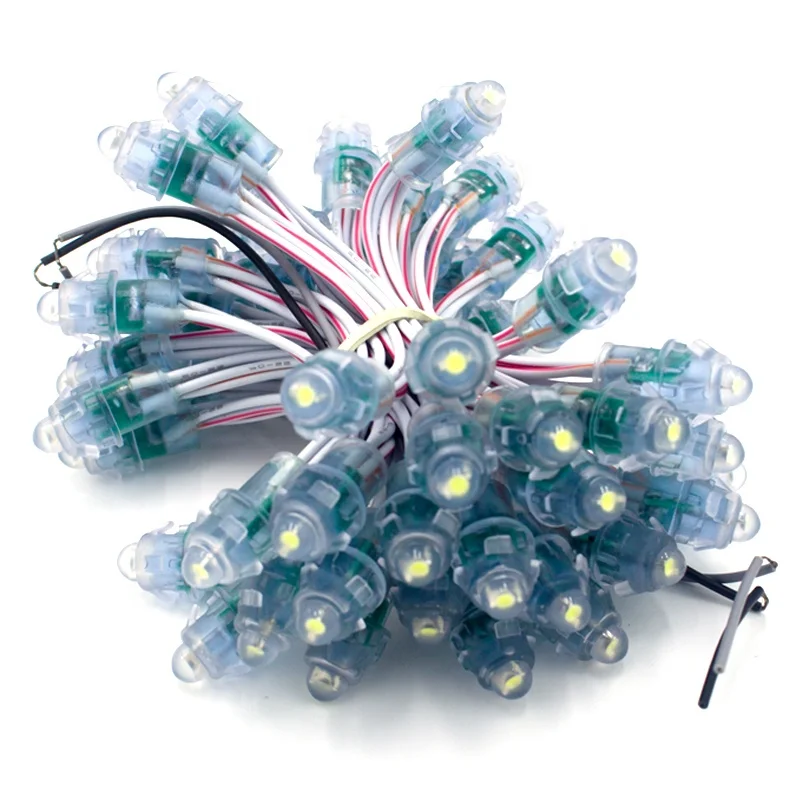

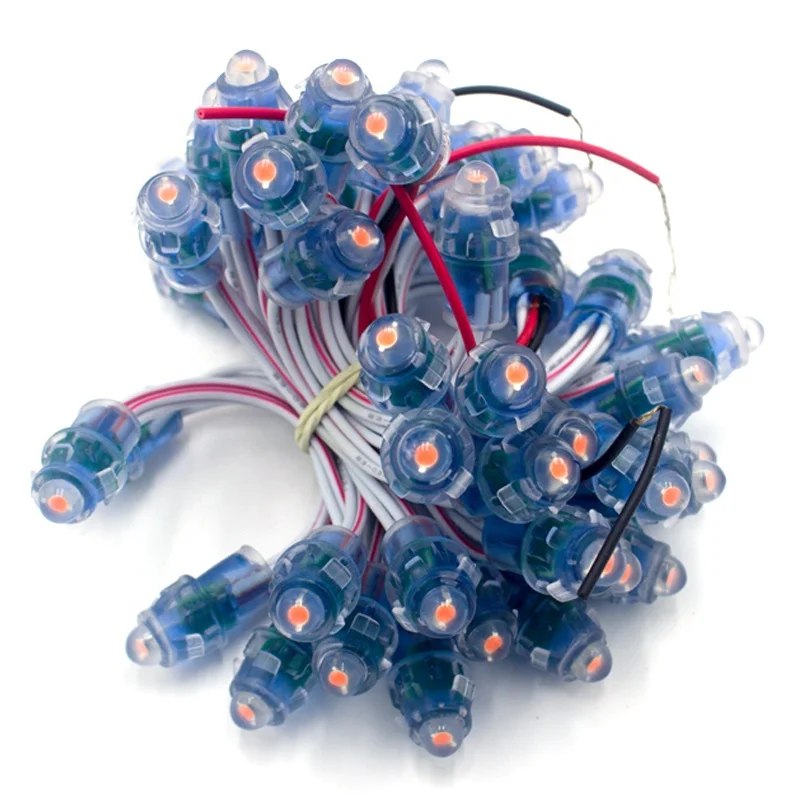

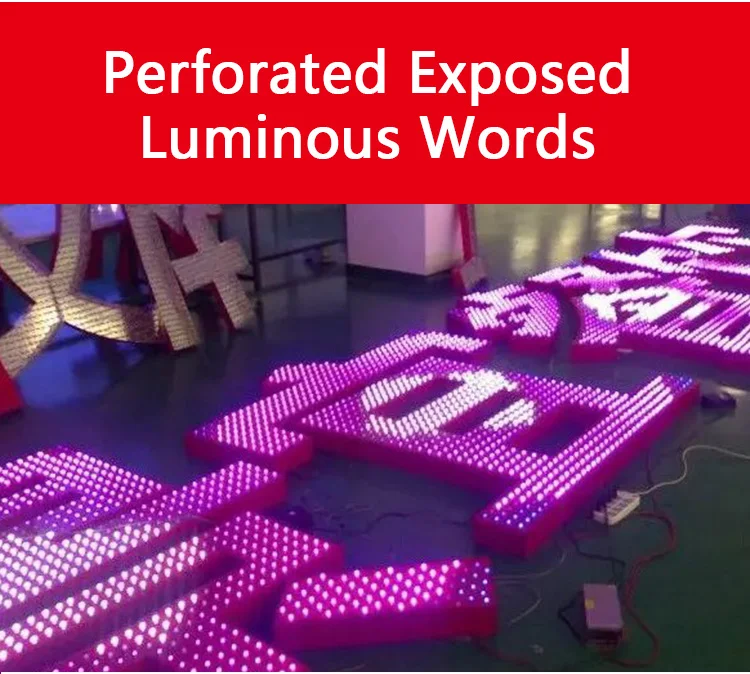

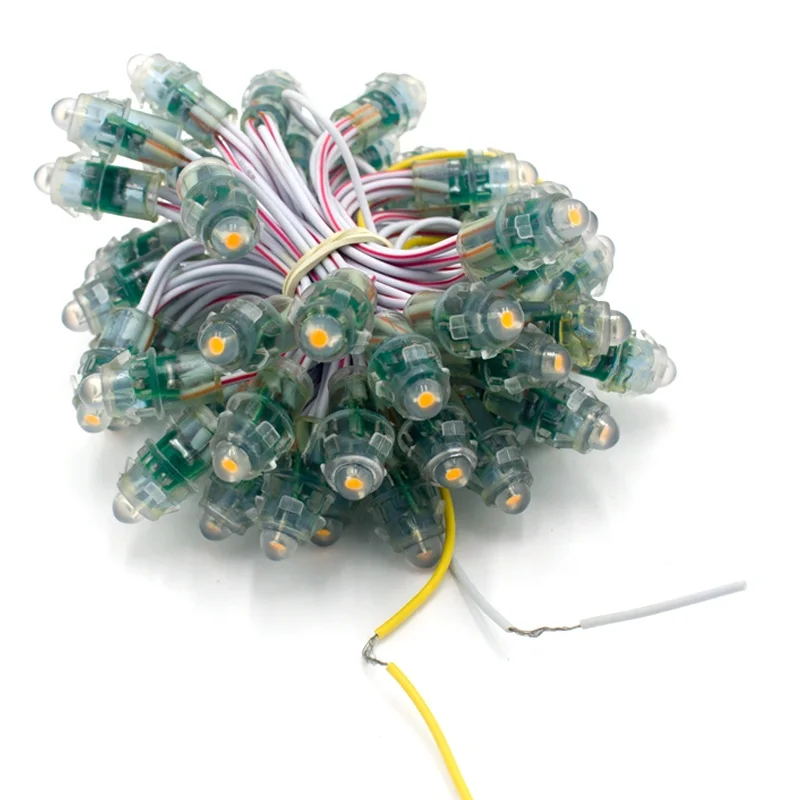

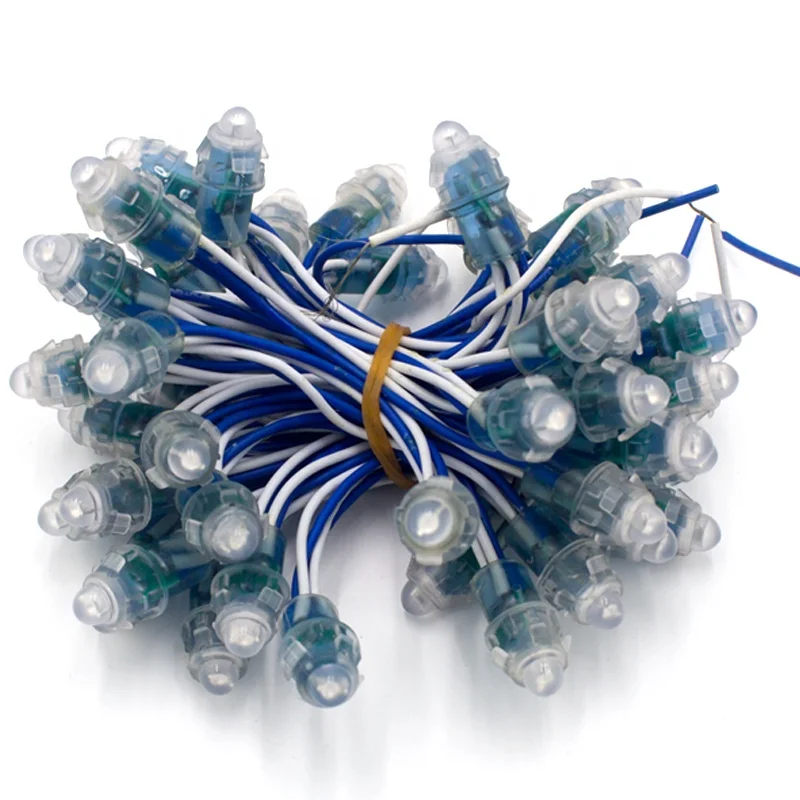

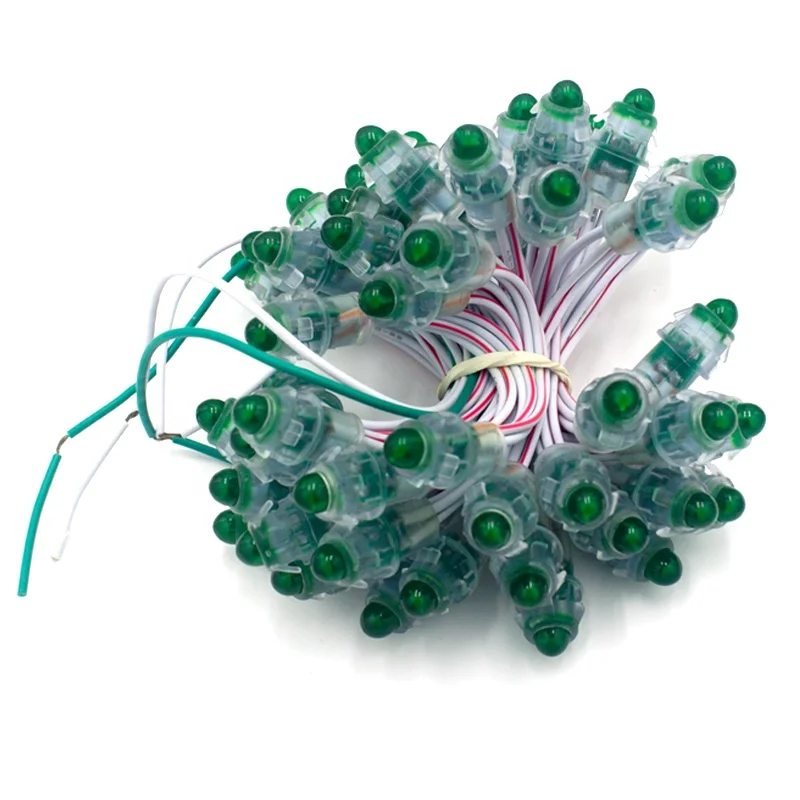

Waterproof Pixel Led DC12V 12mm/9MM 5V12MM/9MM White Light Red Light Led Perforated Signboard Led Light Strip

 Brand: Hongding Zhiguang, Chip: Taiwan wafer, Lamp bead: F5 straw hat wafer chip, Size: 9mm in diameter * 20mm in length, Brightness: 22 lumens, Voltage: 12V, Power: 0.2W, Quantity: 50 pieces/series, Parallel connection, Waterproof grade: IP68, Material: Soft PVC transparent adhesive, AB epoxy resin filling process, Beam angle:>120, Line spacing: 6.8CM (resistance version), 5.7CM (engineering version), 6.2CM (with board version) (about 6.5CM). Wire: 13 pieces, 0.17, copper tin plating process, good heat dissipation performance. Installation punching spacing: 20-40mm, service life: regular model (2 years or 6000H, whichever comes first), engineering model (3 years or 8000H, whichever comes first), working temperature: -30~+65 ℃, luminous angle: 180 degrees.
Product technical parameters: Lamp material: resistant to high and low temperatures, flame retardant grade: flame retardant V-1, UV resistance grade: UV4-5, number of cascaded lamps: 50 cascaded lamps.
