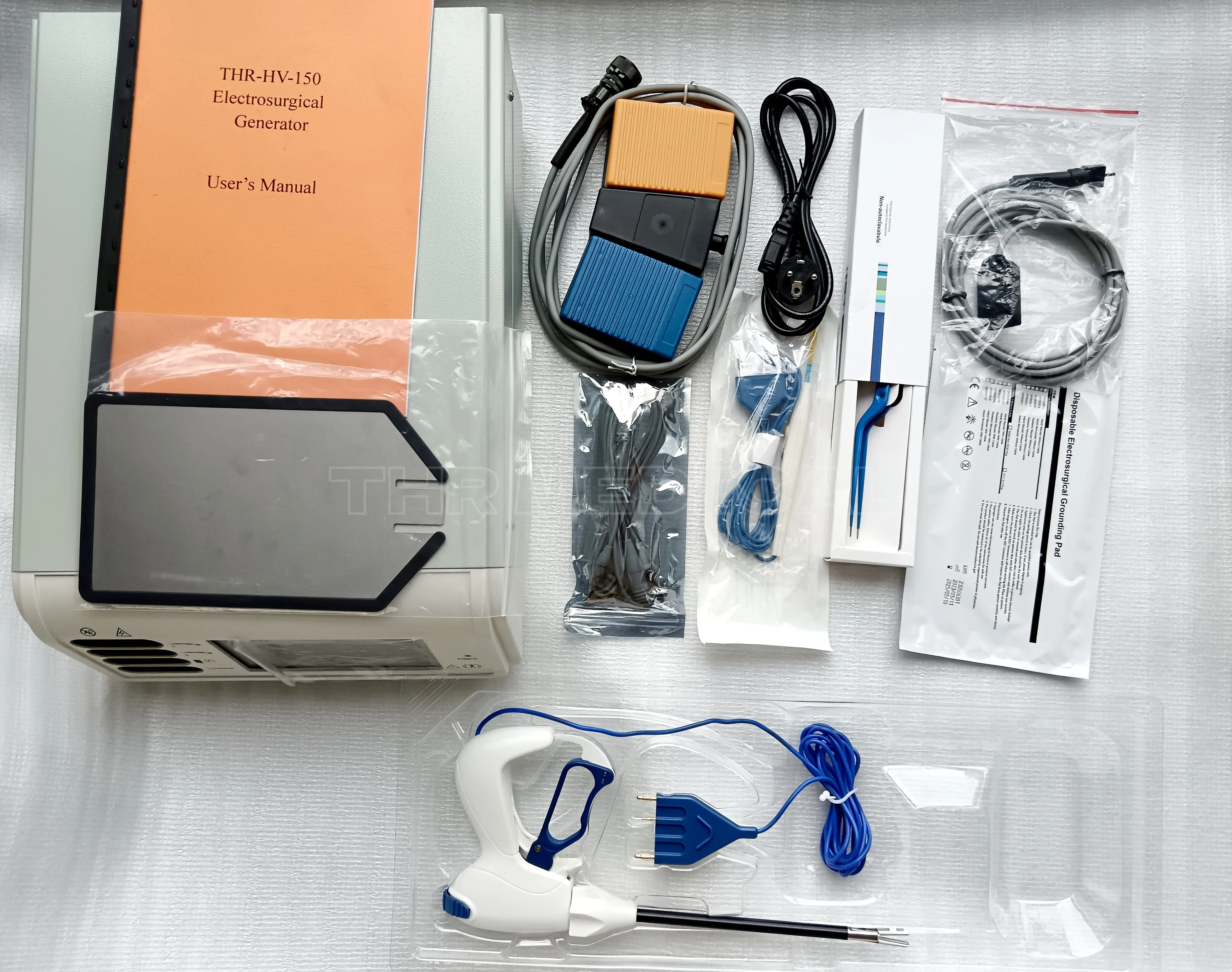

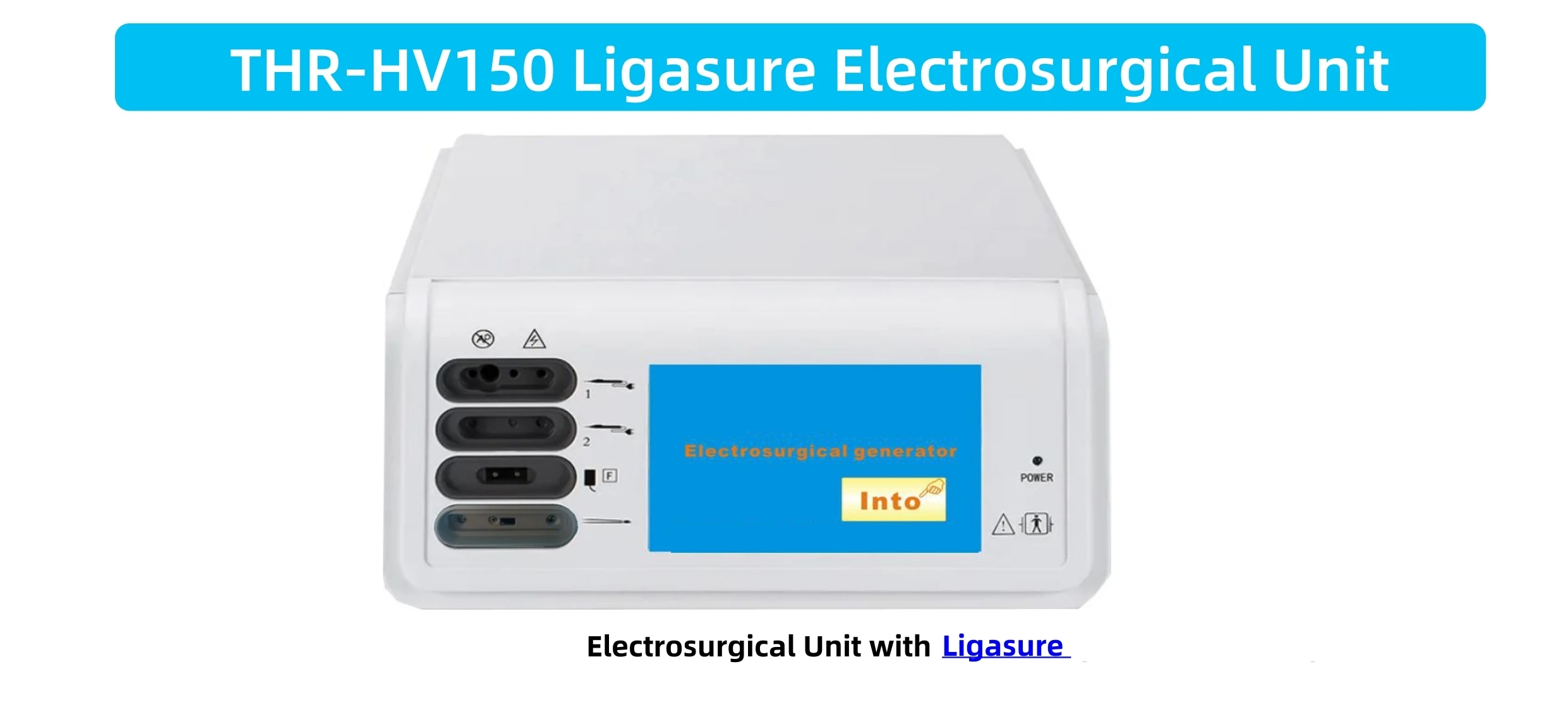

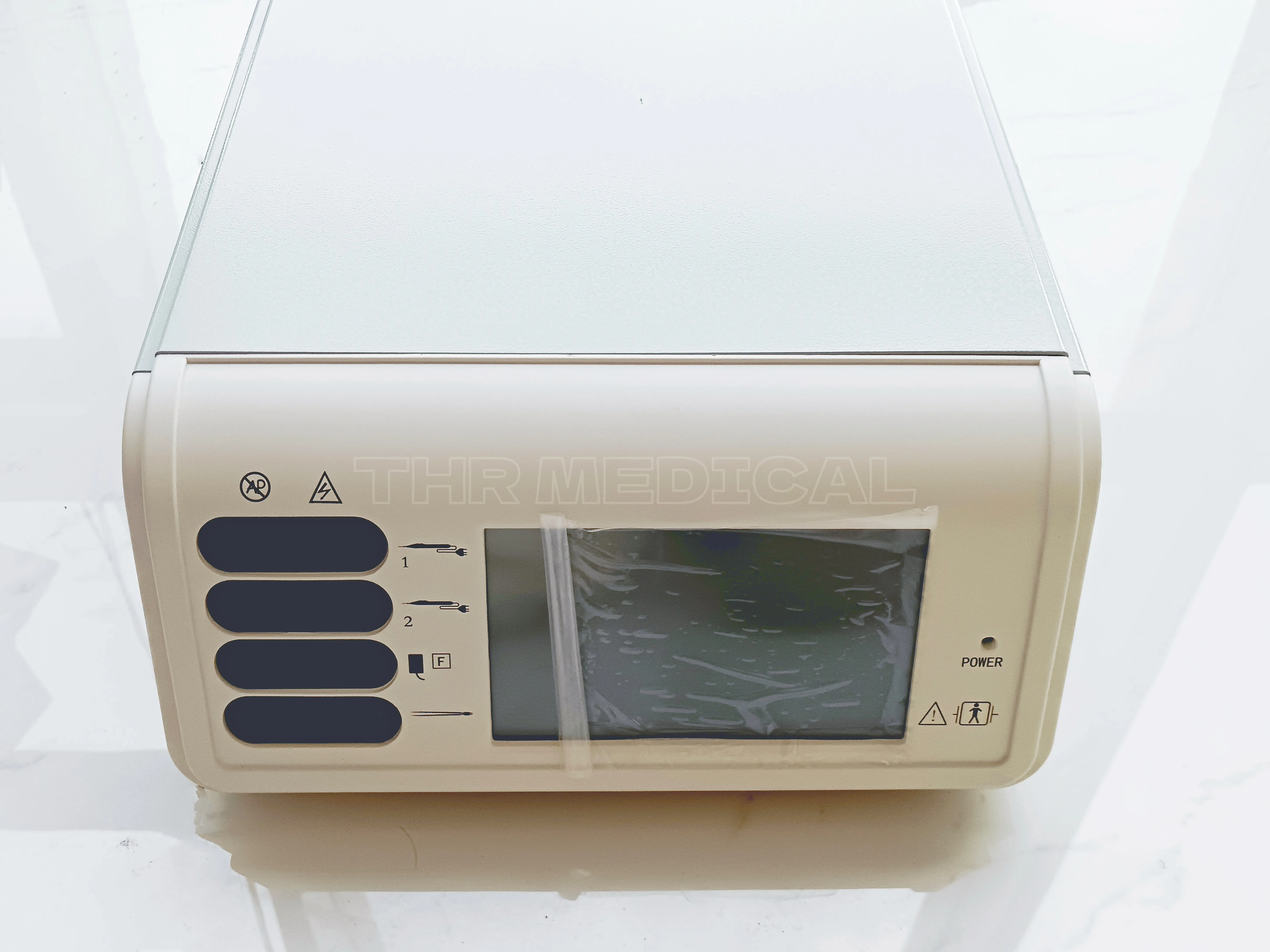

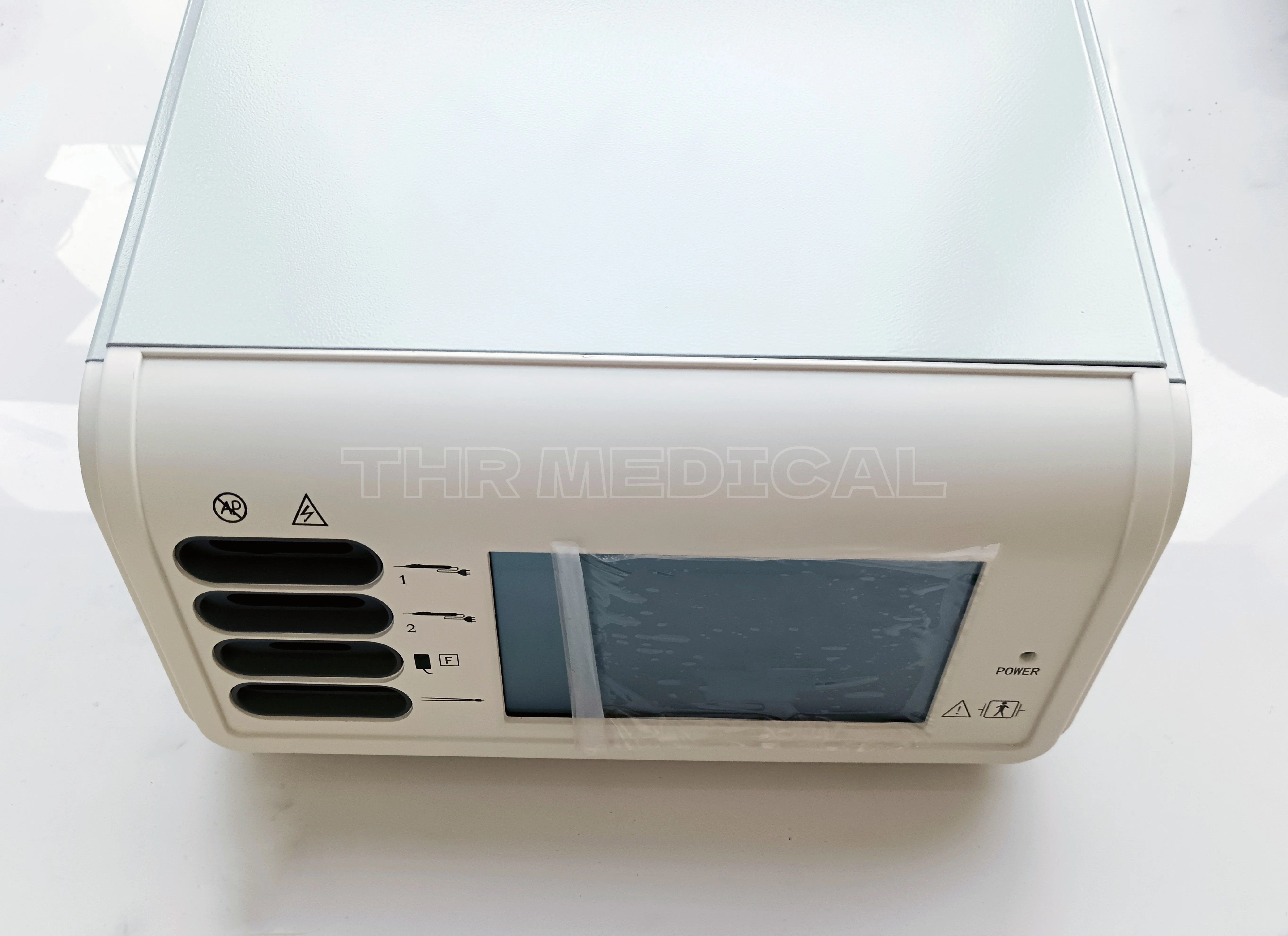

THR HV150 Medical Equipment Electrosurgical Unit with Ligasure Surgical Diathermy Cautery Machine
- Category: >>>
- Supplier: Suzhou Thriving Medical Equipment Corp.
Share on (1601200209985):
Product Overview
Description
Product Description
Application of use
Human/Veterinary/Surgery
General Surgery; Gastroenterology, Dermatology;
Vascular Surgery; Obstetrics and Gynecology;
Heart/Thoracic Surgery; ORL/ENT;
Minimally Invasive Surgery(MSI);Cerebral surgery;
Neurosurgery, Orthopedics & Plastic Surgery;
Trans Urethral Resection (TUR) and etc.
Intelligent Device
--The intuitive design and user-friendly set-up of THR-HV150 Electrosurgical Unit in the modern operating room,
--Monopolar and bipolar functions, It can satisfy all the surgeries demands, with safety, flexibility, reliability and convenience.
--With a wide TFT LCD touch screen (7 inch), clean and sharper image quality, which provides the user with easy access to all functions. The settings or modes of operation are changed by touching icons on the screen to ensure maximum ease of operation.

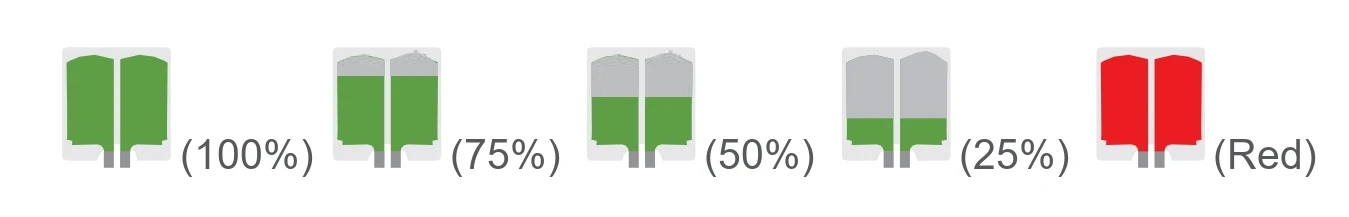

REM (Return Electrode Monitoring)
The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Human/Veterinary/Surgery
General Surgery; Gastroenterology, Dermatology;
Vascular Surgery; Obstetrics and Gynecology;
Heart/Thoracic Surgery; ORL/ENT;
Minimally Invasive Surgery(MSI);Cerebral surgery;
Neurosurgery, Orthopedics & Plastic Surgery;
Trans Urethral Resection (TUR) and etc.
Intelligent Device
--The intuitive design and user-friendly set-up of THR-HV150 Electrosurgical Unit in the modern operating room,
--Monopolar and bipolar functions, It can satisfy all the surgeries demands, with safety, flexibility, reliability and convenience.
--With a wide TFT LCD touch screen (7 inch), clean and sharper image quality, which provides the user with easy access to all functions. The settings or modes of operation are changed by touching icons on the screen to ensure maximum ease of operation.
REM (Return Electrode Monitoring)
The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately - ensuring that only the precise voltage needed is safely delivered to each tissue type
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately - ensuring that only the precise voltage needed is safely delivered to each tissue type
Ligasure Vessel Sealing
The machine enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation..
Automatic Self-Test
Once switched on, systems perform a comprehensive internal test
Specification
The machine enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation..
Automatic Self-Test
Once switched on, systems perform a comprehensive internal test
Specification
Technical Parameters | Main Frequency | 512 KHz |
Power Supply | 100-240V/50-60Hz | |
Dimension | 47*34*17cm | |
Weight | 8.00KG | |
High Frequency Leakage | Monopolar | < 150mA |
Bipolar | < 60mA | |
Low Frequency Leakage | Normal Polarity,Intact Chassis Ground | <10μA |
Normal Polarity, Ground open | <50μA | |
Reverse Polarity, Ground Open | <10μA | |
Sink Current, 140V Applied, All inputs | <10μA |
Please feel free to contact us for more discount price!
