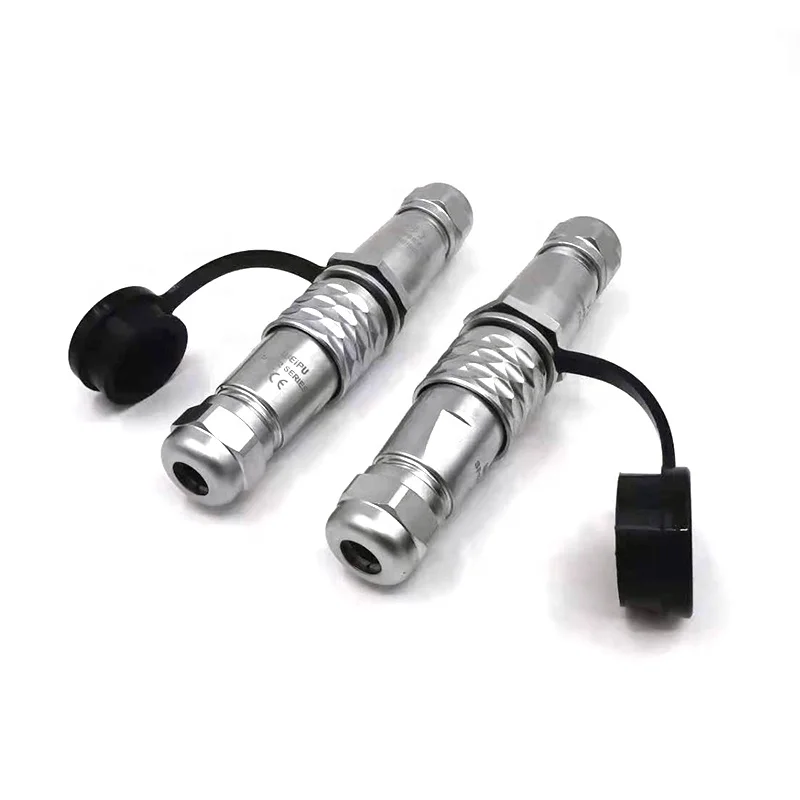

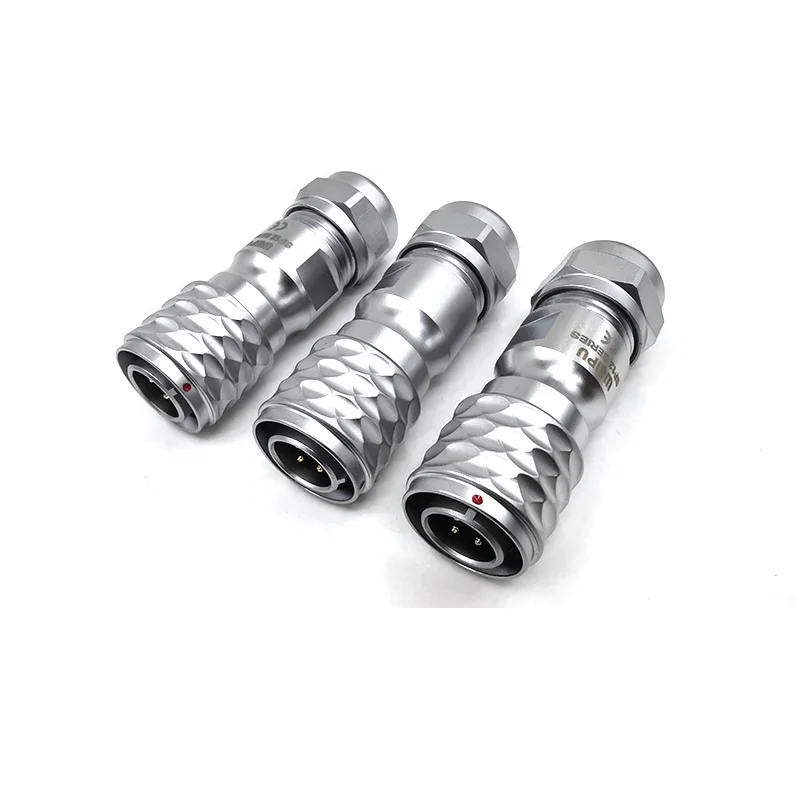

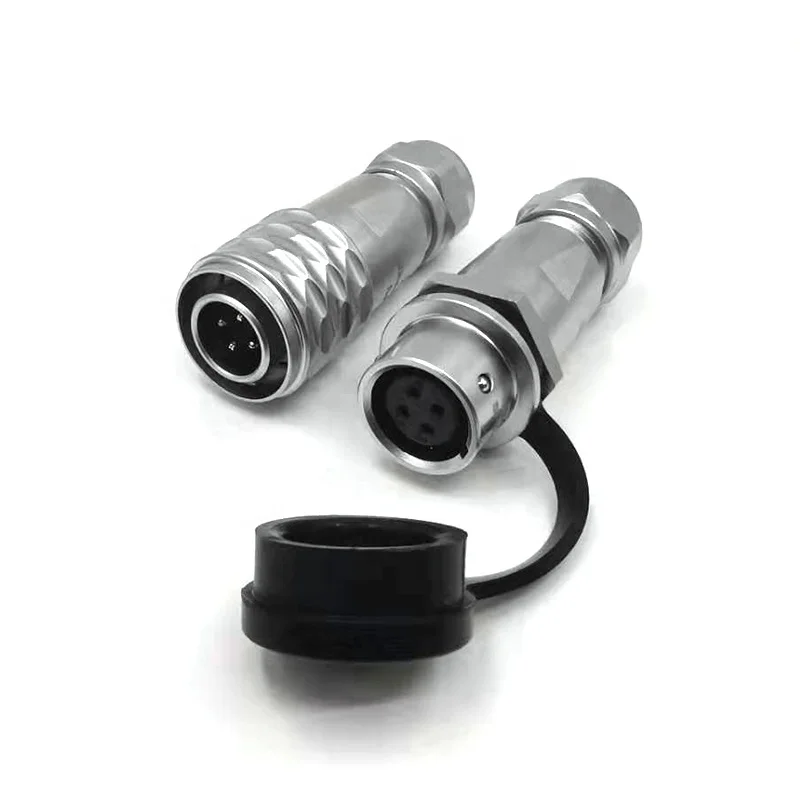

Weipu Sf10 Waterproof IP67 Male to Female 4 Pin Connector for Automotive Use

Overview and features / Applications

SF10 series is IP67 connector made of brass with chrome plating, especially designed for the high-end market. With push and pull coupling.This series is available for cable to cable (in-line) and cable to panel connection. Each side can choose from male or female contact.

Applications: this IP67 waterproof connector is designed for high-end products. The Stunning brass made shell made it widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments etc. It can be used for both data and power.

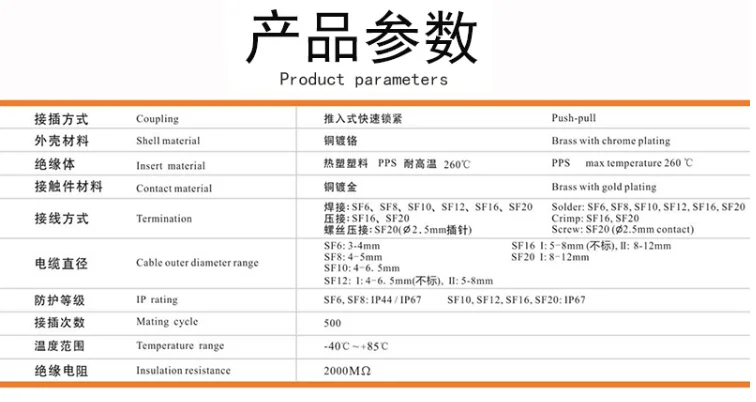

Specifications

Number of contact	2	3	4	5	6	7	9
Male contact face view
Rated current(A)	13A	13A	5A	5A	5A	5A	3A
Contact diameter	φ1.6x2	φ1.6x3	φ1x4	φ1x5	φ1x6	φ1x7	φ0.7x9
Rated voltage(AC.V)	250V	250V	200V	180V	125V	125V	125V
Test voltage(AC.V)1 min	1500V	1500V	1500V	1000V	1000V	1000V	1000V
Contact resistance mΩ	2.5	2.5	5	5	5	5	5
Wire size(mm²/AWG)	≤2/14	≤2/14	≤0.75/18	≤0.75/18	≤0.75/18	≤0.75/18	≤0.5/20

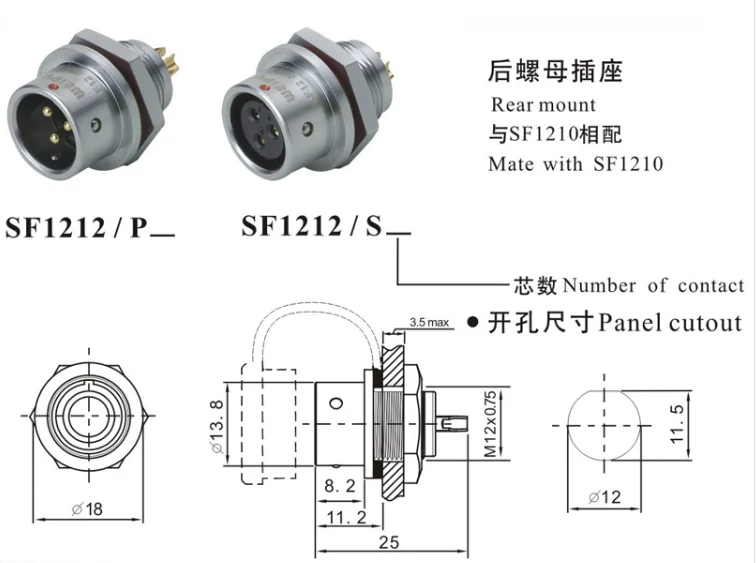

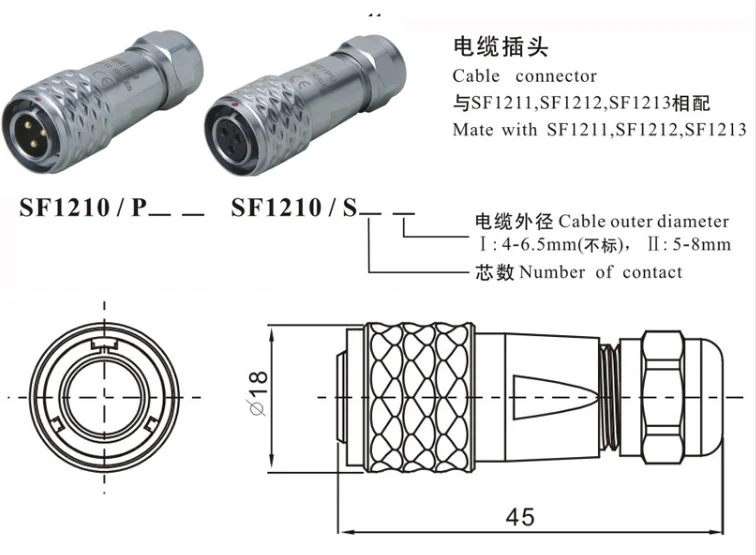

Packaging Details: Weipu sf12 connector 2 3 4 5 6 7 9 pin ip67 waterpoof female cable plug male rear mount socket sf1210 sf1212 will be packed in one small bag and then put in one box. If you need custom package, we will do as your requirest.

Delivery Detail: About 7 workdays after payments.

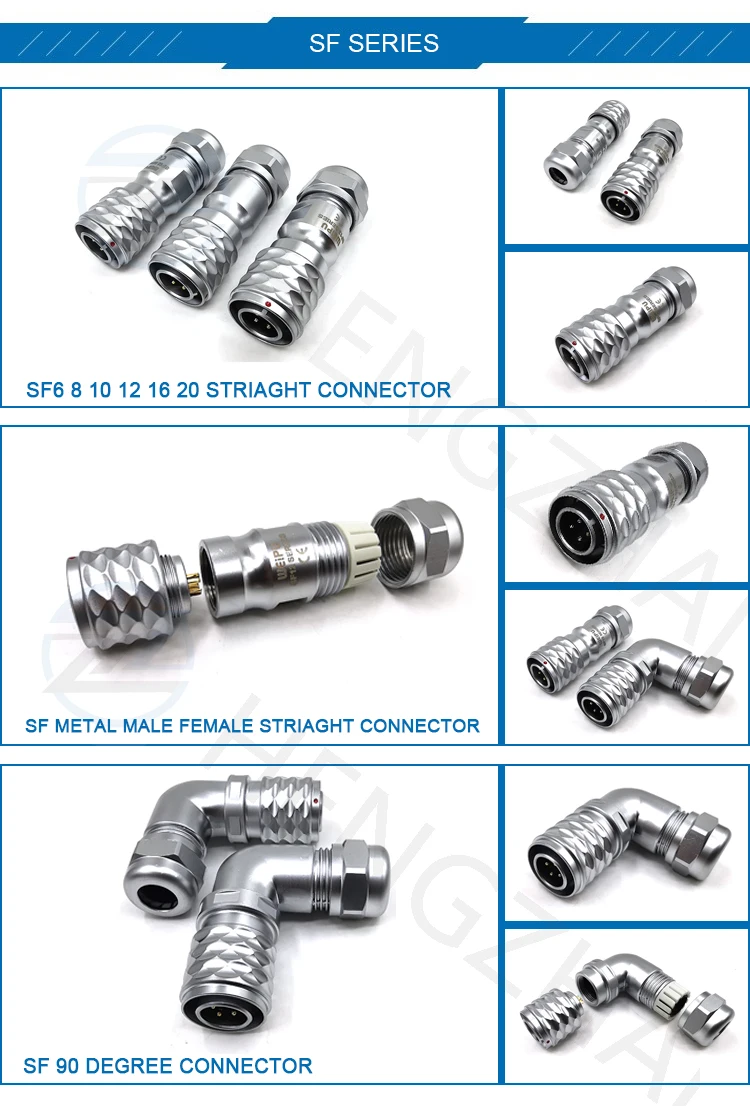

We supply SF series waterproof connector, heavy duty connector, M12 connector, mil connector and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us know the spec of the cable and the connectors, we will give you a cable harness drawing.
