CE certificate high purity ceramic fiber paper for chimneys
- Category: >>>
- Supplier: Zibo Double Egret Thermal Insulation Co. Ltd.
Share on (1601200269543):
Product Overview
Description
CERAMIC PAPER

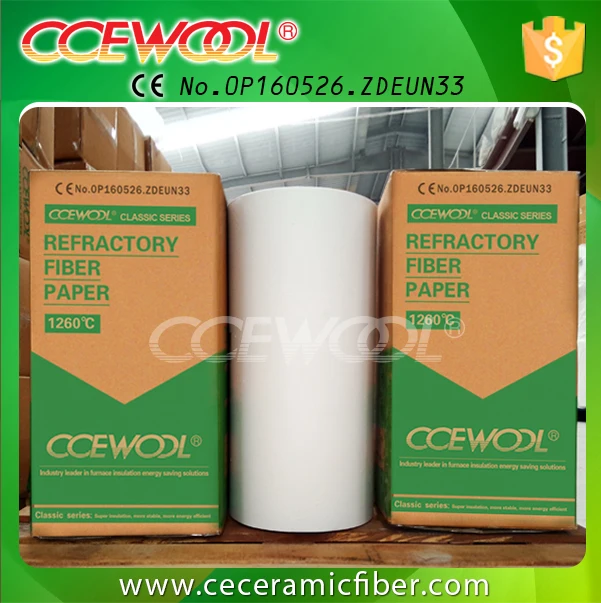

CE certificate high purity ceramic fiber paper for chimneys
♦The working temperature is 1050℃. Standard thick is from 0.5mm to 12mm, standard width is 610mm and 1220mm. It is made from high-purity ceramic fiber by adding a small amount of binder which will completed burnt out during using process, through production technology with scientific selection and strict control binding.
The product shows excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.)
Item | CCEWOOL ceramic fiber paper |
Characteristics | Low thermal capacity Low thermal conductivity Excellent electrical insulation properties Excellent machining performance High strength, tear resistance High flexibility Low shot content |
Specifications |
Thickness:0.6mm,1mm,3mm,5mm,6mm,10mm,12mm Min Width 5cm Regular size:40000x610x0.6mm; 40000x610x1mm; 20000x610x2mm;15000x610x3mm; 10000x610x5mm; 10000x610x6mm |
Working Temperature |
1050Ordinary Ceramic Fiber Paper--950C 1260Standard Ceramic Fiber Paper--1050C 1260High-purity Ceramic Fiber Paper --1100C 1400High Aluminum Ceramic Fiber Paper--1200C 1450Zirconia Ceramic Fiber Paper--1350C |
Applications |
Insulation material for instruments and heating element Insulation material for automobile and aerospace industry Expansion joints filling material Isolation for construction material, metallurgy and glass industries, Molten metal sealing gasket Fireproof material Substitute for glass fiber and asbestos fiber |
Package |
plastic bag inside, carton or woven bag outside |
The technical data of CCEWOOL CE certificate high purity ceramic fiber paper for chimneys min below. Pls kindly check it.
| Product Name | 1260 Standard Ceramic Fiber Paper | 1400 High-Alumina Ceramic Fiber Paper | 1450 Zirconia Ceramic Fiber paper | |
Temperature Grade( ℃) | 1260 | 1400 | 1450 | |
Max Operation Temp ℃ | 1050 | 1200 | 1350 | |
Density(kg/m3)
| 200±10 | |||
Tensile Strength | ≥0.4 | ≥0.4 | ≥0.7 | |
| Chemical Composition | Al2O3 | 46 | 52-55 | 39-40 |
| Al2O3+SiO2 | 97 | 99 | - | |
| ZrO2 | - | - | 15-17 | |
| Fe2O3 | 1.0 | 0.2 | 0.2 | |
| Na2O+K2O | 0.5 | 0.2 | 0.2 | |
| Standard Size |
1mm x 610mm x 60000,2mm x 610mm x 30000mm,3mm x 610mm x 20000mm,4 x 610mm x 25000mm, 5 x 610mm x 15000mm,6mm x 610mm x 10000mm The size can be also customized as customers' specification | |||
Packing |
Inner Plastic Bag + Outer Carton | |||

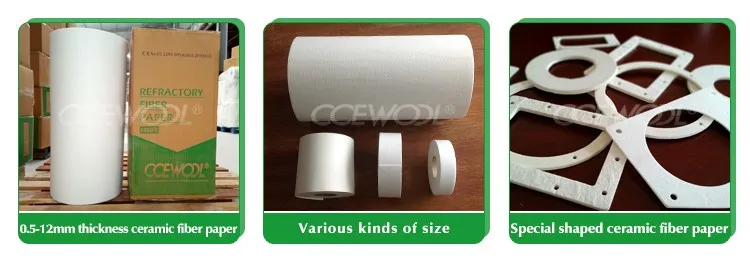

1. Thickness of ceramic fiber paper is from 05.mm to 12mm. Standard width is 610mm and 1220mm, the min width is 50mm.

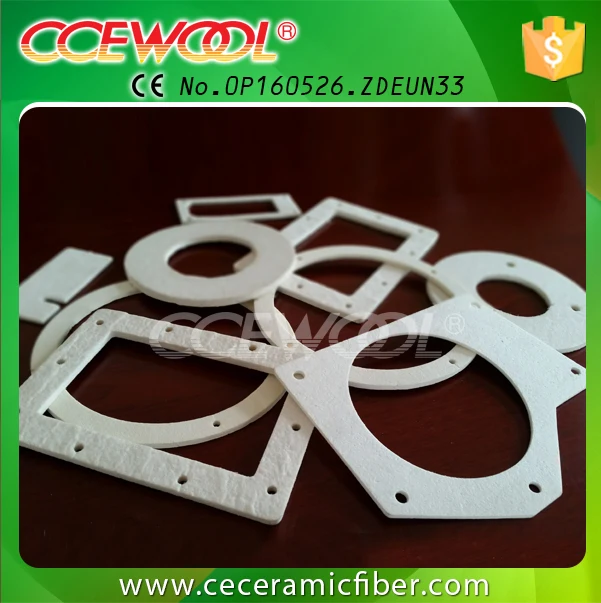

2. We can also produce special shape ceramic fiber paper gasket.
We have weight inspection before packing, to make sure actual weight >= theoretical weight.
Also have size inspection to guarantte the precise size.
Chemical composition testing before shipping.
For more information, pls check our website: www.ceceramicfiber.com
CERTIFICATES
CCEWOOL CE certificate high purity ceramic fiber paper for chimneys paseed CE certificate.
We are the only manufacturer who got CE certificates in China.
At the same time, we passed TUV,BV,SGS --the third party inspection.
COMPANY INFORMATION
1. Factory information:
a:The factory covers 80000 square meters, which equipped with 26 ceramic fiber blanket production lines,
b:Auto ceramic fiber board production lines,2 ceramic fiber paper production lines and 2 ceramic fiber textile production lines.
c:The Annual output can reach to 60,000 tons.
2. Exhibition information
Double egret has been in international exhibition since 2009.
Stable quality and good credit make our brand"CCEWOOL" be highly recommended by customers all over the world.
Ultra- clear ceramic fiber product's video, experience Factory inspection online,
pls check our official website: //www.ceceramicfiber.com/VideoGallery.shtml
RELATED PRODUCT
We can also supply ceramic fiber blanket/board/ paper/module/Vaccum formed/rope/tape/cloth
More related information,pls click on below product name!
YOUR NEED,MY DIRECTION.
1. As the No.1 Trade Assurance (USD177,000.00)in the Industry from Alibaba and the TOP TRANSACTION in the industry,we can give all the GUARANTEE. It can ensure product quality and delivery. All transaction due to late delivery or bad quality will be compensated by 100% payment return to customer.
2.DOUBLE EGRET is focusing on research, producing and selling of products used in high temperature furnace field for 15 years, structuring business model of American research center+specialist consulting +providing energy saving solutions.
