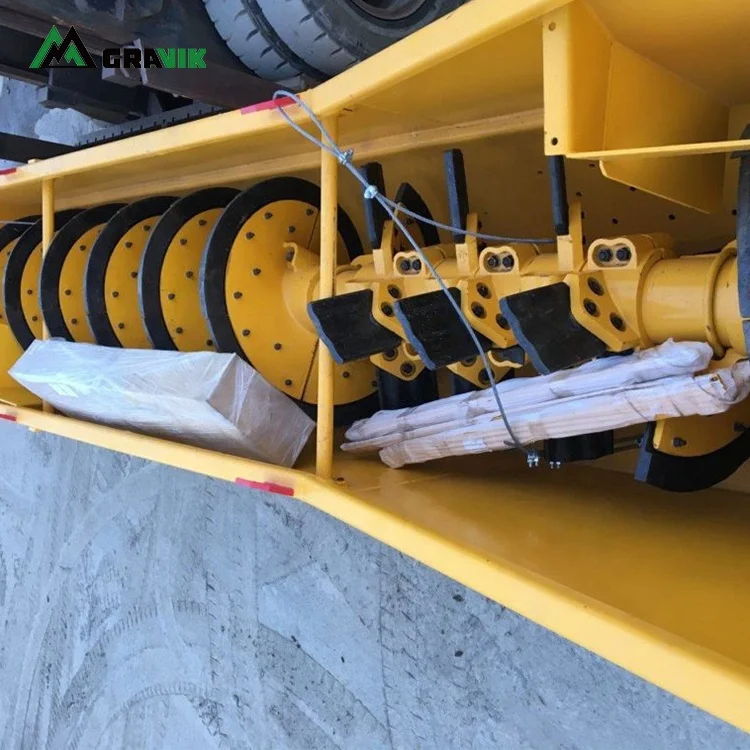

Factory Directly Selling PCS3618V PCS3618V PCS4420V PCST4420V Coarse Material Stone Sand washing machine
- Category: >>>
- Supplier: Zhejiang Gravik Machinery And Equipment Co. Ltd.
Share on (1601200296325):
Product Overview
Description

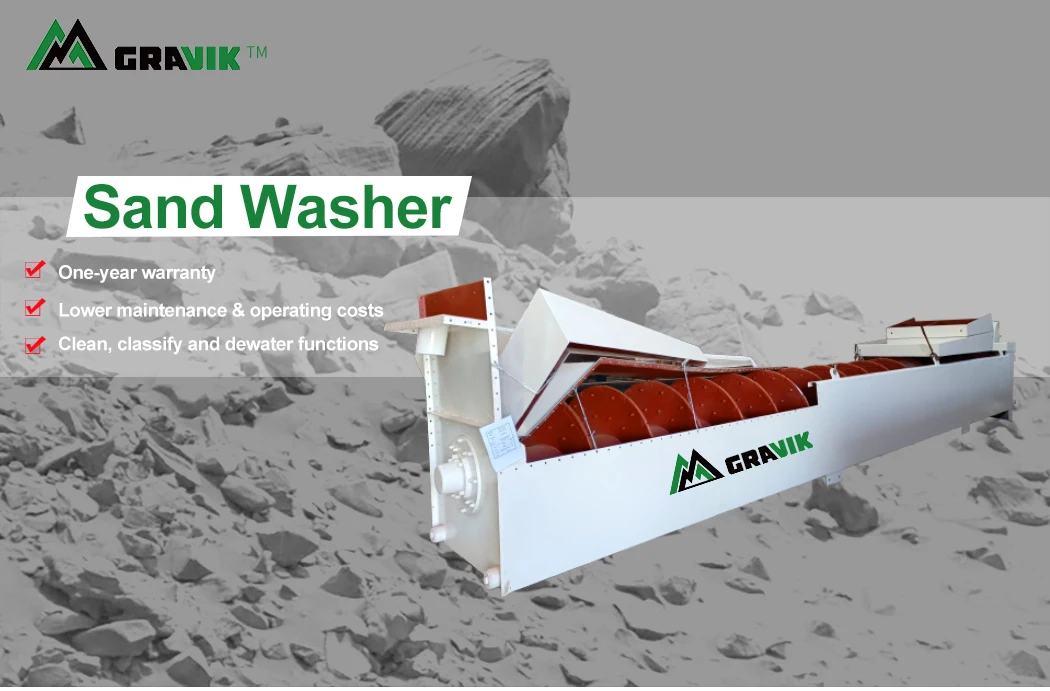

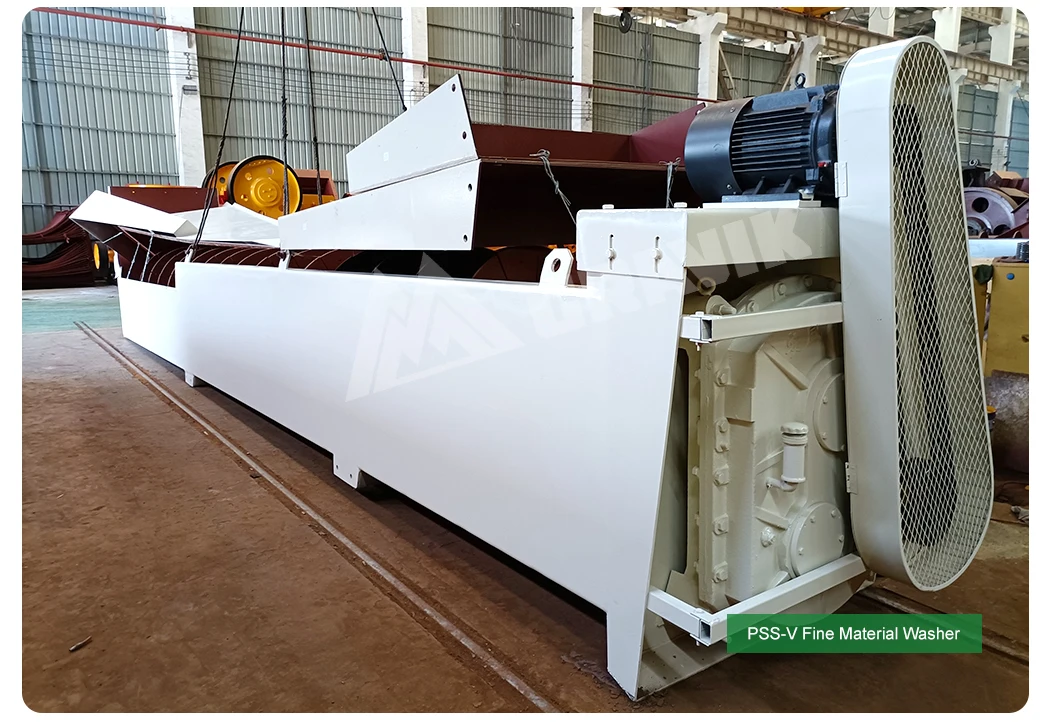

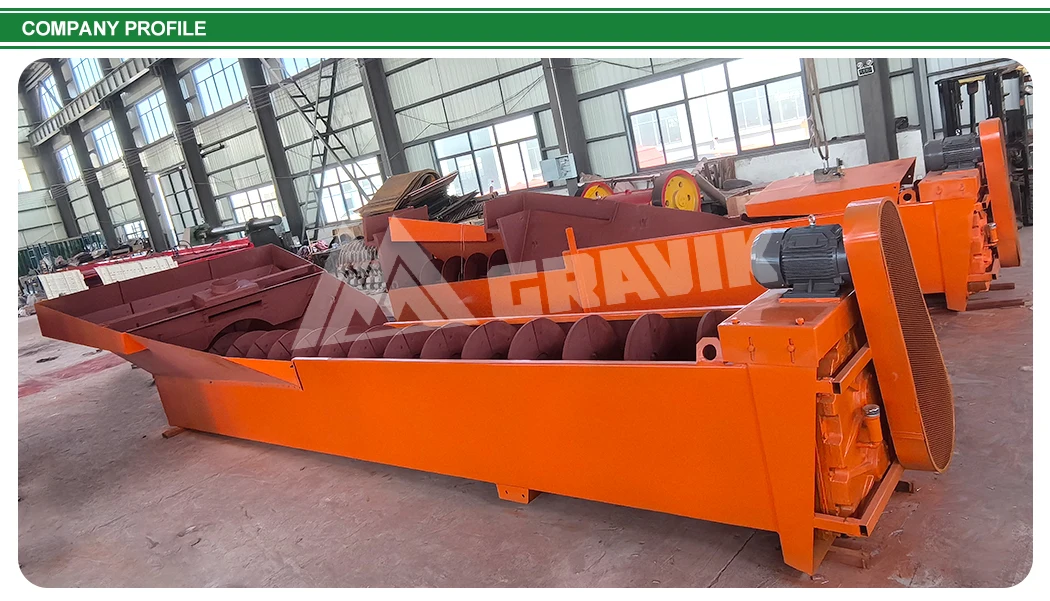

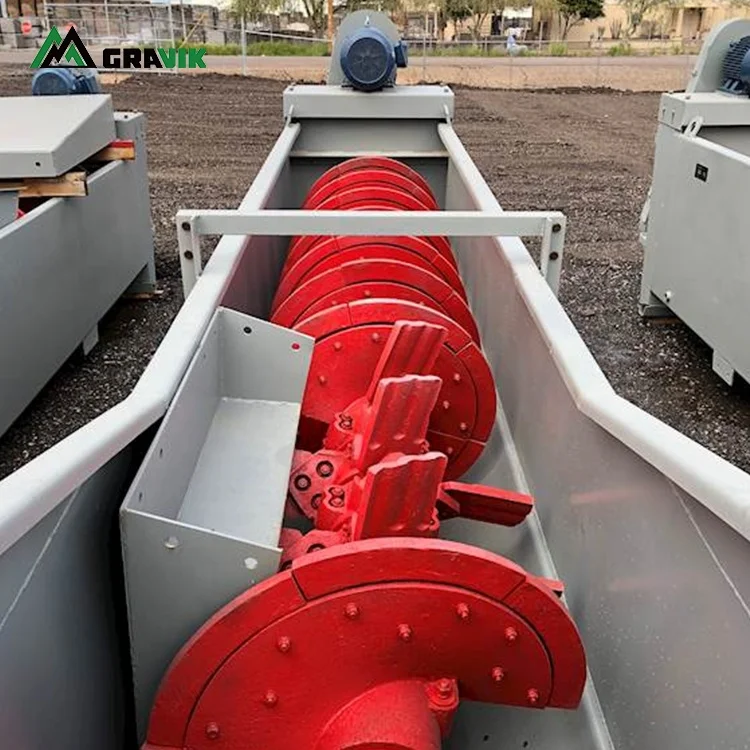

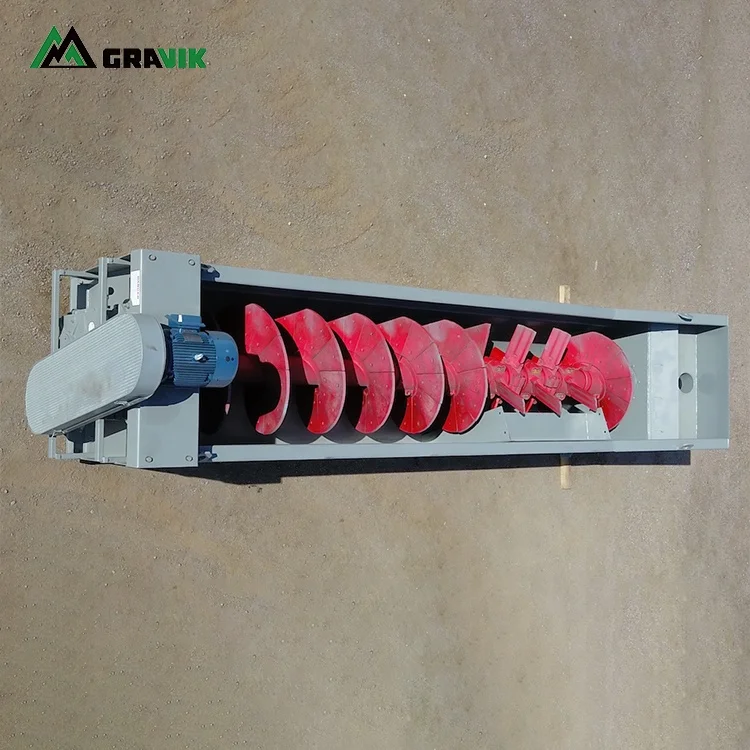

The GRAVIK PSS-V PCS-V are designed to complete three jobs at once, dewatering, washing and classifying. Both series with heavy duty tub construction, adjustable weir, oil bath lubricated heavy duty gear box make it the choice of many mining and aggregate producers.

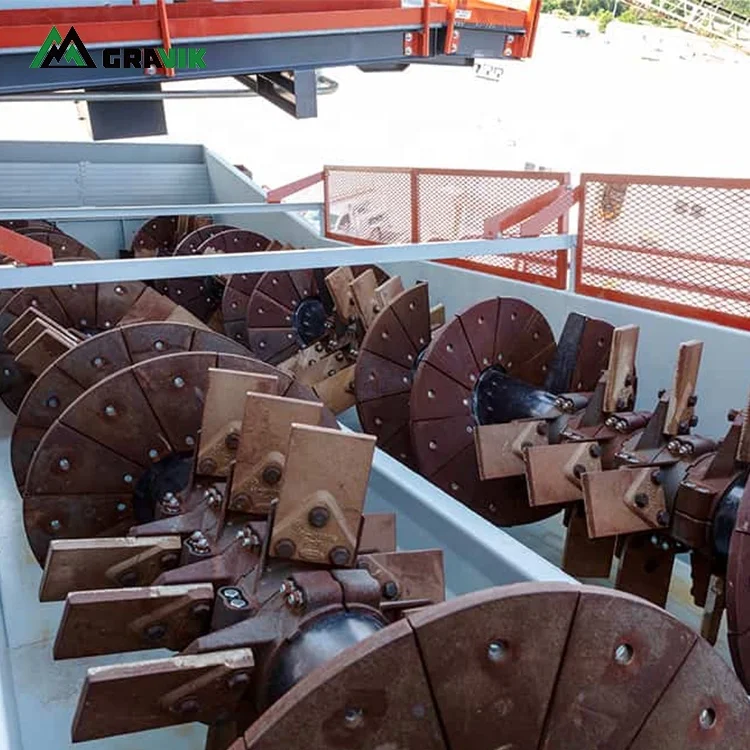

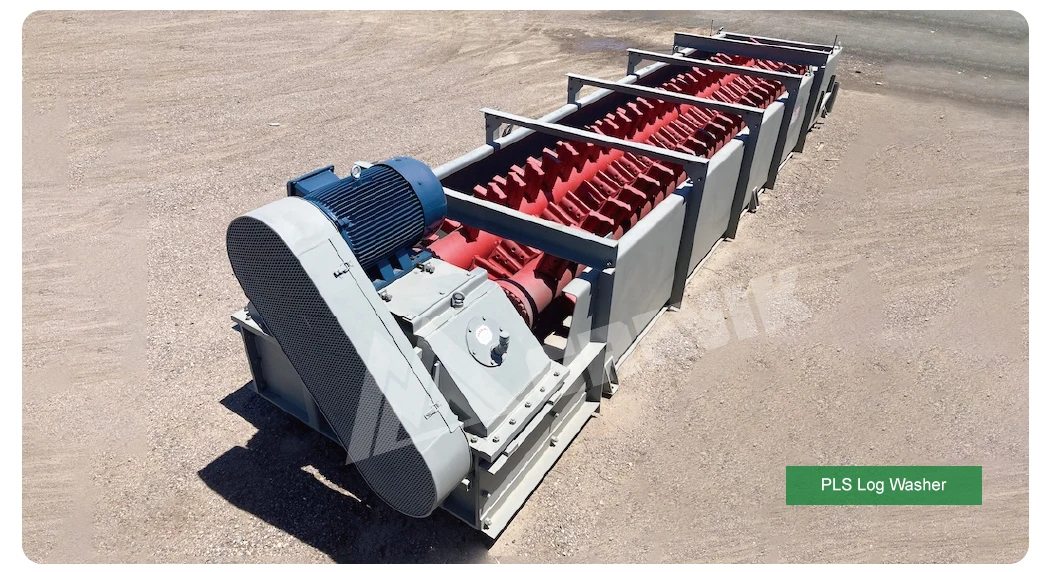

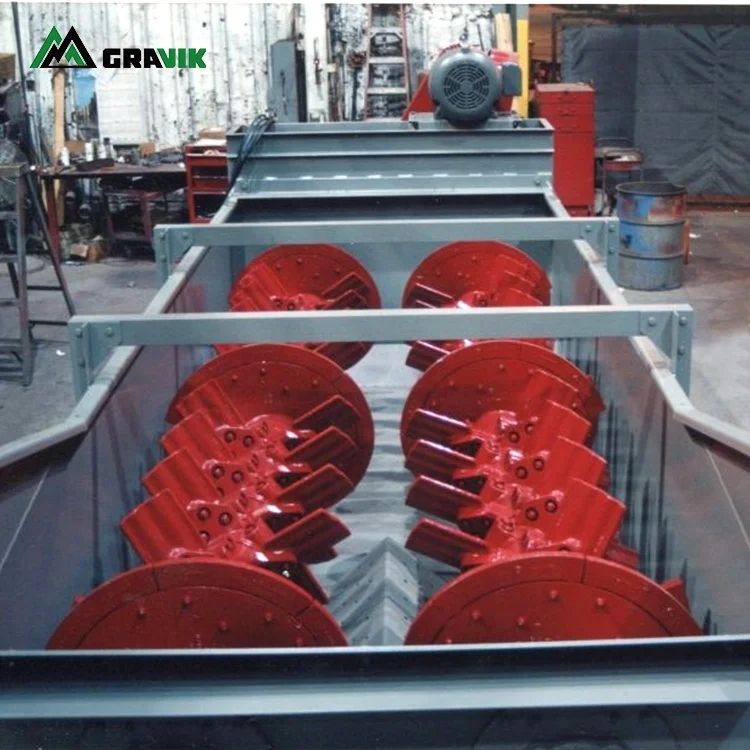

The GRAVK Log washer was designed for one job, heavy duty scrubbing. Due to its large massive paddles, long tub and heavy duty design. The GRAVIK log washer, oil bath lubricated heavy duty gear box makes it the choice of many mining and aggregate producers.
The GRAVK Log washer was designed for one job, heavy duty scrubbing. Due to its large massive paddles, long tub and heavy duty design. The GRAVIK log washer, oil bath lubricated heavy duty gear box makes it the choice of many mining and aggregate producers.
Model | No. of Screw | Screw Diameter (mm×mm) | Tub Lengh (mm) | Max Feed Size (mm) | Capacity (t/h) | Screw Speed (r/min) | Motor Power (kw) | Water Requirement (t/h) | Weight (kg) | |||||||||
PSS3625V | 1 | 915 | 7580 | 10 | 100 | 21 | 11 | 10-80 | 6585 | |||||||||
PSST3625V | 2 | 915 | 7580 | 10 | 200 | 21 | 11×2 | 20-150 | 11552 | |||||||||
PSS4432V | 1 | 1115 | 9750 | 10 | 175 | 17 | 18.5 | 20-150 | 10707 | |||||||||
PSS4432V | 2 | 1115 | 9750 | 10 | 350 | 17 | 18.5×2 | 45-300 | 18276 | |||||||||

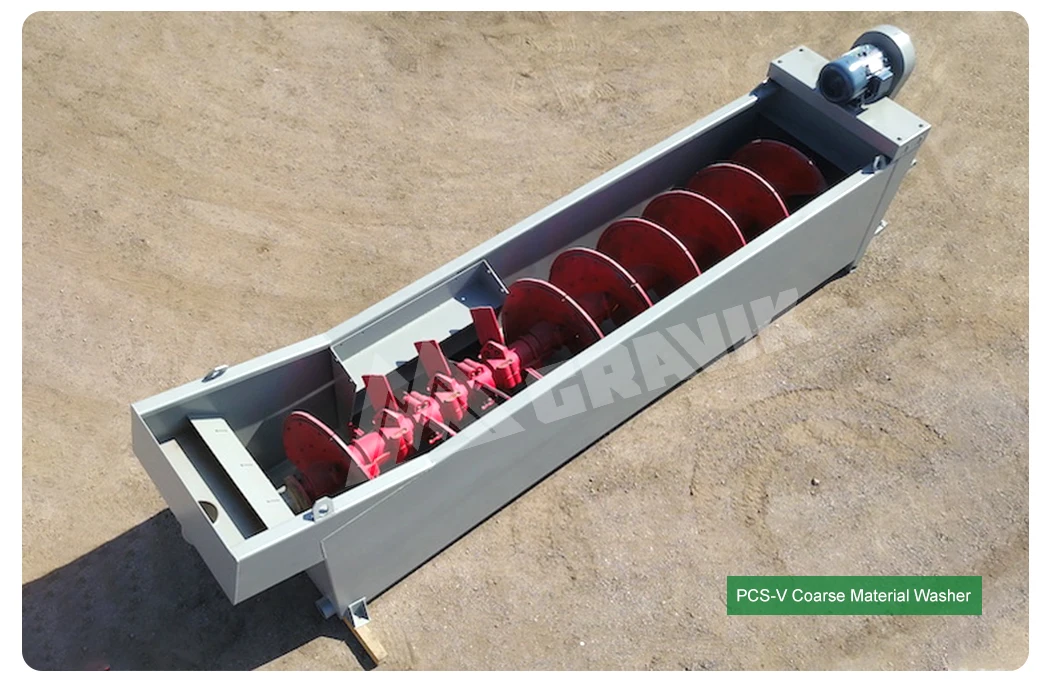

PCS3618V | 1 | 915 | 5486 | 63 | 150-175 | 32 | 22 | 90-136 | 4457 | |||||||||
PCST3618V | 2 | 915 | 5486 | 63 | 300-350 | 32 | 22×2 | 160-205 | 8138 | |||||||||
PCS4420V | 1 | 1115 | 6090 | 75 | 200-250 | 26 | 30 | 113-170 | 7318 | |||||||||
PCST4420V | 2 | 1115 | 6090 | 75 | 400-500 | 26 | 30×2 | 205-250 | 13207 | |||||||||
PLS3630V | 2 | 915 | 9105 | 75 | 50-125 | 32 | 75-110 | 12-120 | 19860 | |||||||||
*Design & Specifications Subject to Change Without Notice | ||||||||||||||||||
1.Fully enclosed oil bath transmission device
2.Adjustable overflow weir plate
3.Equipped with large heavy blades, long water tank, and oil bath lubricated heavy-duty gearbox
4.Less material loss and high washing efficiency
5.Good dehydration effect, stable fine product
6.Long service life, no need for maintenance for a long time
2.Adjustable overflow weir plate
3.Equipped with large heavy blades, long water tank, and oil bath lubricated heavy-duty gearbox
4.Less material loss and high washing efficiency
5.Good dehydration effect, stable fine product
6.Long service life, no need for maintenance for a long time
Zhejiang Gravik Machinery and Equipment Co.,Ltd is a hi-tech, engineering company. We are specialized in the research,
development, and production of industrial crushing, powder grinding, mineral processing equipment and Crusher parts field. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc.
Our products field:
1. Crusher machinery: Jaw crusher, Impact crusher, Cone crusher, Grizzly feeder, Vibrating screen, Belt conveyor, sand washing machine etc.
2. Crusher parts: Wear parts for all jaw/cone/impact Crushers/Vibrating screen/ Belt conveyor, include jaw plate, check plate, mantle & bowl liner, blow bar, screen mesh, roller etc. Cover the brands: Mettso, Sanvik, Terex, Telsmith, Hazemag, Kleemann, Trlo, Symons, Shanbao, Gator, Shibang,Shaorui & etc.
development, and production of industrial crushing, powder grinding, mineral processing equipment and Crusher parts field. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc.
Our products field:
1. Crusher machinery: Jaw crusher, Impact crusher, Cone crusher, Grizzly feeder, Vibrating screen, Belt conveyor, sand washing machine etc.
2. Crusher parts: Wear parts for all jaw/cone/impact Crushers/Vibrating screen/ Belt conveyor, include jaw plate, check plate, mantle & bowl liner, blow bar, screen mesh, roller etc. Cover the brands: Mettso, Sanvik, Terex, Telsmith, Hazemag, Kleemann, Trlo, Symons, Shanbao, Gator, Shibang,Shaorui & etc.
