Polypropylene Self priming Wilden P4 Clamped Plastic AODD Pumps With PTFE Diaphragm or Neoprene Diaphragm PTFE Valve Ball

Share on (1601200341434):


Price:$1,500.00 - $1,700.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Warranty
1 years
Customized support
OEM
Model Number
WILDEN
Place of Origin
CHIN
Application
Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Boilers, Irrigation and Agriculture, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
Horsepower
Pneumatic
Power Source
Pneumatic
Pressure
Low Pressure
Structure
Diaphragm Pump
Outlet Size
38 mm
Voltage
Pneumatic
Power
Pneumatic
motor
Pneumatic
Connection Outlet( Inlet) Size
1.5" (38 mm)
Wetted Path Material
Polypropylene
Backup Diaphragms Material
Santoprene
Connection Type
ANSI
Max Flow Capacity
92.9 gpm
Valve Balls
PTFE
Seats Seal
FKM Encapsulated PTFE
Max Air Inlet Pressure
125 psi
Max Solid Size
3/16" (4.8 mm)
Primary Diaphragms Material
PTFE

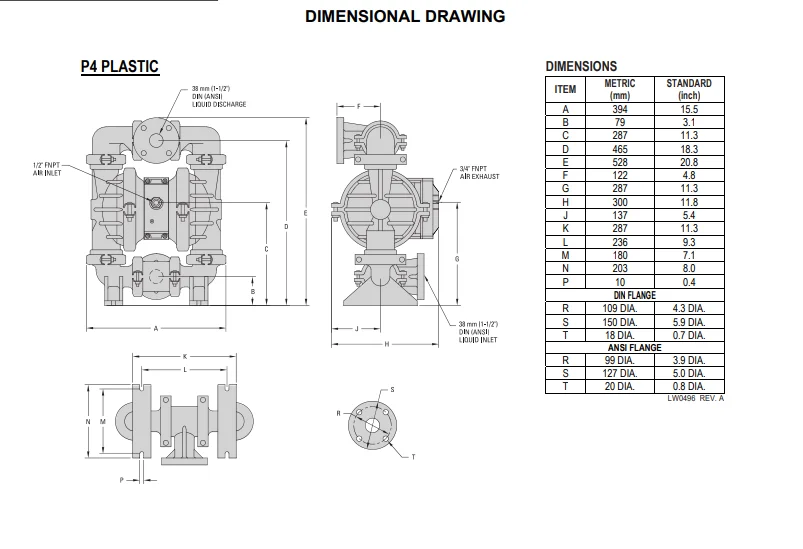

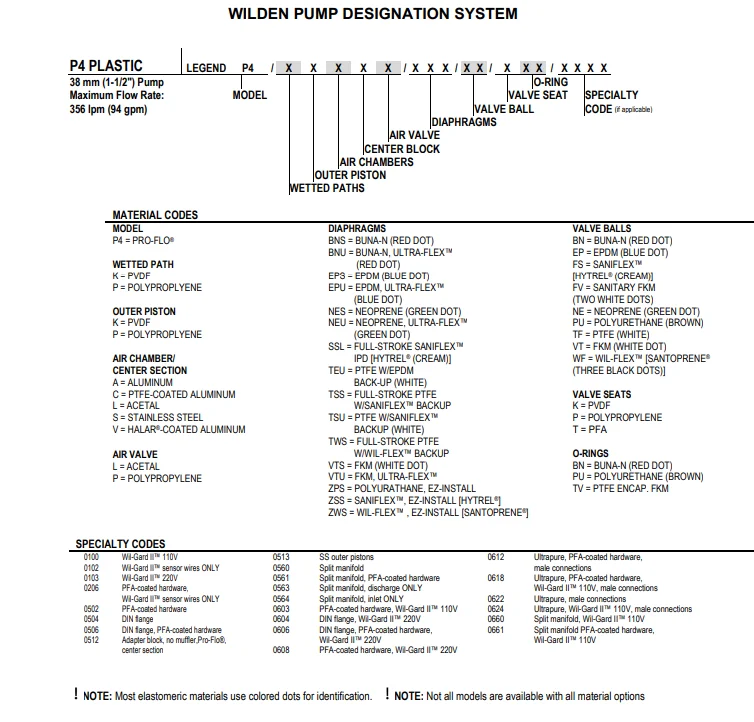

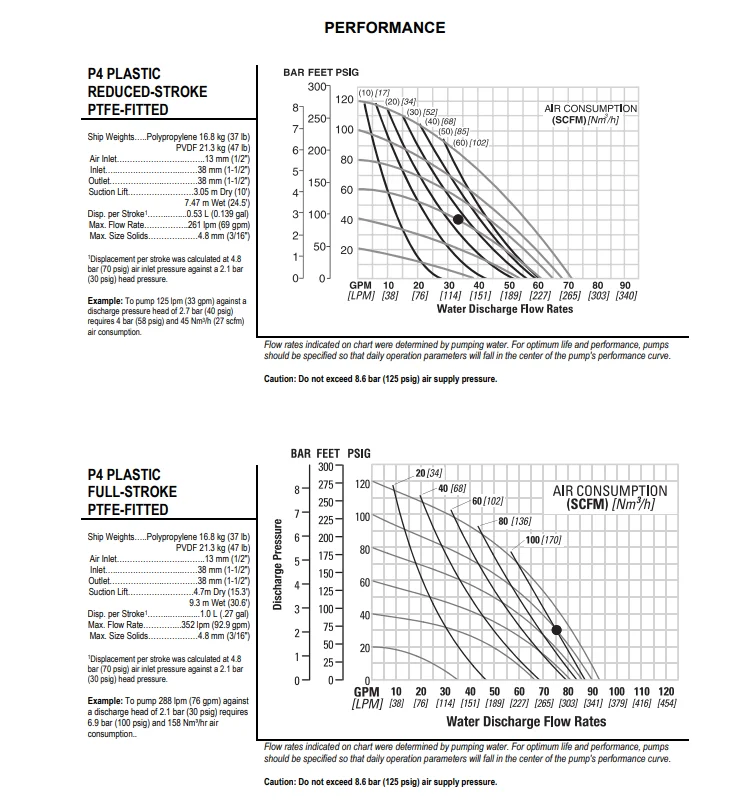

Details Images








Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






We are a company established in 2011 for the integration of environmental instruments sales and production. Through our years of accumulation of water treatment managers, we have the ability to improve the quality of products and prices and the replacement of technical services. We decided to open up foreign trade channels in 2018 and strive to contribute to the environment industry of other countries in the world. We guarantee that our customers are certified to serve every enquiry and transaction well. We focus on industry technology innovation and have more product lines. We made sure can provide the best products for all partners.Let's work hand in hand, face each communication with enthusiasm, and create a good tomorrow.


FAQ


1. who are we?
We are based in Shanghai, China, start from 2011,sell to Southeast Asia(50.00%),Domestic Market(20.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Metering pump,Dosing pump,Metering pump manufacturing,seko pump,wilden pump

4. why should you buy from us not from other suppliers?
Shanghai Jirui Instrument Co., Ltd. is located in Shanghai, China and has long been committed to export trade.The products are widely used in many field ,such as ,industrial, living water supply ,water treatment,etc.We hope to provide you with good service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
