J1772 16a /32a Type 1 Charger Socket
$40.00-48.00

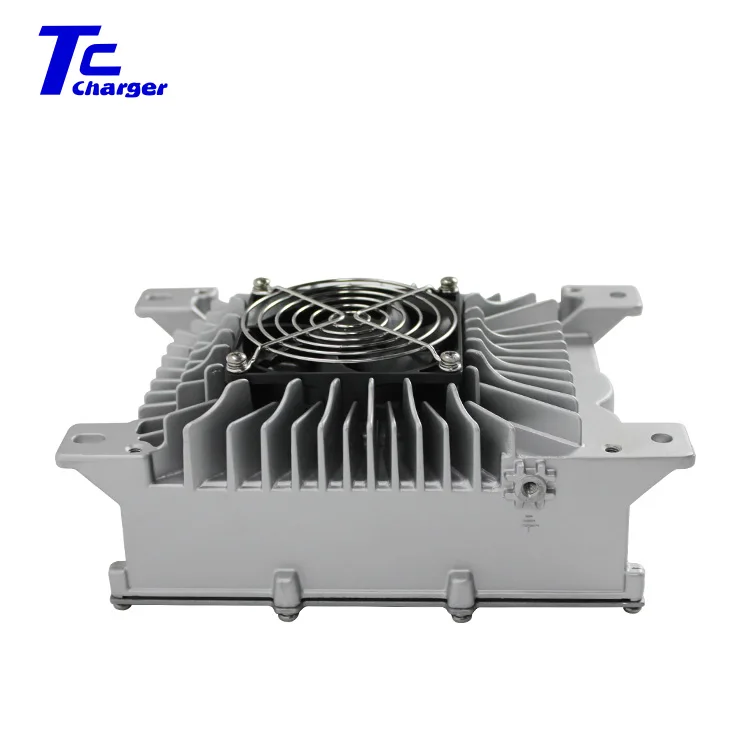

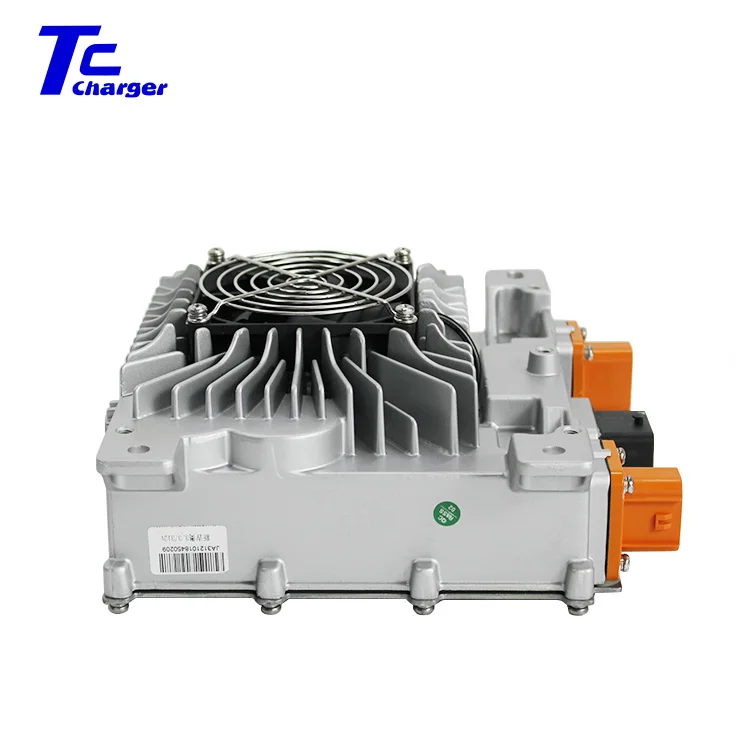

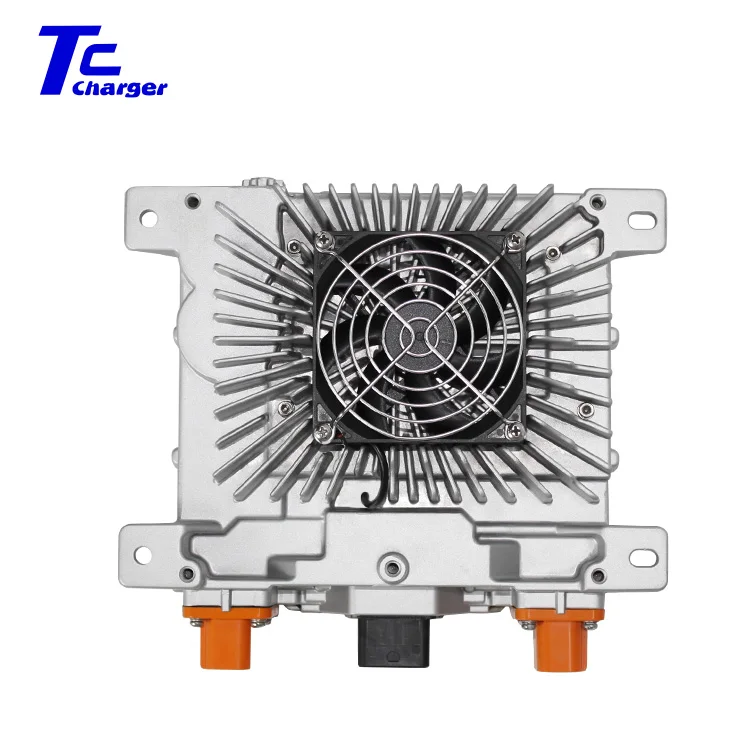

Tc charger Hk mf 312 10 ev car on board charger for Electric Motor Waterproof Charger for Motorcycle Golf Car Boat
- Category: >>>
- Supplier: Zhejiang Spaceflight Battery Technology Co. Ltd.
Share on (1601200372889):
Product Overview
Description
Products Description
Basic Specification | Protection grade | IP67 | ||
Input voltage range | AC90V~264V | Operation temperature | - 40℃~85℃ | |
Input current | 16A | Storage temperature | - 40℃~105℃ | |
Frequency | 45Hz~65Hz | Charging control | CAN or Enable | |
Power factor | ≥0.99 | Size | 198(length) x 244(width) x 95(height)(fan-cooled) | |
Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature | |
Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling | |
Recommend Products
OBC 3.3KW | ||||||||||||||||
Model | Type of cooling | Output voltage | Output voltage range | Output Current | Output power | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) | ||||||||
HK-MF-48-40 | Enforce Air Cooling | 48 | 35~70V | 40A | 2000W@220VAC /1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||
HK-MF-108-32 | Enforce Air Cooling | 108V | 36~145V | 32A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||
HK-MF-144-23 | Enforce Air Cooling | 144V | 50~198V | 23A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||
HK-MF-216-14 | Enforce Air Cooling | 216V | 70~290V | 14A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||
HK-MF-312-10 | Enforce Air Cooling | 312V | 110~440V | 10A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||
HK-MF-540-06 | Enforce Air Cooling | 540V | 170~650V | 6A | 3300W@220VAC 1600W@110VAC | 4.6 | 5.6 | 36*32*20.5 | ||||||||

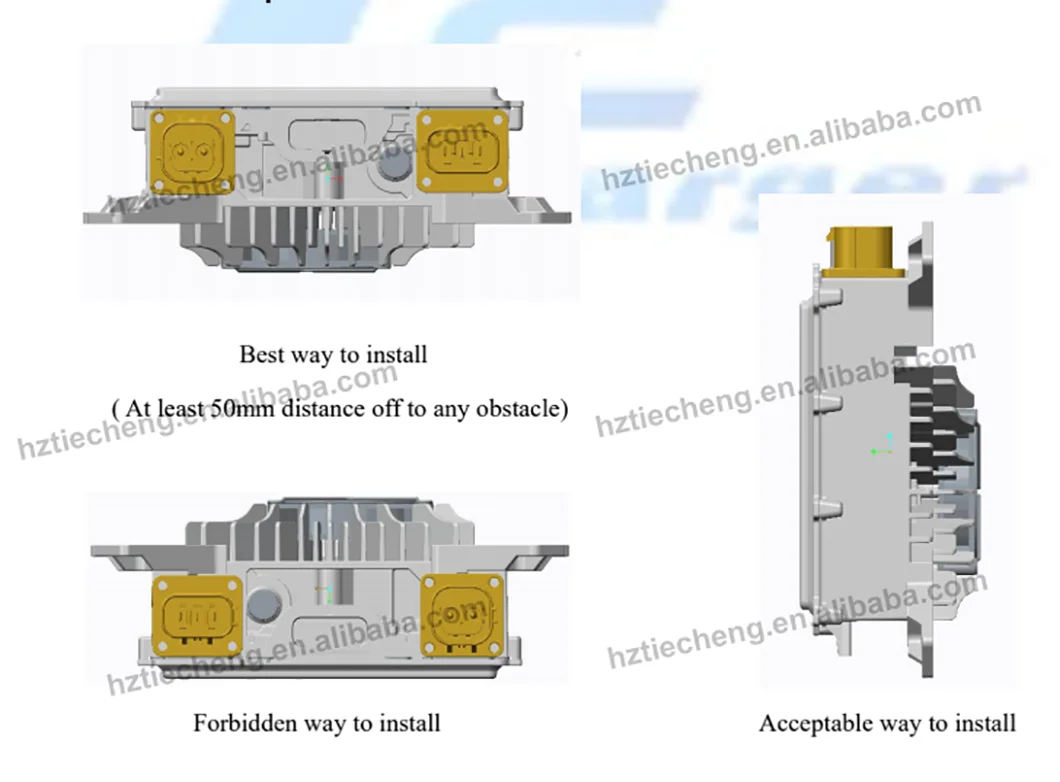

Installation Instructions

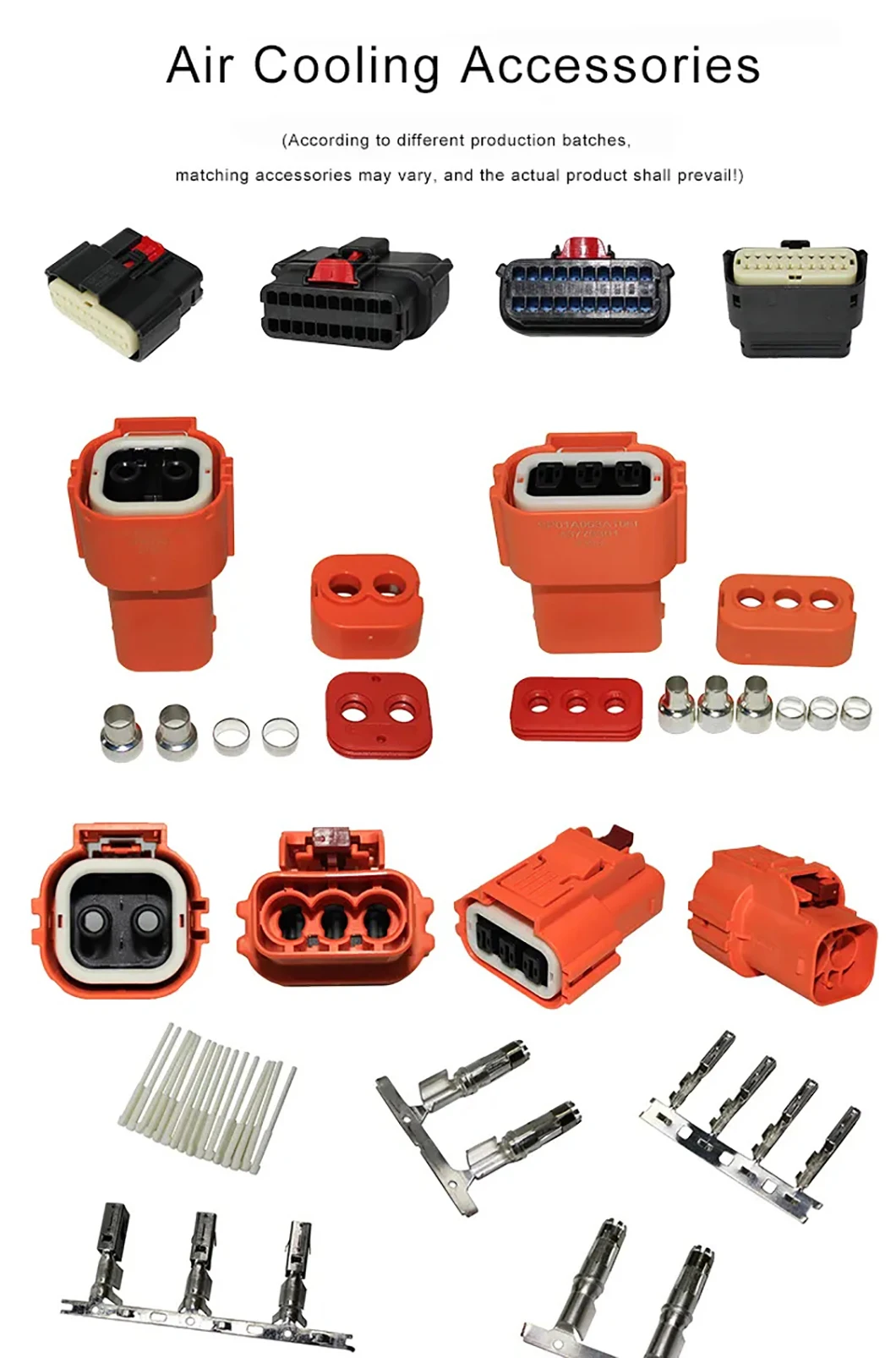

Acessory

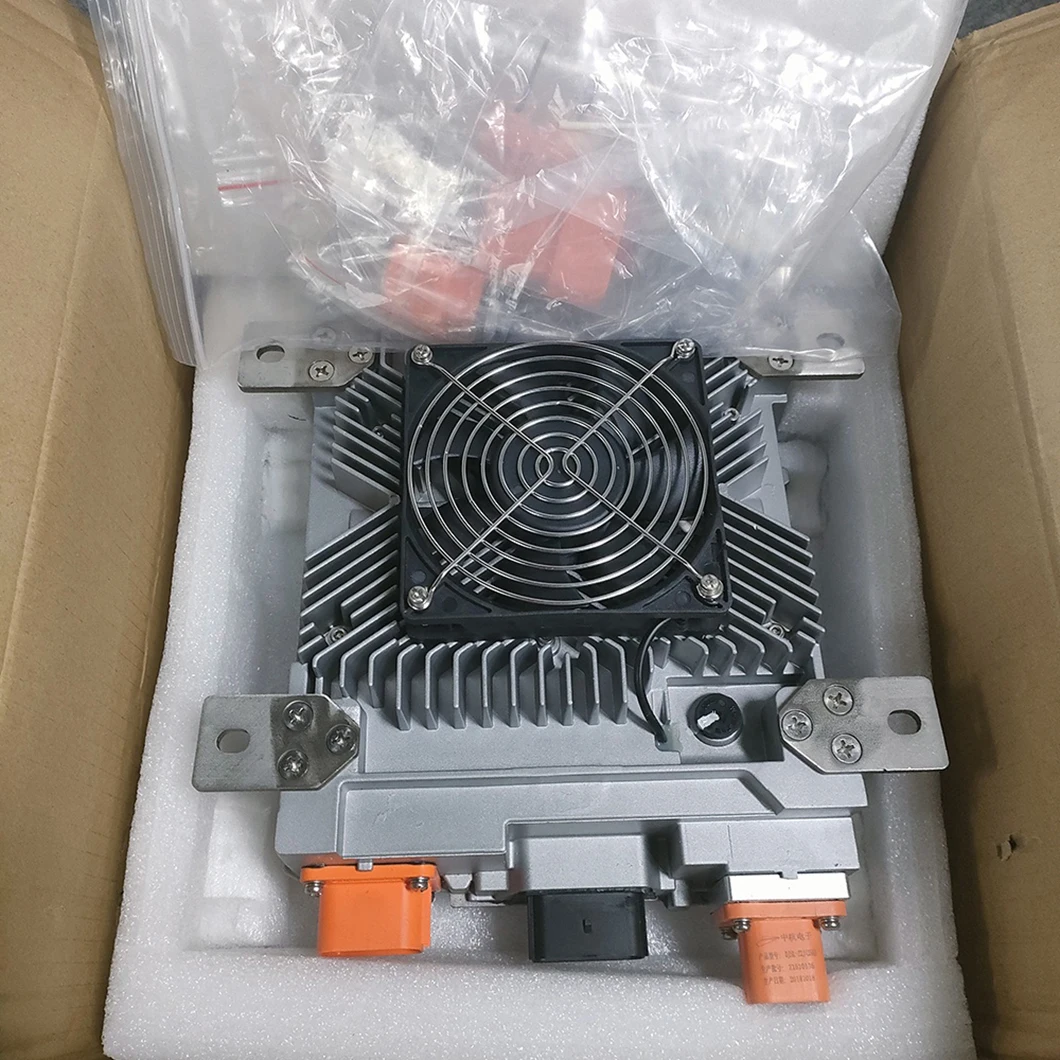

Product packaging

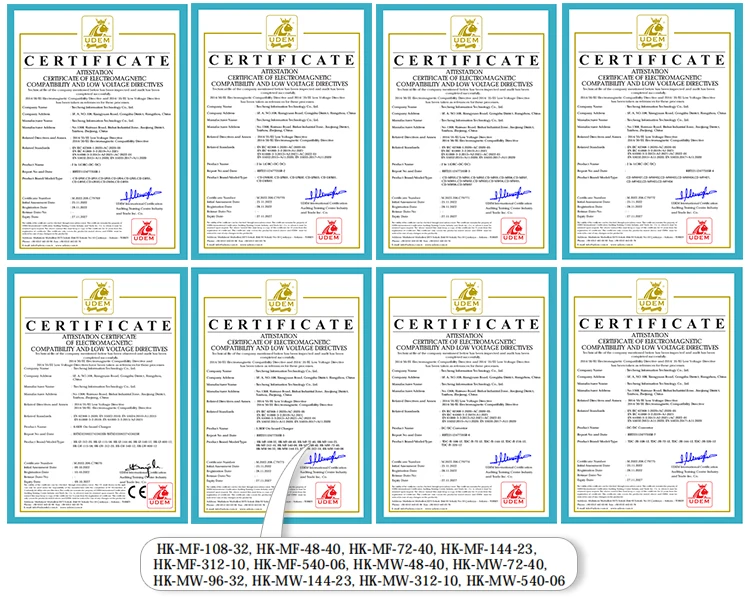

Certifications
Company Profile
Product transport
