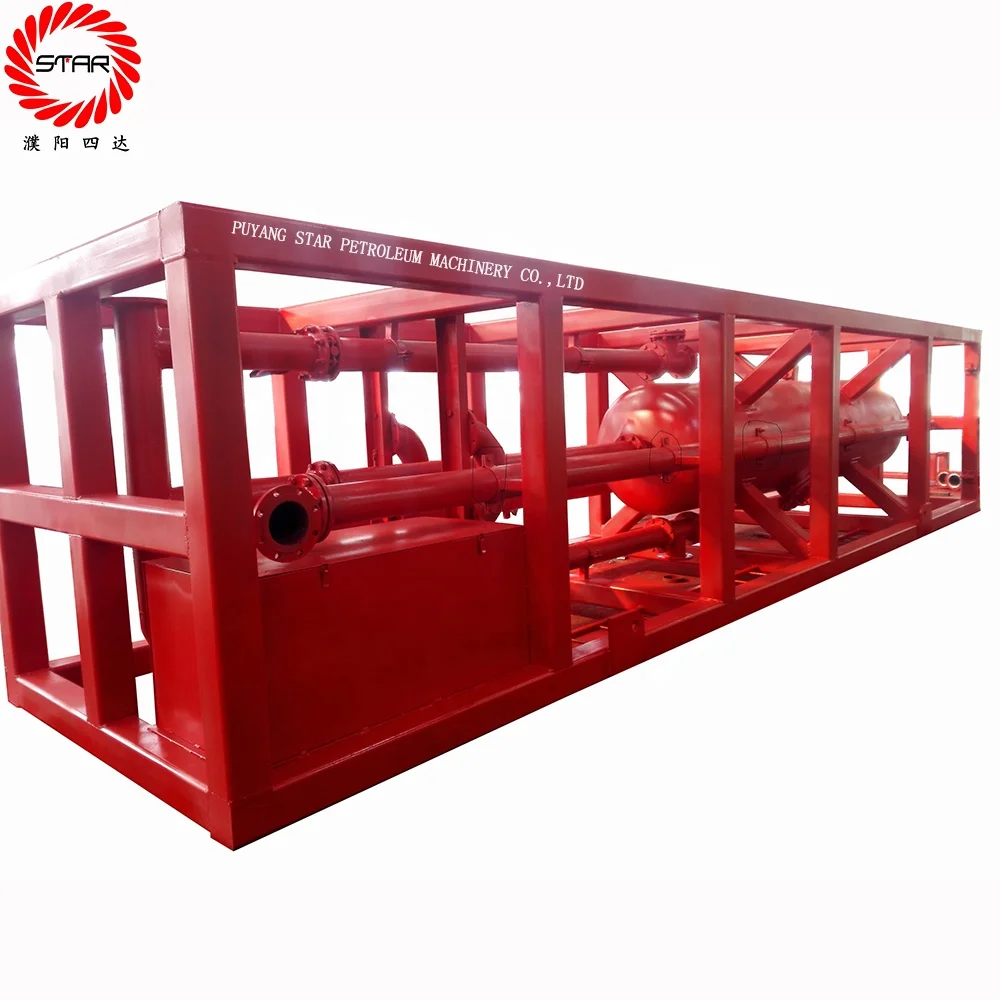

The pressure vessel certificate/mud liquid gas separator gas separation equipment
- Category: >>>
- Supplier: Puyang Star Petroleum Machinery Co. Ltd.Puyang Ltd.
Share on (1601200412878):
Product Overview
Description
Product Description
Mud Gas Filter Separator Specification | ||||||||
Model | ZYQ-1200-1 | |||||||
Design Pressure | 1Mpa | |||||||
Dia. of Inlet | 150mm | |||||||
Dia. of Outlet | 250mm | |||||||
Capacity | 320m3/h | |||||||
Container Weight | 3200kg | |||||||
Product Information:

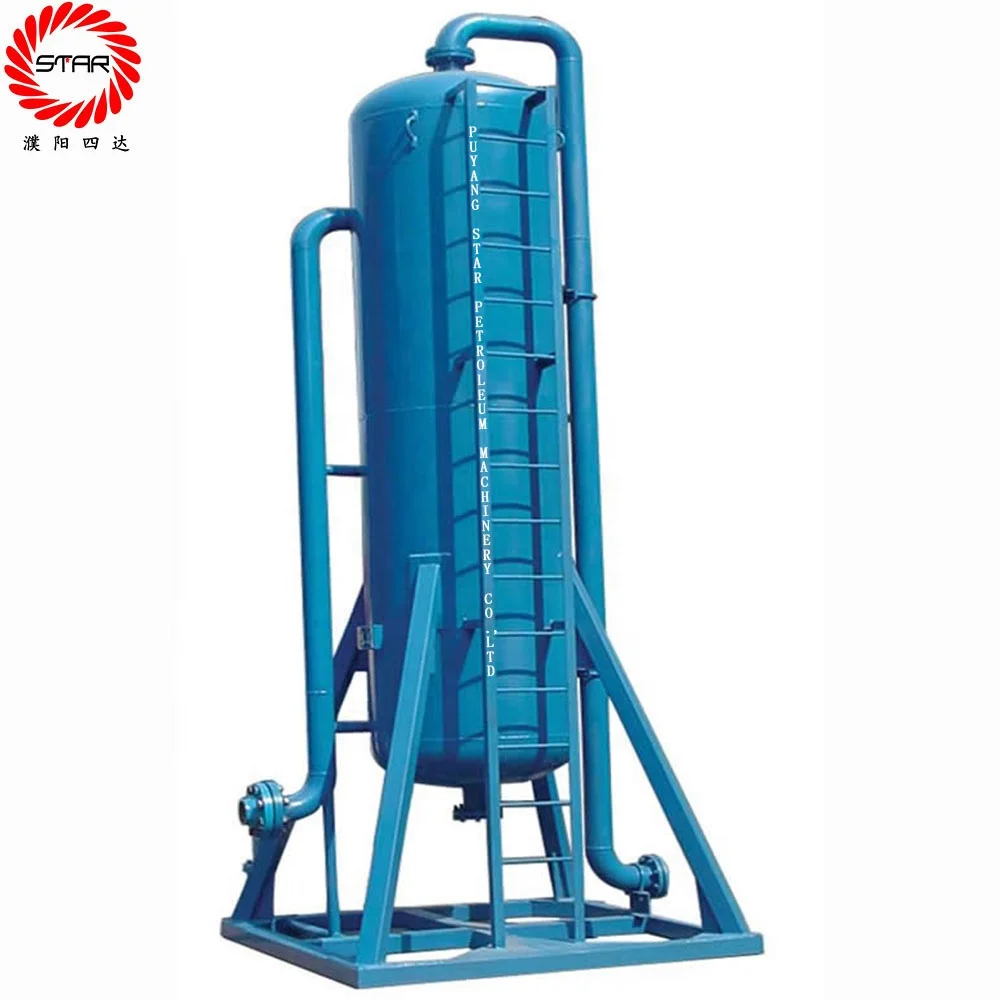

Gas Separator is a special equipment for the primary degassing of the gas invasion drilling fluid, which is mainly used to remove the large bubbles in the gas invasion drilling fluid with a diameter of about 3mm to 25mm.
Work principle:
The gas invasion drilling fluid enters the separator from the inlet of the separator, and the surface area of the drilling fluid is enlarged and exposed after impacting with the impact plate. The large bubble is broken and separated from the drilling fluid. After the first degassing of the drilling fluid, the surface area of the three layers of baffles is increased again, and the remaining bubbles are broken and separated again. The free gas is discharged through the gas outlet of the top of the tank and is brought to the safety place.

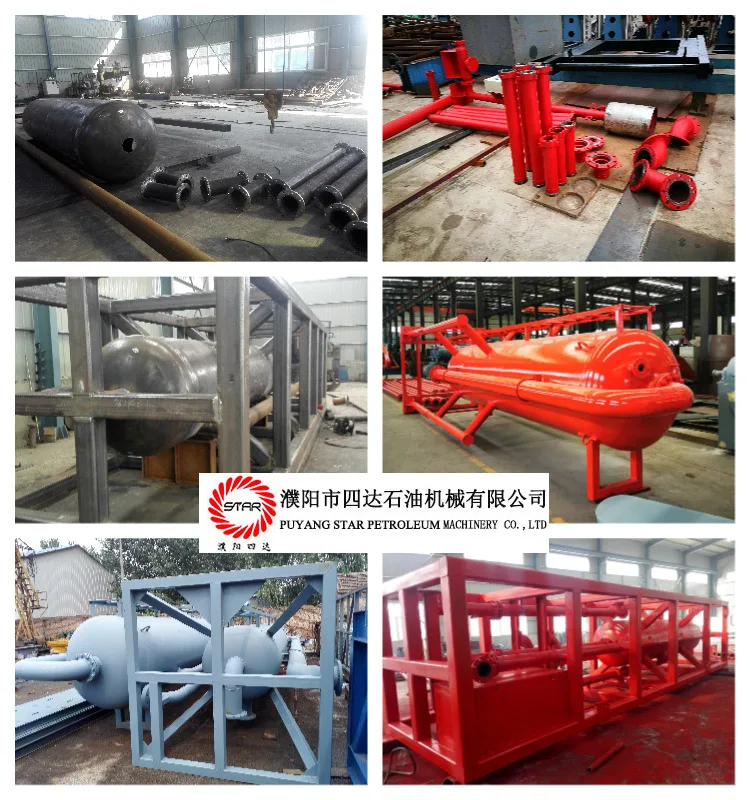

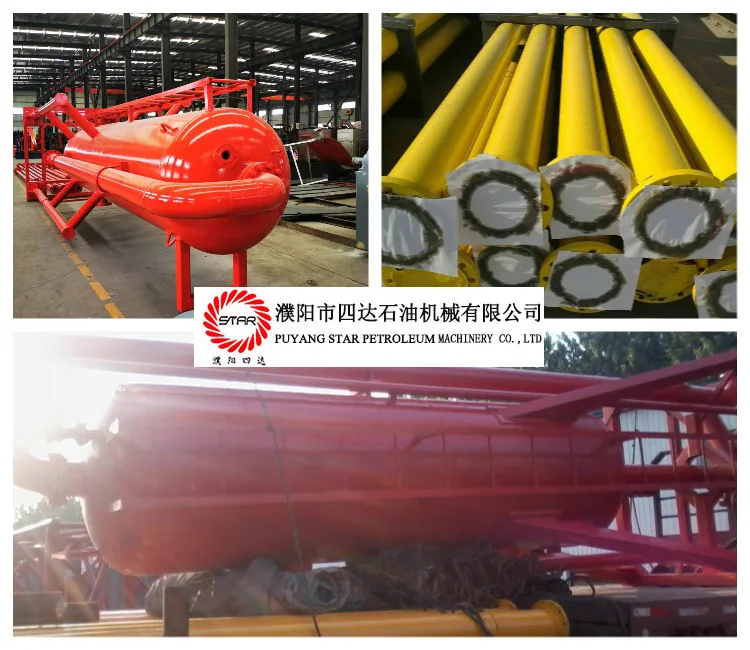

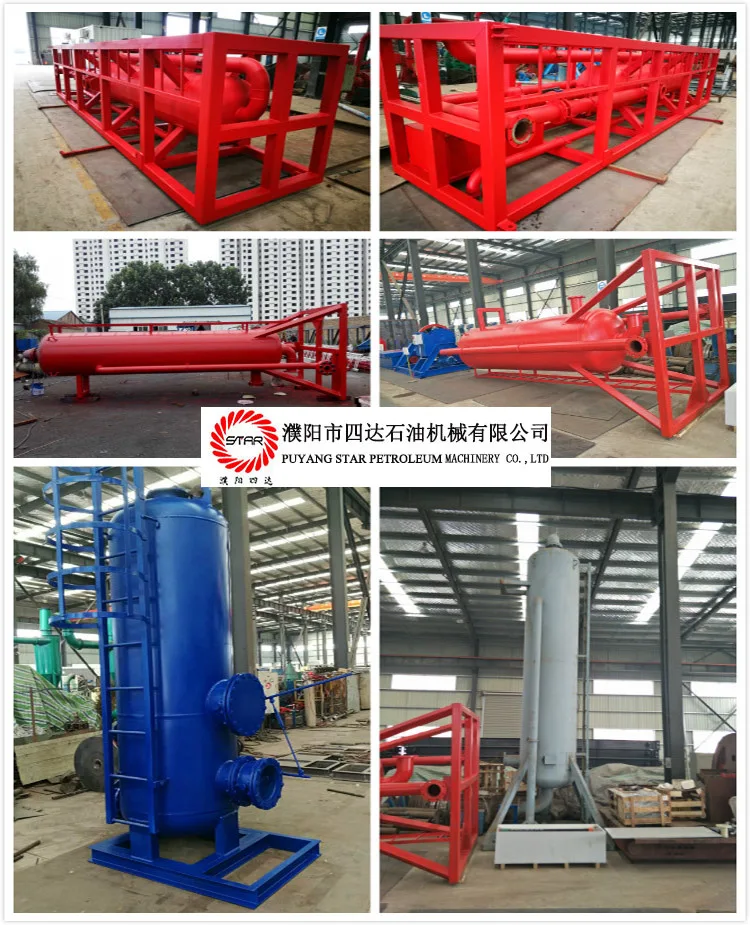

Gas Separator Production:
Main Features:
1)Separate and vents large pockets of free gas accumulations,including toxic gases.
2) The separated gas is carried by vent line to a remote location and flared.
3) The unit is ruggedly built and coated with corrosion-resistant epoxy to ensure long life while processing hazardous and toxic gases.
Technical Parameter

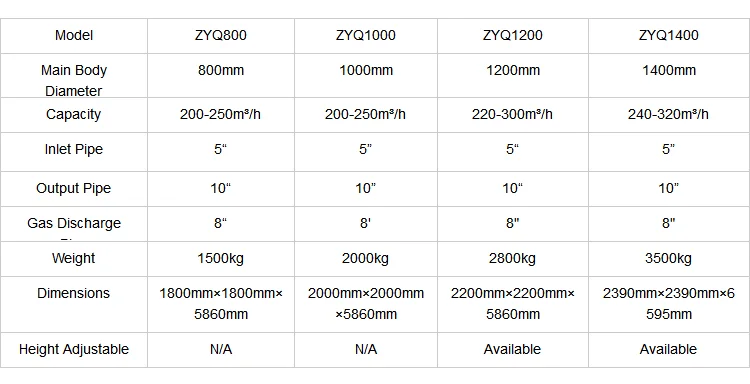

Gas Separator Technical Parameter:
Following are the Drill Pipe technical parameters, please read the technical parameters sheets to determine the model you want, if no have the model you want,please sent me your detailed requirements.
Packing & Delivery
1.Domestic Packaging and Shipping:Without packaging or according to customer requirements;
2.Oversea Packaging and Shipping:
2.1 LCL: Iron box packaging into the container;
2.2 FCL:Directly put into the container without packaging( with reinforcement in the container).
2.1 LCL: Iron box packaging into the container;
2.2 FCL:Directly put into the container without packaging( with reinforcement in the container).
Certifications
Our Company

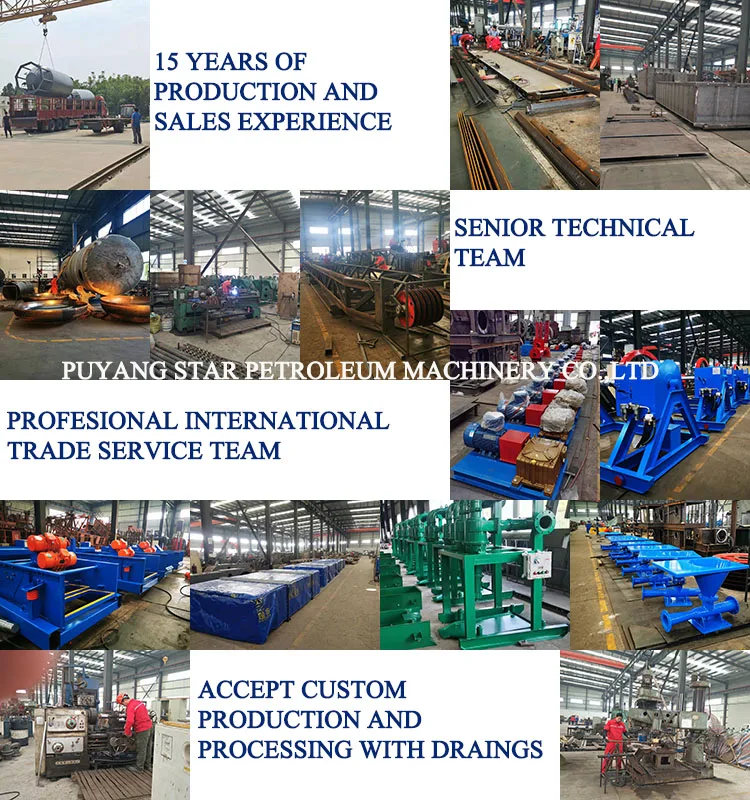

Workshop Show

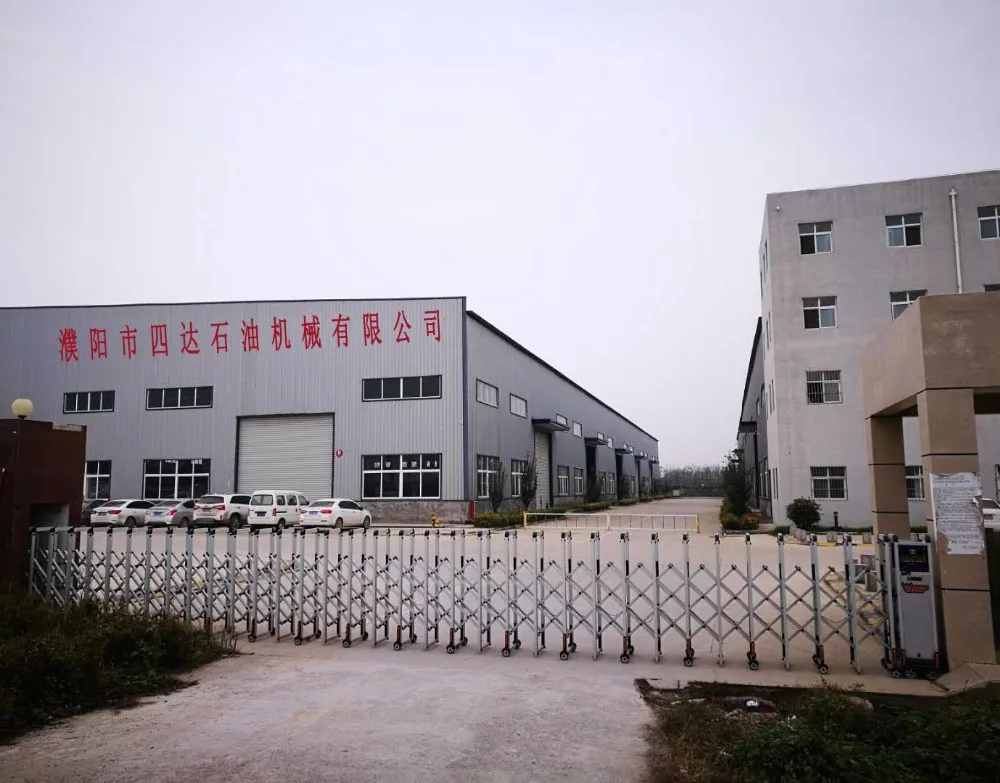

Factory Show
Contact Us
Want to know more,please be free to contact Lillian:
1.By Trademanager
2.By Following information
Remark:please supply more detail require specification ,that I can back the

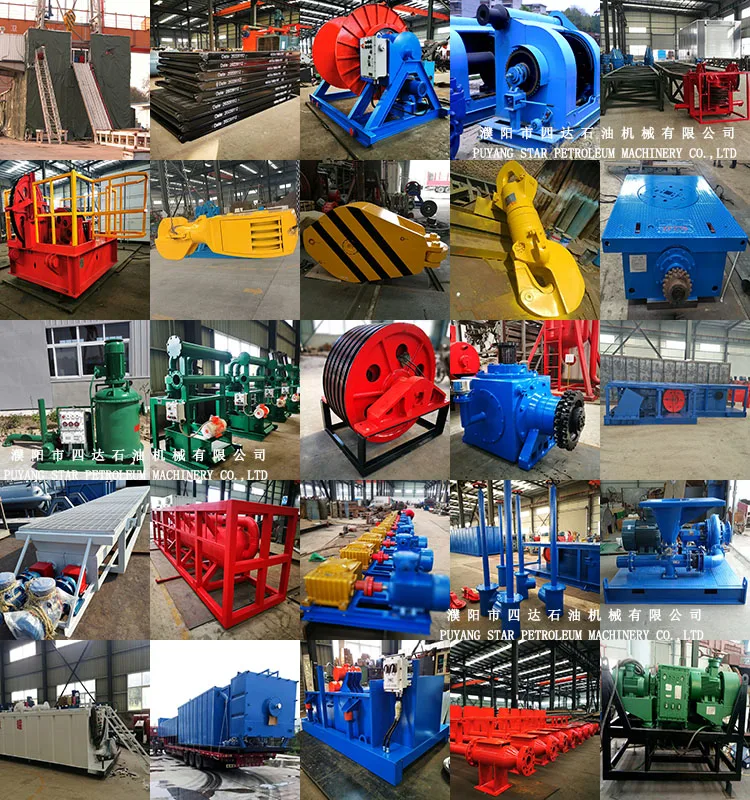

Main Products:
Our company is mainly committed to the production of drilling equipment and solids control equipment
