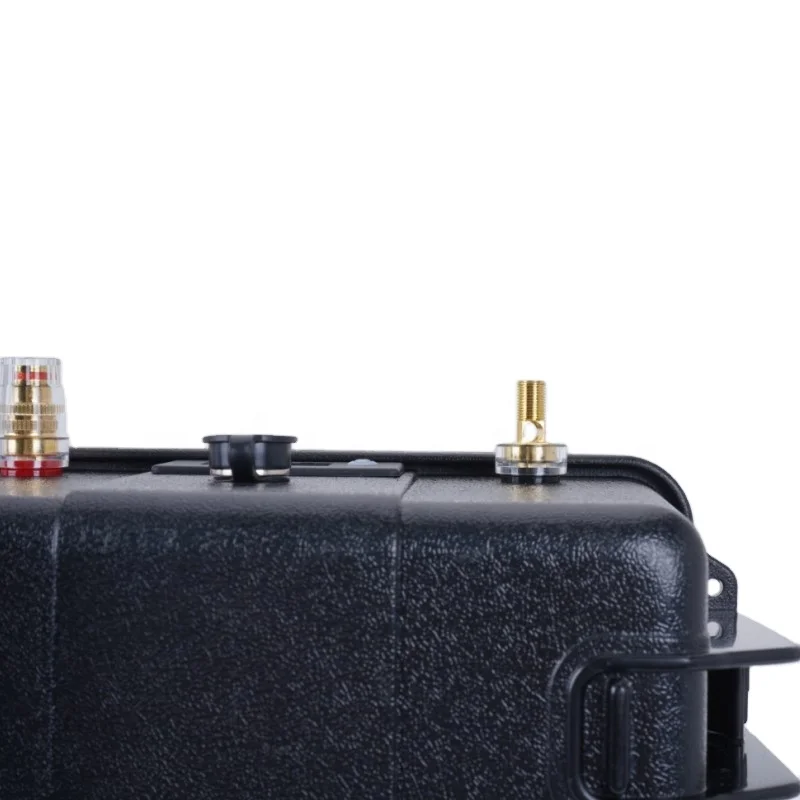

Off grid 60v 30ah rechargeable home lithium ion battery for electric scooter
- Category: >>>
- Supplier: Shenzhen Ruiyi Technology Co. Ltd.
Share on (1601200436682):
Product Overview
Description
Off grid 60v 30ah rechargeable home lithium ion battery for electric scooter
Product Description
1.Product parameter:
Battery cell | 60v 30ah lithium battery | ||
Nominal Voltage | 60V | Nominal Capacity | 30AH |
Charge Voltage | 67.2V | Charge Current | 5A Fast Charge |
Charging time | 6-7H | Charge Method | CC/CV, support solar and car charging |
Discharging Current | 60A | Plus Discharging current | 120A |
Over-Charge Protection | 68V | Over-Charge recovery | 64.8V |
Overcharge delay | 1000MS | Over-discharge protection | 44.8V |
Over-discharge recovery | 48V | Over-discharge delay | 100MS |
Short circuit protection | Yes | Short circuit delay | 200uS |
Short circuit recovery | Disconnect load | Balancing function | Yes |
Balance current | 50-60mA | Balance accurate | ±25mV |
USB Port | Optional | Carrying method | Portable |
Dimension | 280*246*156mm | Weight | 10.5 KGS |
Case Matetial | industrial grade three-proof box ABS material | Enclosure Protection | IP65 |

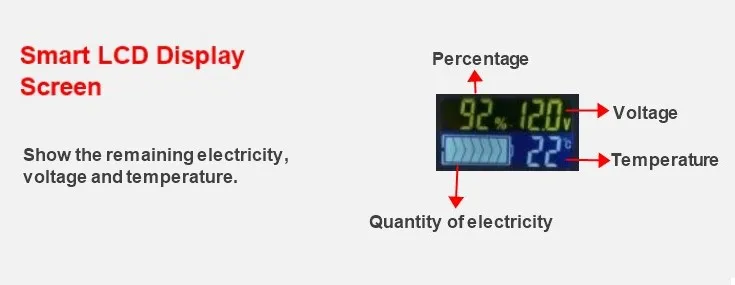

Display | LCD intelligent monitor real-time electricity meters, voltage, internal temperature, low-voltage alarm and so on | ||
Display Closed | Automatically closes after 10 seconds | ||
Operation Temperature | -15℃—60℃ Low temperature -40℃ can be customized | ||

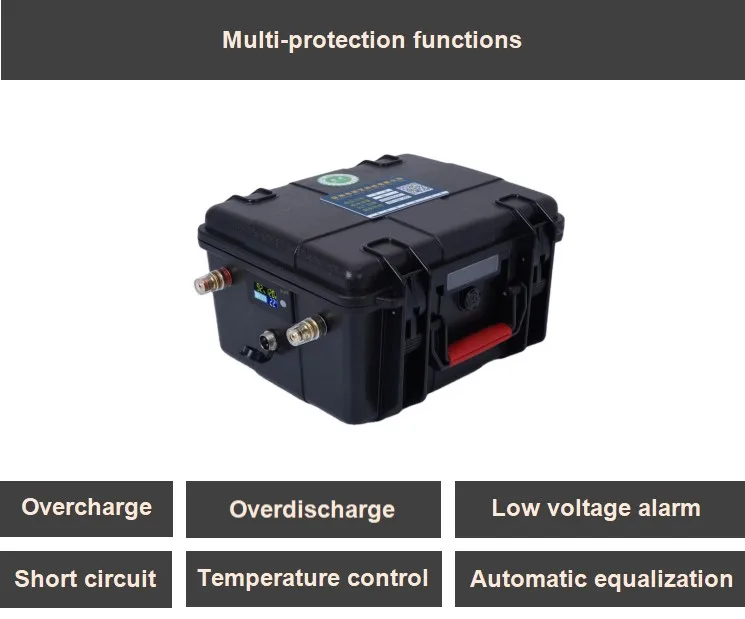

Protection function | Overcharge, over discharge, short circuit, automatic equalization, low voltage alarm, temperature control protection | ||
Special requirement | Can be customized 232, 485, UART communication function | ||

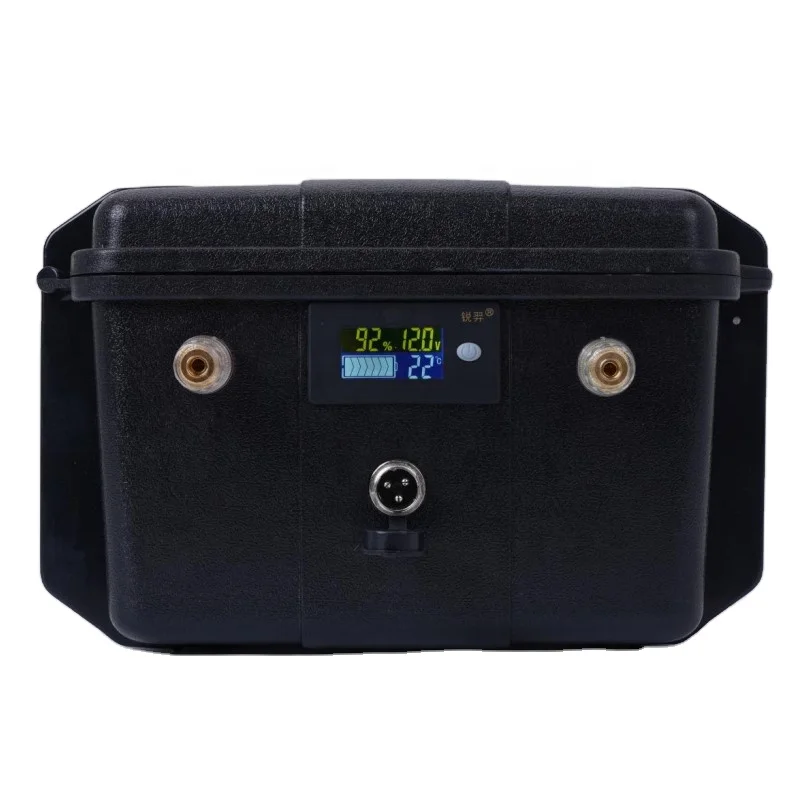

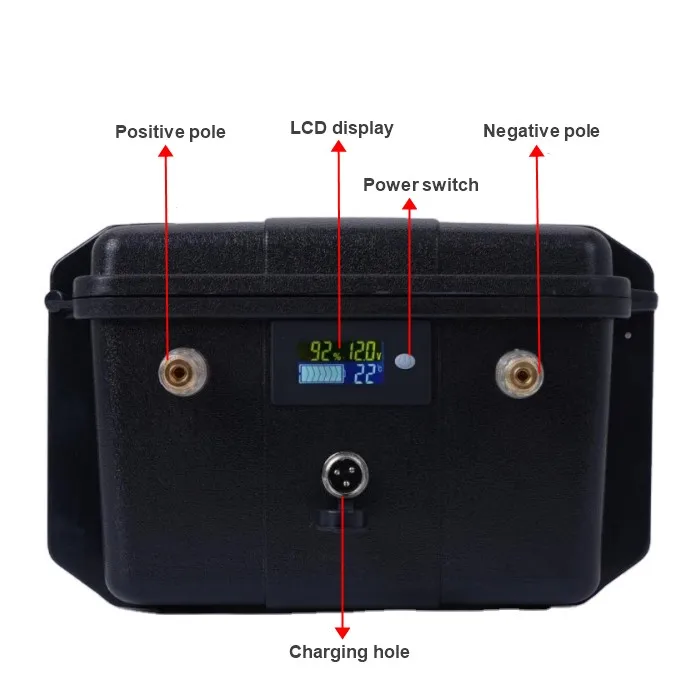

2.Output ports:
1)M8 terminals: positive pole(in red) and negative pole(in black)

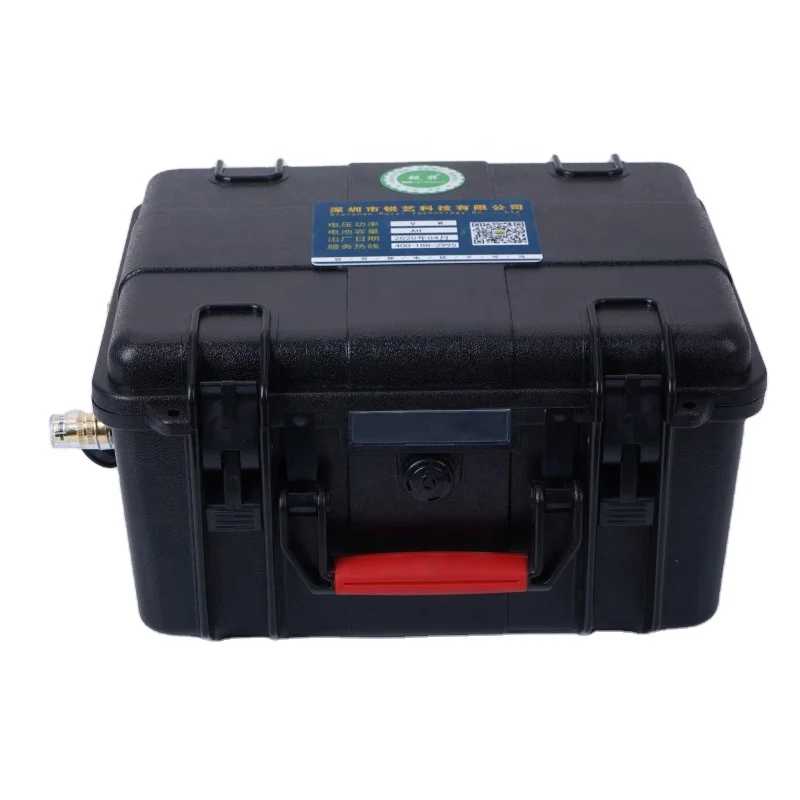

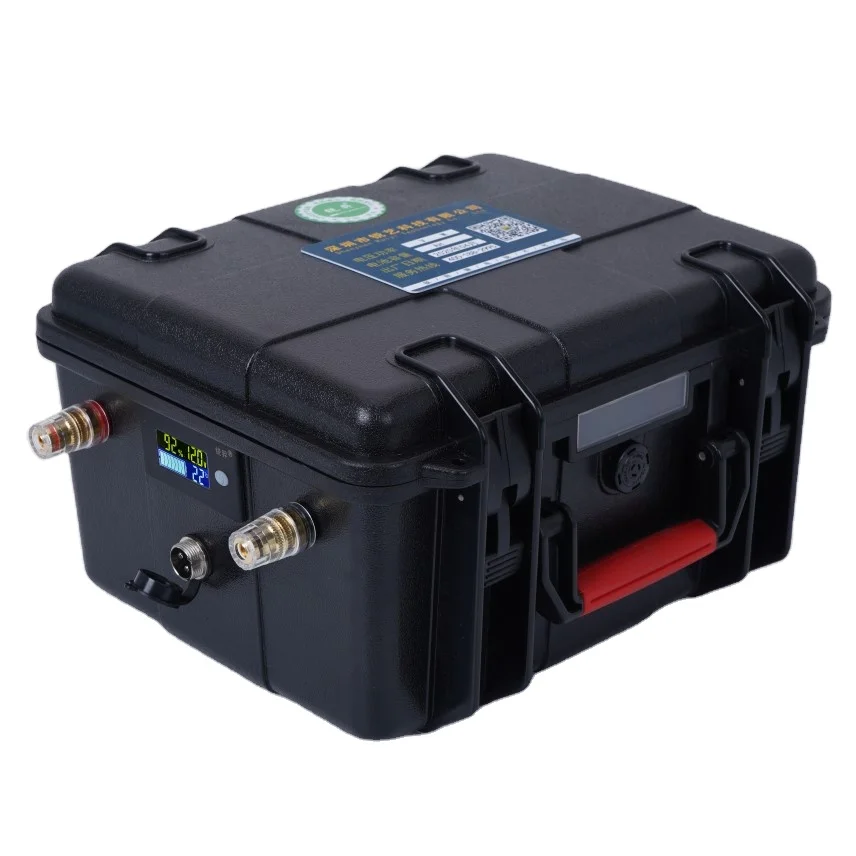

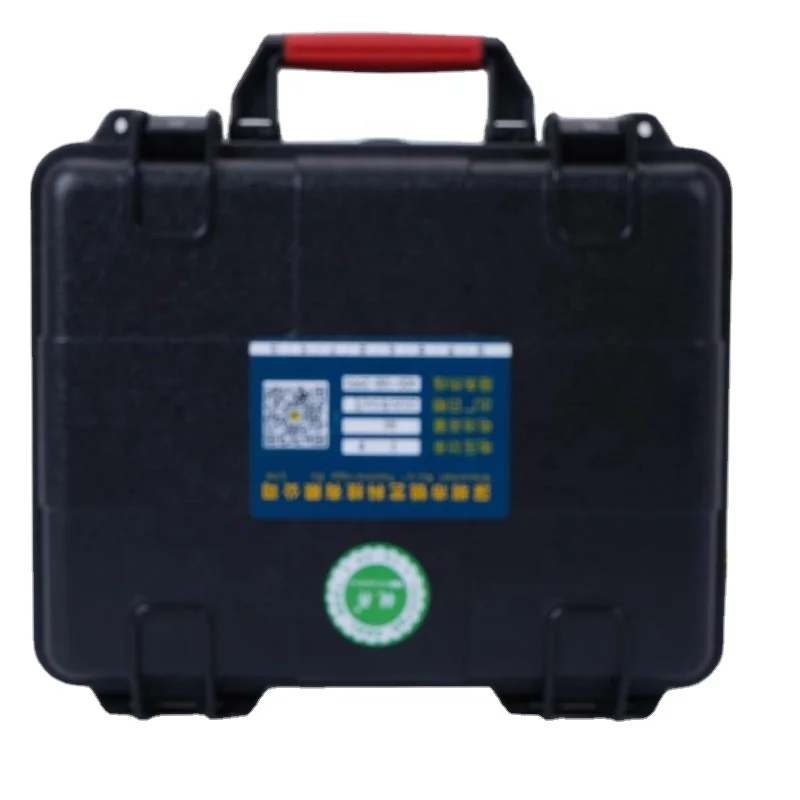

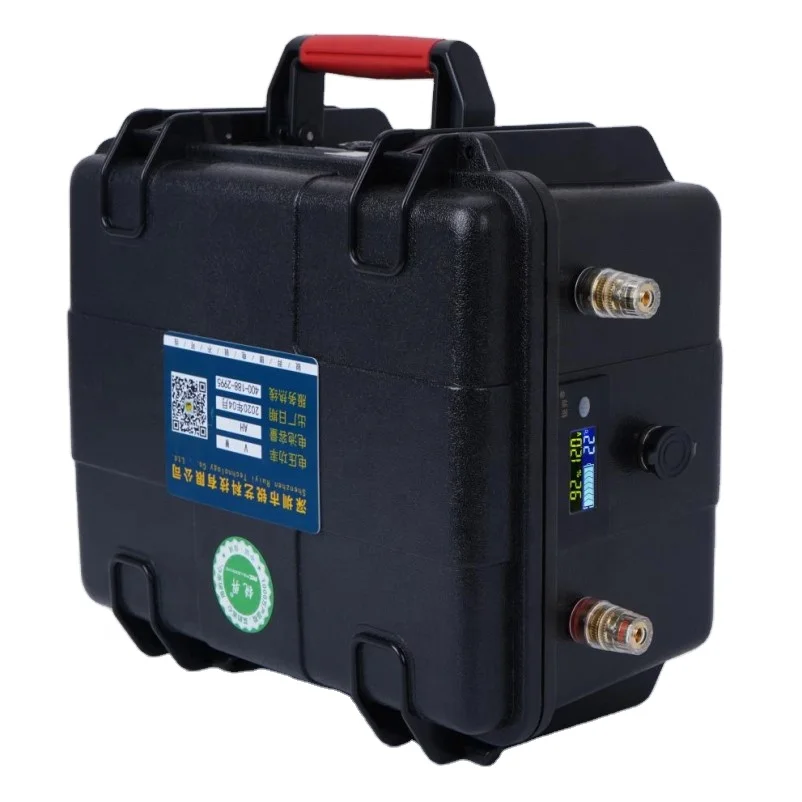

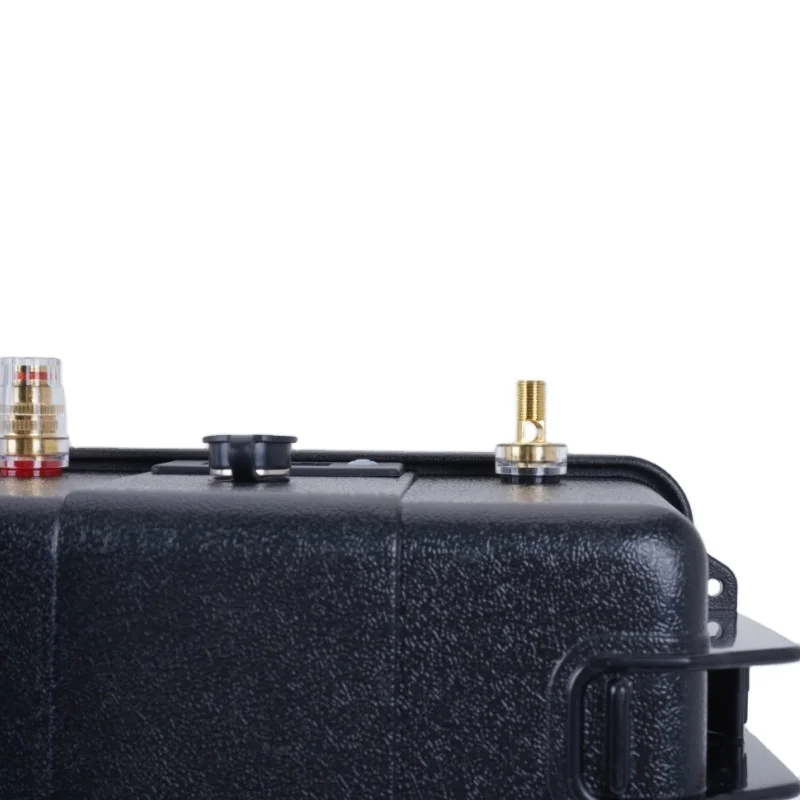

3.Product image:
Remarks: the package includes 1 unit of 60V 30Ah lithium battery,1 unit of wall socket charger.

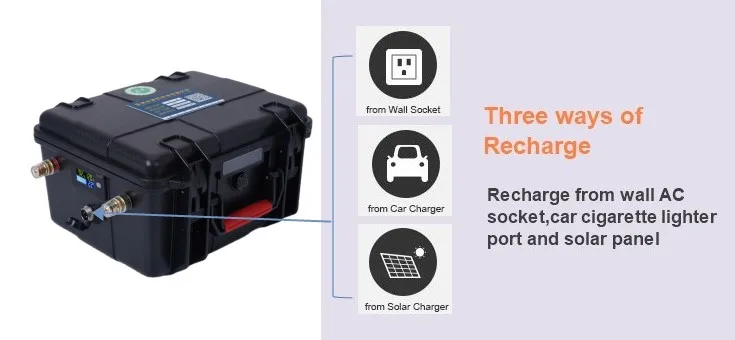

4.Three ways of recharge:

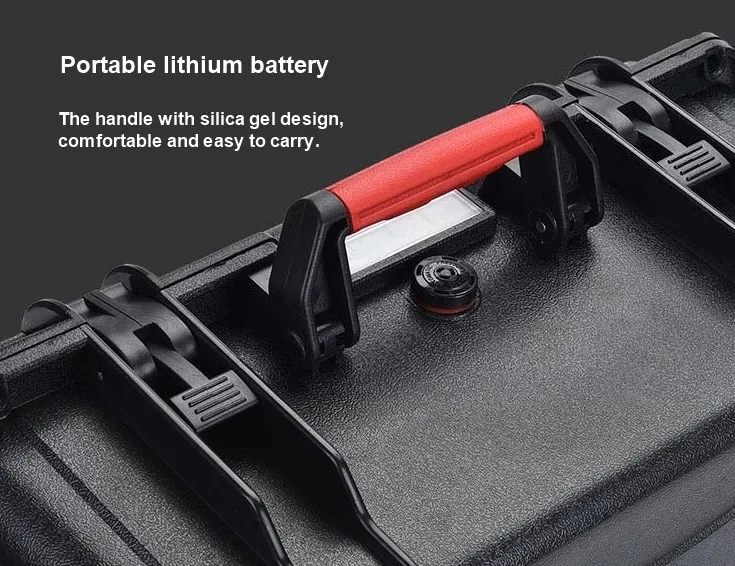

5.Product details and Advantages:
6.Product application:It is widely used for camper vans,marine,electrical car,power tools,
energy storage and solar system as 60v 30Ah waterproof lithium battery pack is safer,more
stable and environmentally friendly.
Company Information
Certifications
Packaging & Shipping
Packaging: Usually we pack the goods with our standard package and it's free;if you have your
own packing design, we need to check and charge it accordingly.
Shipping: Usually we ship the samples and goods by sea, as the transportation charge is lower.
If you have your own requirement for shipment, we can follow it accordingly.
FAQ
1.What can 60V 30Ah lithium battery be used for?
It can be used for camper vans,marine,electrical car,power tools,energy storage and solar
system etc.
2.How to calculate the working times for your device?
Working time = 3*3.7*30*0.8/ operate power of your device.For reference,assuming power
consumption of your device is 200W, the working time will be 333Wh*0.8/200W = 1.3hrs
(rough calculated).
3.What kind of solar panel is compatible with this electric generator?
120V,240W and 360W solar panel.We suggest to choose Ruiyi solar panel,which is flexible,
foldable,portable and with high conversion efficiency.
4.What's the cycle life of your lithium battery?
The cycle life of our lithium battery is 2000 times.
5.Can this power station support charging devices while being charged?
Yes, it supports charging devices while being charged.
6.How long is the waranty for your products?
The warranty of our lithium battery is 2 years after having been sold.
