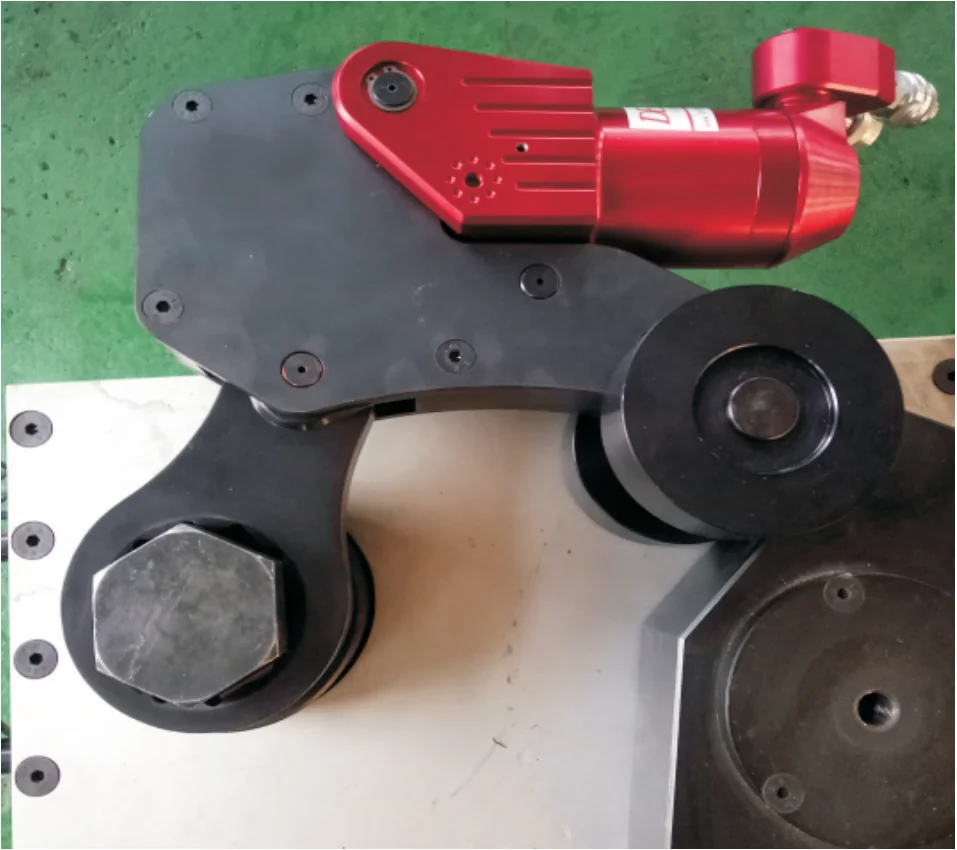

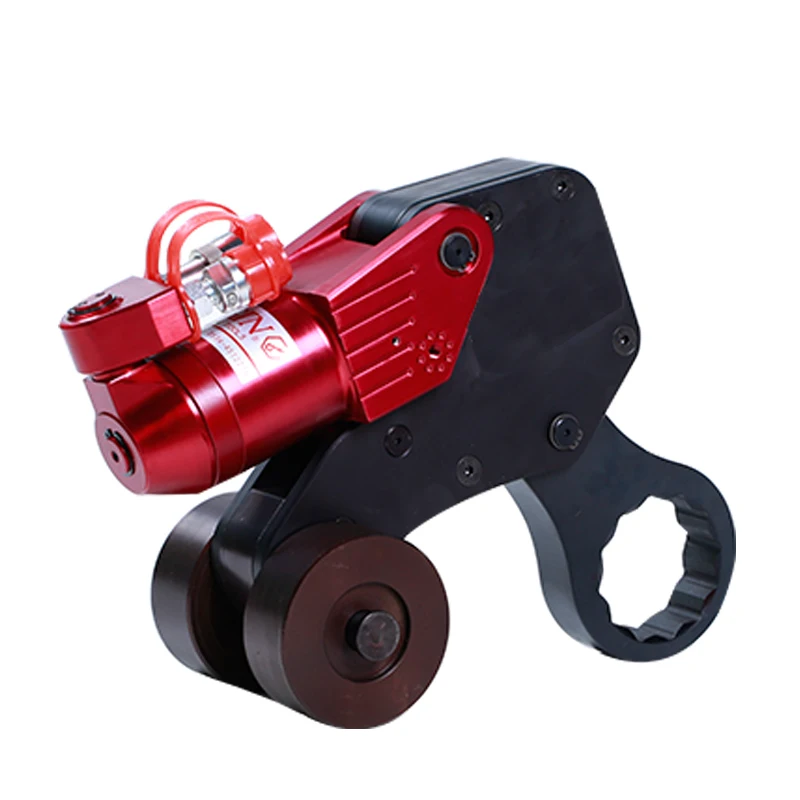

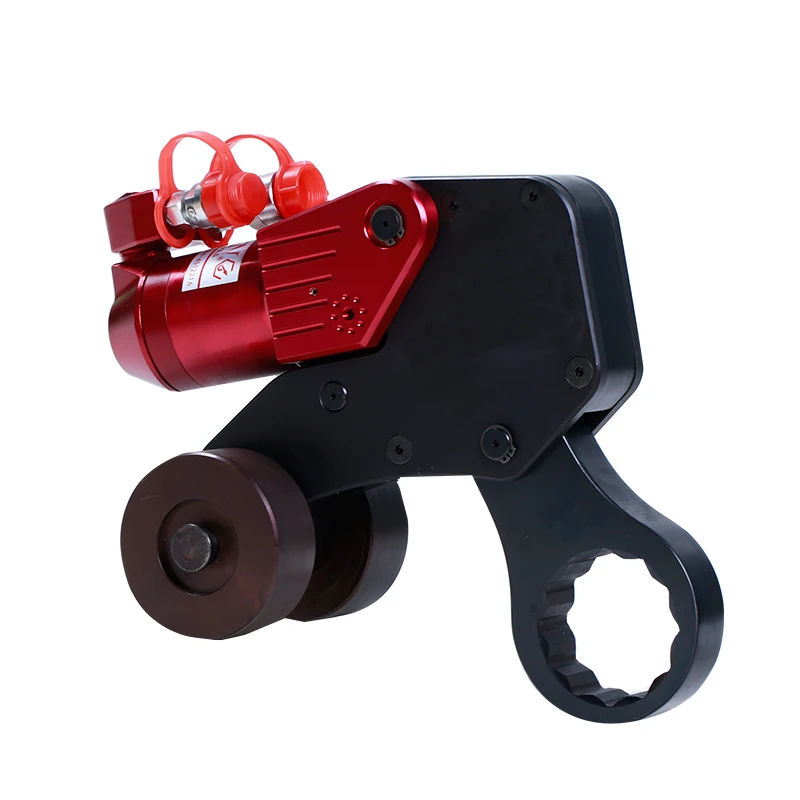

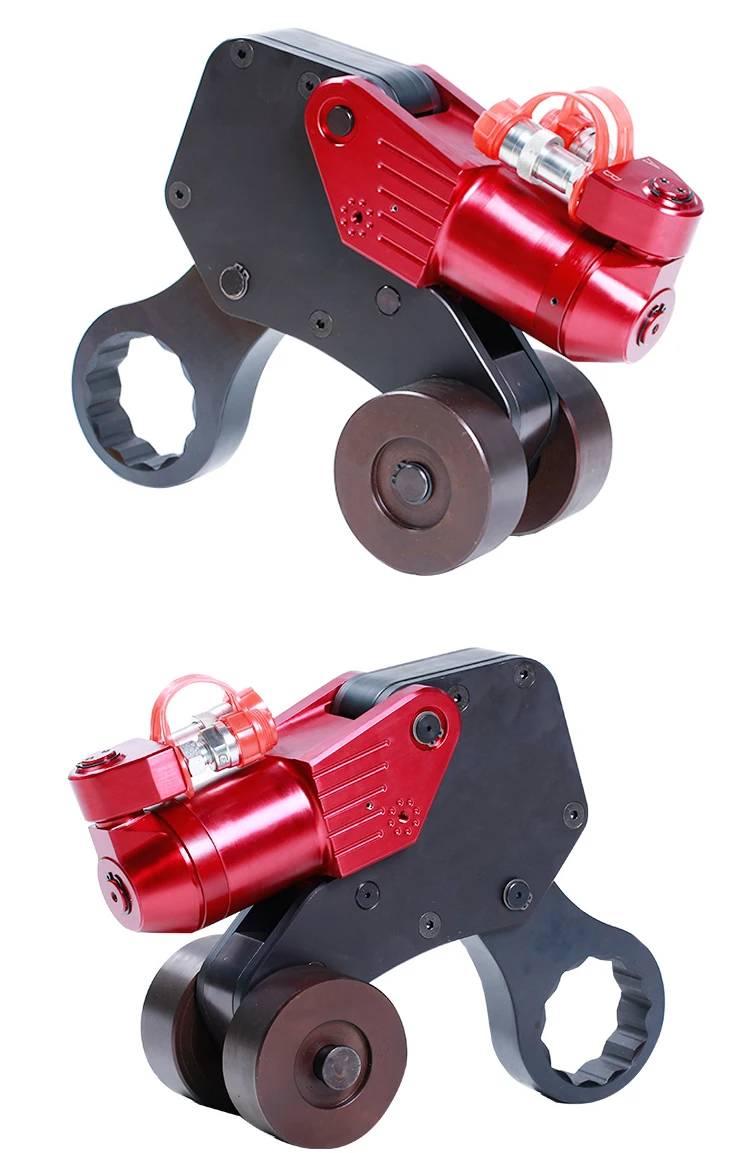

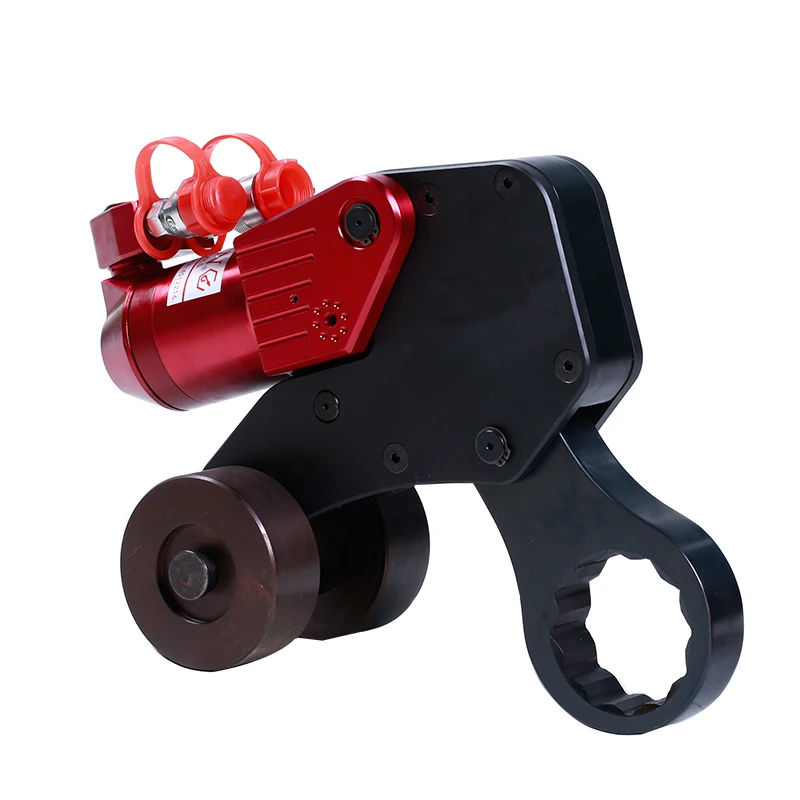

Hydraulic tools CLCD Series fork wheel type Low Profile Hydraulic Torque Wrench
- Category: >>>
- Supplier: Pingyuan Jingke Hydraulic Co. Ltd.
Share on (1601200440372):
Product Overview
Description
Products Description

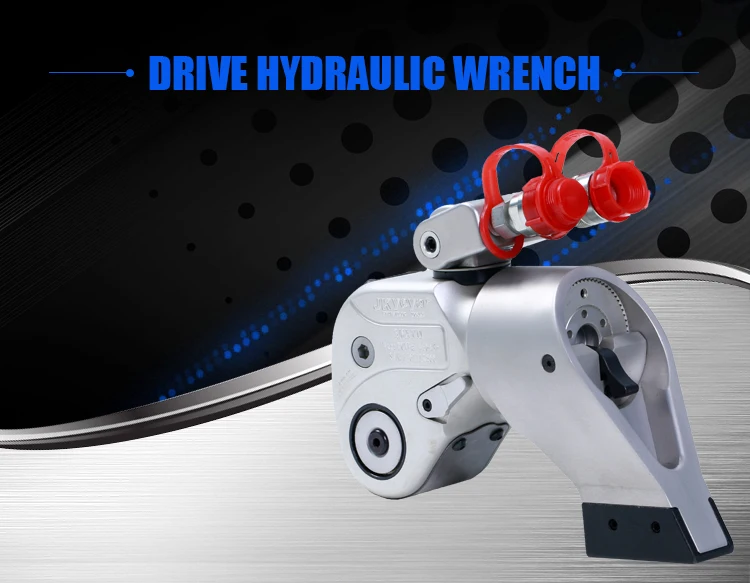

1.Features of MXTD square drive hydraulic wrench
01. 70MPa max working pressure
02. Torque accuracy up to ±3%
03. 12 models from 185Nm-150000Nm
04. 360X180 degree swivel joint, no space limitation
05. 360 degree reaction arm
06.Al-Ti alloy material, integrated design
07.Square drive and reaction arm can be customized.

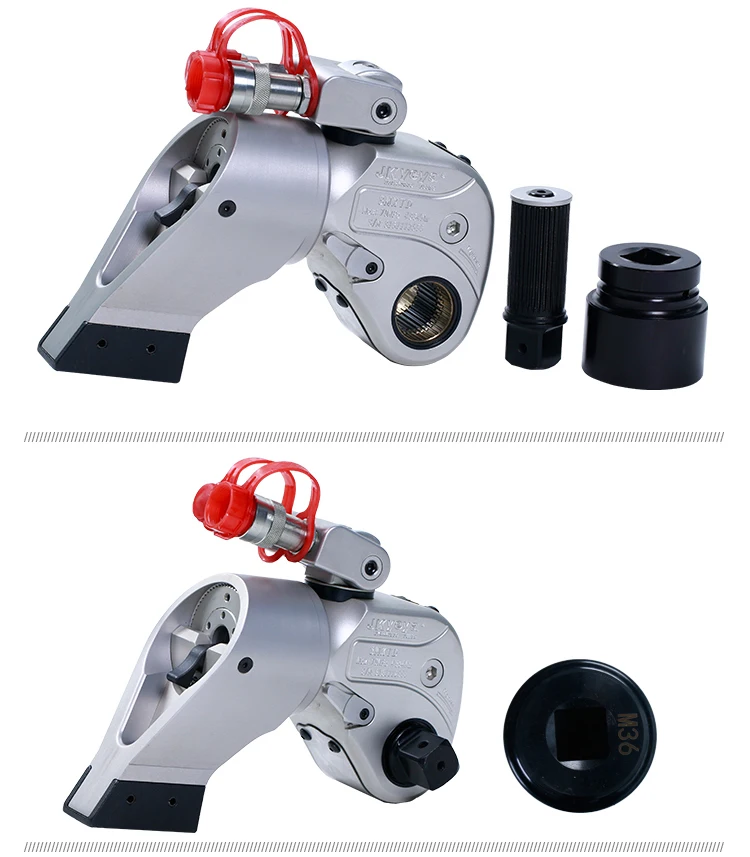

2. Product details
Warranty | 12 Months |
MOQ | 1PC |
Certification | CE, ISO9001:2008 |
Delivery Time | 7 days |
Factory Outlet | |
High Quality; Low Price |
CEJN Connector
360 x 180 degree swivel joint, no space limitation
Al-Ti Alloy Material, Integrated design
Trigger-type latch allows the 360-degree trimming reaction arm to be placed on any fulcrum
Rection Arm
360 degree reaction arm

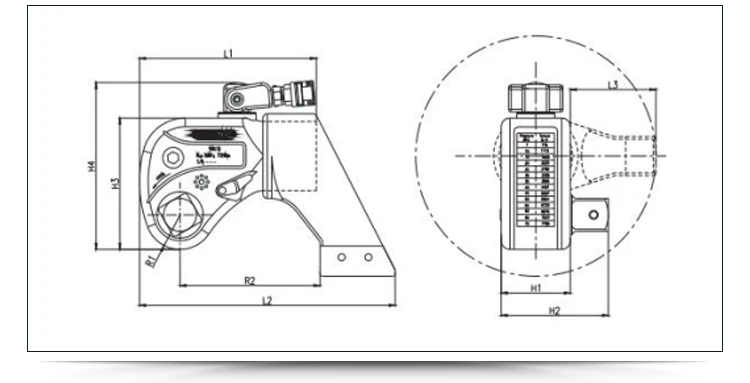

Product Paramenters
Model | 1MXTD | 3MXTD | 5MXTD | 8MXTD | 10MXTD | 20MXTD | 35MXTD | 50MXTD | 95MXTD |
Torque (mm) | 185 1852 | 436 4364 | 779 7789 | 1072 10715 | 1553 15528 | 2617 26171 | 4963 49627 | 7032 70315 | 14085 140848 |
Weight (Kgs) | 2.7 | 4.8 | 8.8 | 12 | 14.5 | 25 | 44 | 89 | 155 |
L1 (mm) | 138 | 168 | 207 | 226 | 250 | 304 | 390 | 89 | 520 |
L2 (mm) | 194 | 244 | 296 | 326 | 366 | 442 | 558 | 418 | 758 |
L3 (mm) | 63 | 79 | 99 | 110 | 120 | 146 | 177 | 596 | 246 |
H1 (mm) | 50 | 70 | 80 | 90 | 100 | 120 | 150 | 195 | 210 |
H2 (mm) | 73 | 99 | 124 | 133 | 143 | 183 | 219 | 166 | 307 |
H3 (mm) | 96 | 125 | 152 | 170 | 186 | 226 | 282 | 236 | 415 |
H4 (mm) | 140 | 165 | 193 | 211 | 227 | 267 | 332 | 300 | 473 |
R1 (mm) | 26 | 34 | 40 | 46 | 50 | 60 | 80 | 366 | 115 |
R2 (mm) | 107 | 132 | 162 | 178 | 199 | 240 | 303 | 82 | 400 |
Square Drive | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 1 1/2'' | 2 1/2'' | 2 1/2'' | 3'' | 4'' |

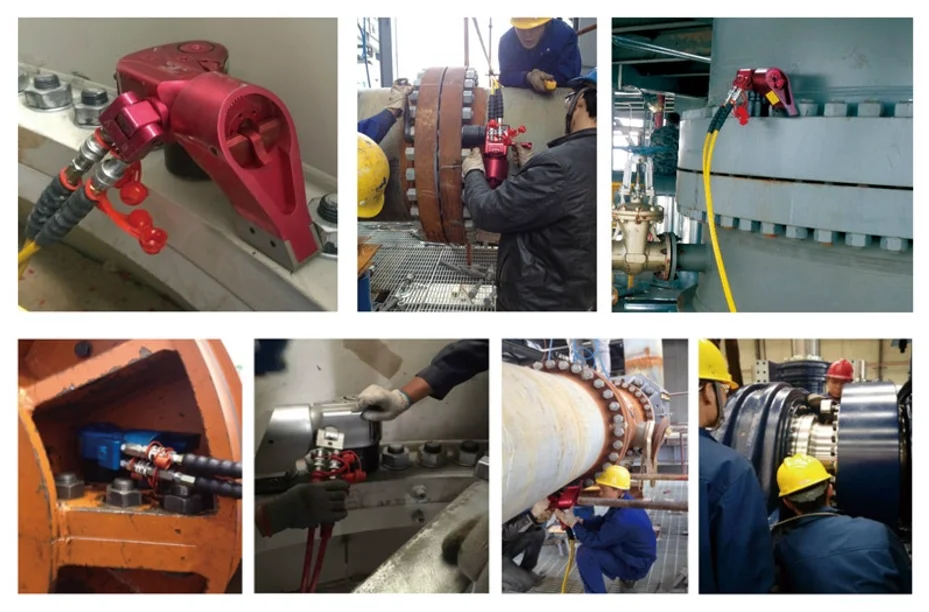

Application
Related products
Company Profile
Certification
Exhibition
Packaging & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. And 15-20 days if no stock, also depending on quantity.
Q3: What are your terms of payment ?
A3: Payment <=10000USD, 100% in advance. Payment >=10000USD, 50% T/T in advance ,balance before shipment.
Q4: How can I contact the sales?
A4: Please call at 0086 15562584234 for presales services or check homepage email
Q5: How can I buy Torcstark products in my country?
A5: Please send us an inquiry or email. We will reply to you if there are distributors in your country.
Q6: Can I have Torcstark products catalogs and price lists?
A6: Please visit our website(//www.torcstark.com) to download our Ecatalog, and send us an email for price lists.
