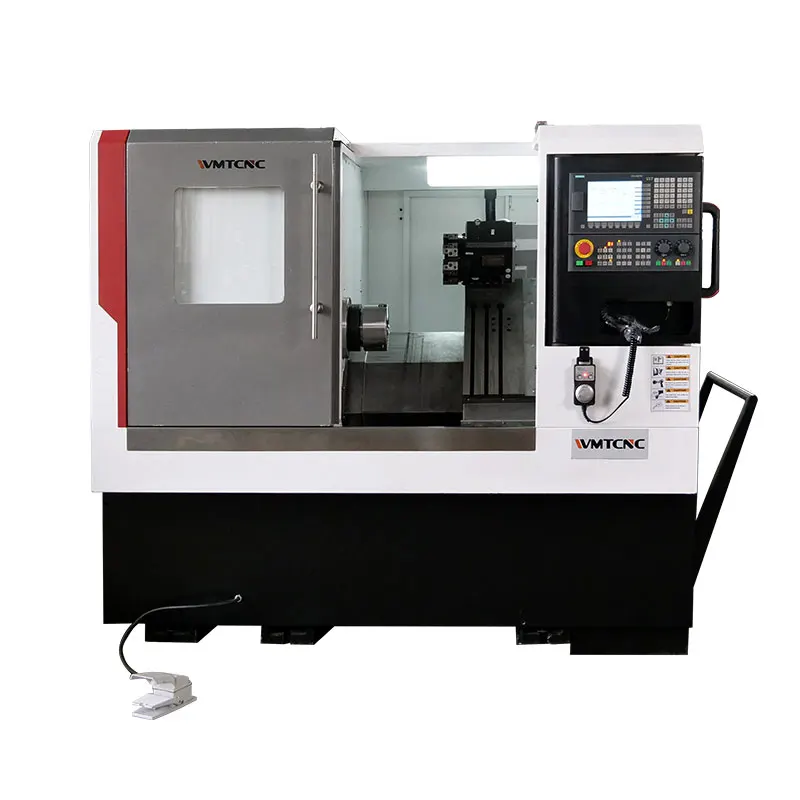

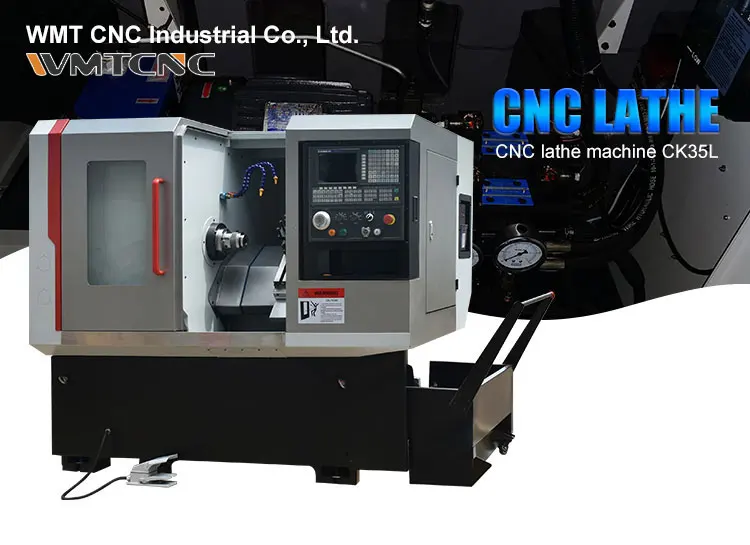

Inclined bed cnc lathe CK35L torno cnc turning center machine 2 axis slant Bed lathe cnc machine
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601200460749):
Product Overview
Description
Product Description
Main Features:
1-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

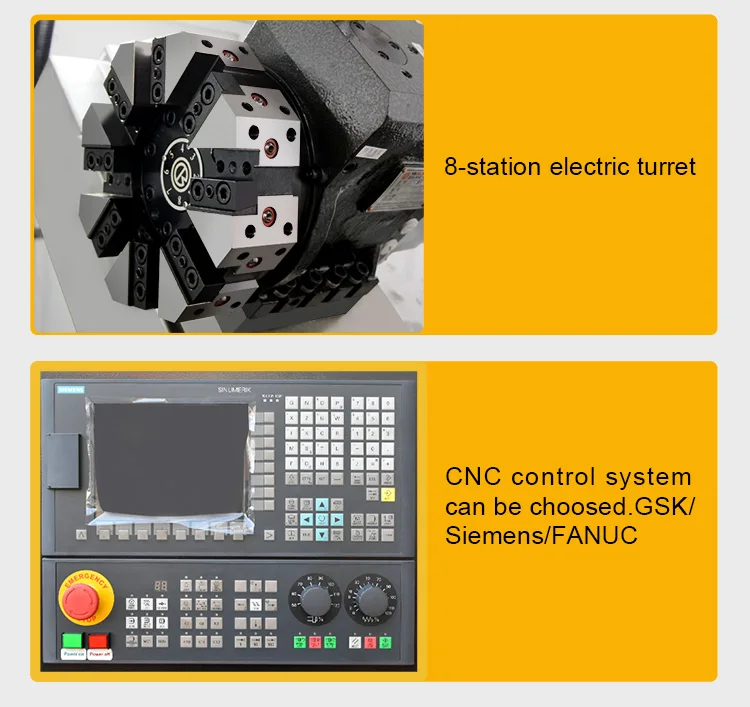

2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.
2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.
The post is located on precision contrite gears with a high repeated positioning accuracy.

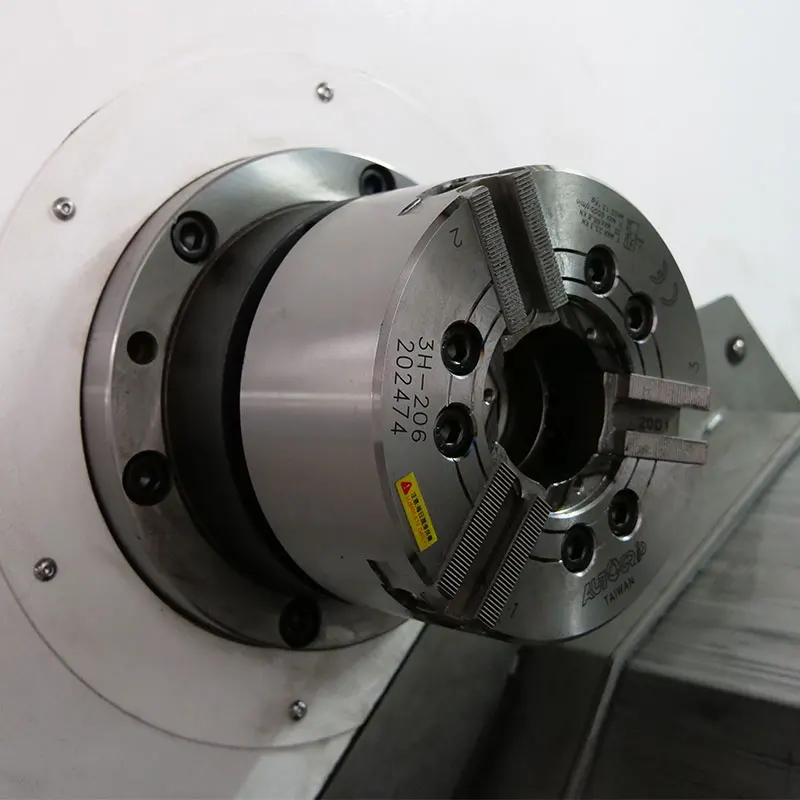

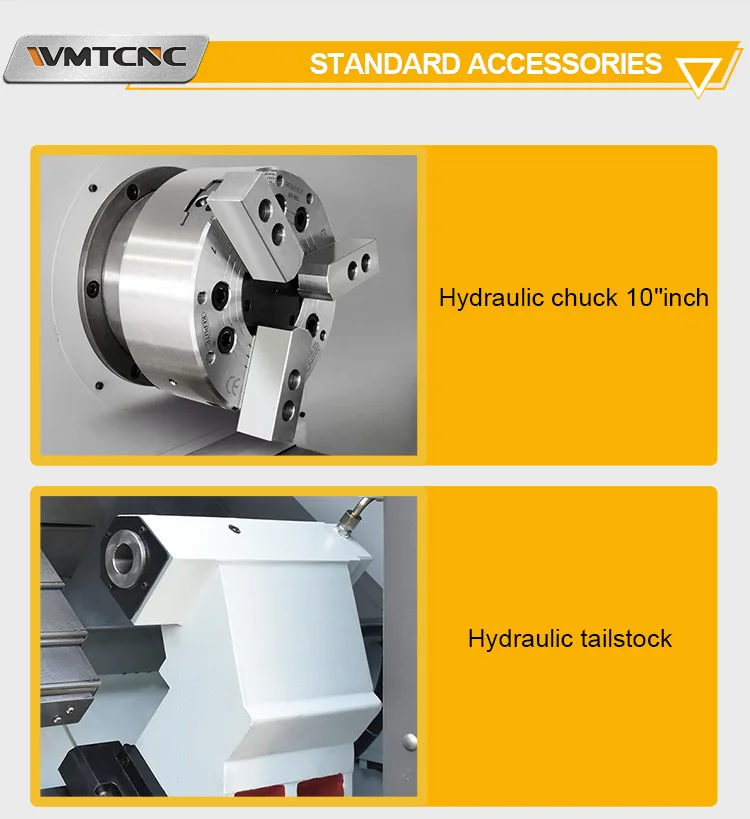

3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4-The spindle system is high in rigidity and accuracy.

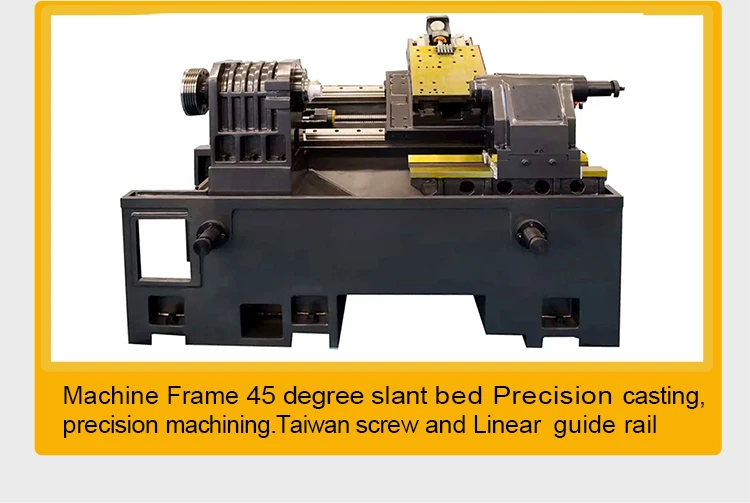

5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4-The spindle system is high in rigidity and accuracy.
5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
Specification | CK35L |
Max. swing over bed | φ350mm |
Distance between centers | 250mm |
Max.swing over cross slide | φ185mm |
Max. spindle speed | 4000rpm |
Spindle bore | φ52mm |
Spindle nose | A2-5 |
Taper of spindle bore | 1:20 |
Chuck dia. | φ160mm |
X-axis travel | 350mm |
Z-axis travel | 300mm |
Rapid traverse X/Z | 12/15 m/min |

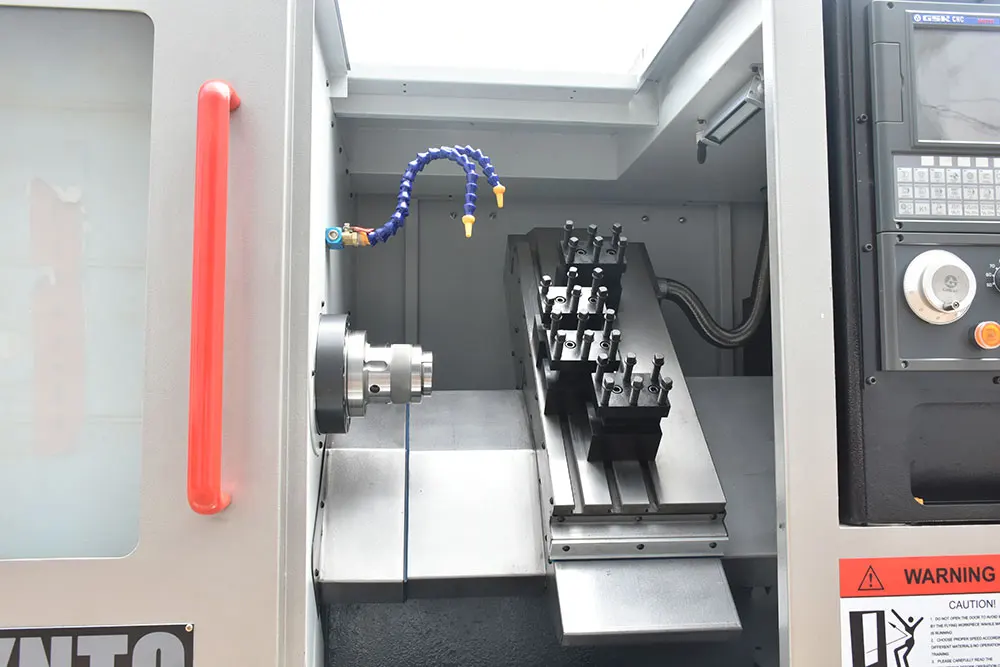

Tool station | Tool array |
Tool section | 20x20mm |
Spindle motor power | 4KW Servo |
Spindle pump power | 120w |

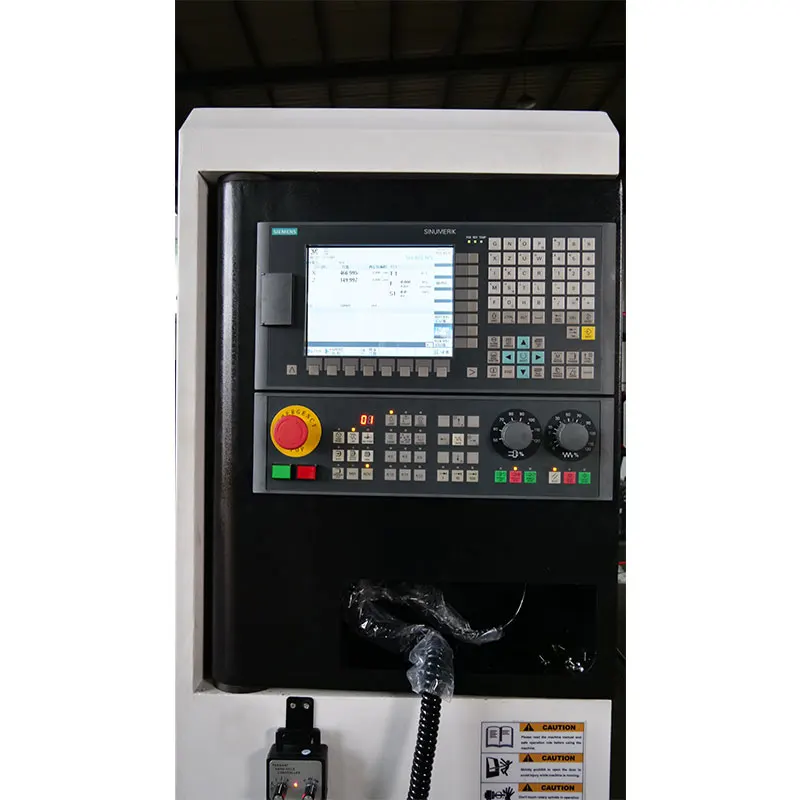

CNC controller | GSK 980TDI |
Type of guideway | Taiwan linear guideway |
Overall size (LxWxH) | 2600x1300x1700mm |
Packing size (LxWxH) | 2760x1700x2050mm |
N.W/G.W | 1350/1550kg |

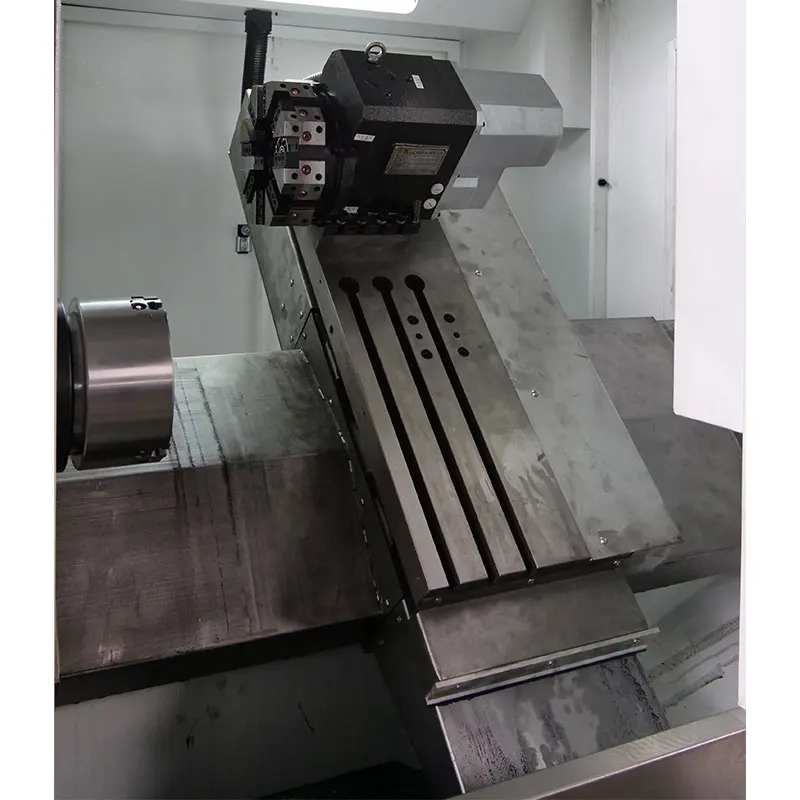

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
