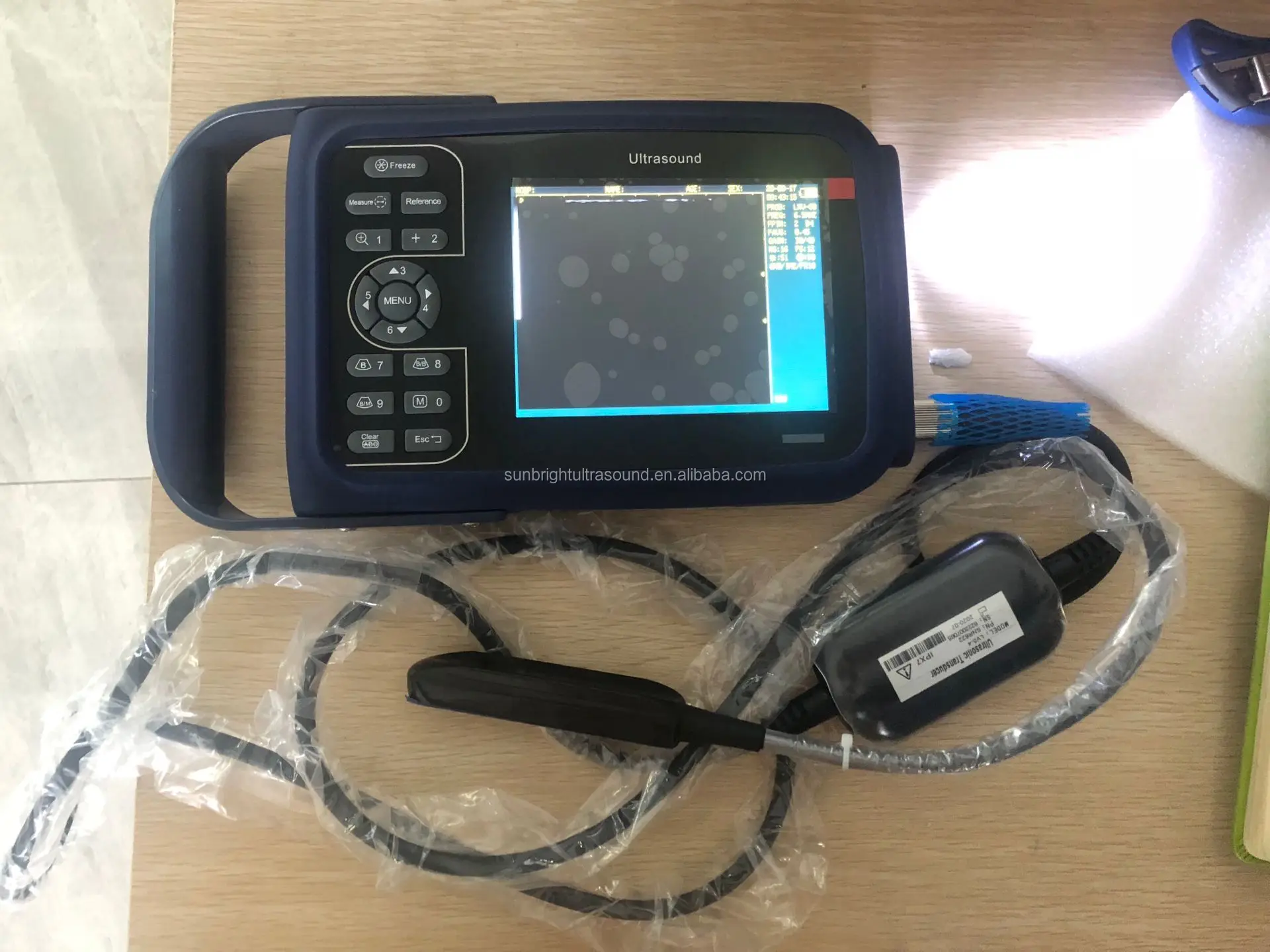

Animal Pregnancy test Ultrasound Equipment cattle sheep horse Pregnancy Ultrasound with probe
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1601200525722):
Product Overview
Description
Products Description
Fast description:
Animal Pregnancy test Ultrasound Equipment cattle sheep horse Pregnancy Ultrasound with probe
1. Light weight of 0.5 kg, very convenient to carry out.
2. Crystal clear with high resolution image display
3. Dismountable battery which can work more than 3 hours.
4. 192 frames of cine-memory and 1024 images permanent storage.
5. Realized read-write function through USB connection and SD connection
6. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
7. Professional software: General software, Obstetrics software, Cardiac software.
8. Video-out port, connect with computer, external monitor and HP printer directly
9. Supports the colored surface, the ultrasonic area pseudo-color.
10. Individual battery recharger for option
Animal Pregnancy test Ultrasound Equipment cattle sheep horse Pregnancy Ultrasound with probe
1. Light weight of 0.5 kg, very convenient to carry out.
2. Crystal clear with high resolution image display
3. Dismountable battery which can work more than 3 hours.
4. 192 frames of cine-memory and 1024 images permanent storage.
5. Realized read-write function through USB connection and SD connection
6. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
7. Professional software: General software, Obstetrics software, Cardiac software.
8. Video-out port, connect with computer, external monitor and HP printer directly
9. Supports the colored surface, the ultrasonic area pseudo-color.
10. Individual battery recharger for option
Softwares
1. General measurement: distance, circumference, volume, angle, heart rate and etc.
2. Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus’ weight, pregnancy week, fetal physiological rating according to the previous measurements.
3. Cardiac measurement software. The measurement result could be shown automatically.
2. Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus’ weight, pregnancy week, fetal physiological rating according to the previous measurements.
3. Cardiac measurement software. The measurement result could be shown automatically.
Display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode;
4. With 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer,
5. Has measurements of distance, area, circumference, heart rate, gestational weeks (BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on;
6. Chinese and English transformation; 16 kinds of pseudo color processing; real-time clock; serial number of medical record; many note functions as full-screen character noting;
7. Adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.
4. With 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer,
5. Has measurements of distance, area, circumference, heart rate, gestational weeks (BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on;
6. Chinese and English transformation; 16 kinds of pseudo color processing; real-time clock; serial number of medical record; many note functions as full-screen character noting;
7. Adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.
Physical Specifications:
Scanning mode | electronic linear array, electronic convex array |
Imaging model | B, B/B, B/M, M, 4B |
Gray scale | 256 levels, four selectable gamma curve |
Transducer frequency | 2.5-10 MHz |
Magnification | ×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5 |
Permanent storage | 1024 |
Cine loop | 192, manual and automatic |
Sound Power | 8 grades from 0-7 |
Dynamic Range | Adjustable from 30-75 |
USB Ports | 2 |
IP set | 8 |
Body Mark | 35 kinds |
Pseudo color | 5 kinds |
Image Processing | Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
Measurement | Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
Focus | Number and location of the focus can be adjusted |
Puncture | Puncture guide line |
TGC | Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
Image store format | BMP, DICOM |
Formula of Fetus’ weight | OSAKA, TOKYO1, TOKYO2, MERZ |
Image | Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
Voltage | AC85V-265V |

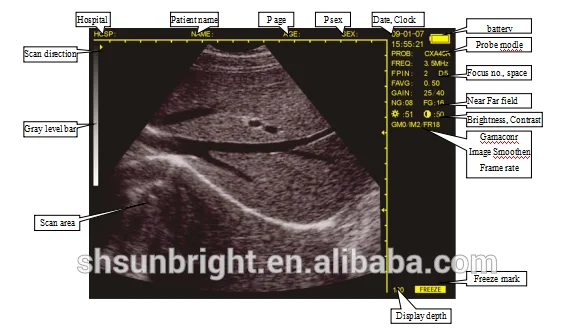

Scanning images

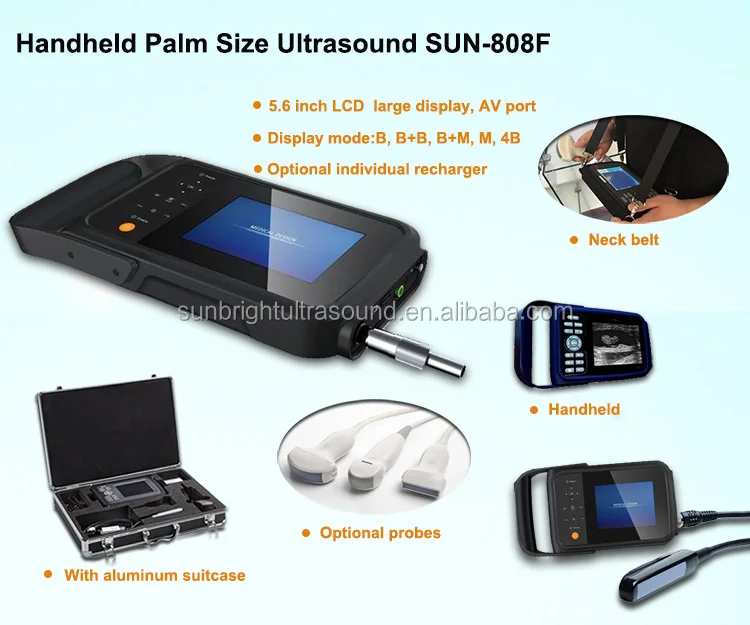

Standard Congfiguration:

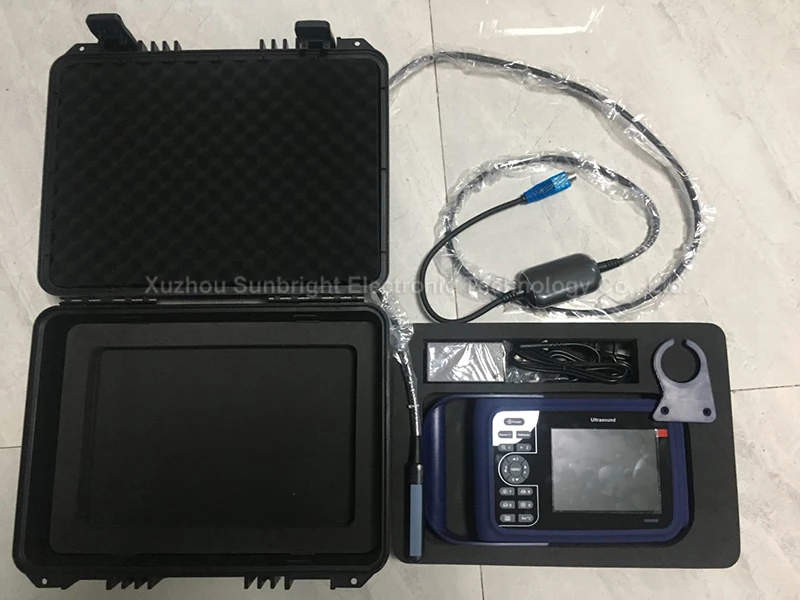

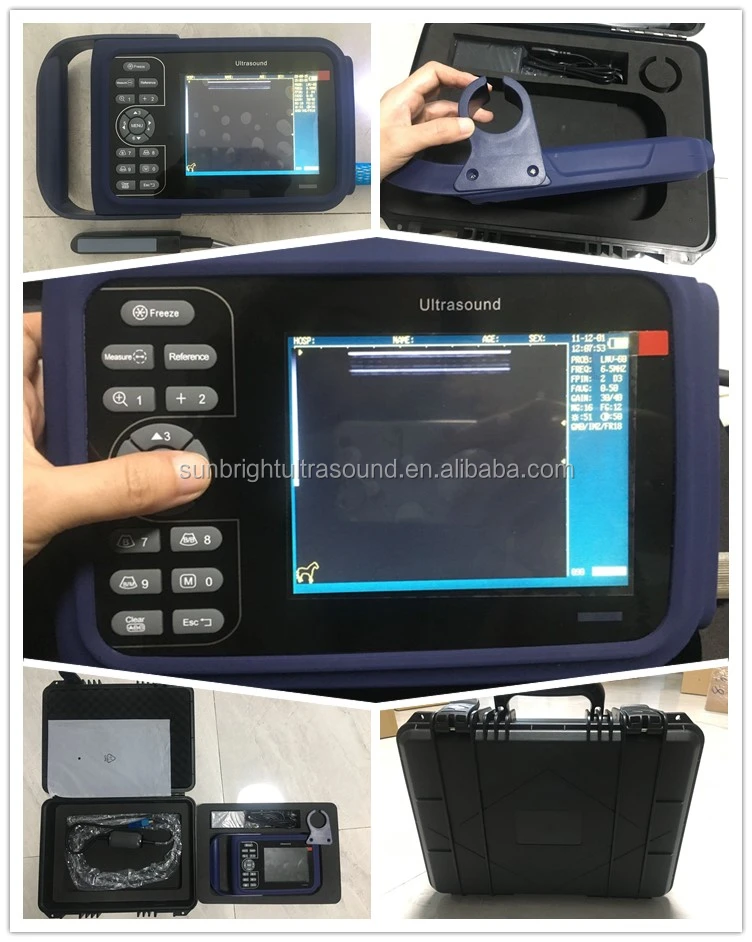

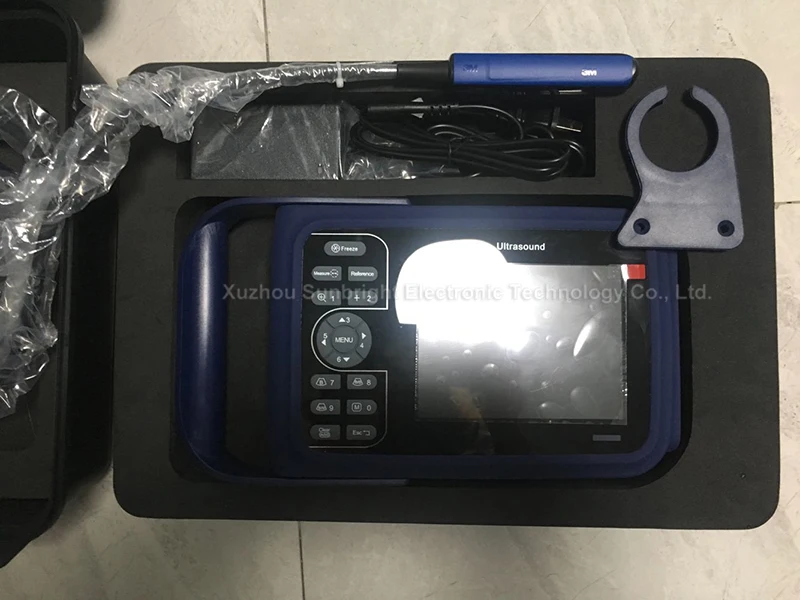

808F for main unit +one convex probe++Lithium battery +leather case with neck belt+Aluminum suitcase
5.6"LCD with high resolution

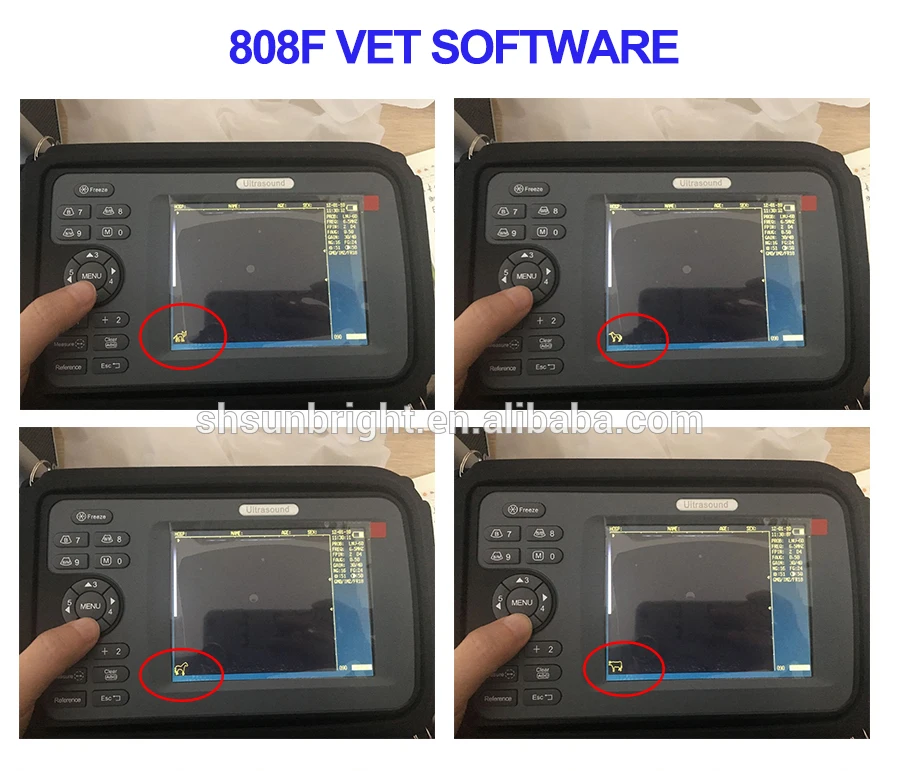

Measurement software for human or veterinary
Two USB ports
One video port
One power inlet
One convex probe(3.2M R50) Or one rectal probe
808F for main unit +one convex probe++Lithium battery +leather case with neck belt+Aluminum suitcase
5.6"LCD with high resolution
Measurement software for human or veterinary
Two USB ports
One video port
One power inlet
One convex probe(3.2M R50) Or one rectal probe

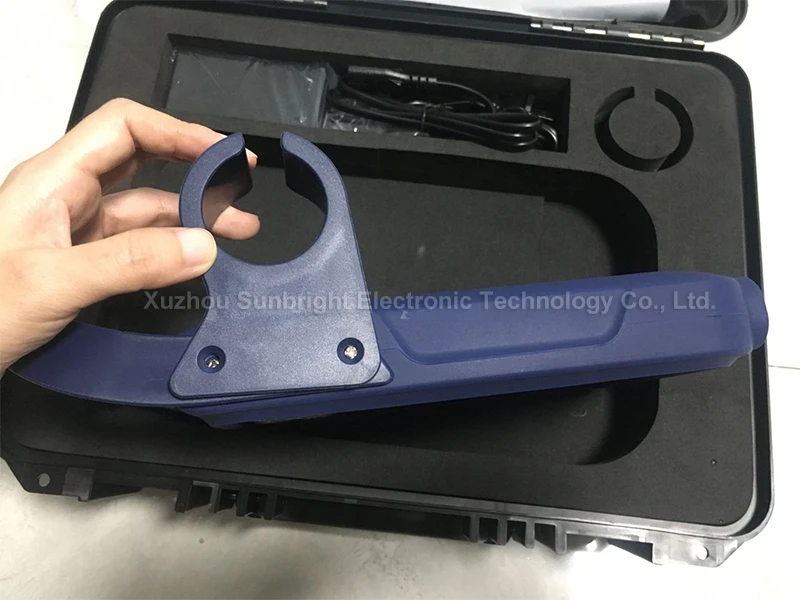

One probe holder
Plenty of measurement & calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Plenty of measurement & calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
