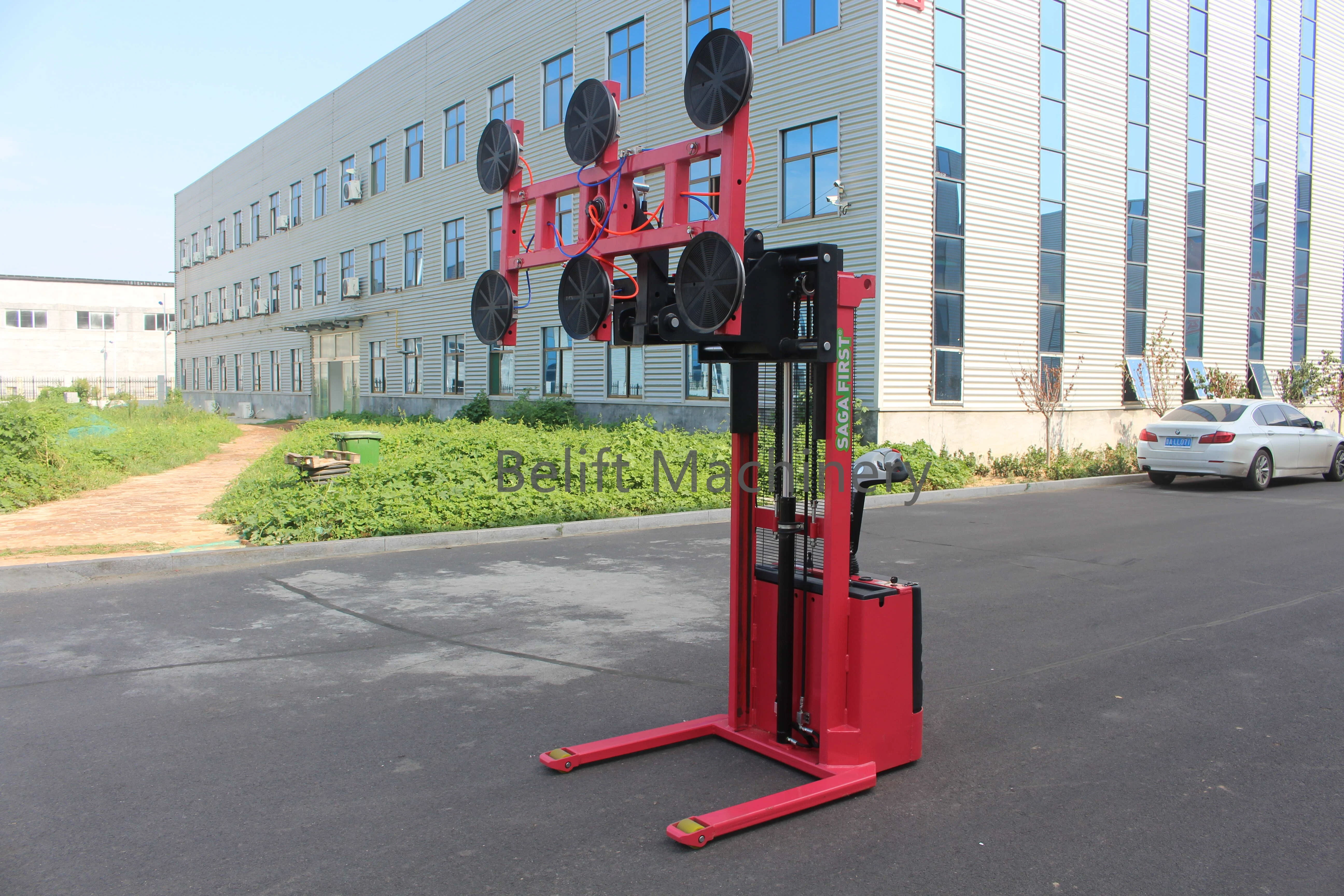

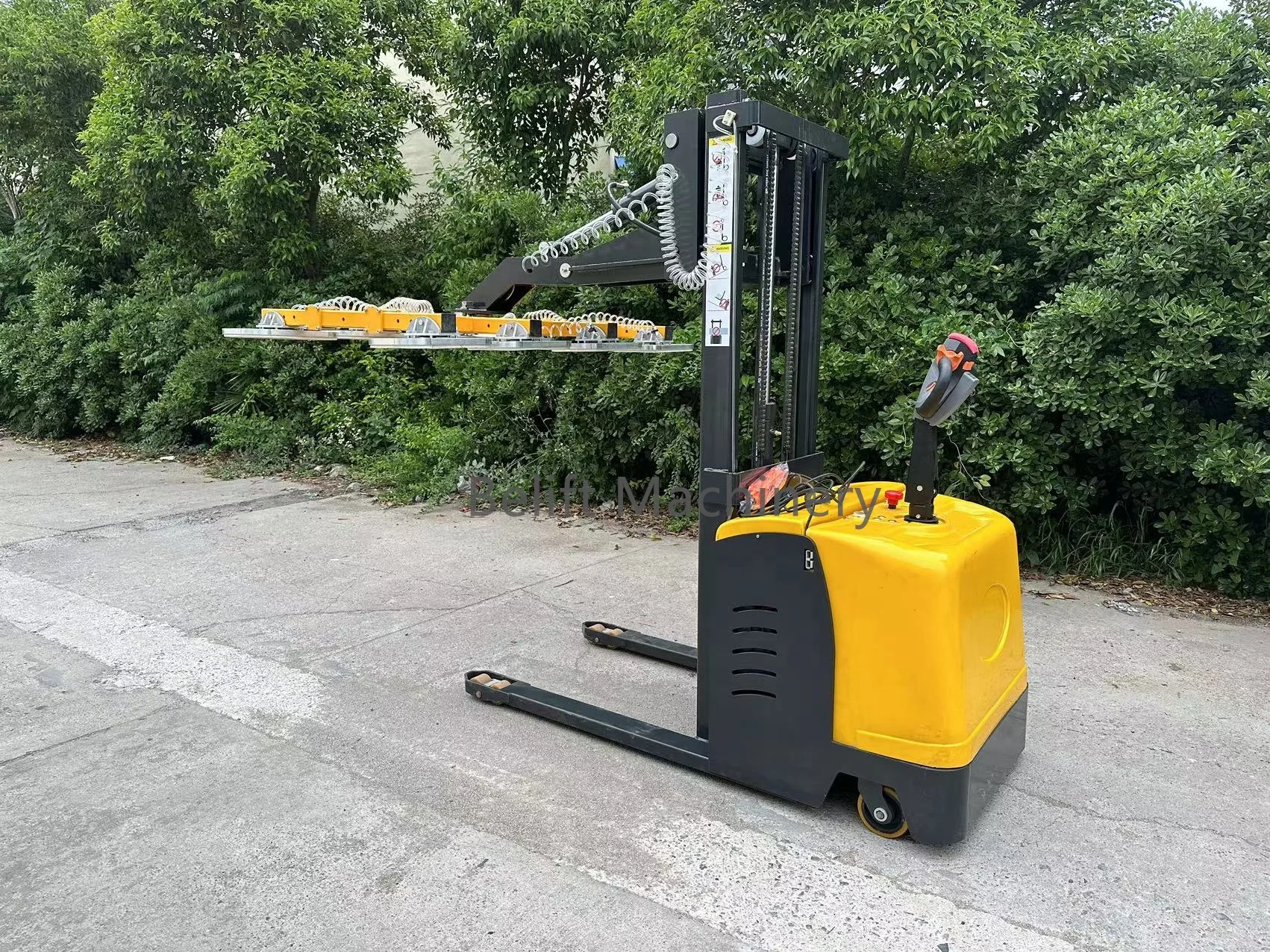

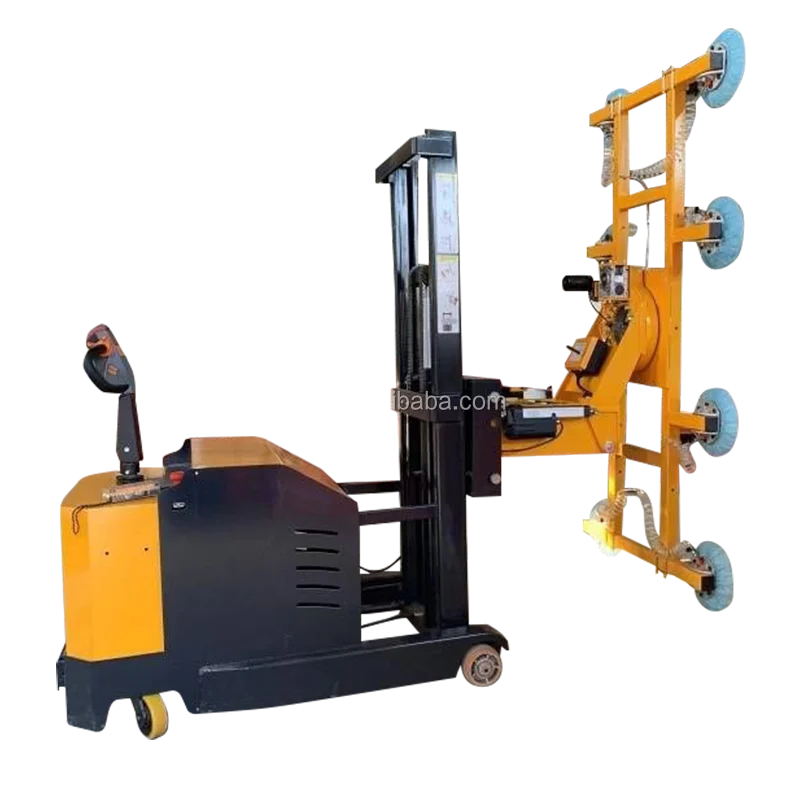

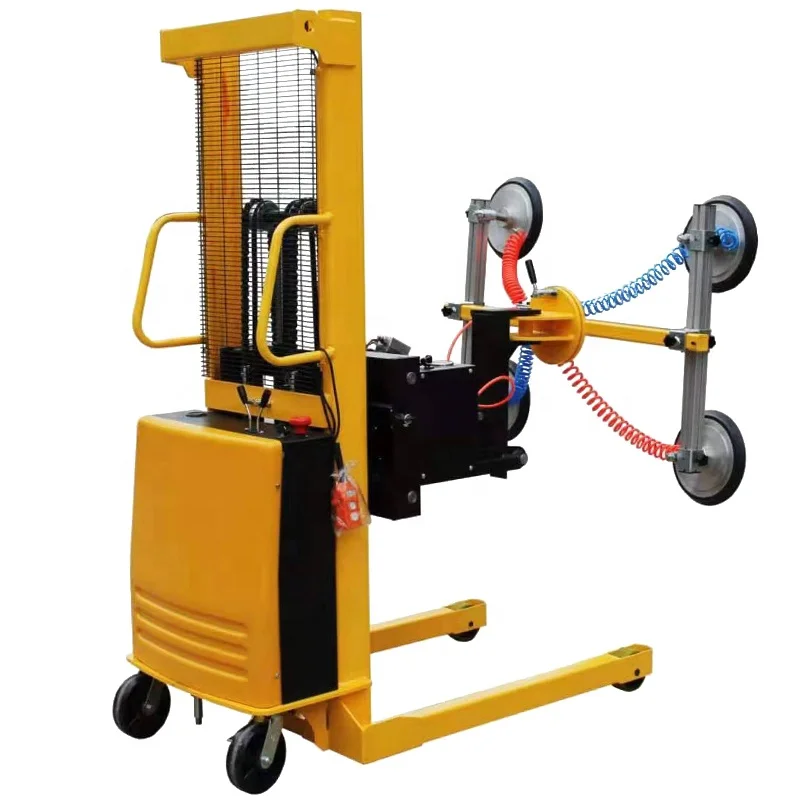

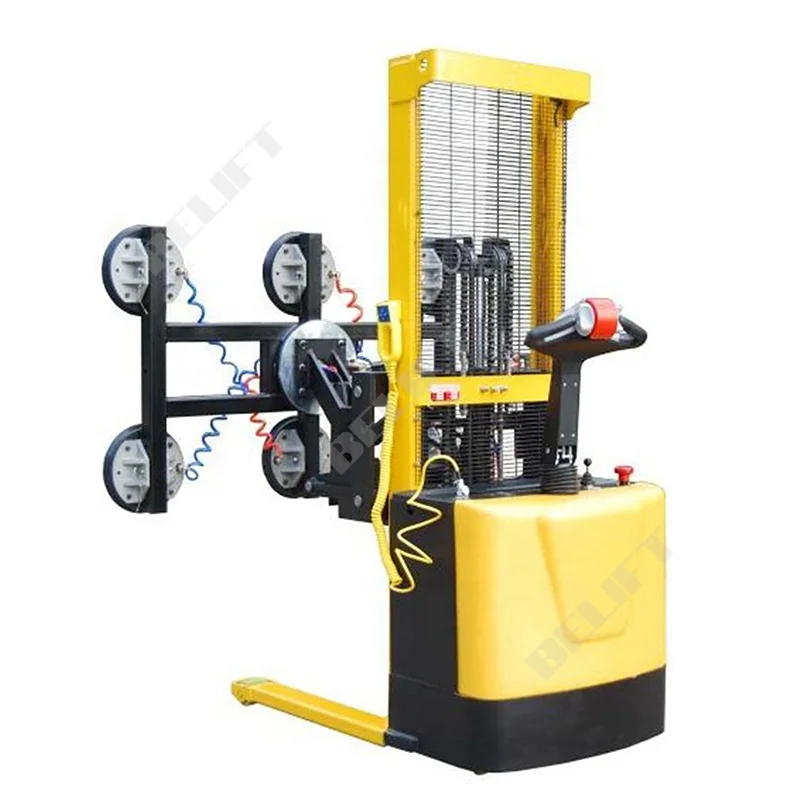

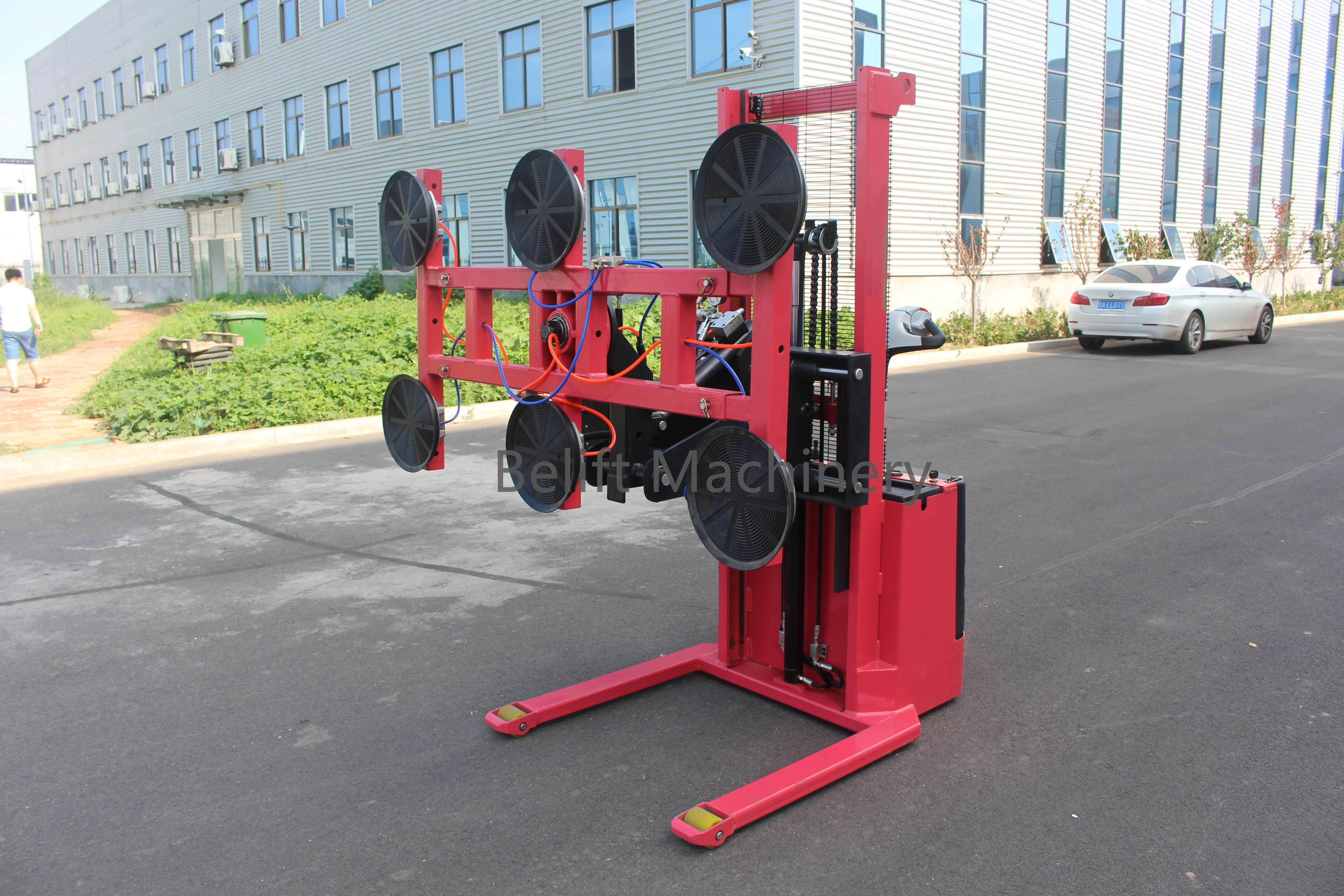

New Product Vacuum Glass Lifter Forklift Type with Hydraulic Electrical Vacuum Lifter
- Category: >>>
- Supplier: Shandong Belift Machinery Co. ltd.
Share on (1601200536726):
Product Overview
Description
Product Description

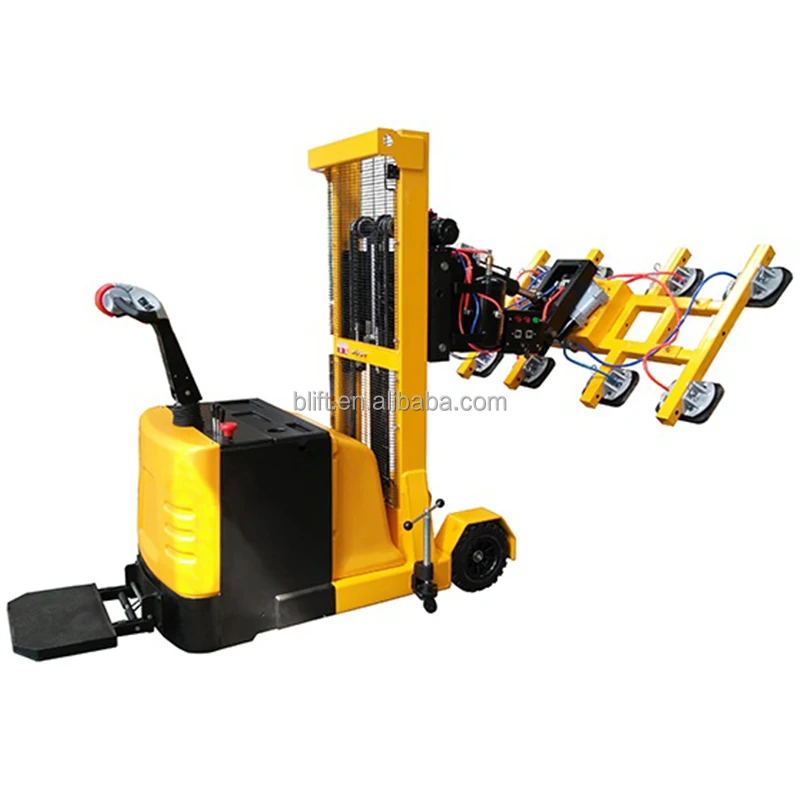

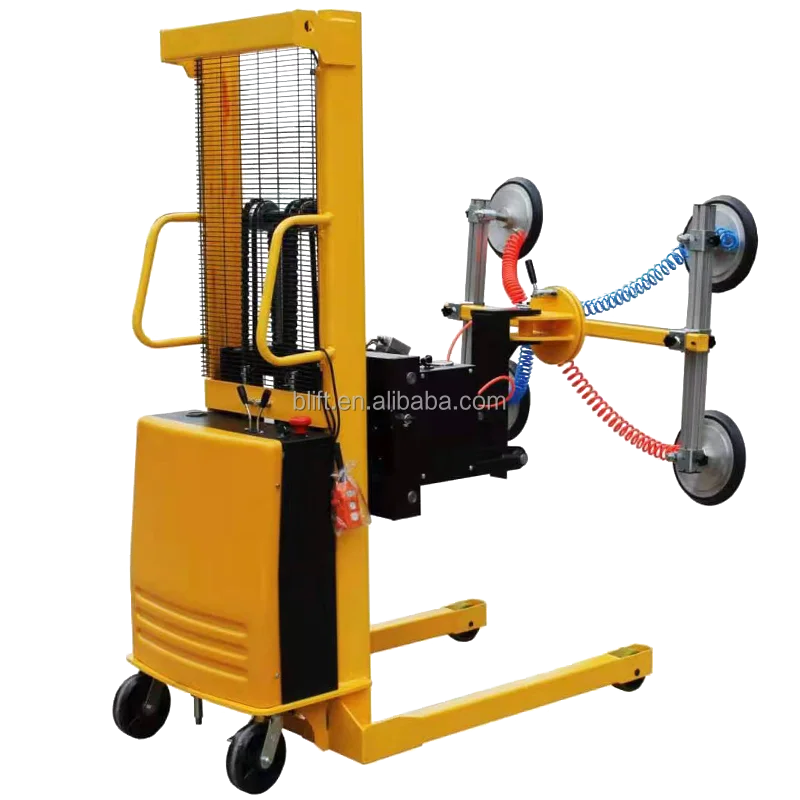

300kg-800kg Electric Vaccum Glass Lifting Equipment
- OEM & ODM Service -

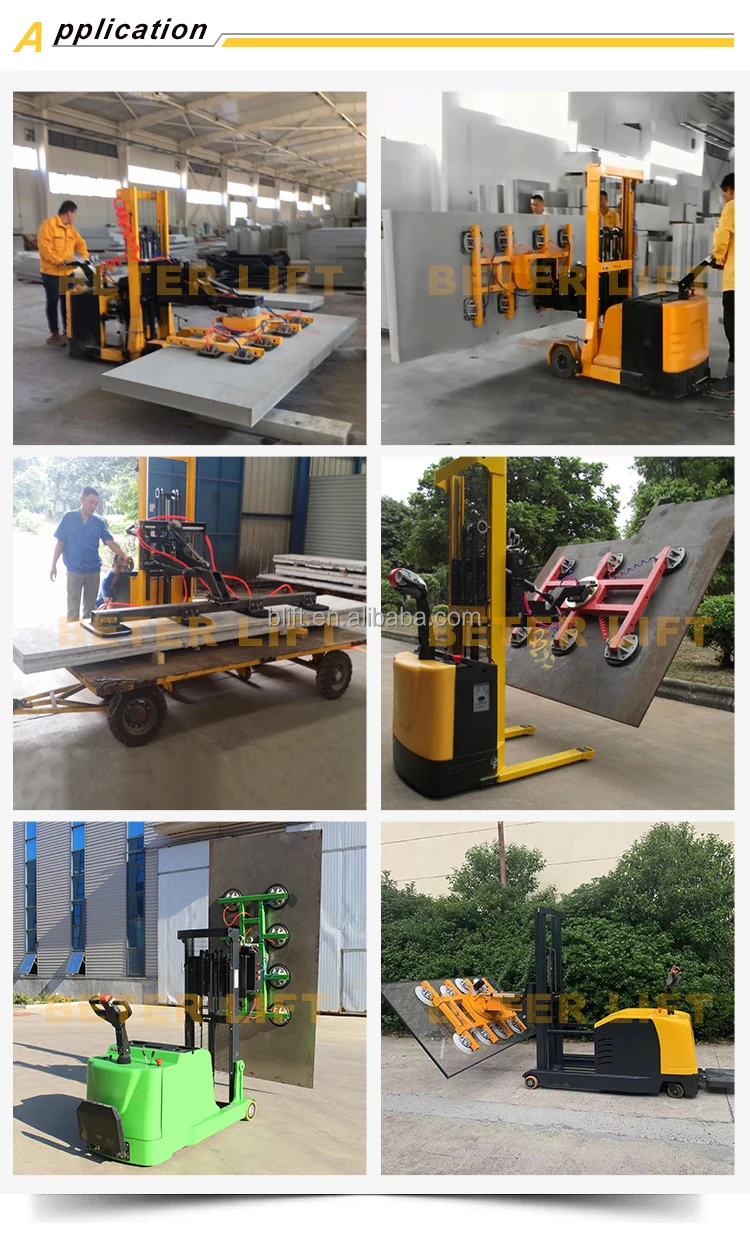

Belift Brand Vacuum lifter HD Series is Mainly used for handling and moving heavy panels in workshop and project site. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
Vacuum suction cup machine is mainly suitable for the installation or transportation of glass, wood, cement and iron plates.The difference from the glass suction cup is that the sponge suction cup needs to be replaced to absorb other materials.Automatic glass loading machine is equipped with an adjustable bracket that can be extended to adapt to panels of different sizes.
Features and Advantages:
- Self-propelled drive. Manual rotating.
- Electric lift up to 1.5/2.5M
- Higher lift cap. is available upon request.
- Electric side shift 100mm both right & left (optional).
- Electric tilting forwards & backwards from vertical to horizontal or reverse.
Specification
(1) 400KG-600KG Loading capacity model:
| Model | BGL-HD-4020(4x30) | BGL-HD-4020(6x30) | BGL-HD-6030(6x30) | BGL-HD-6030(8x30) | |
| Rated Load Capacity | 400kgs | 400kgs | 600kgs | 600kgs | |
| Safe Load Capacity | 200kgs | 200kgs | 300kgs | 300kgs | |
| Lifting Height | 1500mm | 1500mm | 1500mm | 1500mm | |
| QTY of Suction Caps | 4pcs | 6pcs | 6pcs | 8pcs | |
| Cap Diameter | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Plate Size (customized) | 1220x1830mm | 1220x1830mm | 2440x1830mm | 2440x1830mm | |
| Load Center | 650mm | 650mm | 950mm | 950mm | |
| Drive Motor | 24V/500W | 24V/500W | 24V/700W | 24V/700W | |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W | |
| Battery | 2x12V/70Ah | 2x12V/70Ah | 2x12V/100Ah | 2x12V/100Ah | |
| Charger | 24V/10A | 24V/10A | 24V/15A | 24V/15A | |
(2) 800KG Loading capacity Model:
| Model | BGL-HD-8040(8) | BGL-HD-8040(10) | BGL-HD-8040-25(8) | BGL-HD-8040-25(10) | |
| Rated Load Capacity | 800kgs | 800kgs | 800kgs | 800kgs | |
| Safe Load Capacity | 400kgs | 400kgs | 400kgs | 400kgs | |
| Lifting Height | 1500mm | 1500mm | 2500mm | 2500mm | |
| QTY of Suction Caps | 8pcs | 10pcs | 8pcs | 10pcs | |
| Cap Diameter | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Plate Size (customized) | 3660x2440mm | 3660x2440mm | 3660x2440mm | 3660x2440mm | |
| Load Center | 1250mm | 1250mm | 1250mm | 1250mm | |
| Drive Motor | 24V/900W | 24V/900W | 24V/900W | 24V/900W | |
| Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | 24V/2000W | |
| Battery | 2x12V/160Ah | 2x12V/160Ah | 2x12V/160Ah | 2x12V/160Ah | |
| Charger | 24V/20A | 24V/20A | 24V/20A | 24V/20A | |

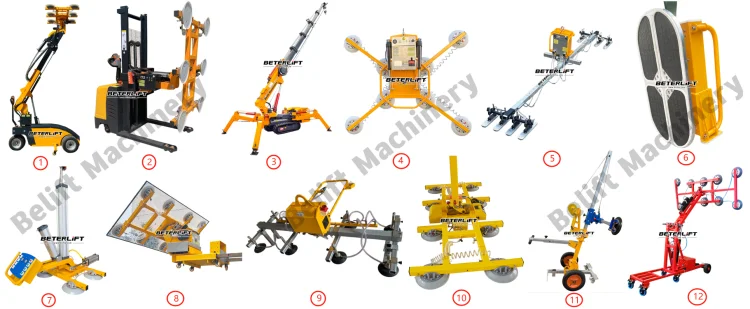

Semi Electric,capacity: 400kg 600kg 800kg
Full Electric,capacity: 400kg 600kg 800kg 1000kg
Balance wheel,capacity: 400kg 600kg 800kg 1000kg

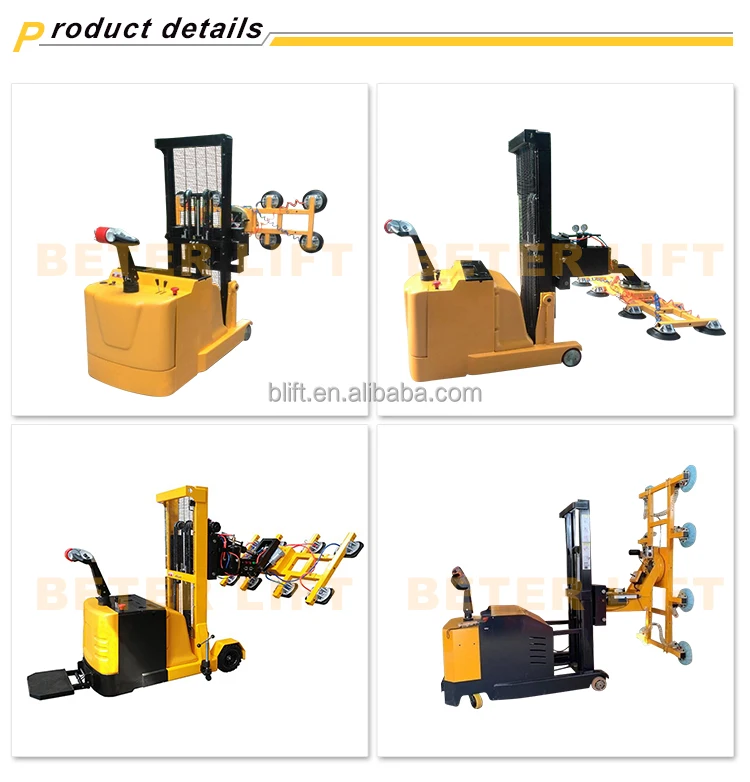

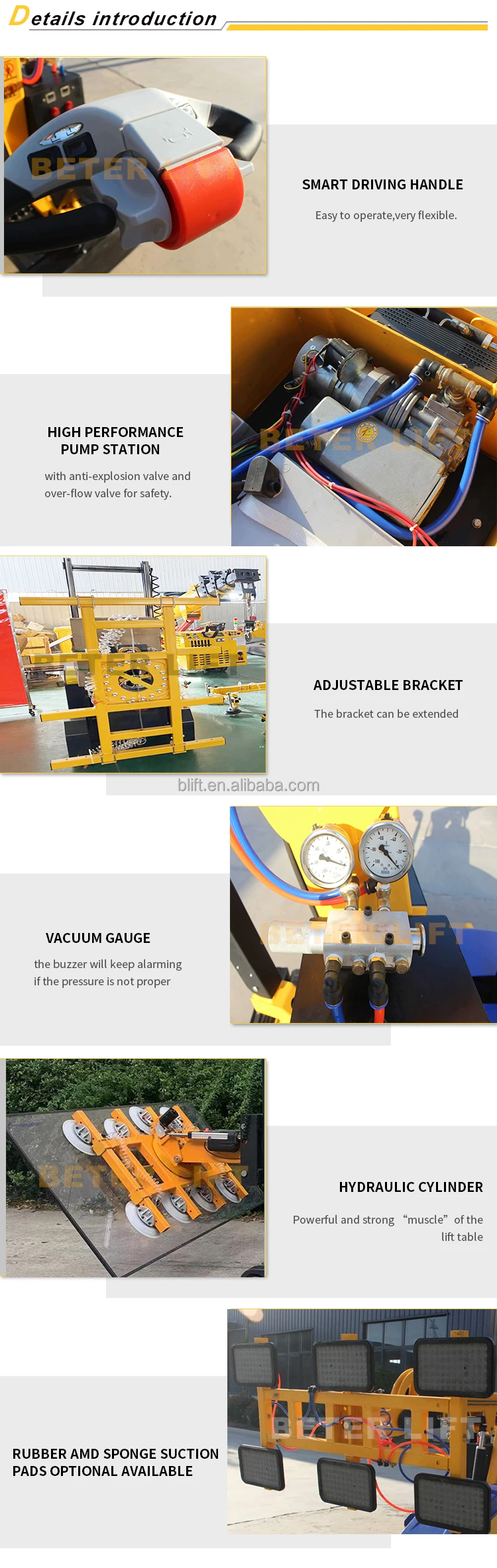

Detailed Images

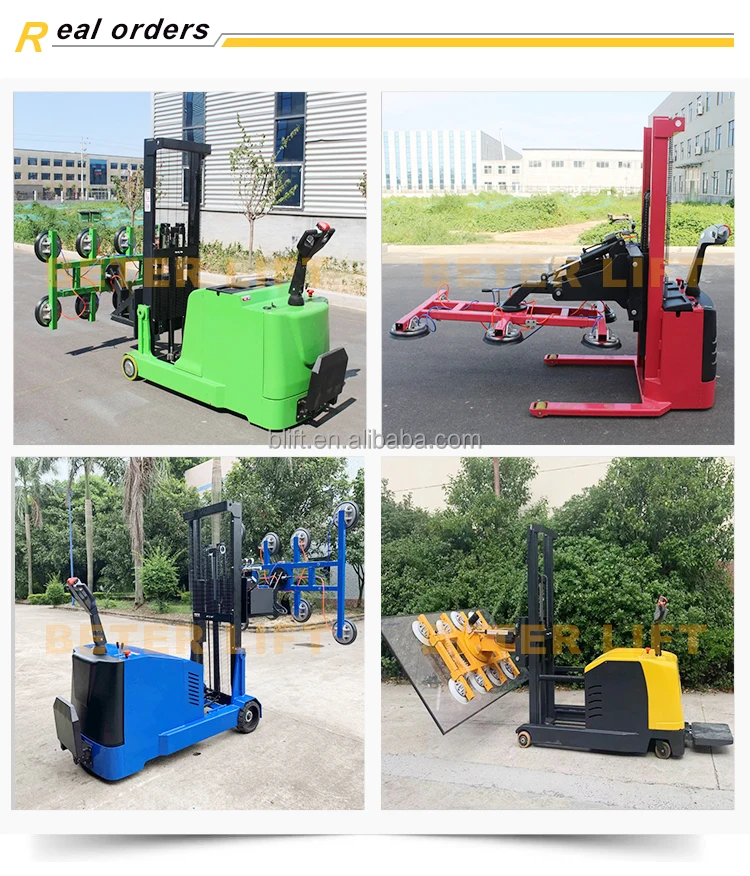

Real Orders
Company Information
Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
FAQ
Questions | Answers |
1. Are you a factory or trading company? | Yes, we're factory with over 10 years exporting experience. |
2. What's the MOQ? | 1 UNIT |
3. Do you offer OEM&ODM service? | Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc. |
4. What's the quality warranty? | 24 months. Spare parts provided freely within quality warranty. |
5. How can I get the after-sales service? | We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service |
6. What's your QA&QC policy? | 100% Test before shipping. |
