| Product Features | |
| Film | PVC/Laser/PE etc |
| Tolerance | ±1% |
| Grade | 304/304L/304N etc, 304 304L 304N |
| Standard | JIS AISI ASTM GB DIN EN |
| Model Number | 304/304L/304N etc |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Certification | ISO9001:2015 |
| Surface | NO.1 2B or customized |
| Thickness | Cold rolled 0.1-6mm, Hot rolled 3-150mm |
| Brand Name | Qunlong |
| Thickness Tolerance | Within +/- 0.05mm |
| Type | Plate |
| Payment term | L/C T/T (30% Deposit) |
| Packing | Waterproof Paper/Wooden/Iron Sheet |
| Length | Cold rolled 2000-3000mm (hot rolled 2000-6000mm) |
| Delivery Time | within 7 days |

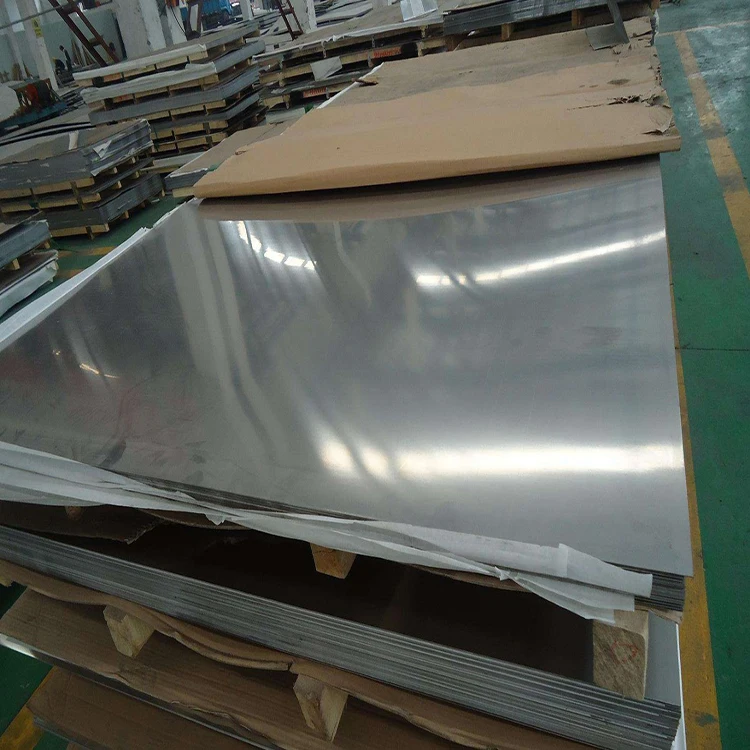

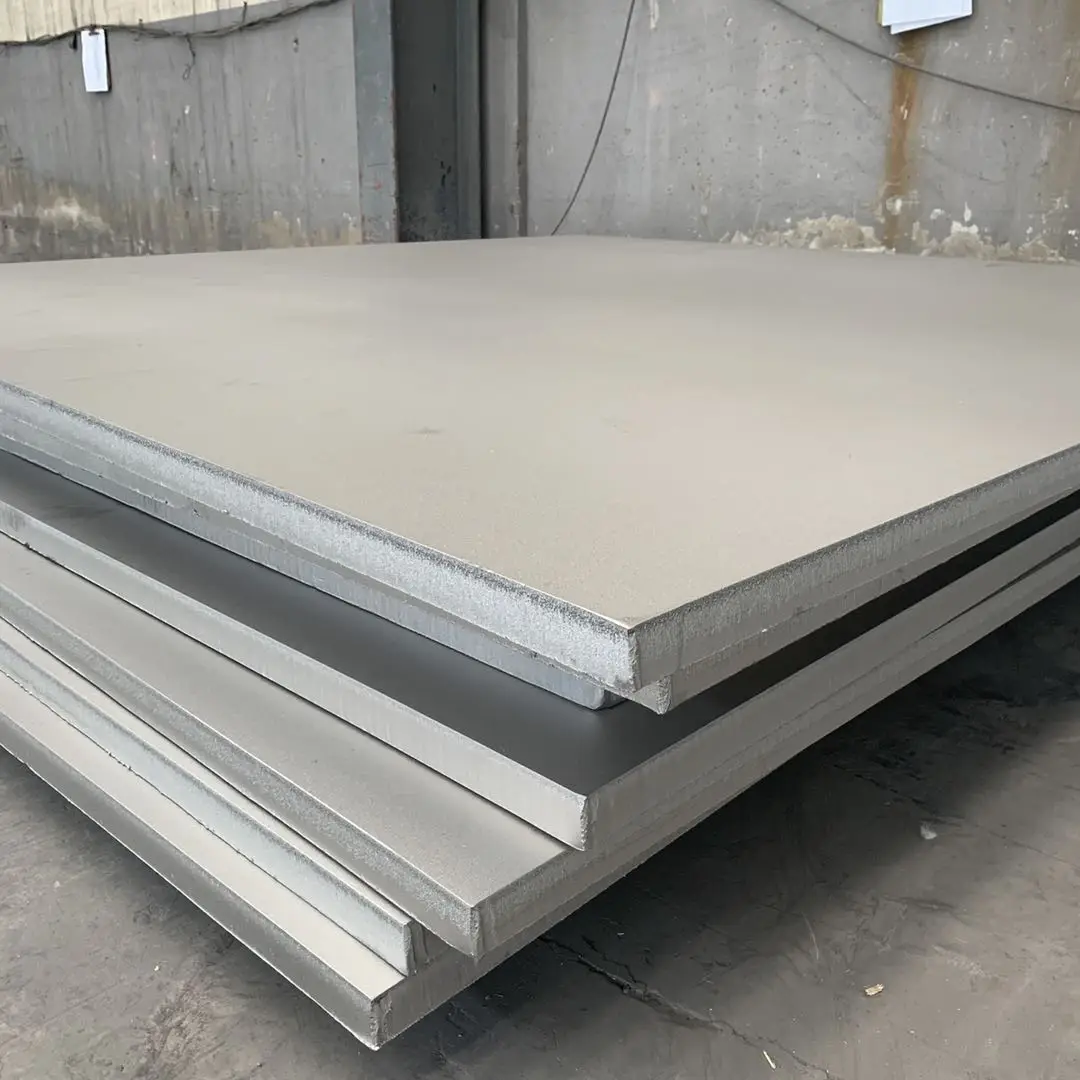

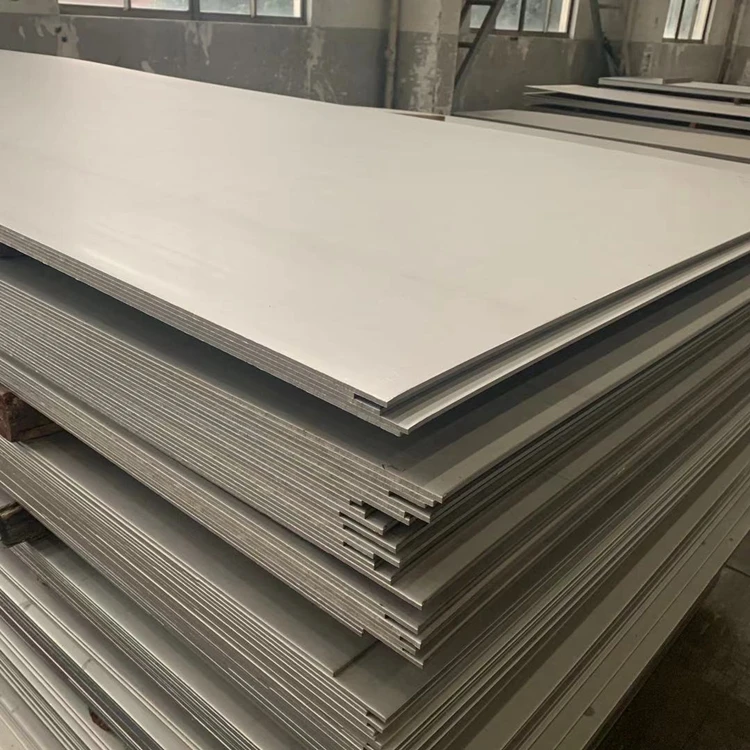

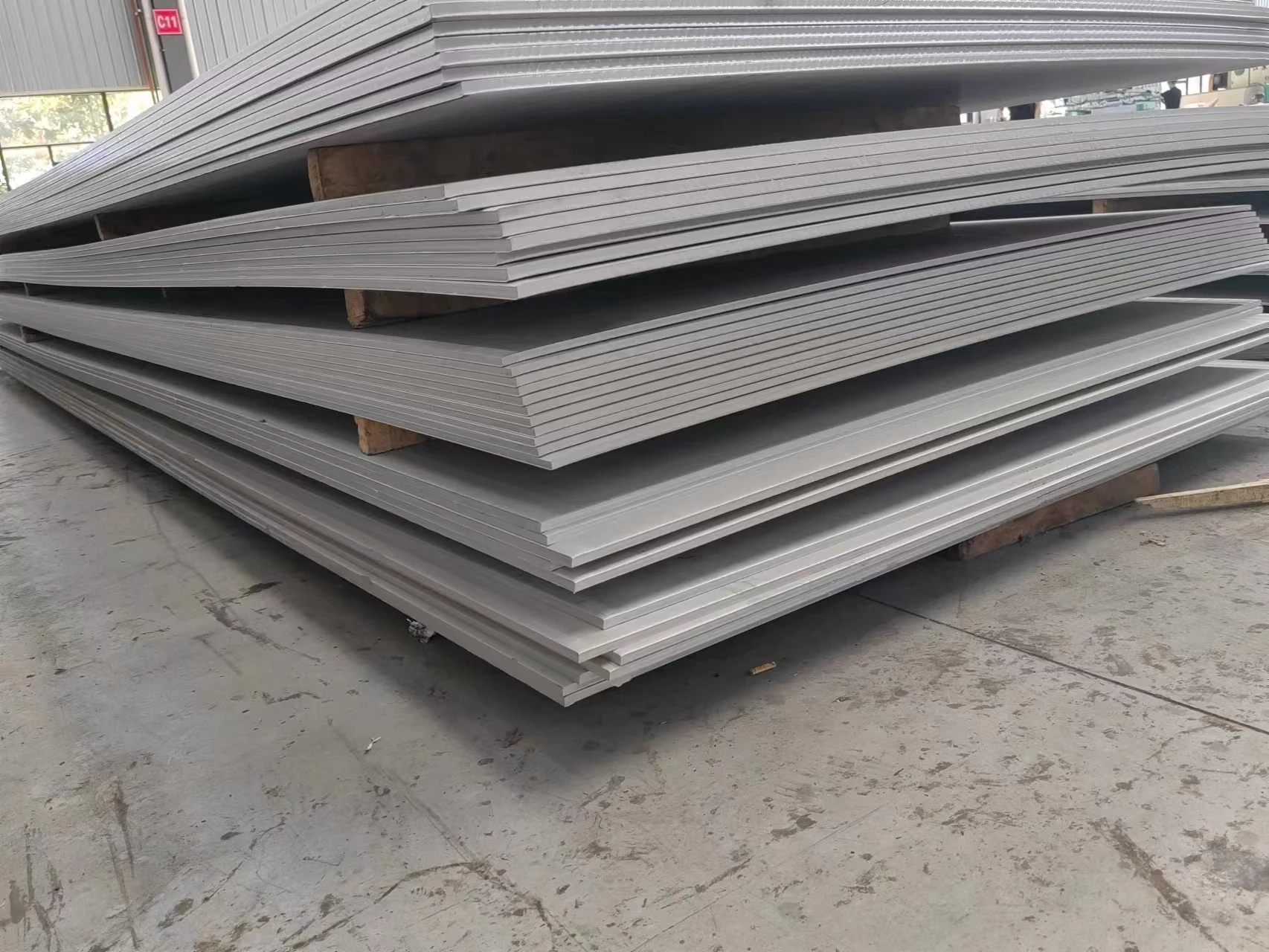

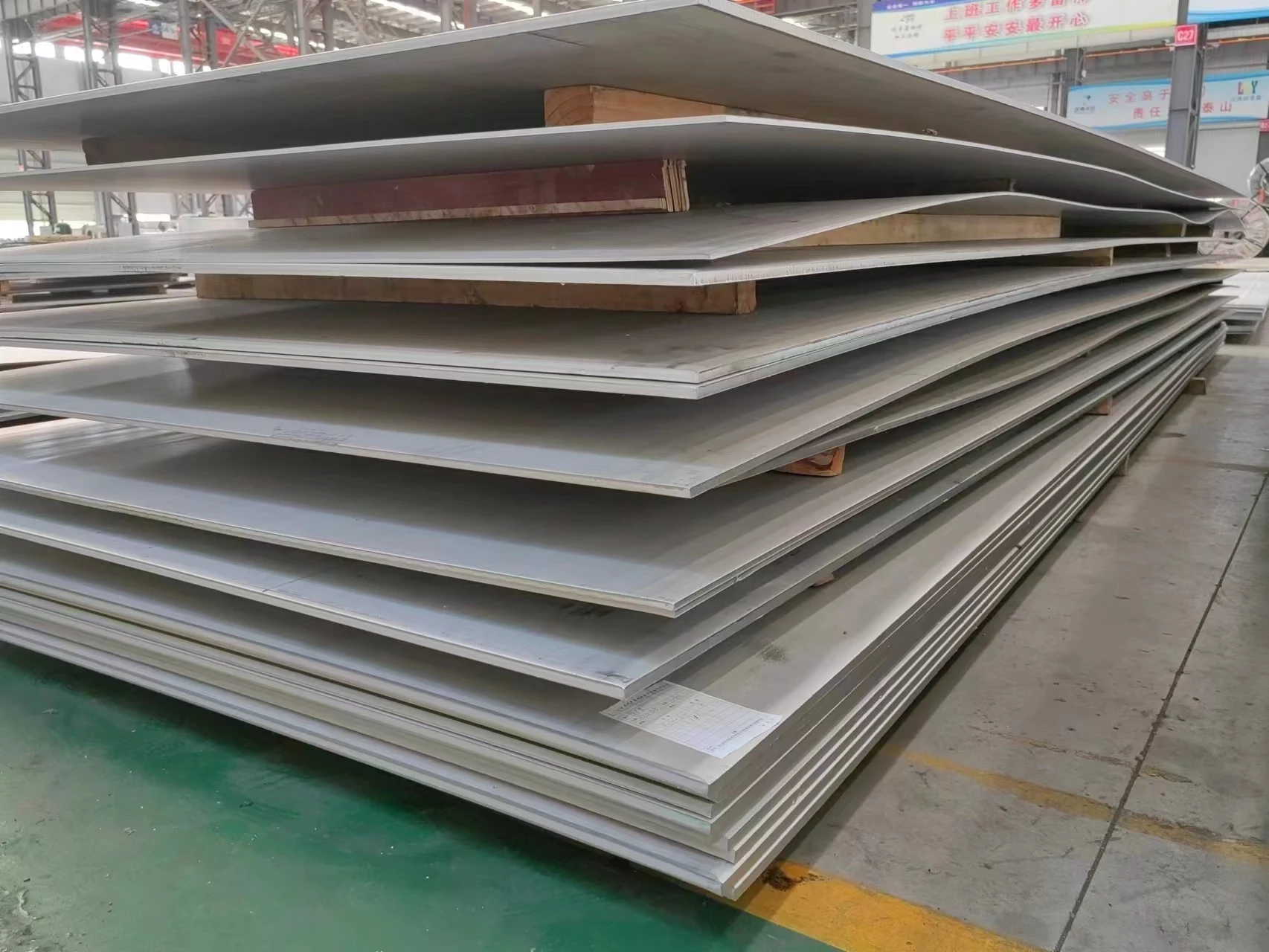

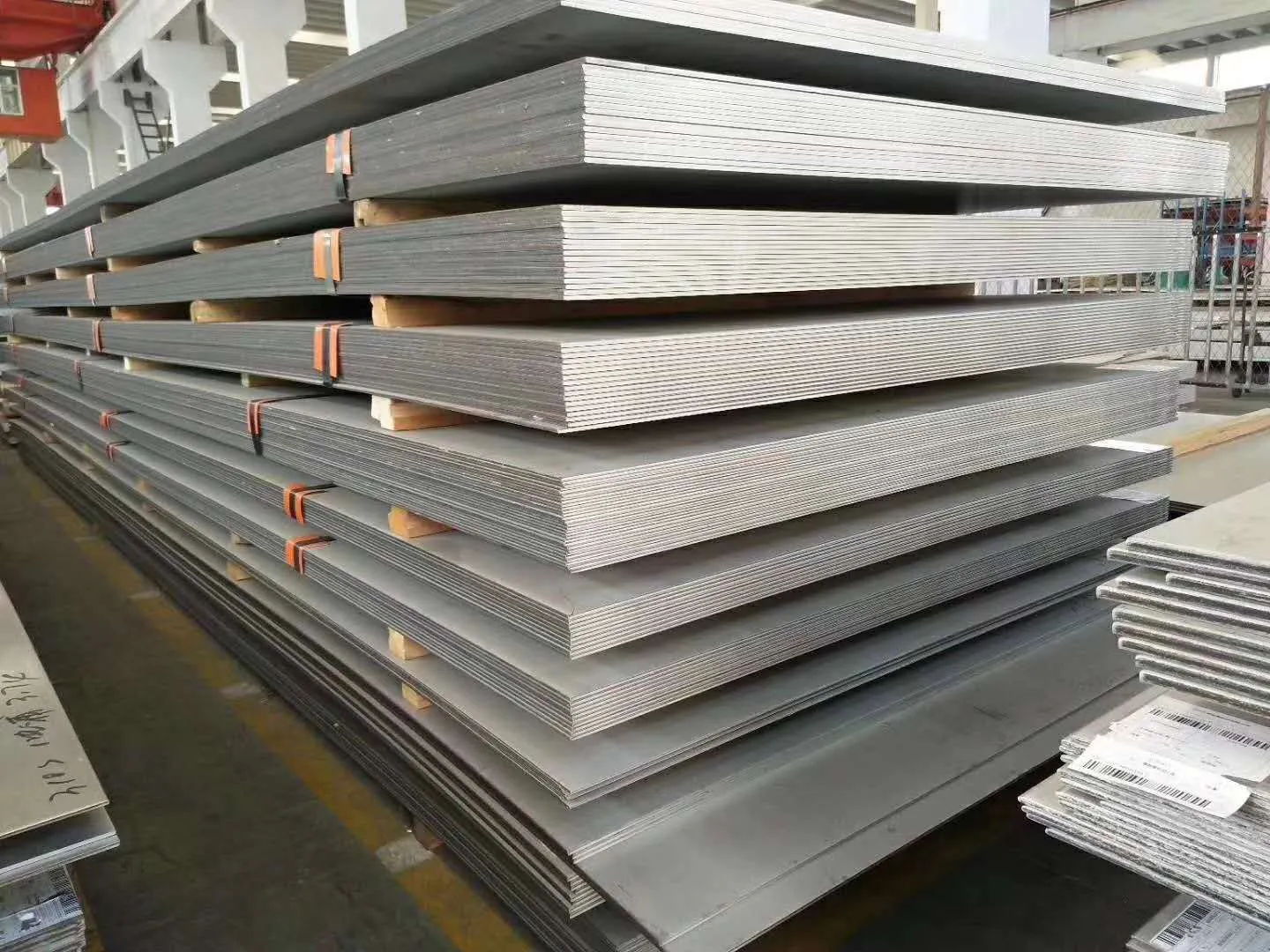

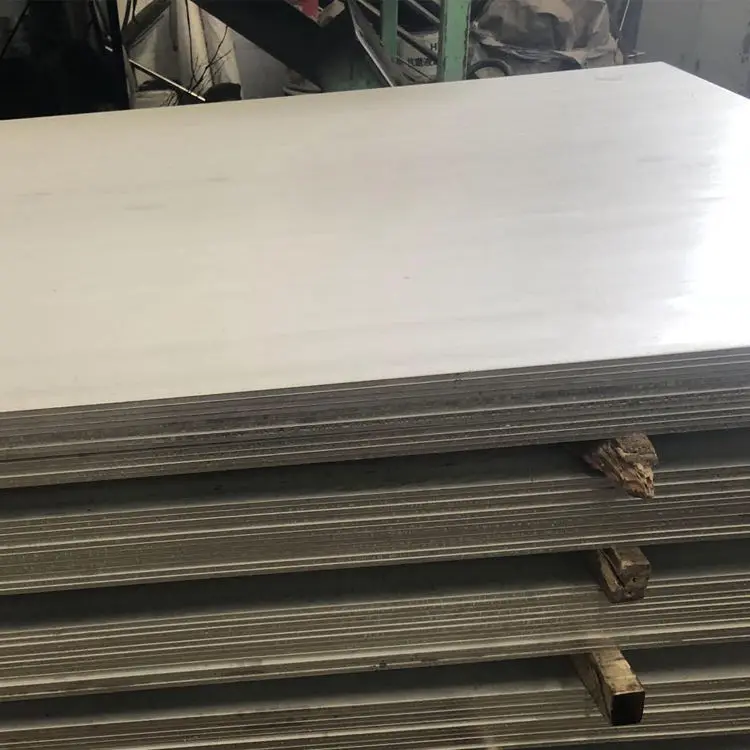

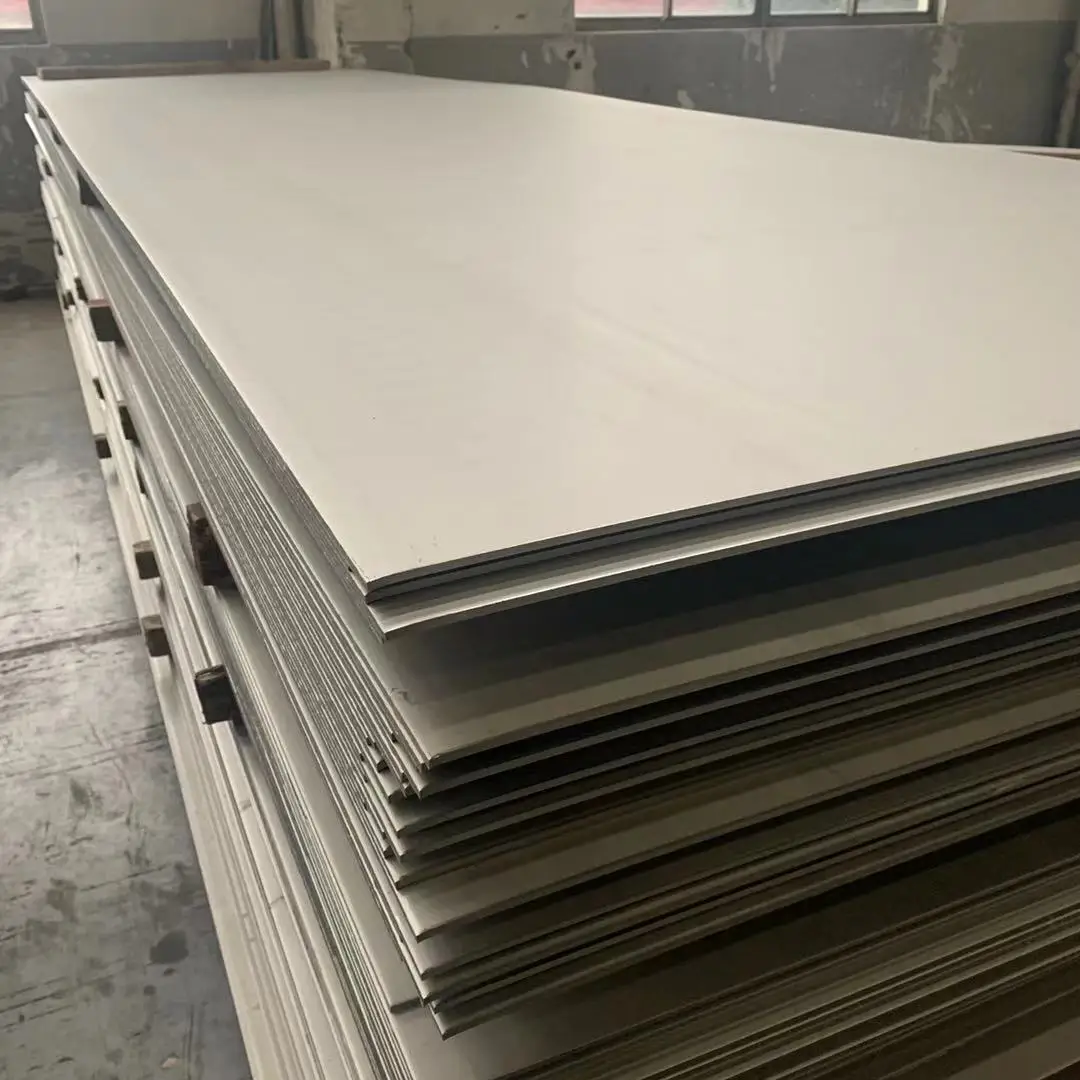

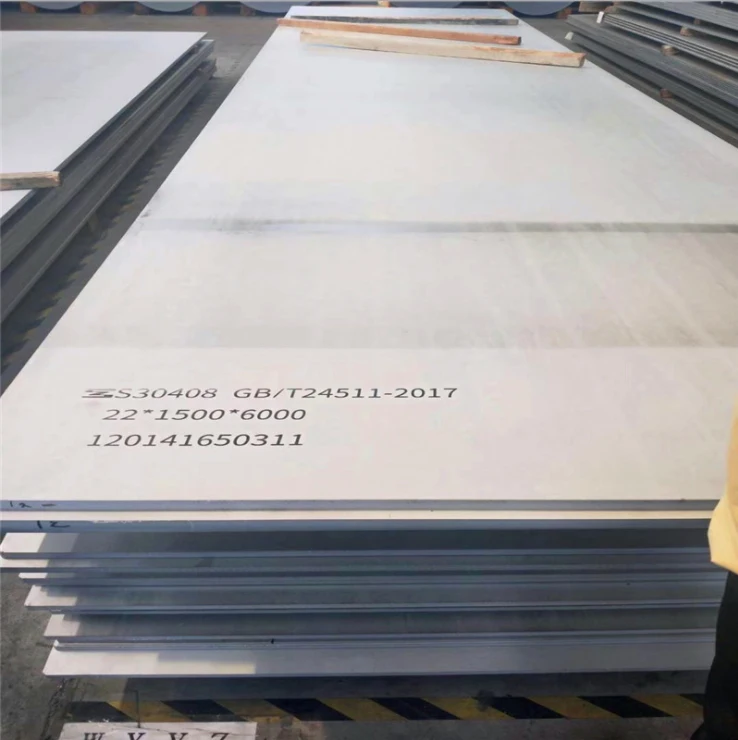

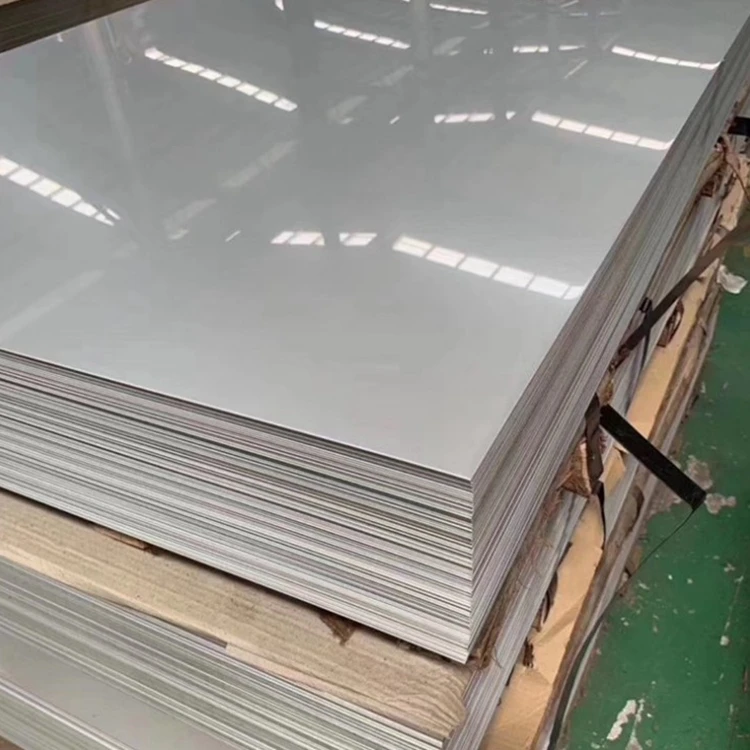

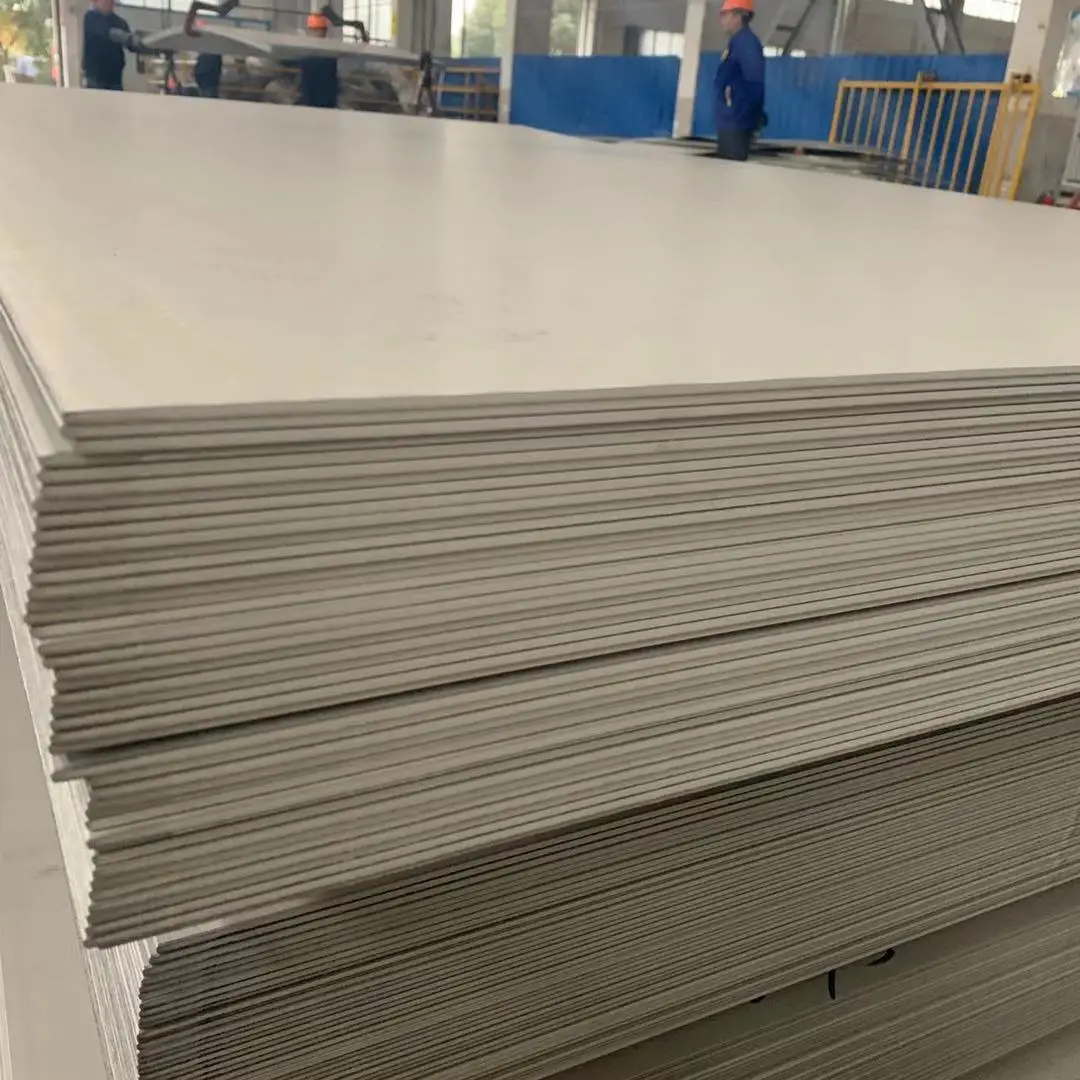

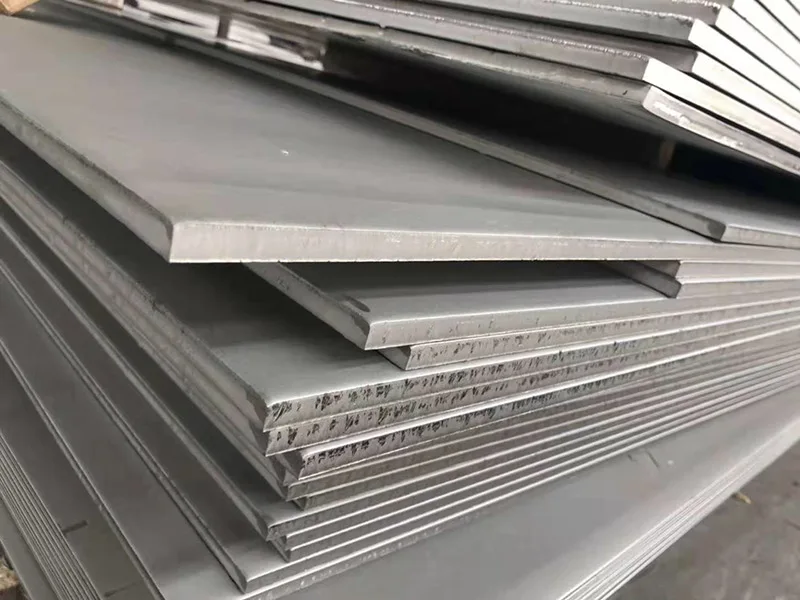

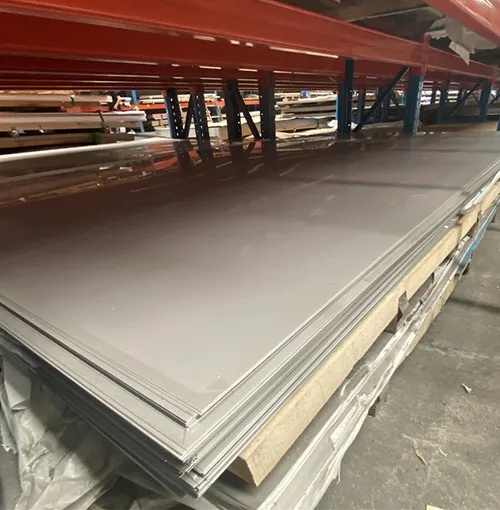

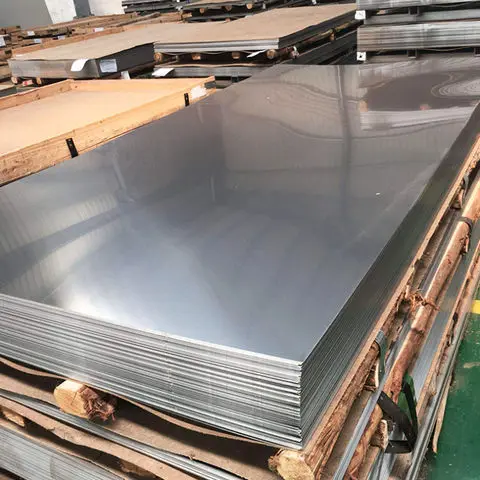

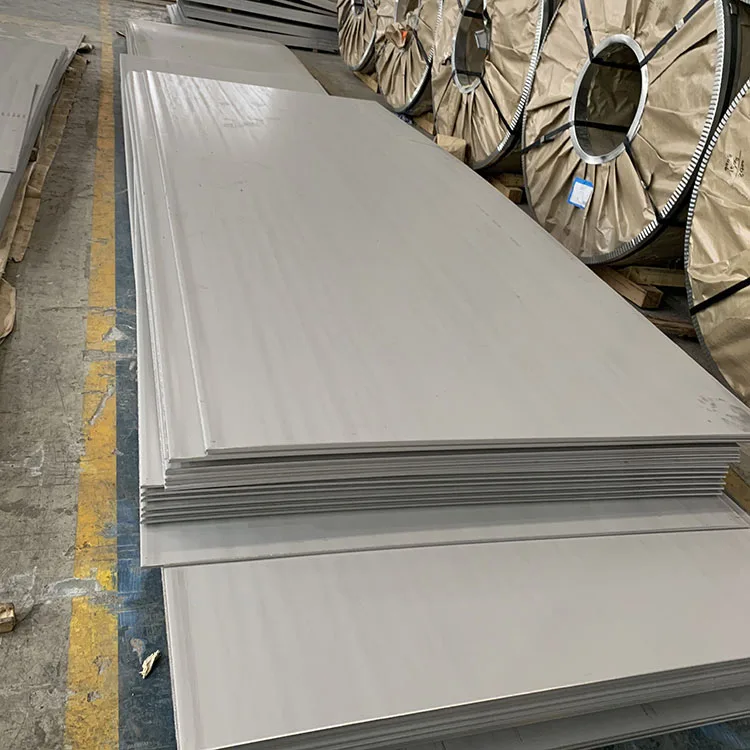

| Product name | 304 304L 304N Stainless Steel Plate |
| Technology | Hot rolled/Cold rolled |
| Surface Finish | NO.1 2B EMBOSSED etc |
| Width | 1000-3000 mm or customized |
| Application | Buliding/ chemical industry etc |
| Edge | Mill Edge Slit Edge |
| Steel Grade | 304N, 304, 304L, 304J1 |
Grade | 304 stainless steel sheet plate | |
Surface | 2B, NO.1, BA, NO.4, 8K, HL, Polished, Mill, Embossing, Satin, ect with PVC/PE/Laser film | |
Executive Standard | Chinese | GB/T14975-2002, GB/T14976-2002, GB/T13296-91 |
American | ASTM A312/A312M, ASTM A213/213A, ASTM A269/269M | |
Europe | DIN2462, EN10088, EN110095, EN10259, EN10028 | |
Japanese | JIS G3463, G3119, G4304, G4309, G4321 | |
Russia | GOST 11268, GOST 19281 - 89, GOST 19903 - 74, GOST 19904 - 90 | |
Added Processing | Decoiling, Bending, Perforating, Punching, Cutting, Polishing, Welding | |
Technique | Cold rolled; Hot rolled; Hot forming; Cold forming; Heat treatment; Machinability; Welding; | |
Thickness | Cold rolled: 0.3-4 mm or according to customer requirements | |
Hot rolled: 3-120 mm or according to customer requirements | ||
Width | 600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm Customization according to customers' requirements | |
Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm Customization according to customers' requirements | |
Edge | Slit/Mill Edge | |
Film coating | Species | PVC film/PE film/Laser film/Oil film/Water membrane/Self-lining/Electrostatic film, etc |
Thickness | 3c/5c/7c/10c and so on | |
Color | Black/white/Blue or customized | |
Physical property | Strength of extension: b ( MPa )≥520 Yield strength 0.2 (MPa) ≥205 Elongation: 5(%)≥40 Percentage reduction of area: (%)≥60 | |
Application | * 1) Equipment that resists sulfuric acid, phosphoric acid, acetic acid, and acetic acid; * 2) Petrochemical; * 3) Mechanical and electrical hardware; * 4) Shipyard; * 5) Power plant; * 6) Food Processing and Dairy Industries. | |

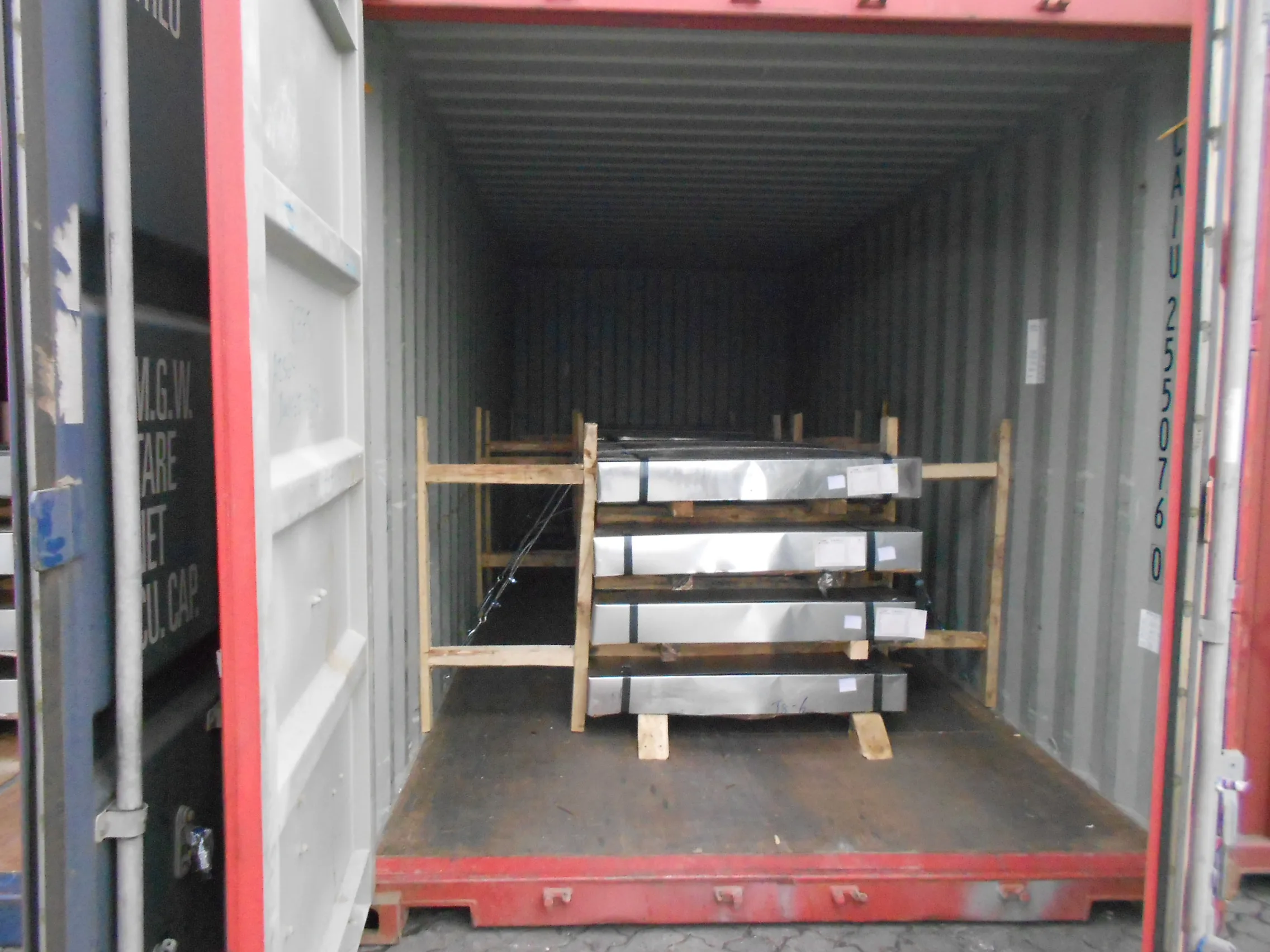

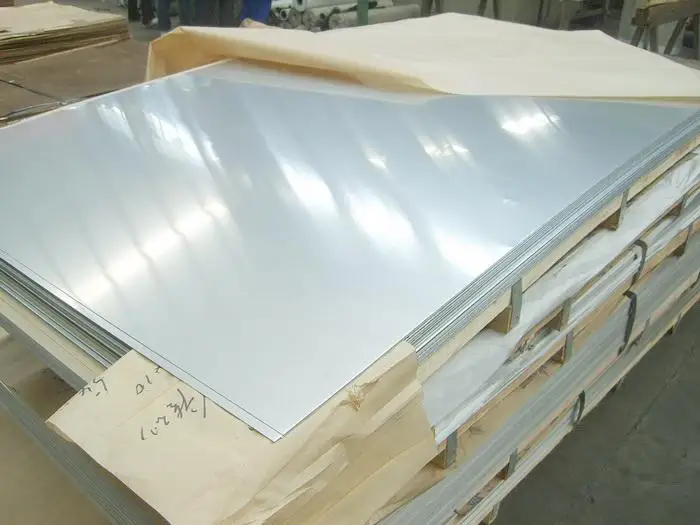

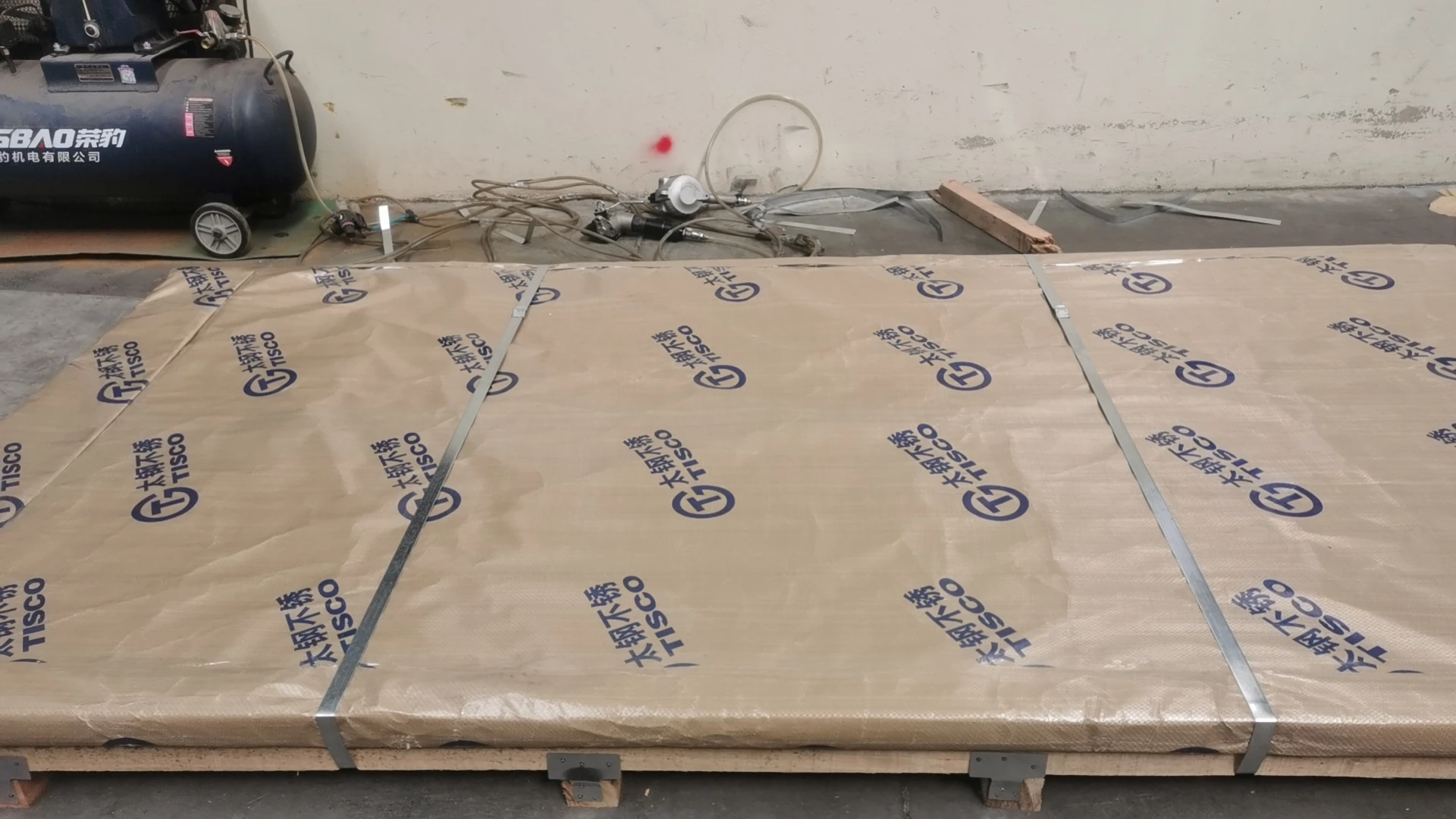

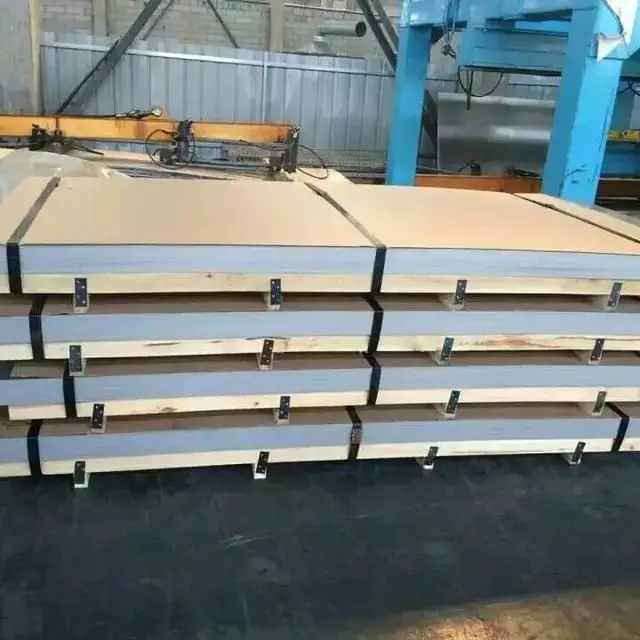

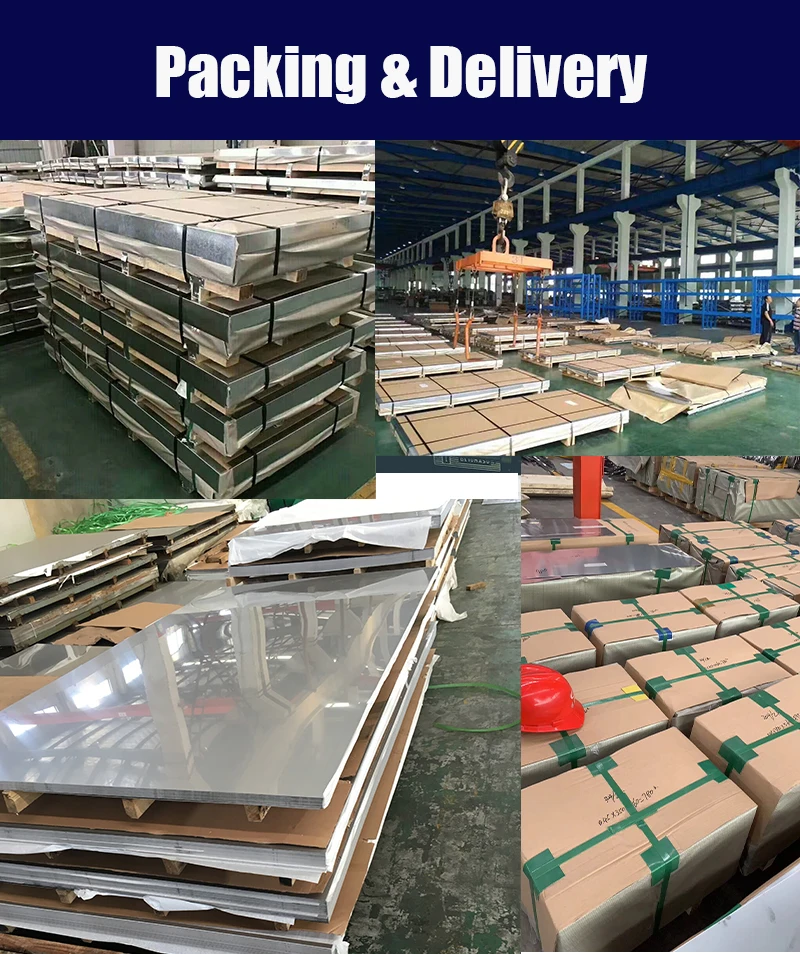

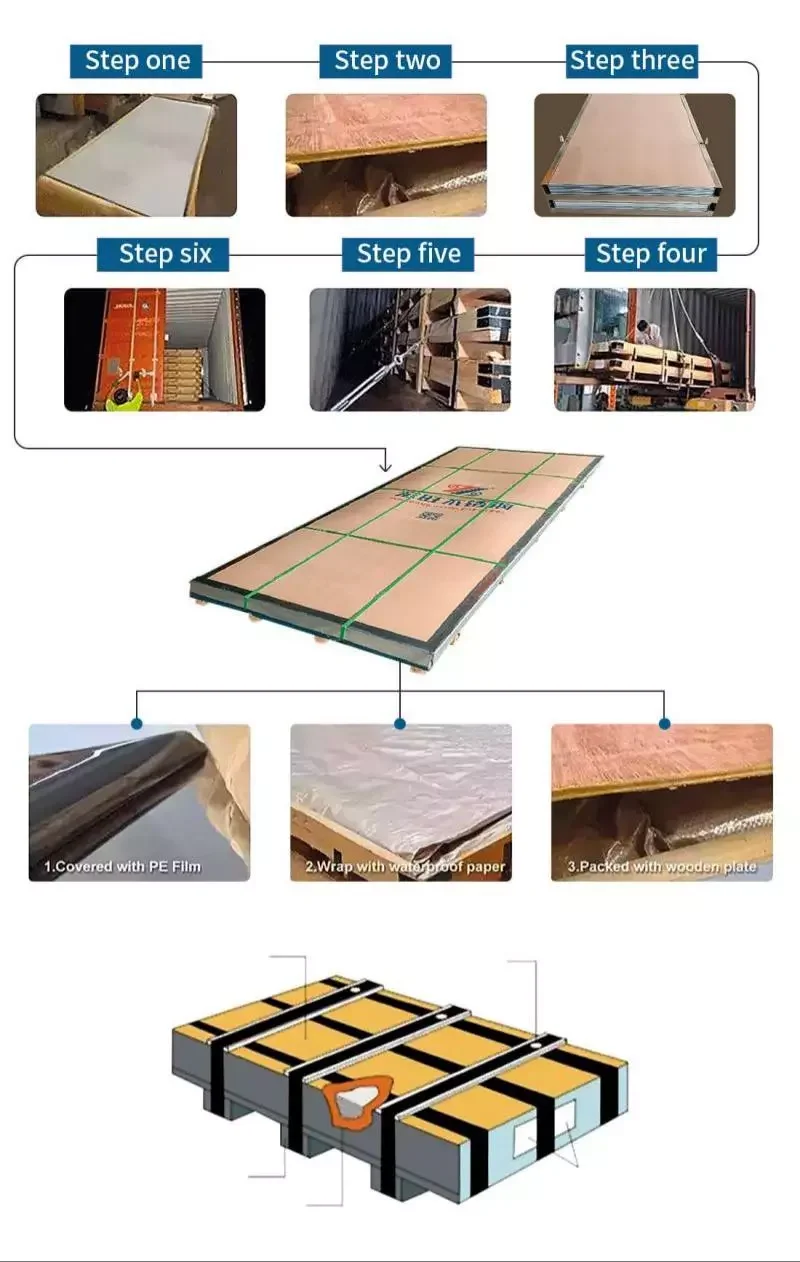

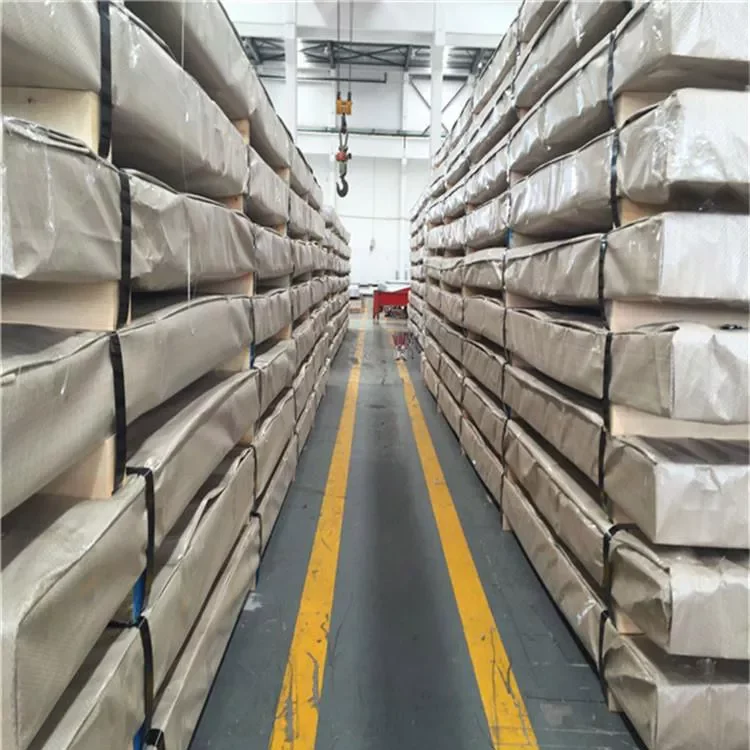

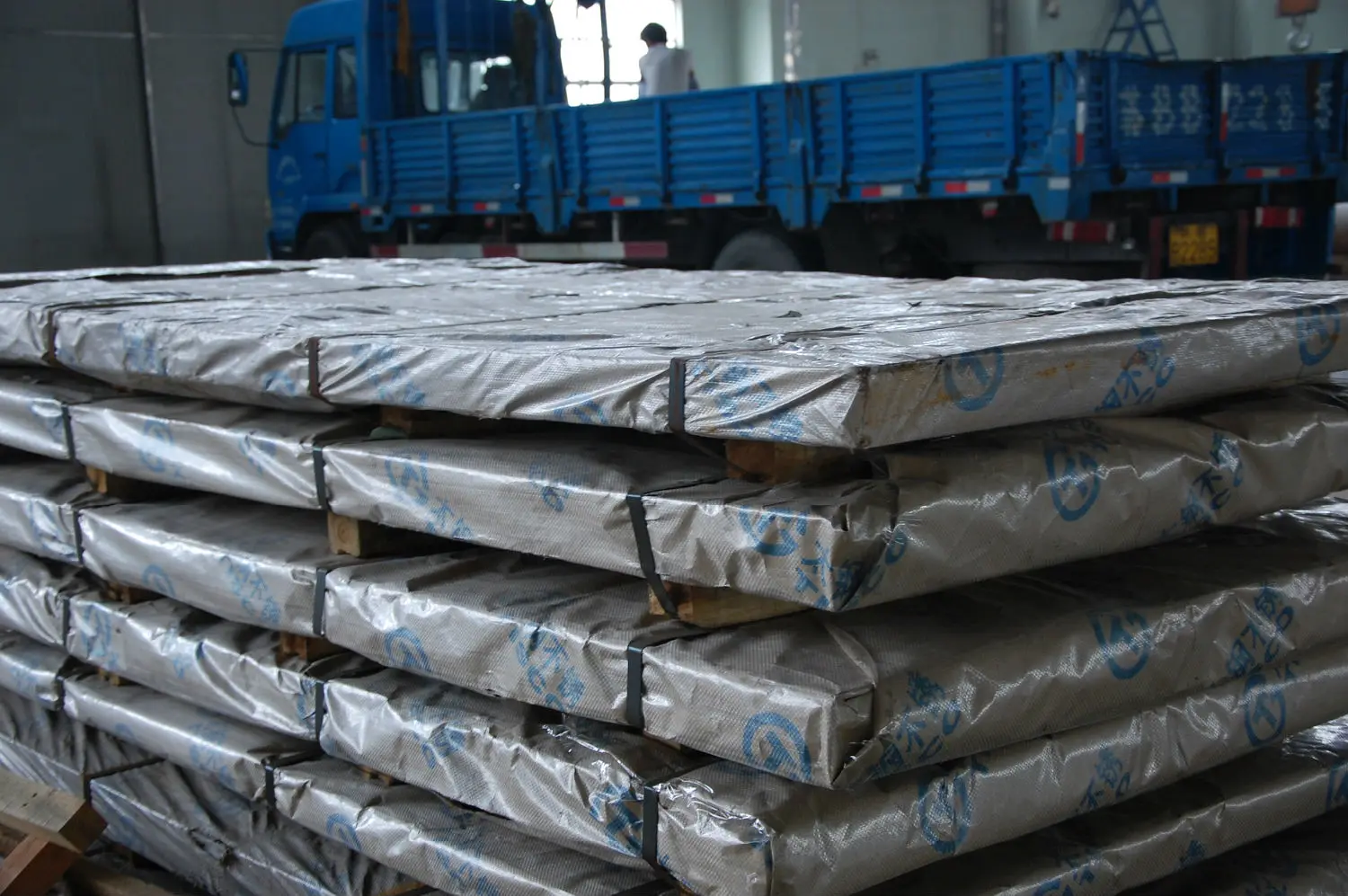

Packing | Waterproof paper/Iron/ Wooden pallet or according to customer's requirements | |
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0.28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
HR VS CR | ||
HR | CR | |
Processing | The whole process is done at high temperature and at the end is being cooled down | Cold rolled steel is heated and cooled at the room temperature and then rolled after again |
Advantage | - Easier to make: heat it up, push through, cool down and that's it! - Cheaper than cold rolled - Hot rolled steel is allowed to cool at room temperature and it's free from internal stresses that can arise from quenching or work-hardening processes - Most popular shapes are hot-rolled (UC, UB, SHS, RHS, PFC, flats etc.) | - accurate shape (consistent and straight) - a wider range of surface finishes - a smooth and shinier surface - bars are true and square and have well-defined edges and corners - Tubes have better concentric uniformity and straightness. |
Disadvantage | - dimensional imperfections caused by heating (expanding) and cooling down (shrink, warpage) - rough texture on a surface, need to be removed and buffed before painting - Slight distortions | - more expensive - fewer shapes available cold-rolled (sheets, box section shapes: CHS, SHS, RHS) - additional treatments can create internal stress within the material; this can cause unpredictable warping if the steel is not stress relieved prior to cutting, grinding, or welding. |
* Bolts
* Cutlery & Flatware
* Food & Pharmaceutical Equipment
* Nuts
* Sanitary Ware & Troughs
* Saucepans
* Screws/Springs
* Sinks & Splash Backs
* Oil or gas industry
