IPC HDBW2449F AS IL 2024 New 4MP Vandalproof Dome Dual Light Color Night Vision Human Detection Dahua WizSense PoE IP Camera
- Category: >>>
- Supplier: Shenzhen Guowei Security Electronic Co. Ltd.
Share on (1601200629337):
Product Overview
Description
Technical Datasheet
Driven by deep learning algorithms, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions

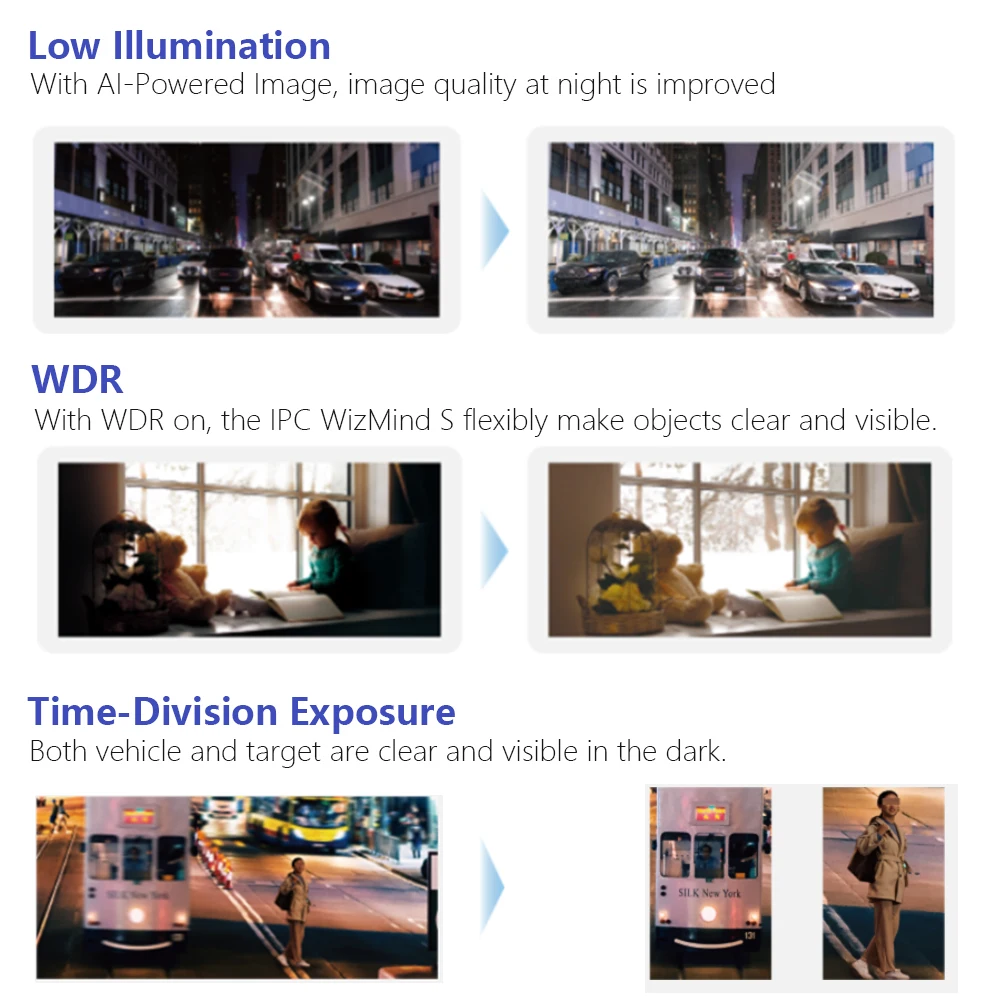

AI-Powered Image
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

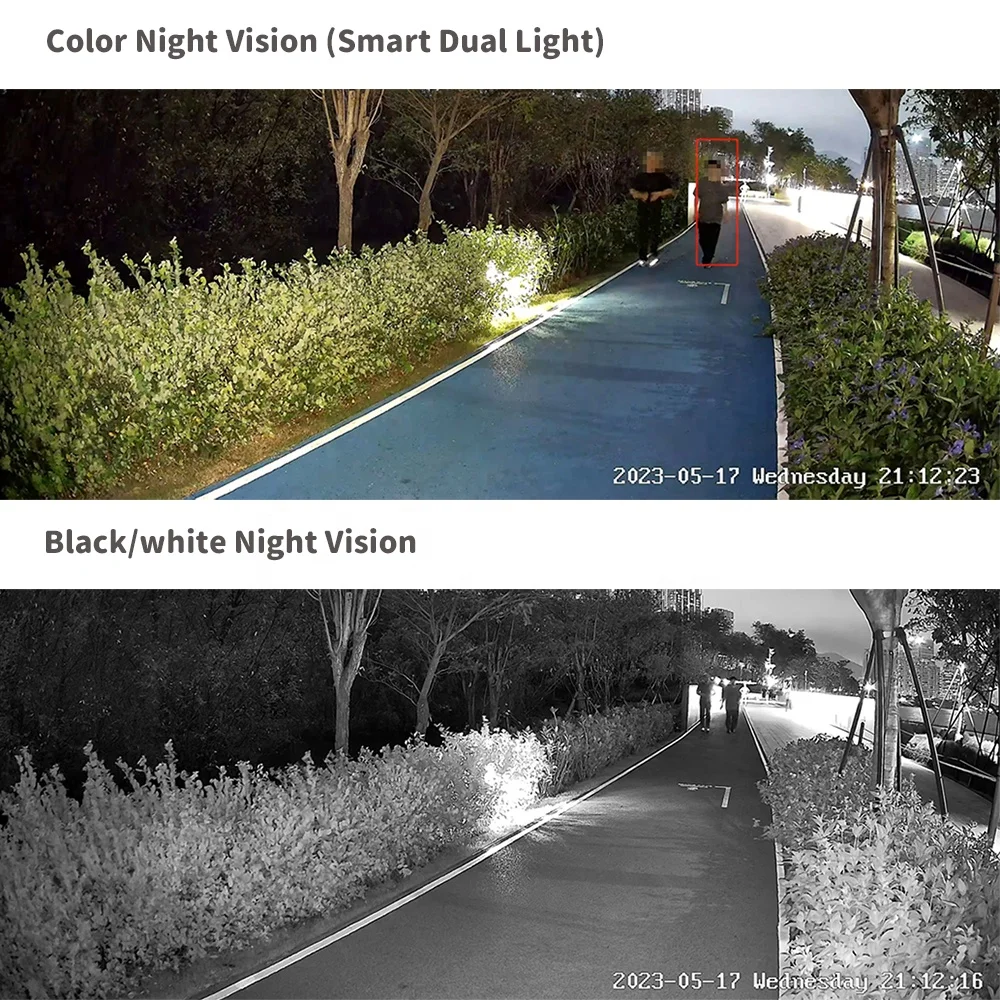

Full-color
With high-performance sensor and large aperture lens, Dahua Full color technology can display clear colorful image in
the environment of ultra-low illuminance. With this photo sensitivity technology, the camera can capture more available light, and display more colorful image details.
the environment of ultra-low illuminance. With this photo sensitivity technology, the camera can capture more available light, and display more colorful image details.
Smart Sound Detection
With deep learning algorithms, Da hua Smart Sound Detection technology can detect and identify the sound of screams, glass breaking, and more.
People Counting
With deep learning algorithm, Da hua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.
Video Metadata
With deep learning algorithm, Da hua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.
Cyber Security
Da hua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of
40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage
range), and it is widely applied to outdoor environment with instable voltage.
range), and it is widely applied to outdoor environment with instable voltage.

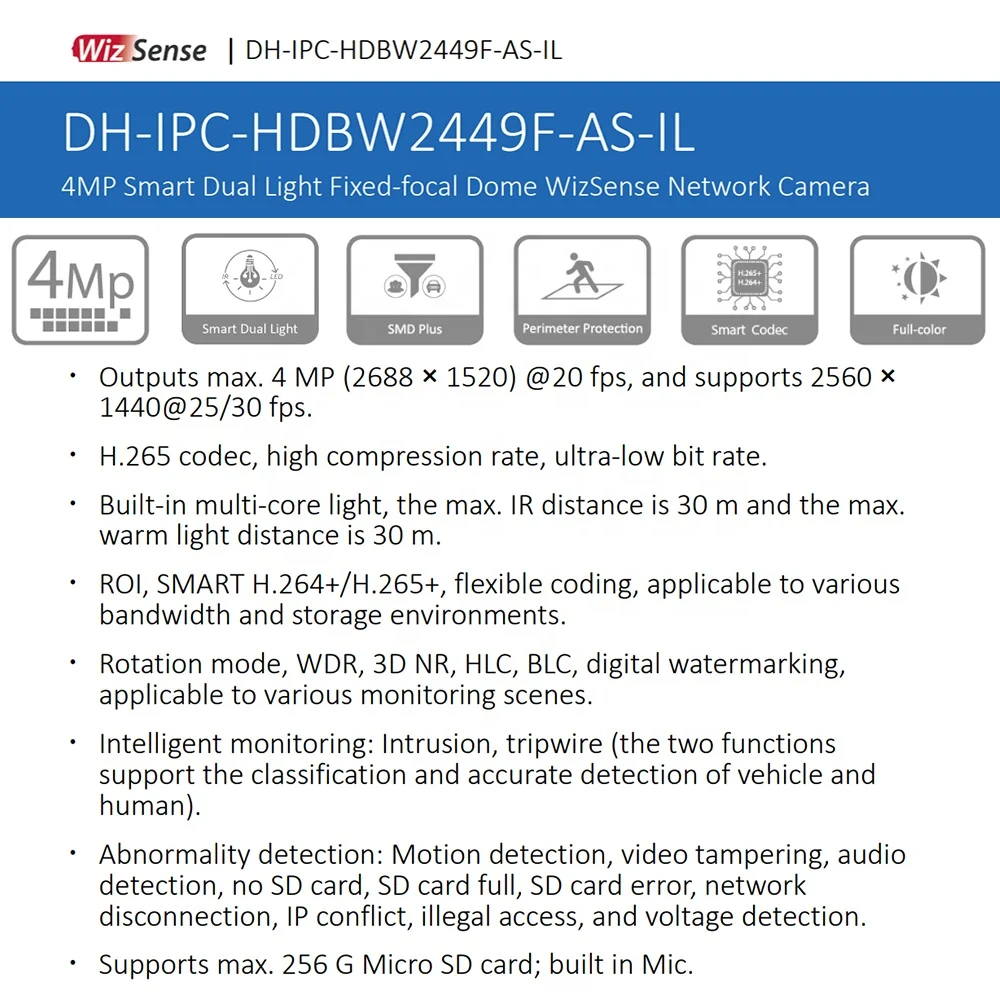

IPC-HDBW2449F-AS-IL
4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
>4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 and IK10 protection.
>SMD Plus.
>Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 and IK10 protection.
>SMD Plus.
Brief specifications for a quick acknowledge of this item, for further detailed parameters or technical consult, please feel free to contact us at HERE.
Camera | ||
Image Sensor | 1/2.9" CMOS | |
Max. Resolution | 2688 (H) × 1520 (V) | |
Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | |
Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) | |
Illuminator Number | 4 (Multi-core (IR + warm) light) | |
Lens Type | Motorized vari-focal | |
Focal Length | 2.8 mm; 3.6 mm | |
Max. Aperture | F1.6 | |
Field of View | 2.8 mm: H: 101°; V: 54°; D: 120° 3.6 mm: H: 83°; V: 43°; D: 100° | |
Intelligence | ||
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | |
SMD | SMD Plus | |

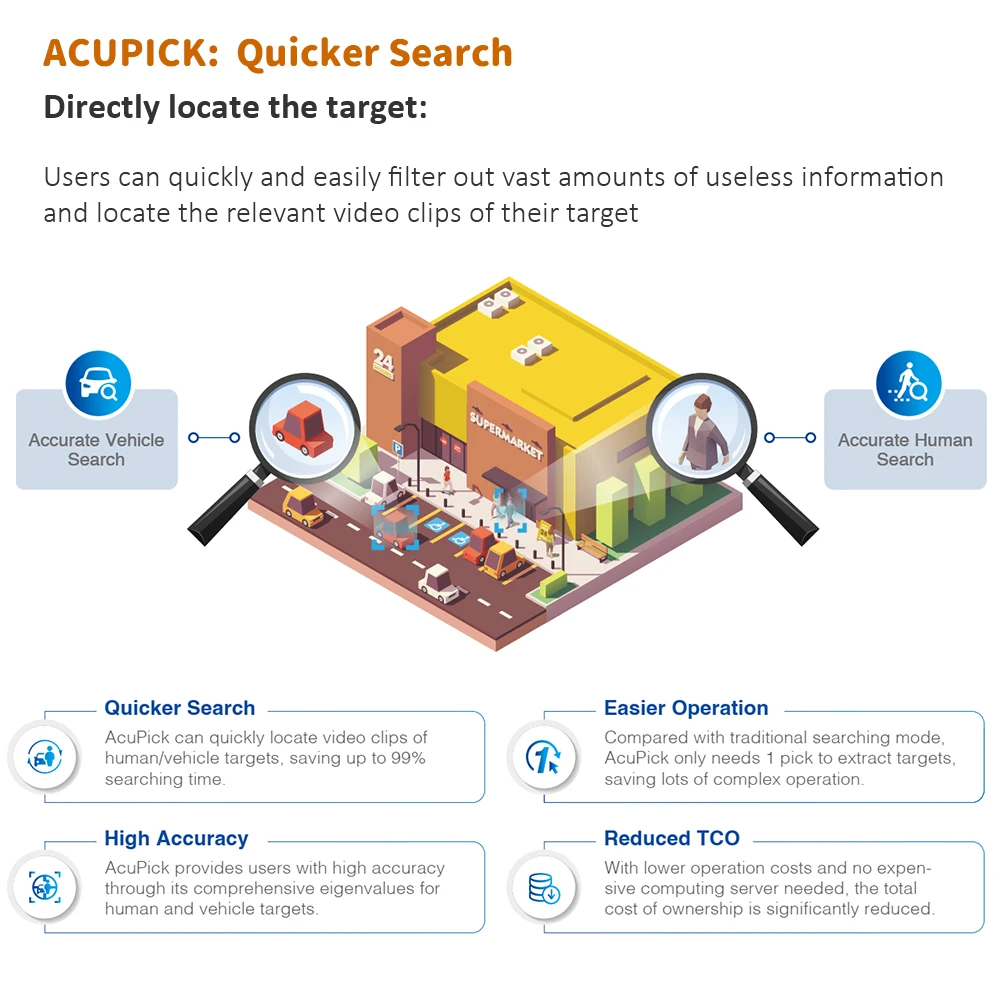

Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |
Video | ||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | |
Smart Codec | Smart H.265+; Smart H.264+ | |
Video Frame Rate | Main stream: 1920x1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | |
Stream Capability | 2 streams | |
Resolution | 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
WDR | 120 dB | |
Smart Illumination | Yes | |

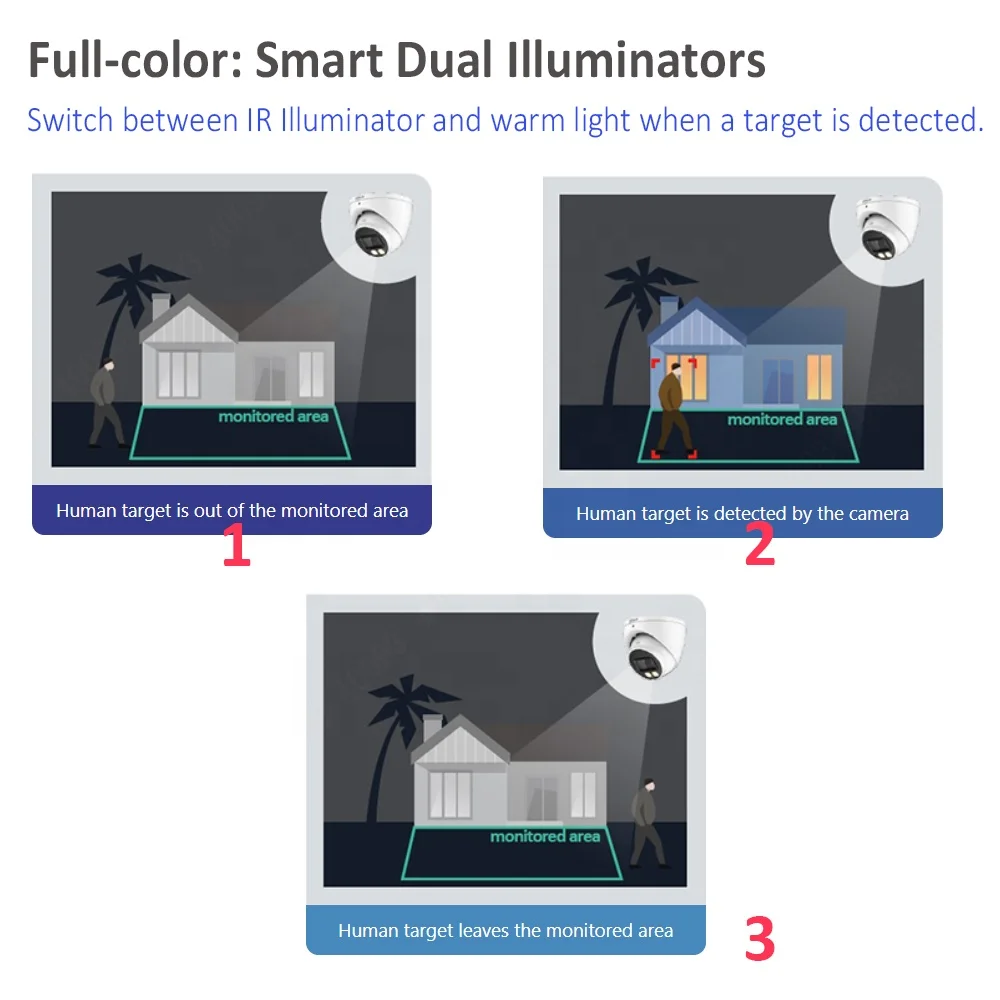

Smart Dual Light | Yes | |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |
Audio | ||
Built-in MIC | Yes, built-in Mic | |
Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care | |
Mobile Client | iOS;Android | |
Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade | |
Power | DC12V/ POE | |
Protection | IP67; IK10 | |
Casing Material | Metal | |
Why Choose Us
Your benefits from GWSECU.
1- 19 years Alibaba golden supplier with Trade Assurance to protect your purchase.
2- Origin Dahua international version products, support future firmware upgrade.
3- Online technical to assist with you to design the system with most suitable products.
4- Fast delivery: within 1-10 working business day base on models in stock.
5- OEM Service: put your company brand on the products and package box.
4- Fast delivery: within 1-10 working business day base on models in stock.
5- OEM Service: put your company brand on the products and package box.
6- 2 Years (two years) worry-free warranty service.
Our company
As a professional project-base structure designed hd cctv camera manufacturer, GWSECU had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
We're also Dahua distributor for the brand products as always. Origin International firmware version and 2 years warranty service. Welcome to contact us for more information.
1- This a Surveillance Projects installed in Melborne, Australia. Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested Dahua DH-SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.
We pack the goods well just make sure our customer receive all items in good condition.
Regular cameras and DVR/NVRs will have good enough foam protected. LCD monitor or LCD Display wall will be packed by poly-wooden box, making these fragile goods be well protected. You can rest assure to buy from us.
Company Introduction
About us
Shenzhen Guowei Security Co., ltd is a national high-tech enterprise that integrates the design, development, production and sales of video surveillance products.
As a member of Onvif, our IP Camera and NVR have passed international ONVIF Profile S standards, perfectly compatible with world-wide platform like Da Hua, Hik-vision, Milestone, Digifort etc.).
GWSecu Factory Show:
A: Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset, lens and infrared lights. We source from Sony, Ti and Aptina directly.
B: Assembling
As ISO certified CCTV factory, we have a management system in conformity with 6S in manufacturing management. We have all kinds of production and inspection equipment to ensure product quality.
C: Quality Test
GWSecu invests abundant capital in advanced testing equipments to ensure products quality.
Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test,Salt spray test.
D: OEM & ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
Worldwide Customer
We attend worldwide exhibitions in Dubai, Las Vegas, Moscow, London, Germany, Thailand, South Africa. "Honest" and "Sincerity" is the principle we serve the customers.
GWSecu Company Culture
Along with the experience of 17 Years Alibaba verified supplier, GWSECU had been dedicated in CCTV Security industrial for more than 20 years. We had an experienced team with great enthusiasm and professional spirit for CCTV Surveillance systems.
We had online technical support and experience in helping customer for different projects suggestion and recommendation. Looking forward to your inquiry!
We had online technical support and experience in helping customer for different projects suggestion and recommendation. Looking forward to your inquiry!
FAQ & Contact Me
1- How do you I know your products are genuine?
We offer Da hua origin English firmware products, same web GUI, Smart PSS, Configtool software.
2- What service can I have?
We offer 2 years warranty service.
3- If I want firmware to upgrade, can you provide?
Yes. We can offer latest firmware for your future upgrading.
But normally we don't suggest as firmware upgrade with risks, unless the products with technical issue and need update.
4- Can we test sample before ordering?
Yes sure. We accept sample order and PayPal payment.
5- Do you offer OEM service for Da hua products?
It depends. We can print your brand in our factory. But don't offer web page OEM.
6- What will be your technical support?
We have engineers online to support, like skype or teamviewer remotely.
