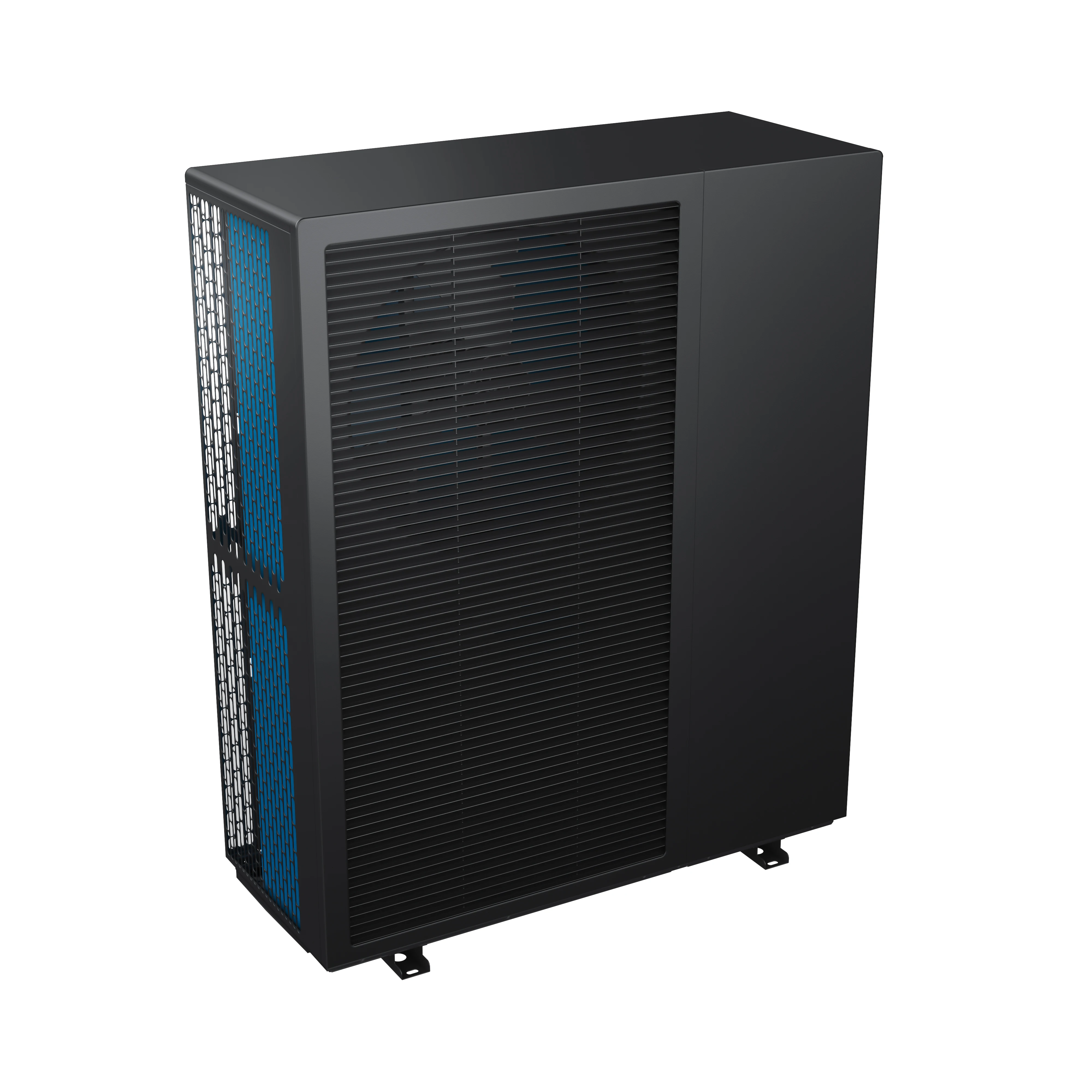

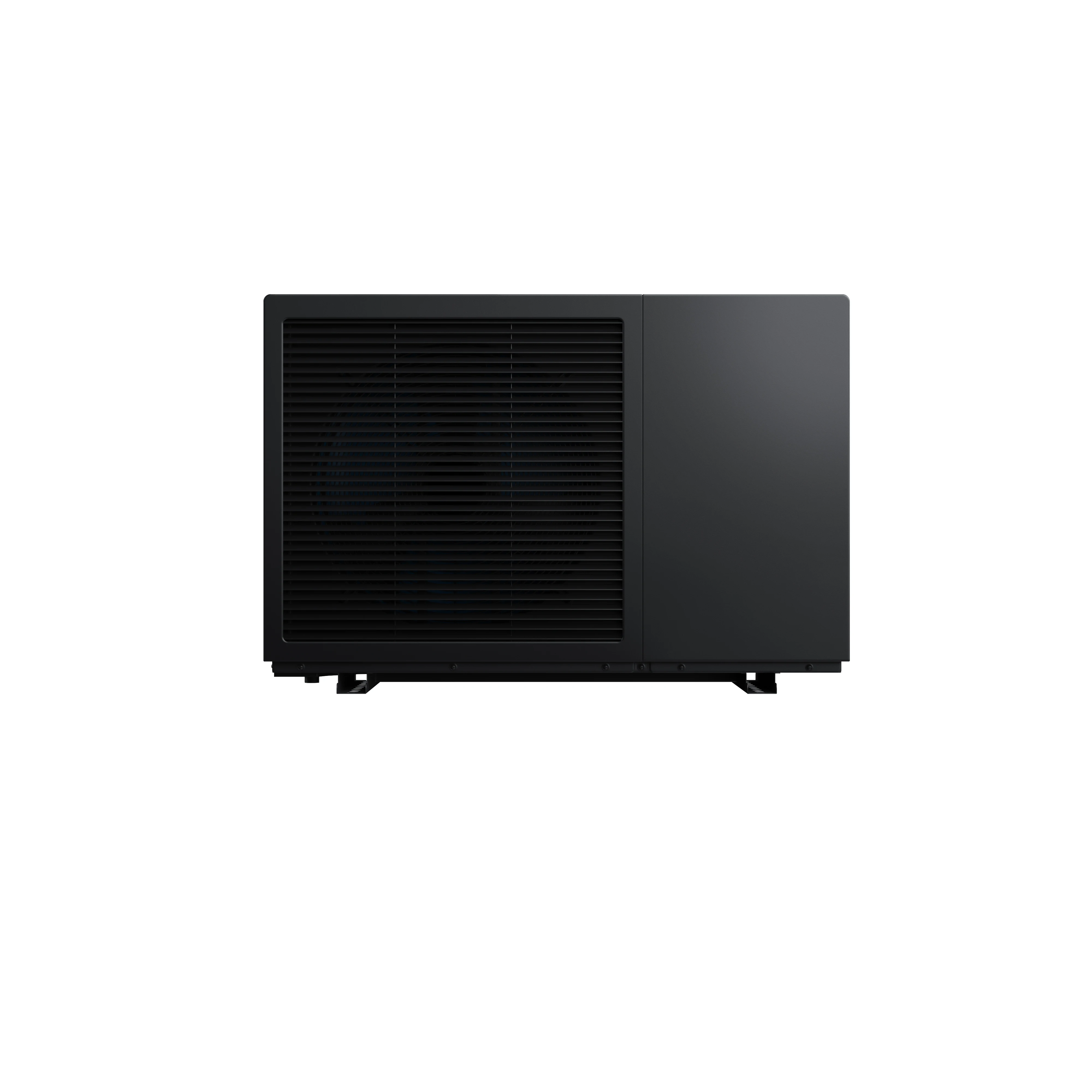

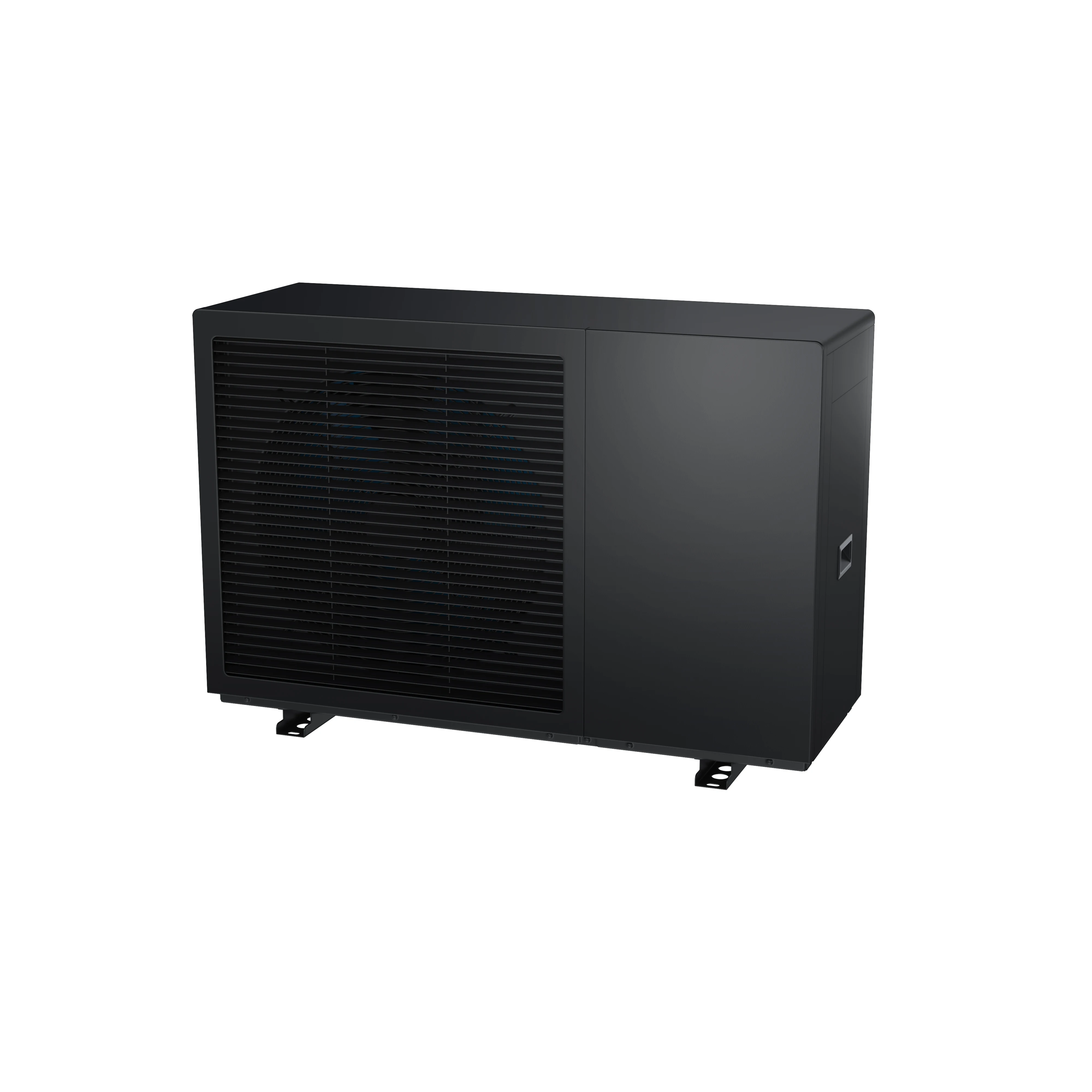

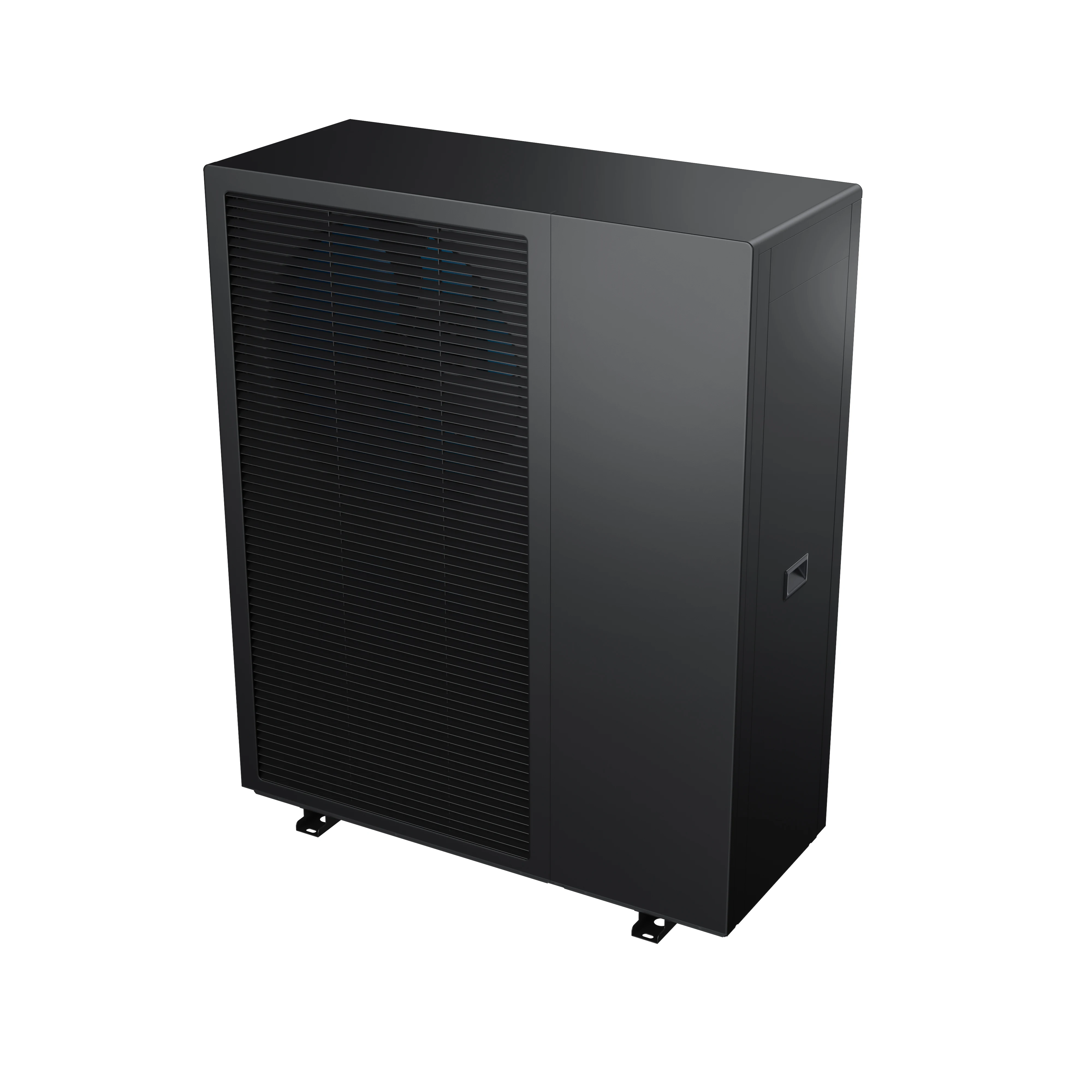

R 290 DC inverter Air to Water Heat Pump for heating cooling and hot water with Wifi for house heating hot water
- Category: >>>
- Supplier: Fantastic Energy Saving Equipment Factory
Share on (1601200633167):
Product Overview
Description
Product Description
FANTASTIC R290 CE A+++ BAFA EVI DC Inverter Heat Pump For Heating Cooling Hot Water
1. Heating Capacity: EVI DC Inverter 6KW 10KW 12KW 18KW Inverter Heat Pump ASHP
2. Power Supply : 220V 1PH /380V 3PH
3. Best Selling Market: Germany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria,Switzerland,USA, Canada,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia,New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.etc.

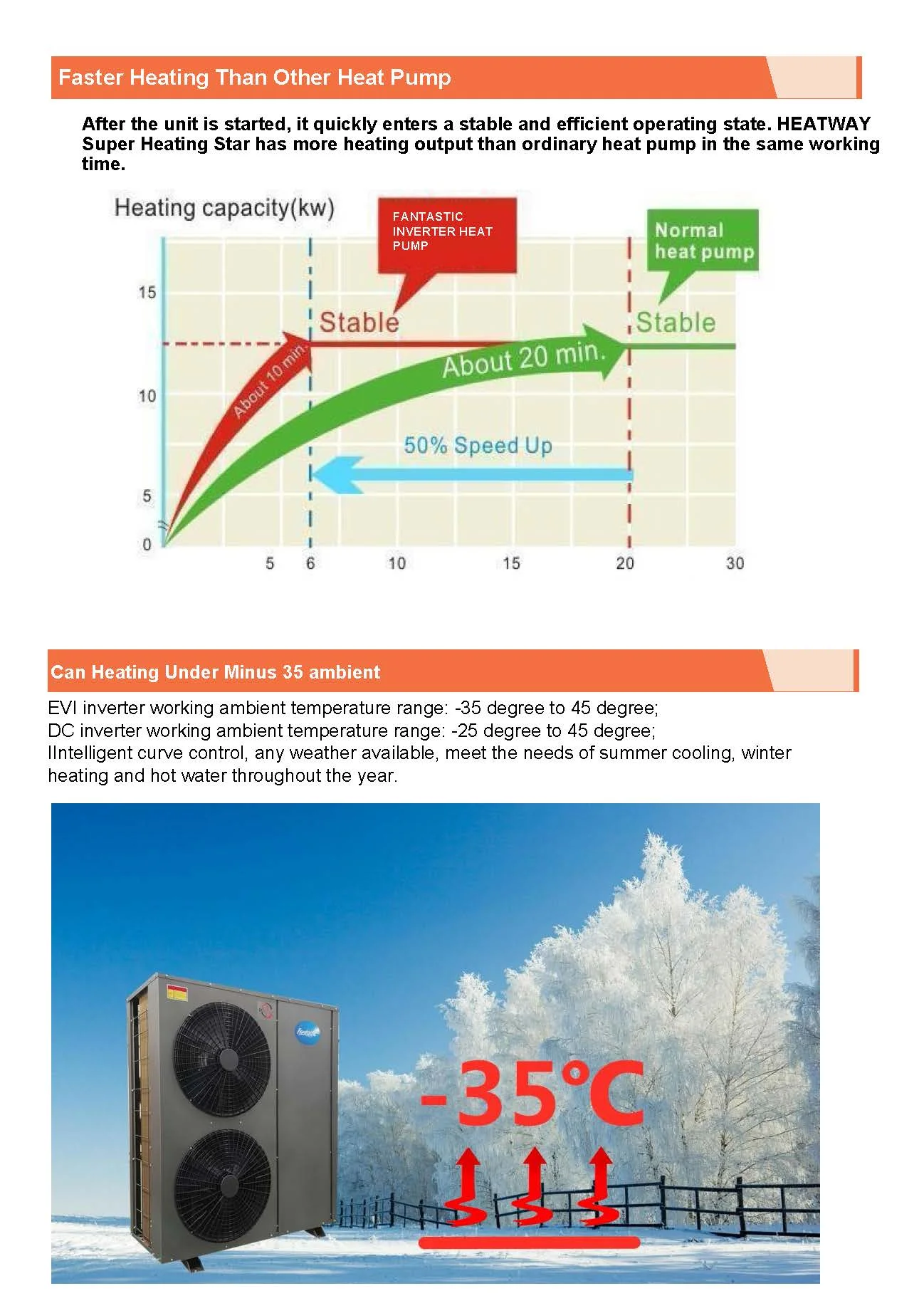

4. Ambient Temp of Using: Minus 35℃, max 75℃ Hot Water Output
5. Certificate: ISO9001, CE, EMC, , A+++ ERP Energy Label for Europe and UL CSA for North America

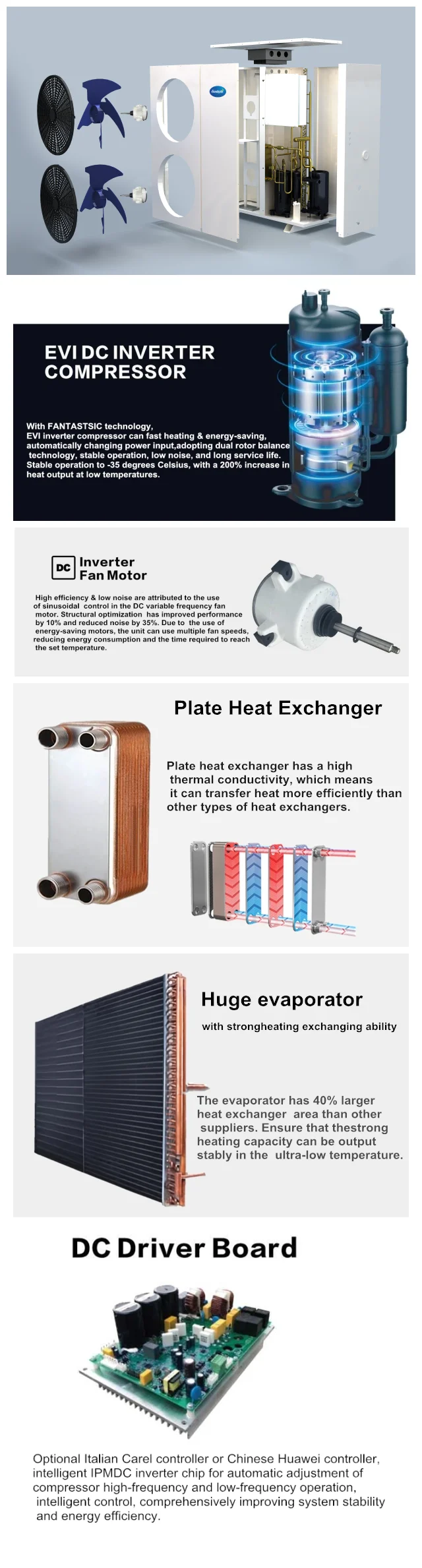

6. Dual-rotor Compressor for EVI DC Inverter Heat Pump Series
7. High COP to be 5.65
8. All in One Heat Pump design with built in water pump, expansion tank ,electric element and dc inverter brushless fan motor. (Low Noise less than 54dB)

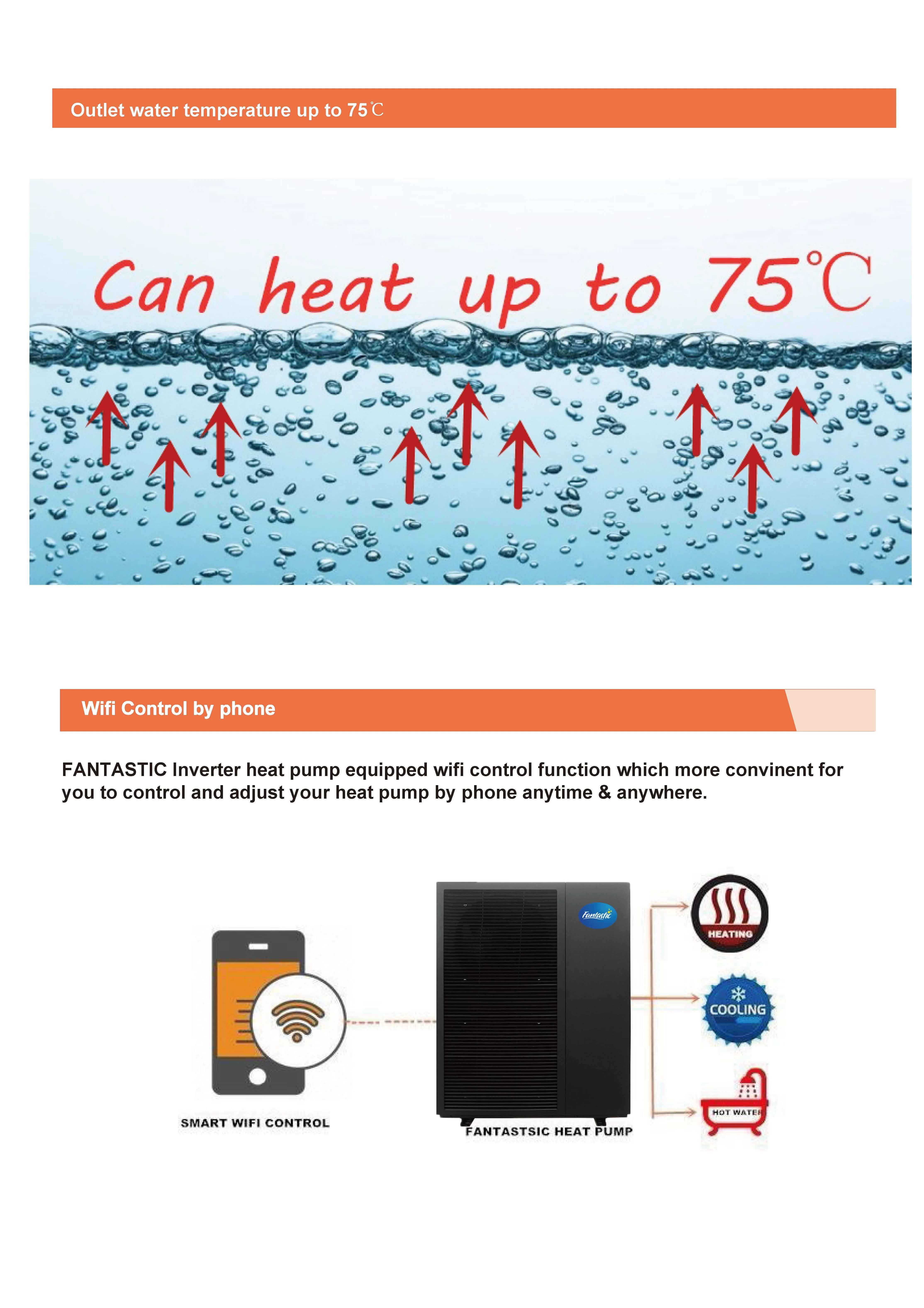

9. FANTASTIC Inverter heat pump equipped wifi control function by phone which more convinent for you to control and adjust your heat pump by phone anytime & anywhere
Model： | FEI6S-290 | FEI12S-290 | FEI12S3-290 | FEI18S-290 | FEI18S3-290 | |||||||
Power Supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | ||||||
Nominal Heating (Max)（(A7/6℃,W30/35℃) | ||||||||||||
Heating Capacity | kW | 3.0~9.1 | 5.5~15.1 | 5.5~15.1 | 7.5~22.1 | 7.5~22.1 | ||||||
Power Input | kW | 0.65~2.29 | 1.08~3.9 | 1.08~3.9 | 1.5~6.8 | 1.5~6.8 | ||||||
Current Input | A | 2.8~9.1 | 4.5~17.0 | 1.8~6.9 | 6.9~31.1 | 2.7~12.3 | ||||||
Nominal Heating (Max)（(A7/6℃，W47/55℃) | ||||||||||||
Heating Capacity | kW | 2.85~8.50 | 5.0~13 | 5.0~13 | 7.0~18.9 | 7.0~18.9 | ||||||
Power Input | kW | 0.95~2.85 | 1.75~4.96 | 1.75~4.96 | 2.15~7.35 | 2.15~7.35 | ||||||
Current Input | A | 2.9~9.2 | 4.6~17.1 | 1.9~7.0 | 7.0~31.3 | 2.8~12.4 | ||||||
Nominal Cooling (Max) (A35/24℃,W12/7℃) | ||||||||||||
Cooling Capacity | kW | 1.25~5.8 | 3.65~10.2 | 3.65~10.2 | 4.5~17.7 | 4.5~17.7 | ||||||
Power Input | kW | 0.65~2.35 | 1.12~4.16 | 1.12~4.16 | 1.80~7.30 | 1.80~7.30 | ||||||
Current Input | A | 2.9~10.4 | 4.8~17.3 | 2.0~7.8 | 7.8~32.4 | 3.3~12.9 | ||||||
ERP Level（Outlet water temp. at 35℃） | / | A+++ | A+++ | A+++ | A+++ | A+++ | ||||||
MAX. input power | kW | 3.00 | 5.50 | 5.50 | 7.50 | 9.00 | ||||||
MAX. input current | A | 13.50 | 24.50 | 10.50 | 35.00 | 16.00 | ||||||
Refrigerant / Weight | / | R290 | R290 | R290 | R290 | R290 | ||||||
Rated water flow | m³/h | 1.00 | 1.80 | 1.80 | 3.00 | 3.00 | ||||||
Fan quantity | / | 1 | 1 | 1 | 2 | 2 | ||||||
Fan motor type | / | DC inverter | ||||||||||
Compressor | / | DC inverter | ||||||||||
Circulating pump | / | Inverter type / Built-in | ||||||||||
IP Class | / | IPX4 | ||||||||||
Sound pressure at 1m distance | dB(A) | 42 | 44 | 44 | 48 | 48 | ||||||
Max outlet water temperature | °C | 75 | 75 | 75 | 75 | 75 | ||||||
Water piping connections | / | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 32 (1-1/4") | DN 32 (1-1/4") | ||||||
Water Pressure drop(max) | kPa | 20 | 25 | 25 | 60 | 60 | ||||||
Operating temperature range (Heating mode) | °C | -30~45 | ||||||||||
Operating temperature range (Cooing mode) | °C | 16~45 | ||||||||||
Unpacked Dimensions ( L×D×H ) | mm | 1150×410×800 | 1285×455×930 | 1285×455×930 | 1285×455×1350 | 1285×455×1350 | ||||||
Packed Dimensions ( L×D×H ) | mm | 1300×485×950 | 1450×530×1050 | 1450×530×1050 | 1450×530×1450 | 1450×530×1450 | ||||||
UnPacked Weight | kg | 90 | 110 | 110 | 145 | 145 | ||||||
Packed Weight | kg | 115 | 125 | 125 | 160 | 160 | ||||||
Certifications

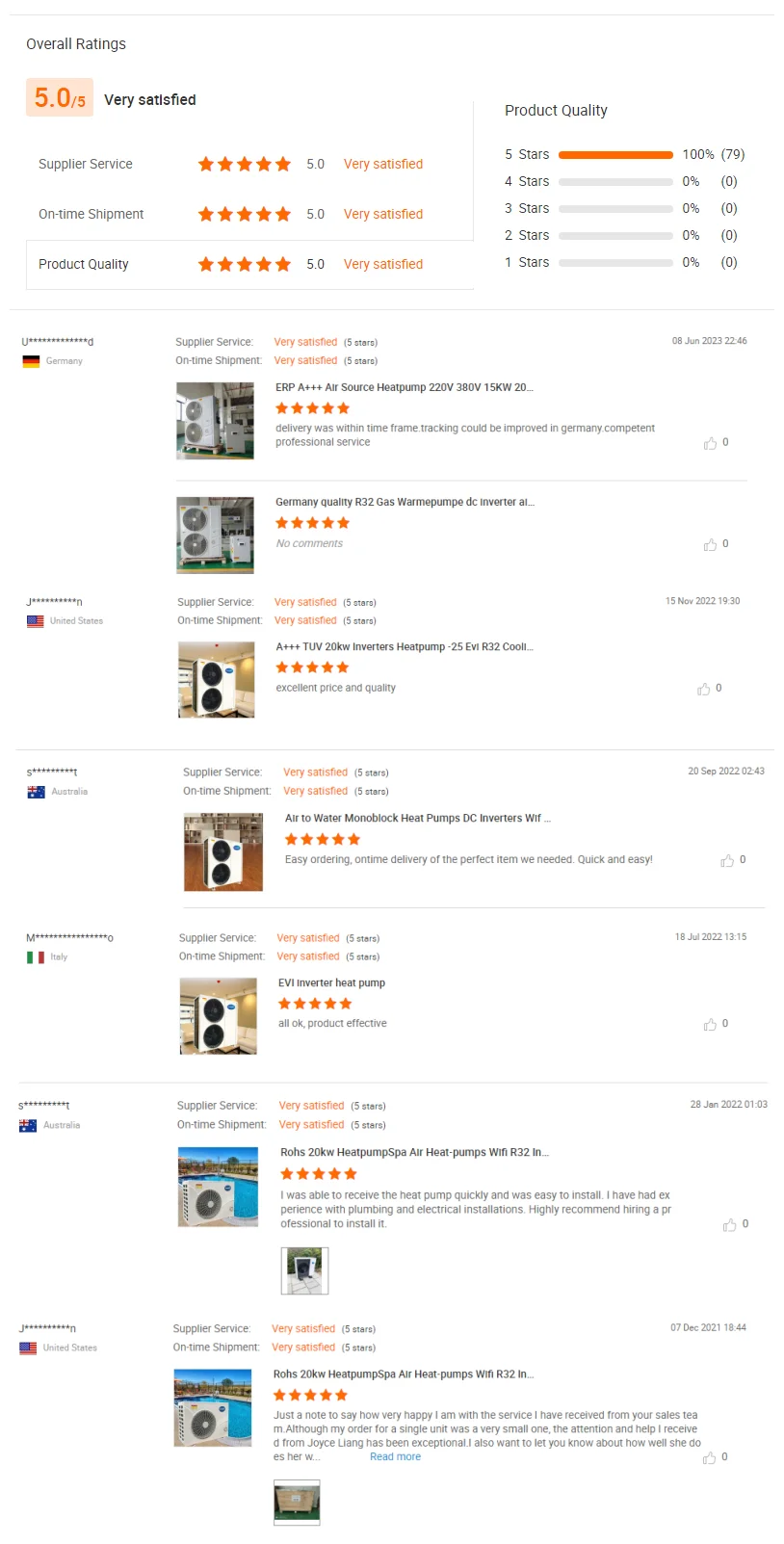

Customers Feedback

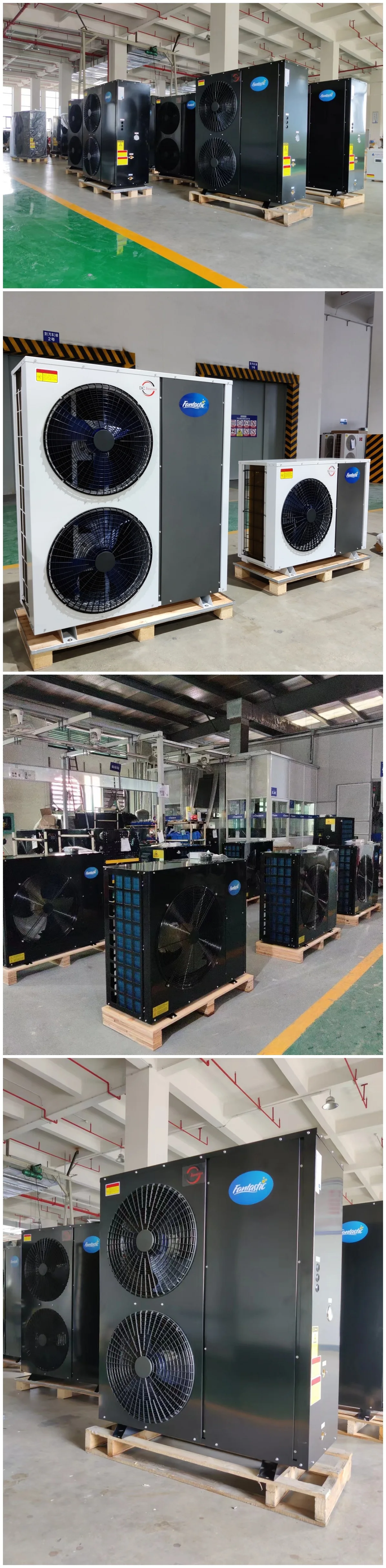

Product Photos

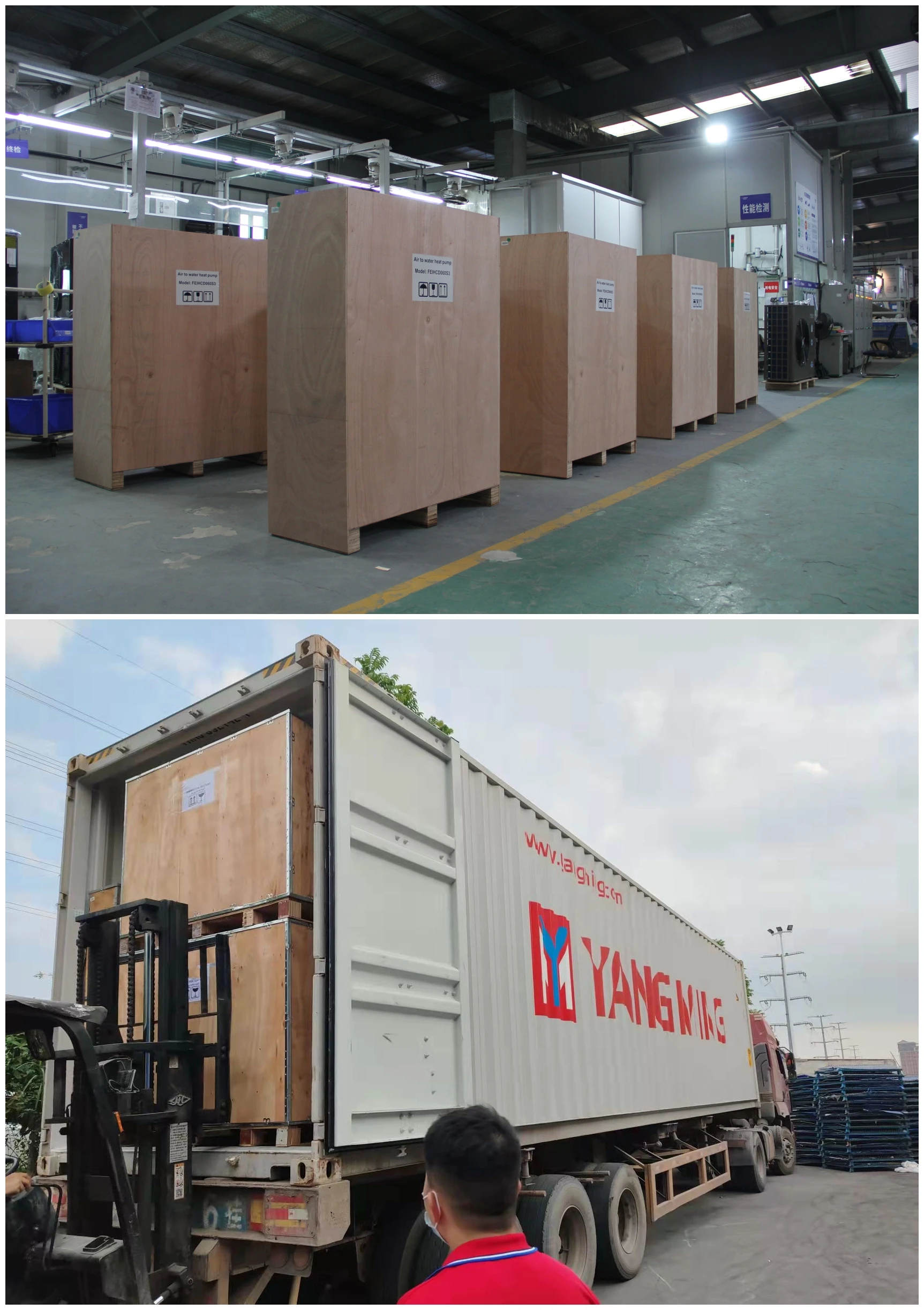

Packing & Delivery

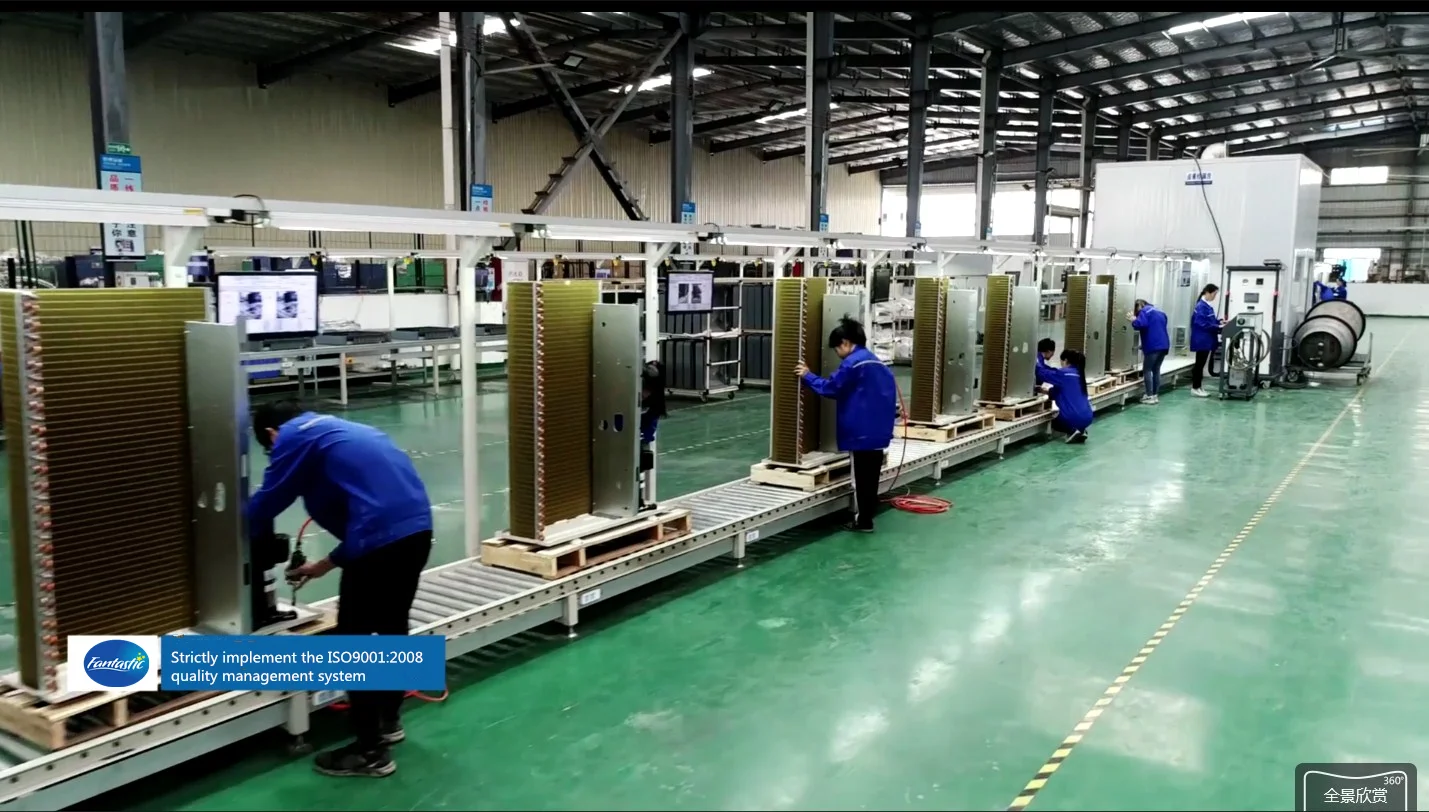

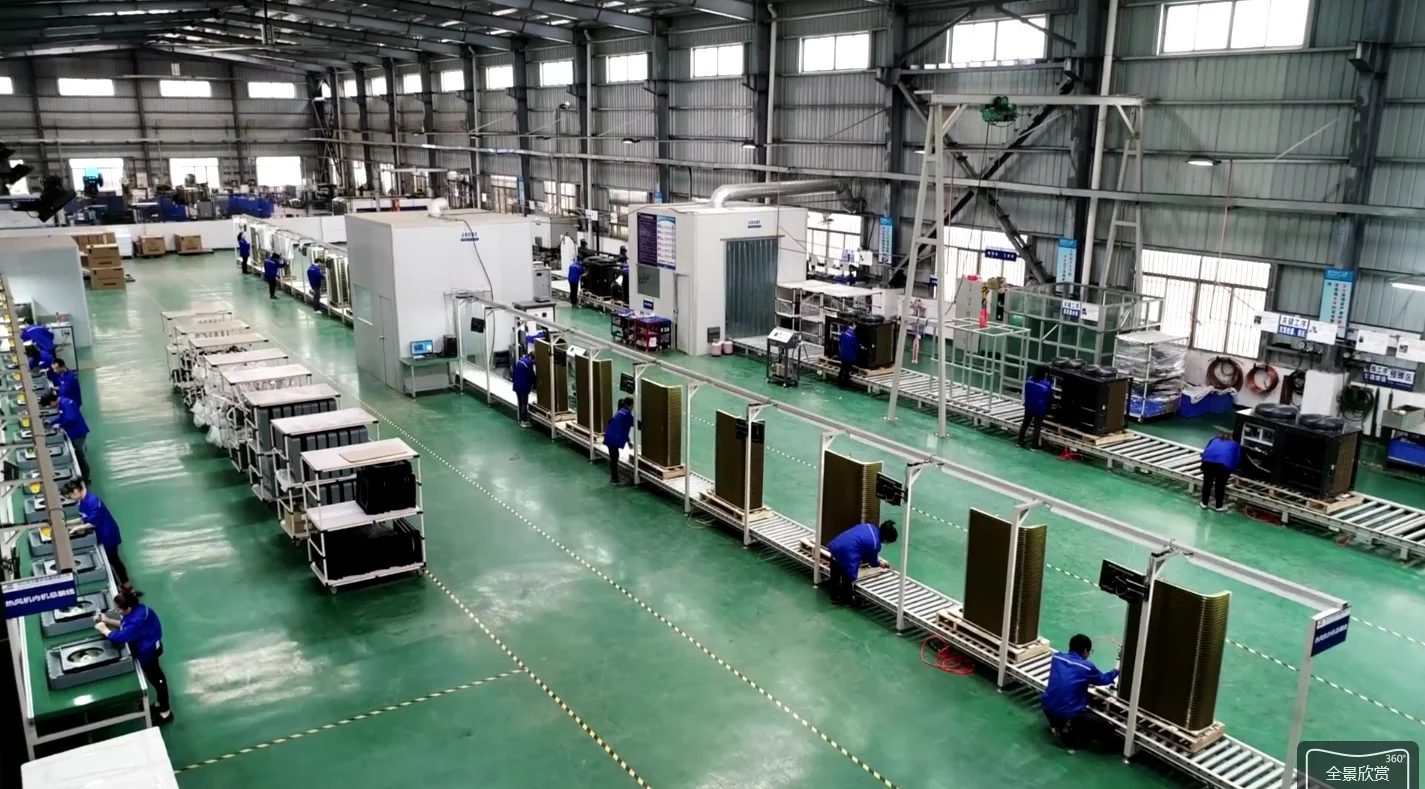

Company Profile
Established in 2002, FANTASTIC is one of the largest manufacturers of house heating/cooling heat pumps and swimming pool heat pumps and hot water heat pumps and other kinds of heat pump products in China.
With more than 500 professional staffs and 15 production lines focusing on heat pump manufacturing and technologies, 80% of staffs are more than 10 years experience. with 232,000 sqm workshop plant, 1 million set of annual production output .
FANTASTIC owns many unique technologies and patents, and products are certified CE, ROHS, BAFA, ,A+++ for Europe ,UV UL for North America ,, SAA, WATERMARK, STANDARD MARK, C-TICK ,SAA for Australia, ISO9001 and so on by TUV.
Technical testing
Warranty
Warranty
The warranty is 2 years at least.
