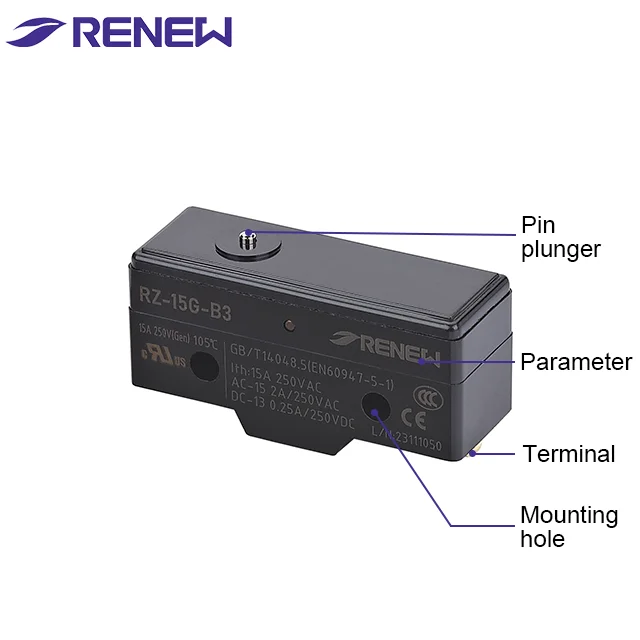

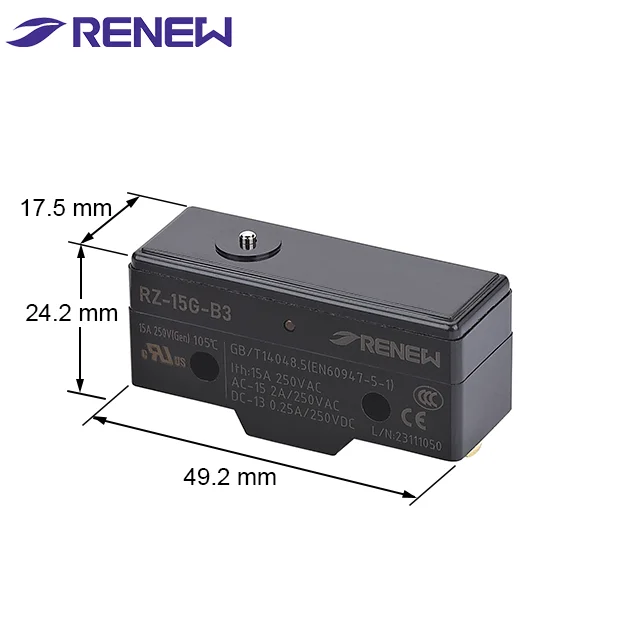

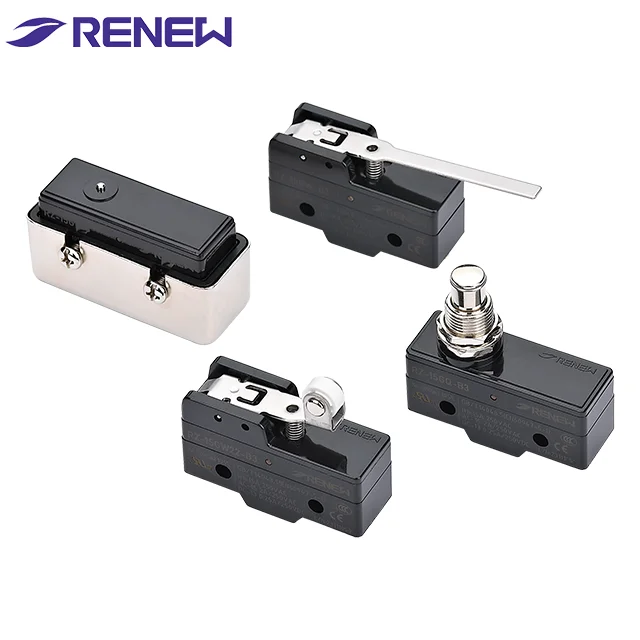

Renew RZ 15G B3 High Precision Limit Switch Pin Plunger 15 A SPDT/SPST

Product Overview

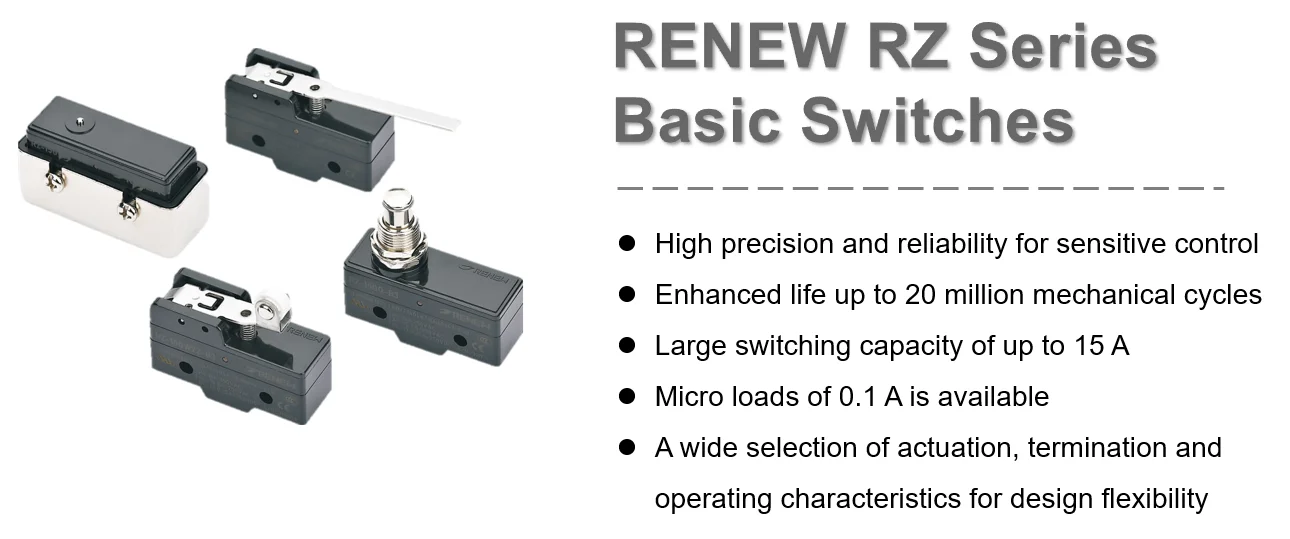

Description

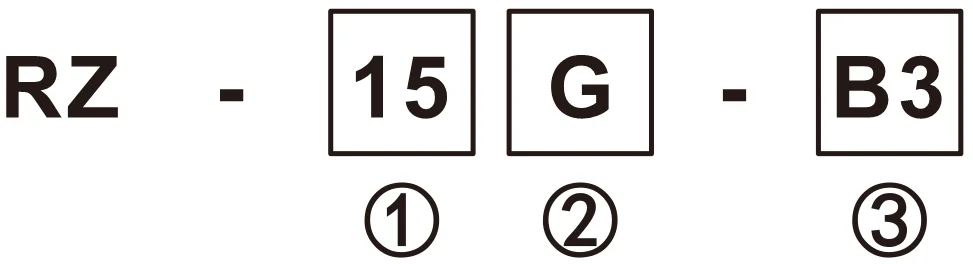

Nomenclature





1. Electrical rating:  15 A

2. Contact gap G:    0.5 mm (standard)

3. Terminal:              Screw terminal (with toothed washer)





Rating

Item			Non-inductive load (A)				Inductive load (A)
			Resistive load		Lamp load		Inductive load		Motor load
Contact gap	Rated voltage		NC	NO	NC	NO	NC	NO	NC	NO
G, H, H2, E	VAC	125 250 500	15 15 10		3 2.5 1.5	1.5 1.25 0.75	15 15 6		5 3 1.5	2.5 1.5 0.75
G	VDC	8 14 30 125 250	15 15 6 0.5 0.25		3 3 3 0.5 0.25	1.5 1.5 1.5 0.5 0.25	15 10 5 0.05 0.03		5 5 5 0.05 0.03	2.5 2.5 2.5 0.05 0.03
H, H2	VDC	8 14 30 125 250	15 15 2 0.4 0.2		3 3 2 0.4 0.2	1.5 1.5 1.4 0.4 0.2	15 10 1 0.03 0.02		5 5 1 0.03 0.02	2.5 2.5 1 0.03 0.02
E	VDC	8 14 30 125 250	15 15 15 0.75 0.3		3 3 3 0.75 0.3	1.5 1.5 1.5 0.75 0.3	15 15 10 0.4 0.2		5 5 5 0.4 0.2	2.5 2.5 2.5 0.4 0.2

 Note:

 1. The above current ratings are the values of the steady-state current.

 2. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).

 3. Lamp load has an inrush current of 10 times the steady-state current.

 4. Motor load has an inrush current of 6 times the steady-state current.

 5. The ratings values apply under the following test conditions:

 (1) Ambient temperature: 20±2°C

 (2) Ambient humidity: 65±5%RH

 (3) Operating frequency: 20 operations/min

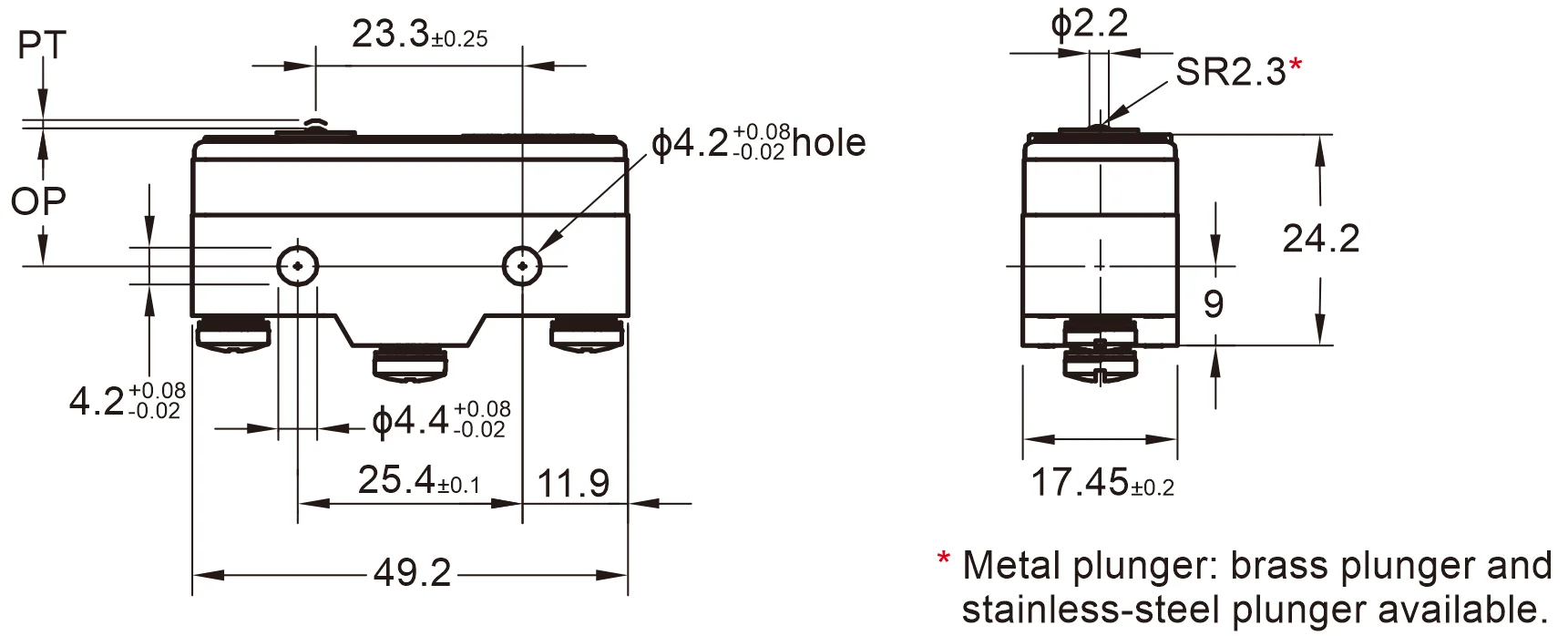

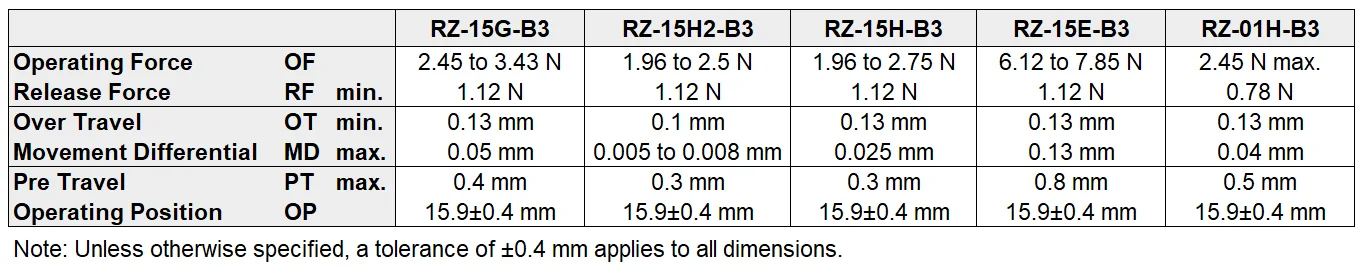

Dimensions & Operating Characteristics





































Renew’s basic switches play a critical role in ensuring the safety, precision, and reliability of

various devices across different fields. Here are some popular or potential application.























Q1: What types of switches does Renew offer?

A1: Renew offers limit switches, toggle switches, and a wide range of micro switches, including

standard, miniature, sub-miniature, and waterproof models. Our products cater to various

applications, ensuring reliability and precision.



Q2: Can I get customized micro switches for my specific application?

A2: Yes, we provide customized micro switch solutions to meet your specific requirements.

Please contact our sales team with your specifications, and we will work with you to develop a

tailored solution.



Q3: What is the typical lead time for an order?

A3: The lead time for standard products is usually 1-3 weeks, depending on the order quantity.

For customized products, the lead time may vary. Please contact our customer service for more

detailed information.



Q4: Do you offer samples for testing purposes?

A4: Yes, we offer samples for testing. Please reach out to our sales team to request samples

and provide details about your application needs.



Q5: What quality standards do your switches adhere to?

A5: Our switches are manufactured in compliance with international quality standards such as

ISO 9001, CE, and RoHS. We ensure rigorous quality control processes to deliver reliable and

high-performance products.



Q6: How can I get technical support for your products?

A6: Our technical support team is available to assist you with any product-related inquiries or

issues. Please contact us via email or phone, and provide detailed information about your issue

for prompt assistance.
