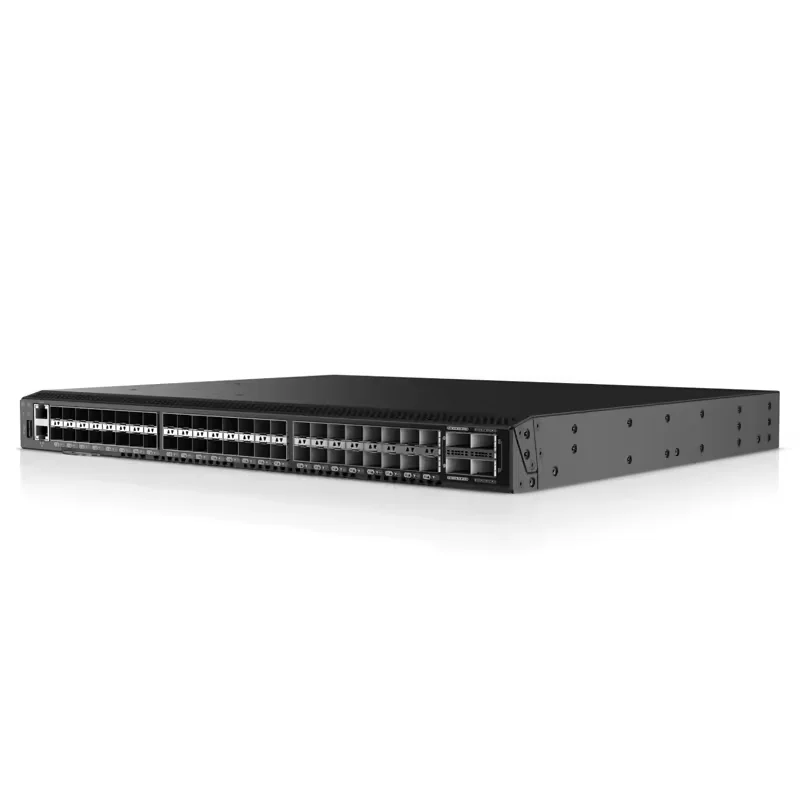

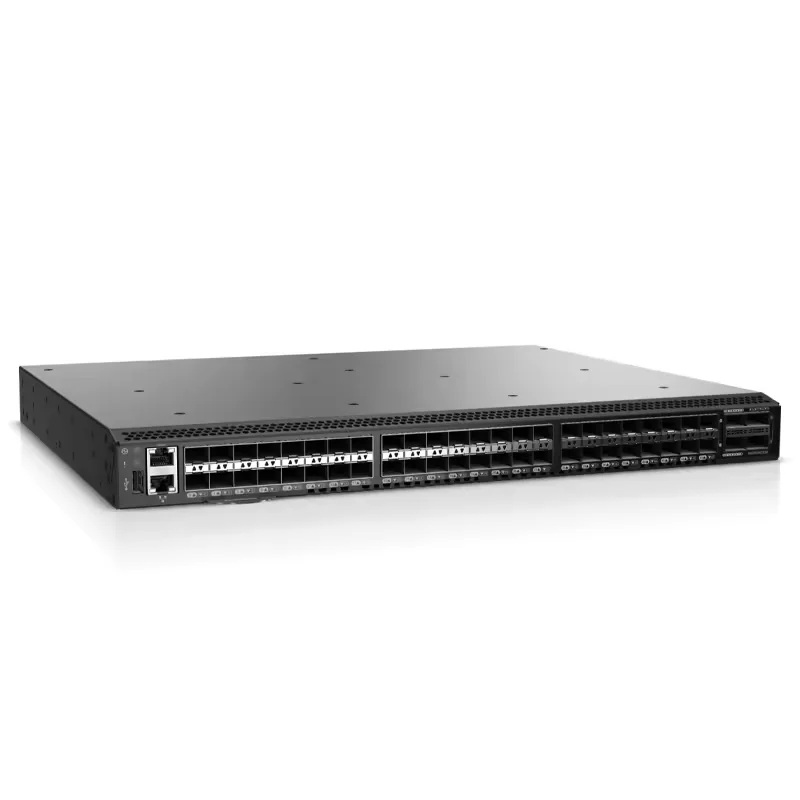

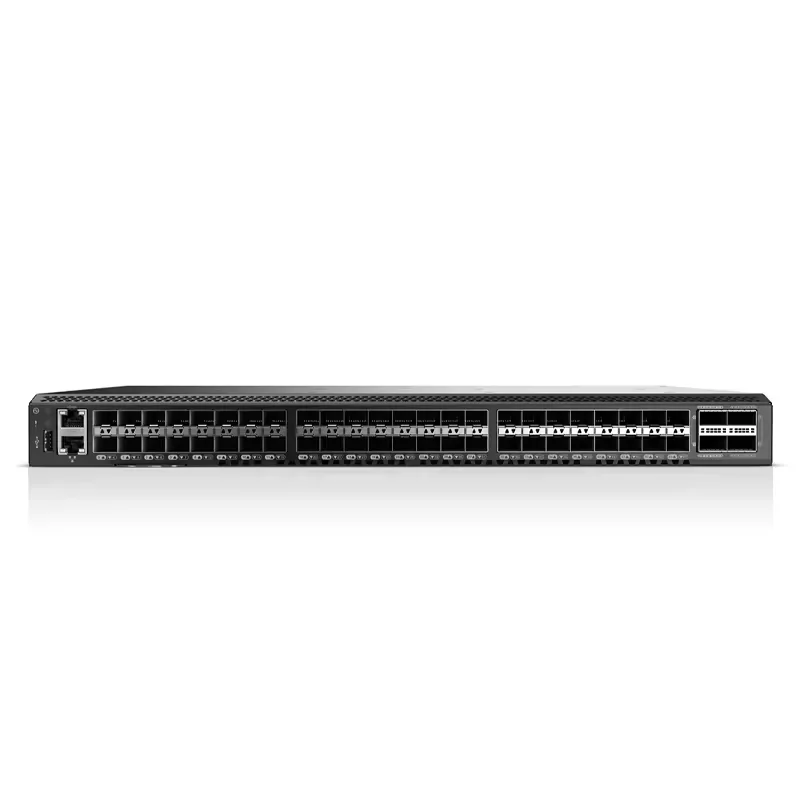

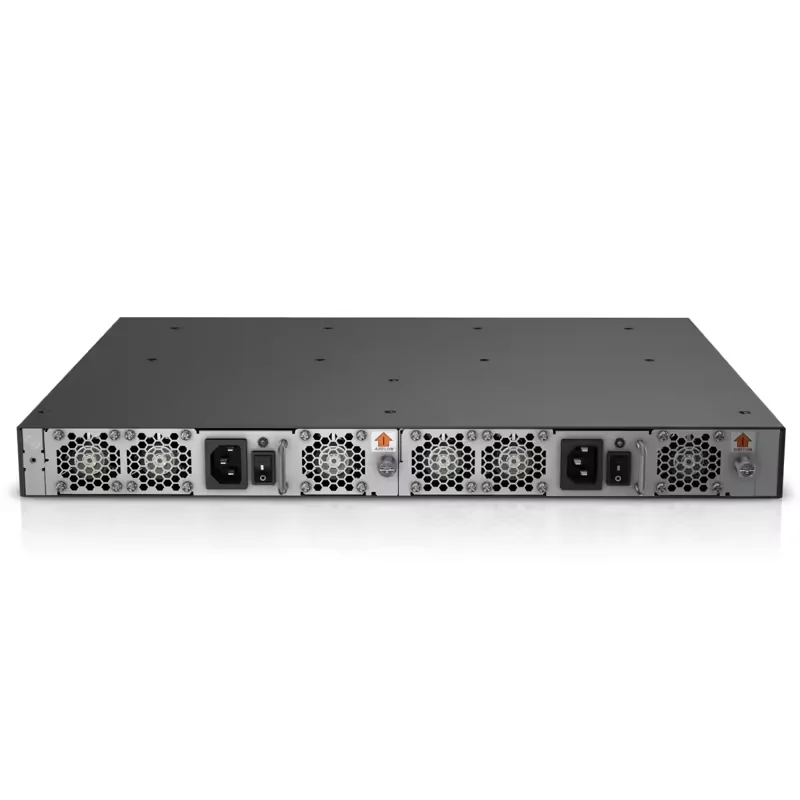

Brand New Thinksystem DB620s 32GB FC SAN Switch 48 SFP Optical Switch 64GB Memory Xeon Processor 3 Years Rack

Form factor

Standalone or 1U rack mount

Ports

48x SFP+ physical ports
4x QSFP+ physical ports
The number of ports that are activated is model dependent and can be upgraded with additional licenses

Media types

* 128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL)
* 4x 16 Gb FC QSFP+: SWL
* 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL)
* 16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL)
* 10 Gb FC SFP+: SWL, LWL

Port speeds

* 128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps
* 128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed
* 4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing
* 32 Gb FC SFP+: 32/16/8 Gbps auto-sensing
* 16 Gb FC SFP+: 16/8/4 Gbps auto-sensing
* 10 Gb FC SFP+: 10 Gbps fixed

FC port types

* Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, EX_Port (Requires an optional Integrated Routing License), D_Port
(Diagnostic Port)
* Access Gateway mode: F_Port and NPIV-enabled N_Port

Dimensions

Height: 44 mm (1.7 in.); width: 440 mm (17.3 in.); depth: 356 mm (14.0 in.)

Weight

Empty: 7.7 kg (17.0 lb); Fully configured: 8.5 kg (18.8 lb).
