Product Overview

Description

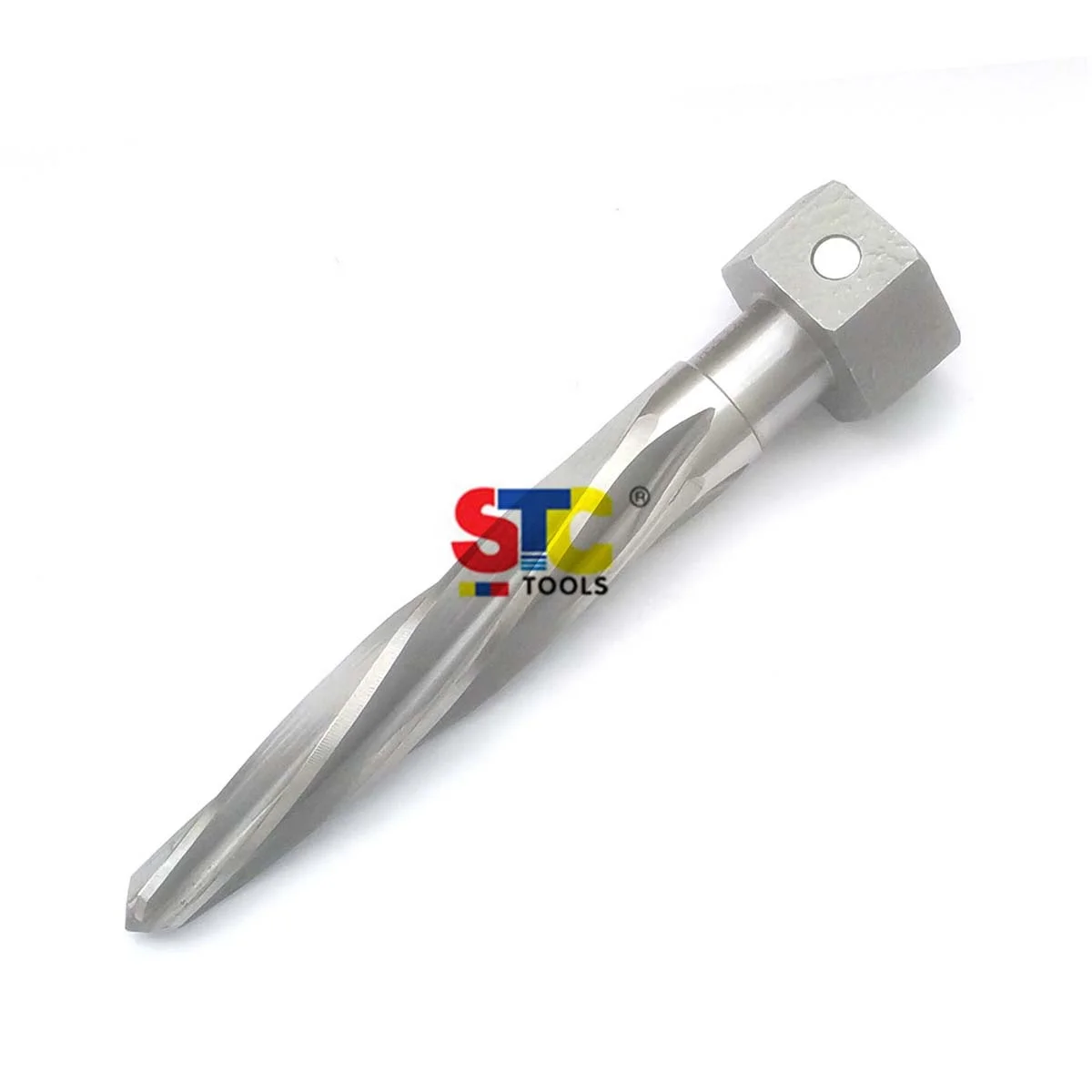

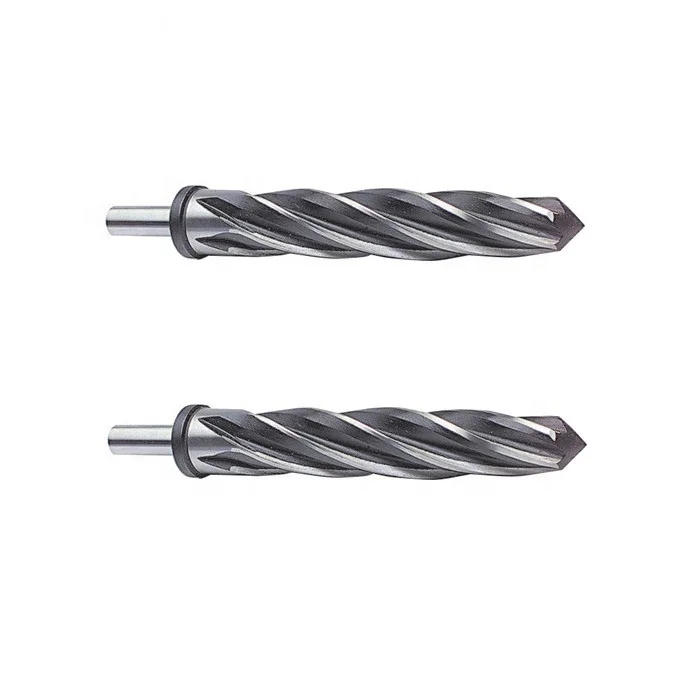

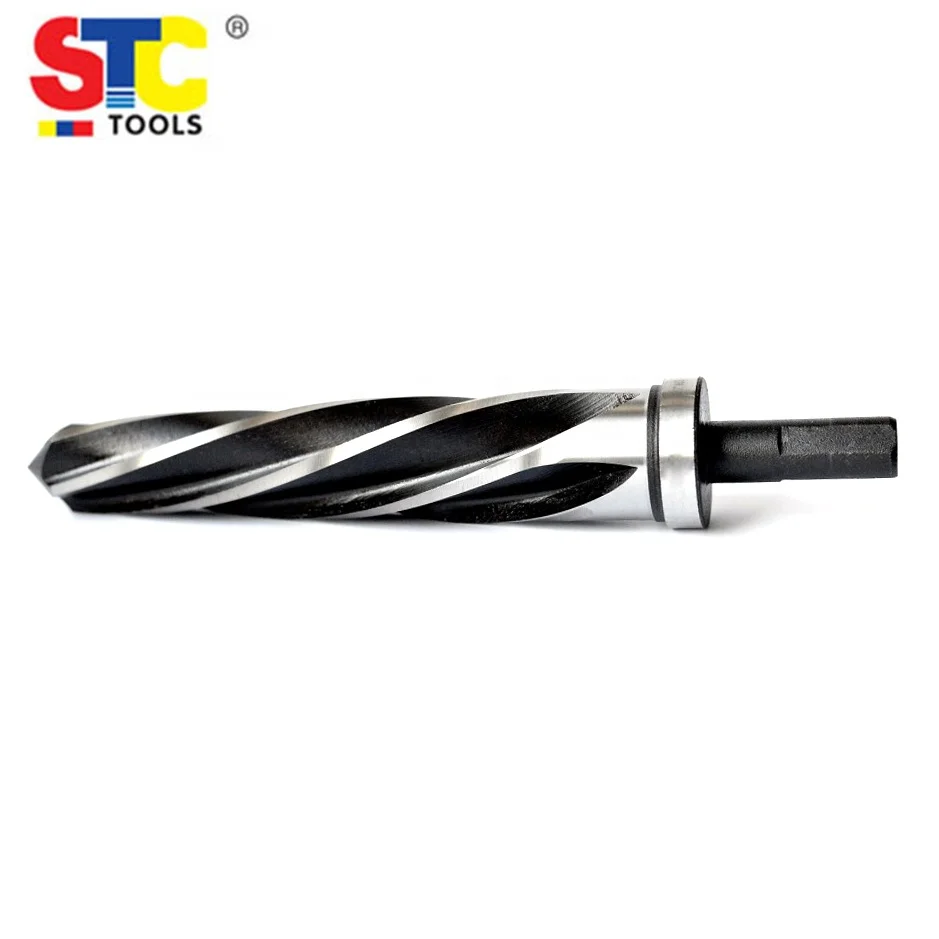

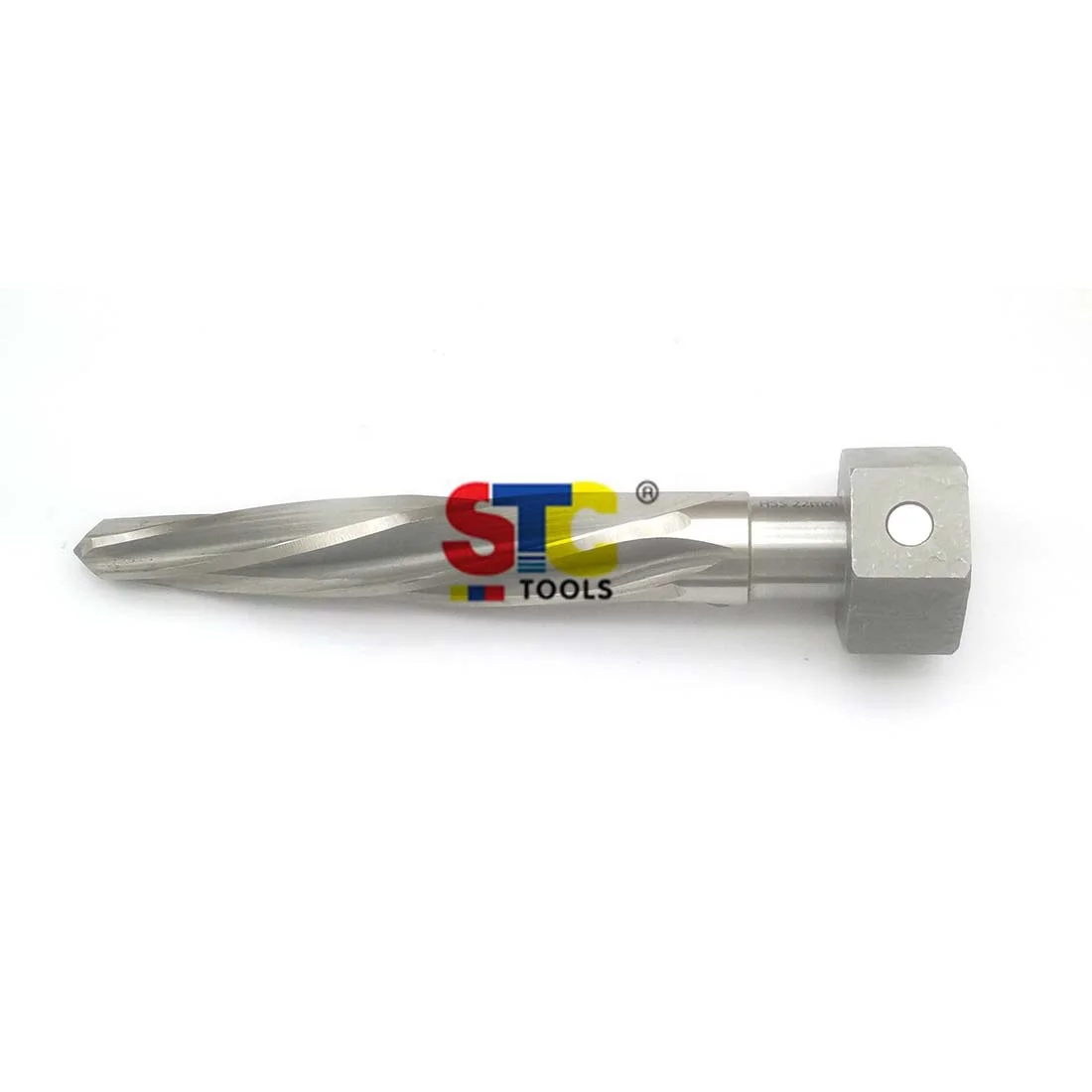

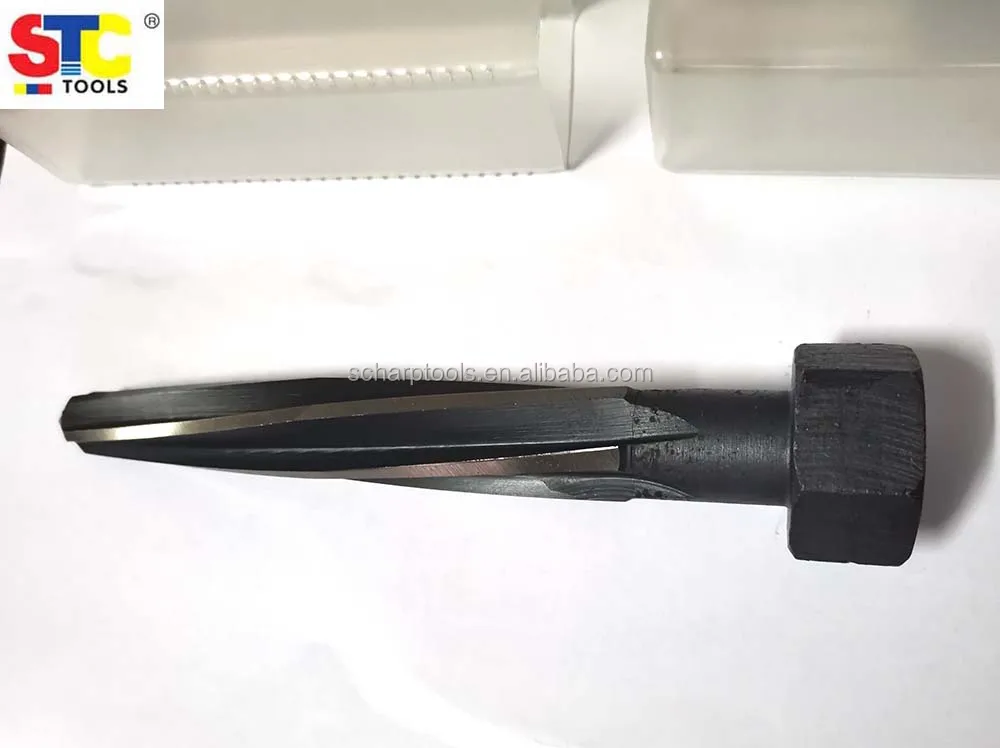

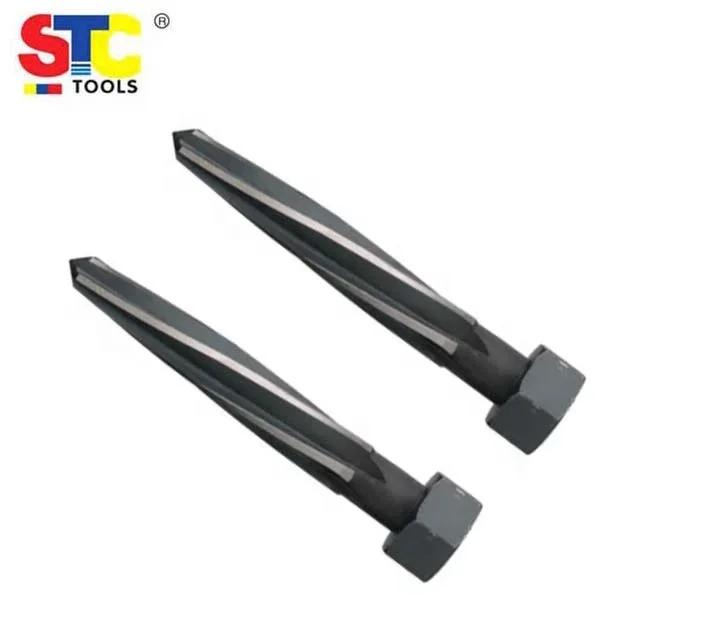

Spiral Flutes Aligning Car Reamers Magnetic Hex Shank Bridge/Construction Reamer



• Left Sprial Right Cutting


• The reamer has a machined hex shank for use in electric or pneumatic Impact Wrenches. The hex shank has strong magnetic, which is convenient for better matching with the socket.


• For aligning existing holes prior to bolt or rivet installation


• Point is tapered to permit entry into overlapping holes


• Heavy-duty hex shank designed for portable pneumatic tools.


• Reaming, True, Enlarge, Align and Debur Holes In Structural Steel Members Such As I-Beams, Angles, Channels And Plates

Size	Flute Length	No. of Flutes	OAL	Hex Shank Dia
9/16	4	5	5-1/2	1-1/16
11/16	4-1/2	5	6-3/8	1-1/16
13/16	5	5	7	1-1/4
15/16	5	5	7	1-7/16
1-1/16	5	5	7	1-5/8
1-3/16	5	5	7	1-13/16
1-5/16	5	5	7-7/8	2
