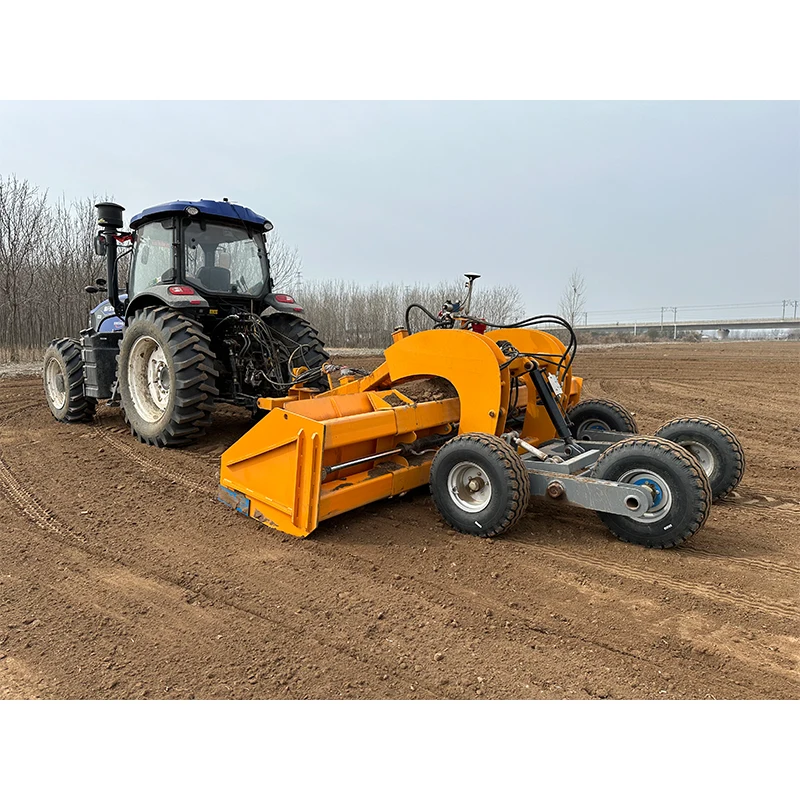

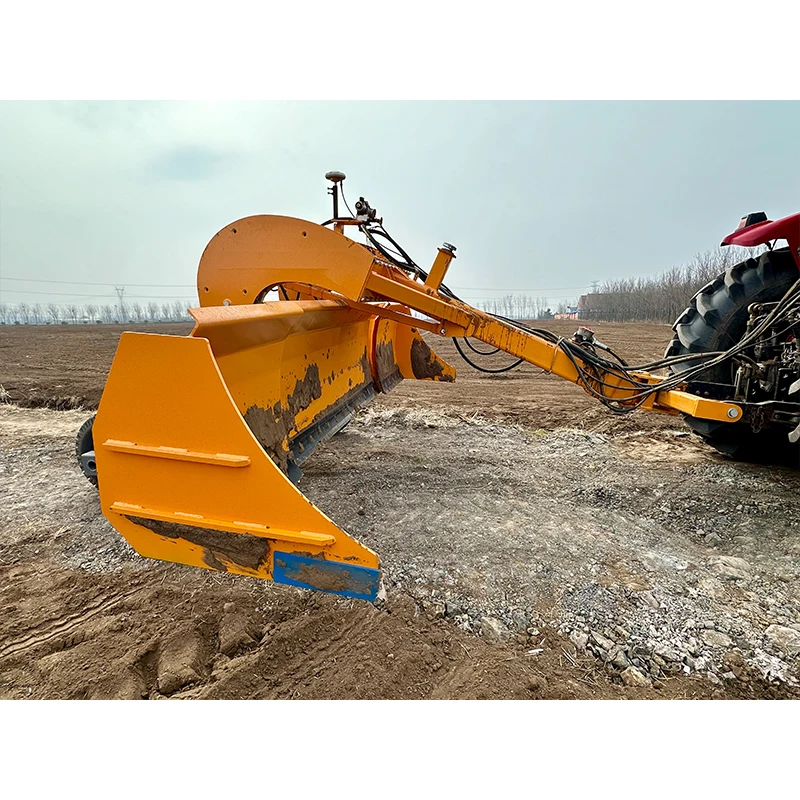

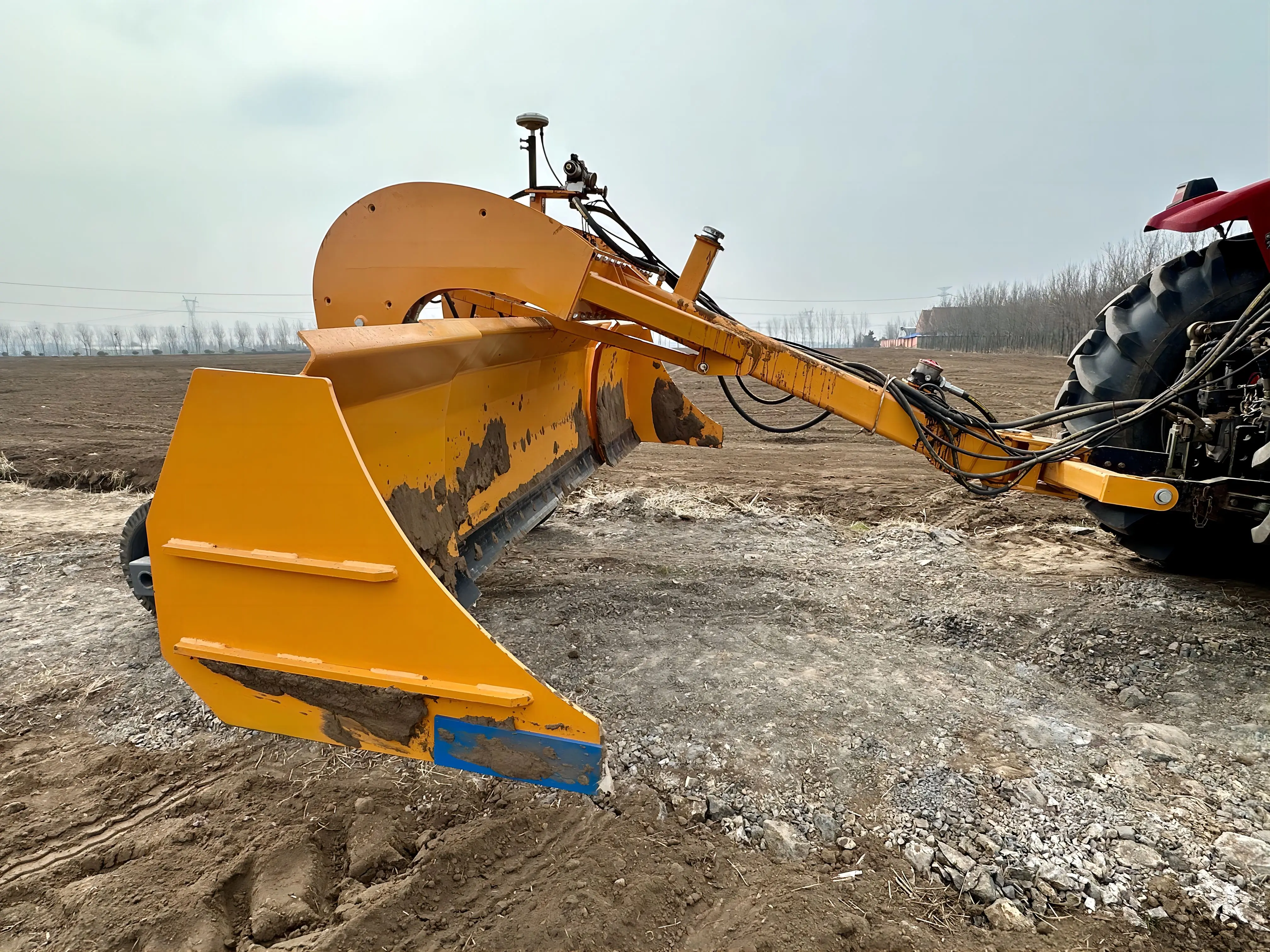

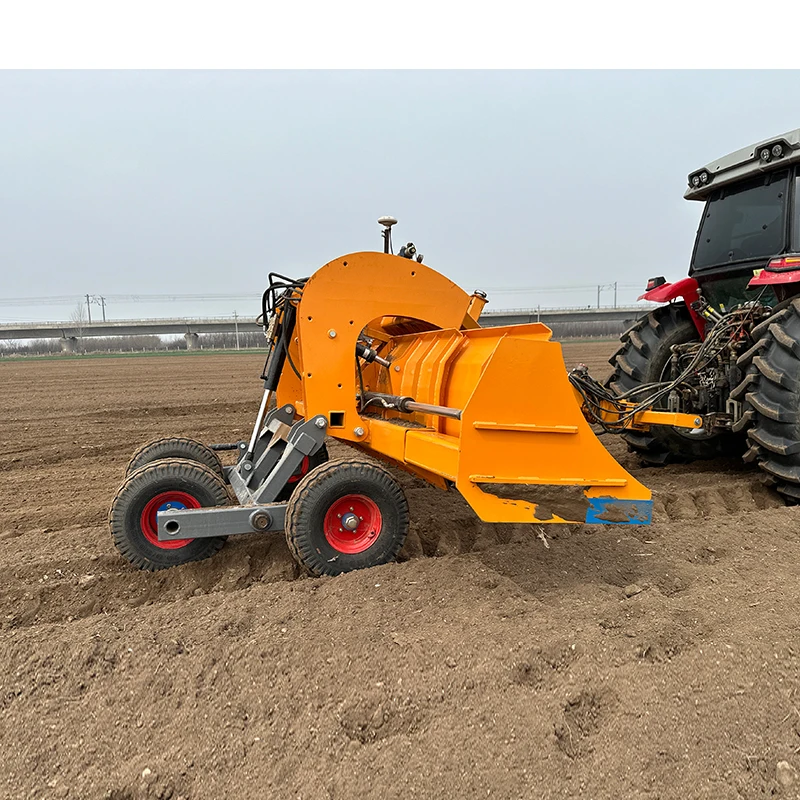

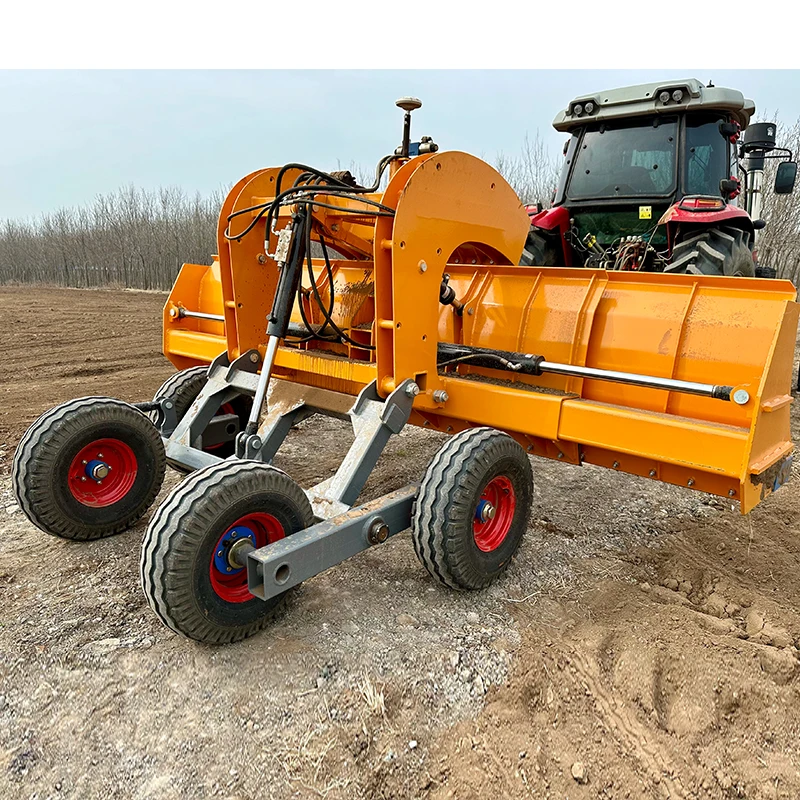

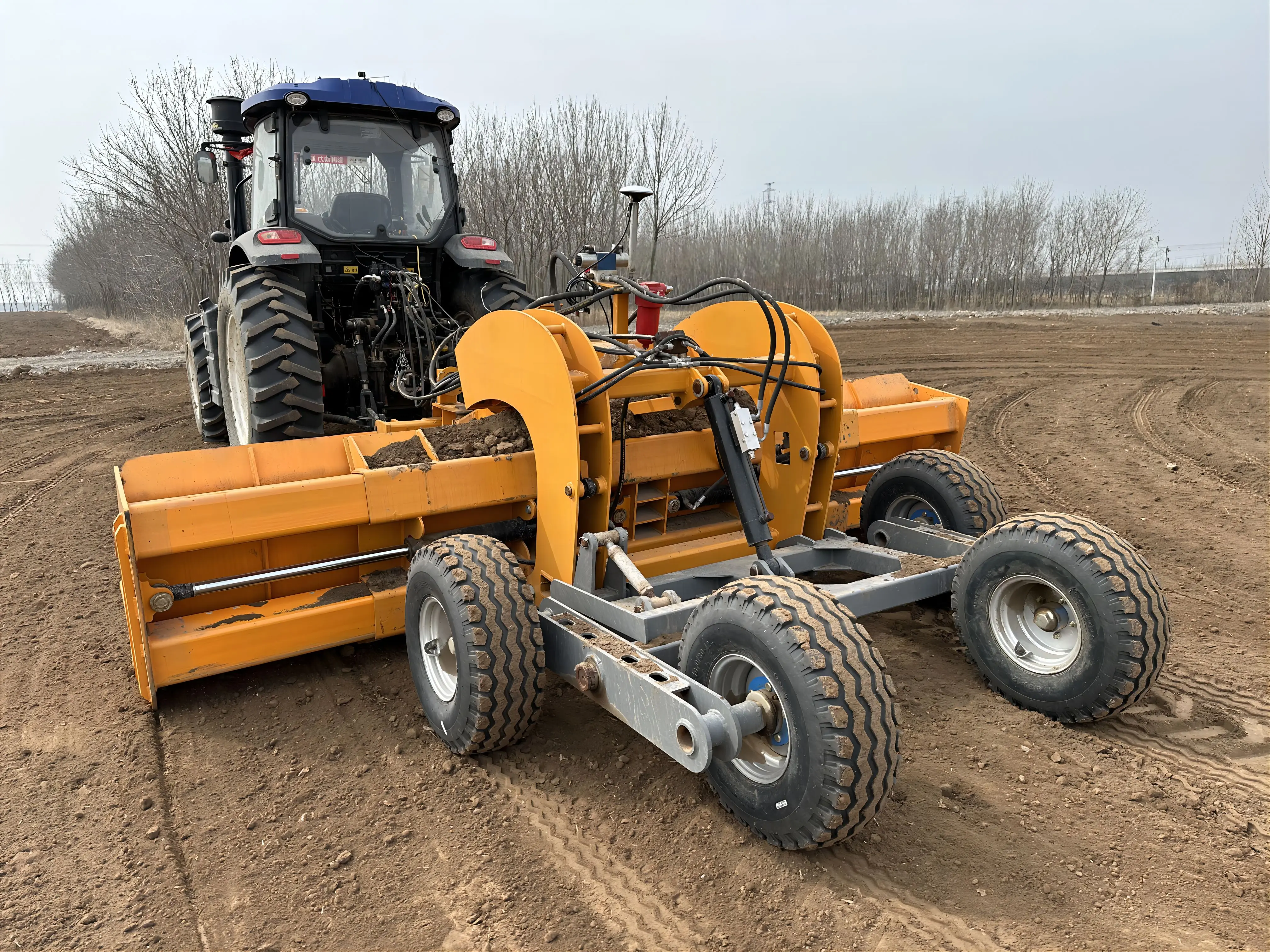

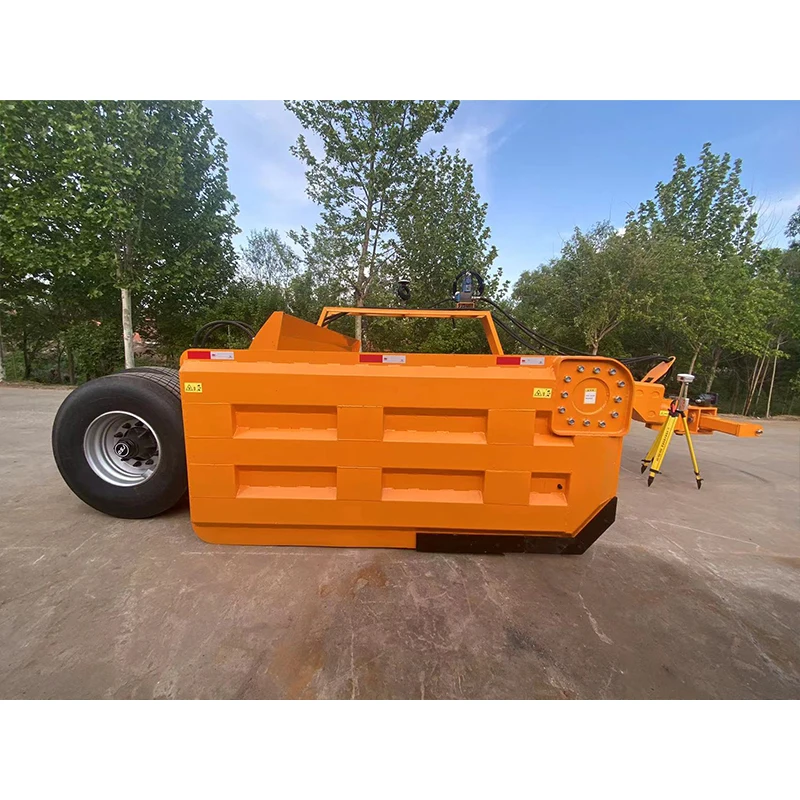

Laser Grader Laser land leveler Farm land leveling scraper machine for sale Agricultural grader
- Category: >>>
- Supplier: Jiangsu Jitian International Trade Co. Ltd.
Share on (1601200767022):
Product Overview
Description
Products Description
Use advantages
1、Save water, laser land leveling can make the ground flatness error reaches ±2cm, which than ordinary irrigation and can save 20%or more.
2、Save the land with the precision of laser technology plains, which can reduce water ridge area
2、Save the land with the precision of laser technology plains, which can reduce water ridge area
of 3%-5% so that the land canbe fully utilized.
3、Since the formation of land well, very uniform distribution of fertilizer, fertilizer loss less, so fertilizer use efficiency can be increased by 20%.
4、Reduce costs, the implementation of this technology can reduce the cost of crop production.
4、Reduce costs, the implementation of this technology can reduce the cost of crop production.

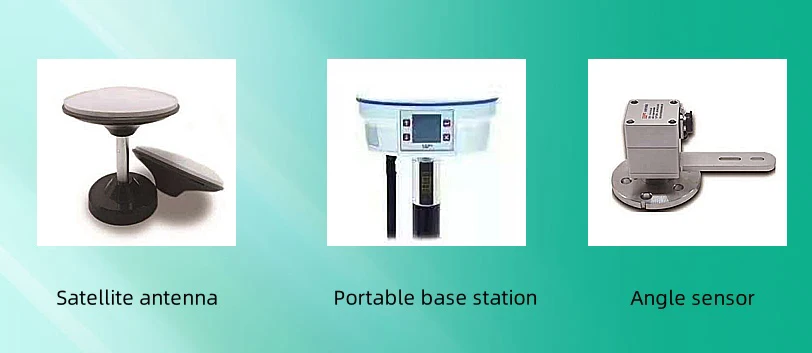

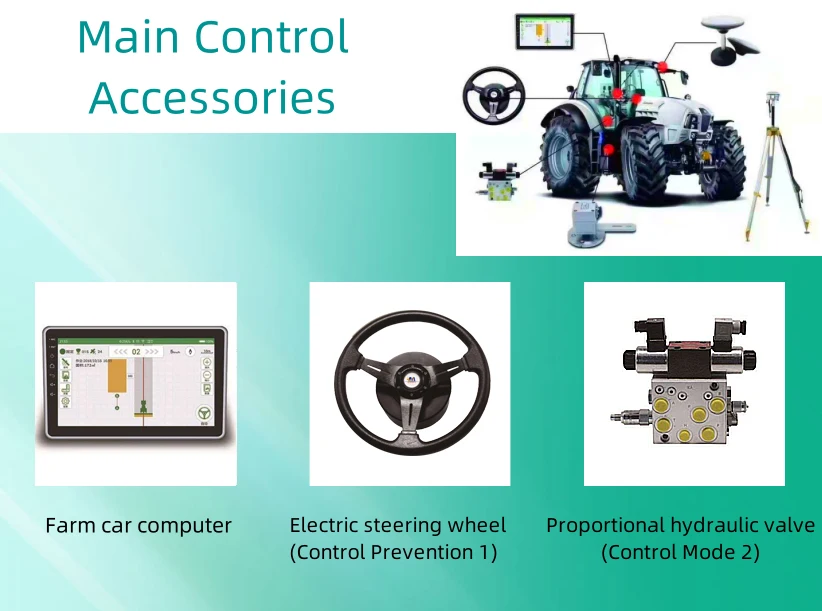

Main Parts
Principle

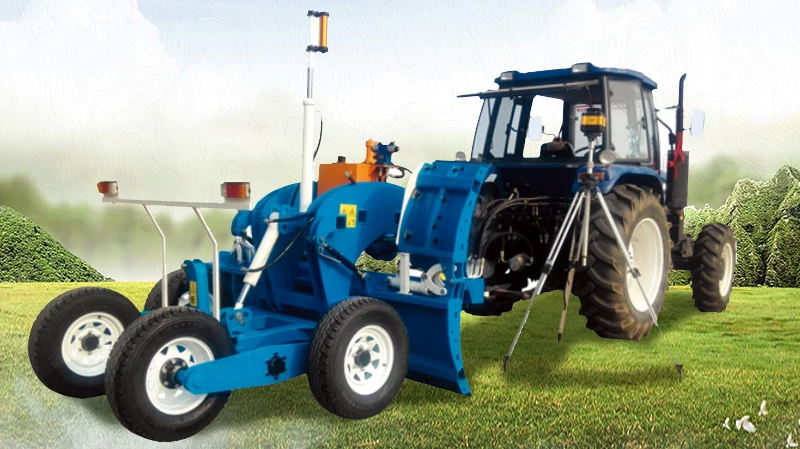

The laser transmitter emits a rotating beam to form a light plane on the operation plot. This smooth plane is the reference plane for leveling the land, and the smooth plane can be flat or inclined. The laser receiver is mounted on the scraper telescopic pole.When the receiver detects the laser signal, it continuously sends the signal to the control box. After the control box receives the signal, it will be corrected, and the corrected signal will control the hydraulic valve to change the flow direction and flow of hydraulic oil to the cylinder, and automatically control the height of the scraper.

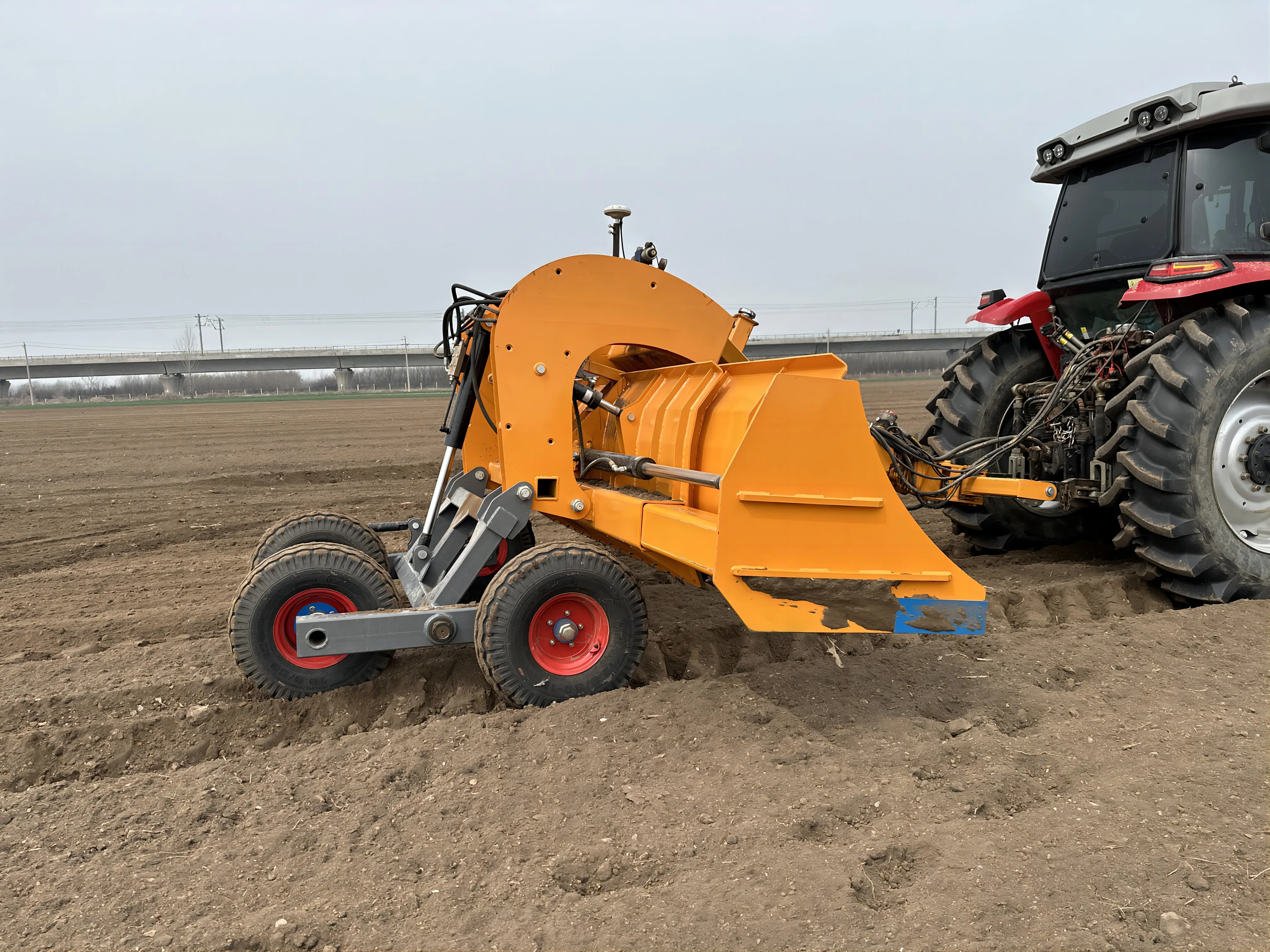

Product application
It is mainly used for field and flat operation in dry land, which is conducive to saving irrigation water, increasing yield, improving fertilizer utilization rate, land utilization rate, land leveling efficiency and realizing high-precision land leveling operation.

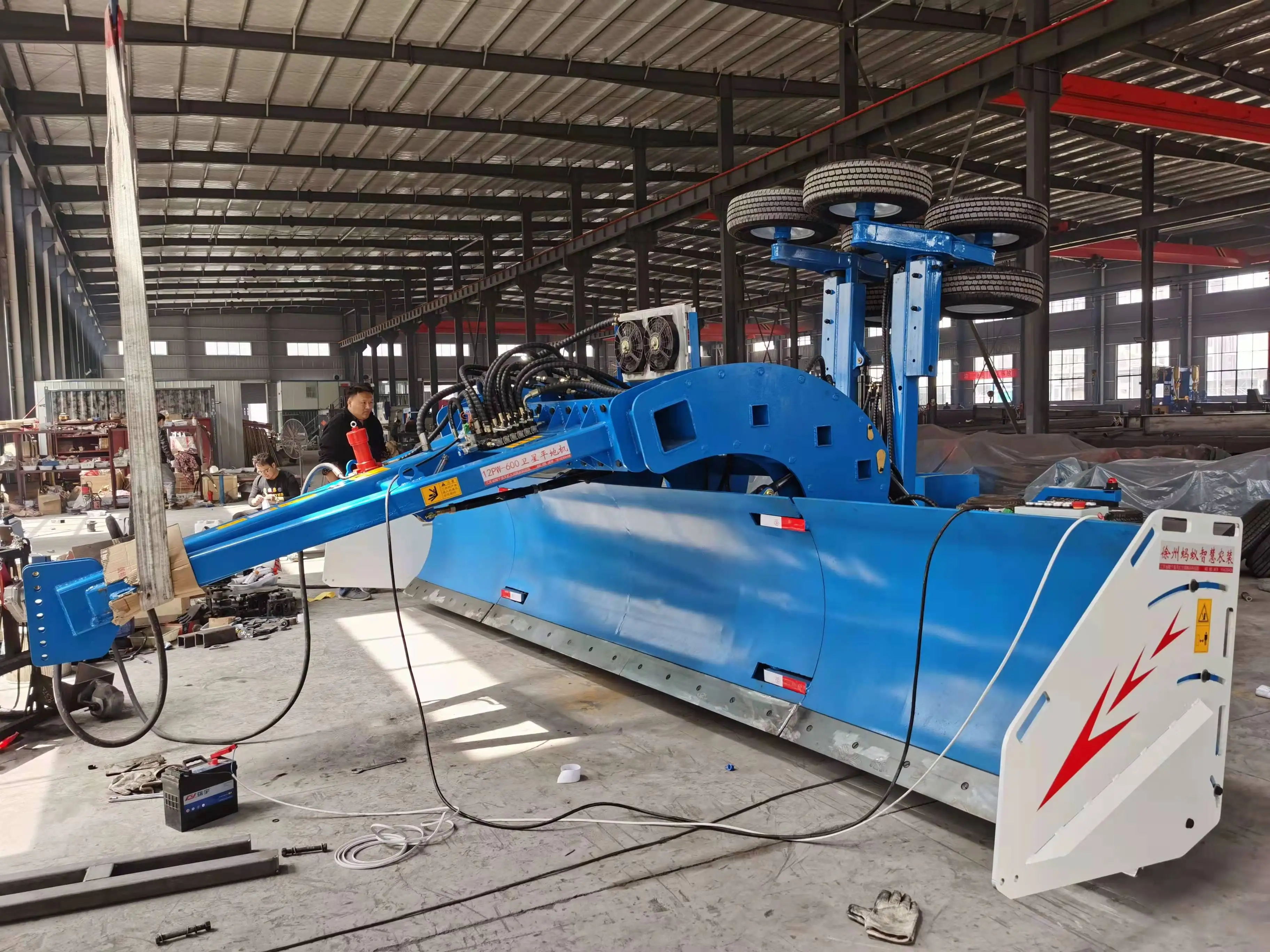

Manufacturing Technique

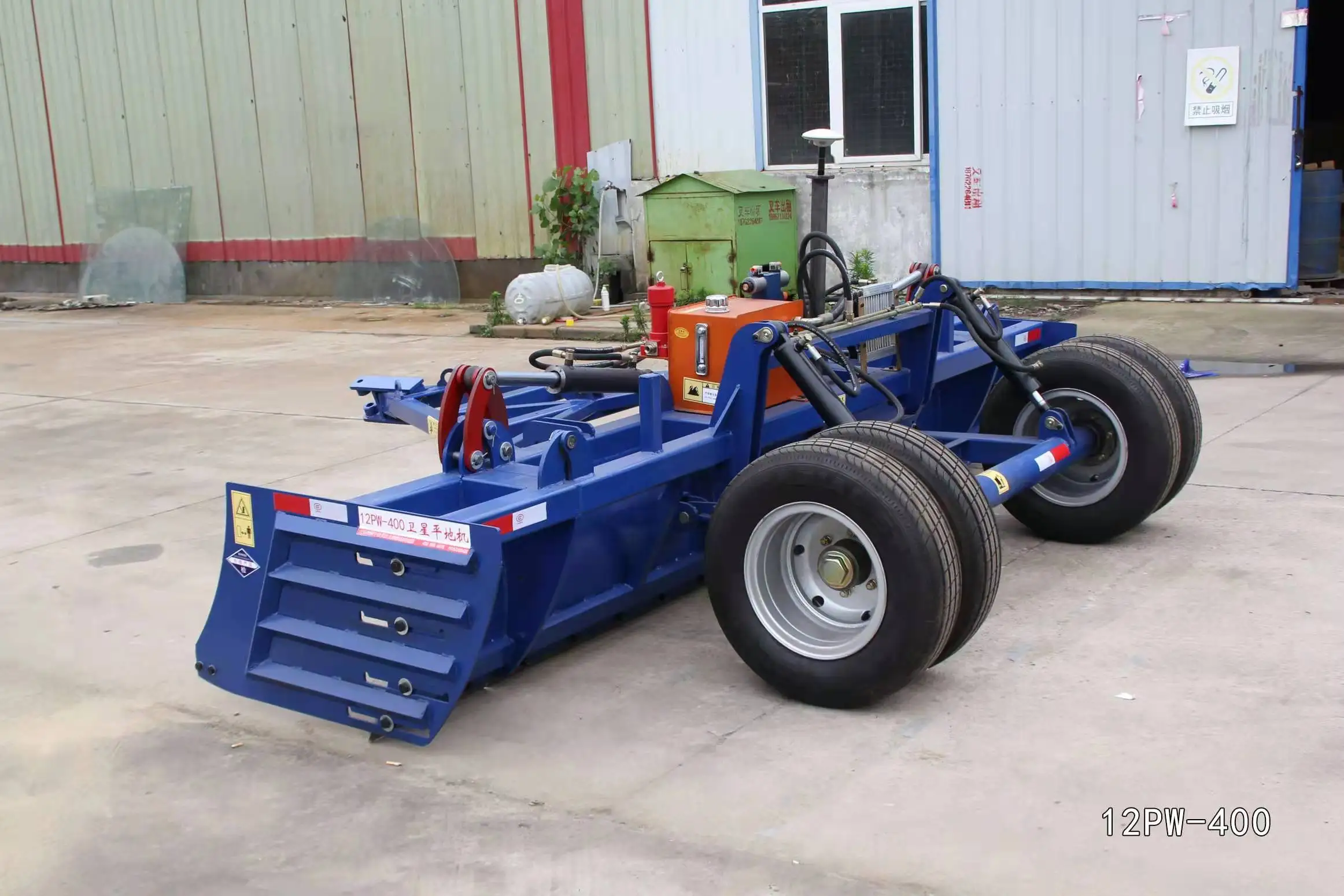

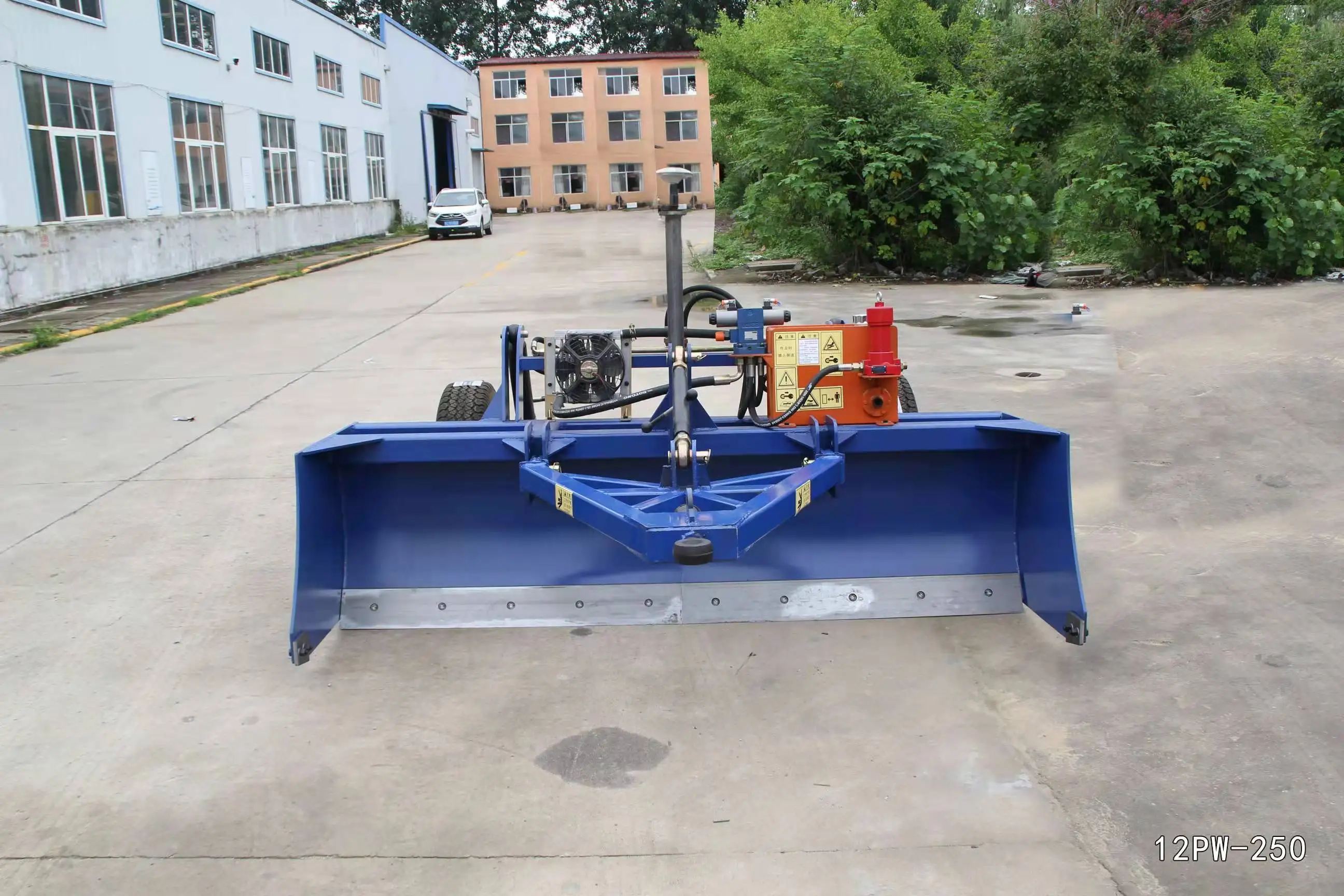

12PW series satellite motor grader technical parameter table | ||||||||||||
model | 12PW-200 | 12PW-250 | 12PW-300 | 12PW-350 | 12P-400 | |||||||
Working width (mm) | 2000 | 2500 | 3000 | 3500 | 4000 | |||||||
Supporting power(kw) | 45-55 | 55-65 | 65-88 | 88-120 | >120 | |||||||
work efficiency | 1.0-1. 4 | 1. 3-1. 8 | 1. 6-2. 0 | 1.9-2. 3 | 2. 1 ~ 2. 5 | |||||||
Working speed (km/h) | 5 ~ 15 | |||||||||||
work plan(mm) | 500 | |||||||||||
Maximum immersion depth | 240 | |||||||||||
Auto level angle(°） | ±5 | |||||||||||
Signal reception angle（°） | 360 | |||||||||||
Flatness (mm) | ±15 | |||||||||||
Moldboard lifting speed (mm/s) | Rise≥50 | |||||||||||
drop≥60 | ||||||||||||
Cylinder settlement (m/h) | ≤12 | |||||||||||
Working inclination | 10±2 | |||||||||||
hydraulic oil pressure(MPa) | 12±0.5 | |||||||||||
structure type | traction type | |||||||||||
ambient temperature(℃） | 5~40 | |||||||||||
Overall dimension length | long（mm) | 2800 | 3000 | 3150 | 3150 | 3200 | ||||||
width(mm) | 2050 | 2650 | 3050 | 3550 | 4050 | |||||||
high(mm) | 3600 | 3600 | 3600 | 3600 | 3600 | |||||||
weight(kg) | 800 | 1000 | 1300 | 1500 | 2000 | |||||||
Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees. At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute ofTechnology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.

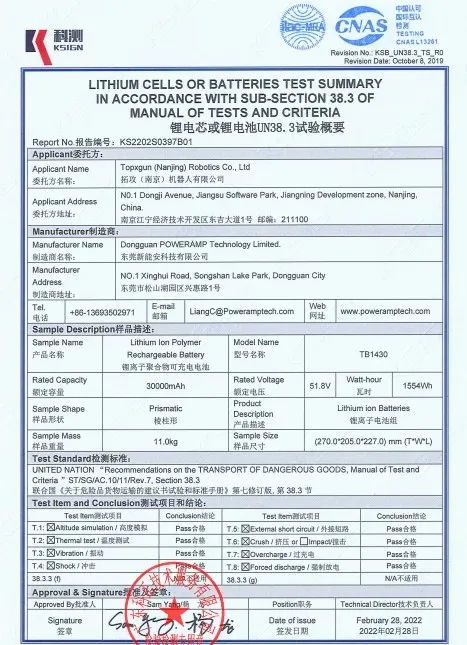

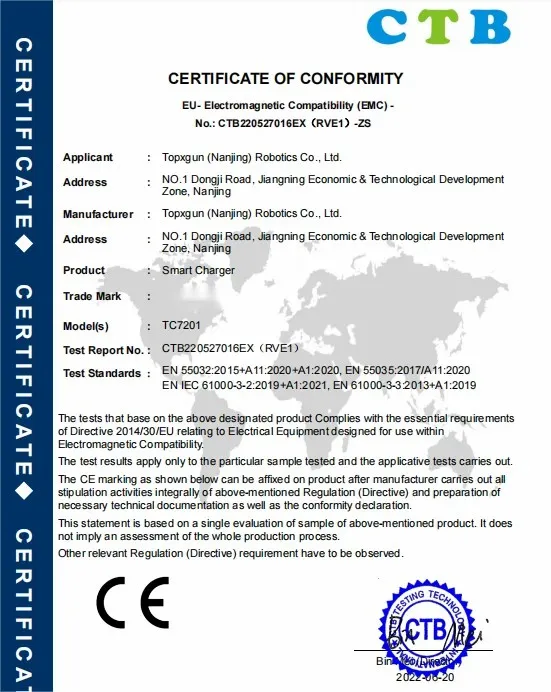

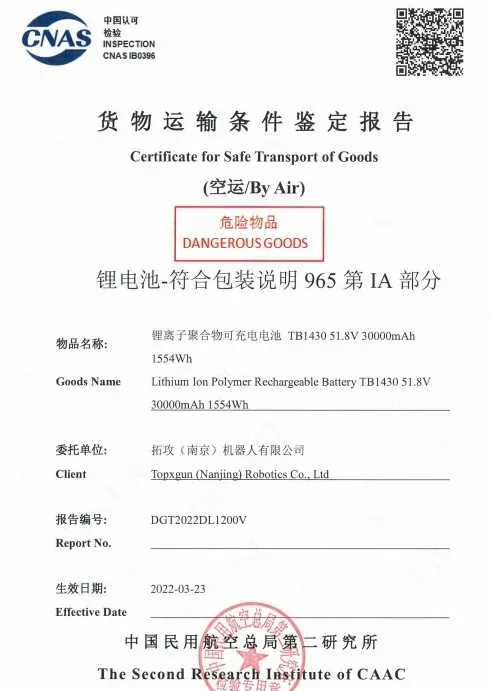

Certifications
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(30.00%),Eastern Asia(15.00%),NorthAmerica(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
3.What can you buy from us?
Tractor,Generator Set,Diesel Engine,Feed Machinery,Reel Irrigation
4. Why should you buy from us not from other suppliers?
Member of China Agricultural Machinery Circulation Association, Member of Jiangsu Agricultural Machinery Circulation Association,
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
